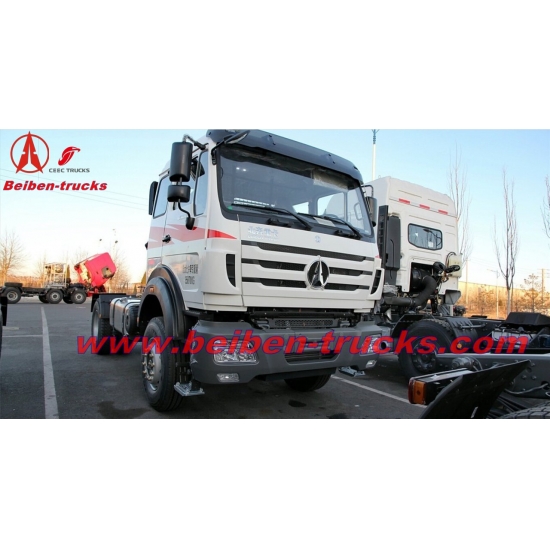

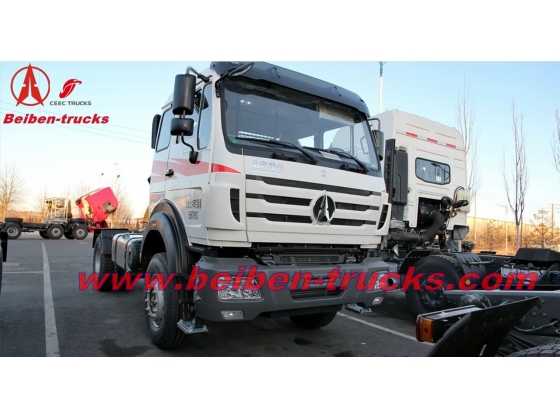

Beiben V3 380hp CNG tractor truck
Beiben V3 CNG tractor truck for sale Benz technology military quality
Engine: WP12NG380E40
Weichai brand, turbocharged inter cooling, water cooled, 6 cylinders in line, Euro IV
Displacement: 11.596L
Max. Power: 380hp/2200rpm
Max. Torque: 1500N.m/1400-1600r/min
Bore x Stroke: 126x155mm
Transmission: 12JSD200TA/16JS240TA
Steering: ZF8098 hydraulic steering with power assistance
Frame: Fish belly shape, variable width, variable sections
Suspension system |
Front |
Non-free standing leaf spring,telescopic shock absorber with stabilizer bar suspension , 13pcs |
Rear |
Non-free standing stabilization spring, balance suspension system, 13pcs |
Clutch: #430, Single dry frictional disc, Hydraulic boosting
Front axle: (Mercedes Benz Technology) 7.5Ton Double-shoe pneumatic brake, non-driving steering axle
Rear axle: (Mercedes Benz Technology): 13Ton, Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle
Cab: V3 Long-high roof cabin with double sleepers. Full steel skeleton structure, covered with double layer steel plate; Can be tipped forwardly; High back seat for driver; Electric lifting window. With inner A/C
Electrical system: Battery 2x12V/135Ah
Generator 28V-35A
Starter 5.4Kw/24V
CNG Bottles: 150Lx8 stainless steel
Brake system:
Brake system |
Service brake |
Brake gap can be adjusted automatically, double circulation air brake system |
Assistant brake |
Engine exhaust brake |
|
Park brake |
Potential springs pressing on middle and rear wheels |
