Beiben V3 6x4 430hp Tractors Used Cheap price

Product Details

1.North Benz BEIBEN tractor truck
2.Mercedez-benz technology
3.480hp WEICHAI engine
4.FAST transmission
5.Military axles



Beiben V3 6x4 430hp Tractors Used Cheap price

  We are the most professional supplier on beiben V3 tractor trucks, beiben V3 2534, 2538,2540,2542,2548 tractor trucks. The best full solution for customer logistic solutions on north benz V3 tractor trucks.

  Our beiben V3 tractor trucks are ideal versions instead of imported benz actors. With outstanding performance and high quality, . Now our beiben V3 trucks are sold to the worldwide countries and areas, such as Kenya, Ethiopia, Libya, Turkmenistan, Kazakhstan, South Africa, Syria, and so forth.


Dimension

6100*2500*3600mm

Approaching angle/Departure angle

16/43°

Overhang(front/rear)

1515/1085mm

Wheel base

3500mm

Max speed

110km/h

Curb weight

5800kg

Standard towing weight

34260kg

Max loading on fifth wheel, Permitted(kg)

12070kg

Slope climbing capability

Max.40%

Engine

Model

WP12.375E50water-cooledfour strokes6 cylinders in lineturbocharged, directly injection

Displacement

11.596L/Diesel

Stroke

126/155mm

Max. power

276/1900 (kw/rpm)(375 HP)

Max.torque

1800/1000-1400Nm/rpm

Emission stantard

EuroV with OBD

Fuel tanker capacity

300L

Clutch

430, Single dry frictional discHydraulic boosting.WABCO Clutch

Gearbox

12JS200T, mechanism,12forward gears,2 reverse gear, manual operated

Gear ratio of gear box

15.53/12.08/9.39/7.33/5.73/4.46/3.48/2.71/2.1/1.64/1.28/1.00 R: 14.86 3.33

Suspension system

Front

Non-free standing leaf spring,telescopic shock absorber with stablizer bar suspension

Rear

Non-free standing stablization spring, balance suspension system

Brake system

Service brake

Brake gap can be adjusted automatically, double circulation air brake system

Assistant brake

Engine exhaust brake

Park brake

Potential springs pressing on middle and rear wheels

Steering system

D50,whole circulation in ball, hydraulic booster

Frame

Fish belly shape, variable width, variable sections

The Fifth wheel

Model

JOST 90 single direction

Height of fifth wheel(mm) (unload)

1410

Radius of front gap (mm)

2300

Radius of rear slew (mm)

2600

Front axle (Mercedes Technology)

Double-shoe pneumatic brake, non-driving steering axle

Middle and Rear axle (Mercedes Technology)

Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle

Tyre

315/80R22.5

Electrical system

Battery

2X12V/135Ah

Generator

28V-35A

Starter

5.4Kw/24V

Cabin

V3 Long-high roof cabin with double sleepers
Full steel skeleton structure, covered with double layer steel plate;
Can be tipped forwardly;
High back seat for driver;Electric lifting window ;
With inner A/C



The most professinal supplier on Beiben V3 tractor trucks, CEEC TRUCKS , For your Success.

beiben tractor truck for congo customer

beiben tractor truck for congo customer

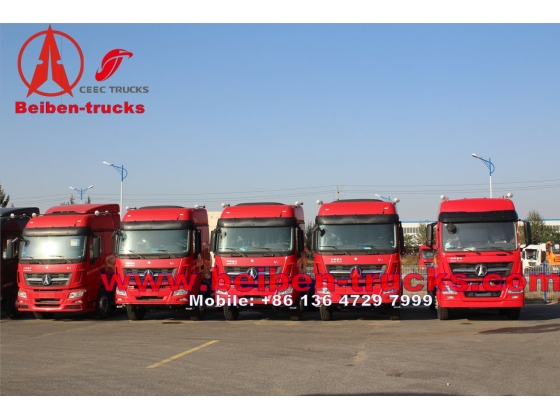

Beiben V3 tractor trucks

Beiben V3 tractor truck

Model Engine Model Rated Power Payload Driving Mode
Beiben 2542 WP10.420 420 Hp 50 Ton 6*4
Beiben 2548 WP12.480 480 Hp 80 Ton 6*4
Beiben 2534 WP10.340E32 340 Hp 40 Ton 6*4
Beiben 2542 WP12.420E32 420 Hp 55 Ton 6*4
Beiben 2538 WP10.380E32 380 Hp 45 Ton 6*4

PreviousMercedes benz Technology Beiben 6x4 tractor truck

NextBeiben Trailer Truck Euro III Truck 430hp Tractor Truck
