Beiben concrete pump truck

Product Details

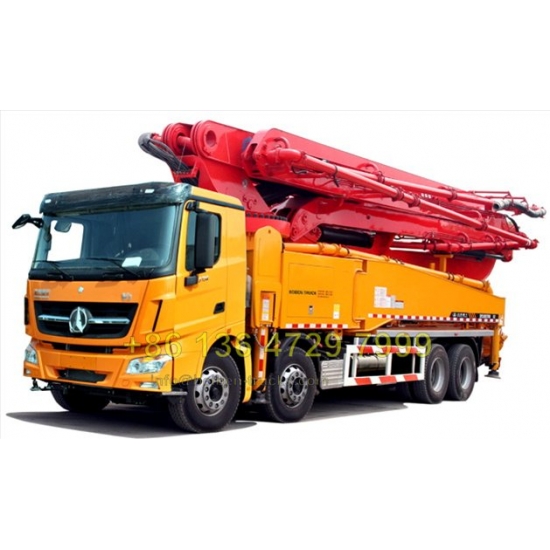

Beiben V3 concrete pump truck manufacturer in china

Best beiben V3 pump truck manufacturer, more than 10 years experience in producing beiben 37 M concrete pump truck, beiben 44 M concrete pump truck, beiben 60 M pump truck. we can provide beiben original spare parts for beiben V3 truck chassis and beiben NG80B truck chassis.

Beiben dump truck for africa congo

We are the most professional Beiben concrete pump truck manufacturer in china, can produce beiben 27M concrete pump truck, concrete 35 m concrete pump truck, beiben 55 M concrete pump truck.

Currently , CEEC TRUCKS plant have sucessfully supplied with north benz boom trucks to more than 40 countries. The whole solution for beiben pump trucks is avaibe in our plant.

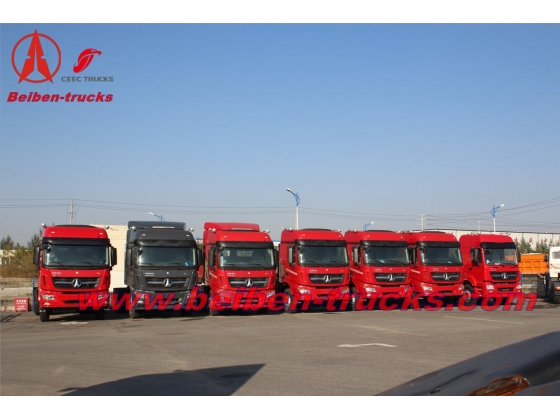

Beiben V3 tractor trucks supplier

beiben pump truck

Technical Parameters
Brand BEIBEN  concrete pump TRUCK
Vehicle model 2534PU
Cabin Full steel skeleton structure, covered with double layer steel plate
Anticorrosion treatment processes complex, anti-corrosion, durability of sustainable vehicles
Long with single sleeper, made by full steel material, anti-crash performance can be ensured by double hollow chamber structure, can be tipped forwardly
Persons in cab: 3
Driving 6×4
Wheel base (mm) 4450+1450
Engine Model Brand WeiChai WD12.336 / Diesel, Straight in linewater-cooledturbocharged, intercooled, 6 cylinders,
Power 340HP
Emission EUROII
Rated power(kw/rpm) 247Kw/2200rpm
Transmission FAST GEAR Model:RT11509C 12-forward &2-reverse gears
Clutch GFX420, single disc, dry type, diaphragm spring
Frame BeiBen Unique frame, Mercedes-Benz technology, Strengthened frame
Fish belly, various width, various sections, side beam structure
Axle Front: Mercedes Benz Technology, 7.5 ton, non-driving steering axle
Middle/Rear: Mercedes Benz Technology, 13 Ton, ductile casting casing, with hub redactor, double reduction driving axle
Suspension Non-free standing stabilization spring, hydraulic shock absorber stabilization suspension
Steering ZF8098 (Original ZF technology)
Wheels and tyre size 10+1/12.00-R20
Fuel tank (L) 300L
Dimension unloaded   (Lx W xH) 12000×2500×3930mm
Colour Metal White, multi-colored options
Pump specification

Max transport capacity

120M3/N
Max pump transport pressure 61BAR
Max hydraulic pressure: 320BAR
Arm horizontal distance 32.7
Max height: 37m

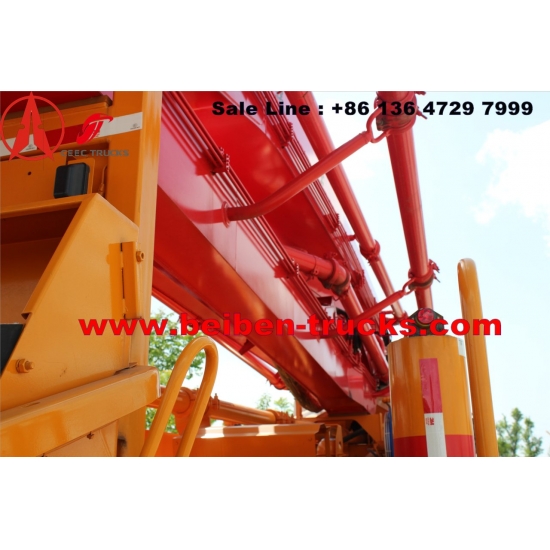

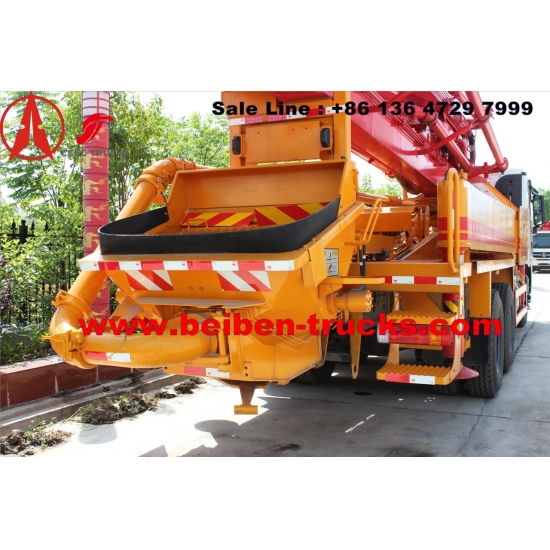

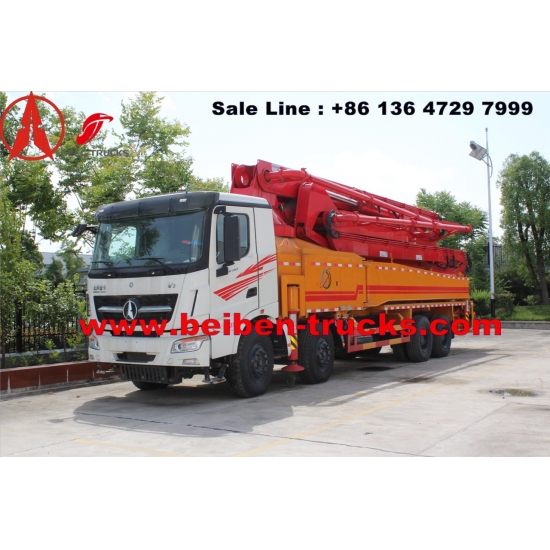

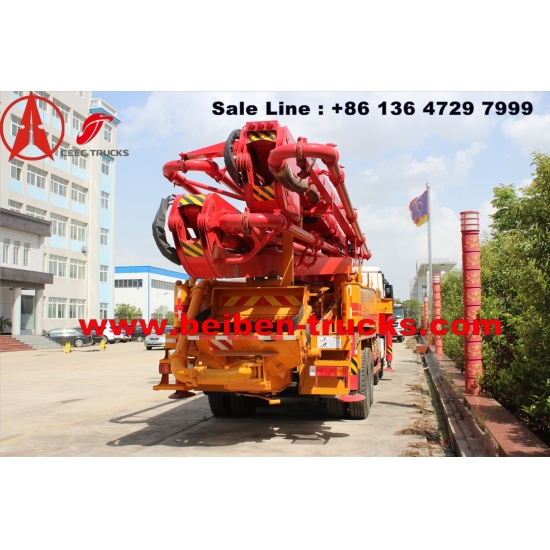

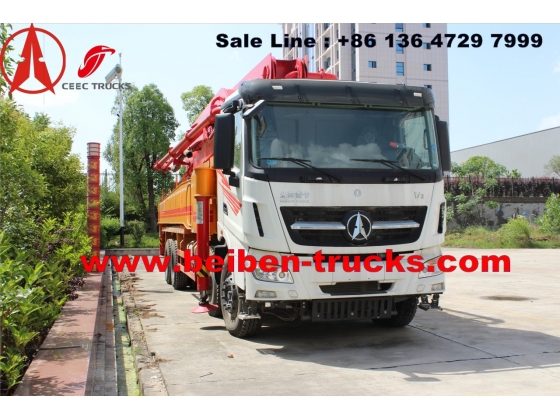

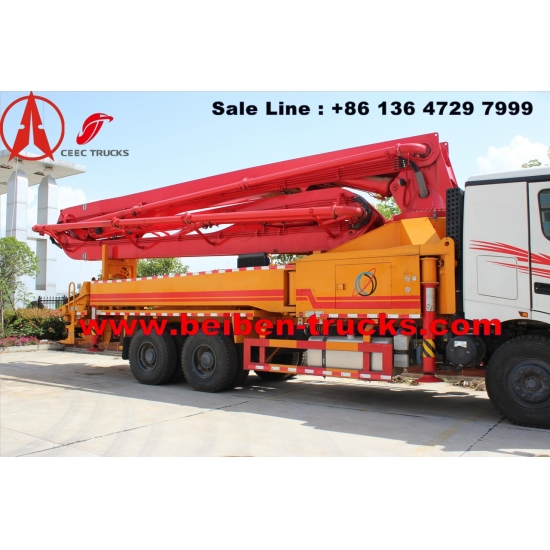

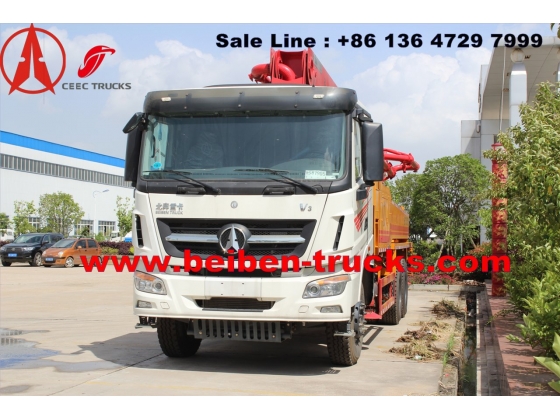

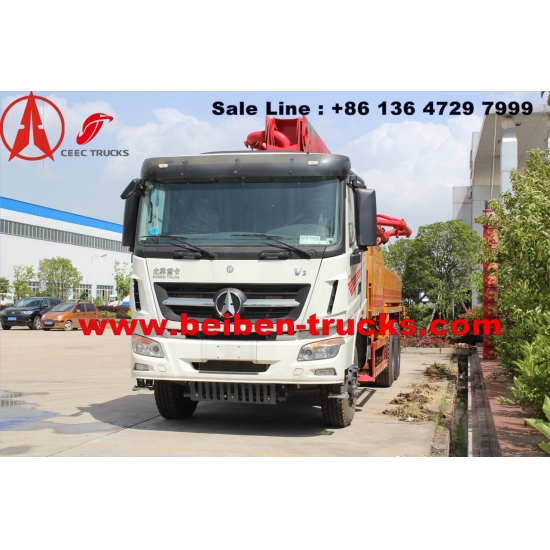

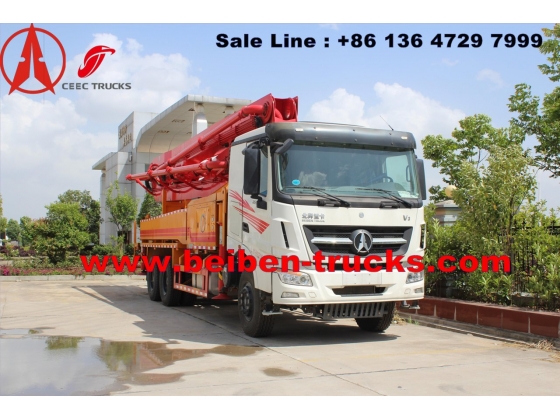

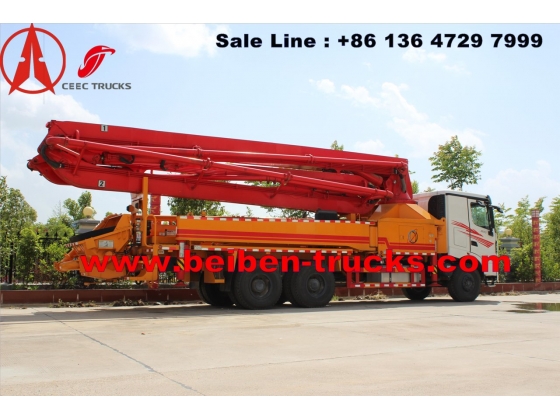

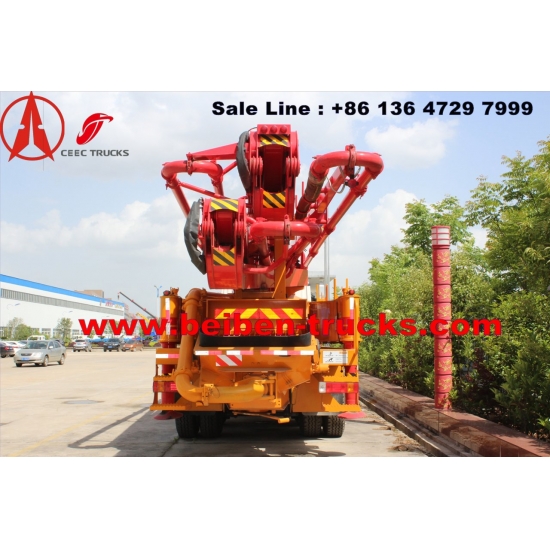

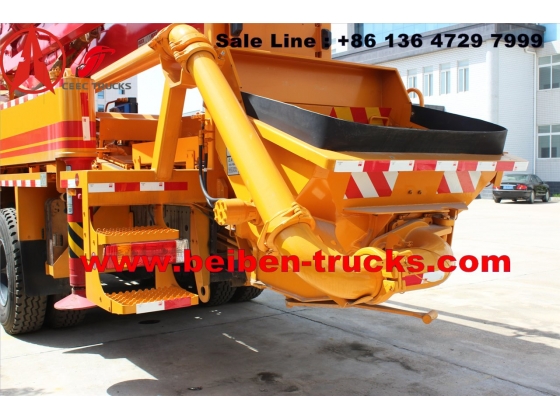

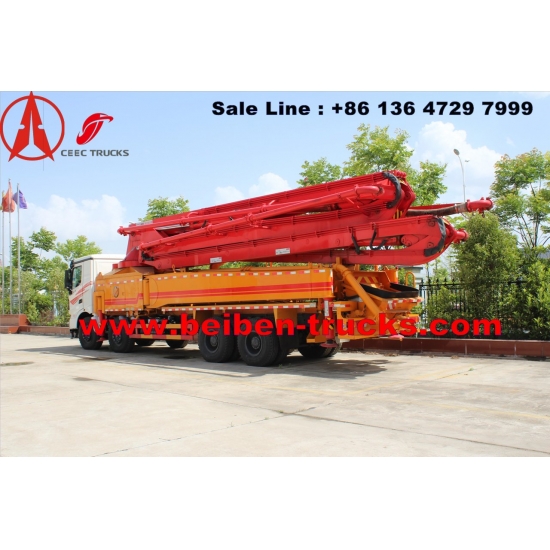

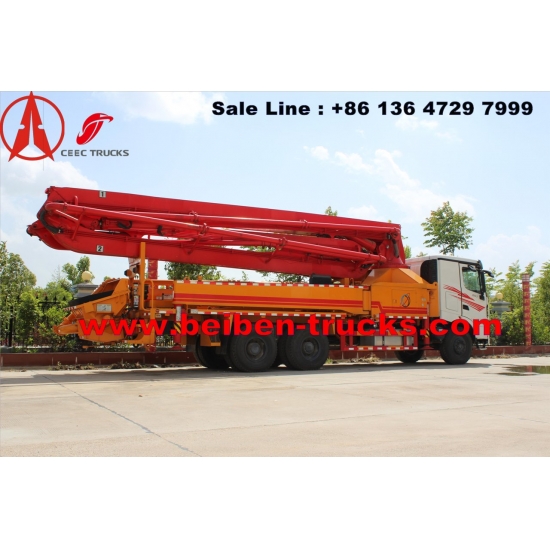

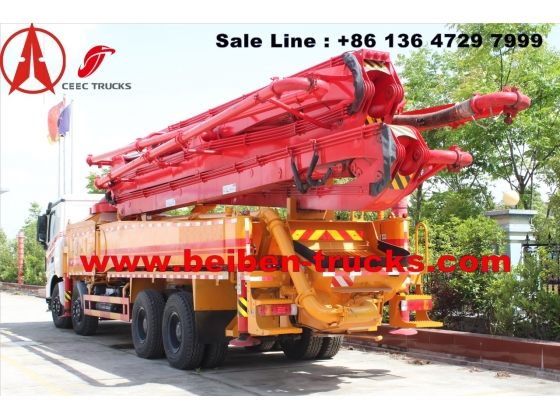

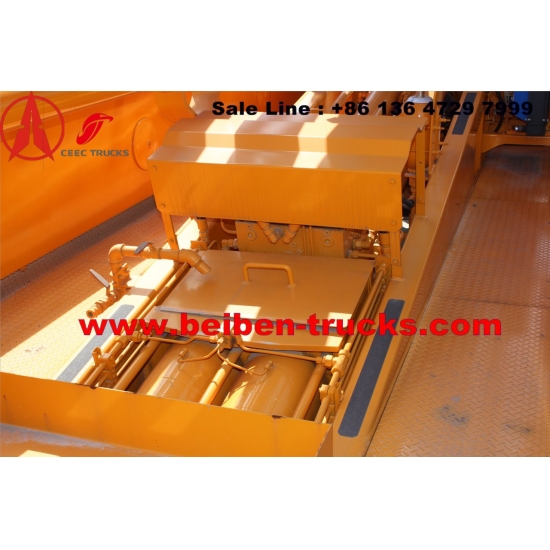

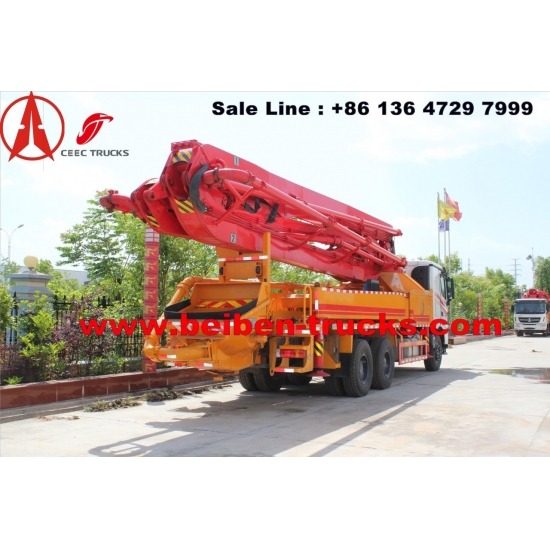

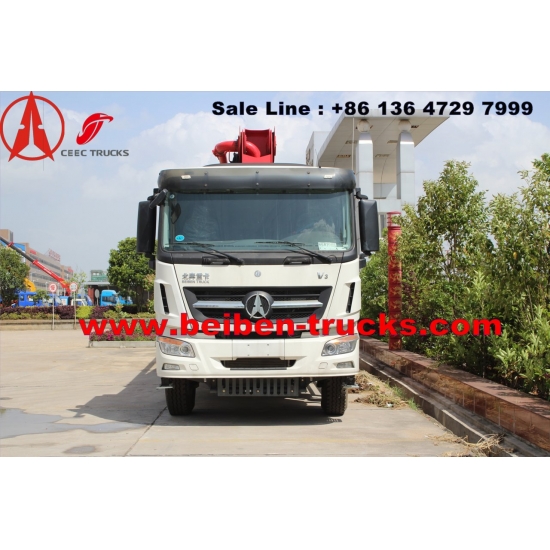

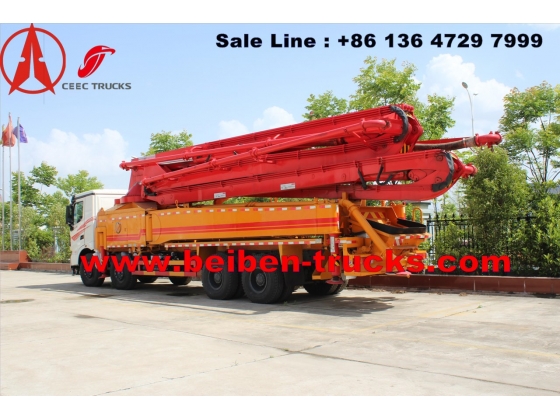

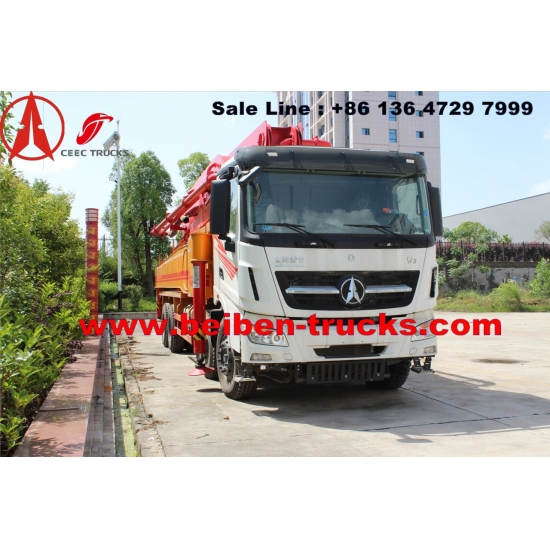

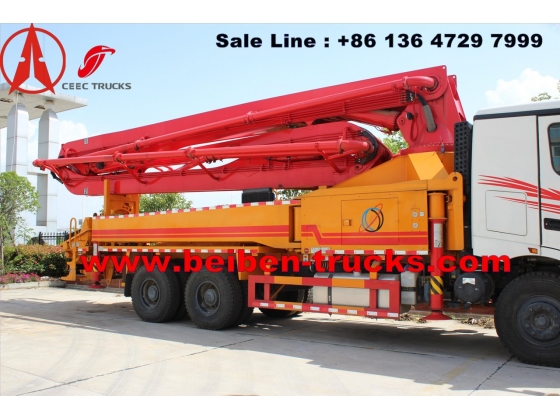

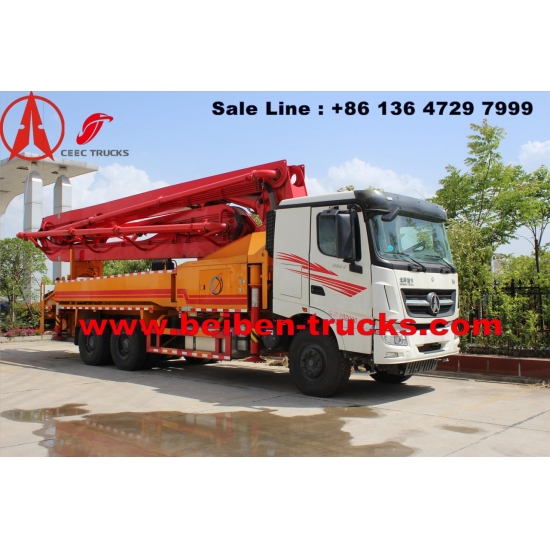

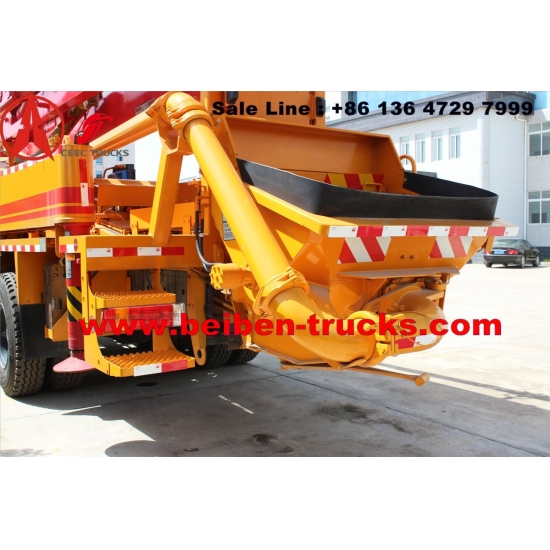

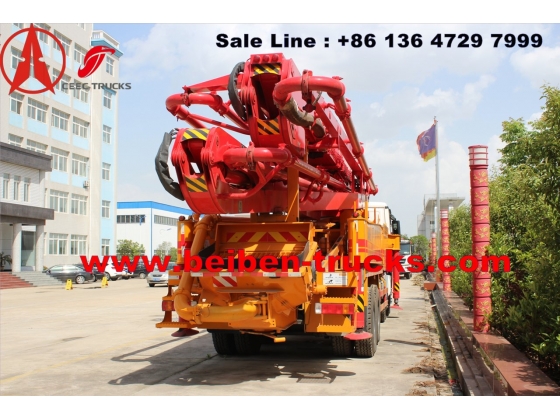

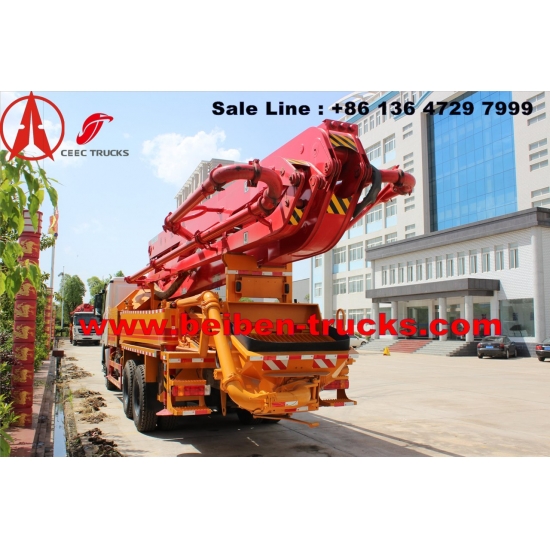

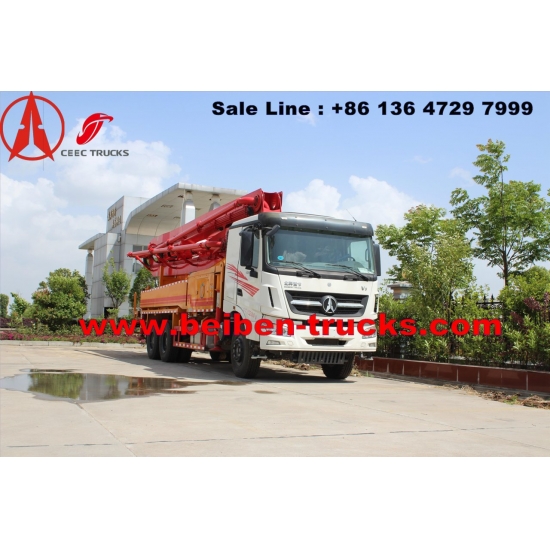

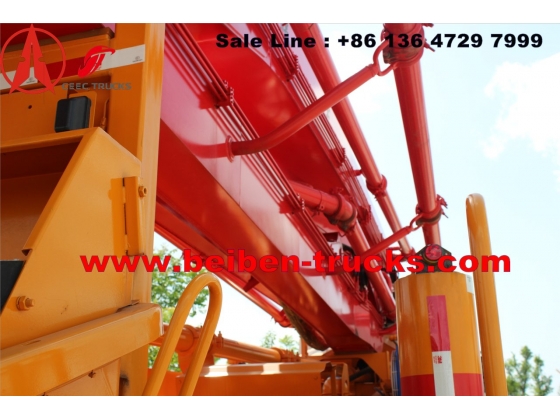

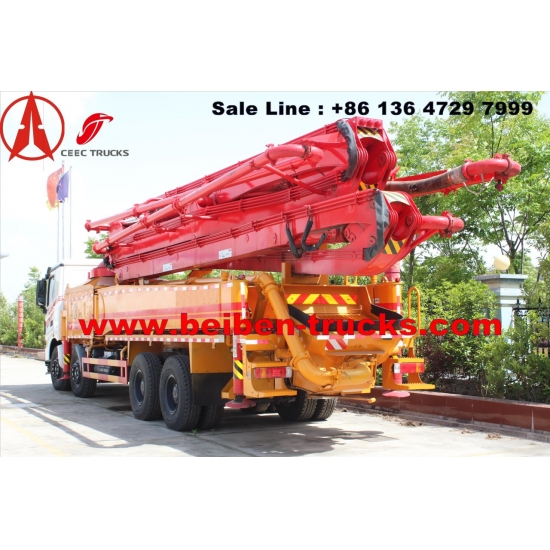

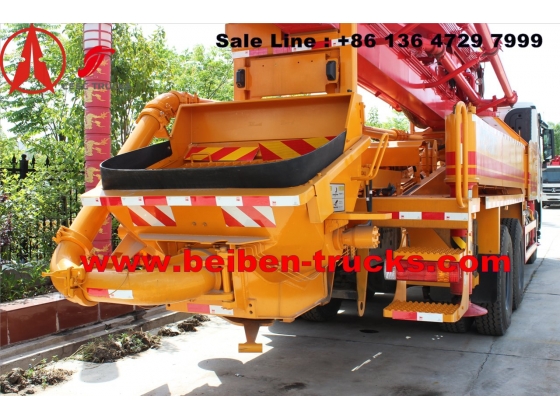

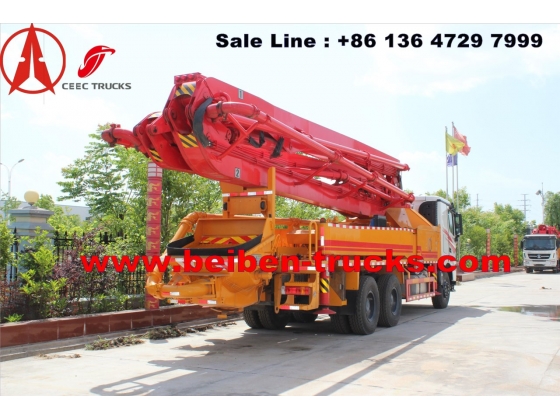

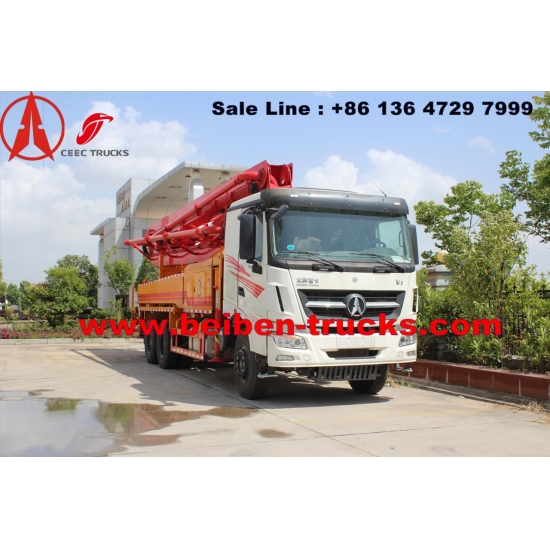

beiben V3 pump truck

beiben V3 pump truck

beiben V3 pump truck

beiben V3 pump truck

beiben V3 pump truck
