Brand New China NG80 10 wheels 340hp 6*4 Beiben Dump Truck

Product Details


Best North benz dump truck manufacturer in china

10 years beiben dump  trucks field experience

Beiben china dump truck manufacturing

Mercedes-Benz Technology

Best beiben dumper

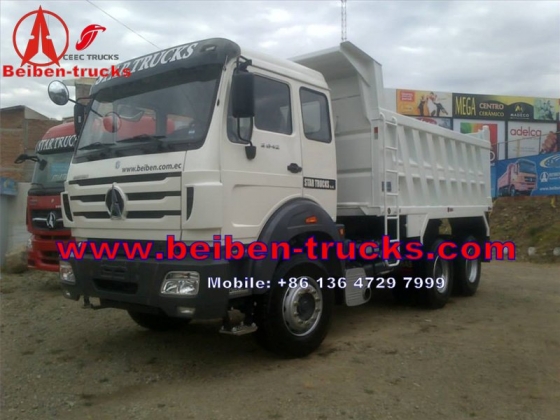

Brand New China NG80 10 wheels 340hp 6*4 Beiben Dump Truck

Company Information

CEEC TRUCKS plant is a heavy automobile business unit with the approval of State Administration for Industry and Commerce and State Development Planning Commission and is one of rare domestic enterprises with the authority of Ministry of Commerce.

Adopting modern enterprise system, the company is a marketing enterprise of various heavy automobile brands, integrating international and domestic trade.

Our Services

1. BeibenSpare parts available for 10 years

2. Engineer is available to make service overseas
3. 24hours online consultation service

Packaging & Shipping

1. All the beiben trucks will be made antirust before shipment

2. Different shipping method for different port, Ro-Ro Vessel, Bulk Vessel, Flat-Rack, Container, etc
3. Shipment tracking

 Beiben dump truck for africa congo


Mercedes Benz Technology WEICHAI engine 340hp & 380hp North Benz Dump Truck



North Benz NG80 WEICHAI Engine 290hp EUROIII 6x4 30-40t/ton Truck Beiben Dump Truck Tipper Truck

Cabin:

North Benz short cabin, one sleeper, A/C
Radio player(with USB), Safety belt, Adjustable air type, high back and shock absorption
Driver seat with handle and seatbelts
Dash board with all necessary gauges such as (km meter, rpm, oil pressure, temperature, air pressure,
Fuel level)
Headlight, Sun protection on cabin.



Engine:
Engine brand: Weichai
Engine type: Diesel 4-stroke direct injection engine, 6-cylinder in-line
With water cooling, turbo-charging & inter-cooling with exhaust valve brake.
Displacement: 9.726 liters
Max. Output: 290HP
Max torque: 1970NM@1200-1500rpm
Bore/Stroke(mm): 126/130



Clutch:
Clutch: Φ 430 Diaphragm type
Type: Single dry frictional disc, Hydraulic boosting
Gear box:
Model: Fuller 9 speeds(9JS150A), manual, 9-forward and 1 reverse speeds



Steering: ZJ120D
Brake system:
Double-circulate brake system



Axles:
Front axles: Mercedes Benz Technology 7.5 Tons
Rear axles: Benz double Reduction driving axle, Ratio: 1: 5.921(option5.263, 6.733)
Frame: Strengthened frame 300*90*8+6+8
Tyre: 12.00R20
No tyre: 10+1 spare
Spring: 10/13
Fuel tank capacity (L): 300



Weight:
Kerb. Mass: 9200 kg
Towing mass: 25000kg

 Dimensions:

Wheel base (mm): 3800+1450
Front overhang (mm): 1410
Rear overhang (mm): 1687
Front track (mm): 1995
Rear track (mm): 1808/1808
Max. Length(mm): 8347
Max. Width(mm): 250

Max. Heigh(mm): 3384



 Tipper Body

Dimension 5600*2300*1500

Capacity :19.32CBM

Thickness of body steel(mm): floor 6 front 6 side & back 4

Hydraulic System ---  F type lifting

Cylinder: Φ180x4640



















































Working principle

Light Weight Dump Truck Building new profit concept in the age of “light weight” (This series mainly refers to the light dump truck with internal length above 6.5m, classified into rectangular dump body and U-shaped dump body) Energy-saving, high effic

Light Weight Dump Truck

Beiben dump truck in great order from our plant.

north benz dump truck

north benz dump truck

north benz dump truck

north benz dump truck

The best beiben dump trucks, beiben 6*4 dump truck, beiben 8*4 dump truck manufacturer in china.

Beiben dump truck for africa congo

Beiben dump truck for africa congo

Beiben dump truck for africa congo

north benz dump truck

north benz dump truck

north benz dump truck

north benz dump truck

north benz dump truck

north benz dump truck

Beiben dump truck for africa congo

Beiben dump truck for africa congo
