China Beiben 6x4 340hp 10 Cubic Meters Concrete Mixer Truck

Product Details

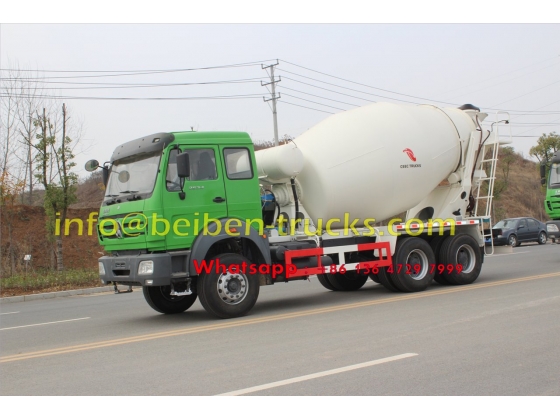

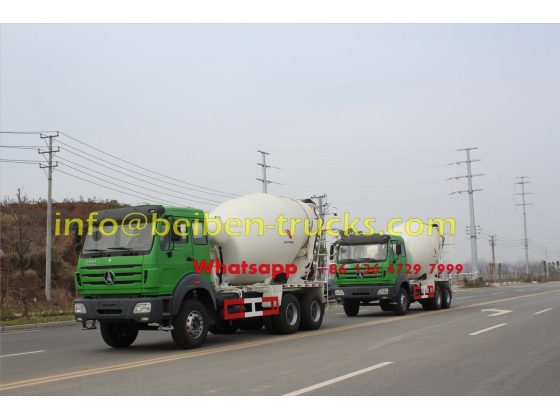

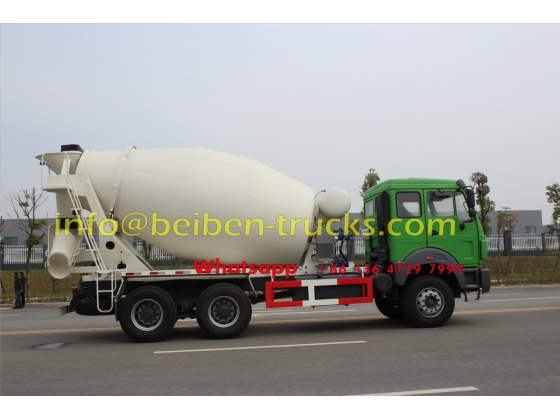

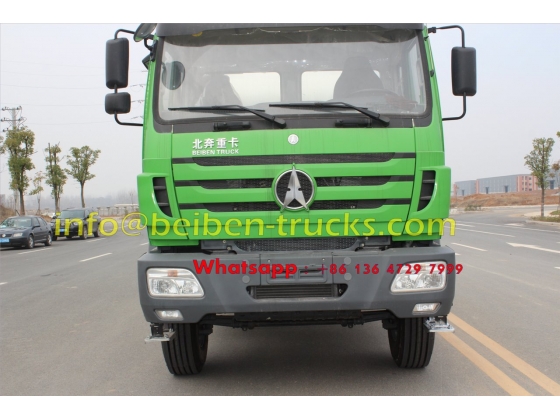

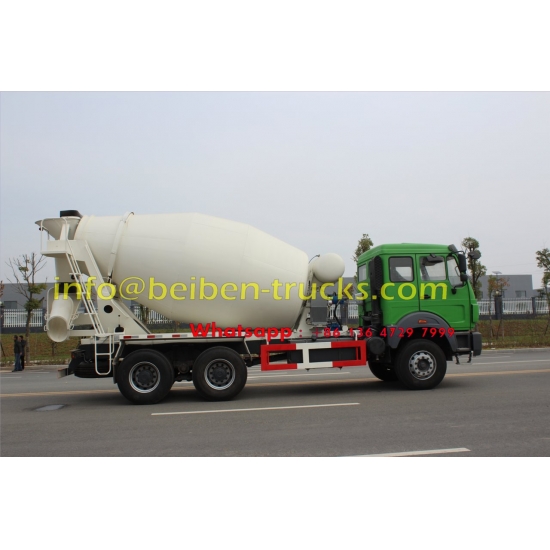

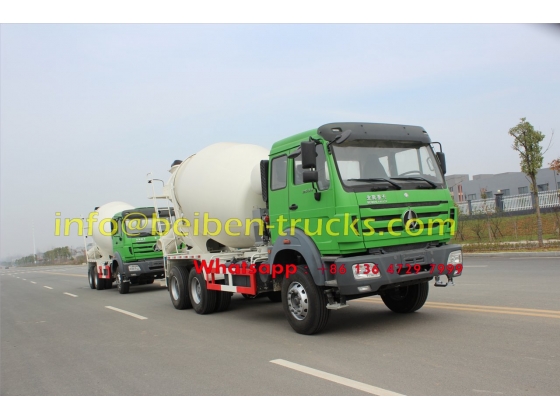

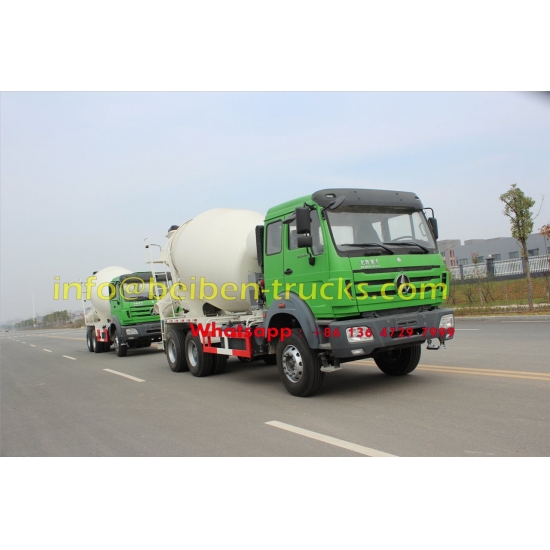

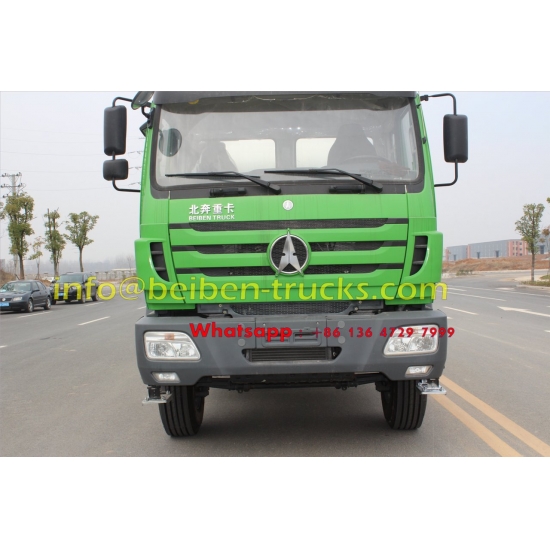

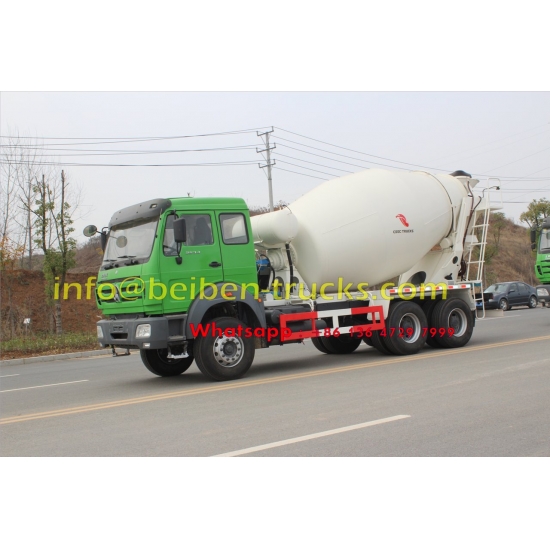

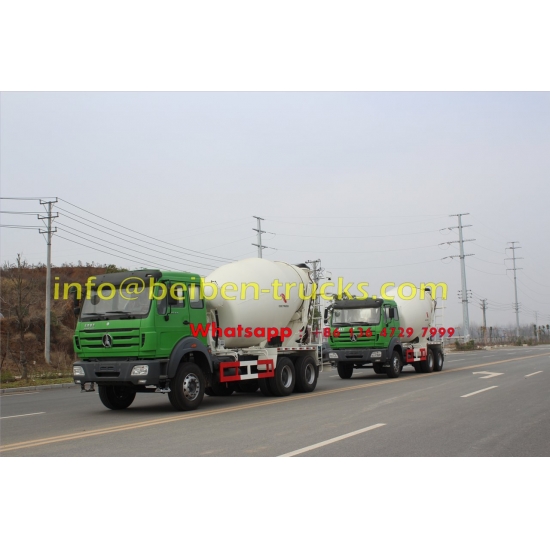

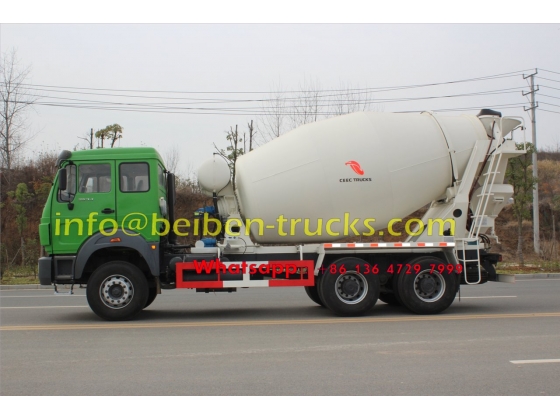

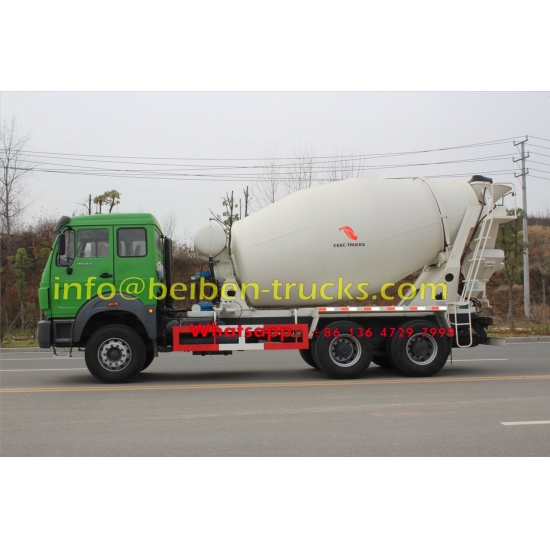

China Beiben 6x4 340hp 10 Cubic Meters Concrete Mixer Truck

China Beiben 6x4 340hp 10 Cubic Meters Concrete Mixer Truck

Main Spec.:

1. Use Benz Technology lengthened flat roof;

2. Man Technology Axle

3. Safe Choice

4. Low price





Product Description

Model

ND52501GJBZ

Drive Type

6x4

Vehicle Main
Dimensions

Max length, width, height

10005×2500×3980(mm)

Wheel base(mm)

4100+1450

Front/Rear overhang(mm)

1515/2940

Approach/Departure

23/22

Weight

Kerb mass

15155

Total mass

25000kg

Engine

Brand

WEICHAI

Model

WD10.340E32

Power(kw/HP)

250/340

Displacement(L)

9.726

Emission  Standard

Euro III

Transmission

Brand

FAST

Model

9T1680

Control type

Manual

Gear shift

9-forward and 1-reserve speeds

Clutch

Diameter(mm)

430

Steering

TAS85

Axle

Front axel

7.5 tons

Rear axel

13 tons double reduction axle

Tires

Type(Standard)

12.00R20

Cab

Type

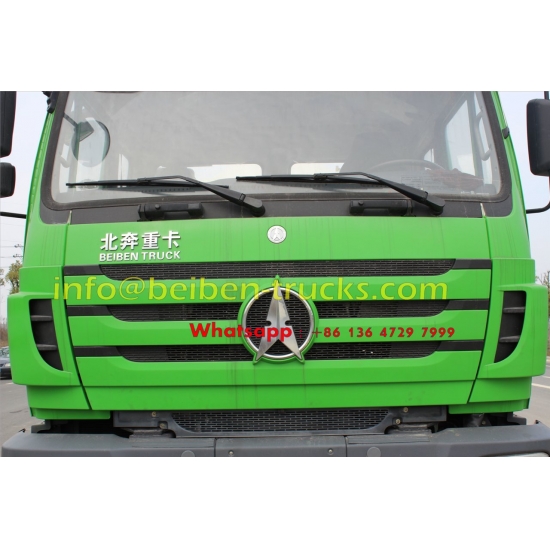

Use Benz technology V3 lengthened flat roof

Equipments

2rear window, mechanical clerestory, hydraulic suspension cab, hydraulic chair with seatbelts, one sleeping bed, hydraulic reversal cab, with USB, can play radio broadcasting and audio in MP3 format;

Other

Effective volume(m³)

10m³

 China Beiben 6x4 340hp 10 Cubic Meters Concrete Mixer Truck

China Beiben 6x4 340hp 10 Cubic Meters Concrete Mixer Truck

China Beiben 6x4 340hp 10 Cubic Meters Concrete Mixer Truck

China Beiben 6x4 340hp 10 Cubic Meters Concrete Mixer Truck

China Beiben 6x4 340hp 10 Cubic Meters Concrete Mixer Truck

China Beiben 6x4 340hp 10 Cubic Meters Concrete Mixer Truck



Beiben concrete mixer truck workshop in china.

China Beiben 6x4 340hp 10 Cubic Meters Concrete Mixer Truck

China Beiben 6x4 340hp 10 Cubic Meters Concrete Mixer Truck

China Beiben 6x4 340hp 10 Cubic Meters Concrete Mixer Truck

China Beiben 6x4 340hp 10 Cubic Meters Concrete Mixer Truck

China Beiben 6x4 340hp 10 Cubic Meters Concrete Mixer Truck
