China manufacturer 10 wheel 20 ton sand tipper truck Beiben dump truck

Product Details

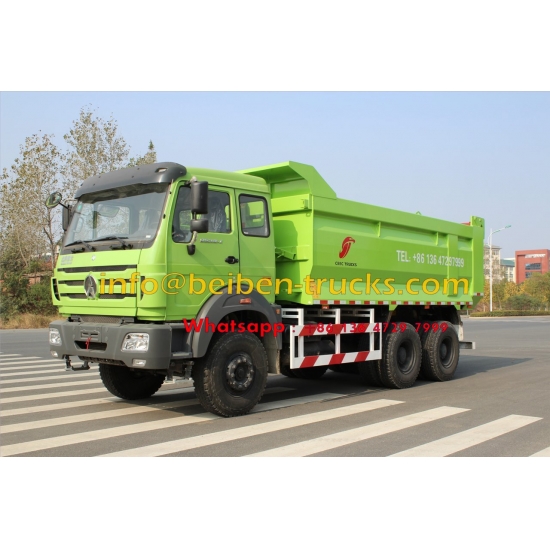

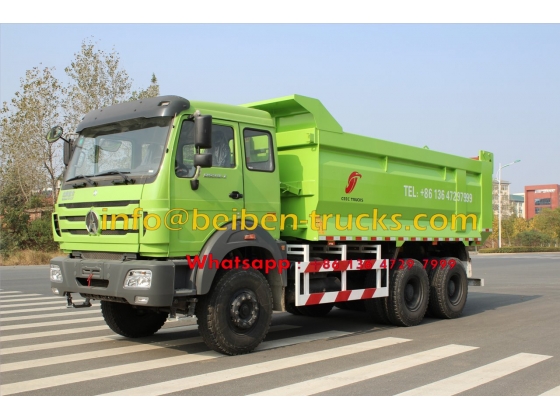

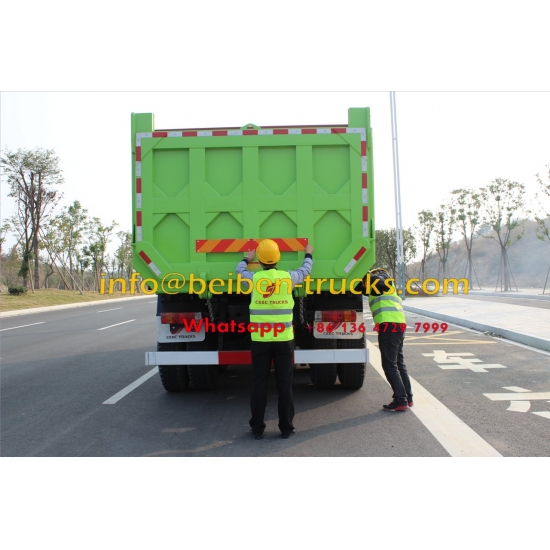

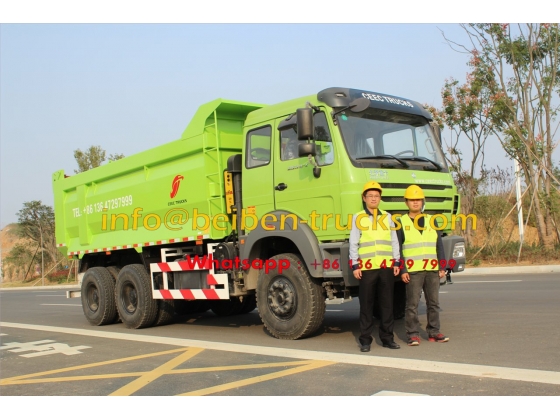

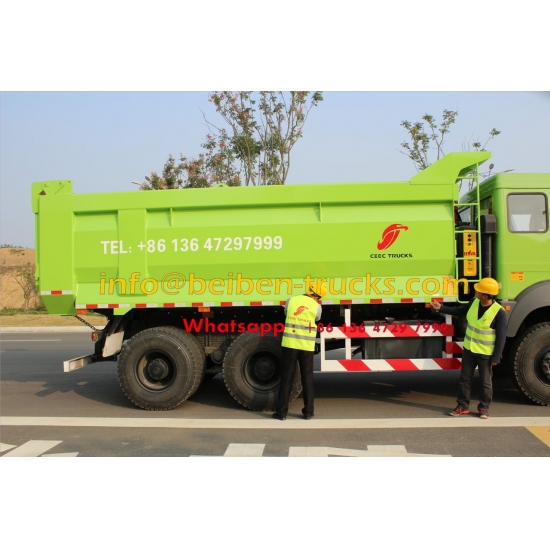

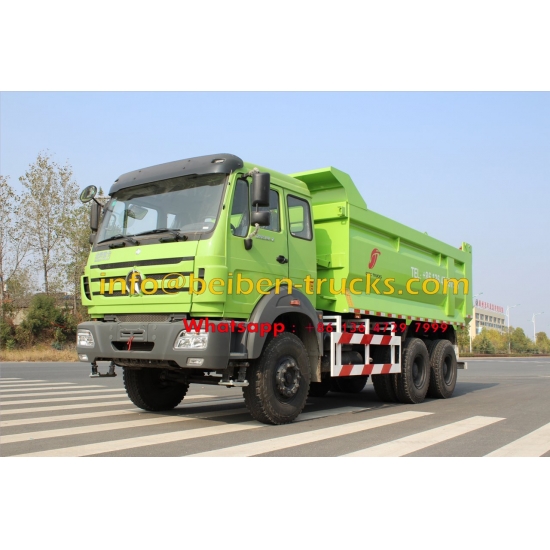

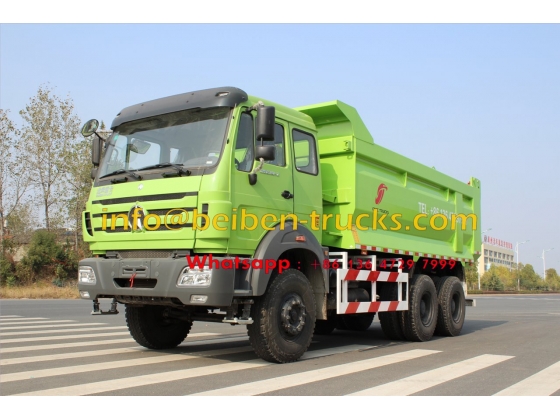

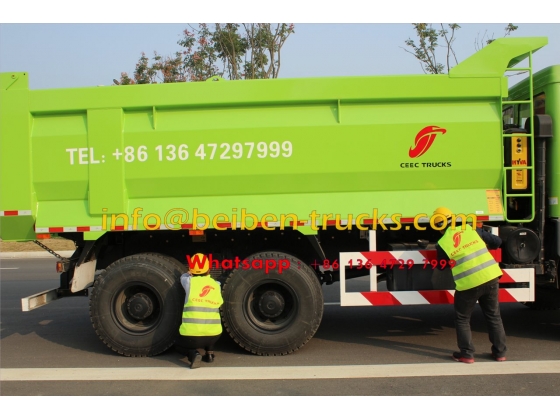

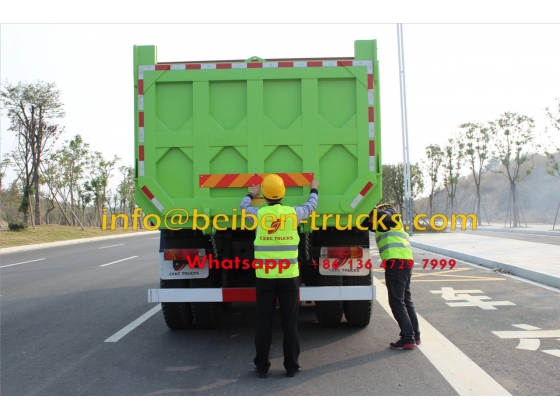

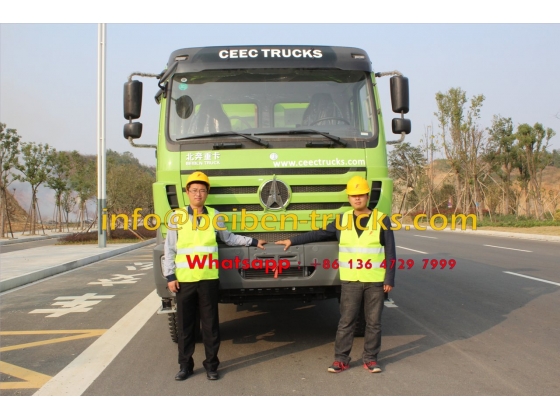

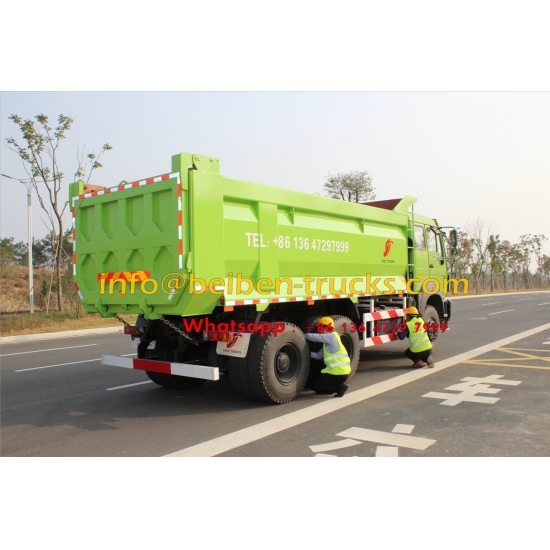

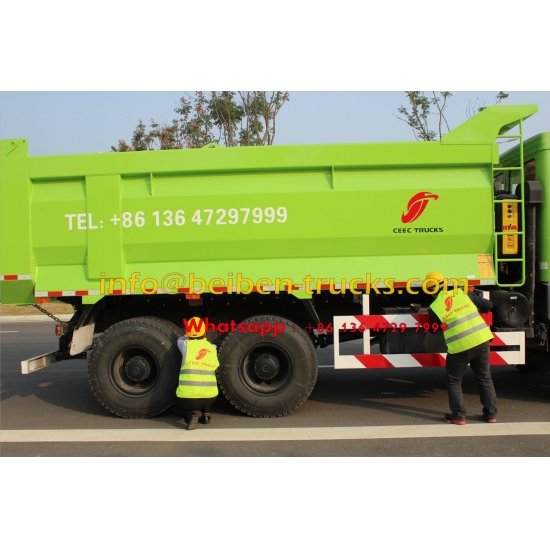

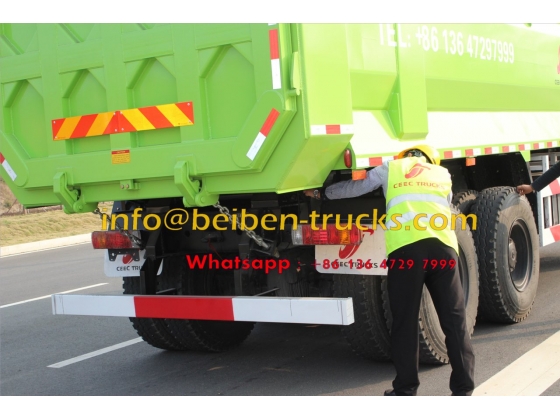

China manufacturer 10 wheel 20 ton sand tipper truck Beiben dump truck

 China manufacturer 10 wheel 20 ton sand tipper truck Beiben dump truck

Beiben truck with military quality.

6x4 10 wheel dump truck.

Weichai styre tech engine.

Fast fuller tech gearbox

15~20cbm dumping body.

Hyva hydraulic lifting system.

 watch on youtue for the beiben dump truck: https://youtu.be/3VMpsGiLZbM

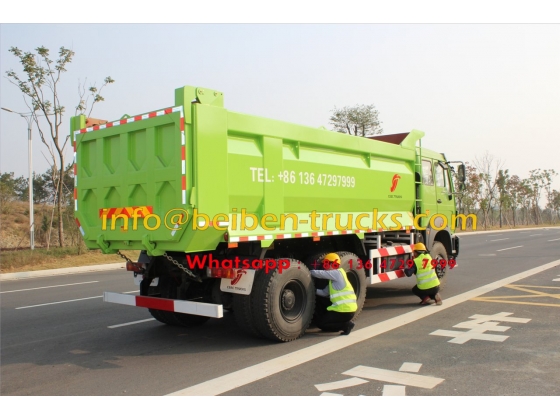

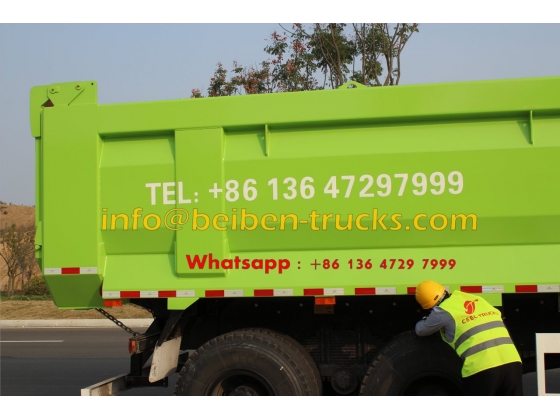

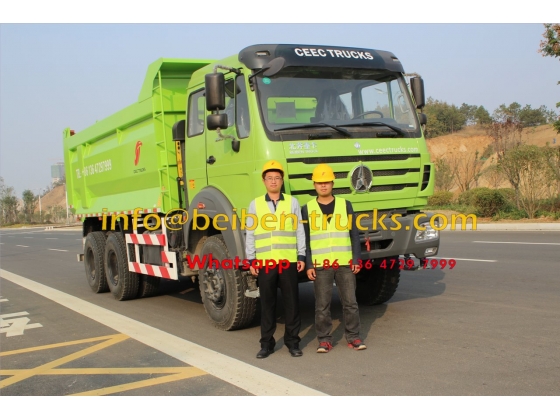

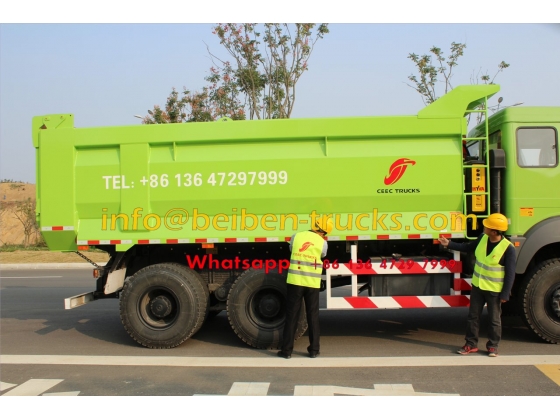

 China manufacturer 10 wheel 20 ton sand tipper truck Beiben dump truck

China manufacturer 10 wheel 20 ton sand tipper truck Beiben dump truck



North Benz Beiben NG80 dump truck ND3253B38

Parameters

Driving type

  6x4

Overall dimension (mm)

  8347x2500x3384

Wheel base (mm)

  3800+1450

Kerb mass (kg)

  12400

Frame (mm)

  300x90x8+6+8

Front/Rear suspension (mm)

  1410/1687

Approach/departure angle (º)

  26/30

Cabin

Mode

 NG80 normal length

Feature

  AC/USB/seat belts/metal bumper/

manual window lifter/hydraulic chair etc.

  Engine

Mode

 WEI CHAI  WP10.310E32

Fuel type

 Diesel

Cylinder quantity

 6 in line

Displacement (L)

 9.726

Emission standard

 Euro III

Max output

 310hp/228kw

Max torque (N.m)

 1250

Rated speed (RPM)

 2200

Gearbox

Mode

 9JS150A

Shift mode

 Manual

Gears

 9 forword and 1 reverse

First gear ratio

 12.57

Torque (N.m)

 1500

Rated speed (RPM)

 2600

Axle





Front axle

 7.5T steering

Rear axle

 13T double reduction

Transmission ratio

 5.921

Box

Dimension (mm)

5600x2300x1150

Thickness (mm)

Bottom

8

Side

6

Lifting

  HYVA Front/Middle

Loading capacity (kg)

 31000—40000

Tyre

Mode

 12.00R20 radial tyre

Clutch

430 diaphragm   type

Steering

ZJ120D

Fuel tank

300L iron box

Spring leaf

10(3x18mm+7x16mm)/13(7x25mm+6x22mm)
