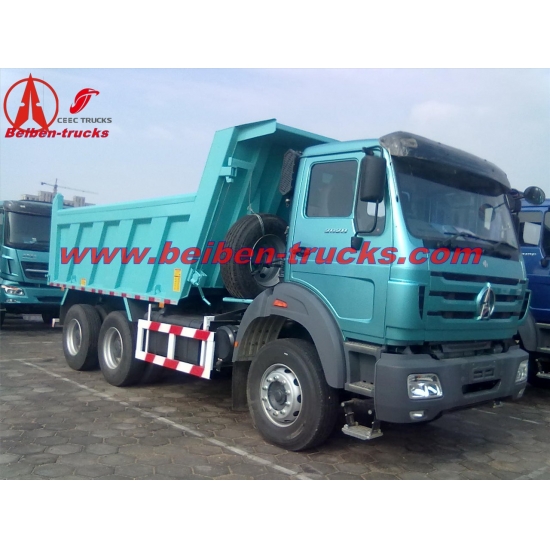

Durable Beiben NG80 Heavy Duty 6x4 dumper truck For Sale
Durable Beiben NG80 Heavy Duty 6x4 dumper truck For Sale, we focus greatly on designing and exporting our beiben NG80 6x4 dump trucks to congo, africa, more than 10 years on exporting durable beiben NG80 heavy duty dump trucks.
Durable Beiben NG80 Heavy Duty 6x4 dumper truck For Sale
1.shortest delivery time
2.more competitive price,
3.reliable and high efficient performance
4.good after-sales service
SPECIFICATIONS FOR CONGO BEIBEN NG80 DUMP TRUCK |
|||
Vehicle Specifications |
Model |
ND32602B34 |
|
Traction 4X2,6X4,8X4 |
6X4 |
||
Power |
420HP |
||
Weight Parameter |
Complete Vehicle Kerb Mass(kg) |
11970 |
|
Maximum authorized total mass (kg) |
26000 |
||
Dimension Parameter |
External Dimensions(mm) |
Length (mm) |
7169/7680 |
Width(mm) |
2495/2500 |
||
Height(mm) |
3180/3430 |
||
wheelbase(mm) |
3450+1450 |
||
Internal cargo Sizes |
Length (mm) |
5200 |
|
Width (mm) |
2300 |
||
Height (mm) |
1500 |
||
Performance Parameter |
Maximum Speed(km/h) |
75 |
|
Maximum Grade ability(%) |
35 |
||
Turning diameter(m) |
16 |
||
Recommended Configuration |
Engine |
Engine Type |
WP420 |
Rated power(kW)/Rev(r/min) |
266/2200 |
||
Horse power |
360HP |
||
Torque(N*m)/Rev(r/min) |
1800/1400-1600 |
||
Transmission |
9JS180 |
||
Clutch(mm) |
430 |
||
Gearbox |
9 forward gears/ 2 reverse gears |
||
Axle |
Front Axle |
BENZ-7.5 |
|
Rear Axle |
BENZ-13 |
||
Axle load-bearing |
Front axle |
7500 |
|
|
Rear axle |
13000 |
|
Fuel Tank(L) |
400 |
||
Track(mm) |
1995/1800/1800 |
||
Front overhang/rear overhang(mm) |
1320/1700 |
||
Type |
12.00R20 |
||
Cabin |
Sleeper |
none |
|
OTHER |
Engine horse power |
290hp,330hp,340hp and 360hp,380hp 420hp is optional |
|
Tyre |
nylon,radial and tubeless is optional |
||
ABS |
optional |
||
COLOR |
optional |
||
