Durable Beiben V3 8X4 dumper truck With Low Price

Product Details

Durable Beiben V3 8X4 dumper truck With Low Price

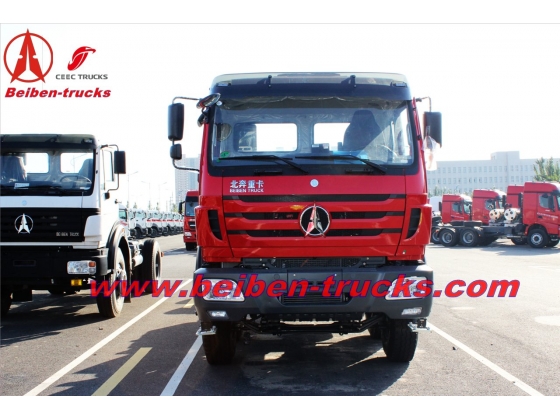

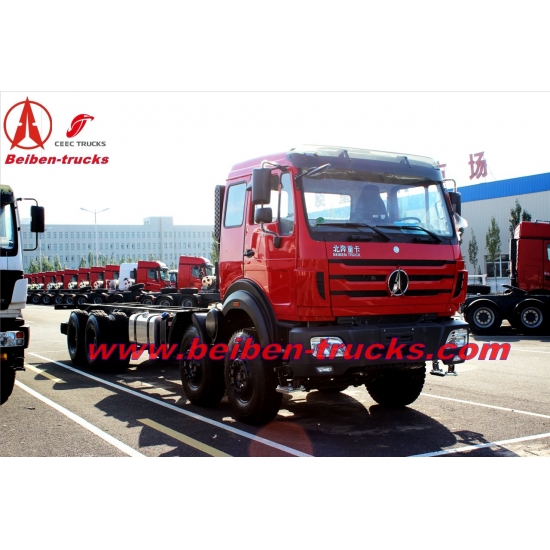

Beiben 12 wheeler dump truck 3142 type

Specifications

Top quality famous Beiben dump trucks. Mercedes Benz technology,great performance,reasonable price. ISO9001,CCC,GBJ9001A-2001North Benz V3 new series, fashionable design,new technology,better performance

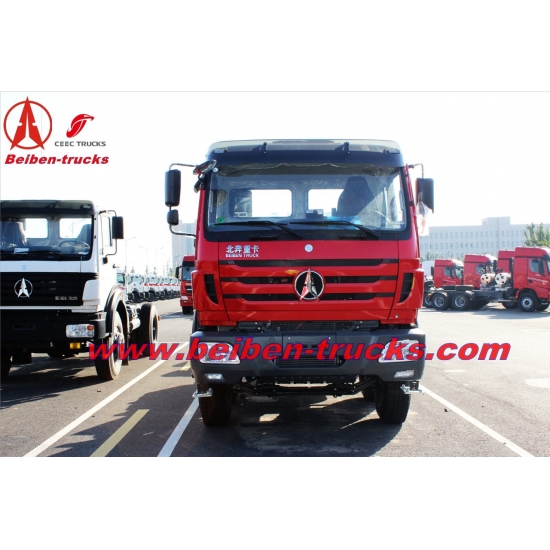

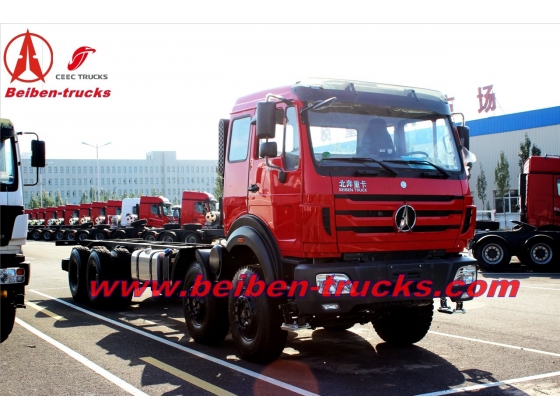

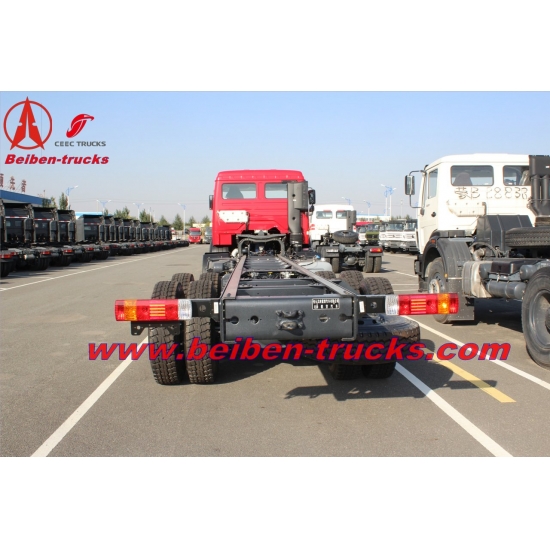

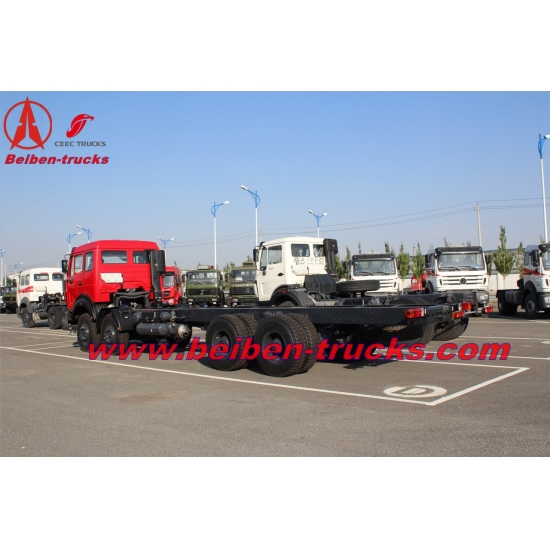

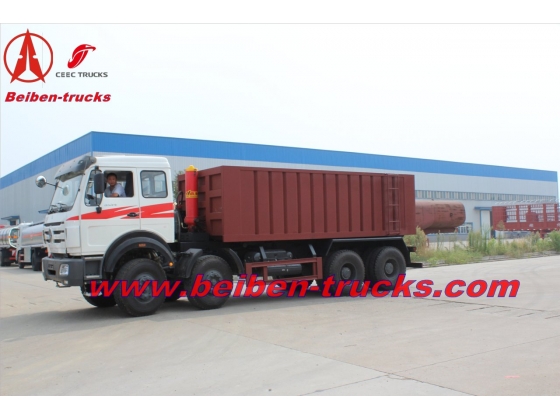

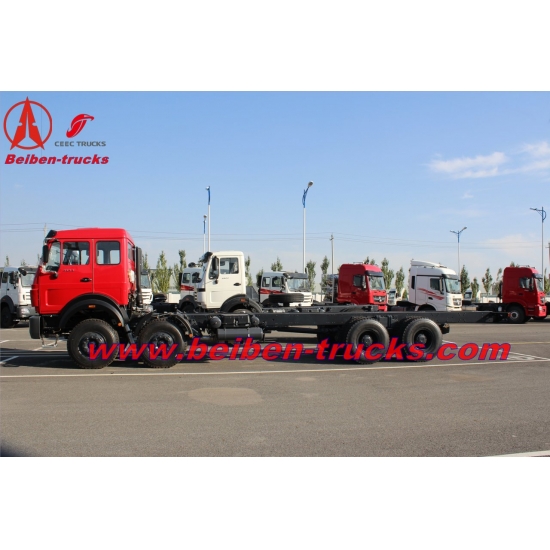

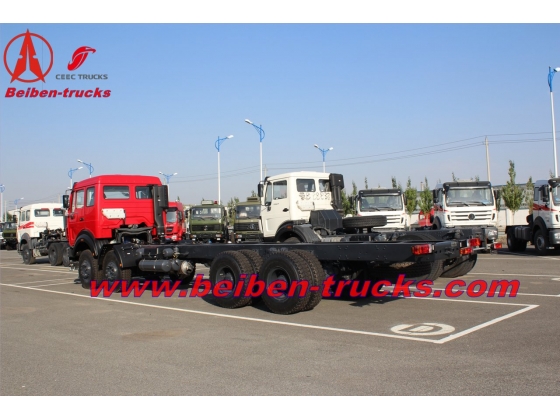

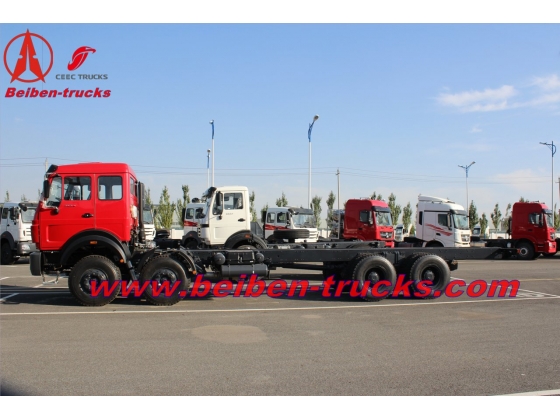

Beiben 12 wheeler dump truck 3142 type

Beiben 12 wheeler dump truck 3142 type

Beiben 12 wheeler dump truck 3142 type

Beiben 12 wheeler dump truck 3142 type



1.   INTRODUCTIONS

From rock, sand or cement, equipment, water, fuel to food product materials and waste, CEEC has you covered.

Since we rolled out Dump Truck No.1 in 1983, we have been providing customers with trucks for loading, conveyance and delivery. With its excellent drive ability, unique comfort, extreme safety and durability, UD dump truck to deliver your material on time, every time



2.  KEY FEATURES

Consist of original UD Vehicles chassis, hydraulic system, elevating system and electrical system.

Unique three-point support structure ensures higher anti-torsion strength while tipping.

Tailgate opens automatically as the body is raised for dumping.

Dump lever——Dumping operation can be done in the cab.

Power stream: Truck engine Transmission PTO Oil pump Dump cylinder.

Unique Optional Body: U-section body, Mining rock body, Scoop end type body, Refuse body with canopy, Super large capacity body, Three-way dump body.





3134KY /8×4/1500+3550+1450/Long Cab

Dimension 尺寸

9630*2500*3484mm

Upper body inner dimension

7150x2300x1150 sand body, China famous hydralic lifting system, thickness: bottom 8mm, side 6mm

Approaching angle/Departure angle

33/25°

Overhang(front/rear)

1410/1720mm

Wheel base

1500+3550+1450mm

Max speed

80km/h

Curb weight

14765kg

Loading capacity

16105kg

Slope climbing capability

Max.40%

Engine

Model

WP10.340E32water-cooledfour strokes6 cylinders in lineturbocharged, directly injection

Displacement

9.726L/Diesel

Stroke

126/130mm

Max. power

250/2200 (kw/rpm)

Max.torque

1350/1200-1600Nm/rpm

Emission stantard

Euro

Fuel tanker capacity

400L

Clutch

430, Single dry frictional discHydraulic boosting

Gearbox

12JS160T, mechanism,12 forward gears,2 reverse gear, manual operated,

Gear ratio of gear box

15.53/12.08/9.39/7.33/5.73/4.46/3.48/2.71/2.10/1.64/1.28/1.00 R:14.86/3.33

Suspension system

Front

Non-free standing leaf spring,telescopic shock absorber with stablizer bar suspension , 10pcs

Rear

Non-free standing stablization spring, balance suspension system, 13pcs

Brake system

Service brake

Brake gap can be adjusted automatically, double circulation air brake system

Assistant brake

Engine exhaust brake

Park brake

Potential springs pressing on middle and rear wheels

Steering system

ZF8098,whole circulation in ball, hydraulic booster

Frame

Fish belly shape, variable width, variable sections

Front axle (Mercedes Technology)

Double-shoe pneumatic brake, non-driving steering axle

Middle and Rear axle (Mercedes Technology)

Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle

Tyre

12.00R20 Radial

Electrical system

Battery

2X12V/135Ah

Generator

28V-35A

Starter

5.4Kw/24V

Cabin

NG80B long cabin with single sleeper ;
Full steel skeleton structure, covered with double layer steel plate;
Can be tipped forwardly;
High back with arm seat for driver, high back seat for co-driver; With inner A/C
