Order(MOQ):

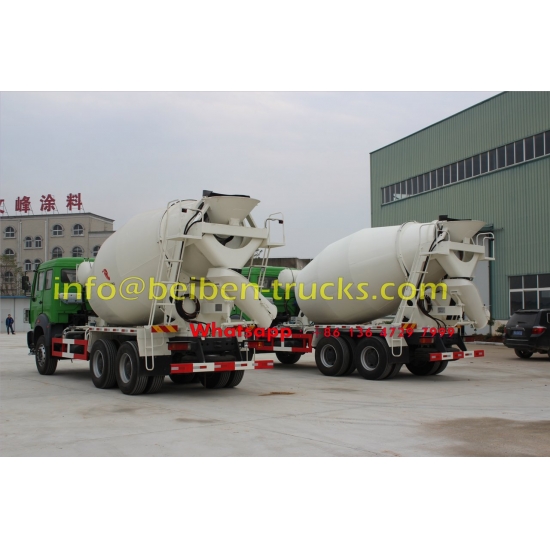

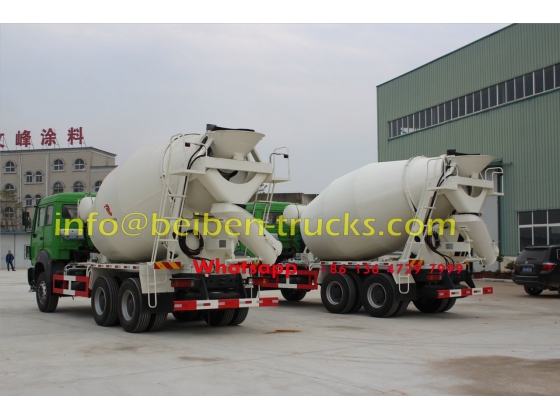

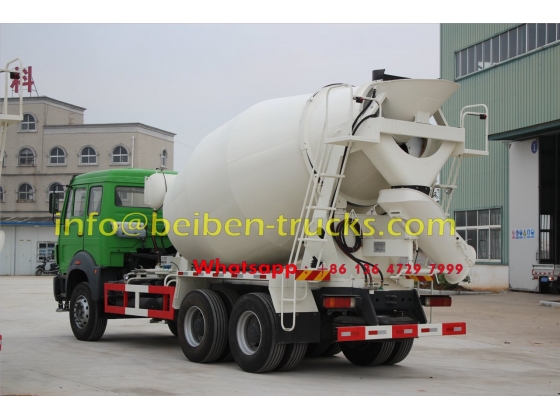

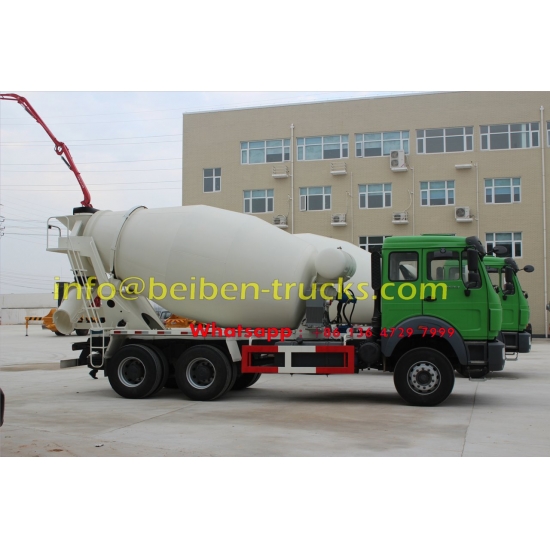

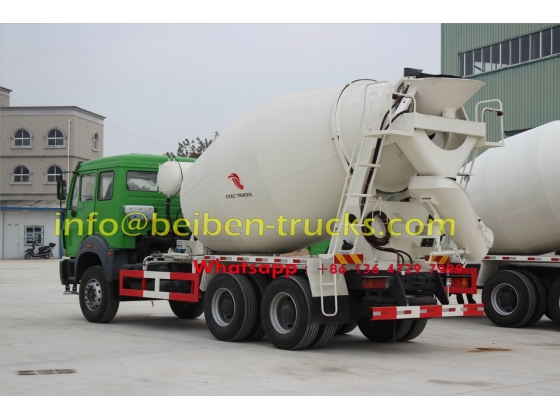

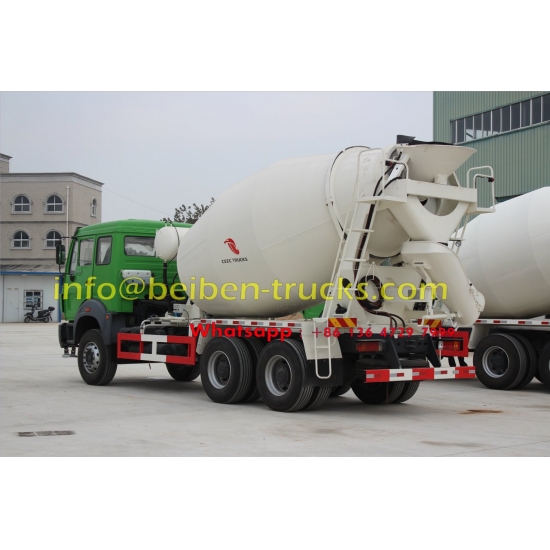

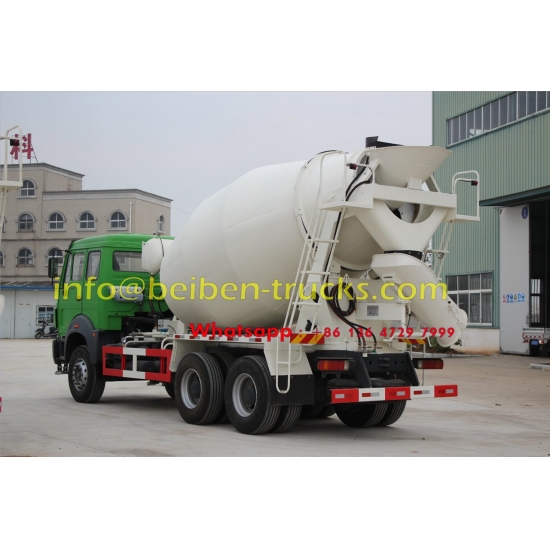

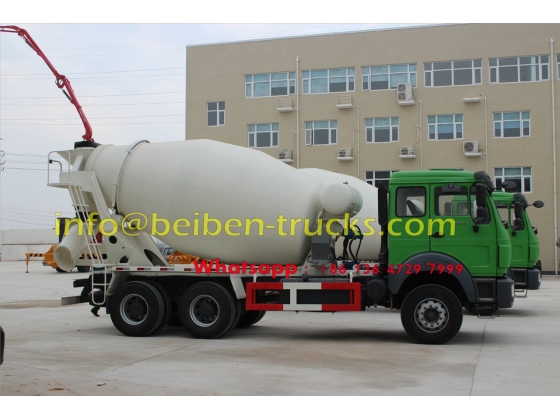

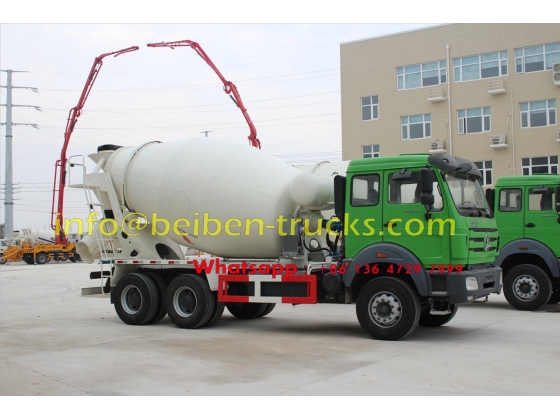

1Good condition Beiben 336hp 6X4 concrete truck
| Chassis Model | ND52500GJBZ | |
| Drive type | 6X4 | |
| Cubic meter | 8-12 | |
| Weight | Complete kerb mass(kg) | 13785 |
| GVW(kg) | 25000 | |
| Dimensions | LxWxH(mm) | 9405X2500X3980 |
| Front/Rear overhang(Chassis) | 1515/2640 | |
| Wheel base (mm) | 3800+1450 | |
| Track width(mm) | 1995/1800/1800 | |
| Performance | Max.speed(km/h) | 90 |
| Approach/Departure angle(°) | 23/20 | |
| Engine | Brand | WEI CHAI |
| Model | WP10.336 | |
| Power(KW/HP) | 213/290 | |
| Max.Torque(N.M)/rpm | 1250N.M/1200-1600rpm | |
| Displacement(L) | 9.726 | |
| Emission Standards | Euro III | |
| Transmission | Brand | Beiben |
| Model | 9T-160 | |
| Control type | Manual | |
| Gear shift | 9-forward and 1 reverse speeds | |
| Clutch | Type | Single plate,diaphragm spring |
| Diameter(mm) | φ430 | |
| Action | Mechanical type,hydraulic and pneumatic operation | |
| Braking | Service brake | With dual-circuit compressed air brake |
| Park brake | Spring-powered Air-cut-off Brake | |
| Auxiliary | Engine Exhaust Brake | |
| Steering | Type | TAS85 |
| Frame | Dimensions(mm) | 300X90X8+6+8 |
| Suspension | the number of leaf spring | 10/13 |
| Axles | Front axle | 7500kg |
| Rear axle | 13000kg double reduction driving axles | |
| Ratio | 5.263 | |
| Tyres | Type(Standard) | 12.00-20 |
| Fueltank | Tank capacity(L) | 300 |
| Material | Aluminum | |
| Cab | Equipments | Long flat head, 1sleeper, 2-3 persons |
| Mixing tank | Mixing volume | 9CBM |
as the best beiben V3 transit mixer trucks manufacturer in china, we aim at supplying the best quality beiben V3 mixer trucks and beiben V3 8 CBM mixer truck, 10 CBM mixer truck and beiben 14 concrete mixer truck.
beiben 2534 v3 concrete mixer trucks in cheap price and best quality, 100% china beiben V3 6*4 concrete mixer truck supplier.
Beiben NG80B 8 CBM cement mixer trucks, the china best beiben 6*4 concrete mixer truck manufacturer in china.
Beiben 8*4 drive system, germany benz technology 7 T double front axle, benz 17 T double rear axle, fast 12 shift gear box , 12.00R20 tyre. 14 CBM drum capacity with CEEC TRUCKS lastest technology on mixer trucks.
Beiben 2534 transit mixer truck chassis, 340 Hp engine europen technology, fast 9 shift transmission, benz 7 T front axle , benz technology 16 double rear axle, 12.00R20 tyre. 3800+1450 mm wheelbase.
beiben V3 10 CBM concrete mixer trucks, with weichai 340 Hp engine, fast 9 shift transmission, benz technology 7 T front axle, benz technology 13 T rear double axle, V3 cabin with air condition. 10 CBM drum.
Beiben 2534 concrete mixer truck chassis, 6*4 driving system, beiben unique weichai 340 hp engine, fast 9 shift transmission, with benz 7 T front axle, 16 T benz rear axle, with 9 CBM mixer truck drum, America Eaton oil motor and pump, Itlay reducer, china famous radiator
Beiben 9 CBM concrete drum capacity, weichai 340 Hp engine, America Eaton oil pump and motor, fast 9 shift transmission, benz quality assurance.
beiben 2528 cement mixer truck manufacturer , benz quality 2528 cement mixer truck chassis, 280 hp engine, with super quality concrete mixer drum, 3450+1350 mm wheelbase.
