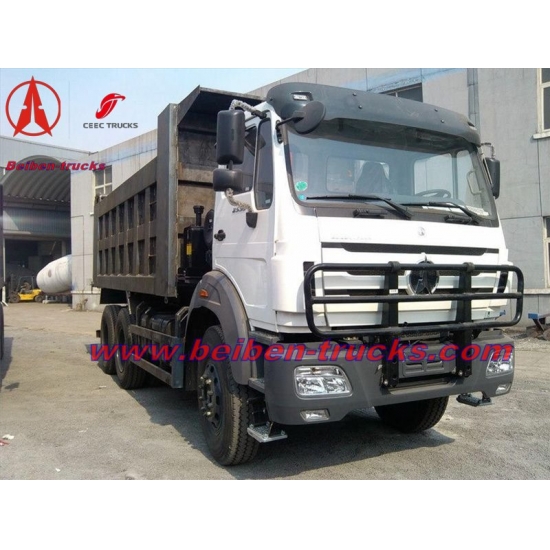

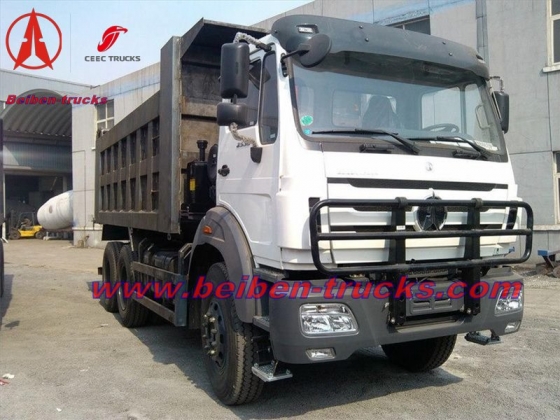

High Quality Beiben 6x4 truck dump Wth Cheap Price
High Quality Beiben 6x4 truck dump Wth Cheap Price
1.shortest delivery time
2.more competitive price,
3.reliable and high efficient performance
4.good after-sales service
High Quality Beiben 6x4 truck dump Wth Cheap Price, we provide the most competetive price for beiben 6*4 dump truck, our price for beiben 6*4 dump truck is the best price in china.
SPECIFICATIONS FOR HIGH QUALITY BEIBEN DUMP TRUCK |
|||
Vehicle Specifications |
Model |
ND32602B34 |
|
Traction 4X2,6X4,8X4 |
6X4 |
||
Power |
340HP |
||
Weight Parameter |
Complete Vehicle Kerb Mass(kg) |
11970 |
|
Maximum authorized total mass (kg) |
26000 |
||
Dimension Parameter |
External Dimensions(mm) |
Length (mm) |
7169/7680 |
Width(mm) |
2495/2500 |
||
Height(mm) |
3180/3430 |
||
wheelbase(mm) |
3450+1450 |
||
Internal cargo Sizes |
Length (mm) |
5200 |
|
Width (mm) |
2300 |
||
Height (mm) |
1500 |
||
Performance Parameter |
Maximum Speed(km/h) |
75 |
|
Maximum Grade ability(%) |
35 |
||
Turning diameter(m) |
16 |
||
Recommended Configuration |
Engine |
Engine Type |
WD615.46 |
Rated power(kW)/Rev(r/min) |
266/2200 |
||
Horse power |
360HP |
||
Torque(N*m)/Rev(r/min) |
1800/1400-1600 |
||
Transmission |
9JS180 |
||
Clutch(mm) |
430 |
||
Gearbox |
9 forward gears/ 2 reverse gears |
||
Axle |
Front Axle |
BENZ-7.5 |
|
Rear Axle |
BENZ-13 |
||
Axle load-bearing |
Front axle |
7500 |
|
|
Rear axle |
13000 |
|
Fuel Tank(L) |
400 |
||
Track(mm) |
1995/1800/1800 |
||
Front overhang/rear overhang(mm) |
1320/1700 |
||
Type |
12.00R20 |
||
Cabin |
Sleeper |
none |
|
OTHER |
Engine horse power |
290hp,330hp,340hp and 360hp,380hp 420hp is optional |
|
Tyre |
nylon,radial and tubeless is optional |
||
ABS |
optional |
||
COLOR |
optional |
||
