Products

Lowest Price Beiben 6x4 Beiben Tractor Truck

Product Details
Lowest Price Beiben 6x4 Beiben Tractor Truck
-Military Quality
-Servie Available
-9 Year Exporting Experience
-SGS, BV

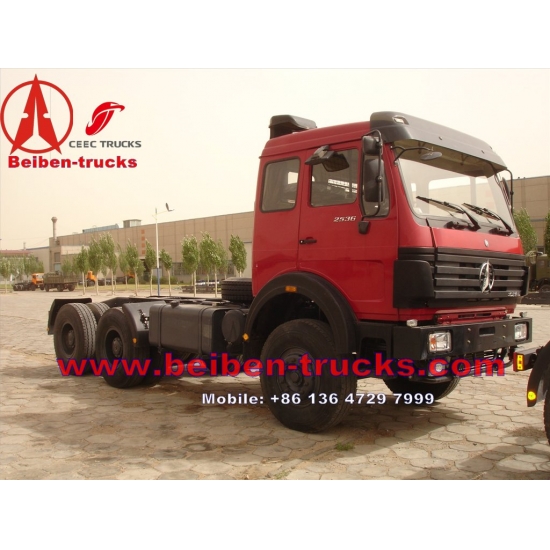

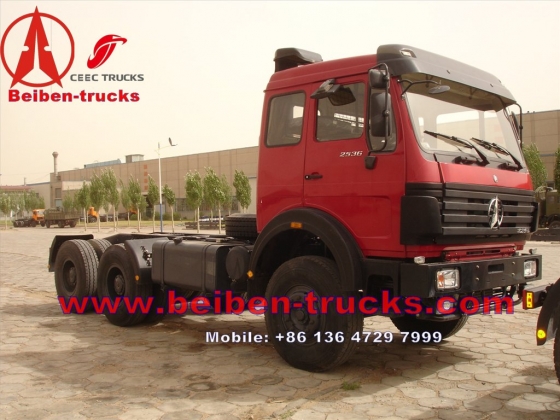

Lowest Price Beiben 6x4 Beiben Tractor Truck







Beiben 6x4 tractor truck
Model ND4250W362JJ
Traction type 6x4
Driving type LHD
Cabin Mercedes Benz

Engine brand Steyr (Weichai)
Engine model WD615.46
Engine type 4-stroke direct injection diesel engine, inline 6-cylinder with water cooling, turbo-charging & intercooling
Displacement 9.726 liters
Max. output 360hp@2200rpm
Max torque 1460NM@1400-1600rpm
Bore/Stroke(mm) 126/130
Mean Pistion Speed 9.53m /s
Compression ratio 15.5:1
Specific fuel consumption 198g /Kwh

Gear box Fuller 12-speed (12JS160T)
Clutch GF420 spring type
Steering TAS85

Front axle Benz
Rear axle Benz
Ratio 1:5.2
Frame Strengthened
Tyre 12.00-20
Fuel consumption (L/100km) 36
Fuel tank capacity (L) 300
Max. speed (km/h) 90
Max. gradeability (%) 28
Curb Weight 9,200 kg
Total Mass 38,500kg
Wheel base (mm) 3,450+1,450
Front overhang (mm) 1,410
Rear overhang (mm) 740
Front track (mm) 1,995
Rear track (mm) 1,800
Turning circle diameter (m) 14.2 m
Approach angle 26°
Departure angle 64°
Dimension (mm) 7,050x2,495x3,260
5th wheel 3.0"

PreviousBeiben 6x4 Prime Mover 420hp 50ton ND4253B34J
