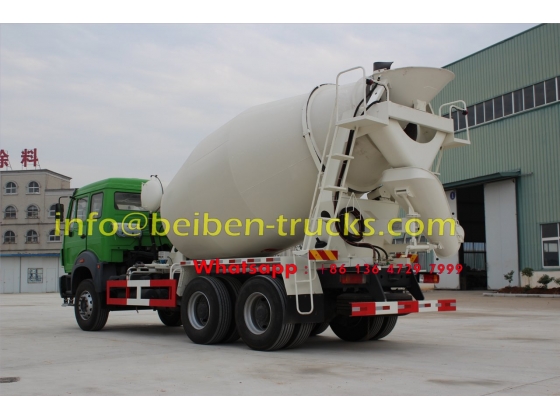

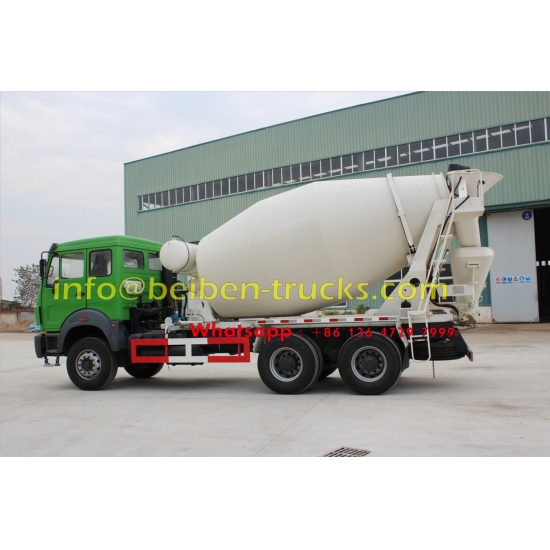

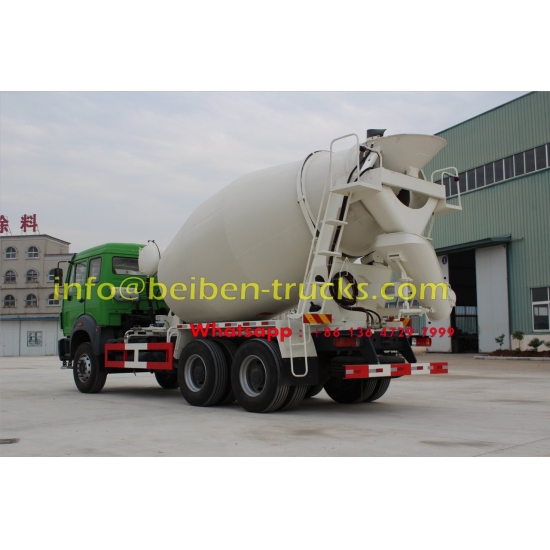

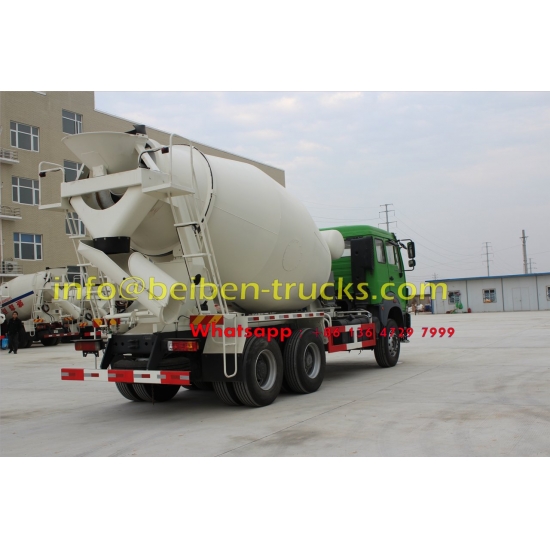

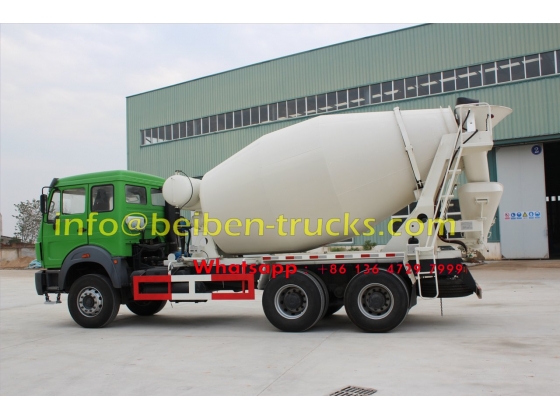

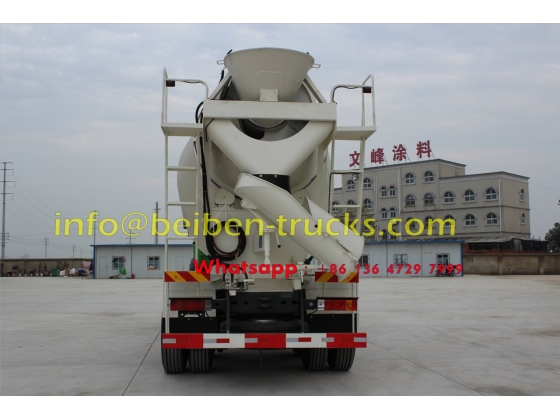

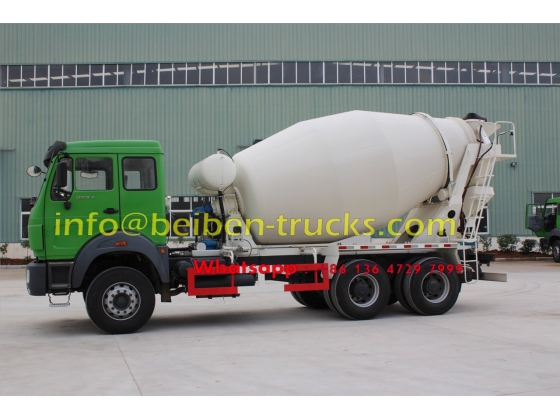

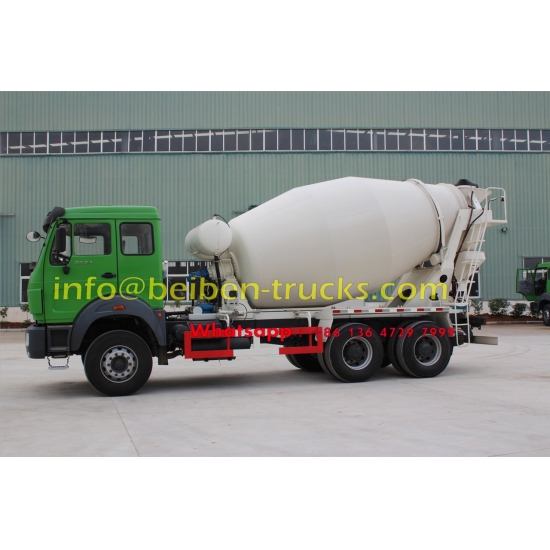

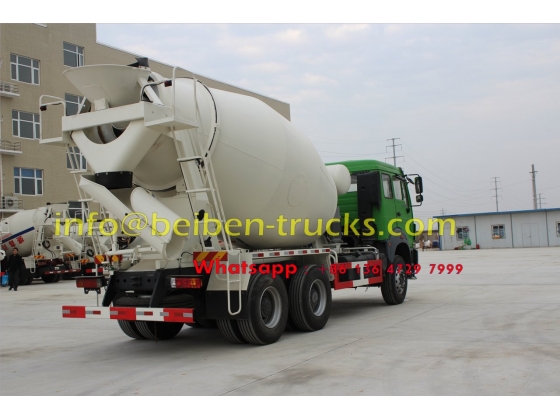

Military quality hot sale Beiben 6x4 5m3 capacity concrete mixer truck
Military quality hot sale Beiben 6x4 5m3 capacity concrete mixer truck
Advantages
- One-stop shop, thousand kinds of products with military quality for you to choose
- Most competitive and reasonable price, ready to develop together with customer
- Reliable and effective performance, time=money
- Great after-sales service system, back you up all the time
Beiben 5m3 concrete mixer truck ND5256GJBZ |
||
Whole Vehicle Parameters |
Chassis |
BEIBEN |
Curb weight (kg) |
12780 |
|
Total vehicle weight (kg) |
25000 |
|
Overall dimensions (L*W*H) |
9400x2500x3900 |
|
Wheelbase (mm) |
4100+1450 |
|
Front overhang (mm) |
1410 |
|
Rear overhang (mm) |
2640 |
|
Max. Traveling speed (km/h) |
85 |
|
Vehicle Configuration |
Clutch |
Dry single dis clutch (Φ430) |
Gearbox |
FAST 9T-1680 |
|
Driving type |
6x4 |
|
Steering mechanism |
TAS85 |
|
Service brake |
Dual-circuit air brake |
|
Parking braking |
Spring-powered Air-cut-off brake |
|
Auxiliary brake |
Engine exhaust brake |
|
Tire |
12.00R20 radial tire |
|
Engine Parameters |
Model |
WP10.340E32 |
Feature |
Diesel, 4 stroke, Direct injection, 6 cylinder in line, Turbo-charging, Inner cooling |
|
Emission standard |
Euro 3 |
|
Max power (kw) |
340hp |
|
Max torque (N.m) |
1500 |
|
Mixing Drum Parameters |
Max mixing cubage (m³) |
5 |
Feeding speed (m³) |
3.5 |
|
Discharging speed (m³) |
3 |
|
Leftover rate |
Nearly Zero |
|
Max Rotating Speed (R/min) |
14-16 |
|
Mixing Drum Obliquity (°) |
10 |
|
Max mixing drum diameter (mm) |
Φ2412 |
|
Driving System |
Hydraulic Pump |
Italian TOP089 |
Hydraulic Motor |
TOP 089 |
|
Speed reducer |
TOP P68 |
|
Water supply mode |
Water pump; pneumatic pump |
|

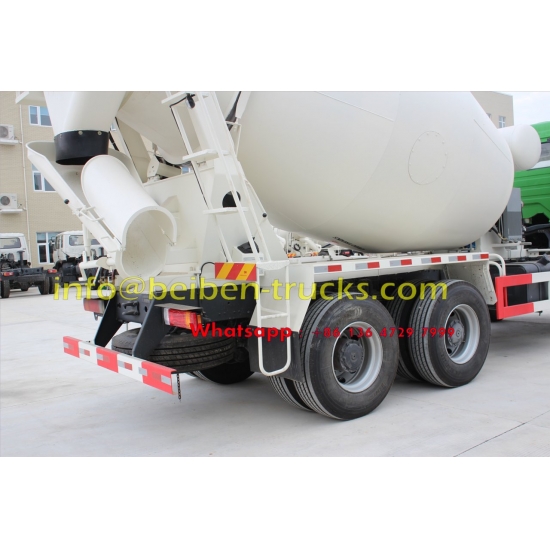

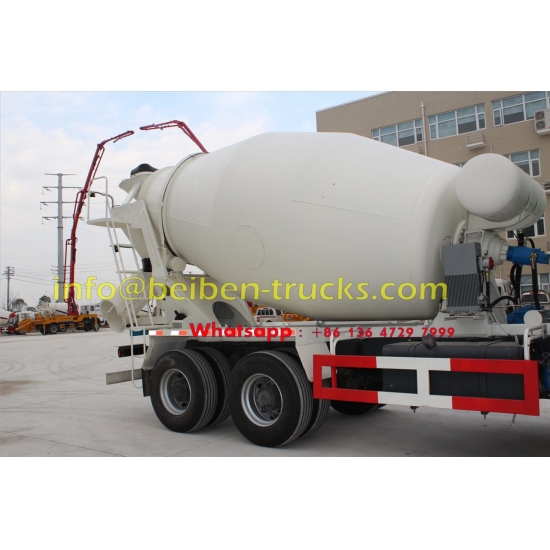

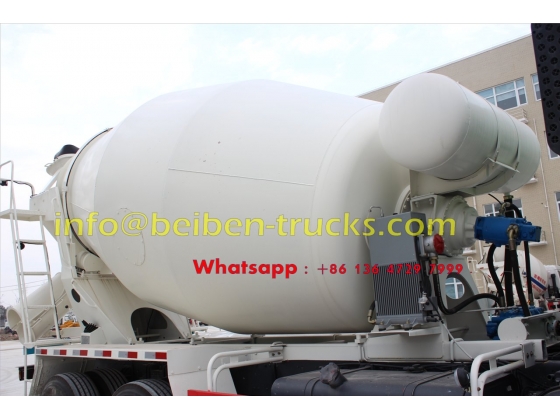

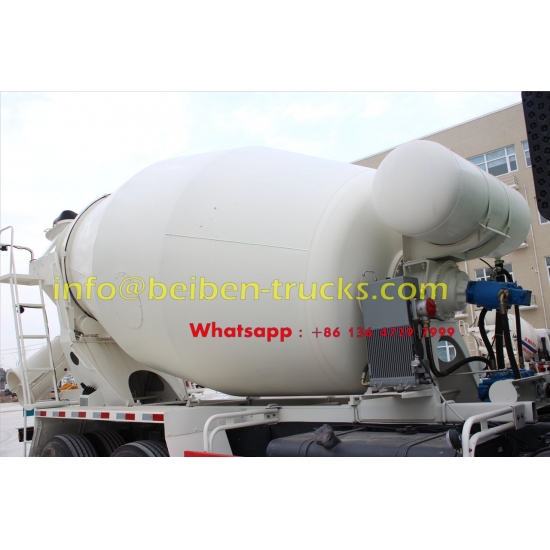

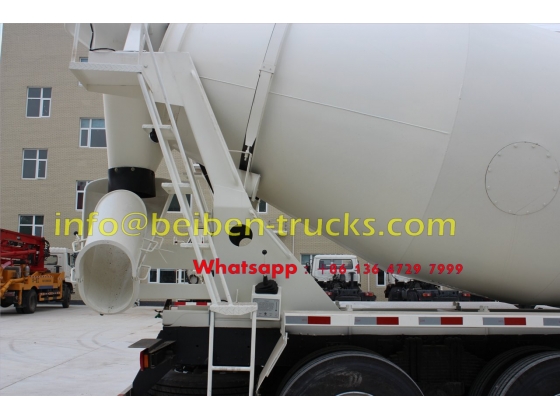

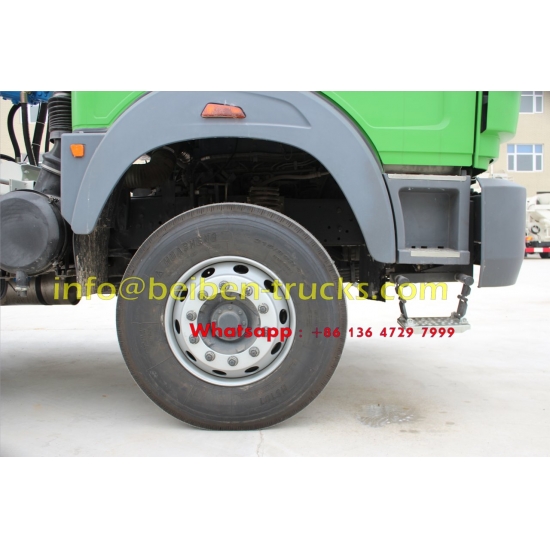

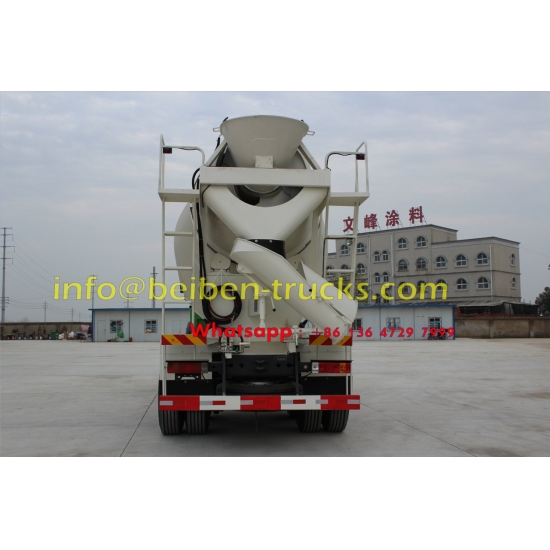

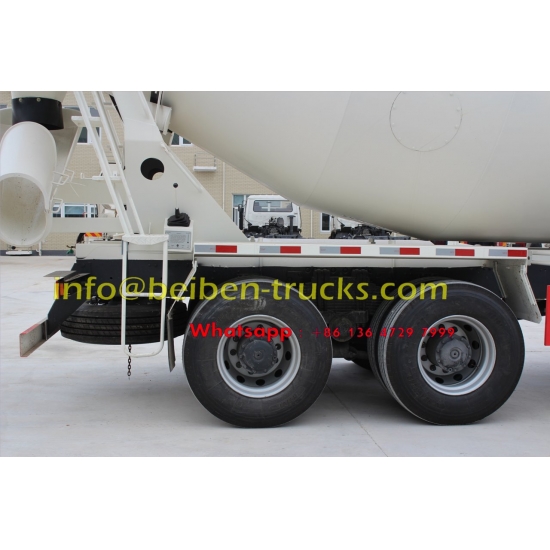

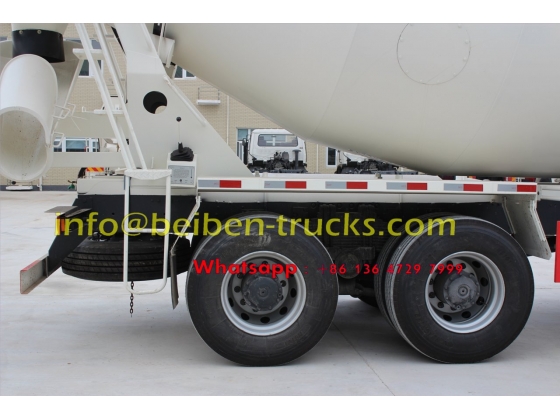

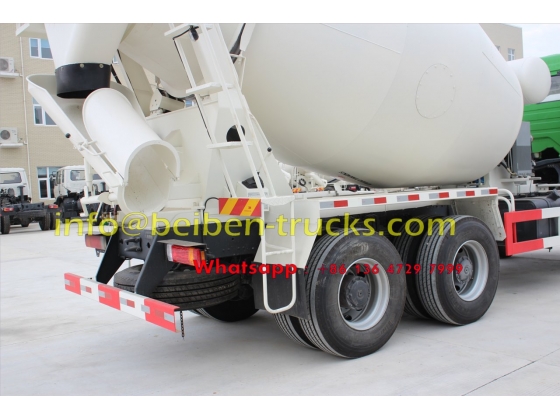

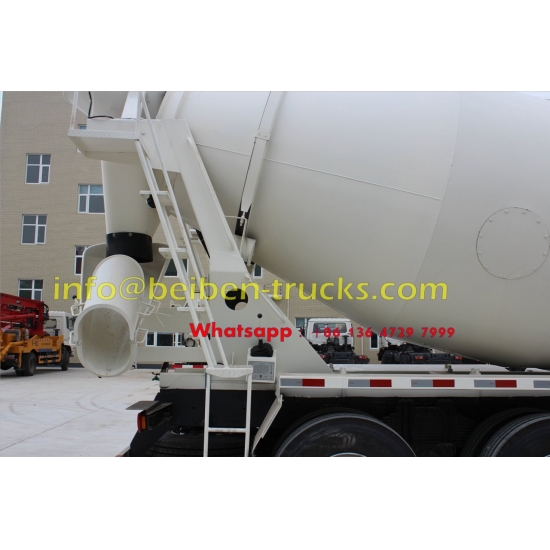

Beiben concrete mixer truck parts details for reference.
