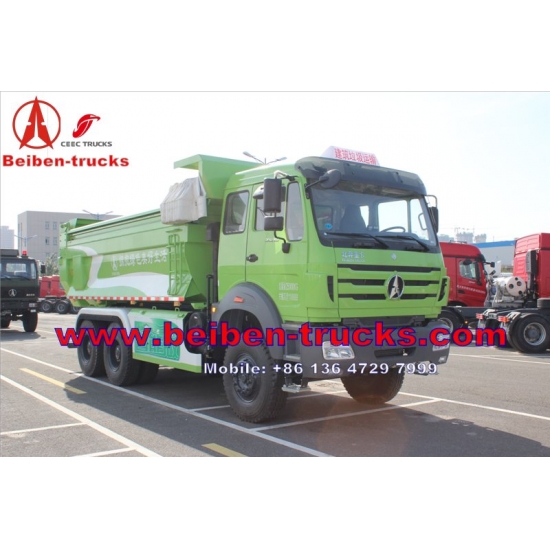

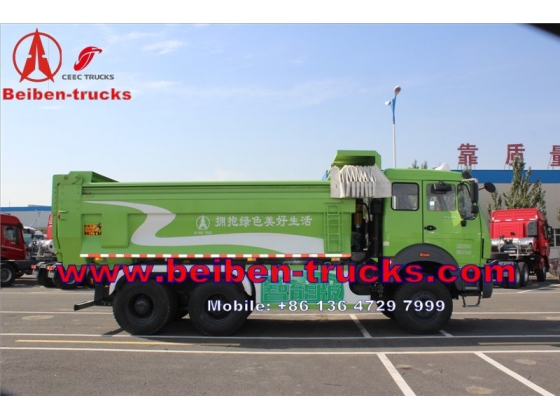

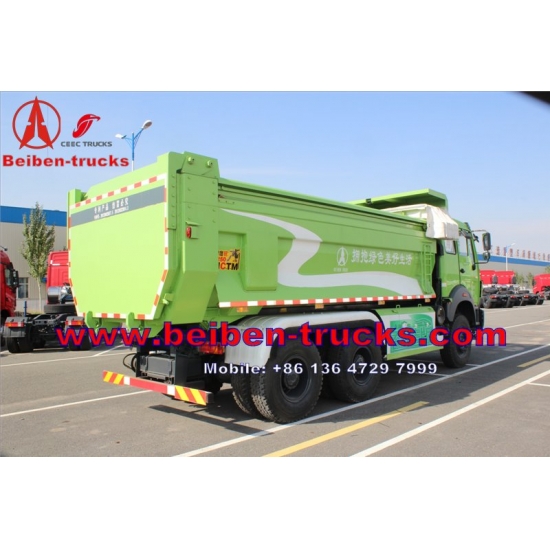

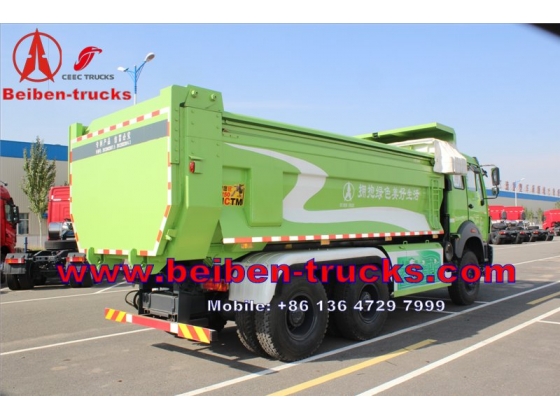

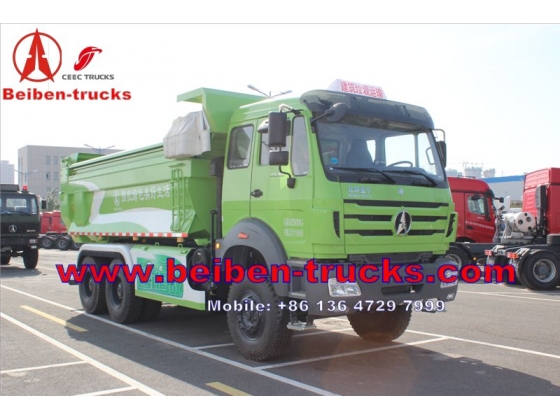

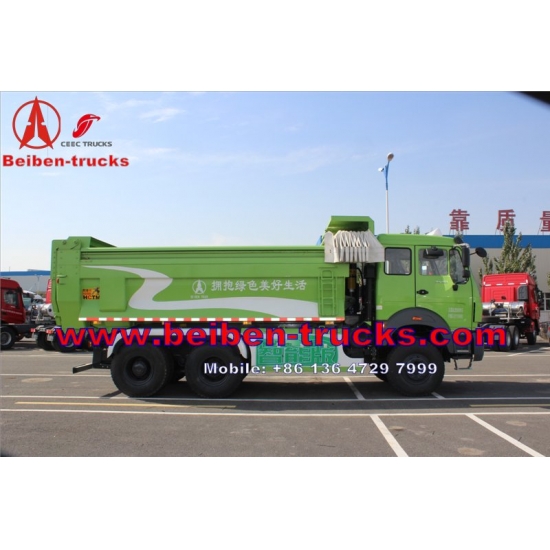

North BENZ Beiben Dump truck with different horse power 290hp 340hp 380hp power wheels dump truck

Mercedes Benz Technology WEICHAI engine 340hp & 380hp North Benz Dump Truck

Cabin:

North Benz short cabin, one sleeper, A/C
Radio player(with USB), Safety belt, Adjustable air type, high back and shock absorption
Driver seat with handle and seatbelts
Dash board with all necessary gauges such as (km meter, rpm, oil pressure, temperature, air pressure,
Fuel level)
Headlight, Sun protection on cabin.

Engine:
Engine brand: Weichai
Engine type: Diesel 4-stroke direct injection engine, 6-cylinder in-line
With water cooling, turbo-charging & inter-cooling with exhaust valve brake.
Displacement: 9.726 liters
Max. Output: 290HP
Max torque: 1970NM@1200-1500rpm
Bore/Stroke(mm): 126/130

Clutch:
Clutch: Φ 430 Diaphragm type
Type: Single dry frictional disc, Hydraulic boosting
Gear box:
Model: Fuller 9 speeds(9JS150A), manual, 9-forward and 1 reverse speeds

Steering: ZJ120D
Brake system:
Double-circulate brake system

Axles:
Front axles: Mercedes Benz Technology 7.5 Tons
Rear axles: Benz double Reduction driving axle, Ratio: 1: 5.921(option5.263, 6.733)
Frame: Strengthened frame 300*90*8+6+8
Tyre: 12.00R20
No tyre: 10+1 spare
Spring: 10/13
Fuel tank capacity (L): 300

Weight:
Kerb. Mass: 9200 kg
Towing mass: 25000kg

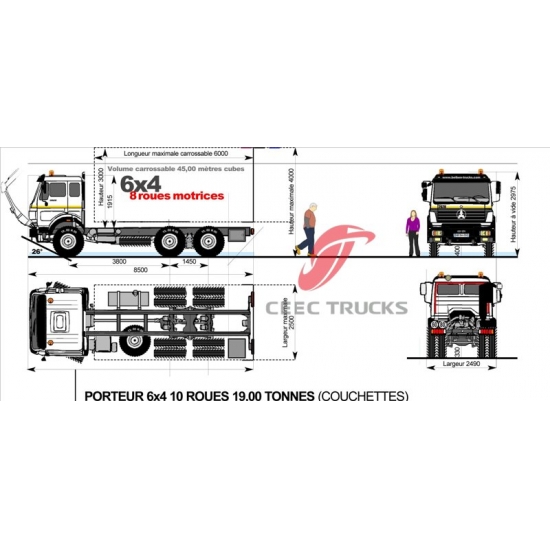

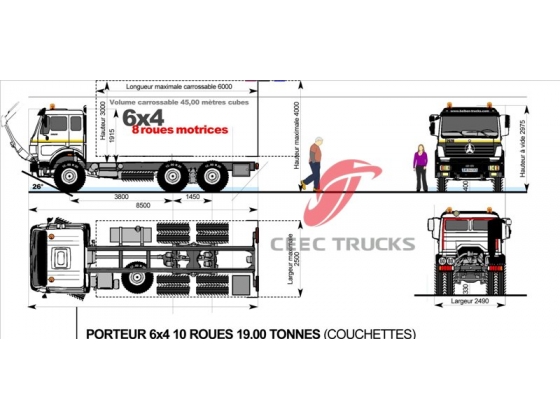

 Dimensions:

Wheel base (mm): 3800+1450
Front overhang (mm): 1410
Rear overhang (mm): 1687
Front track (mm): 1995
Rear track (mm): 1808/1808
Max. Length(mm): 8347
Max. Width(mm): 250

Max. Heigh(mm): 3384

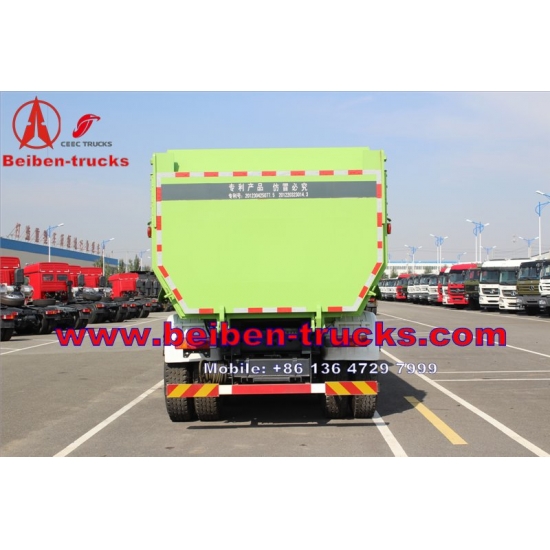

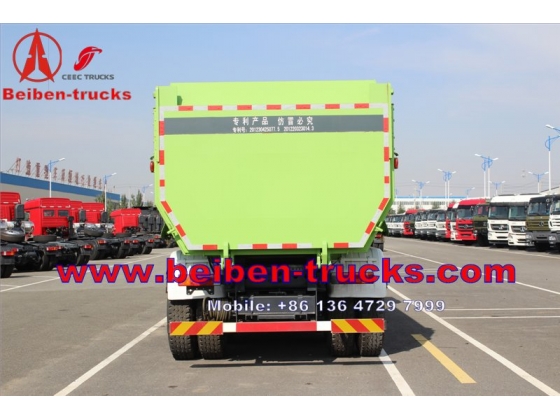

 Tipper Body

Dimension 5600*2300*1500

Capacity :19.32CBM

Thickness of body steel(mm): floor 6 front 6 side & back 4

Hydraulic System ---  F type lifting

Cylinder: Φ180x4640

■Working principle

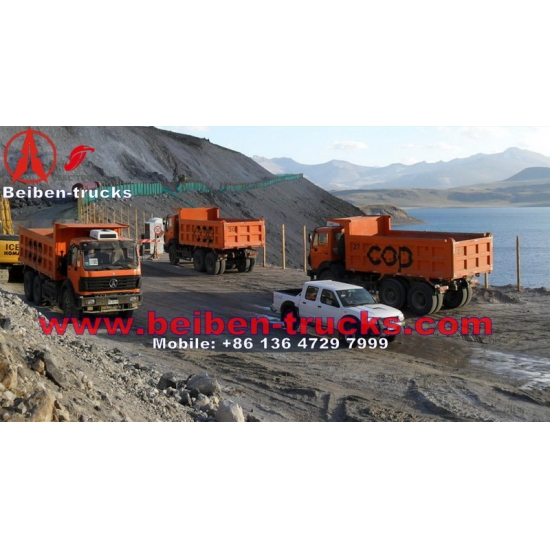

Beiben dump truck in great order from our plant.
