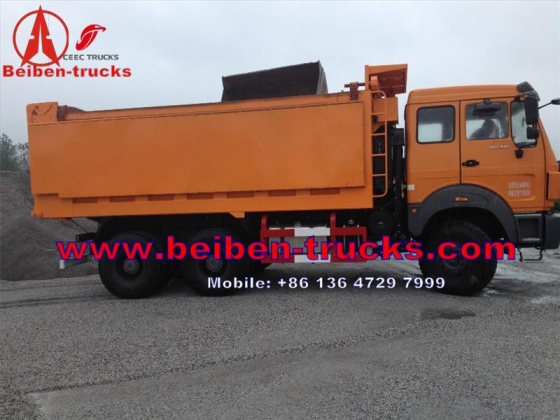

North Beiben 6x4 380hp sand tipper dump trucks for sale
Beiben V3 380hp Dump Truck 6x4 china made dump truck for sale
1.China 6x4/8x4 Dump Truck Beiben NG80/V3 best Tipper Truck with low price
2.Mercedes Benz Technology
3.Left hand drive/ right hand drive
4.Good parts supply
5.Short delivery time
NORTH BENZ dump truck |
|
|
Traction type |
LHD/RHD |
|
Drive System |
6×4 |
|
Cabin |
V3 flat Cabin, Air Conditioner ,one sleeper |
|
Engine |
Brand |
WEICHAI |
Model |
WP10.380E32 EURIII |
|
Rated power |
380hp |
|
Engine displacement |
9.726 liters |
|
Gearbox |
FAST 12 Speeds (12JS200T) |
|
Clutch |
430 Diaphragm type |
|
Steering |
ZJ120D/ZF8098 |
|
Axle |
Front |
BEIEBN 7.5 Ton |
Rear |
BEIBEN 13 Ton double reduction axle, ratio:5.921 |
|
Max. running speed (km/h) |
85 |
|
Tire |
12.00R20 |
|
Spring |
10/13 |
|
Fuel tank |
300L |
|
Kerb weight (kg) |
12400 |
|
Total mass (kg) |
25000 |
|
Wheel base (mm) |
3800+1350 |
|
Overhang (mm) (front/rear) |
1410/ 1870 |
|
Track (mm) (front/rear) |
1995/1800 |
|
Approach / departure angle(°) |
26/32 |
|
Dimensions(L*W*H)(mm) |
Overall |
8330x2500x3430 |
Dump body |
5600x2300x1500 |
|
Thickness (mm) |
Bottom 8 , front 6mm,side 4 |
|
Hydraulic lifting system |
Middle lifting(Made in China) |
|
