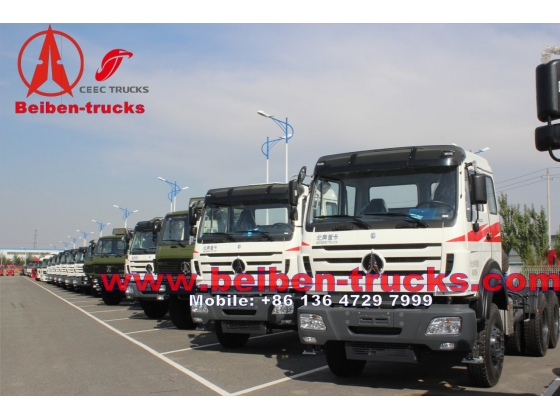

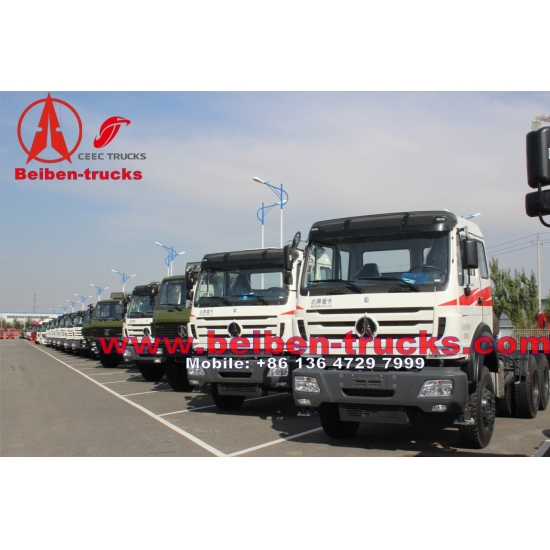

North Benz Tractor Head RHD 380hp/420hp with WEICHAI engine Fuller Gear box
1.North Benz BEIBEN tractor truck
2.Mercedez-benz technology
3.480hp WEICHAI engine
4.FAST transmission
5.Military axles
North Benz Tractor Head RHD 380hp/420hp with WEICHAI engine Fuller Gear box
More than 10 years great experience on beiben NG80B tractor trucks, CEEC TRUCKS plant has become the most professinal beiben NG80B tractors supplier on beiben 2538 tractor trucks, beiben 2534 tractor truck, beiben 2542 tractor trucks.
Our international team on beiben NG80 tractors will dedicate ourselves to the whole perfect solution for customer's logistic arragement. CEEC TRUCKS, FOR YOUR SUCCESS.
Bei Ben new NG80B tractor trucks is with attractive appearance, and specific heavy tractor truck metallic framework + stressed-skin construction, possessing security of same level of European automobiles, which fulfils European ECER29 safety and regulatory requirements; stamping molding of frame only once ensures girder strength.
380Hp Beiben tractor truck
6x4 drive, 380 Hp engine, 12 shift transmission,Euro 2
Industries application
Construction, Mining
and quarries, Heavy duty material transportation Dry Bulk, Building Material, Waste
Agriculture, Freight，Plant Hire, Military
|
Sales No. |
Beiben 2638SY |
|
|
Dimension（mm) |
Long |
7050 |
|
Wide |
2500 |
|
|
High |
3900 |
|
|
Wheel base（mm） |
3450+1450 |
|
|
Drive |
6×4 |
|
|
Engine |
Model |
WP10.380E32 |
|
Cabin |
NG80A/ Long cab |
|
|
Clutch（mm） |
Φ430 |
|
|
Front Axle |
7.5T |
|
|
Rear/Mid Axle |
Model/speed radio |
Double Reduction Driving Axle /5.263 |
|
Steering System |
ZF8098 |
|
|
Braking System |
Dual Circulation Air Brake System |
|
|
Fuel Tank（L） |
400L |
|
|
Frame/mm |
317×70×8.5+7+8mm |
|
|
Tire |
12.00R20 |
|
|
Front/Rear Overhang |
1410/740 |
|
|
Transmission |
Fuller 12JS160T |
|
|
Curb Weight（kg) |
8800 |
|
|
Max Towing Weight(kg) |
40000 |
|
|
Max Speed（km/h) |
90 |
|
|
Remark |
||
Great quantity Beiben NG80 right hand drive tractor trucks with customer LOGO, which we have exported to South africa.
Beiben NG80B tractor trucks Gallery
| Model | Engine Model | Rated Power | Payload | Driving Mode |
| Beiben 2548 | WP12.480N | 480 Hp | 100 Ton | 6*4 |
| Beiben 2642 | WP12.420N | 420 Hp | 55 Ton | 6*4 |
| Beiben 2542 | WP12.420E32 | 420 Hp | 70 Ton | 6*4 |
| Beiben 2534 | WP10.336 | 336 Hp | 40 Ton | 6*4 |
| Beiben 2534 | WP10.340 | 340 Hp | 45 Ton | 6*4 |
| Beiben 2538 | WP10.380N | 380 Hp | 50 Ton | 6*4 |
