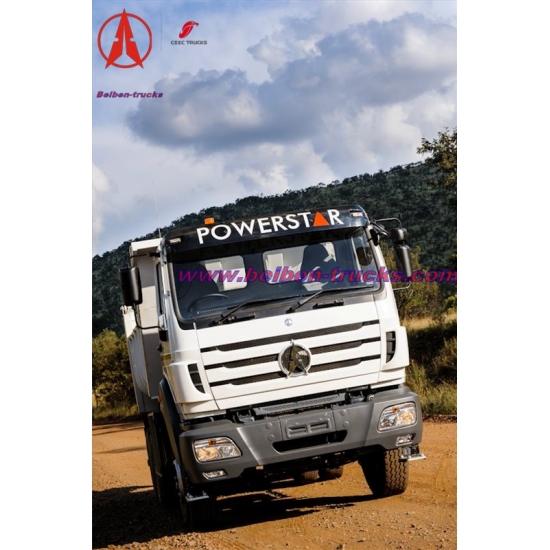

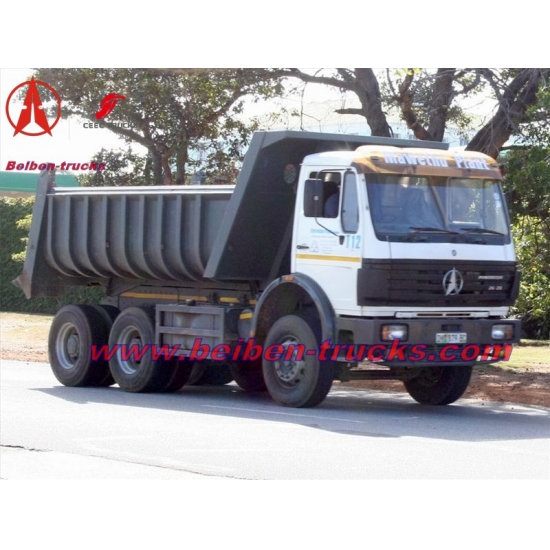

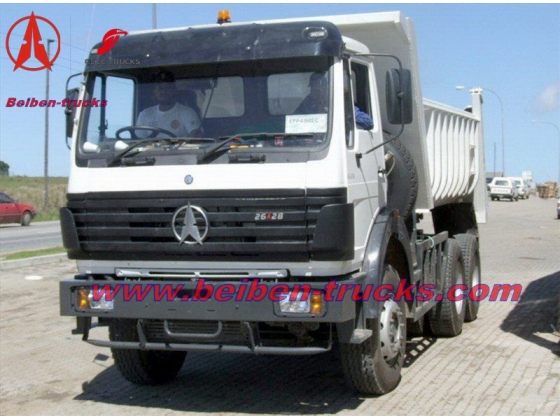

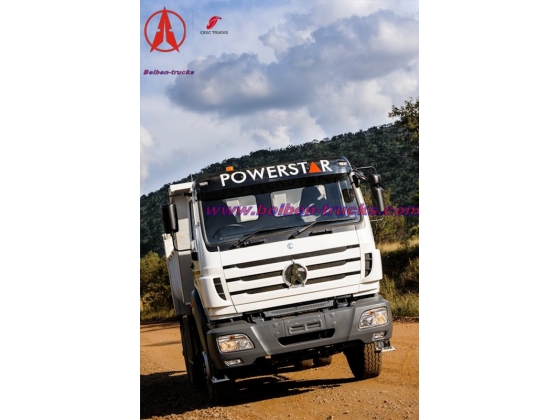

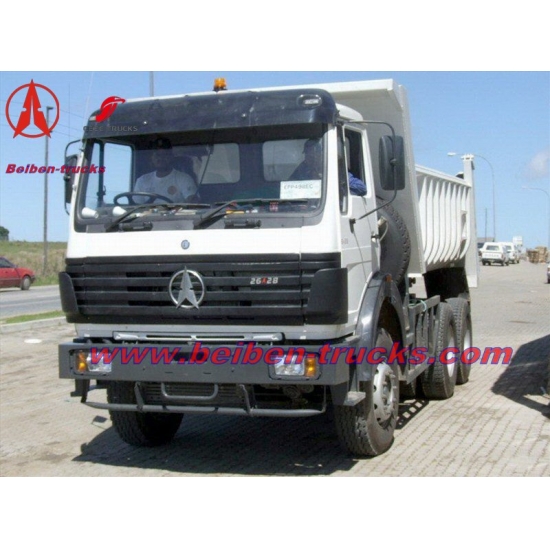

Power Star Beiben 6x4 tipper truck With Low Price
Power Star Beiben 6x4 tipper truck With Low Price , we produce and supply power star 6*4 dump trucks, power star left hand drive dump truck and power star right hand drive dump truck.
1.shortest delivery time
2.more competitive price,
3.reliable and high efficient performance
4.good after-sales service
SPECIFICATIONS FOR beiben DUMP TRUCK |
|||
Vehicle Specifications |
Model |
ND32601B38J |
|
Traction 4X2,6X4,8X4 |
6X4 |
||
Power |
340HP |
||
Weight Parameter |
Complete Vehicle Kerb Mass(kg) |
12310 |
|
Maximum authorized total mass (kg) |
26000 |
||
Dimension Parameter |
External Dimensions(mm) |
Length (mm) |
7169/7680 |
Width(mm) |
2495/2500 |
||
Height(mm) |
3180/3430 |
||
wheelbase(mm) |
3800+1450 |
||
Internal cargo Sizes |
Length (mm) |
5200 |
|
Width (mm) |
2300 |
||
Height (mm) |
1200 |
||
Performance Parameter |
Maximum Speed(km/h) |
75 |
|
Maximum Grade ability(%) |
35 |
||
Turning diameter(m) |
16 |
||
Recommended Configuration |
Engine |
Engine Type |
WD615.34 |
Rated power(kW)/Rev(r/min) |
250/2200 |
||
Horse power |
340HP |
||
Torque(N*m)/Rev(r/min) |
1350/1500 |
||
Transmission |
9JS150A |
||
Clutch(mm) |
430 |
||
Gearbox |
9 forward gears/ 2 reverse gears |
||
Axle |
Front Axle |
BENZ-7.5 |
|
Rear Axle |
BENZ-13 |
||
Axle load-bearing |
Front axle |
7500 |
|
|
Rear axle |
13000 |
|
Fuel Tank(L) |
400 |
||
Track(mm) |
1995/1800/1800 |
||
Front overhang/rear overhang(mm) |
1320/1700 |
||
Type |
12.00R20 |
||
Cabin |
Sleeper |
one |
|
OTHER |
Engine horse power |
290hp,330hp,340hp and 360hp,380hp is optional |
|
Tyre |
nylon,radial and tubeless is optional |
||
ABS |
optional |
||
COLOR |
optional |
||
