The 2013 New Heavy Duty Truck Baotou Beiben Dump Truck 6X4 with 10 Wheels EuroIII

Product Details

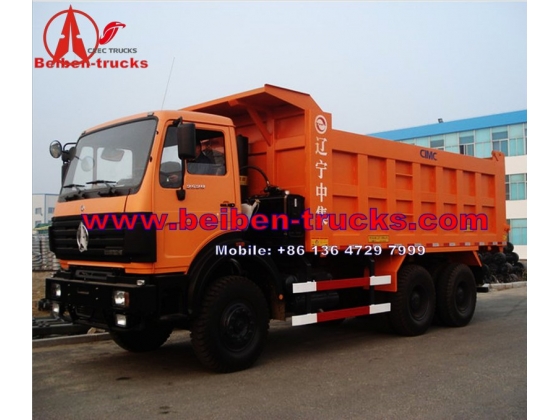

The 2013 New Heavy Duty Truck Baotou Beiben Dump Truck 6X4 with 10 Wheels EuroIII



Beiben Engineering Dump truck



City pioneer and trailblazer



(This series mainly refers to the north benz 6*4 drive dump truck with internal length less than 6.5m, including middle lifting north benz 10 wheeler dump truck and north benz U-shaped dump truck)



Bump resistance, distortion resistance, high efficiency, and sturdiness

 Light Weight Dump Truck


Mercedes Benz Technology WEICHAI engine 340hp & 380hp North Benz Dump Truck



Traction type: 6X4

Driving type: LHD (RHD is optioned)



Main Specification

Model

ND3255B41J

Condition

New

Drive type

6×4

Brand

Beiben Dump Truck

Steering Wheel Type

LHD(Left hand drive)   (RHD is in option)

Overall Dimension(mm)

8880×2500×3430

The total mass(Kg)

25000

Kerb weight(kg)

12200

Wheel base(mm)

4100+1450

Dimension of cargo body(mm)

L×W×H

5800/6000×2300×1500

Thickness of steel plate

Bottom:    Side:

Capacity



Tipping system

HYVA Front tipping system

Fuel Type

Diesel

Engine

Type

Weichai brand,WP10.380E32

Inline six-cylinder,

water-cooled, four-stroke,

turbocharged inter-cooled

Direct injection

With the exhaust brake

Emission standard

EURO III

Horse power

380hp

Maximum output

280Kw @ 2200 rpm

maximum torque

1600N.m

Displacement(L)

9.726



Full load minimum fuel consumption rate

196g/kW.h

Cabin

BENZ technology NG80B Flat ceiling and Long Cab,

One sleeper,

Exterior trim: NG80B front grid plate, Metal bumper, three steps, sun visor, new mirror system.

Manual glass lift, adjustable steering wheel, manual door locks. with air-conditioning system,

Steering

ZJ120D driver sit at the Left hand side (LHD) ZF8098 is optional

Transmission



FAST mechanical type 12JS200T 12 Speed Transmission,12 forward and 2 reverse

Clutch

Ø430mm dry diaphragm spring diameter clutch Hydraulic boosting

Front axle

Benz technology front axle (7.5 ton), plate (disc) brake

Driving axle

Benz technology drive axle (13ton) double reduction driving axle, inter-wheel differential lock,  axle differential lock.

Speed Ratio:5.921  (5.263 is optional)

Brake

Service brake: Brake gap can be adjusted automatically, double circulation air brake system

Parking brake: Potential springs pressing on middle and reel wheels

Engine brake: Engine exhaust brake(EVB)

TYRE Size

12.00R20  radial  tyre

No. tire: 10+1 spare

Suspension system

 Leaf spring type

Leaf Spring of Front/Rear

10/13

Air condition includes

YES

Fuel tank

300L Iron

Others

Power takeoff, Water tank guardrail, Draw hook, Desert air filter, simple rear axle fender

Color

As the customer request





Working principle

Light Weight Dump Truck Building new profit concept in the age of “light weight” (This series mainly refers to the light dump truck with internal length above 6.5m, classified into rectangular dump body and U-shaped dump body) Energy-saving, high effic

Light Weight Dump Truck

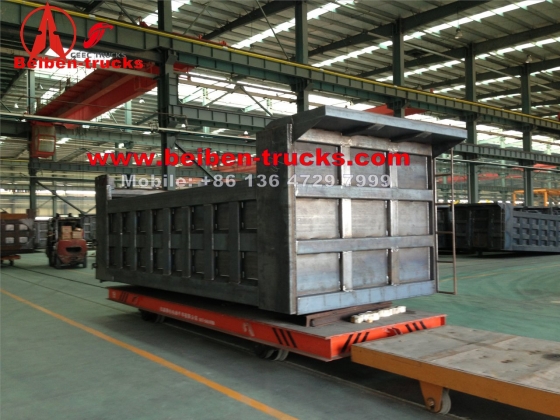

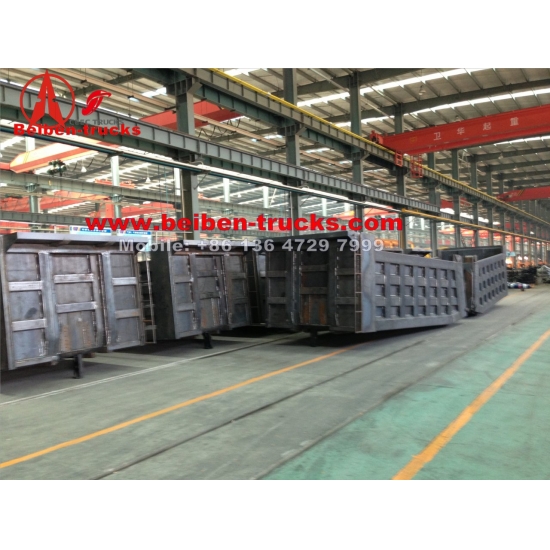

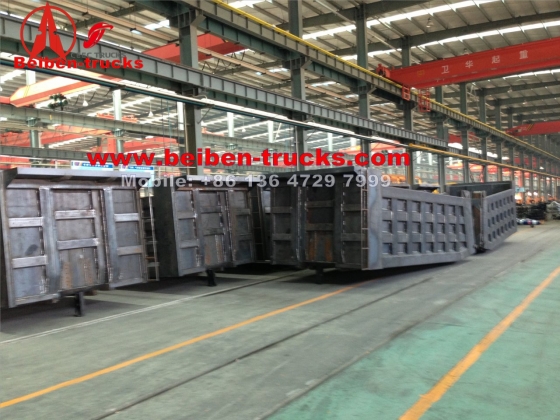

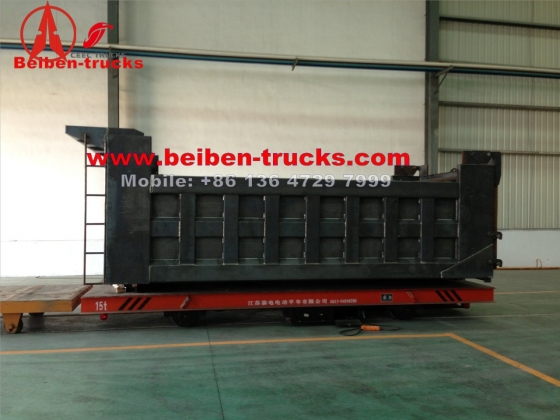

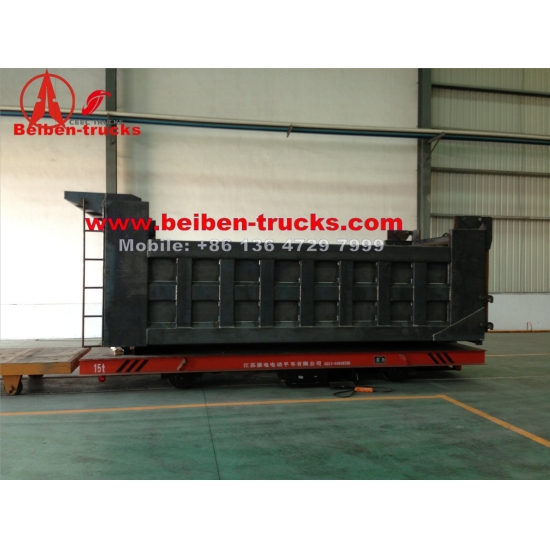

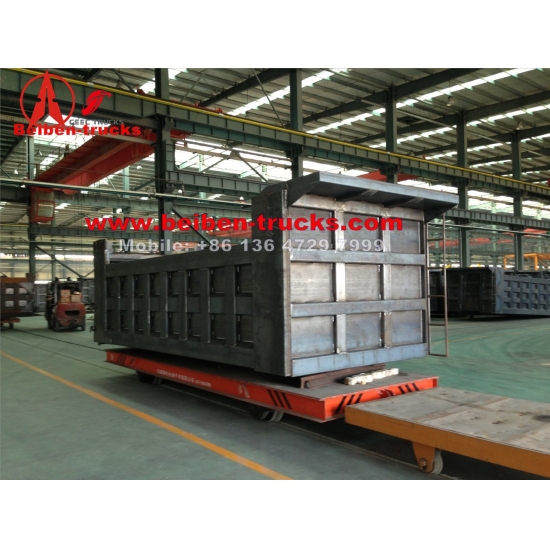

Beiben dump truck in great order from our plant.

north benz dump truck

north benz dump truck

north benz dump truck

north benz dump truck

The best beiben dump trucks, beiben 6*4 dump truck, beiben 8*4 dump truck manufacturer in china.

Beiben dump truck for africa congo

Beiben dump truck for africa congo

Beiben dump truck for africa congo

north benz dump truck

north benz dump truck

north benz dump truck

north benz dump truck

north benz dump truck

north benz dump truck

Beiben dump truck for africa congo

Beiben dump truck for africa congo
