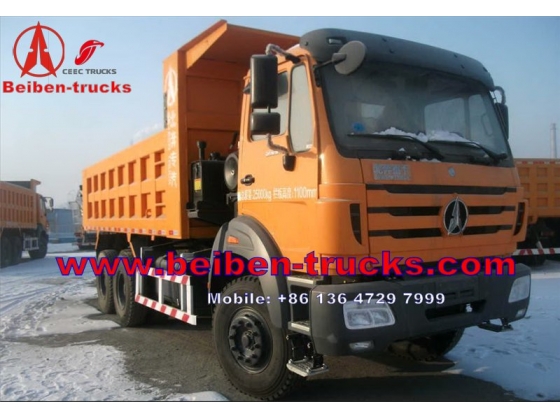

The 2013 New Heavy Duty Truck Baotou Beiben Dump Truck 6X4 with 10 Wheels EuroIII

Product Details


Best North benz dump truck manufacturer in china

10 years beiben dump  trucks field experience

Beiben china dump truck manufacturing

Mercedes-Benz Technology

Best beiben dumper



The 2013 New Heavy Duty Truck Baotou Beiben Dump Truck 6X4 with 10 Wheels EuroIII


Company Information

CEEC TRUCKS plant is a heavy automobile business unit with the approval of State Administration for Industry and Commerce and State Development Planning Commission and is one of rare domestic enterprises with the authority of Ministry of Commerce.

Adopting modern enterprise system, the company is a marketing enterprise of various heavy automobile brands, integrating international and domestic trade.

Our Services

1. BeibenSpare parts available for 10 years

2. Engineer is available to make service overseas
3. 24hours online consultation service

Packaging & Shipping

1. All the beiben trucks will be made antirust before shipment

2. Different shipping method for different port, Ro-Ro Vessel, Bulk Vessel, Flat-Rack, Container, etc
3. Shipment tracking

 Light Weight Dump Truck


Mercedes Benz Technology WEICHAI engine 340hp & 380hp North Benz Dump Truck



Traction type: 6X4

Driving type: LHD (RHD is optioned)





Wheel base  (mm)

5050+1450

Curb weight kg

12420

Engine



Model

WD615.46(Wei Chai engine.Euro II,Based on Styre technology, made in China)

Displacement     L

9.726/Diesel

Emission

EURO III

Fuel tanker capacity  L

300

Clutch

Model

GFX420, Single dry frictional disc,Hydraulic boosting

Gearbox

Model

RT11509C(Based on Eaton Fuller technology,made in China;transmission ,mechanism,9 gears,1 reverse gear,manual)

Brake system

Service brake

Brake gap can be adjusted automatically, double circulation air brake system

Assistant brake

Engine exhaust brake

Park brake

Potential springs pressing on middle and rear wheels

Steering system

Model

ZF8098

Frame

Fish belly shape, variable width, variable sections

Front axle (Mercedes Benz  Technology)

Double-shoe pneumatic brake, non-driving steering axle



Middle and Rear axle (Mercedes Benz Technology)

Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle



Tyre

12.00R20

Electrical system

Battery

2X12V/135Ah

Generator

28V-35A

Starter

5.4Kw/24V

Cab

Short cab, made by full steel material, anti-crash performance can be ensured by double hollow chamber structure. Inner



Working principle

Light Weight Dump Truck Building new profit concept in the age of “light weight” (This series mainly refers to the light dump truck with internal length above 6.5m, classified into rectangular dump body and U-shaped dump body) Energy-saving, high effic

Light Weight Dump Truck

Beiben dump truck in great order from our plant.

north benz dump truck

north benz dump truck

north benz dump truck

north benz dump truck

The best beiben dump trucks, beiben 6*4 dump truck, beiben 8*4 dump truck manufacturer in china.

Beiben dump truck for africa congo

Beiben dump truck for africa congo

Beiben dump truck for africa congo

north benz dump truck

north benz dump truck

north benz dump truck

north benz dump truck

north benz dump truck

north benz dump truck

Beiben dump truck for africa congo

Beiben dump truck for africa congo

PreviousThe ND32500B48J7 The Beiben Dump Truck with 380HP Engine For this Tipper

NextThe 2013 New Heavy Duty Truck Baotou Beiben Dump Truck 6X4 with 10 Wheels EuroIII

Success Cases

10 units beiben 6*6 wooden transportation truck export to Pointe Noire seaport, CONGO

More than 10 units Beiben 2534 type 6*6 wheel drive trucks are exported to CONGO, pointe noire seaport.   This beiben 340 Hp all wheel drive timber trucks are speciall designed and reinforced for Congo customer, for the transporation heavy timber wood in the very bad forest road.  Once customer use these trucks, they find that it is very ...

10 units beiben 6*6 wooden transportation truck export to Pointe Noire seaport, CONGO

10 units beiben 2534 truck chassis, 6*6 driving truck export to CONGO, Brazavaiile

CONGO customer make beiben trucks business with our company more than 3 years, this time they order 10 units beiben 6 wheel driving trucks .   all these beiben 2534 all wheel drive trucks will be used in the mine area, for payloading timber.    Beiben 2534 trucks chassis under waxing before shippment .   Bureau Veritas inspectio...

10 units beiben 2534 truck chassis, 6*6 driving truck export to CONGO, Brazavaiile

Congo, pointe noire customer inspect their beiben 2638 tractor truck and bogie suspension semitrailer

Congo pointe noire customer inspect their beiben 2638 tractor truck and bogie suspension semitrailer , these beiben 2638 tractor and 2 axle bogie suspension container semitrailer are very popular in congo, brazaville and pointe noire. We also supply the original beiben spare parts such as beiben oil fitler, fuel filter and air filter for free of ch...

Congo, pointe noire customer inspect their beiben 2638 tractor truck and bogie suspension semitrailer

10 units beiben 2538 wooden transportation trucks export to brazzaville, CONGO

Congo brazzaville customer order 10 units beiben 2638 logging semitrailer Client: Congo brazzaville customer Year: May, 2016   Key Points:  Sourcing of beiben 6*6 drive wooden transportation truck.   ★      Design and manufacturing beiben 6*6 drive logging truck withine 2 months   ★     Maintain ful...

10 units beiben 2538 wooden transportation trucks export to brazzaville, CONGO

10 units Beiben NG80B 380 hp engine tractor trucks export to Kenya , mobassa

Kenya customer place order of 10 units beiben 380 hp engine right hand drive tractor truck.  These beiben 6*4 drive 380 hp engine tractor truck are specially with Germany Benz technology, 80% spare parts of china beiben tractor trucks can be replaced directly by BENZ 2538 tractor trucks. This original benz spare parts can ensure the excellent ...

10 units Beiben NG80B 380 hp engine tractor trucks export to Kenya , mobassa

Indonesia customer order 25 unit beiben RHD 2534 concrete mixer truck and dump truck

Indonesia customer order 25 unit beiben RHD 2534 concrete mixer truck and dump trucks.   These beiben 10 CBM mixer truck and dumpers are all in right hand driving system , to be suitbale for indonesia road policy. CEEC TRUCKS plant engineer make new design on these beiben mixer truck chassis and dump truck chassis, to make sure customer use th...

Indonesia customer order 25 unit beiben  RHD 2534 concrete mixer truck and dump truck
