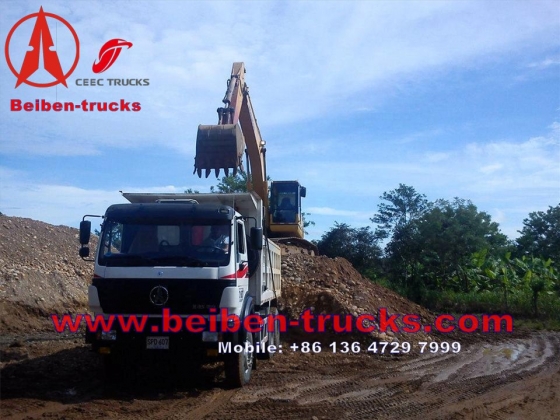

The Beiben Dump Truck 6X4 Tipper ND32500B48J7 Heavy Duty Truck
(This
series mainly refers to the Beiben light dump truck with internal
length above 6.5m,
Order(MOQ):
1
Building new profit concept in the age of “light weight”

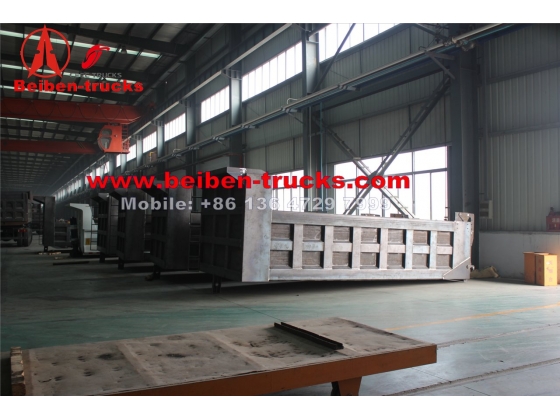

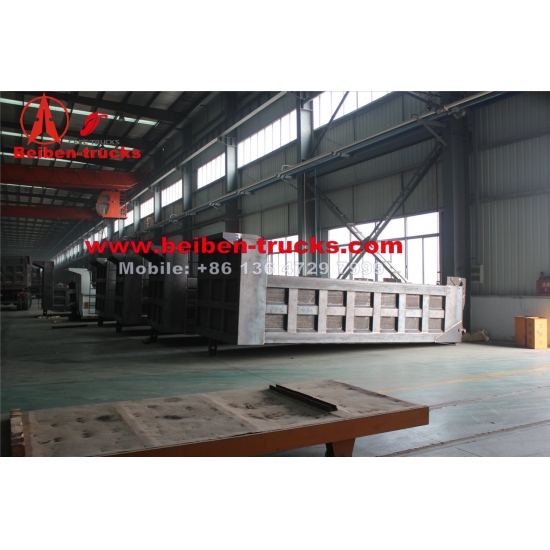

(This series mainly refers to the Beiben light dump truck with internal length above 6.5m, classified into rectangular north benz dump body and U-shaped dump body)
Energy-saving, high efficiency, light weight, and environment-friendly
The steel material of the superstructure is completely upgraded to manganese steel and 610L steel adopted in partial portions, with strength up to 550-700Mpa, which is more than 2 times of conventional steel plate.
The width and thickness for the pillars and ribs of the beiben dump body are sufficiently optimized to effectively guarantee anti-expansion performance of dump body and ensure elegant appearance.
The longitudinal beams of the frame sufficiently utilized the height and the side crossbeam adopts variable section type to reduce the dead weight and ensure sufficient strength.
Wide tail + middle balance stand structure ensure stable and safe lifting of dump body.

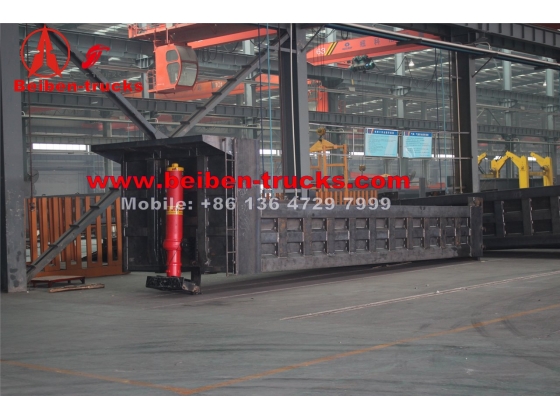

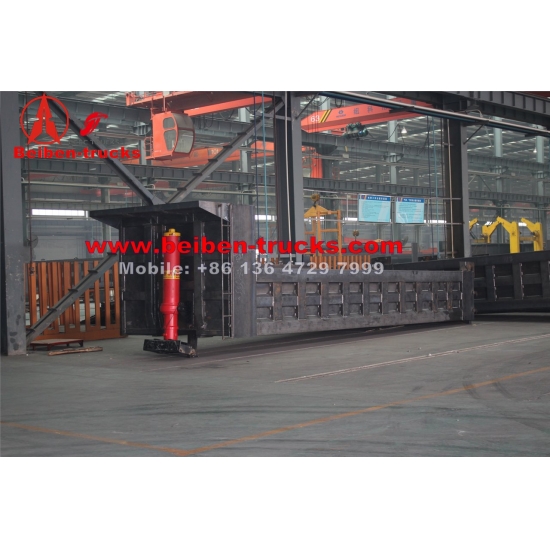

Powerful pump and large pipes of the hydraulic system relize fast lifting speed, high dumping efficiency, and durability.
Key Features:
◆Germany BENZ technology chassis with high durability and reliability
◆ Germany BENZ technology engine combined with original rear axle reducer gear and differential gear
◆Continuous welding throughout body for additional strength, Full depth rear corner post with full depth rear crossmember.
◆ Enhanced body, and the motherboard adopts variable cross-section beams.
◆Special Dump Body Design are optional
◆Other customer requirements are welcome
Technical Parameters:
|
Beiben 2538K /6×4/4100+1450/Short Cab/LHD or RHD |
|||
|
Dimension |
8880*2500*3430mm |
||
|
Cargo box |
5600x2300x1350mm, HYVA hydraulic lifting system; thickness: bottom 8mm, side 6mm |
||
|
Approaching angle/Departure angle |
26/28° |
||
|
Overhang(front/rear) |
1410/1720mm |
||
|
Wheel base |
4100+1450mm |
||
|
Max speed |
85km/h |
||
|
Curb weight |
12650kg |
||
|
Engine |
Model |
WP10.380E32, water-cooled, four strokes, 6 cylinders in line, turbocharged, directly injection |
|
|
Displacement |
9.726L/Diesel |
||
|
Stroke |
126/130mm |
||
|
Max. power |
280/2200 (kw/rpm) |
||
|
Max.torque |
1600/1800(N.m/rpm) |
||
|
Emission |
Euro III |
||
|
Fuel tanker capacity |
300L |
||
|
Clutch |
∮430, Single dry frictional disc,Hydraulic boosting |
||
|
Gearbox |
9JS180, mechanism, 9 forward gears, 1 reverse gear, manual operated |
||
|
Gear ratio of gear box |
12.65/8.38/6.22/4.57/3.4/2.46/1.83/1.34/1.00 R:13.22 |
||
|
Suspension system |
Front |
Non-free standing leaf spring,telescopic shock absorber with stabilizer bar suspension , 10pcs |
|
|
Rear |
Non-free standing stabilization spring, balance suspension system, 13pcs |
||
|
Brake system |
Service brake |
Brake gap can be adjusted automatically, double circulation air brake system |
|
|
Assistant brake |
Engine exhaust brake |
||
|
Park brake |
Potential springs pressing on middle and rear wheels |
||
|
Steering system |
ZF8098 hydraulic steering with power assistance |
||
|
Frame |
Strengthened Straight beam |
||
|
Front axle (Mercedes Technology) |
Double-shoe pneumatic brake, non-driving steering axle |
||
|
Middle and Rear axle (Mercedes Technology) |
Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle |
||
|
Tyre |
315/80R22.5 tubeless tyres |
||
|
Electrical system |
Battery |
2X12V/135Ah |
|
|
Generator |
28V-35A |
||
|
Starter |
5.4Kw/24V |
||
|
Cabin |
NG80B
Long cabin one sleeper and inner A/C ; |
||
|
Beiben Dumper Body |
Body type |
Rectangle reinforced standard body (more body type refer to using environment) |
|
Inner size |
5600x2250x1300 mm |
|
|
Side/front/tail plate thickness |
8 mm Q235A carbon steel |
|
|
Deck plate thickness |
10 mmQ235A carbon steel |
|
|
Lifting system, |
China famous hydraulic lifting system |
|
|
Lifting Type |
Middle tipping |
|
|
Tipper body lifting time, |
≤ 20 S |
|
|
Tipper body Falling Time |
≤ 20 S |
|
|
Max. lifting angle |
52° |
■Working principle

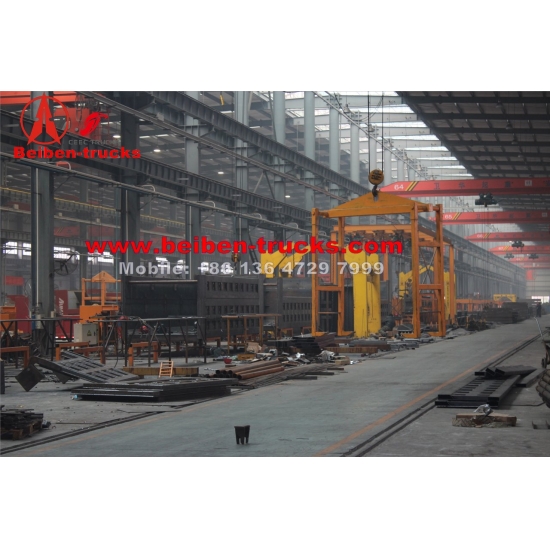

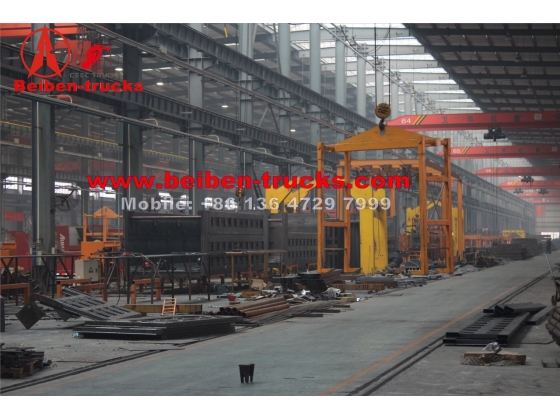

Beiben dump truck in great order from our plant.
The best beiben dump trucks, beiben 6*4 dump truck, beiben 8*4 dump truck manufacturer in china.
More than 15 years on Beiben 2529 tippers,Beiben2534dumper, Beiben 2538dump trucks , beiben 6*4 dump truck,beiben 10 wheeler tipper trucks, ,beiben 10 wheeler tipper,dumpers.We are the best beiben 10 wheeler dump trucks manufacturer in china.
China baotou 2529 dump trucks is totally applied benz truck technology, with CEEC TRUCKS latest design on the 2529 heavy duty dump trucks , to ensure the best work situation of beiben 2529 tippers .
Beiben 2530 dump truck 6*4 driving, with latest technology on beiben 2530 dump truck chassis, china weichai diesel engine and fast 9 shift transmission. we can supply both new beiben 6*4 heavy truck and used beiben 6*4 trucks .
Beiben 6*4 420 hp dump trucks, with china famous 420 horse power diesel engine, we aim at supplying the best quality north benz 420 hp dumper and parts .
Beiben 2534 off road dump truck is with beiben advanced 6*6 driving system, can be suitable for different kinds of working situation. China beiben 6*6 dump trucks can payload at least 25 ton material in very tough road of africa .
Beiben NG80 6x4 dump truck for congo country, we are the authorized and best manufacturer of congo beiben dump trucks supplier, have exported more than 300 units beiben dump trucks to Congo , pointe noire seaport.
Power Star Beiben 6x4 tipper truck With Low Price , we produce and supply power star 6*4 dump trucks, power star left hand drive dump truck and power star right hand drive dump truck.
Beiben Best Performance NG80 Euro2 6x4 dumper, this is the classic cabin of beiben NG80 dump trucks, with benz truck reliable technology, our beiben NG80 dump truck get great reputation in congo country.
Powerful Beiben 420HP 6x4 dump 10 wheeler trucks, this kind of beiben dump trucks with the stronger beiben 420 hp diesel engine, germany benz technology axle and germany zf8098 steering stem .
