Products

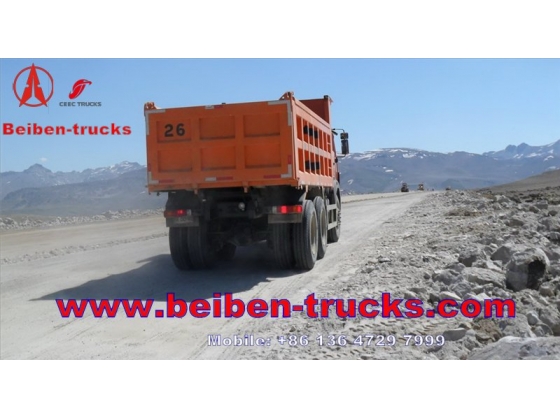

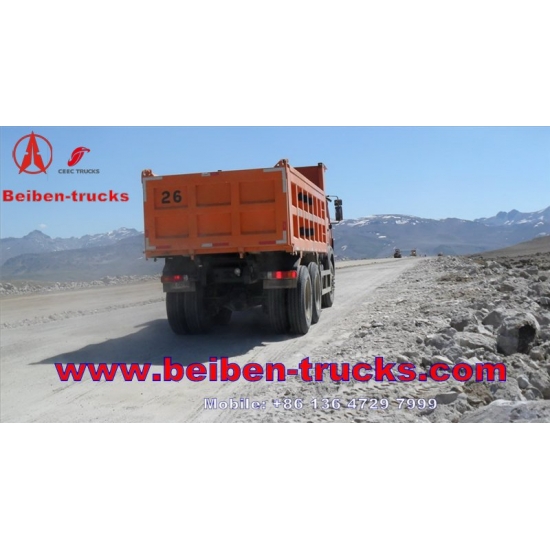

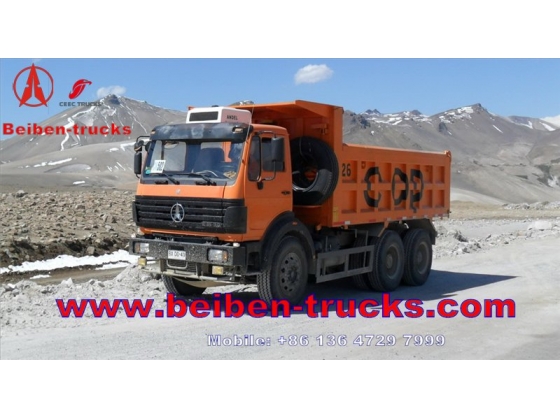

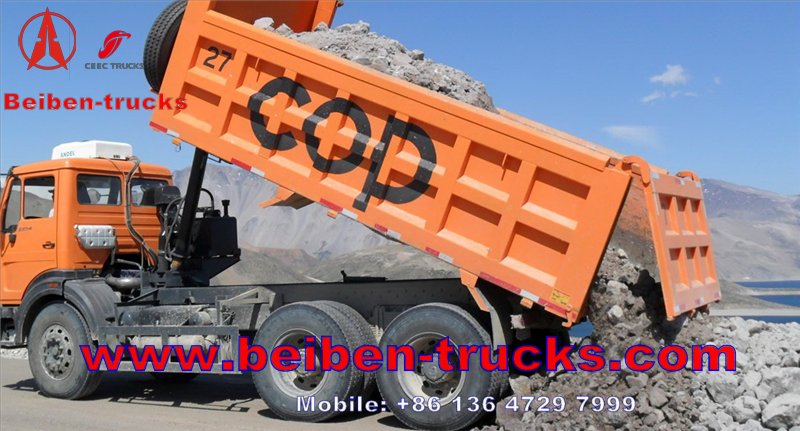

The Heavy Duty Truck Beiben Dump Truck /Tipper 6X4 V3 Series 380HP 30on -50 ton Dump Truck

Product Details


Best North benz dump truck manufacturer in china

10 years beiben dump  trucks field experience

Beiben china dump truck manufacturing

Mercedes-Benz Technology

Best beiben dumper



The Heavy Duty Truck Beiben Dump Truck /Tipper 6X4 V3 Series 380HP 30on -50 ton Dump Truck


Company Information

CEEC TRUCKS plant is a heavy automobile business unit with the approval of State Administration for Industry and Commerce and State Development Planning Commission and is one of rare domestic enterprises with the authority of Ministry of Commerce.

Adopting modern enterprise system, the company is a marketing enterprise of various heavy automobile brands, integrating international and domestic trade.

Our Services

1. BeibenSpare parts available for 10 years

2. Engineer is available to make service overseas
3. 24hours online consultation service

Packaging & Shipping

1. All the beiben trucks will be made antirust before shipment

2. Different shipping method for different port, Ro-Ro Vessel, Bulk Vessel, Flat-Rack, Container, etc
3. Shipment tracking

 Light Weight Dump Truck


Mercedes Benz Technology WEICHAI engine 340hp & 380hp North Benz Dump Truck



Traction type: 6X4

Driving type: LHD (RHD is optioned)





Wheel base  (mm)

5050+1450

Curb weight kg

12420

Engine



Model

WD615.46(Wei Chai engine.Euro II,Based on Styre technology, made in China)

Displacement     L

9.726/Diesel

Emission

EURO III

Fuel tanker capacity  L

300

Clutch

Model

GFX420, Single dry frictional disc,Hydraulic boosting

Gearbox

Model

RT11509C(Based on Eaton Fuller technology,made in China;transmission ,mechanism,9 gears,1 reverse gear,manual)

Brake system

Service brake

Brake gap can be adjusted automatically, double circulation air brake system

Assistant brake

Engine exhaust brake

Park brake

Potential springs pressing on middle and rear wheels

Steering system

Model

ZF8098

Frame

Fish belly shape, variable width, variable sections

Front axle (Mercedes Benz  Technology)

Double-shoe pneumatic brake, non-driving steering axle



Middle and Rear axle (Mercedes Benz Technology)

Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle



Tyre

12.00R20

Electrical system

Battery

2X12V/135Ah

Generator

28V-35A

Starter

5.4Kw/24V

Cab

Short cab, made by full steel material, anti-crash performance can be ensured by double hollow chamber structure. Inner



Working principle

Light Weight Dump Truck Building new profit concept in the age of “light weight” (This series mainly refers to the light dump truck with internal length above 6.5m, classified into rectangular dump body and U-shaped dump body) Energy-saving, high effic

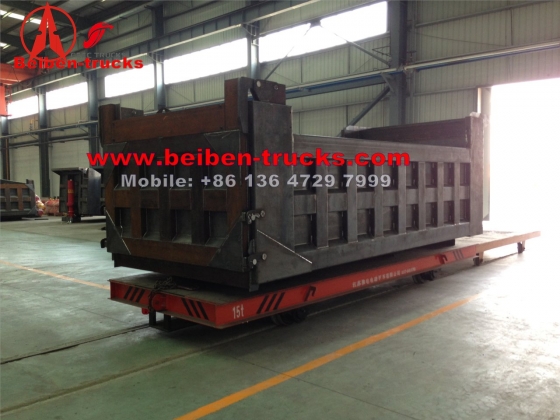

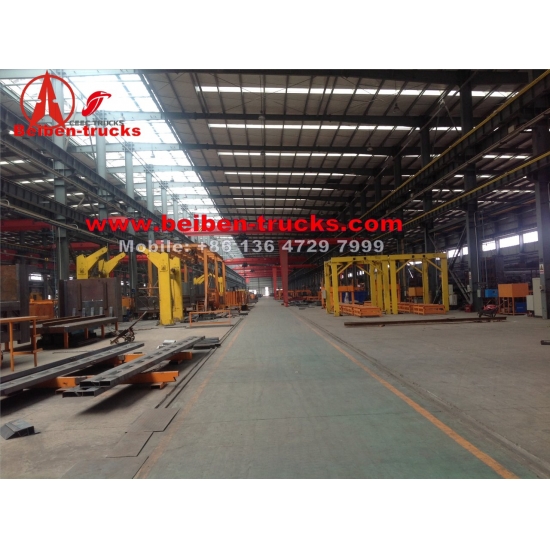

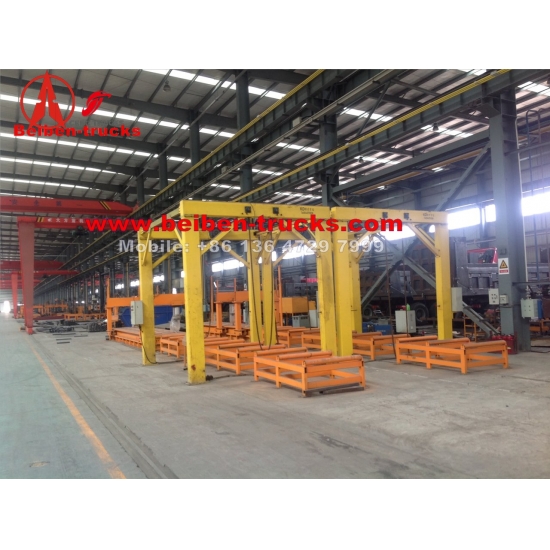

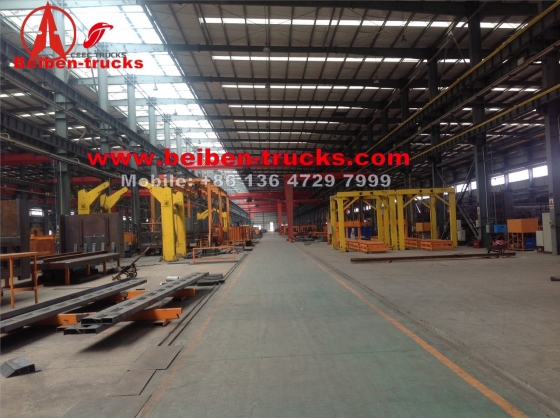

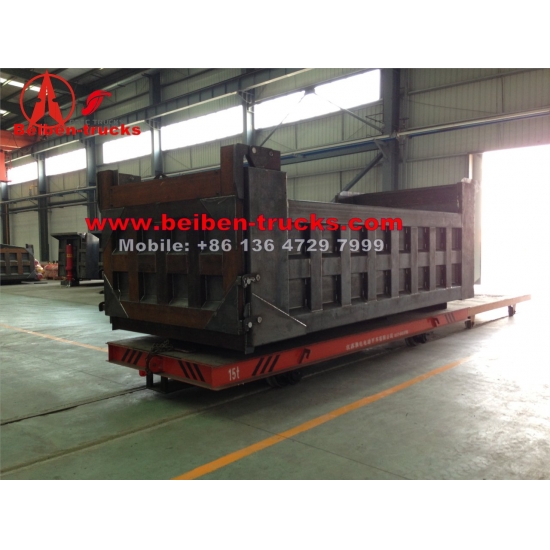

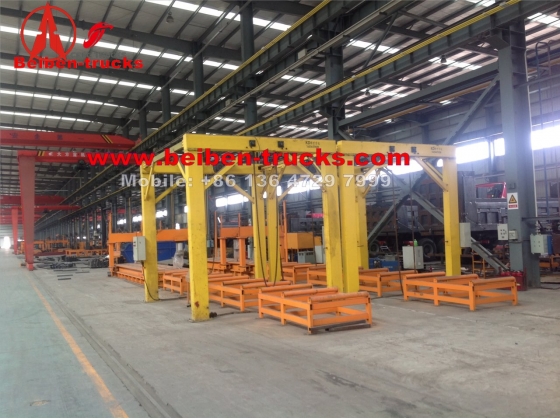

Beiben dump truck in great order from our plant.

Best quality beiben dump truck

north benz dump truck

Best quality beiben dump truck

The best beiben dump trucks, beiben 6*4 dump truck, beiben 8*4 dump truck manufacturer in china.

NextThe ND32500B48J7 The Beiben Dump Truck with 380HP Engine For this Tipper
