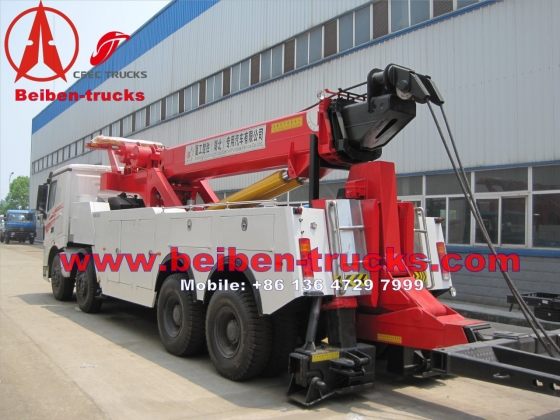

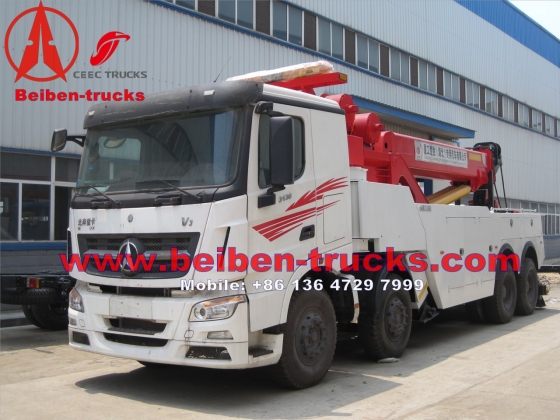

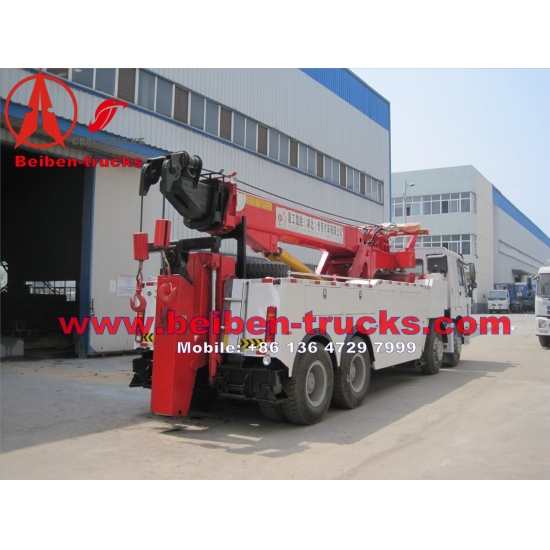

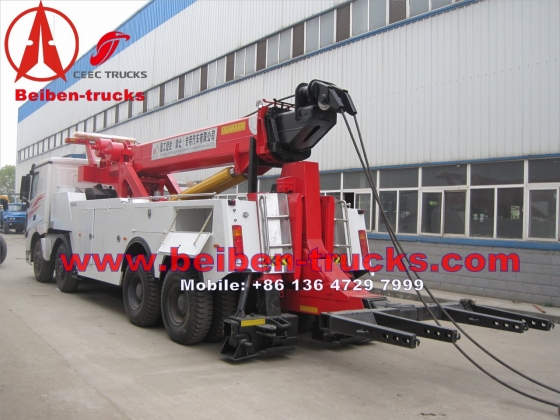

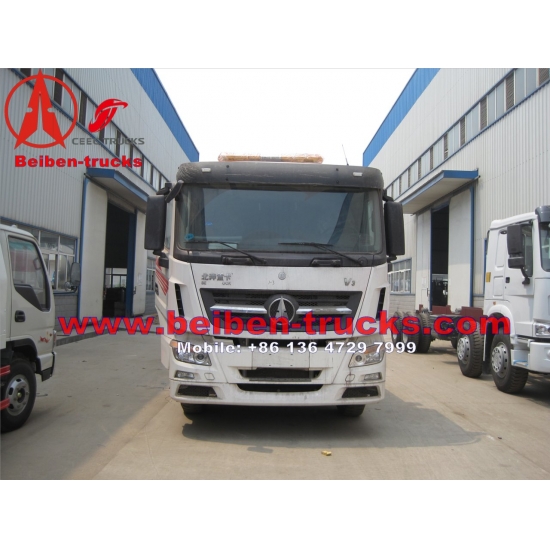

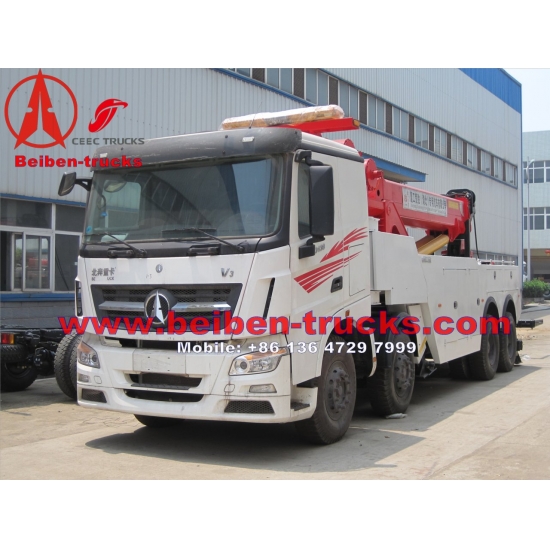

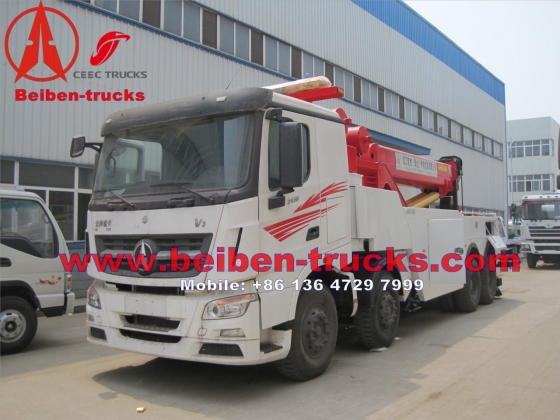

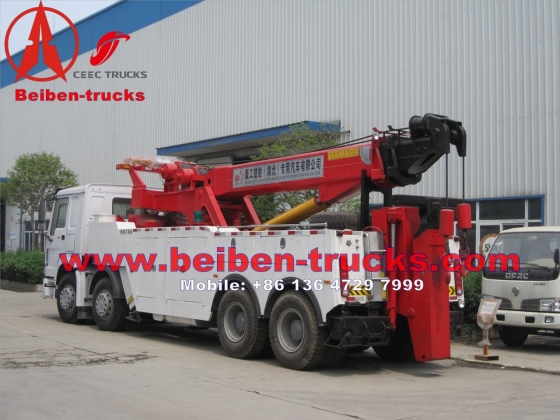

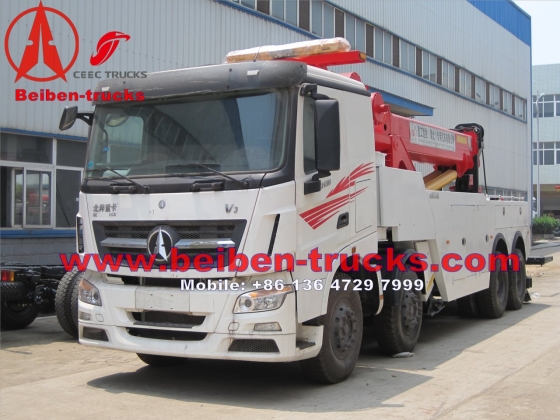

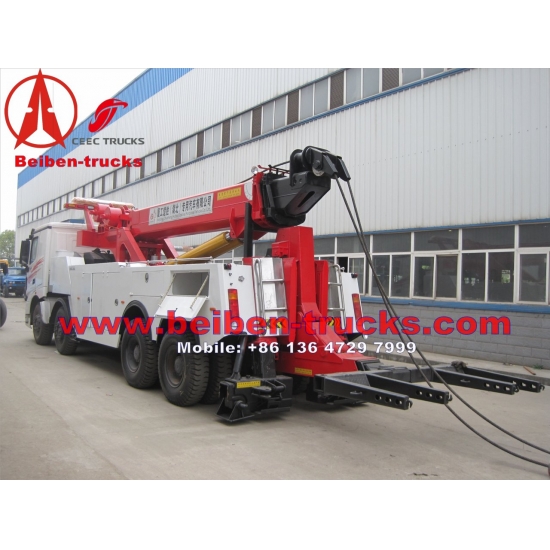

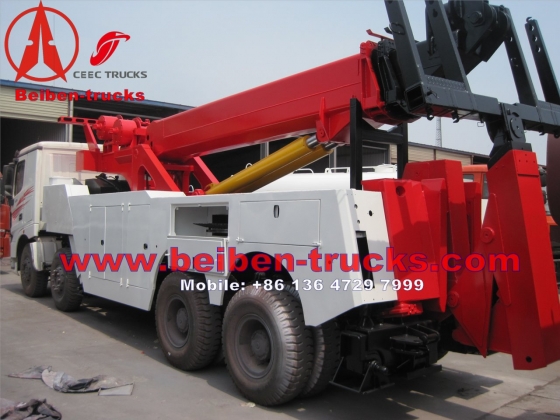

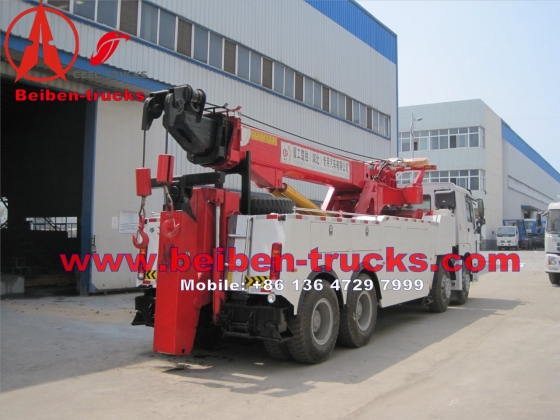

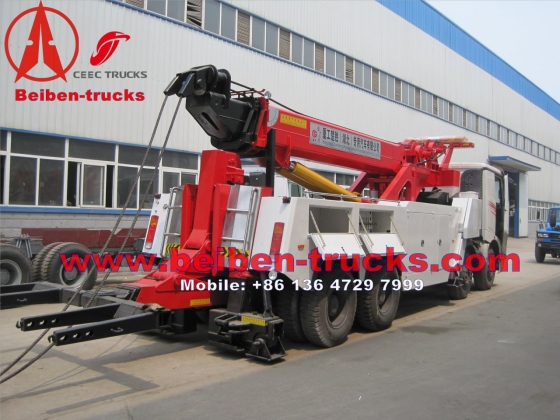

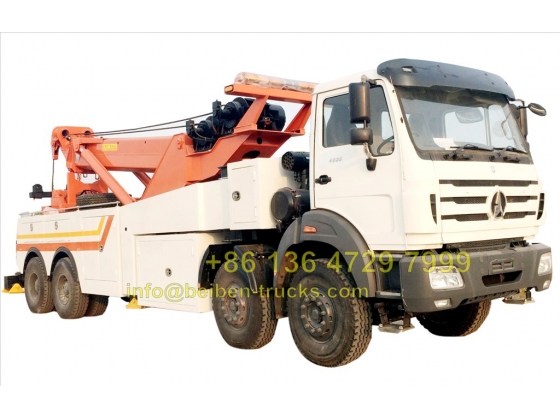

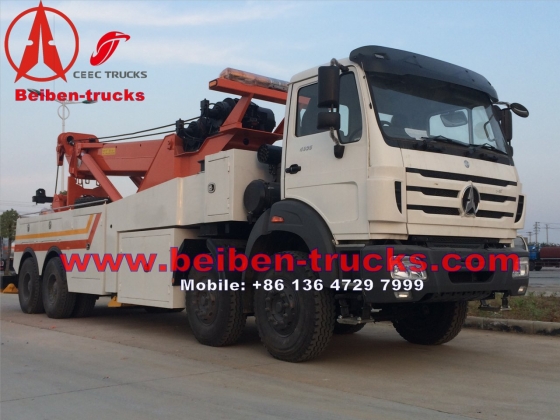

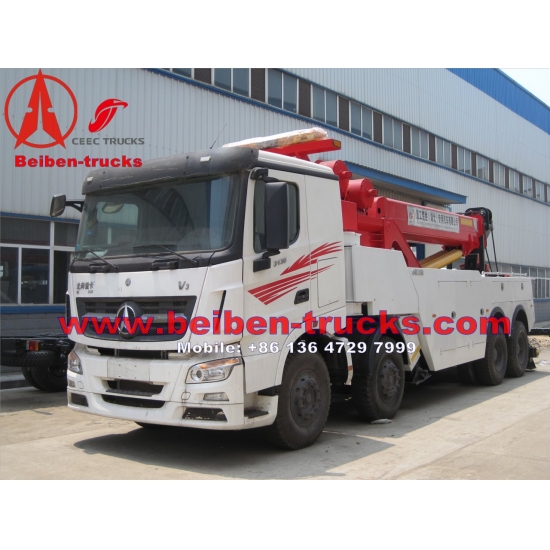

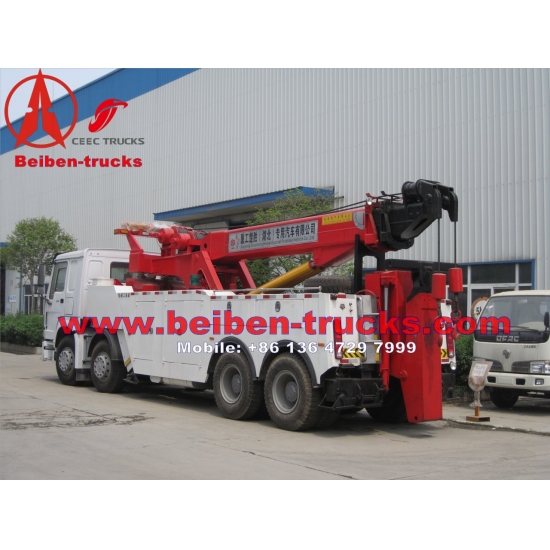

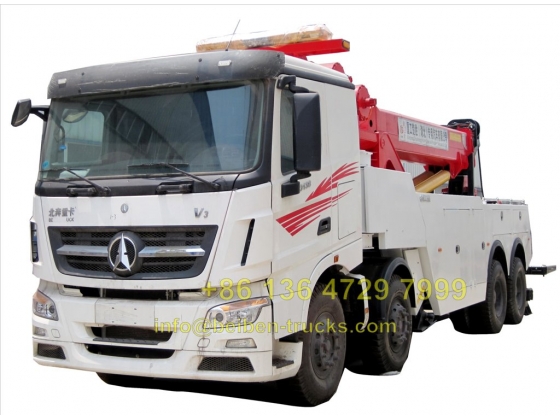

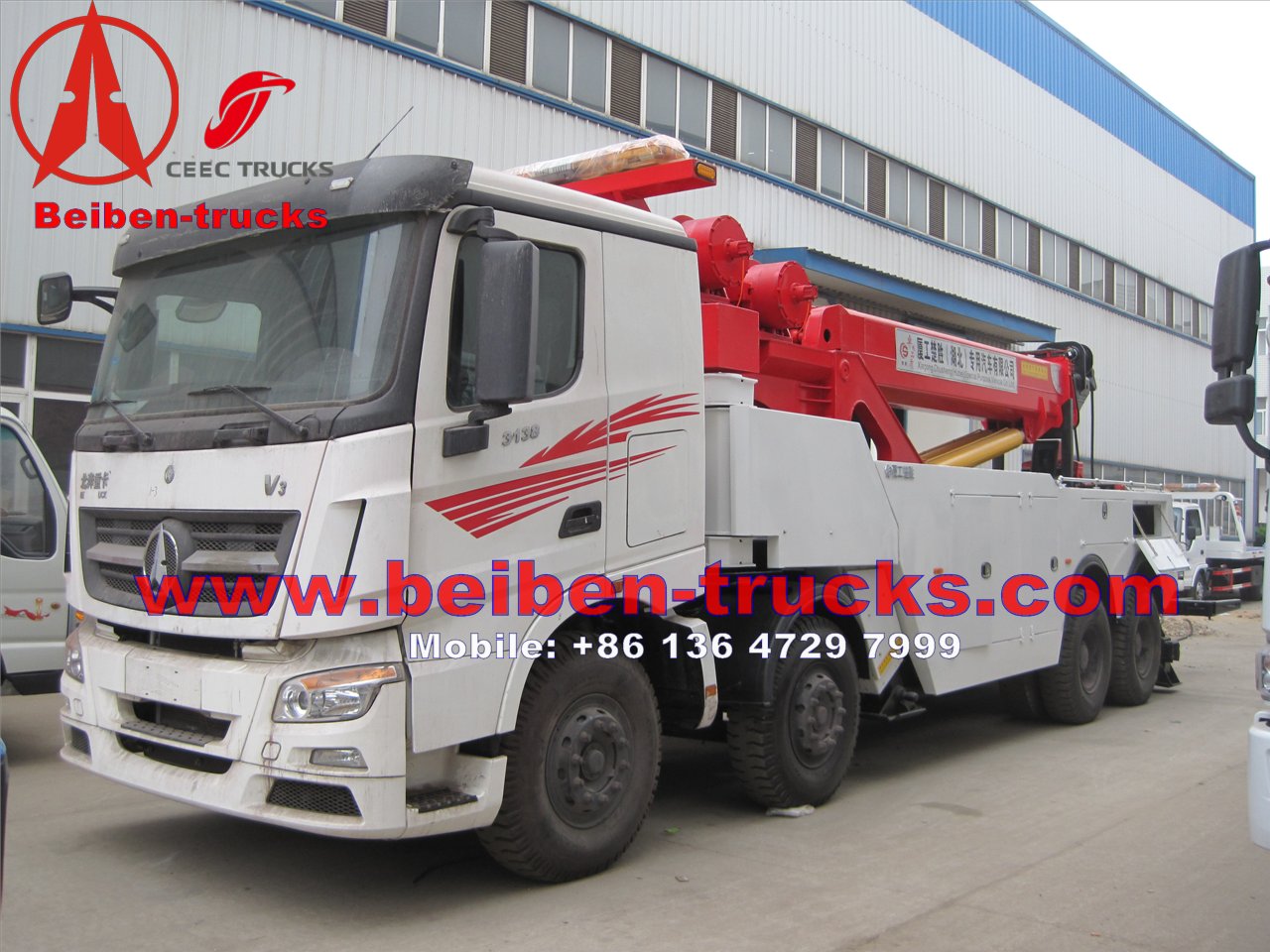

beiben North Benz 3138 Rotator Wrecker truck

Product Details

North benz wrecker recovery truck manufacturer

8x4 beiben towing wrecker truck 20tons
China Beiben 20 Ton towing wrecker truck

BeiBen 8x4 road wrecker truck


Beiben wrecker truck SPECIFICATION

Dimension (mm×mm×mm)

11986×2500×3600


Wheel base (mm)

1500+4750+1450


Curb weight (kg)

14500


Max Speed:(Km/h)

≥80


Front overhang/rear overhang

1410/1720


Engine

Model

WD615.50,water-cooled,four strokes,6 cylinders straight in line,turbocharged,


Fuel type

Diesel


Min rate of consuming fuel(g/(kW.h))

206g/Kw.h


Rated Power / rotating

(KW/(r/min)

206Kw/2200rpm


Emission

EUROⅡ


Maximum Torque / rotating speed(N.m/(r/min))

1160Nm/1100-1600rpm


Displacement(ml)

9726


Fuel tanker capacity (L)

400


Clutch

Model

GFX420, Single dry frictional disc,Hydraulic boosting


Gearbox

Model

5S-112GP mechanical type,Based on ZF German technology ,9Forward speed gear.


Gear ratio of speed

8.48/6.04/4.39/3.43/2.47/1.76/1.28/1.00

Crawler:13.04 Reverse:11.77


Brake system

Service brake

Brake gap can be adjusted automatically, double circulation air brake system


Assistant brake

Engine exhaust brake


Park brake

Potential springs pressing on middle and rear wheels


Steering system

Model

ZF8098, whole circulation in ball type, hydraulic boosting


Suspension system

Rear Suspension

Non-free standing stabilization spring, stabilization suspension, 13pcs


Frame

Fish belly shape, variable width, variable sections


Front axle (Mercedes Benz Technology)

Double-shoe pneumatic brake, non-driving steering axle


Middle and Rear axle (Mercedes Benz Technology)

Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle


Tire

12.00R20 radial tire


Qty of tire

13


Electrical system

Battery

2X12V/135Ah


Generator

28V-35A


Starter

5.4Kw/24V

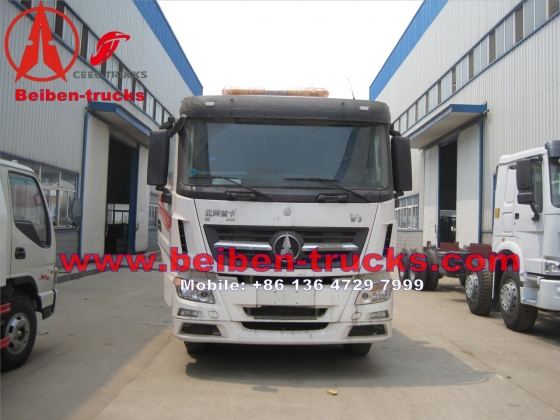

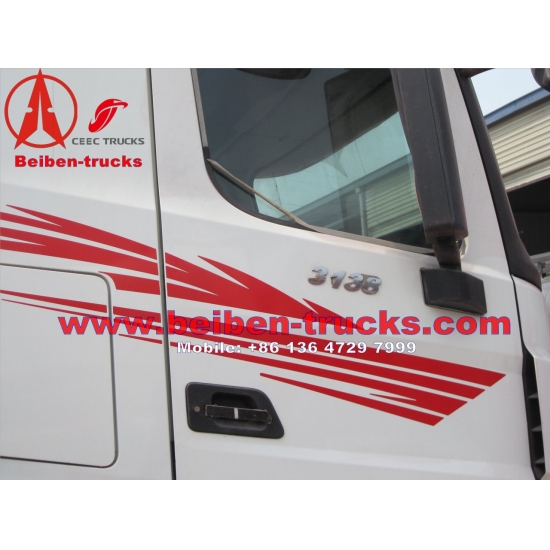

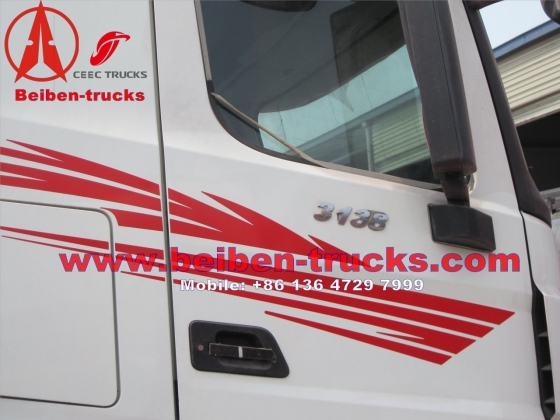

Cab

Long cab with sleeper,

Full steel skeleton structure, covered with double layer steel plate;

Can be tipped forwardly;

With Tropical thermostat(71C)


Interior trimming:

Integral interior trimming, Integral instrument, digital instrument, inner A/C, radio (with USB interface), high back/shock absorption seat for driver, high back seat for co-driver. Steering wheel can be adjusted.


Exterior trimming:

Metal bumper, two steps, new mirror.


Specification of the Upper body(Wrecker)

Towing equipment

30DZ+16T( 2stage boom )

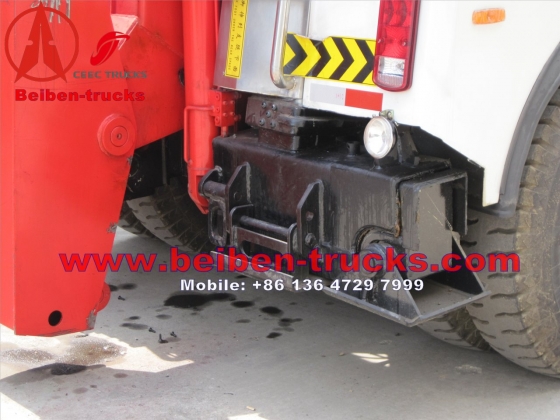

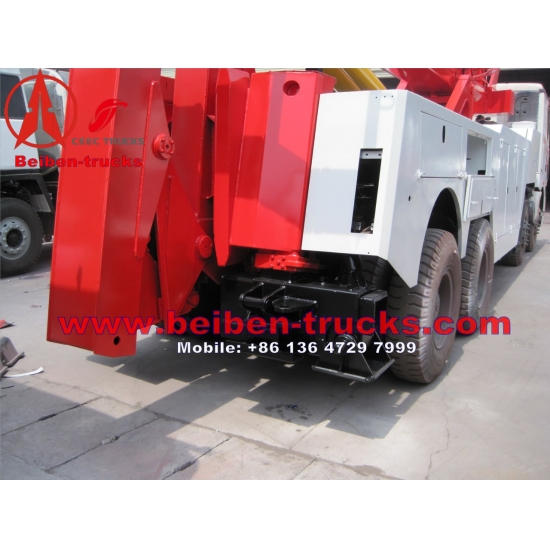

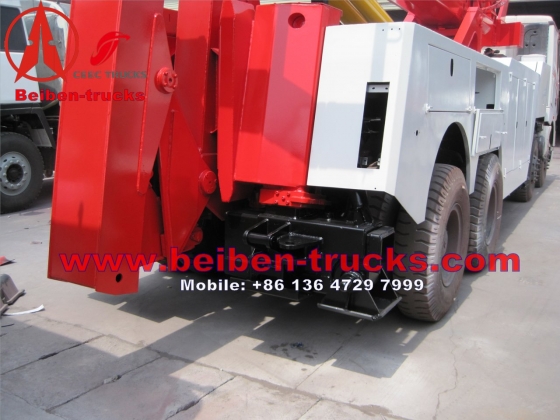

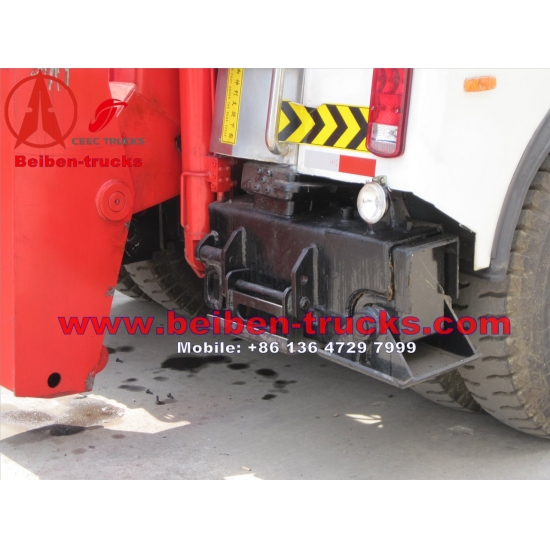

Under

lift

Max lift @all extend (kg)

7200

Max lifting (kg)

16000

Length of arm (mm)

1375~3014

In/out length (mm)

1639

Title angle (0)

-10

Moving angel(0)

-10~93

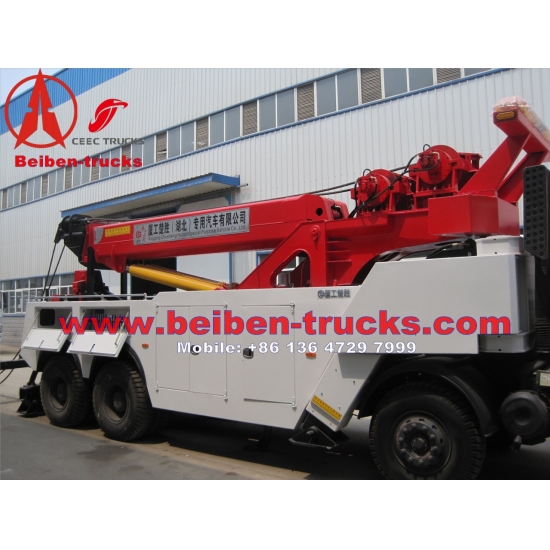

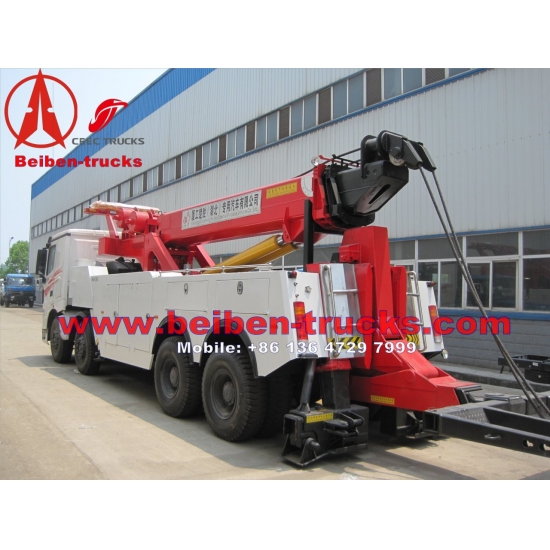

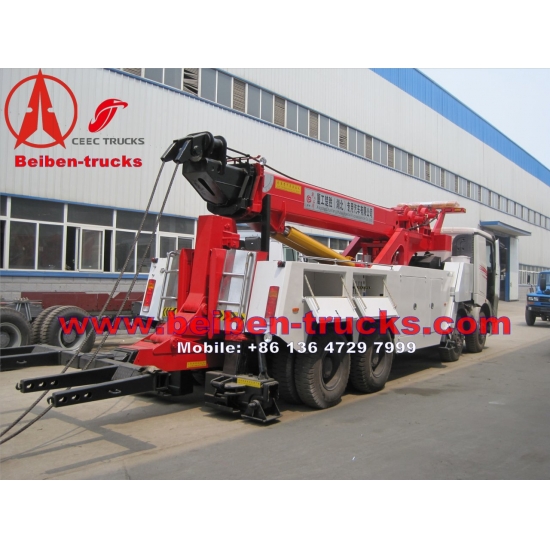

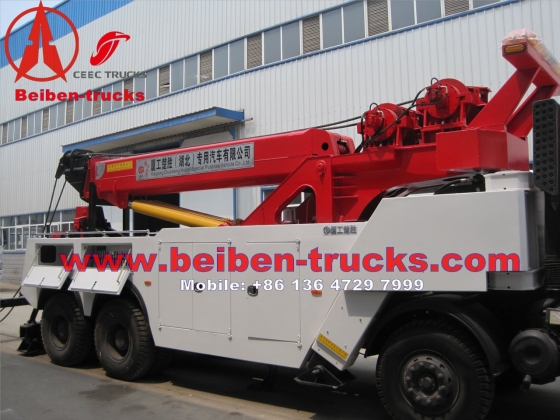

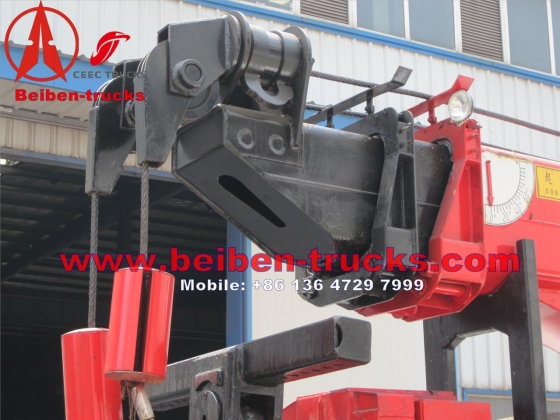

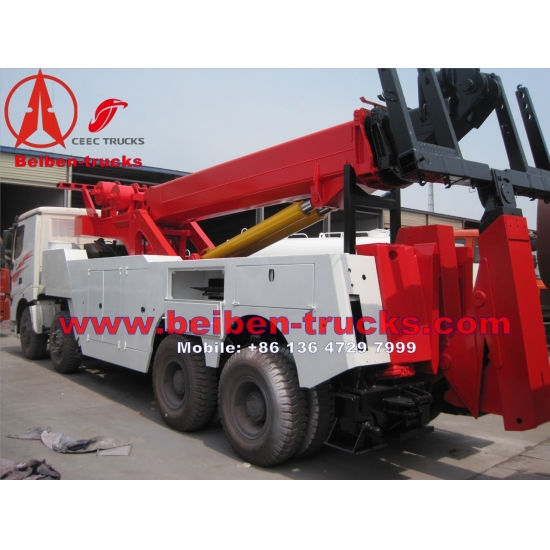

Boom system

Max lifting (kg)

30000

Lifting at all extend (kg)

5000

Length of 1st stage boom (mm)

5280

Total length of boom(mm)

8380

High of lifting (mm)

8680

move angle (0)

0~50

rotator (0)

360°

Winch

Qty

2

diameter of cable (mm)

φ18

Length of cable (m)

45×2

Sport legs

Front legs span (mm)

5110

Rear legs span (mm)

4000

Front to rear (mm)

7065

Previouschina beiben 30 T towing truck manufacturer

Success Cases

CONGO, Brazzaville customer order 20 units beiben tractor truck, bogie suspension semitrailer

CONGO, Bravzaville customer place order of 20 units beiben 2638 tractor trucks and bogie suspension container semitrailer. This is only trial order after the cumminication between CONGO customer and CEEC TRUCKS engineer.   As the most professional congo beiben 2638 tractor trucks supplier, we give more useful suggestion for customer, from the ...

CONGO, Brazzaville customer order 20 units beiben tractor truck, bogie suspension semitrailer

beiben airport refuel tanker trucks for congo customer

February,2016, our beiben 2534 airport fuel tanker trucks are finally got by congo customer. This beiben 15,000 Liters refuel truck is for the local airport. In terms of reliable quality of beiben trucks chassis, we recommend the beiben 2534 fuel trucks . It works very well in congo customer's site.   Beiben 2534 oil tanker at china seaport fo...

beiben airport refuel tanker trucks for congo customer

20 units beiben 2534 dump trucks are export to Mombassa, Kenya

In February,2016, we export 20 units beiben RHD 2534 dump trucks to Mombassa, kenya. These beiben 6*4 drive dump trucks will be used for kenya goverment project. order 30 suitable beiben Tippers Supply 30 beiben 2534Tippers Maintain full support for 1 year after delivery Supply spares for the tippers for 1 complete year after delivery. Implementati...

20 units beiben 2534 dump trucks are export to Mombassa, Kenya

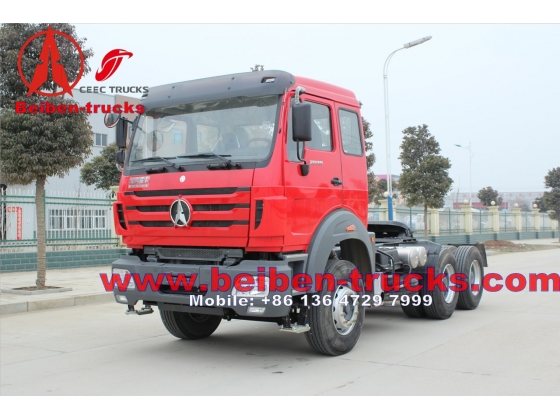

10 units Beiben NG80B 380 hp engine tractor trucks export to Kenya , mobassa
