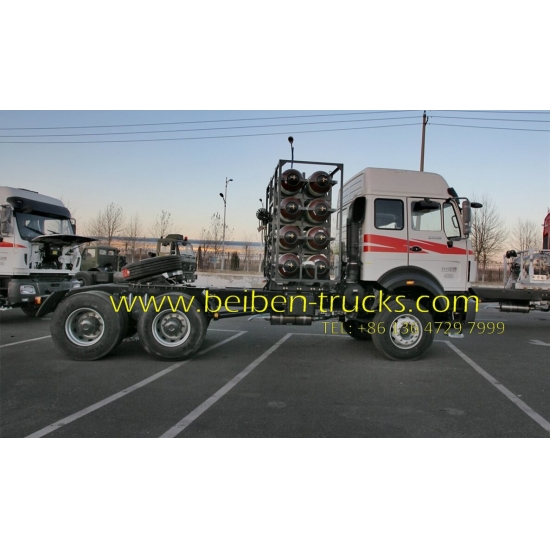

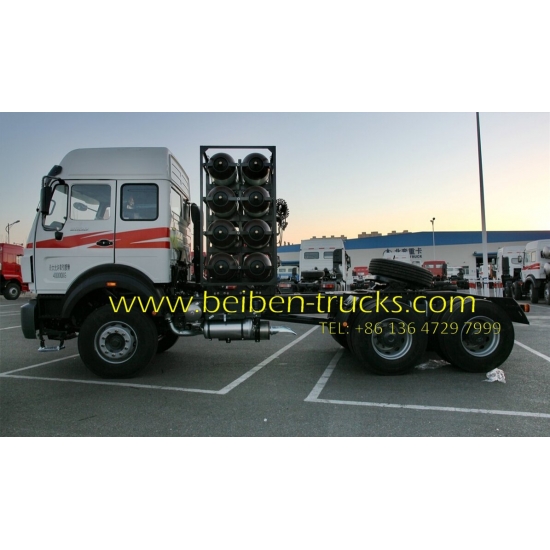

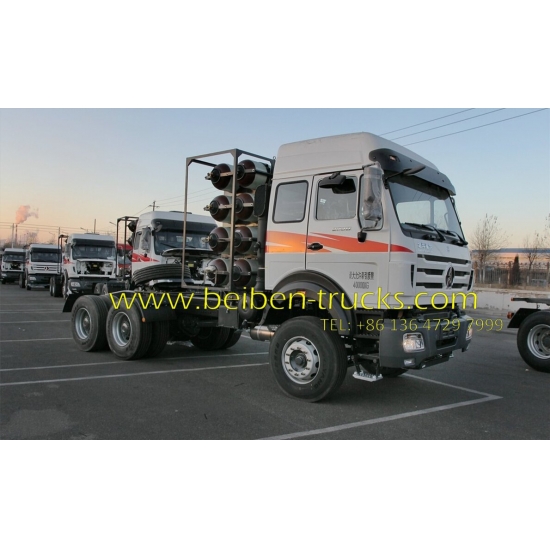

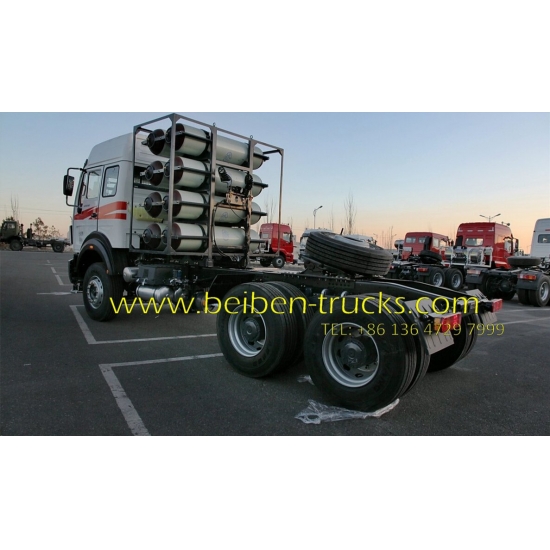

Beiben 2538 CNG towing truck

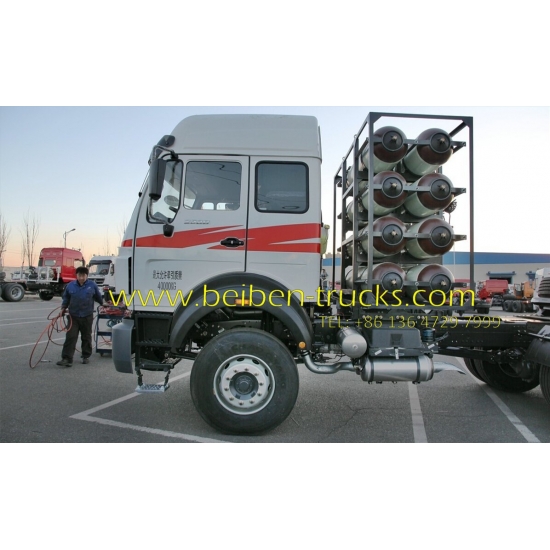

Beiben 2538 CNG trailer truck
BEIBEN TRUCK emerged from the joint venture between MERCEDES BENZ and NORINCO Group in Inner Mongolia, China. BEIBEN TRUCK produced Mercedes Benz trucks in China in the late 1990s and early 2000s. As the only manufacturer to have original BENZ technology, BEIBEN TRUCK is well known for its heavy duty and reliability.
Axles from Mercedes Benz technology
heavy usage applications, all equipped with double-layer reinforced frames
Function:
China 2538 tractor Truck Series is normally called as beiben 2538 towing truck, north benz 380 hp engine prime mover, china beiben 2538 wheeler trailer tractor trucks.
Baotou beiben 2538 tractor trucks are widely applied for high way , seaport, logistic, fuel oil project transportation. With reliable benz technology, benz 6*4 tractor truck are well accepted in congo, kenya, tanzania and nigeria.
Our prices are considerably lower than European, American and
Asian competitors; including Mercedes Benz Actros 2538tractor trucks.
Advantage:
★ Beiben trucks and Mercedes Benz trucks share many features such as HL7, HD7 and VL4 axles used in the Actros and Atego models.
★ the only Asian heavy duty truck company capable of providing the quality found among European and American manufacturers.
★ Beiben truck and benz trucks share familiar gearboxes - ZF and Fuller Fast.
★Mercedes
Benz and Weichai WD615, WP10 and WP12. They comply with Euro 2, 3 and 4; have
displacements of 10 and 12 liters and HP of 270 to 480.
★Bosch Common Rail injection, the Euro 2 with linear pump, motor and brake valve MAN Exhaust (Jack-Brake), among other qualities.
★ CEEC TRUCKS 20 years experience on beiben tractor trucks exporting.
Specification:
Similar key words beiben 6*4 tractor truck, beiben 6*4 tractor truck, beiben 380 hp engine prime mover, beiben 2538 prime mover, north benz 2534 tractor truck, north benz 2538 towing trucks.
| 2538SZ-CNG /6×4/3850+1450/Long Cab/LHD | ||||||
| Dimension | 7640x2500x3530mm | |||||
| Approaching angle/Departure angle | 16/60° | |||||
| Overhang(front/rear) | 1515/825mm | |||||
| Wheel base | 3500mm | |||||
| Max speed | 110km/h | |||||
| Curb weight | 8800kg | |||||
| Max towing weight | 40000kg | |||||
|
Max loading on fifth wheel, Permitted(kg) |
16070kg |
|||||
| Slope climbing capability | Max.40% | |||||
| Engine | Model | WP12NG380E40，water-cooled，four strokes，6 cylinders in line，turbocharged, directly injection | ||||
| Displacement | 11.596L/Diesel | |||||
| Stroke | 126/155mm | |||||
| Max. power | 280/2200 (kw/rpm) | |||||
| Max.torque | 1500/1400-1600（Nm/rpm） | |||||
| Emission stantard | EuroⅢ | |||||
| Fuel tanker capacity | 8×145L | |||||
| Clutch | ∮430, Single dry frictional disc，Hydraulic boosting | |||||
| Gearbox |
12JS200T, mechanism,12forward gears,2 reverse gear, manual operated |
|||||
| Gear ratio of gear box | 15.53/12.08/9.39/7.33/5.73/4.46/3.48/2.71/2.1/1.64/1.28/1.00 R: 14.86 3.33 | |||||
| Suspension system | Front | Non-free standing leaf spring,telescopic shock absorber with stablizer bar suspension , 13pcs | ||||
| Rear | Non-free standing stablization spring, balance suspension system, 13pcs | |||||
| Brake system | Service brake | Brake gap can be adjusted automatically, double circulation air brake system | ||||
| Assistant brake | Engine exhaust brake | |||||
| Park brake | Potential springs pressing on middle and rear wheels | |||||
| Steering system | TAS85,whole circulation in ball, hydraulic booster | |||||
| Frame | Fish belly shape, variable width, variable sections | |||||
|
Model |
JOST ∮90 single direction |
|||||
|
Height of fifth wheel(mm) (unload) |
1410 |
|||||
|
Radius of front gap (mm) |
2300 |
|||||
|
Radius of rear slew (mm) |
2600 |
|||||
| Front axle (Mercedes Technology) | Double-shoe pneumatic brake, non-driving steering axle | |||||
| Middle and Rear axle (Mercedes Technology) | Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle | |||||
| Tyre | 12.00-R20 | |||||
| Electrical system | Battery | 2X12V/135Ah | ||||
| Generator | 28V-35A | |||||
| Starter | 5.4Kw/24V | |||||
| Cabin |

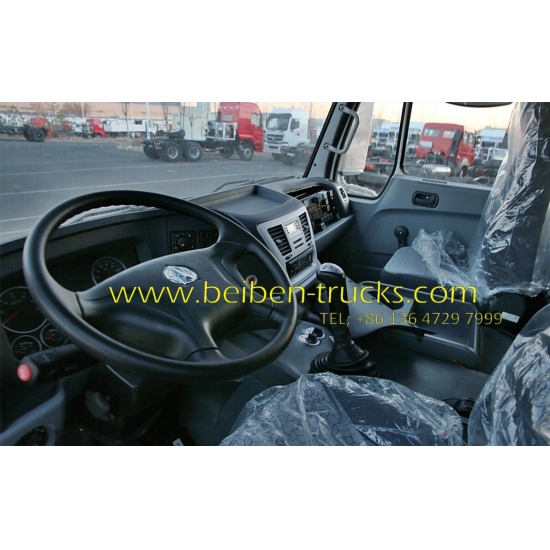

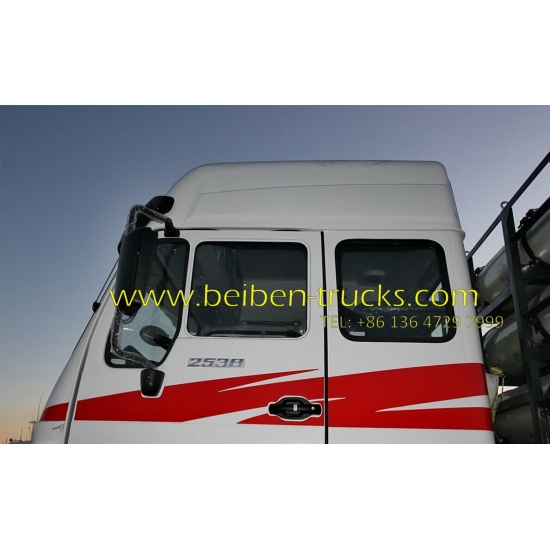

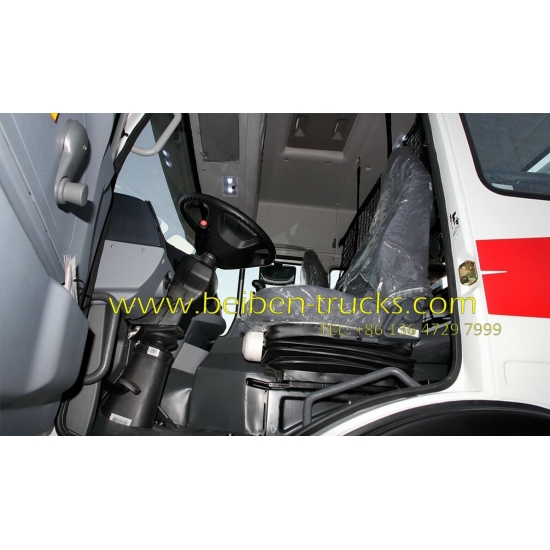

NG80B Long-Flat roof cabin with single sleeper Full steel skeleton structure, covered with double layer steel plate; Can be tipped forwardly; High back seat for driver;Electric lifting window ; With inner A/C |
|||||
Beiben 40 T , 50 T, 60 T, 70 T tractor truck
Beiben tractor truck and semitrailer
Beiben Construction trucks
Beiben all wheel drive trucks
| Model | Engine Model | Rated Power | Payload | Driving Mode |
| Beiben 2548 | WP12.480N | 480 Hp | 100 Ton | 6*4 |
| Beiben 2642 | WP12.420N | 420 Hp | 55 Ton | 6*4 |
| Beiben 2542 | WP12.420E32 | 420 Hp | 70 Ton | 6*4 |
| Beiben 2534 | WP10.336 | 336 Hp | 40 Ton | 6*4 |
| Beiben 2534 | WP10.340 | 340 Hp | 45 Ton | 6*4 |
| Beiben 2538 | WP10.380N | 380 Hp | 50 Ton | 6*4 |
