Products

Beiben 2642 trailer truck

  • FOB Price

    $43,200-47,300

  • Production time

    30 days

  • Payment terms

    T/T, West union

enquiry
Product Details

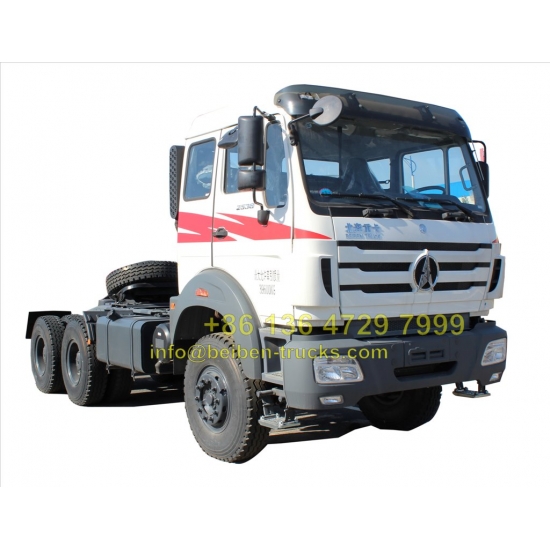

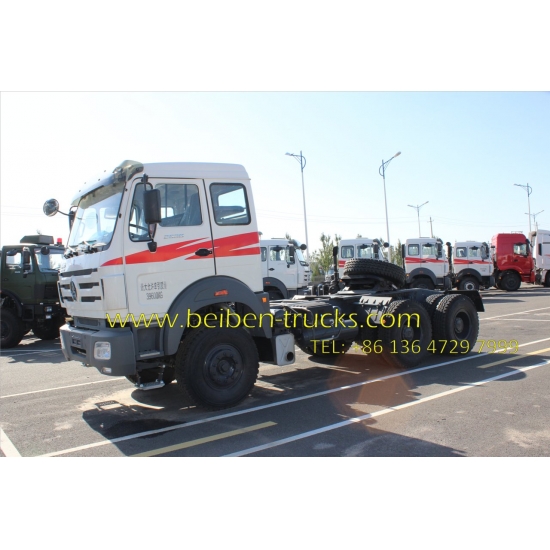

North benz 2642 trailer truck

Beiben 2642 trailer truck


Function:


Heavy duty Construction,  Mining and quarries,

Heavy duty material transportation

Dry Bulk,  Building Material, Waste

Agriculture,  FreightPlant Hire, Military

Beiben Trucks

Axles from Mercedes Benz technology

Beiben Trucks

all beiben NG80B tractor truck  are equipped with double-layer reinforced frames

trucks_03

Ease of use, simple and reliabl

Advantage:


Original Germany Mercedes Benz technology
Europen WEICHAI diesel engine
africa best quality beiben tractor truck spplier
.24 hours north benz  tractor truck parts service
Congo,kenya, tanzania,ghana, algeria local agent

  CEEC TRUCKS 20 years experience on beiben 2538 tractor trucks exporting.



Specification:


Similar key words congo beiben 2542 tracteur camions, beiben 2542 tracteur camions, north benz 2546 tracteur camions, china beiben tracteur 420 hp engine camions supplier.

China famous brand beiben 2534 tractor truck,for using in logistic, seaport, airport, fuel transporation.

beiben 2534 tracteur camions price

Baotou beiben 2542 tractor trucks are widely applied for high way , seaport, logistic, fuel oil project transportation. With reliable benz technology, benz 420 hp engine tractor truck are well accepted in congo, kenya, tanzania and nigeria.

  beiben 2638 tractor camions

Our prices are considerably lower than European, American and Asian competitors; including Mercedes Benz Actros 2542tractor trucks.. Congo best beiben tractor truck supplier, supply the best quality beiben 6*4 tractor truck, beiben 4*2 tractor trucks.

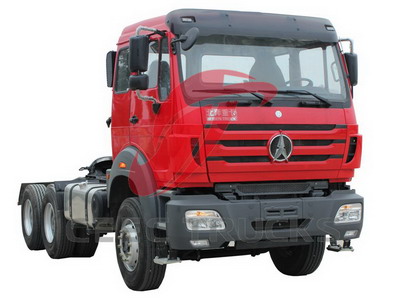

Beiben 2642 tractor truck

Dimension 7240*2500*3600mm
Approaching angle/Departure angle 16/60°
Overhang(front/rear) 1515/825mm
Wheel base 3450+1450mm
Max speed 120km/h
Curb weight 8800kg
Max towing weight 40000kg
Max loading on fifth wheel, Permitted(kg) 16070kg
Slope climbing capability Max.40%
Engine Model WP12.430E40,water-cooled,four strokes,6 cylinders in line,turbocharged, directly injection
Displacement 11.596L/Diesel
Stroke 126/155mm
Max. power 316/2200 (kw/rpm)
Max.torque 2060/1000—1400(Nm/rpm)
Emission stantard EuroIV with OBD
Fuel tanker capacity 300L
Clutch ∮430, Single dry frictional disc,Hydraulic boosting
Gearbox 12JS200T, mechanism,12forward gears,2 reverse gear, manual operated
Gear ratio of gear box 15.53/12.08/9.39/7.33/5.73/4.46/3.48/2.71/2.1/1.64/1.28/1.00 R: 14.86 3.33
Suspension system Front Non-free standing leaf spring,telescopic shock absorber with stablizer bar suspension 13PCS
Rear Non-free standing stablization spring, balance suspension system 13PCS
Brake system Service brake Brake gap can be adjusted automatically, double circulation air brake system
Assistant brake Engine exhaust brake
Park brake Potential springs pressing on middle and rear wheels
Steering system D50,whole circulation in ball, hydraulic booster
Frame Fish belly shape, variable width, variable sections
The Fifth wheel Model JOST ∮90 single direction
Height of fifth wheel(mm) (unload) 1410
Radius of front gap (mm) 2300
Radius of rear slew (mm) 2600
Front axle (Mercedes Technology) Double-shoe pneumatic brake, non-driving steering axle
Middle and Rear axle (Mercedes Technology) Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle
Tyre 315/80R22.5
Electrical system Battery 2X12V/135Ah
Generator 28V-35A
Starter 5.4Kw/24V
Cabin NG80B Long-high roof cabin with double sleepers
Full steel skeleton structure, covered with double layer steel plate;
Can be tipped forwardly;
High back seat for driver;Electric lifting window ;
With inner A/C

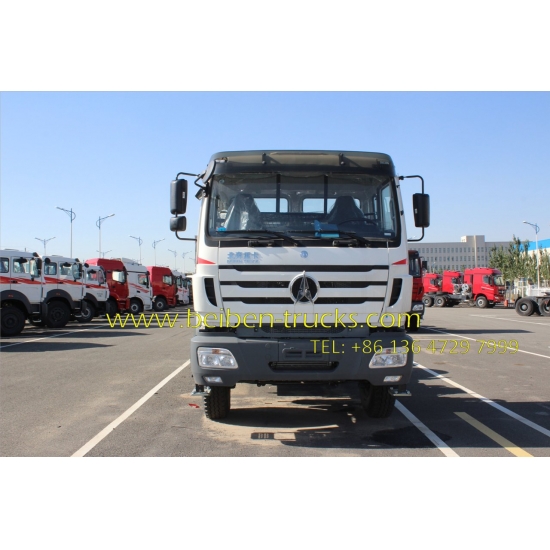

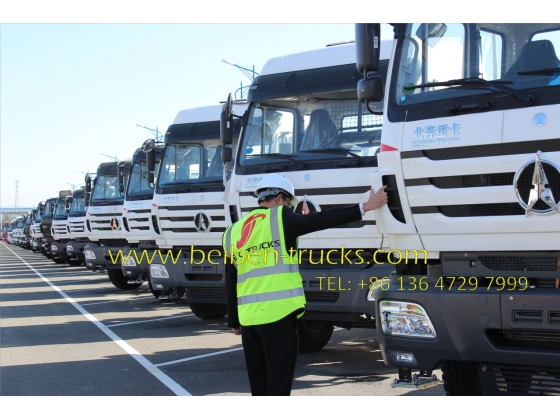

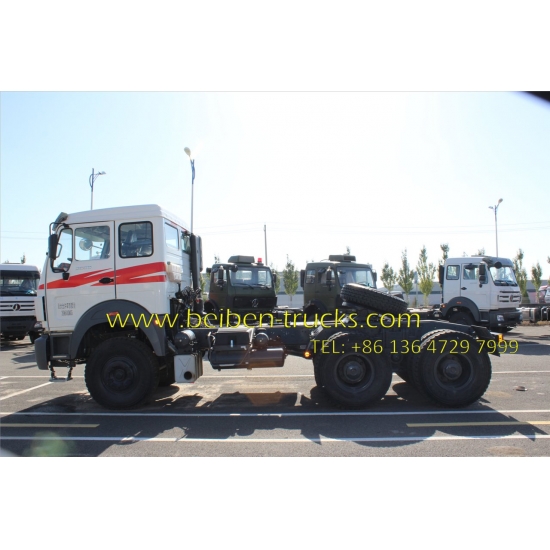

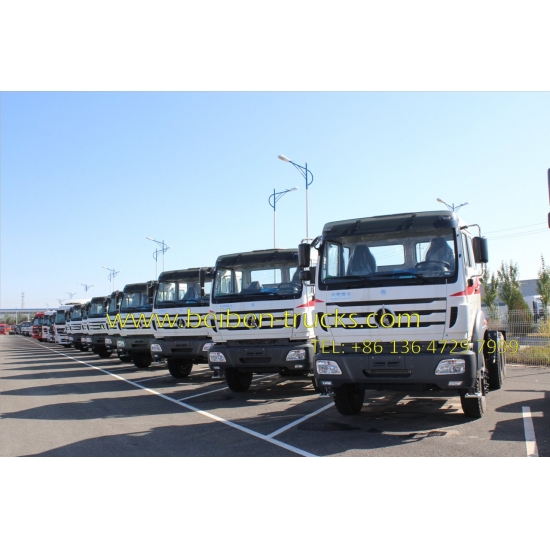

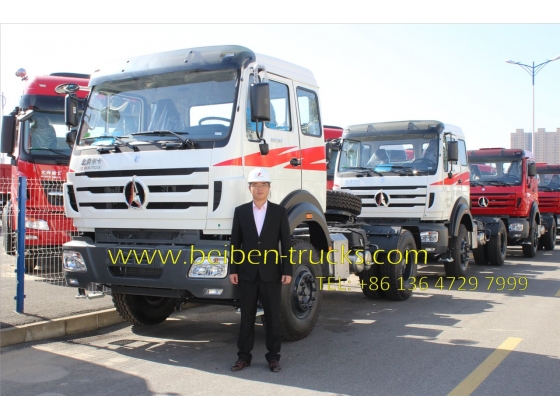

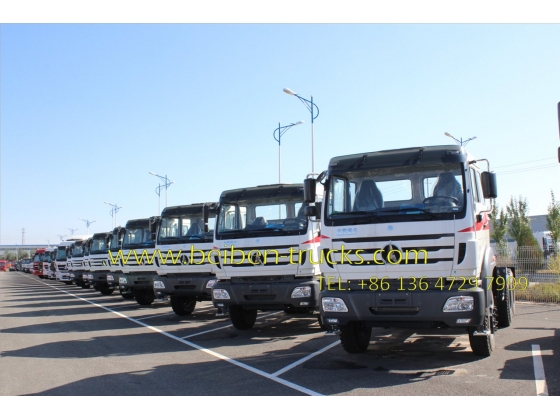

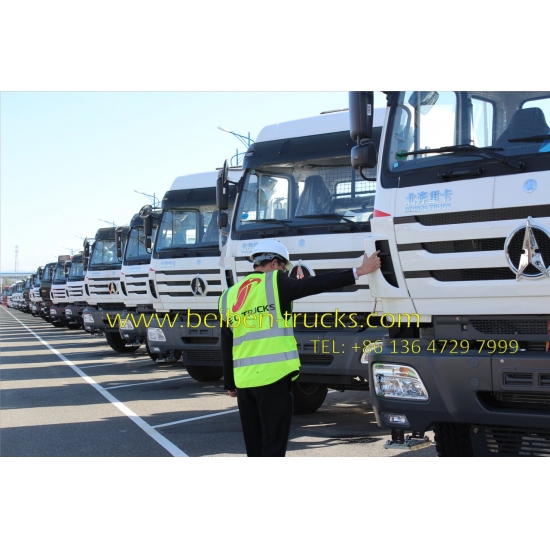

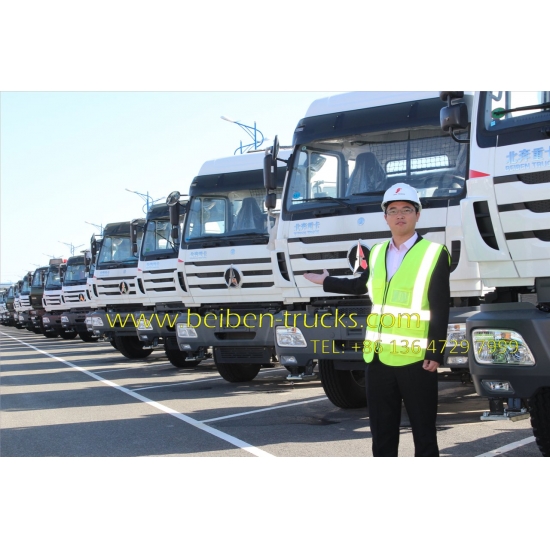

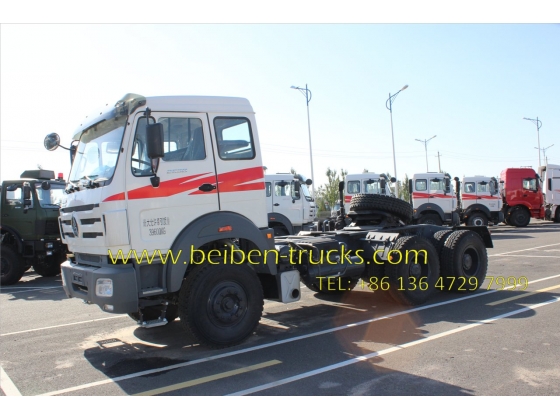

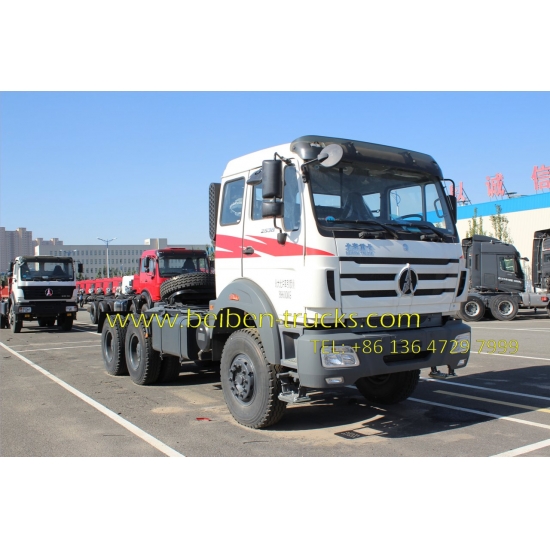

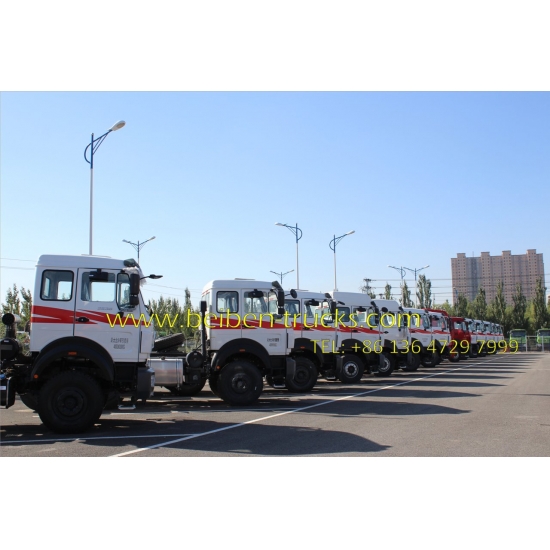

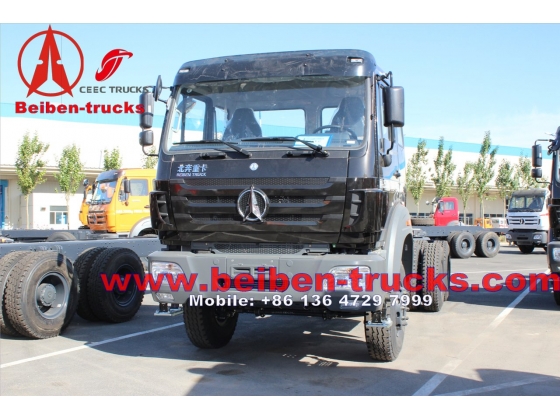

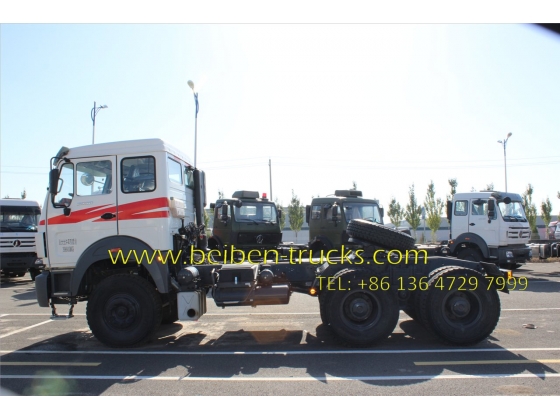

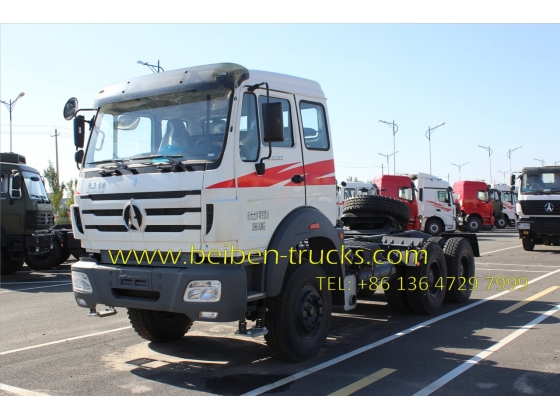

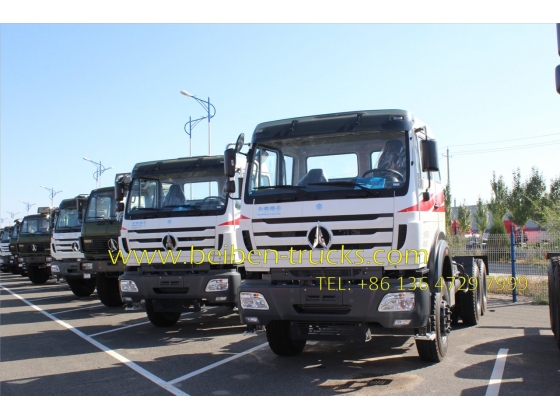

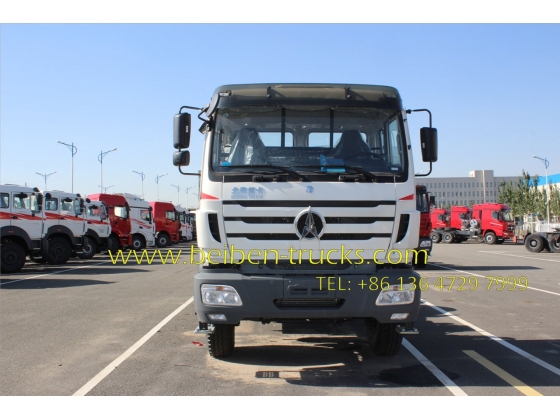

 Beiben 2642 trailer truck

Beiben 2642 trailer truck

Beiben 2642 trailer truck

Beiben 2642 trailer truck

Beiben 2642 trailer truck

Beiben 2642 trailer truck

Beiben 2642 trailer truck

Beiben 2642 trailer truck

Beiben 40 T , 50 T, 60 T, 70 T tractor truck



Model Engine Model Rated Power Payload

Driving Mode

Beiben 1834S
WD615.34 340Hp 40Ton 4x2
Beiben 2538 WP10.380 380 Hp 45 Ton 6x4
Beiben 2634 WP10.340 340 Hp 40Ton 6x4
Beiben 2642 WP12.420 420 Hp 48 Ton 6x4
Beiben 2642 WP10.420 420 Hp 50 Ton 6x4
Beiben 2638S WP 10.380 380 hP 48 T 6x4
Beiben 2638 WP10.380 380 Hp 45 Ton 6x4
Beiben 2638S WP 10.380 380 hP 50 T 6x4
Beiben2642 WP 10.420 420 Hp 60 T 6x4
Beiben 2542S WP12.420E32 420 Hp 50 T 6x4
Beiben 1630A WP10.300N 300 Hp 30 T 4x4
Beiben 2534 WP 10.336 336 Hp 50 Ton 6x6
Beiben 2638 WP10.380 380 Hp 50 Ton 6x4
