Beiben 2538 off road water tanker truck

Product Details

Beiben 2538 off road water tanker truck manufacturer

Best beiben 2538 cabin 6*6 dirve system water truck manufacturer in china, we are authorized beiben 2534,2538 all wheel drive water tanker upper structure plant , more than 10 years great experience on producing beiben 4*4,6*6,8*8 drive tanker trucks.  Since now, we can produce both beiben LHD, RHD all wheel drive off road water trucks.



The series products of our Beiben military all wheel drive trucks are ideal transport with outstanding performance and high quality, they are widely used in industries and sectors, such as national defense, aviation, postal service, railways, highways, harbors, petroleum, chemicals, water and electricity, forests, fire fighting, banks and peace keeping forces.

Originate from Mercedes-Benz Germany and Chinese local manufacturers,Beiben truck is the Chinese best truck brands and best quality, technical performance properties index and conform to the state and military standard.

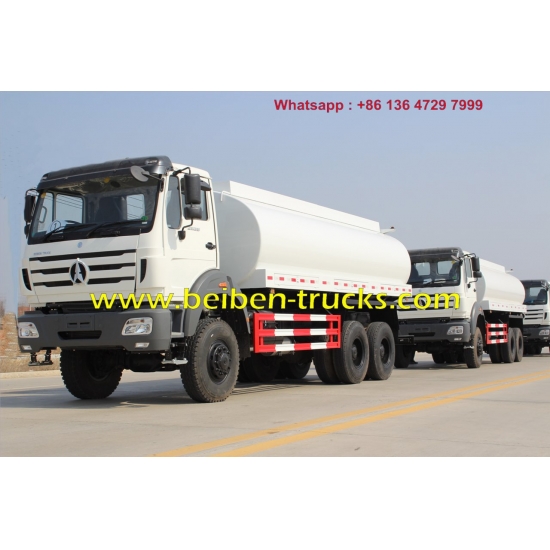

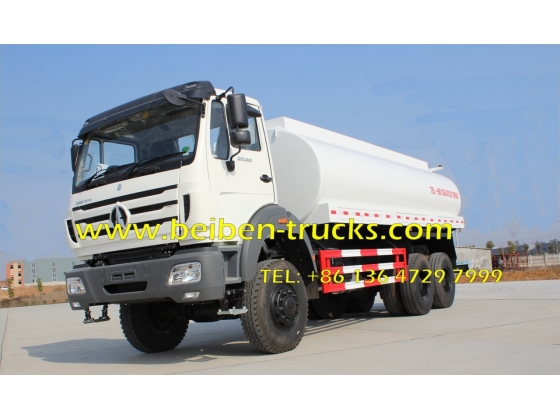

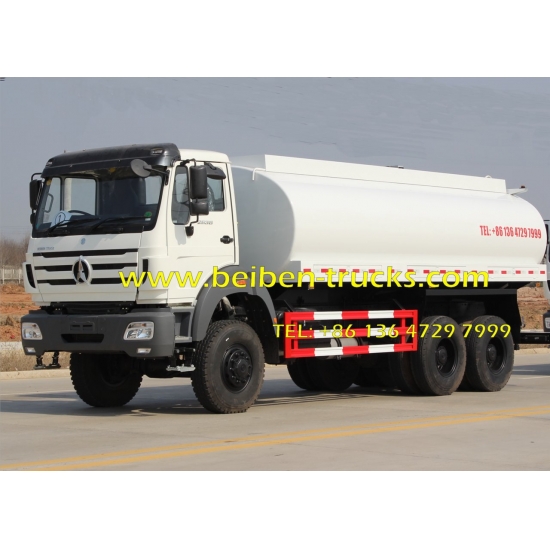

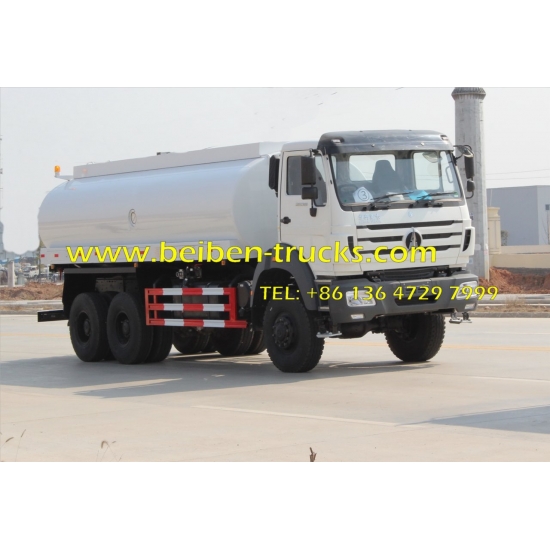

beiben 2538 all wheel drive tanker truck

Beiben 380 hp engine off road water  truck features and advantages:

1: Driving room: the steel structure, high safety,lower wind resistance coefficient

2:Power system dynamic matching technology of mercedes-benz: less power loss and more efficient

3: The suspension system: Mercedes suspension, high intensity

4: Benz axle: double deceleration bridge, high efficiency, carrying large

5: Transmission system: high efficiency, bigger torque, climbing superior performance

6: Steering system:high safe and reliable, and flexible

7:Braking system, high security, brake with high efficiency

8: Electric system: stronger load ability, high reliability and easy maintenance

Beiben 2538 RHD all wheel drive truck chassis specification

Vehicle Name:

Beiben 6*6  truck chassis

Types of drive

Right hand drive (LHD & RHD )

Length*width*height (mm)

9400*2500*3260

Kerb weight (kg)

9100

Truck model number

2538S

Drive wheel

6×6

Engine model

WD615.38  Diesel 4-stroke direct injection engine, 6-cylinder in-line with water cooling, turbo-charging & intercooling

Horsepower(hp)

380

Bore*stroke (MM)

138*155

Displacement (L)

11.596

Rated speed (R/min)

2200

Max torque (Nm)

1750

Max Torque speed( R/min)

1300-1600

Lowest fuel consumption (G/kw.h)

< 198

Net weight (KG)

905

Meridian tire

14.00R20

Number of tires

10 + 1(spare wheel)

Saddle types

None

Transmission types :

RT11509C , 9 shift transmission, FAST technology

Steering mechanism:

ZF8098

Wheelbase (mm)

4450+1450

Cab style

Long with 2 beds, Benz technology

Air-condition

With air-condition

Cab body style

The whole steel ,The driver’s seat adjustable , high safety,lower wind resistance coefficient, Benz Technology.

Steering system

High safe and reliable, and flexible, ZF8098

Brake system

Service brake ,Can automatically adjust the brake clearance, Double air brake system , WEVB

Electric system:

Stronger load ability, high reliability and easy maintenance

Truck frame style

Fish maw shape, inequilaterally section, equal intensity, Benz technology

Front axle

Benz 7.0T Transaxle

Rear axle

Benz Technology,double deceleration bridge, high efficiency, carrying large, Mercedes Benz strengthened axle (punching-welding axle housing, double reduction driving axle, inter-wheel differential and differential lock)

Ratio=5.263

Electric system:

Stronger load ability, high reliability and easy maintenance,24 V

Emission standard

Eur 2 & EURO 3

Fuel tank capacity (L)

400

Optional equipment

Saddle , upper berth, ABS , squareness silencer.

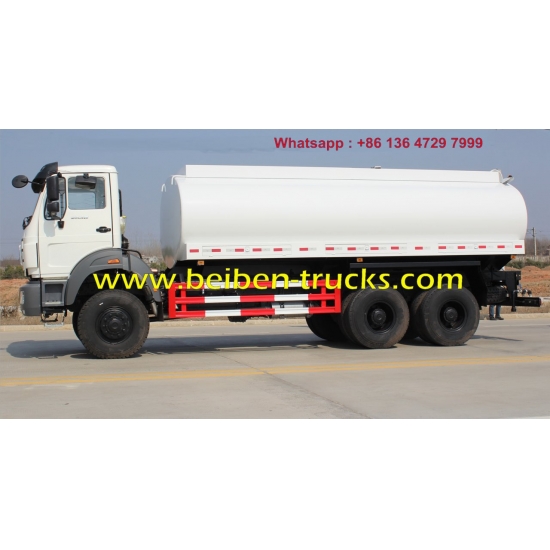

beiben 2538 all wheel drive tanker truck

A.  Truck:

Name

Standard configuration

♦ Model:

CEEC5201GDFL

♦ Drive type:

6x4  Right  hand drive

♦Wheelbase

4450+1450 mm

♦ Cab type:

All-steel-welded construction, power tilting cab; spring suspensions with hydraulic shock absorbers. The color is white.2 seats, AM/FM CD/MP3 Player

♦ Air condition

Yes

♦ Engine



Model

WP615.38

Type

6-Cylinder in-line, 4-Cycle, Water-cooled, OHC, Turbo with intercooler

Max power

280  kw  (380hp)

Displacement

9.8 L

♦ Transmission

Fast technology 9-shift Manual, 9 forward and 1reverse speed

♦ Fuel tank

300 Liters

♦ Tyres:

12.00R20

♦ Maximum drive speed:

105 km/h

  Max.Gradeability

31%

   Truck Curb Weight

11400 kg

♦ Overall Dimension (LxWxH)

9460x2500x3600mm

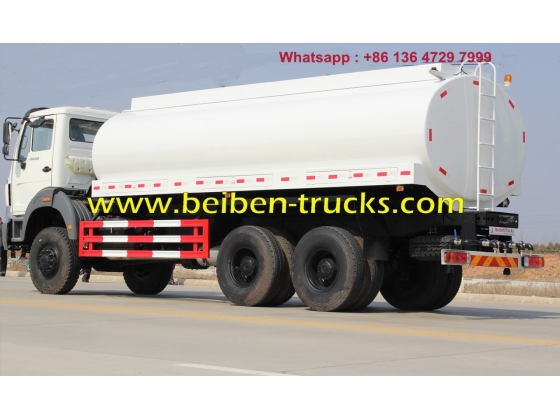

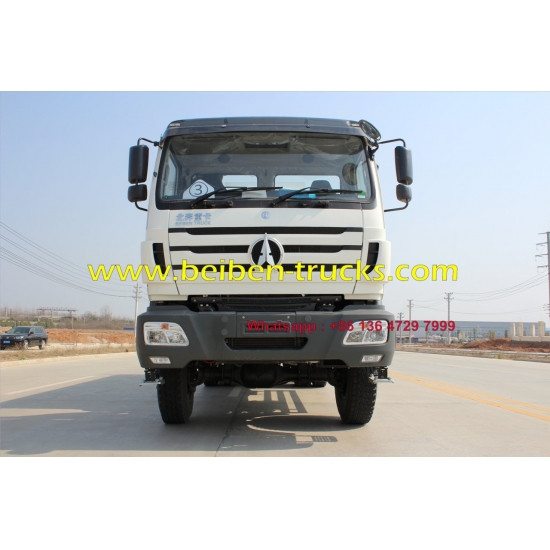

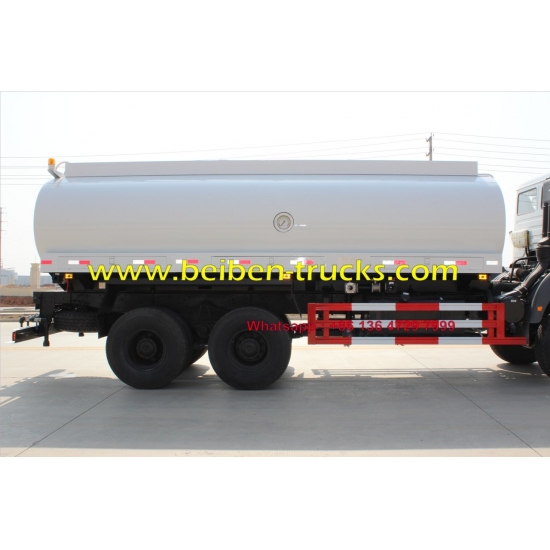

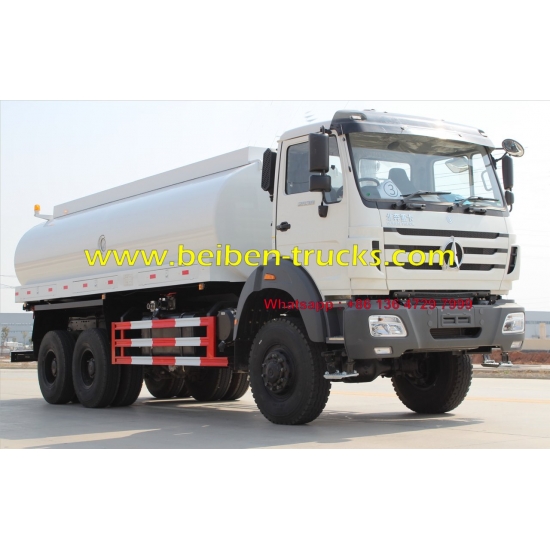

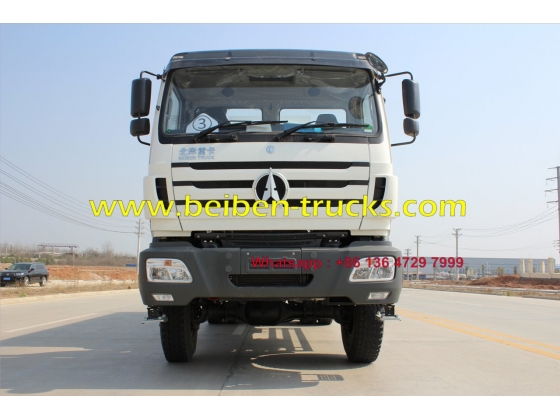

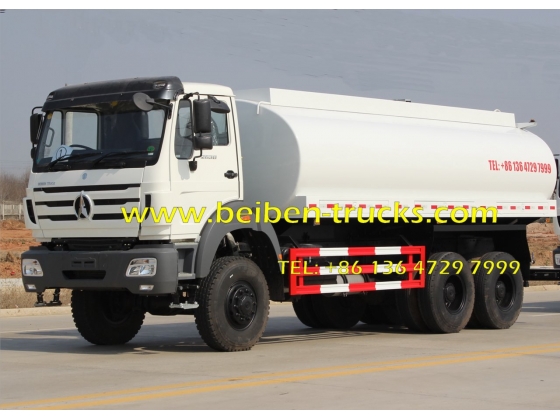

China beiben 6*6 drive with right hand steering system, 20 CBM water tanker capacity.

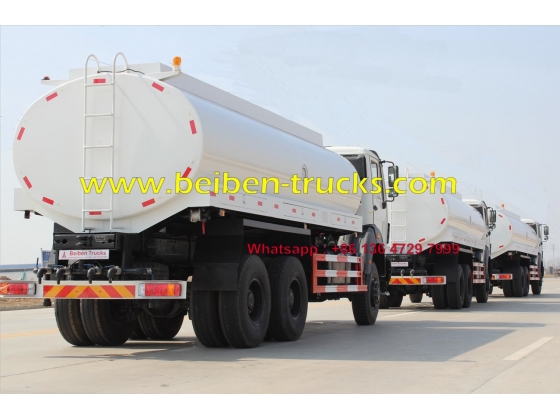

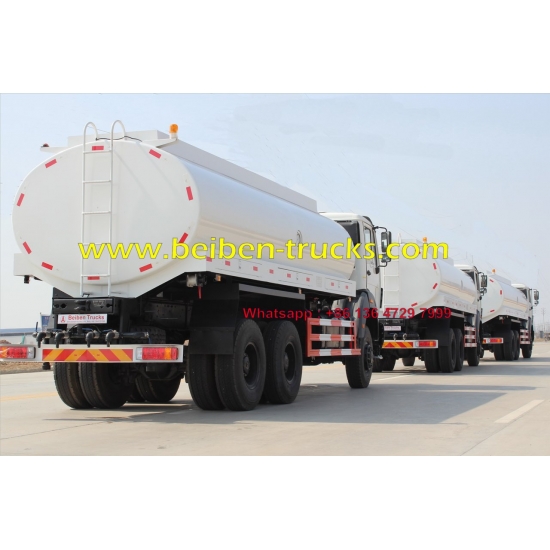

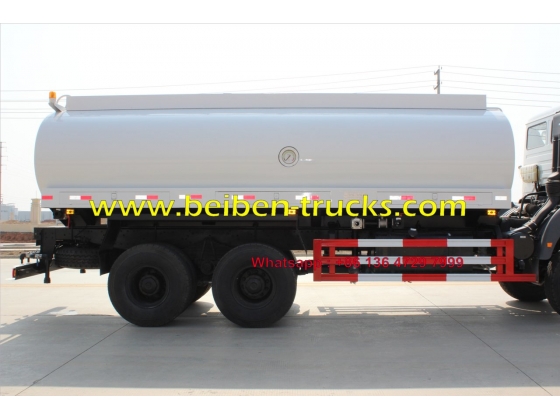

beiben 2538 all wheel drive tanker truck

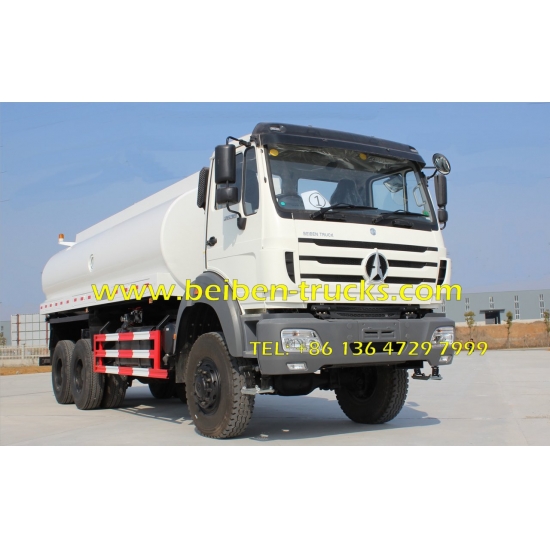

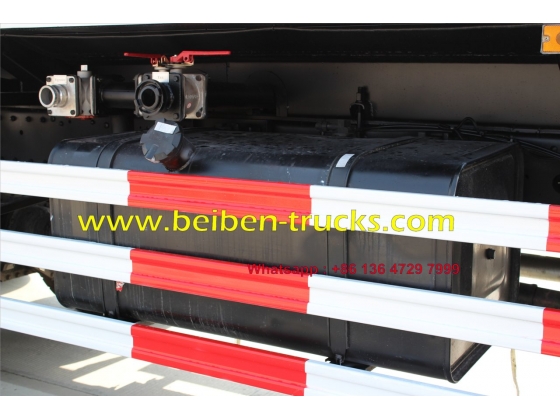

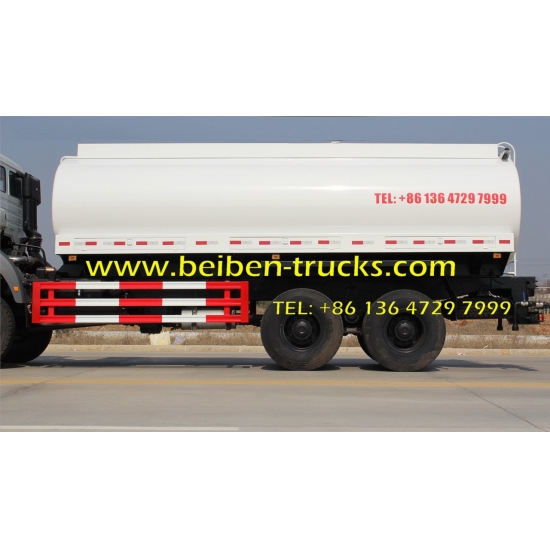

beiben 2538 all wheel drive tanker truck

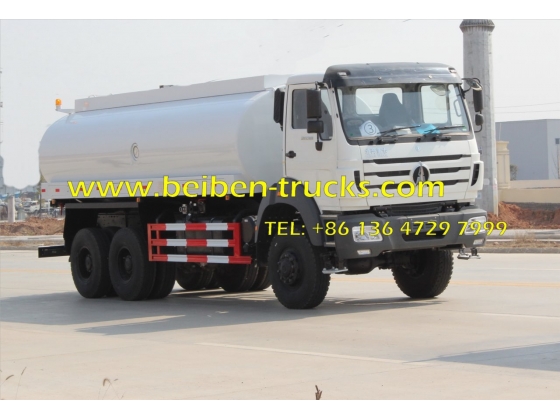

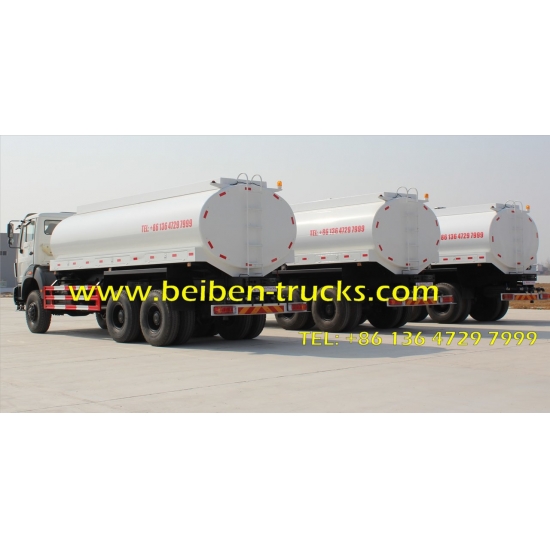

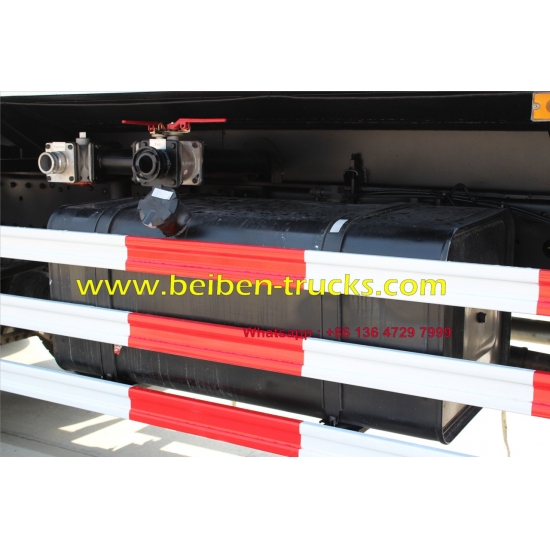

beiben 2538 all wheel drive tanker truck

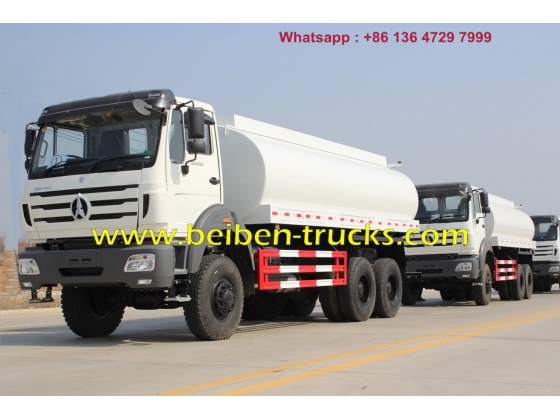

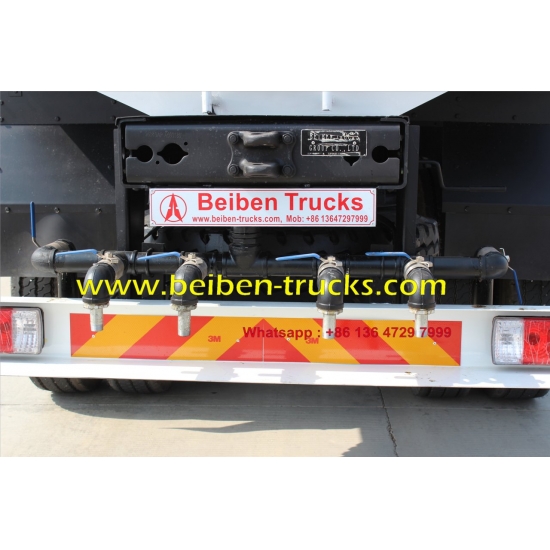

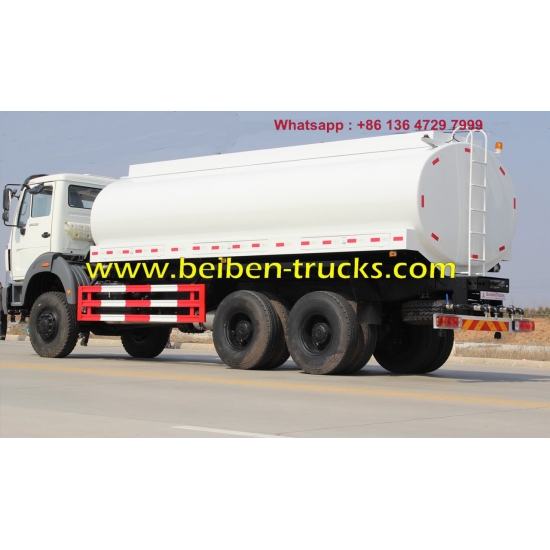

beiben 2538 all wheel drive tanker truck

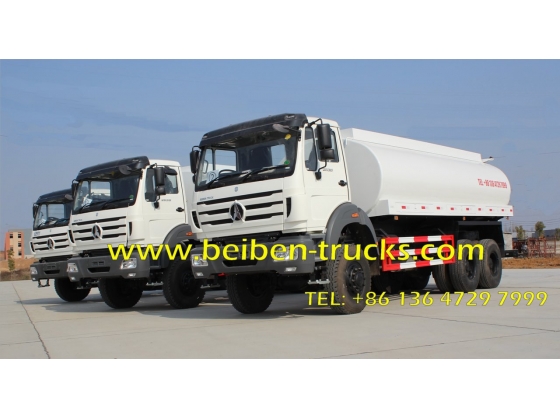

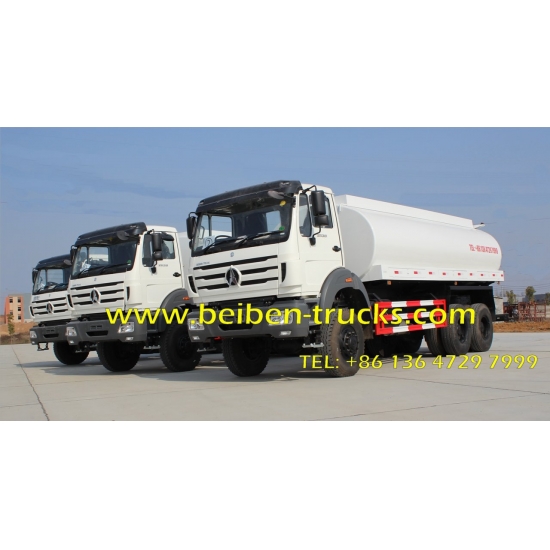

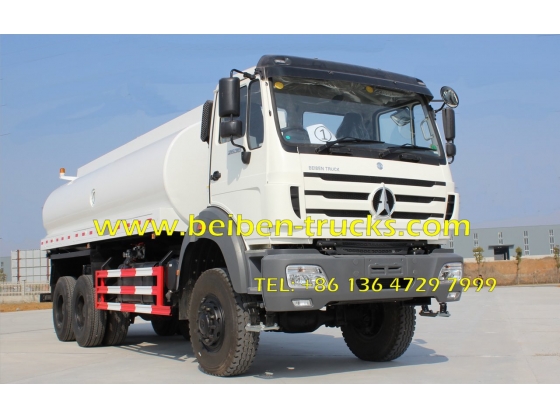

beiben 2538 all wheel drive tanker truck

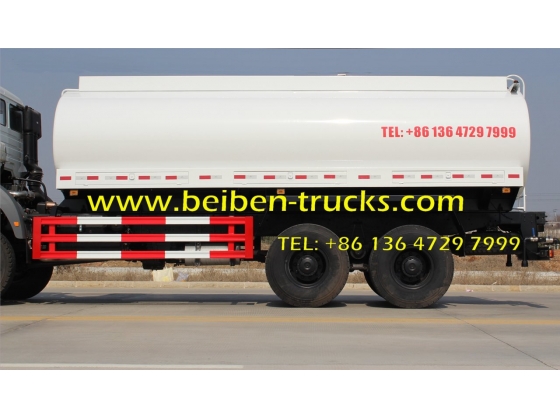

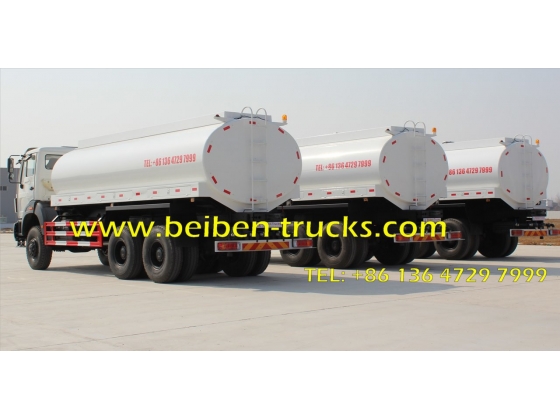

beiben 2538 all wheel drive tanker truck

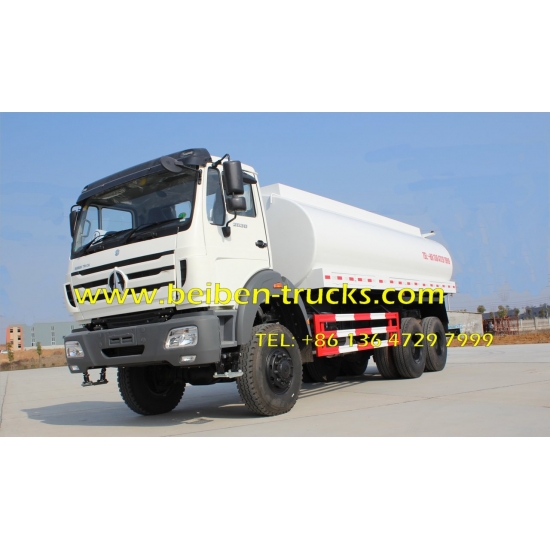

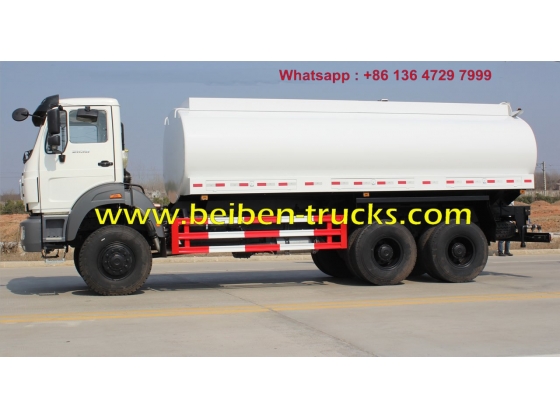

beiben 2538 all wheel drive tanker truck
