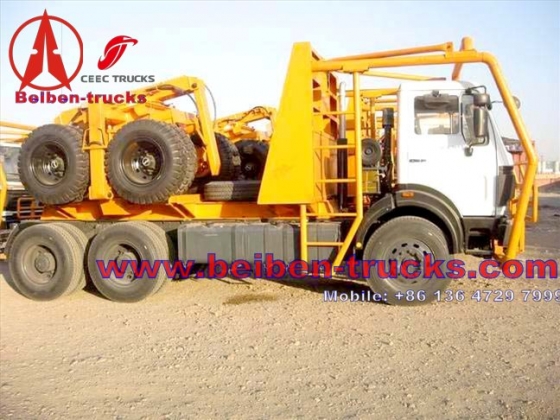

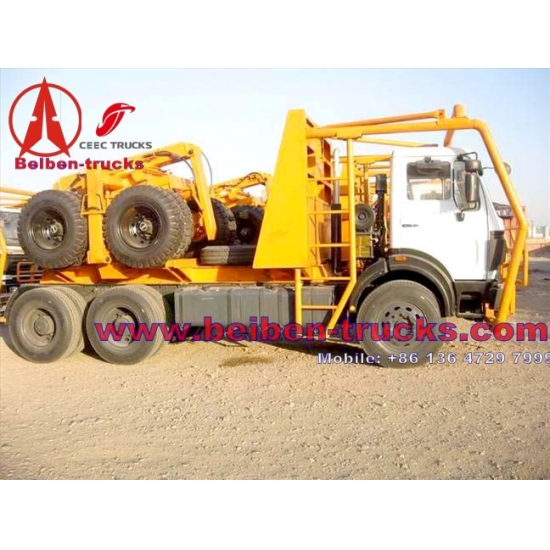

beiben 2538 all wheel drive wooden semi-trailers

Product Details

Beiben 2538 wooden semi-trailers in confirmity with regulations,and matching specifi conditions encountered by foresters. Bogie with reinforcedaxles, 30 to 50 Tons loading capacity. Width capacity RANGING from 2.5 to 3.5meters.



We can provide :
"GABON TYPE" log trailers with 2 x 3.10 or 3.5 m wide bunks,mounted on JOST turntables. 1 fixe stake and 1 hinged stake.
"CAMEROON TYPE" log trailers with 2.5 bunks with adjustableholding wedges.
"MALAYSIAN TYPE" log trailers with 2 x 3.10 bunks mounted onJOST turntables. 2 hinged stakes.

Fifth wheel coupling is also available on request



Wheel base (mm)

4100+1450

Curb weight kg

12400

Engine

Model

WD12.375,water-cooled,four strokes,6 cylinders straight in line,turbocharged,

Power, max kw/rpm

280/2200

Emission

EUROII

Clutch

Model

Φ430, Single dry frictional disc,Hydraulic boosting

Gearbox

Model

12JS160T

Brake system

Service brake

Brake gap can be adjusted automatically, double circulation air brake system

Assistant brake

Engine exhaust brake

Park brake

Potential springs pressing on middle and rear wheels

Steering system

Model

ZF8098,whole circulation in ball type, hydraulic boosting

Frame

Fish belly shape, variable width, variable sections

Front axle (Mercedes Benz Technology)

Double-shoe pneumatic brake, non-driving steering axle

Middle and Rear axle (Mercedes Benz Technology)

Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle

Ratio: 6.7

Tyre

Radial 12.00R24

Electrical system

Battery

2X12V/135Ah

Generator

28V-35A

Starter

5.4Kw/24V

Cab

Short cab

color:White color with strip

Full steel skeleton structure, covered with double layer steel plate;Can be tipped forwardly;

Seat: shock absorption seat for the driver

With inner A/C

Others

With Tropical thermostat

Exhaust pipe upwards

With rear trailer brake system

Eight U-bolt (Four U-Bolt each side)

With differential between axle and wheel

Oil tank: 400L+300L

With Desert air filter
