China manufacture New Brand 20 m3 beiben water tank truck for sale

Product Details

China manufacture New Brand 20 m3 Beibenwater tank truck for sale

20000 Liter beiben Water Spray Tank Truck , mostly on beiben 2534,2538 truck chassis, the beiben 10 wheeler 20,000 liters beiben water spray tanker trucks get good reputation in africa countries. currently we supply beiben 20,000 liter water spray trucks.





20000 Liter beiben Water Spray Tank Truck , mostly on beiben 2534,2538 truck chassis, the beiben 10 wheeler 20,000 liters beiben water spray tanker trucks get good reputation in africa countries.



Water wagon
dust control, street cleaning, potable water, fire control,etc.
watering truck
water truck



Product Name

Beiben  water truck

Model

CEEC5251GSS3

Driving Type

 6×4,left hand drive

Weights

GVW(kg)

25000

Rated payload weight(kg)

15800

Curb weight(kg)

9005

Dimensions

Wheelbase(mm)

4450+1350

Overall Dimension(mm)

9950x2490x3350

Box dimension

20CBM

 Max speed(km/h)

85

Engine

 Engine model

WD615.38(380HP)

Engine type

4 stroke water-cooled,water-cooling.

Displacement(L)

9.726 L

Max. output (kw)

280 kw

 Drive Line

Transmission

Fast ,9 forwards,1 reverse gear,manual operation

Steering

With power steering, RHD

Brake system

Air brake

Axle

Front axle

7 tons ( Benz technology)

Rear axle

16 tonsx2 ( benz technology)

Tire specification

Tire specification

12.00R20 standard tire,10 tires+1 spare tire

Specification fuction of water truck

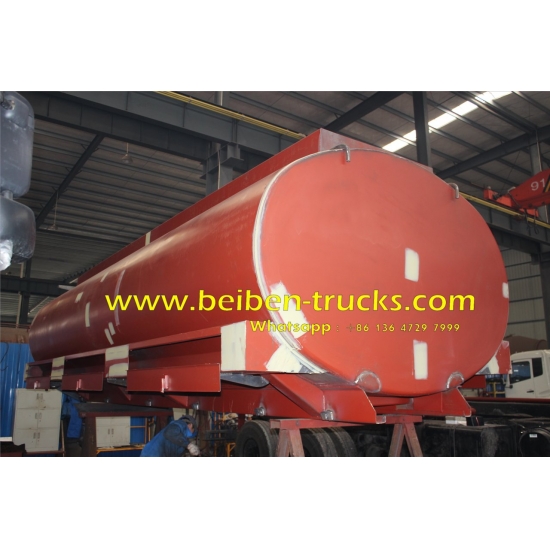

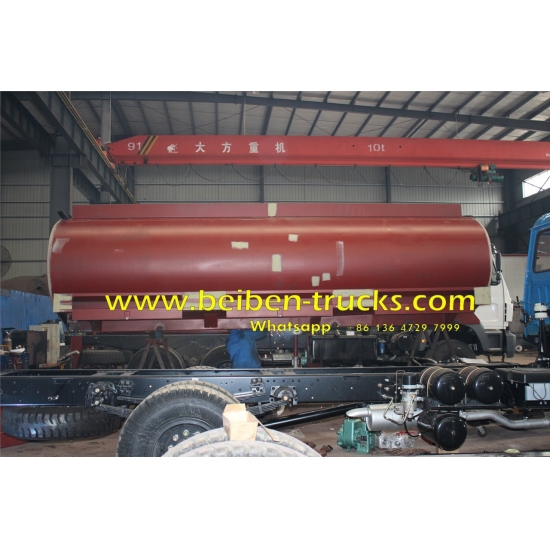

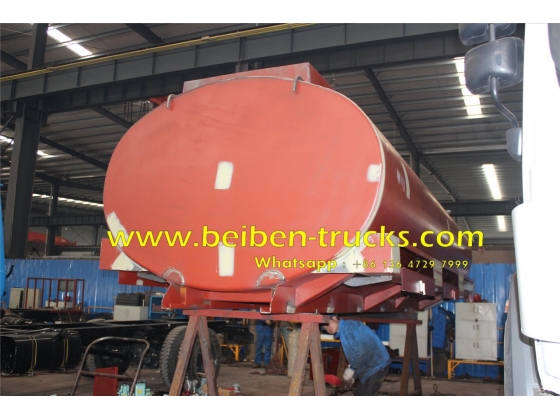

Tanker shape

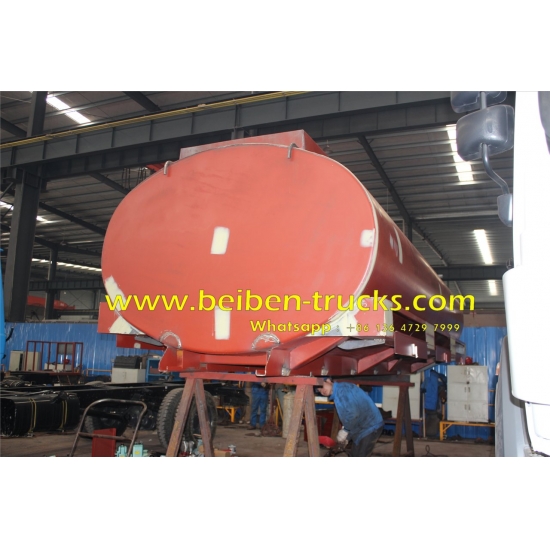

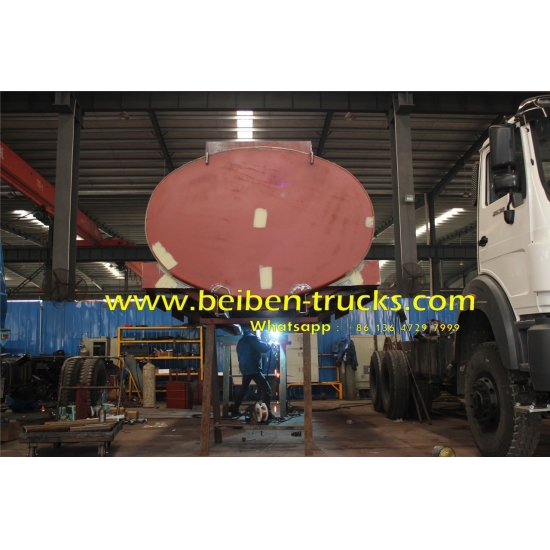

Ellipse water tanker

Tanker material

Q235,carbon steel

Introduction

1. Suction7m Sprinkler width14m   Range28m

2. with front spout, back spill and side spout function

Sprinkling area(m)

»14m

Vertical suction range (m)

»7m

Watering pressure

250-450Mpa

Pump style

Self-priming centrifugal pump

Manhole

Man way access hole on top of tank;1 units DN500mm manhole

Front spray function

Front spray bar with fan sprayer on both sides, spray range: »28m

Man walk way

With skid resistance man walk way on top of tank

Horse reels

Two 75 ft hose reels at each side of the truck

Water pump

Water pump model: CLW80QZF-60/90N

Water pump flow rate(L/m): 60m3/h

Head of delivery(m): 90m

Self-priming function(min/4m):1.5

Efficiency(%):95%

water wagonwater truck, spraying-vehicle,watering truck,sprinkler,watering cart,tank car,street sprinkler van, roadway flusher, watering lorry,road-sprinkler,water wagon The water Trucks we produced are virescence and multi-functional, they satisfy different users to use in different environment. All water trucks have transporting water function, and the water pump can absorb water and pressurize, drain off water, can also drain off water without pump. Water truck can also be used as medicine car, but if you want a medicine truck please tell us, we will carry on a specialized deal with antiseptically. Have special use of requirement, please tell us ahead of time so that we can offer to add various attachments work, Such as adding the powder charge, pneumatic valve, the spraying medicine apparatus Take these products introduction only as a consultation; please contact the detailed conditions with us



We are the most professional beiben water tanker truck manufacturer in china, No 1 beiben water transportation trucks supplier.



China manufacture New Brand 20 m3 beiben water tank truck for sale



China manufacture New Brand 20 m3 beiben water tank truck for sale



China manufacture New Brand 20 m3 beiben water tank truck for sale

China manufacture New Brand 20 m3 beiben water tank truck for sale

China manufacture New Brand 20 m3 beiben water tank truck for sale

China manufacture New Brand 20 m3 beiben water tank truck for saleChina manufacture New Brand 20 m3 beiben water tank truck for sale

China manufacture New Brand 20 m3 beiben water tank truck for sale

China manufacture New Brand 20 m3 beiben water tank truck for sale
