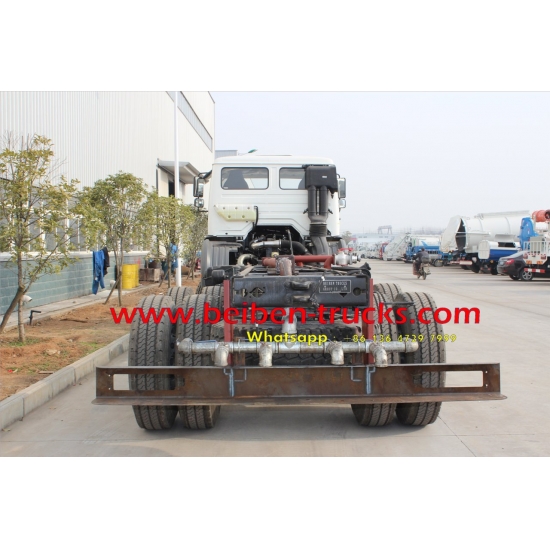

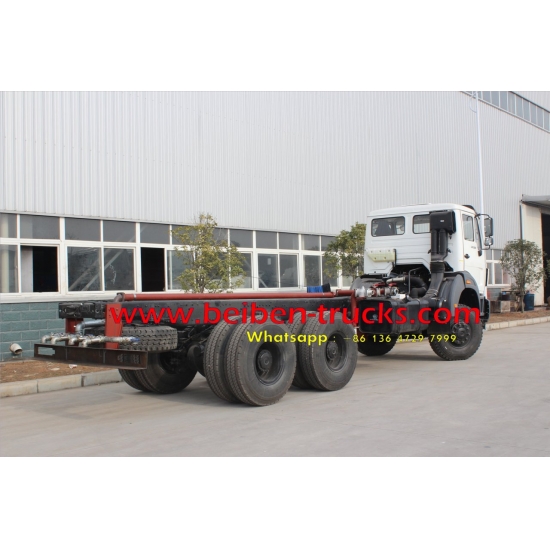

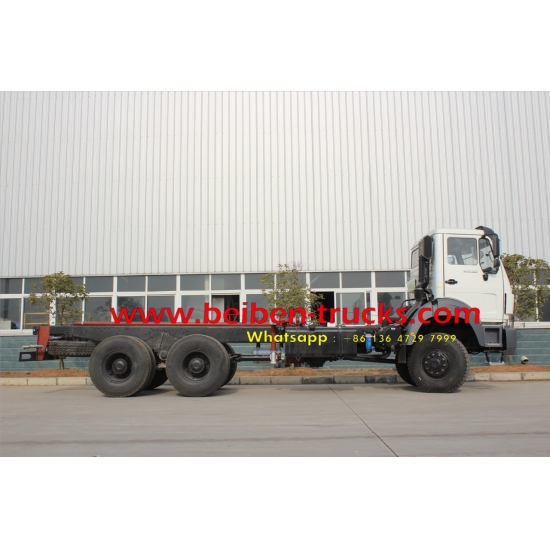

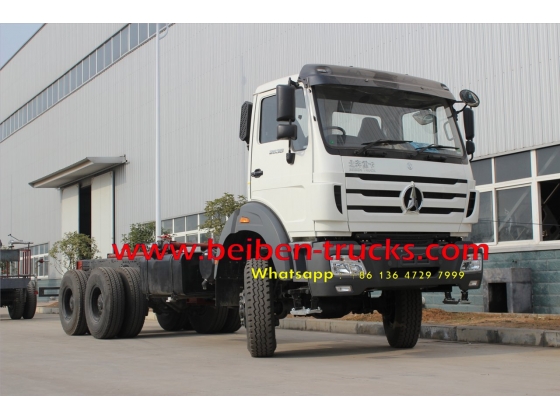

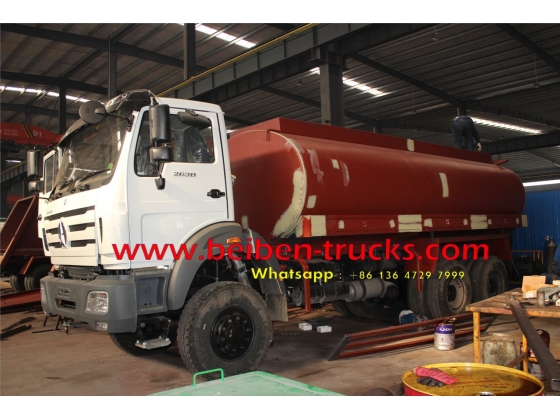

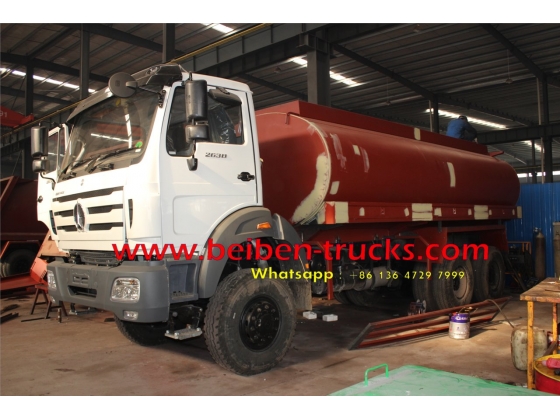

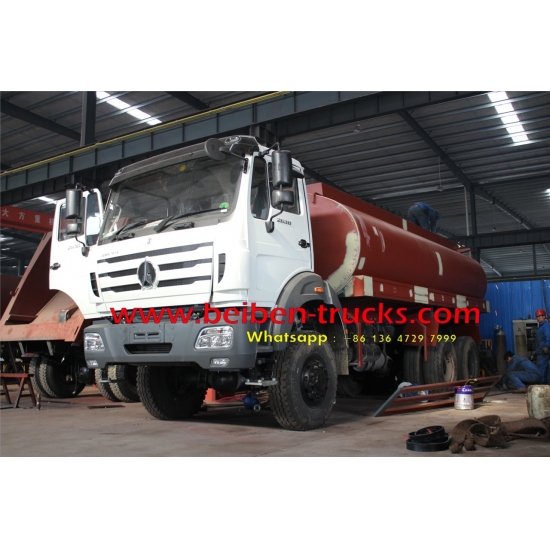

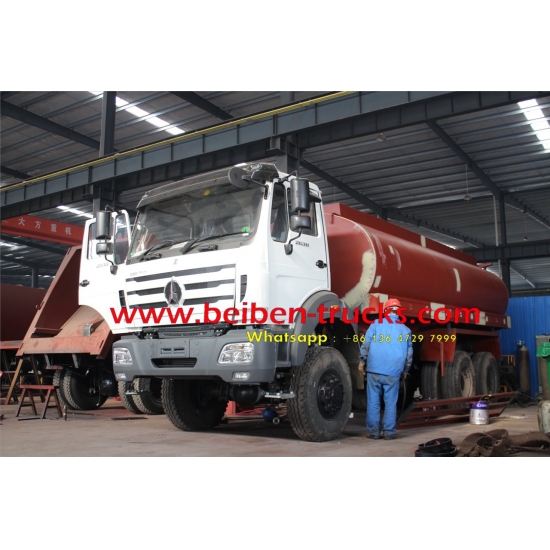

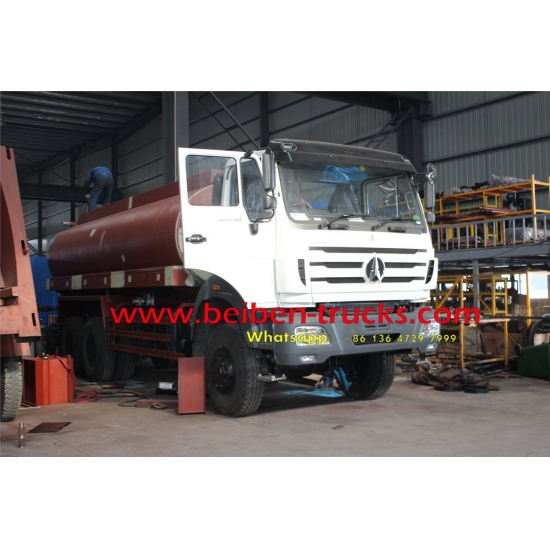

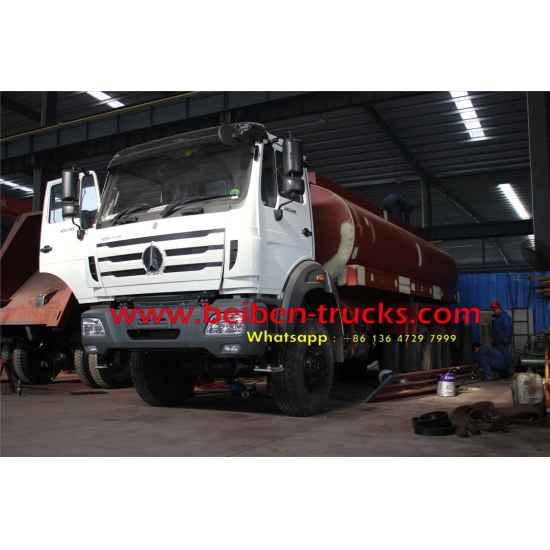

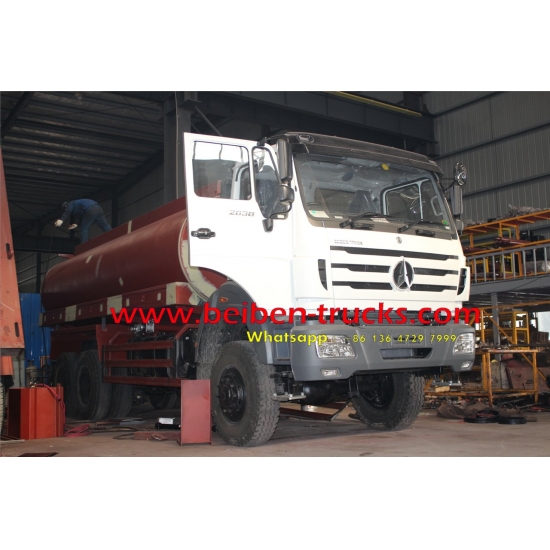

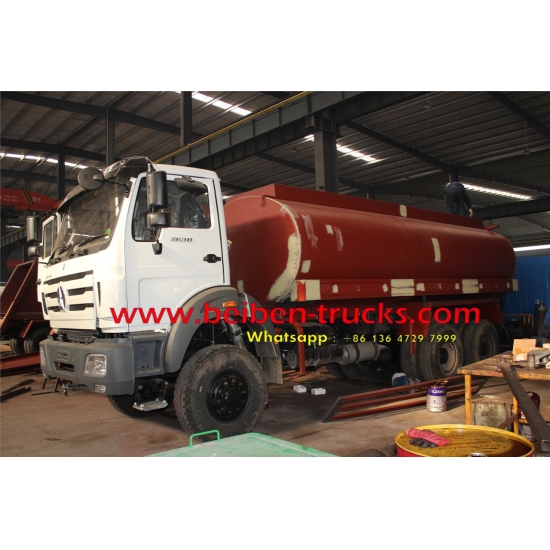

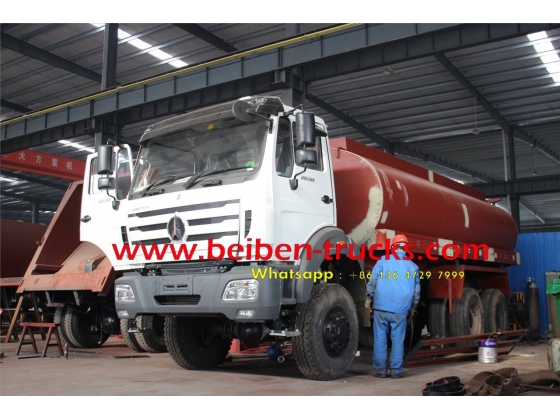

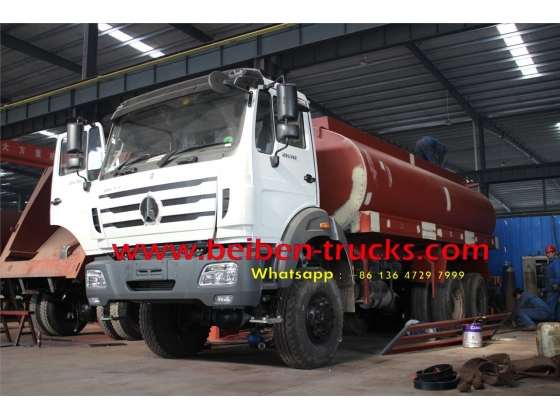

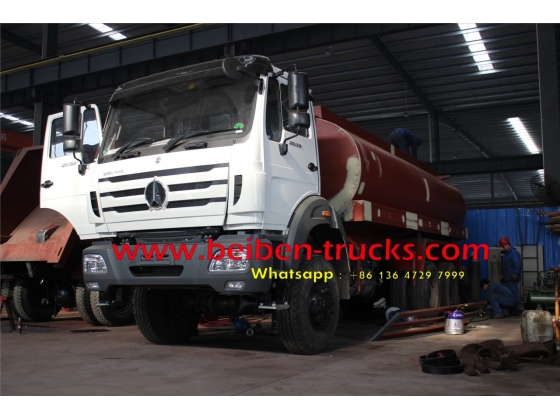

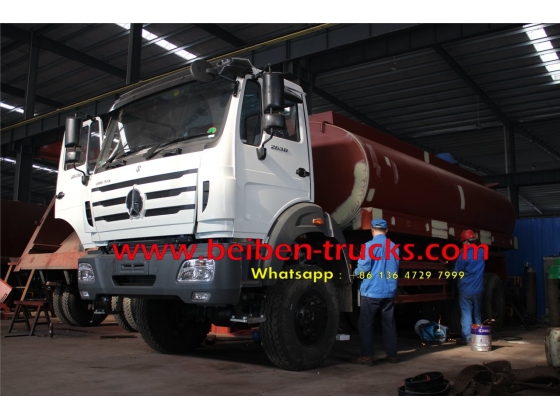

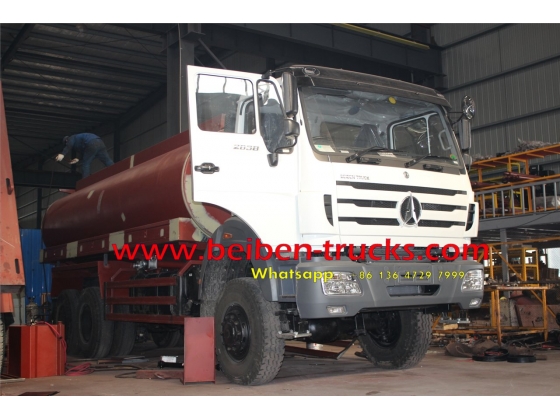

1beiben ND1250F44J 6*6 truck chassis, 4450+1350 mm wheelbase, 20 CBM water tanker capacity, benz technology axle and cabin, WD615.80 engine 380 hp , fast 9 shift transmission, Germany ZF8098 steering RHD system.
ND1250F44 |
|
Engine | Maker: beiben trucks |
Diesel 4 stroke direct injection diesel engine, 6 cylinder in-line with water cooling,turbo-charging & intercooling | |
Engine model: WD615.38 | |
Maximum output: 380@2200rpm | |
Max torque: 1350NM@1100-1600rpm | |
Bore/Stroke(mm):126/130 | |
Mean Position Speed: 9.53m/s | |
Compression ratio:15.5:1 | |
Displacement: 9.726L | |
Specific fuel consumption: 198g/Kwh | |
Clutch | Φ430 Diaphragm type |
Transmission | Fast 9JS160T |
Front Axle | Benz 7 T front axle |
Rear Axle | Benz 16 T rear axle with wheel reducer, |

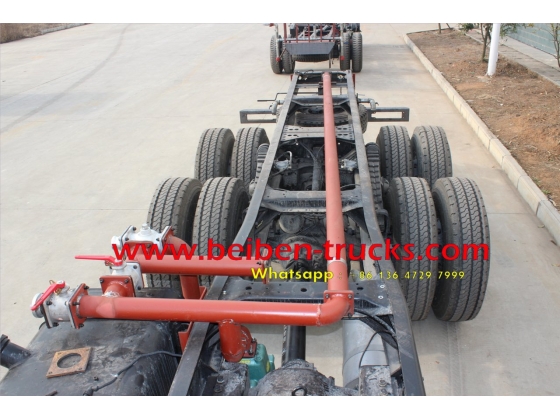

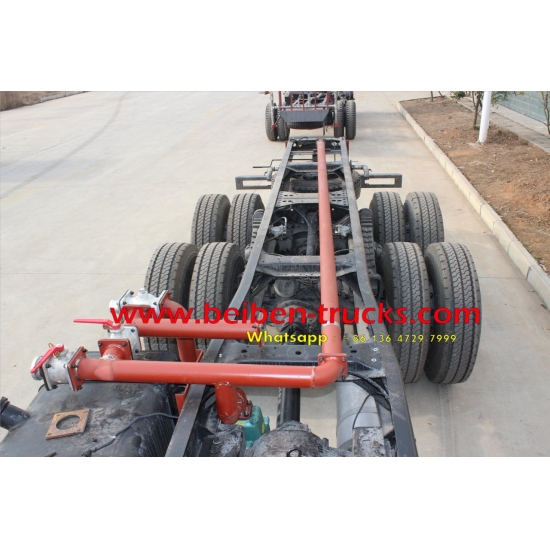

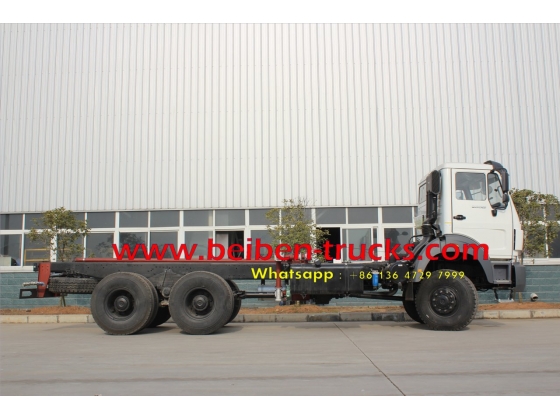

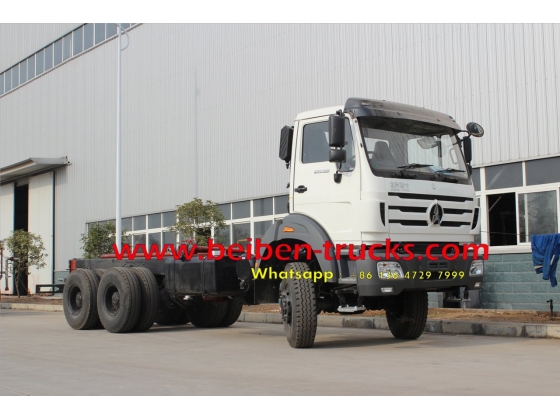

Chassis | Frame: U-profile parallel ladder with U-profile riveted cross members |
From suspension:9 semi-elliptic leaf springs and stabilizer | |
Spare wheel carrier: with one spare wheel | |
Fuel tank: with one 300L lockable fuel tanks | |
Steering | ZF8098 integral type power-steering |
Wheel & Types | Spring: 10/12,4/12 |
Tyre: 12.00-20 bias tire | |
Radial tire is optional | |

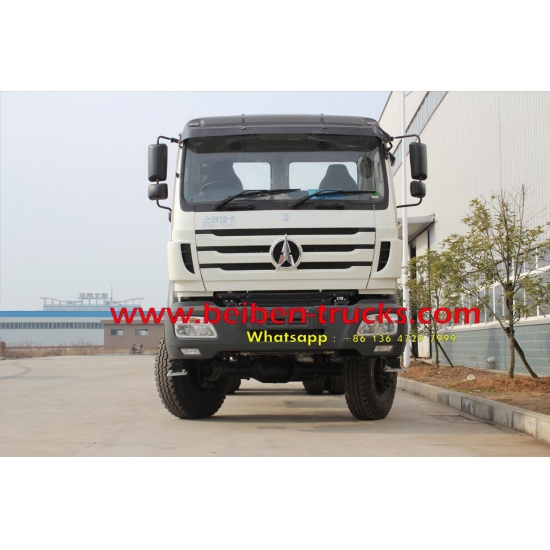

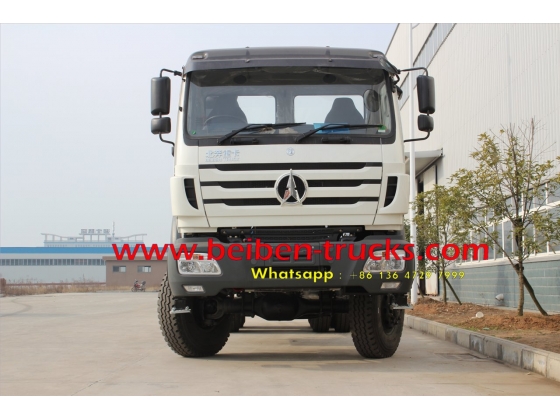

Driver's cab | HW 76 , flat head, tippable, one sleeper with A/C |
Fuel consumption (L/100km): 36 | |
Dimensions in (mm) | Wheel base : 44500+1350 |
Dimension(mm): 9800*2500*3400 | |
Max. speed (km/h): 102 | |
Max. gradeability(%): 25 | |
Front overhang (mm): 1500 | |
Rear overhang (mm): 2625 | |
Rear track (mm): 1830 | |
Approach angle: 16 degree | |
Departure angle: 15 degree | |

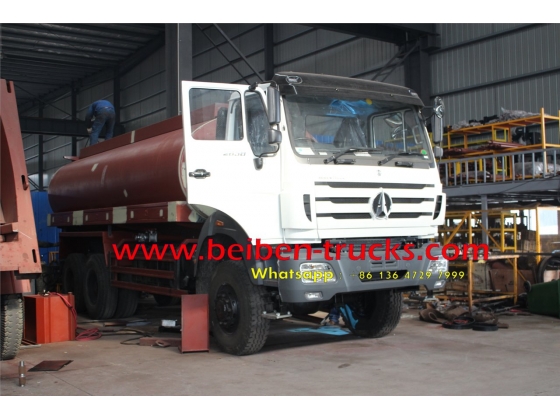

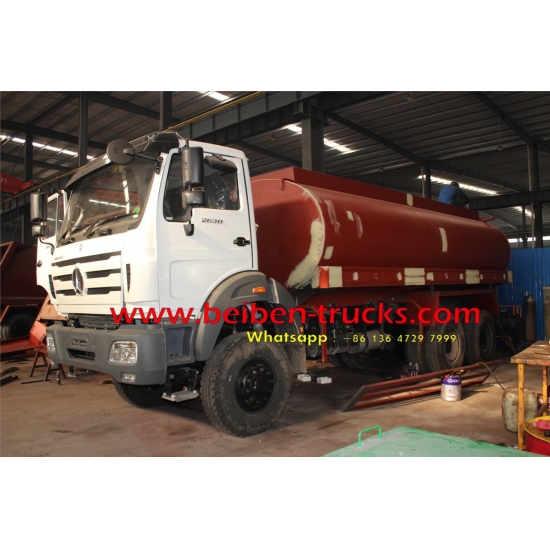

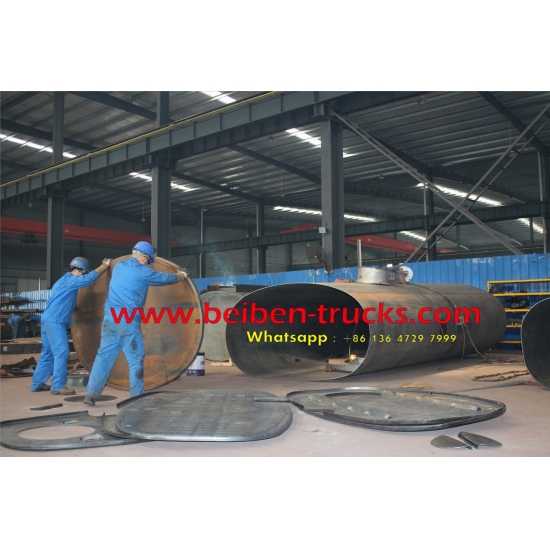

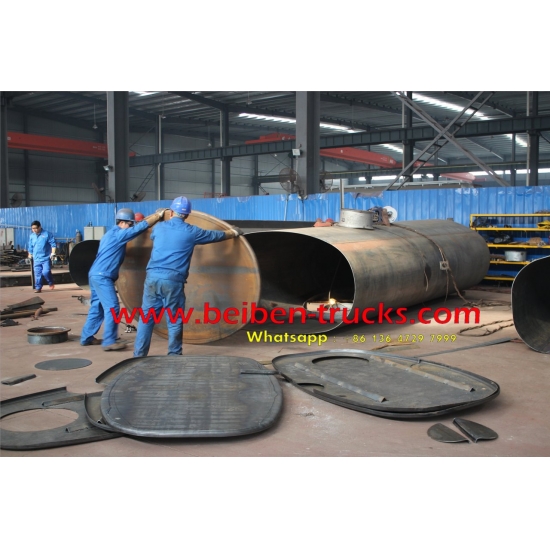

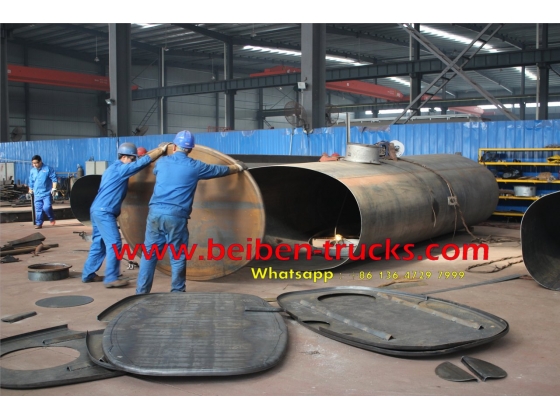

Stainless Steel BODY | Capacity: 20CBM |
Length: 6.7m | |
Thickness of steel: 4mm |
