Products

North benz 2534 dumper

Product Details

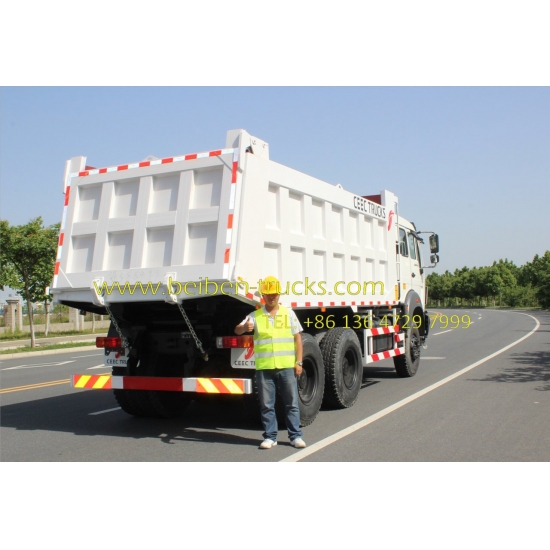

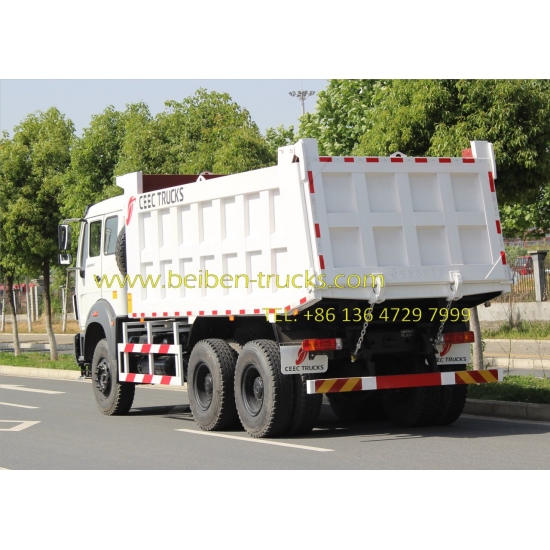

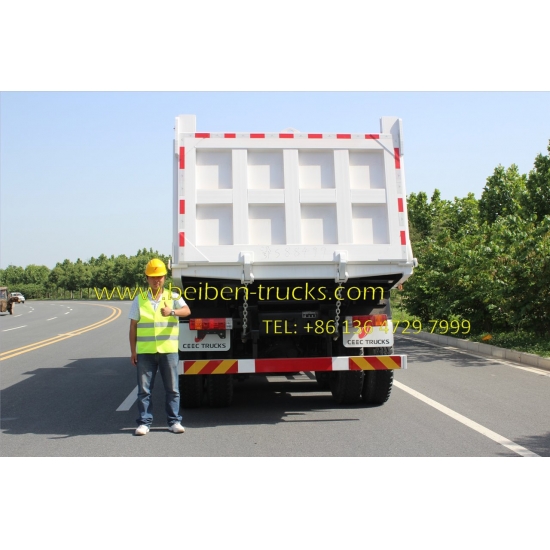

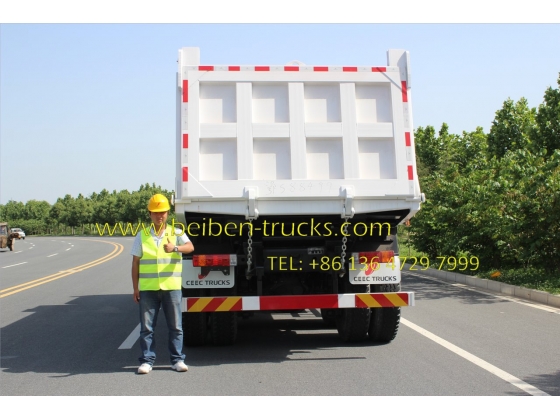

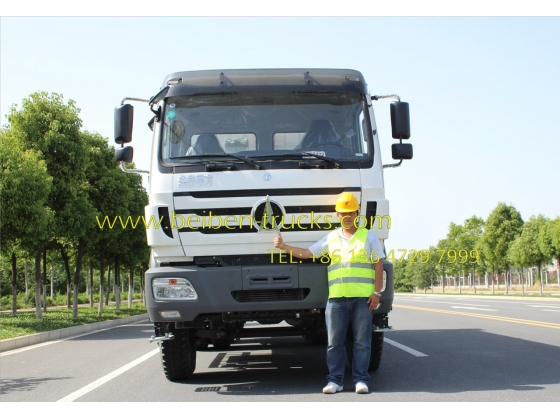

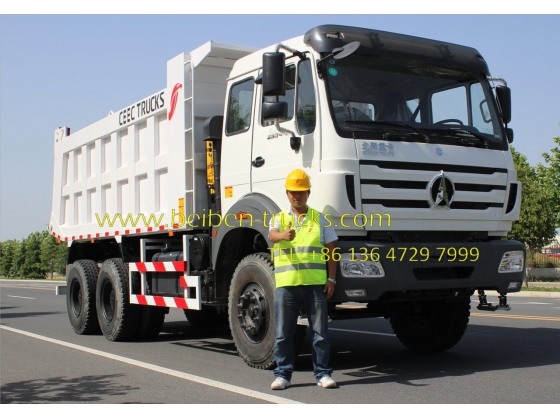

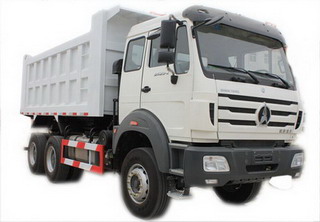

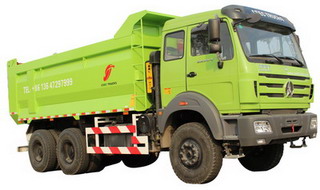

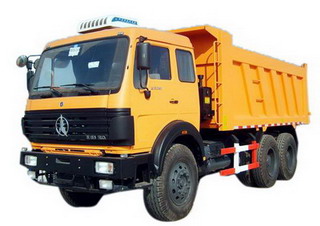

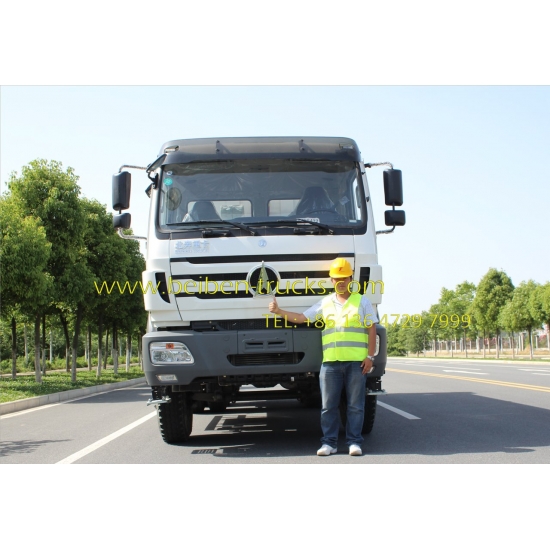

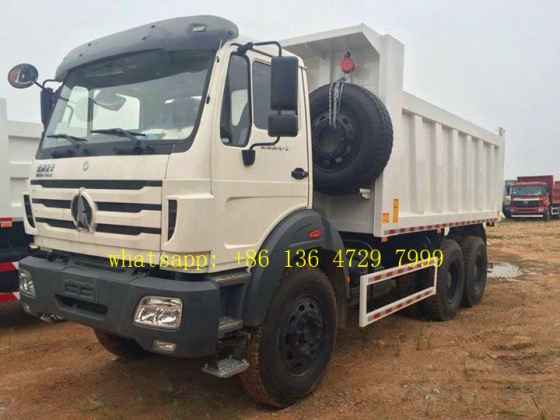

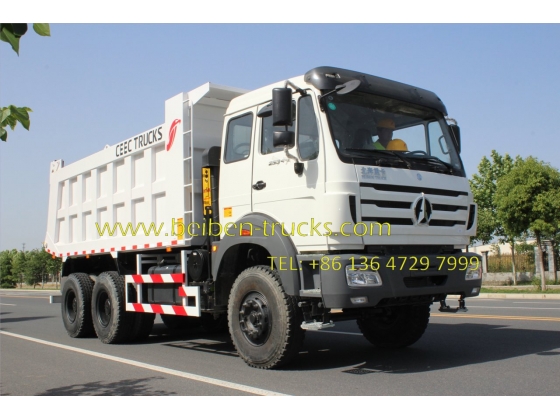

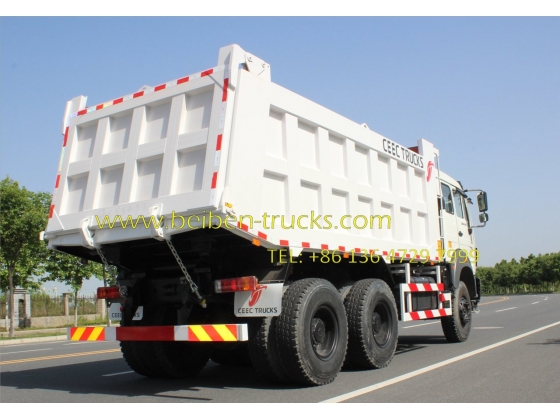

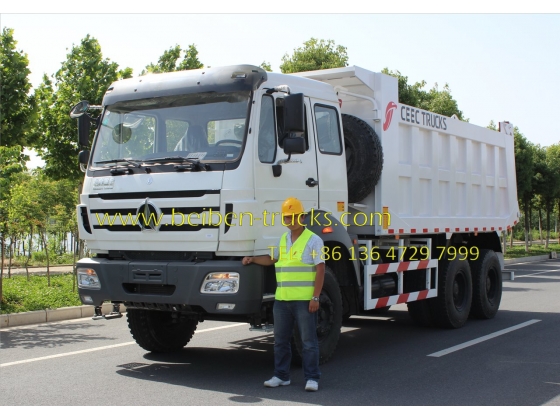

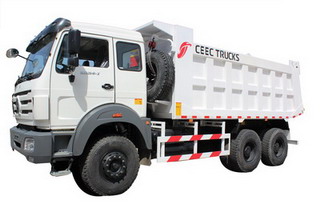

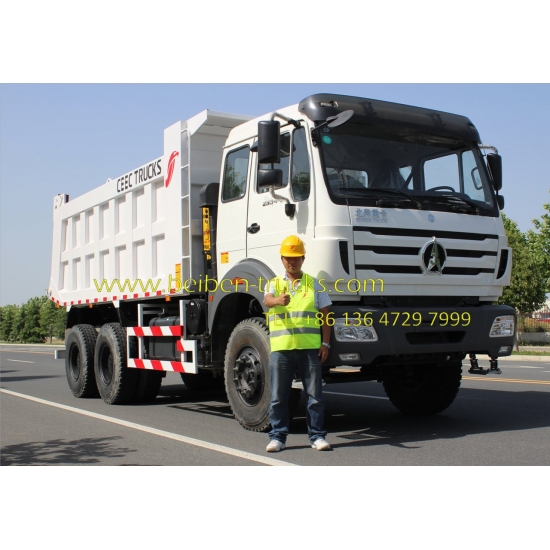

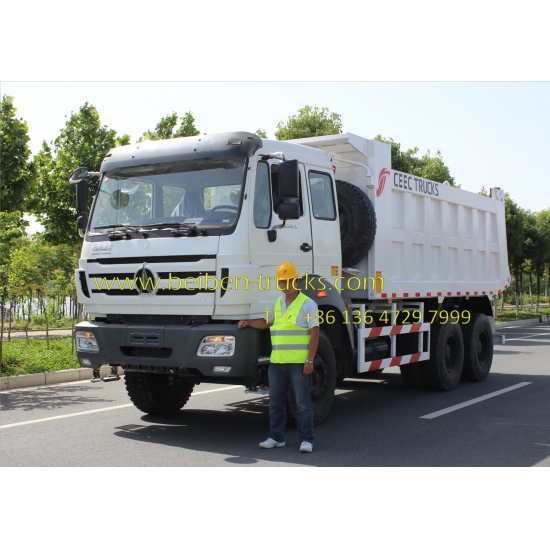

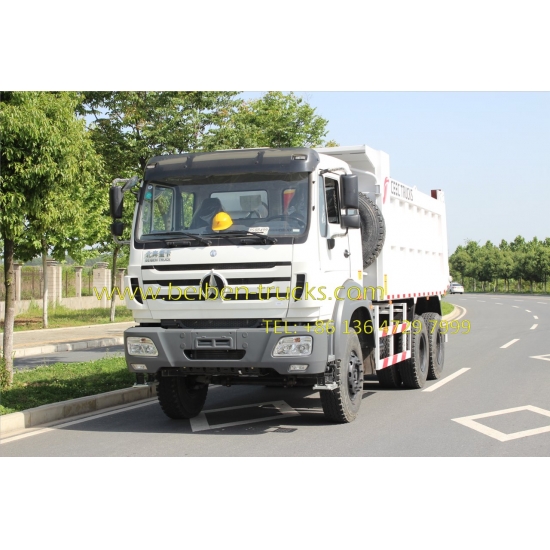

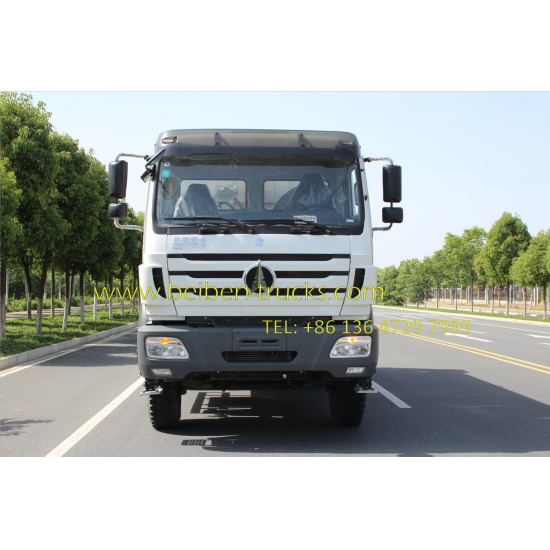

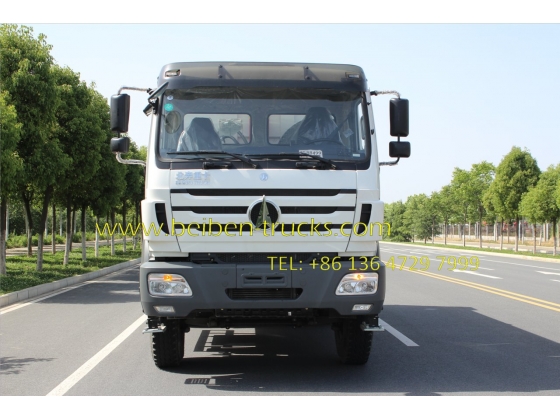

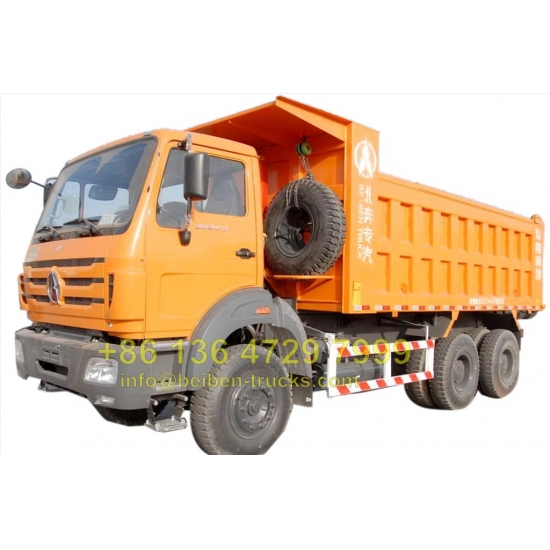

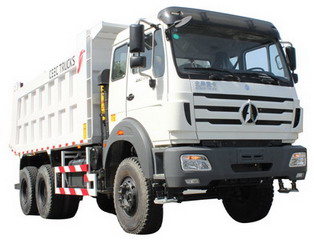

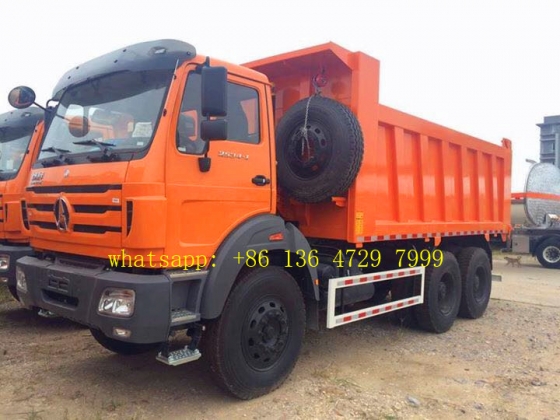

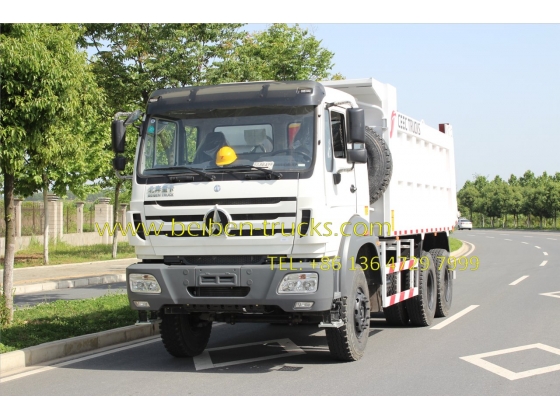

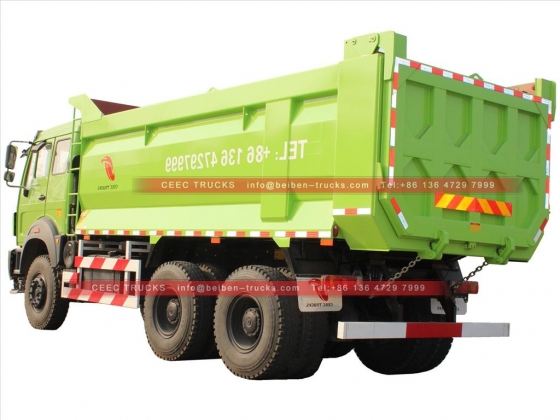

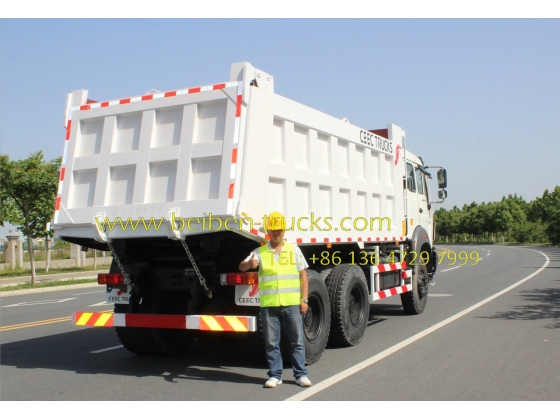

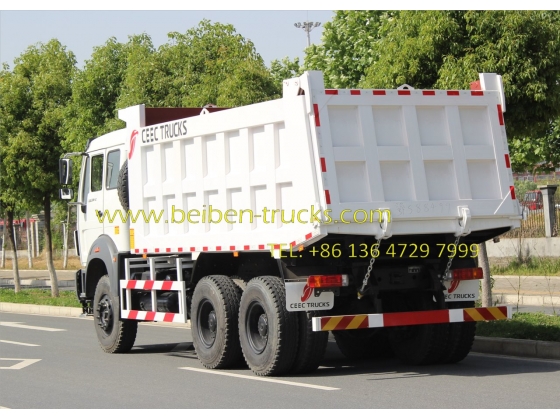

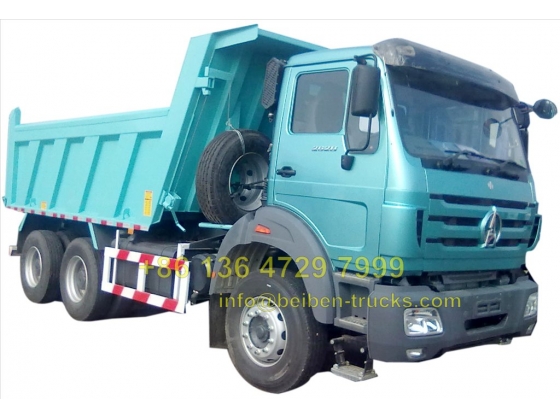

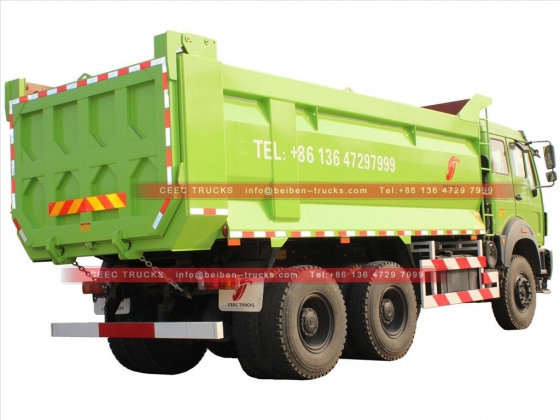

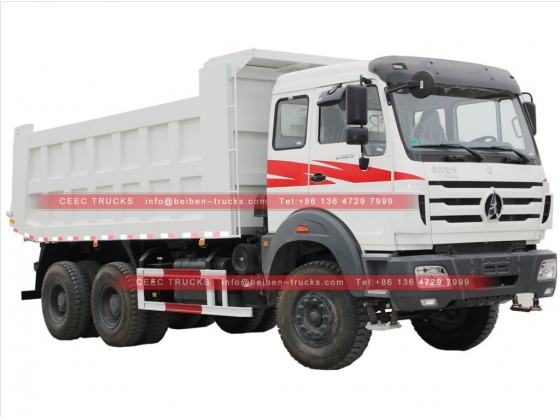

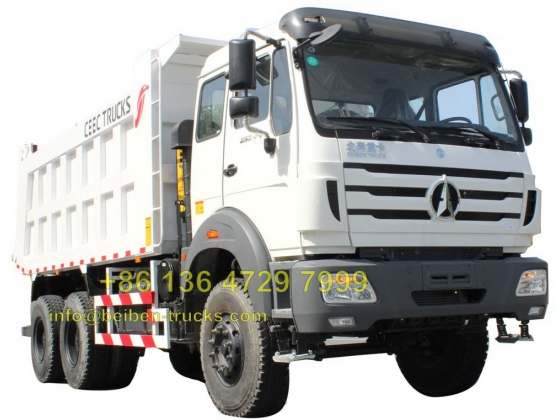

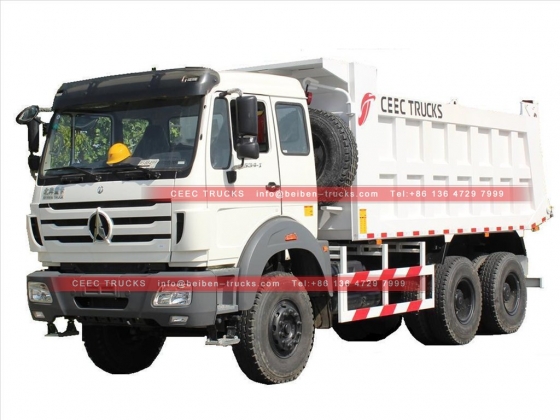

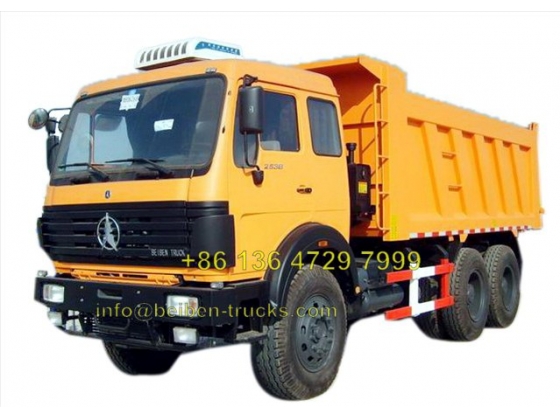

North benz 2534 dumper

North benz 2534 dumper

Function:


  Mining area

  Construction site

  Municipal road construction

  Transport of stone, sand, gravel


Feature:

  Germany BENZ technology dumper chassis with high durability and reliability

Weichai diesel engine combined with original rear axle reducer gear and differential gear

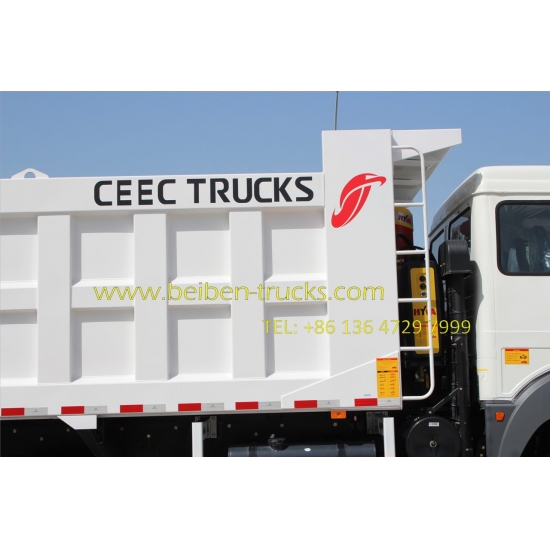

Continuous welding throughout body for additional strength, Full depth rear corner post with full depth rear crossmember.

Enhanced dumper body, and the motherboard adopts variable cross-section beams.

Special beiben Dump Body Design are optional


Specification:


Similar key words beiben 2534 dumper truck, north benz 2534 dump truck, beiben 2534 sand transportation truck, beiben 2534 tipping truck, beiben 2534 dump truck price, africa beiben dumper manufacturer, kenya beiben dumper truck, congo beiben 2534 dump truck, baotou beiben 2534 dump truck supplier.

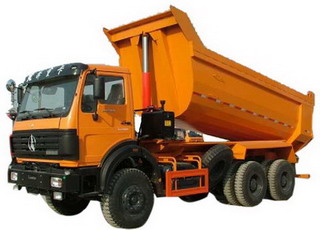

beiben 2534 dump truck

Best supplier of  beiben 6*4 drive dump truck, beiben 6*6 dump truck, we have more than 20 years experience in manufacturing beiben 2527,2529,2532,2534,2538 dumper. Genuine beiben dump truck spare parts are avaiable in 24 hours. we provide beiben 6 wheeler dump tuck, beiben 10 wheeler dump trucks, beiben 12 wheeler earth moving tipping trucks. .

  beiben 2534 dump truck

  The best supplier of beiben RHD dump truck, beiben LHD dump truck, beiben RHD tipper, beiben RHD wrecker trucks. supply lots of beiben Right hand drive  2534,2538,2542,2546 dump trucks for east africa customer.



Beiben 2534K dumper /6×4/4100+1450/Short Cab/LHD or RHD

Dimension

8880*2500*3430mm

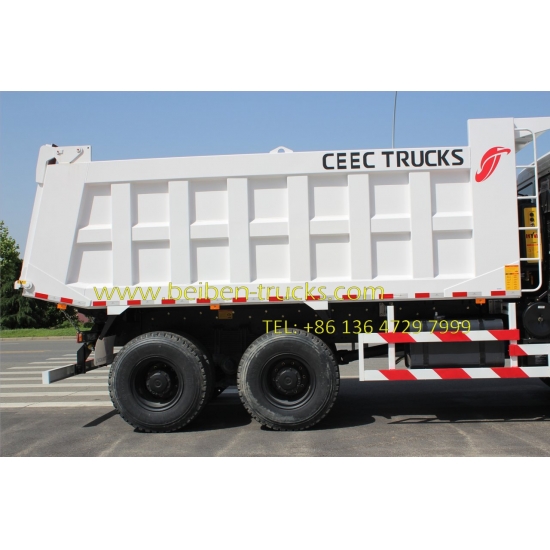

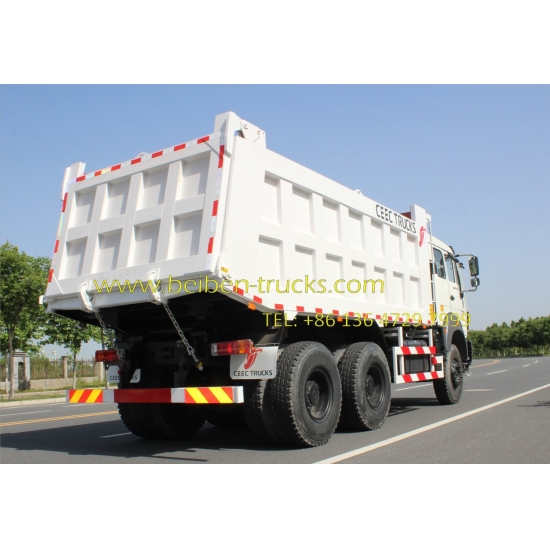

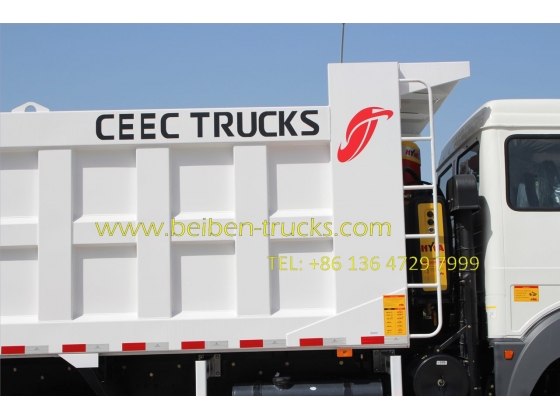

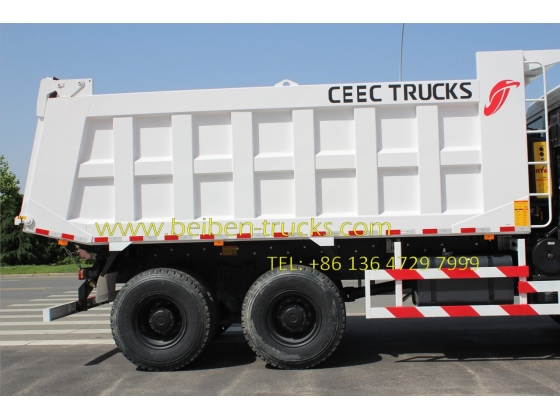

Cargo box

5600x2300x1350mm, HYVA hydraulic lifting system; thickness: bottom 8mm, side 6mm

Approaching angle/Departure angle

26/28°

Overhang(front/rear)

1410/1720mm

Wheel base

3800+1450mm

Max speed

85km/h

Curb weight

12650kg

Engine

Model

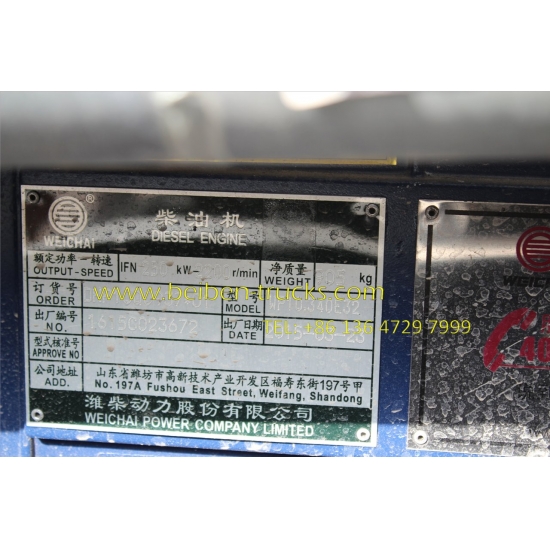

WP10.340E32, water-cooled, four strokes, 6 cylinders in line, turbocharged, directly injection


Displacement

9.726L/Diesel


Stroke

126/130mm


Max. power

250/2200 (kw/rpm)


Max.torque

1600/1800(N.m/rpm)


Emission

Euro III

Fuel tanker capacity

300L

Clutch

430, Single dry frictional disc,Hydraulic boosting

Gearbox

9JS180, mechanism, 9 forward gears, 1 reverse gear, manual operated

Gear ratio of gear box

12.65/8.38/6.22/4.57/3.4/2.46/1.83/1.34/1.00 R:13.22

Suspension system

Front

Non-free standing leaf spring,telescopic shock absorber with stabilizer bar suspension , 10pcs


Rear

Non-free standing stabilization spring, balance suspension system, 13pcs

Brake system

Service brake

Brake gap can be adjusted automatically, double circulation air brake system


Assistant brake

Engine exhaust brake


Park brake

Potential springs pressing on middle and rear wheels

Steering system

ZF8098 hydraulic steering with power assistance

Frame

Strengthened Straight beam

Front axle (Mercedes Technology)

Double-shoe pneumatic brake, non-driving steering axle

Middle and Rear axle (Mercedes Technology)

Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction 16 T axle

Tyre

12.00-20 tyres

Electrical system

Battery

2X12V/135Ah


Generator

28V-35A


Starter

5.4Kw/24V

Beiben NG80B dumper Cabin

NG80B Long cabin one sleeper and inner A/C ;
Full steel skeleton structure, covered with double layer steel plate;
Can be tipped forwardly;
High back with arm seat for driver, high back seat for co-driver; With inner A/C

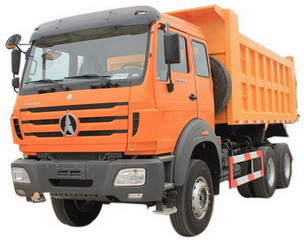

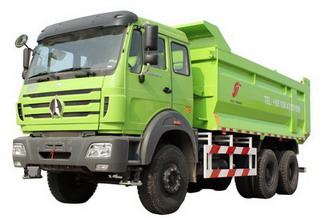

Beiben dump truck



Model

Engine Model

Rated Power

Payload

Driving Mode

Beiben 2538

WP10.380N

380 Hp

60 Ton

6*4

Beiben 2534 KY

WP10.340

340 hP

50 tON

6*4

Beiben 2534

WP10.340

340 Hp

30 Ton

6x4

Beiben 2534k

WP10.340

340 Hp

36 Ton

6*4

Beiben 2538k

WP10.380

380 Hp

40 Ton

6*4

Beiben 2529

WP10.290

290 Hp

45 Ton

6*4

Beiben 2538k

WP10.380

380 Hp

40 Ton

6*4

Beiben 2538

WP10.380N

380 Hp

45 Ton

6*4

Beiben 2529

WP10.290N

290 hp

30 Ton

6*4

Power star 2628

WP 10.280N

280 Hp

40 Ton

6*4

Beiben 2629

WP 10.290N

290 Hp

40 Ton

6*4

Beiben 2634

WP 10.340N

340 Hp

35 Ton

6*4

Beiben 2629 dumper

WP 10.290N

290 Hp

35 Ton

6*4

Beiben 2629 A

WP10.340

340 Hp

40 T

6x4

Beiben 2629 A

WP10.290

290 Hp

25-30 T

6x4


Watch Beiben 2534 dumper on YOUTUBE.

Beiben 2534 dump truck in testing:                   https://youtu.be/0N0Vik8PBjM

                                                                                         https://youtu.be/gAqsvypVe-w

BV people inspected the beiben 2534 dumper  https://youtu.be/tGeePIcJals

                                                                             https://youtu.be/KyshwIJ7iYY

                                                                                                   https://youtu.be/7i2lPZ3e4Pw
