africa beiben 3134 dump truck manufacturer
CHINA BEIBEN BEST 8*4 dump truck manufacturer
Authorized Beiben 12 wheeler dump truck supplier
Best price for north benz 8*4 dumper
Mercedes-Benz Technology
Beiben 3134,3138,3142dump truck
North Benz NG80 WEICHAI Engine EUROIII Truck Beiben Dump Truck 50 ton 8*4 Dump Truck
CEEC TRUCKS plant is a heavy automobile
business unit with the approval of State Administration for Industry and
Commerce and State Development Planning Commission and is one of rare
domestic enterprises with the authority of Ministry of Commerce.
Adopting modern enterprise system, the company is a marketing enterprise of various heavy automobile brands, integrating international and domestic trade.
1. BeibenSpare parts available for 10 years
2. Engineer is available to make service overseas
3. 24hours online consultation service
1. All the beiben 12 wheeler trucks will be made antirust before shipment
2. Different shipping method for different port, Ro-Ro Vessel, Bulk Vessel, Flat-Rack, Container, etc
3. Shipment tracking
1. INTRODUCTIONS
From rock, sand or cement, equipment, water, fuel to food product materials and waste, CEEC has you covered.
Since we rolled out Dump Truck No.1 in 1983, we have been providing customers with trucks for loading, conveyance and delivery. With its excellent drive ability, unique comfort, extreme safety and durability, UD dump truck to deliver your material on time, every time.

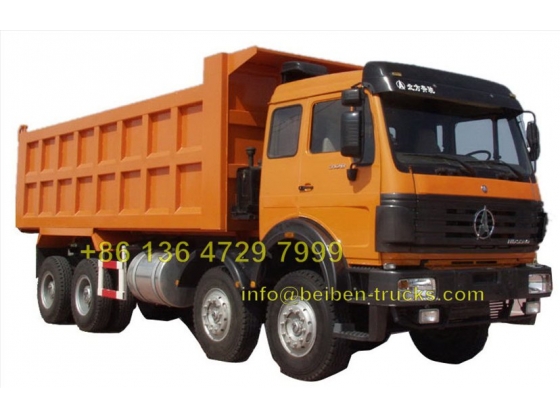

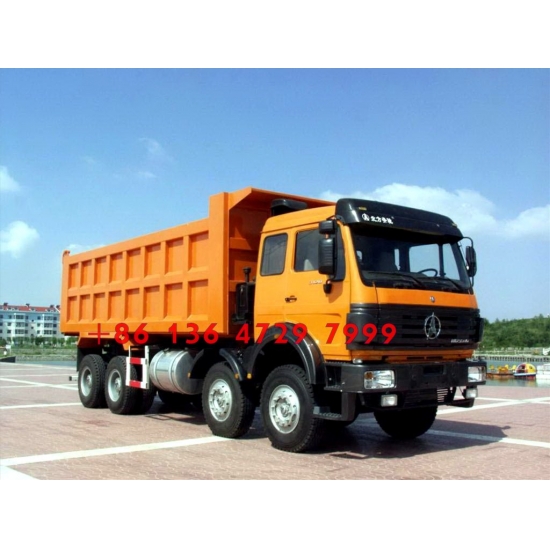

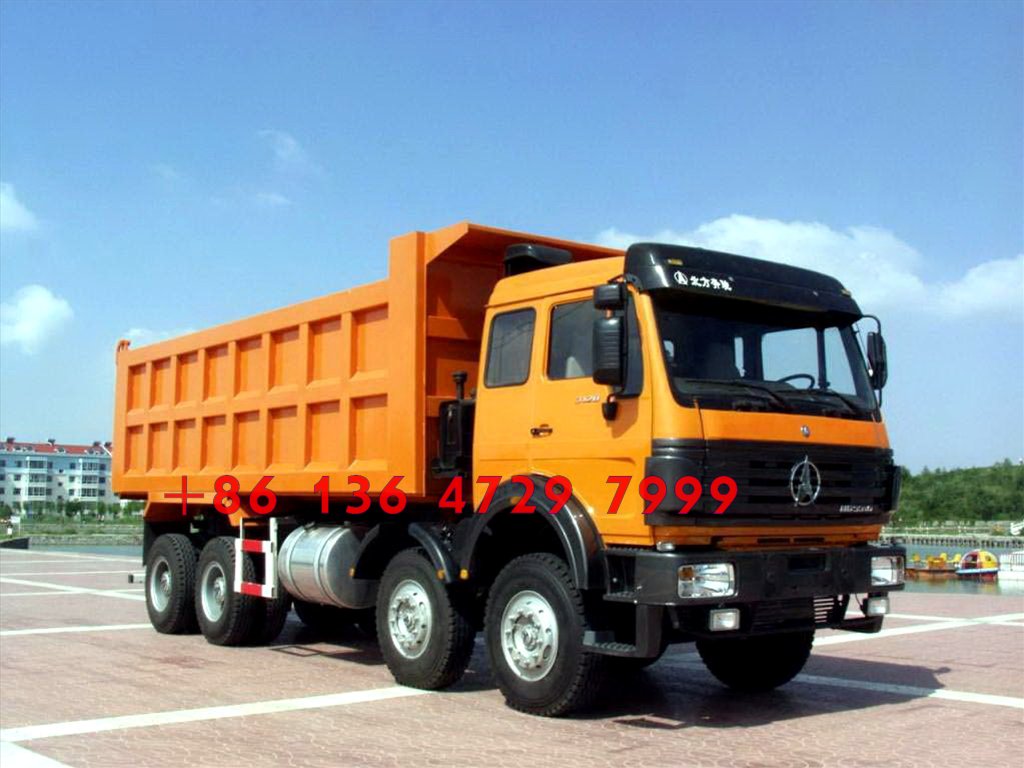

Front Lift north benz 8*4 Dump Truck
Widened and thickened pillars and ribs of the beiben 3134,3138,3142 dump body are densely distributed to ensure powerful anti-expansion performance of the beiben dump trucks dump body
The thickened channel steel of rear body + full welds guarantee high strength and impact / wear resistance
Ultra-large cast steel lock hook + manual hook feature good sealing performance and high reliability.
.Four longitudinal beams of frame are in matts structure and the heighted and thickened cross beams are densely distributed to achieve a strong and impact resistance frame.
The subframe adopts rectangular tube longitudinal beams and the integral structure features high strength.
Beiben 380 Hp engine 12 wheeler dump truck Powerful pump and large pipes of the hydraulic system realize fast lifting speed, high dumping efficiency, and durability.
CHINA best beiben 3134,4138,3142 dump truck, beiben 8*4 mining dump truck, beiben 8*4 off road dump truck manufacturer.
|
3134KY /8×4/1500+3550+1450/Long Cab |
||
|
Dimension 尺寸 |
9630*2500*3484mm |
|
|
Upper body inner dimension |
7150x2300x1150 sand body, China famous hydralic lifting system, thickness: bottom 8mm, side 6mm |
|
|
Approaching angle/Departure angle |
33/25° |
|
|
Overhang(front/rear) |
1410/1720mm |
|
|
Wheel base |
1500+3550+1450mm |
|
|
Max speed |
80km/h |
|
|
Curb weight |
14765kg |
|
|
Loading capacity |
16105kg |
|
|
Slope climbing capability |
Max.40% |
|
|
Engine |
Model |
WP10.340E32，water-cooled，four strokes，6 cylinders in line，turbocharged, directly injection |
|
Displacement |
9.726L/Diesel |
|
|
Stroke |
126/130mm |
|
|
Max. power |
250/2200 (kw/rpm) |
|
|
Max.torque |
1350/1200-1600（Nm/rpm） |
|
|
Emission stantard |
EuroⅢ |
|
|
Fuel tanker capacity |
400L |
|
|
Clutch |
∮430, Single dry frictional disc，Hydraulic boosting |
|
|
Gearbox |
12JS160T, mechanism,12 forward gears,2 reverse gear, manual operated, |
|
|
Gear ratio of gear box |
15.53/12.08/9.39/7.33/5.73/4.46/3.48/2.71/2.10/1.64/1.28/1.00 R:14.86/3.33 |
|
|
Suspension system |
Front |
Non-free standing leaf spring,telescopic shock absorber with stablizer bar suspension , 10pcs |
|
Rear |
Non-free standing stablization spring, balance suspension system, 13pcs |
|
|
Brake system |
Service brake |
Brake gap can be adjusted automatically, double circulation air brake system |
|
Assistant brake |
Engine exhaust brake |
|
|
Park brake |
Potential springs pressing on middle and rear wheels |
|
|
Steering system |
ZF8098,whole circulation in ball, hydraulic booster |
|
|
Frame |
Fish belly shape, variable width, variable sections |
|
|
Front axle (Mercedes Technology) |
Double-shoe pneumatic brake, non-driving steering axle |
|
|
Middle and Rear axle (Mercedes Technology) |
Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle |
|
|
Tyre |
12.00R20 Radial |
|
|
Electrical system |
Battery |
2X12V/135Ah |
|
Generator |
28V-35A |
|
|
Starter |
5.4Kw/24V |
|
|
Cabin |
NG80B long cabin with
single sleeper ; |
|
