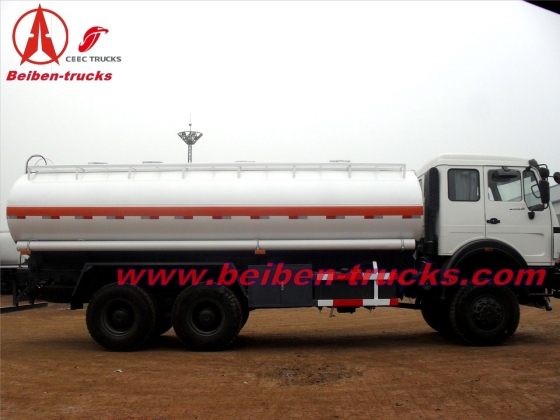

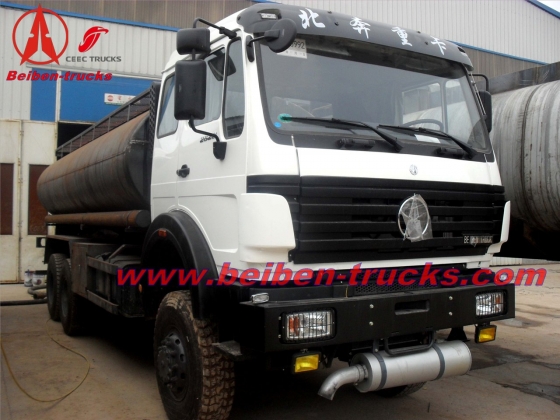

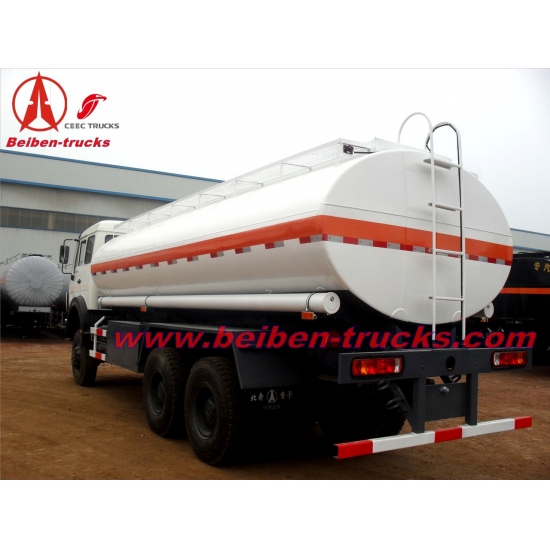

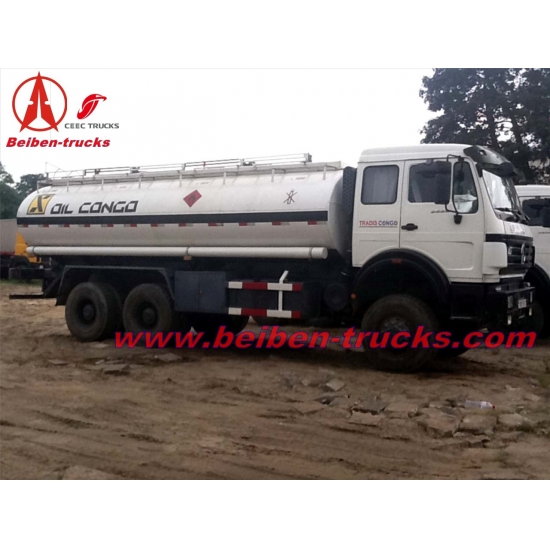

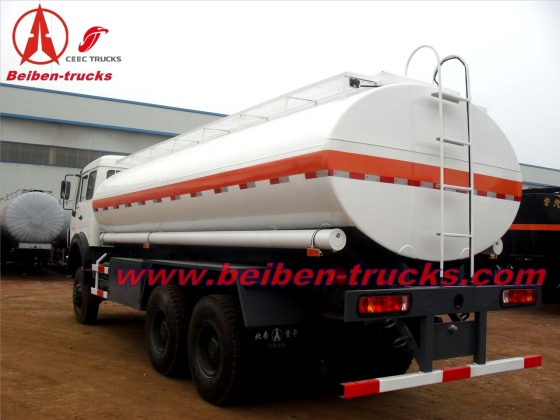

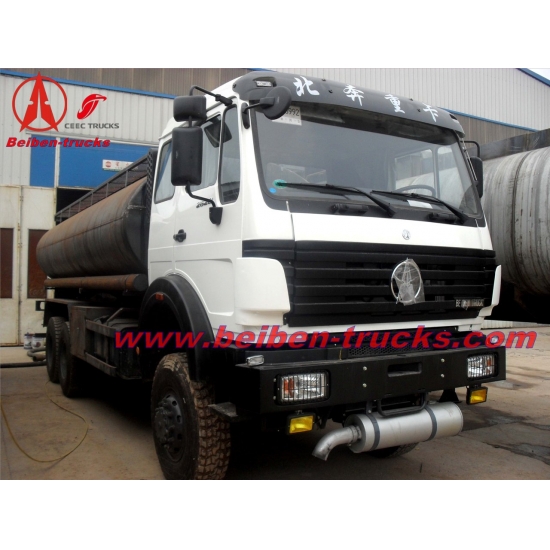

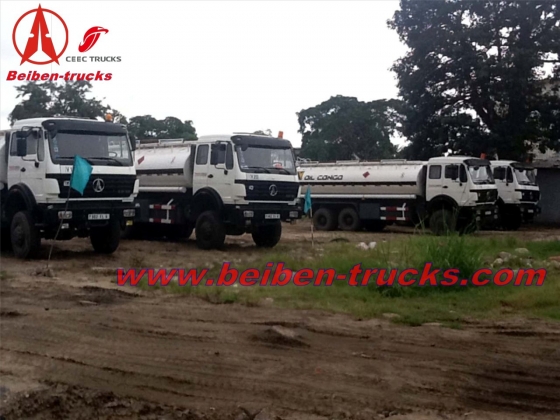

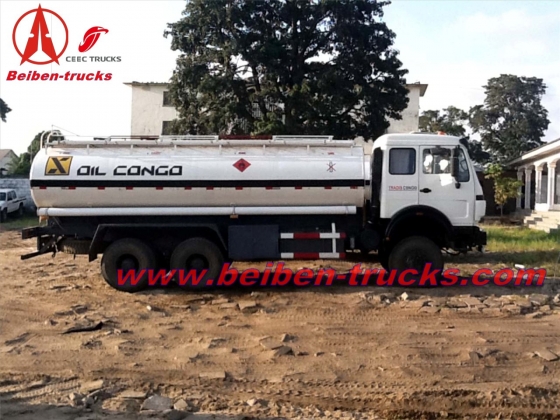

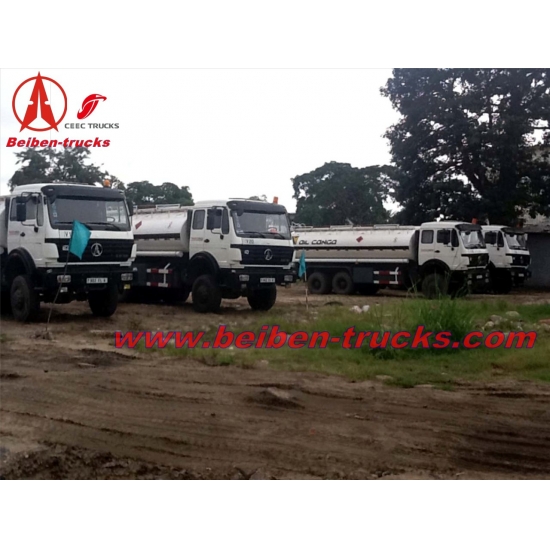

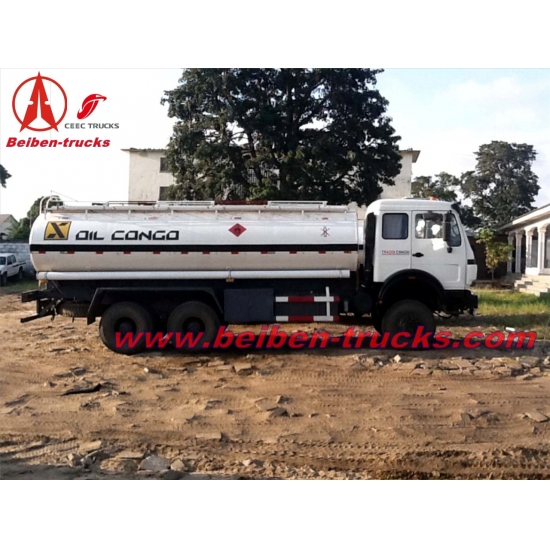

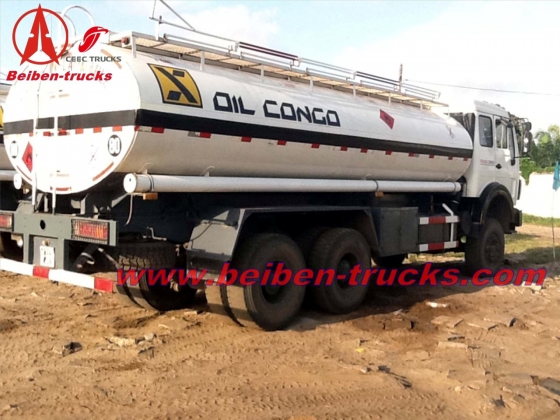

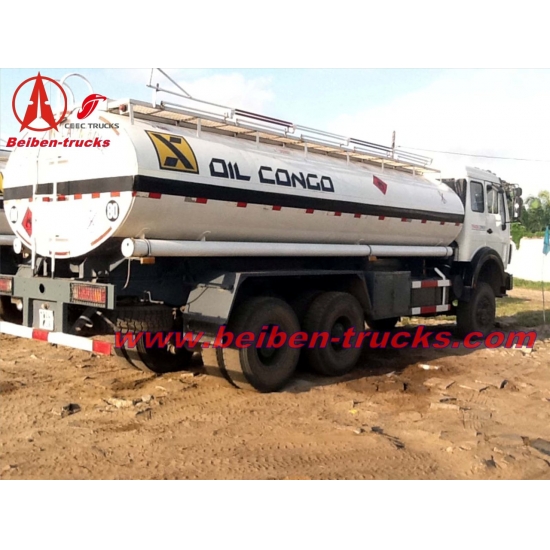

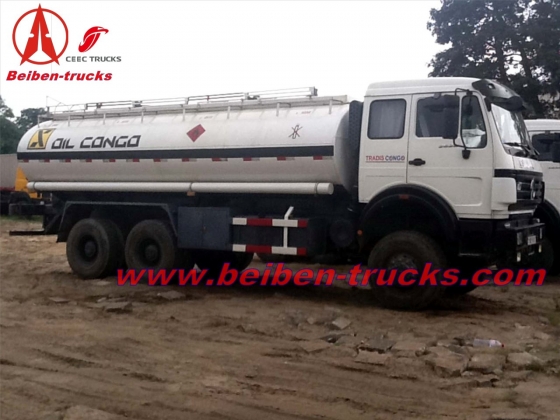

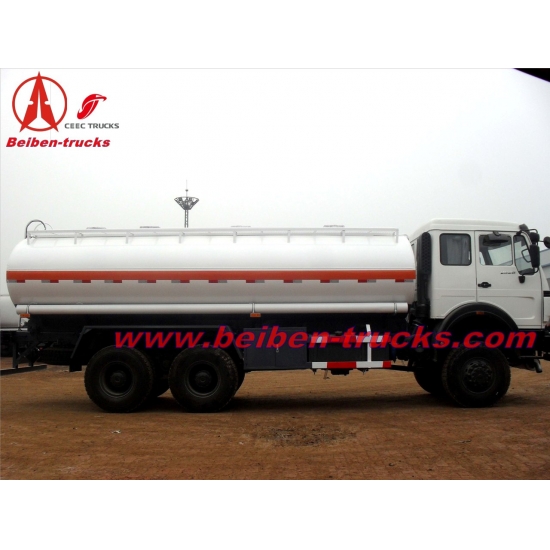

16-20 CBM BeiBen fuel tanker truck

Item

Descriptions

Spesifications and Types

Vehicle

Brand

CEEC

Model

CEEC5256GJYZ

Overall Dimensions L*W*H

10465x2500x3420mm

Weights

GVW.

25,000kgs

Curb Weight

12,270kgs

Rated Payload

12,600kgs

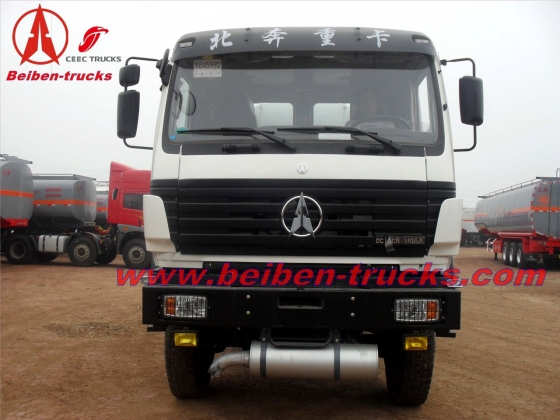

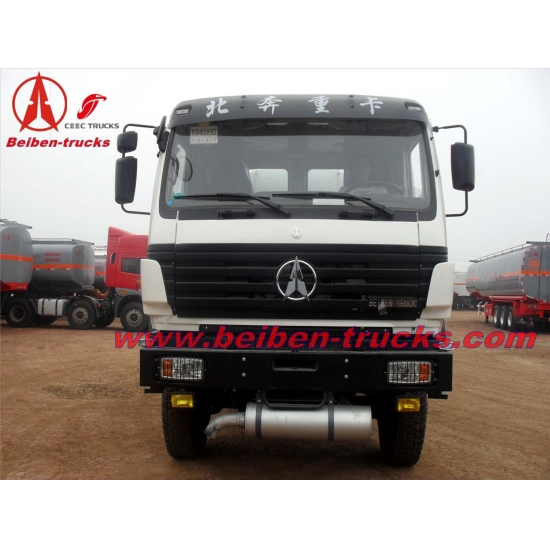

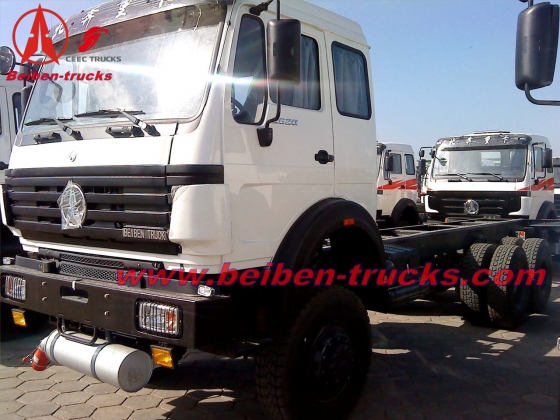

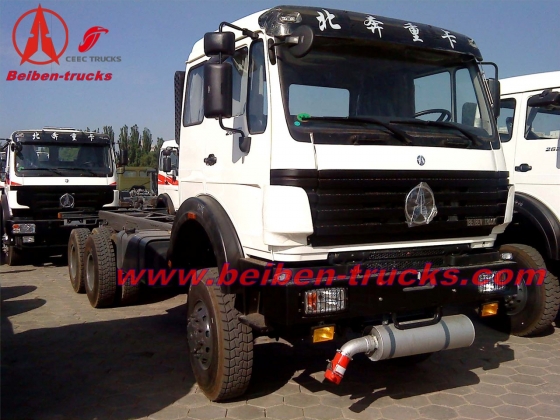

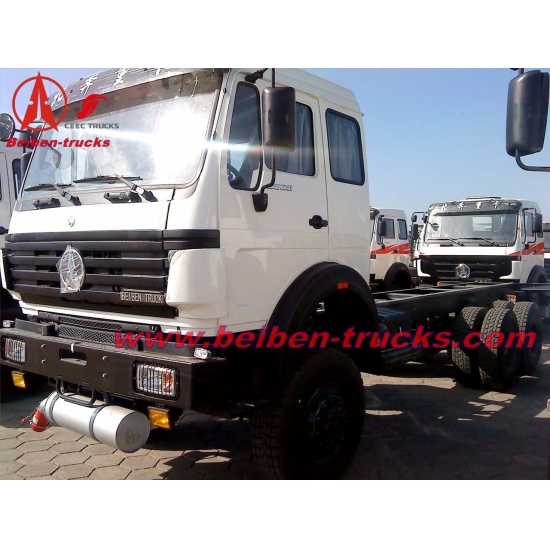

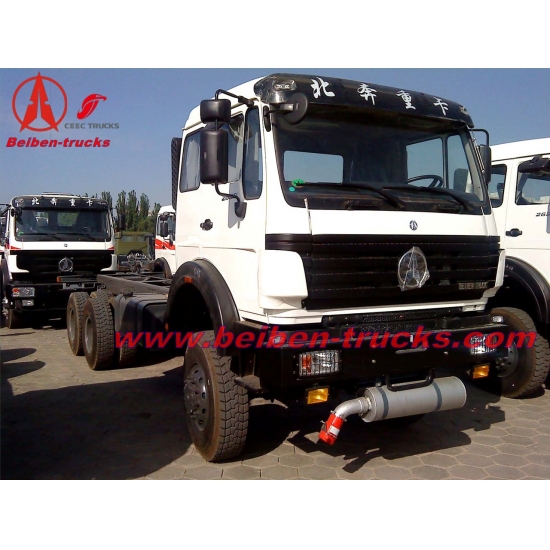

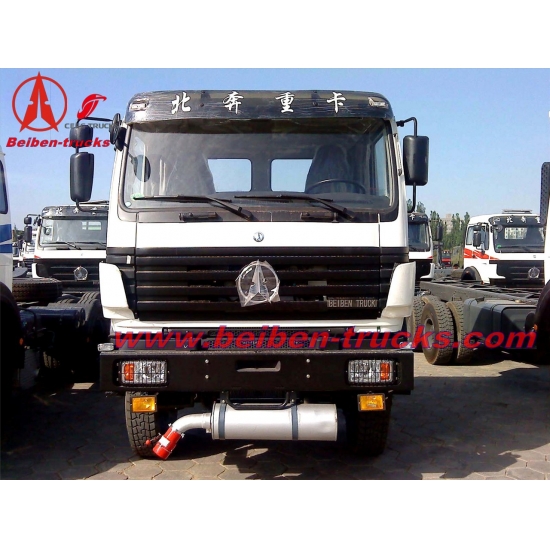

Chassis

Brand

BeiBen

Model

ND1250F50J

Drive Type

6x4

Steering

RHD or LHD, power assisted steering

Engine

Brand

WeiChai

Model

WP10.375

Power

276Kw /375HP

Displacement

9726ml

Emmission Level

EURO 3

Max. Torque

970Nm at 1400rpm

System

Inline six-cylinder electronic control system Enhanced high pressure common rail particle filter

Performance

Max. Speed

80km/h

Wheel base

5050+1450mm

Tyre Specifications

12.00-20

No. of Tyre

13pcs (1 spare tyre included)

Axle Capacity

Front 8 Tons & rear 12Tons

Transmission

8 forward gears & 1 reverse, Manual

Brake

Oil brake,drum brake

Suspension

Leaf spring

Electics

24V

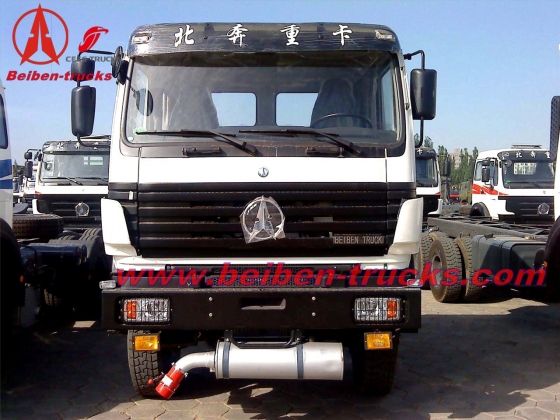

Cab

Cab Capacity

3 persons allowed

Cab Type

One and a half row

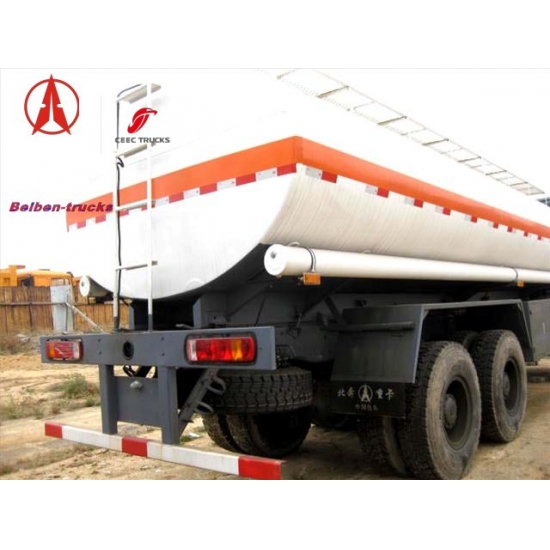

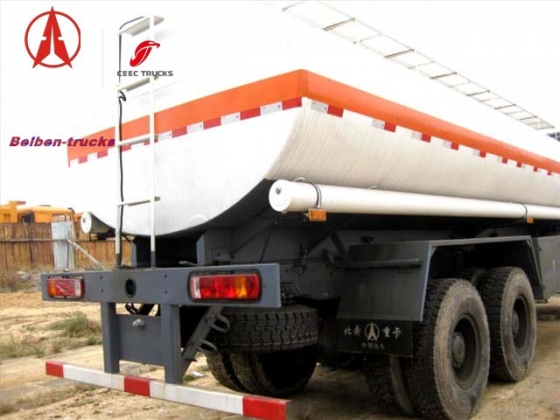

Body/Superstructure

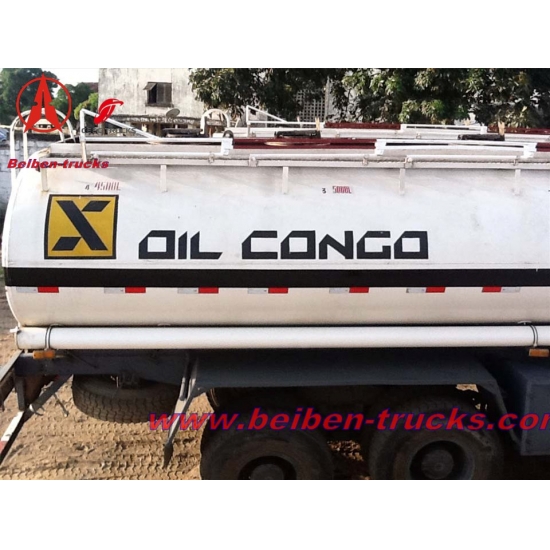

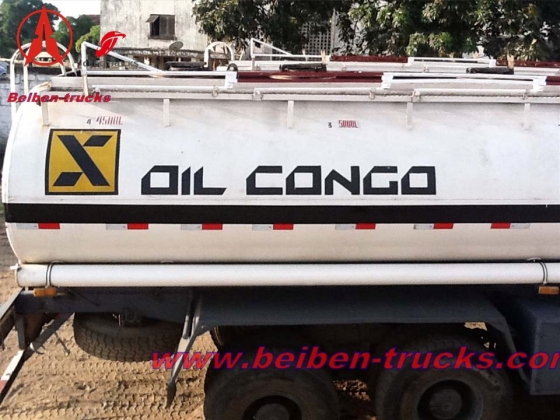

Tank

Capacity

16 m³

Material

tank shell 5mm ,dished ends 6mm,compartment boards 5mm,the material is carbon steel

Loading System

Top filling from manhole or pump fuel into tank from oil inlet valve.

Discharging System

Pump fuel out from tank or gravity discharge.

Basic
Equipments

Install fuel pump drive by truck engine through PTO; One manhole, two pcs of fuel hoses (3inches) with complete quick connectors, access ladder, tank top anti-slip steel mesh installed, anti-static device, one fire extinguisher, with two corners’ lights and reflective tape.

Paint

Rust proofing primer + undercoat +2 finish coats = 4;
Tank color is according to client’s requirements.

Optional Equipments

Air Conditioner

Tyre type:12.00R20

Tank material:Stainless steel

The tank thickness :5mm carbon steel

Bottom loading

Flow meter, rolling hose with nozzle, emergency valve, compartment number, epoxy coating inside tank
