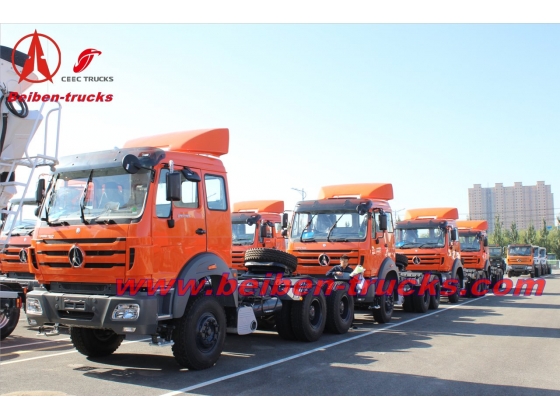

Beiben NG80 Series Euro 3 tractor truck
Product Details
Beiben NG80 Series Euro 3 tractor truck manufacturer
| Dimension (mm×mm×mm) | 6800×2495×3100 | ||||
| Wheel base (mm) | 3200+1350 | ||||
| Curb weight (kg) | 8800 | ||||
| Gross towing trailer weight (kg) | 40000 | ||||
| Engine Model | WP10.380E32,water-cooled,four strokes,6 cylinders straight in line,turbocharged, | ||||
| Fuel tanker capacity (L) | 400 | ||||
| Clutch Model | #430, Single dry frictional disc,Hydraulic boosting | ||||
| Gearbox Model | 12JS160T, mechanical type,Based on Fuller Eaton technology ,12Forward speed gear. | ||||
| Steering system Model | TAS85 | ||||
| Frame | Fish belly shape, variable width, variable sections | ||||
| Clutch Model | 430,Hydraulic boosting | ||||
| Axle | Mercedes Benz Technology | ||||
| Tire | 12.00R20 radial tire | ||||
| Cab | Long cab Full steel skeleton structure, covered with double layer steel plate; Can be tipped forwardly; With A/C |
||||
| Fifth wheel | 50 single direction(JOST) |
