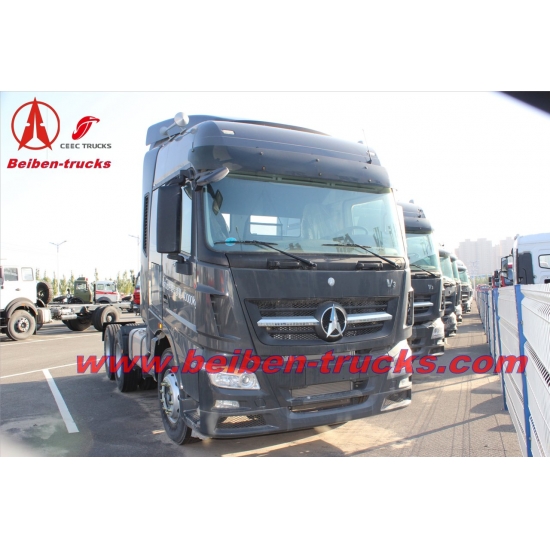

Bei ben(north benz) V3 tractor truck/camion
Beiben tractor truck 2642S with Benz technology for container trailer/lowbed trailer/dump trailer
Product Description
Traction type: 6x4
Driving type: LHD(RHD is optioned)
Cabin: North Benz long cabin, one sleeper, A/C
Radio player(with USB), Safety belt, Adjustable air type, high back and shock Absorption
Driver seat with handle and seatbelts
Dash board with all necessary gauges such as (km meter, rpm, oil pressure,
Temperature, air pressure,
Headlight, Sun protection on cabin.
Engine:
Engine brand: Weichai
Engine model: WP12.420
Engine type: Diesel 4-stroke direct injection engine, 6-cylinder in-line
With water cooling, turbo-charging & inter-cooling with exhaust valve
Brake.
Displacement: 9.726 liters
Max. Output: 420HP
Max torque: 1350NM@1400-1600rpm
Bore/Stroke(mm): 126/155
Clutch:
Clutch: 430 Diaphragm type
Type: Single dry frictional disc, Hydraulic boosting
Gear box:
Model: Fuller 12 speeds(12JS160T), manual, 12-forward and 2 reverse speeds
Steering: ZF8098
Brake system: Double-circulate brake system
Axles:
Front axles: Mercedes Benz Technology 7.5 Tons
Rear axles: Benz double Reduction driving axle, Ratio: 1: 5.263
Frame: Strengthened frame 317x70x8.5+7+8mm(E380TM)
Tyre: 12.00R20
