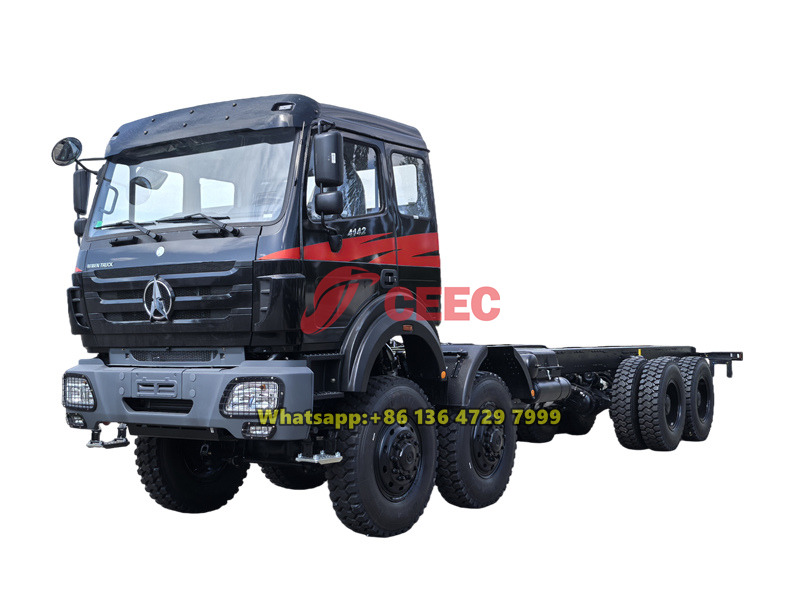

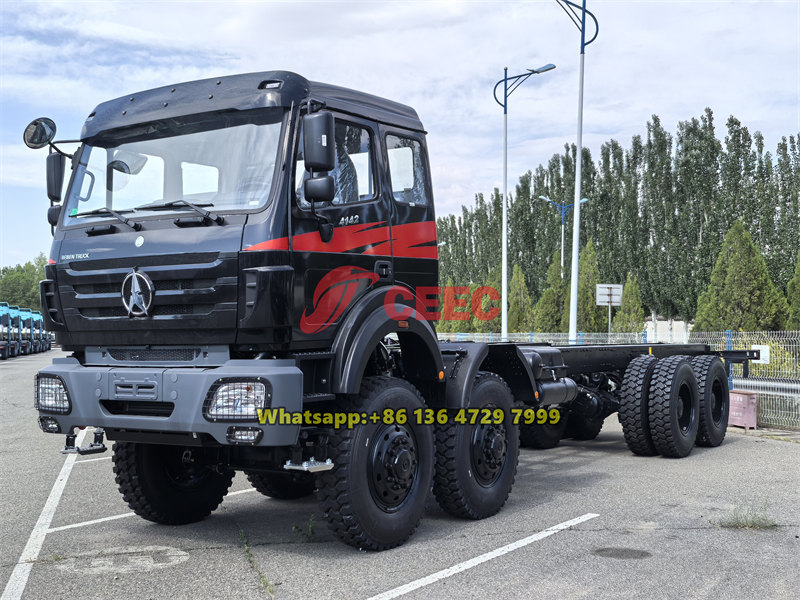

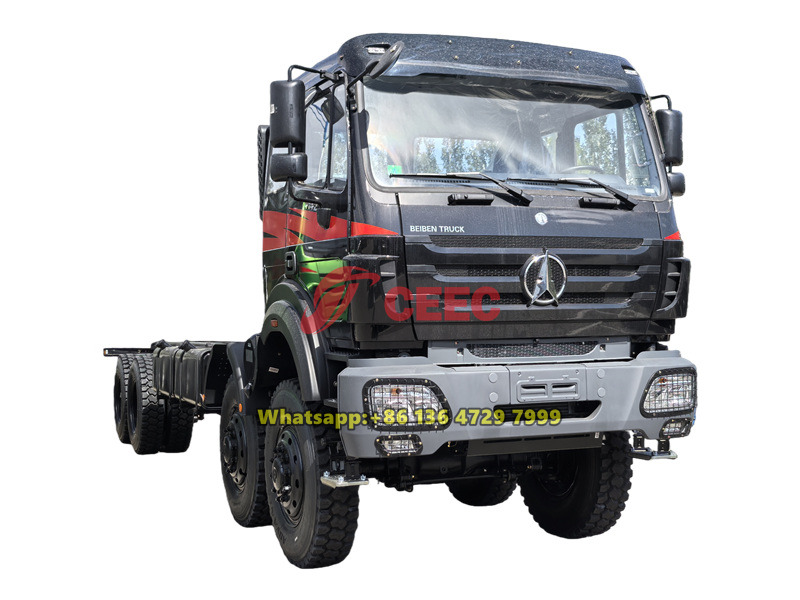

The Beiben 8×8 off-road chassis is a high-mobility special-purpose load-carrying platform developed specifically for extreme off-road working conditions. It is equipped with a large-displacement diesel engine mated to a 12-speed transmission. Combined with a transfer case featuring torque multiplication function and multiple differential locks, it guarantees outstanding traversability on low-adhesion terrains such as muddy ground and steep slopes. The frame adopts a high-strength variable-section steel plate structure with robust load-bearing and torsion resistance capacity. Front 7-ton and rear 13-ton drive axles work in tandem with multi-leaf spring suspensions, balancing heavy-load rigidity and durability. Dual-circuit braking and exhaust braking secure safety during long downhill runs, making it widely deployed in oilfield exploration, disaster rescue, military material transportation and other sectors.
Working Capcity:
40 tonsCabin Type:
NG80B long cabinDimension ( mm ) :
11530×2550×3450Drive System:
8×8Wheelbase (mm):
1500+4150+1450Engine Power:
420HP/WP12.420E32Gear Box:
12JS200TRemark:
RHD, 14.00R20 tyre is optionalThe Beiben 8×8 off-road chassis is an all-wheel-drive special-purpose vehicle platform designed for extreme working conditions, renowned for its high reliability, high passability, and high load-carrying capacity. Its powertrain features a large-displacement diesel engine and a 12-speed manual transmission, matched with an LF200 transfer case, enabling sustained high traction output during low-speed climbing or on soft terrain. The full-time 8×8 drive configuration, combined with multiple differential locks, effectively copes with low-adhesion surfaces such as mud, snow, and sand. The chassis boasts excellent geometric passability parameters, with minimum ground clearance and approach/departure angles specially optimized, and a fording capacity exceeding 1 meter, allowing traversal of complex obstacles including muddy ruts and trenches.
In terms of load capacity, the high-strength variable-section frame significantly enhances bending and torsional rigidity, ensuring structural stability under extreme conditions. The front 7-ton and middle/rear 13-ton drive axles, paired with a final drive ratio of 5.263, balance heavy-load starting and climbing requirements. Dual-circuit pneumatic braking, spring-loaded parking brakes, and engine exhaust braking work together to ensure controllability during heavy-load downhill driving. This Beiben 8×8 all-wheel-drive chassis is widely applied in oilfield exploration, disaster rescue, material transport, and military support operations.

CEEC factory is authorized supplier for Beiben 8x8 AWD trucks,
guarantee all Beiben 8x8 off-road lorry chassis Brand-New and High-Quality.
» Ⅰ.Chassis Features:
Manufacturer: CEEC TRUCKS
» Ⅱ. Product Specifications:
|
Basic parameter |
Model |
4142A/8×8 |
|
Length×width×height(mm) |
11530×2550×3450 |
|
|
Wheel-base(mm) |
1500+4150+1450 |
|
|
Curb weight(kg) |
12980 |
|
|

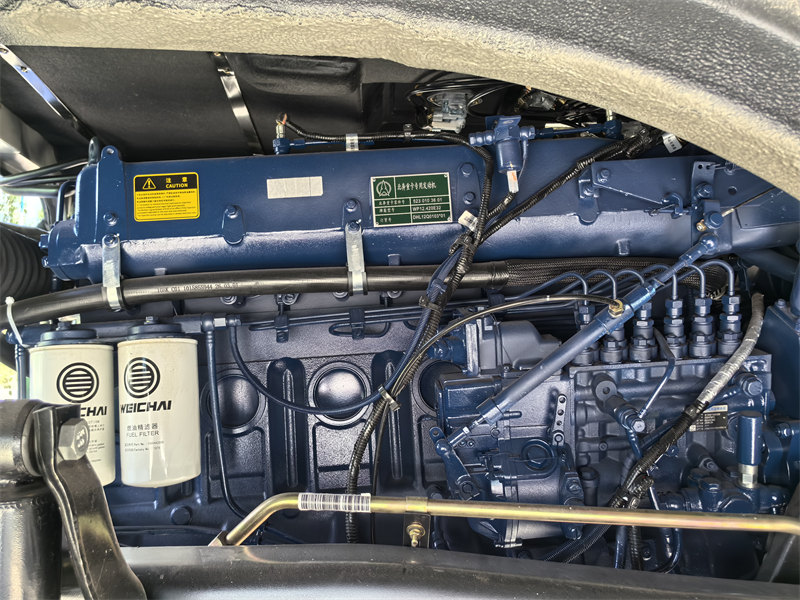

Engine parameter |
Model (six cylinder in line) |
WP12.420E32 |
|
Max. Power (HP/rpm) |
420 |
|
|
Max. Torque(Nm/rpm) |
1750/1200~1500 |
|
|
Displacement(lit) |
11.596 L |
|
|

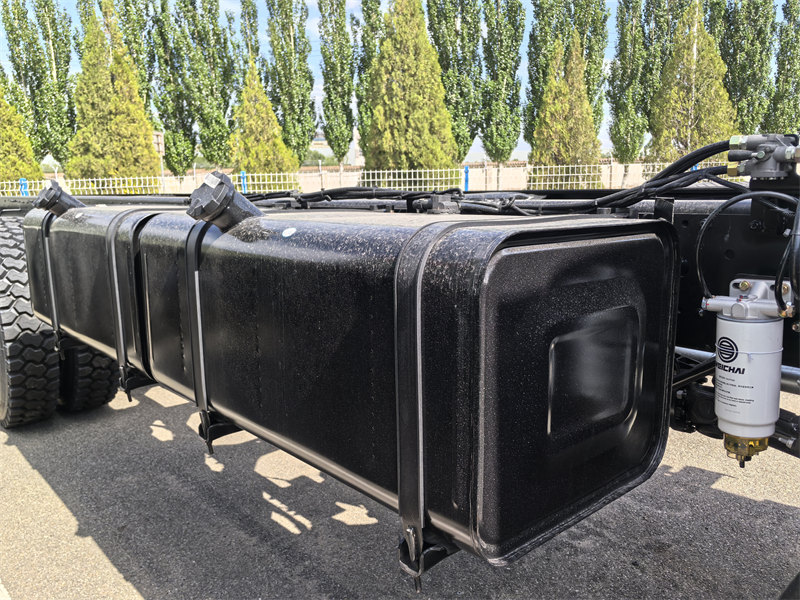

Fuel tank capacity |
400L Iron fuel tank |
|
|
Transmission system |
Clutch |
430 Single disc, dry type, friction clutch; |
|
Gearbox |
Mechanical, 12JS200T |
|
|
Steering system |
Steering gear |
8098 Circulating ball steering gear, hydraulic booster |
|
Transfer case |
Model |
LF200 |
|
Transmission ratio |
H: 0.890; L: 1.536 |
|
|
Torque ratio |
1:2.696 |
|
|
Brake system |
Service brake |
Double circulation air brake system equipped; |
|
Parking brake |
Energy storage spring brake; |
|
|
Assisted brake |
Engine exhaust brake; |
|
|
Chassis parameter |
Frame |
Variable width and section 317×70×8.5+7+8.5 mm; |
|
Front axle |
7 T+7T, driving steering axle, drum brake; |
|
|
Middle & Rear axle |
13T+13T, Double-shoe pneumatic brake, single reduction driving axle, differential lock, speed ratio is 5.263 |
|
|
Front and rear suspension |
Front/rear: Leaf spring, 12/12/13 pieces; |
|
|
Tire |
12.00R24 |
|
|
Cab |
NG80 Long Cabin/ Flat roof/Left drive Exterior trimming: Metal bumper, three steps, outer sun visor, sun roof (Manual), front under-ride bumper, rear view mirror (Manual). |
|
|

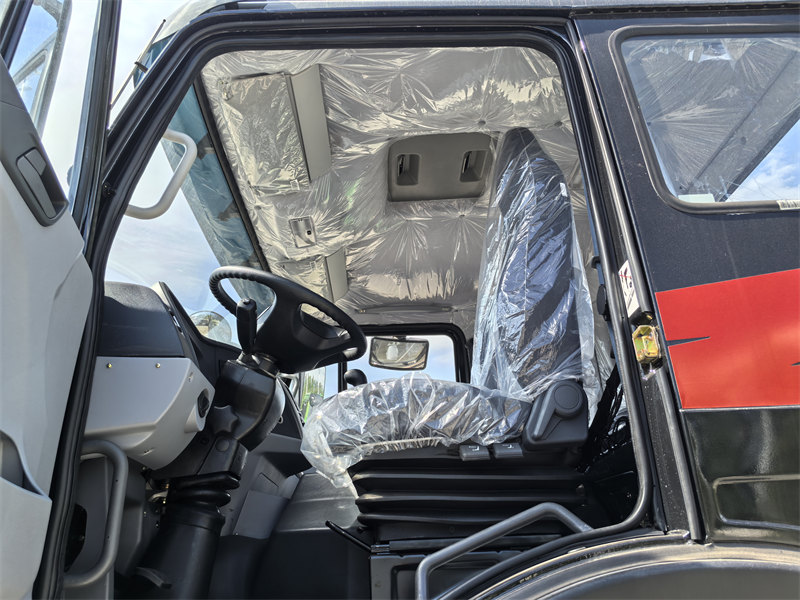

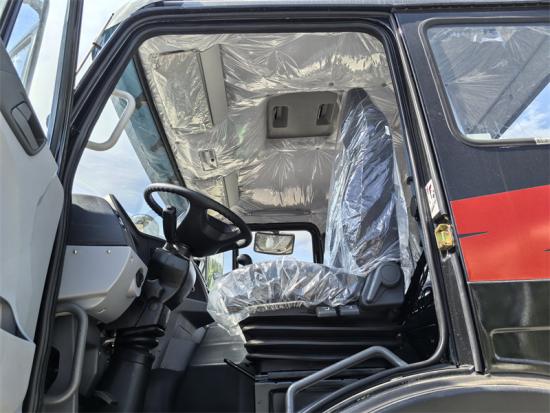

Interior trimming: Air suspension seat, Single bunk with sleeper, cooling and heating air conditioner, Steering wheel can be adjusted, door lock(Manual), radio (with MP3), digital instrument |
||

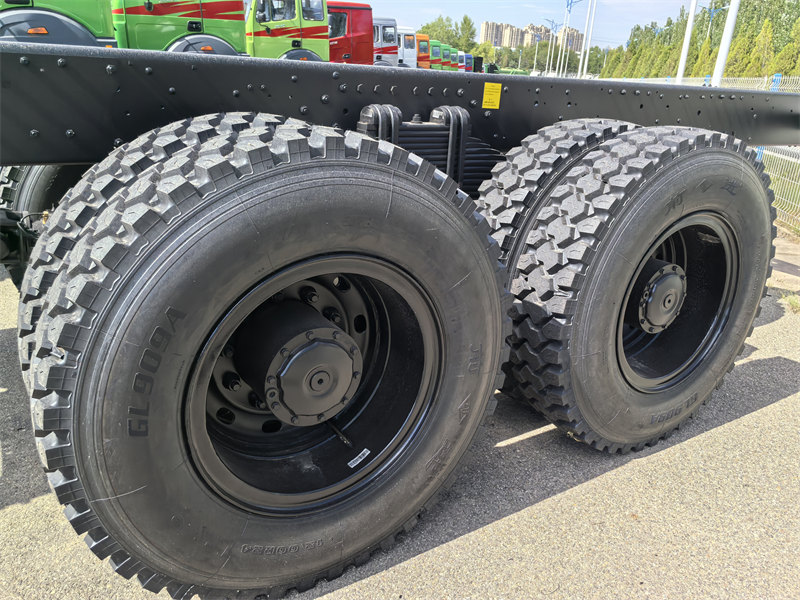

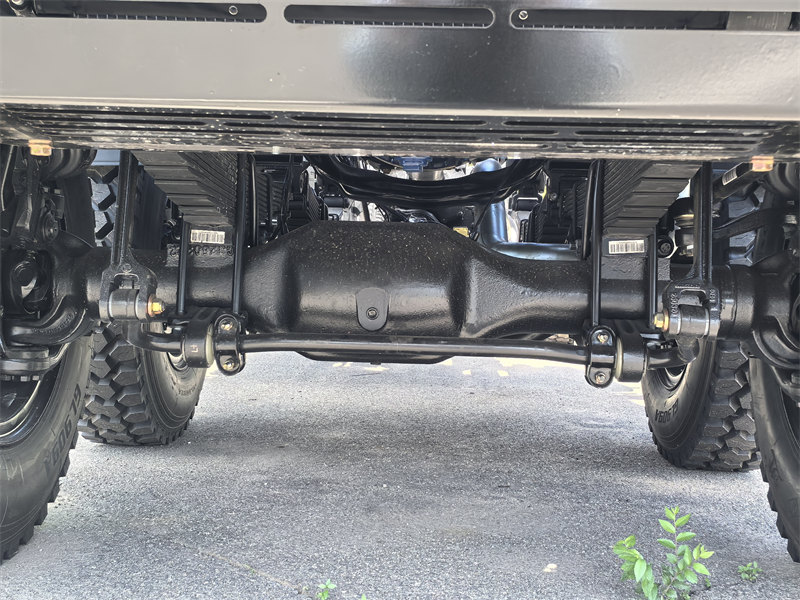

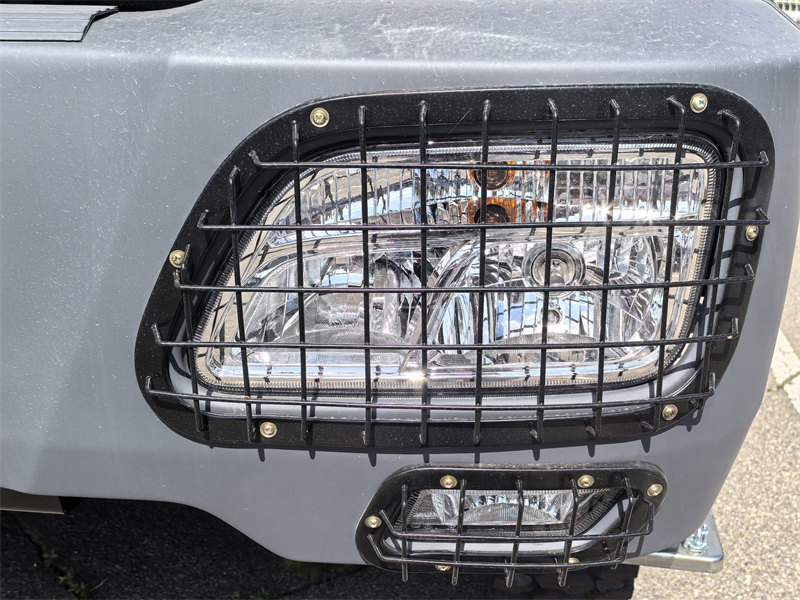

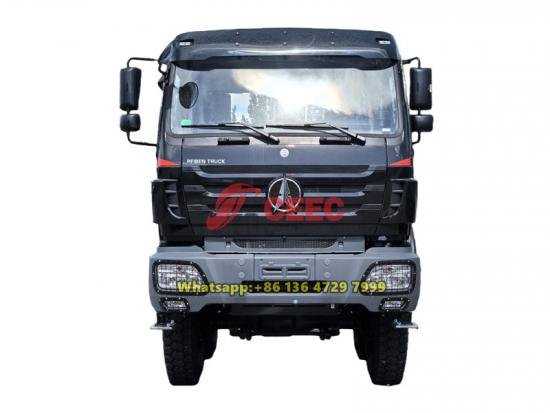

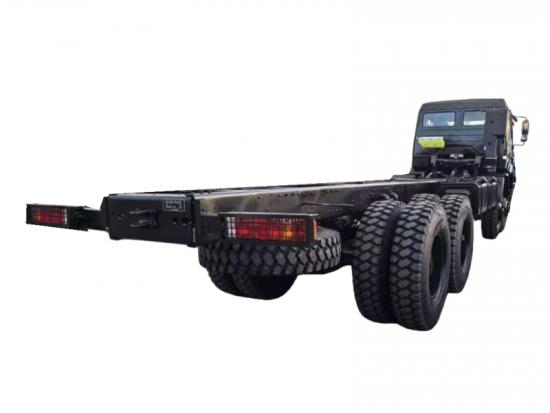

» Ⅲ. Product Details:
» Ⅳ. Beiben 8x8 off-road chassis advantages:

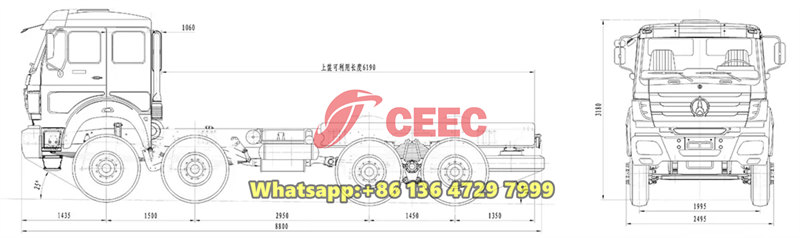

» Ⅴ. Product Drawing:

» Ⅵ. Beiben 8x8 chassis applications:
![]() |
![]() |

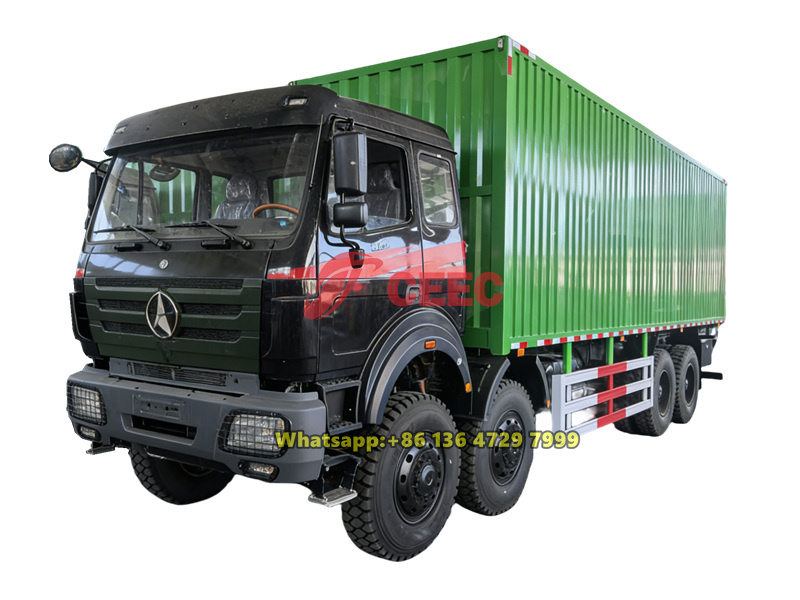

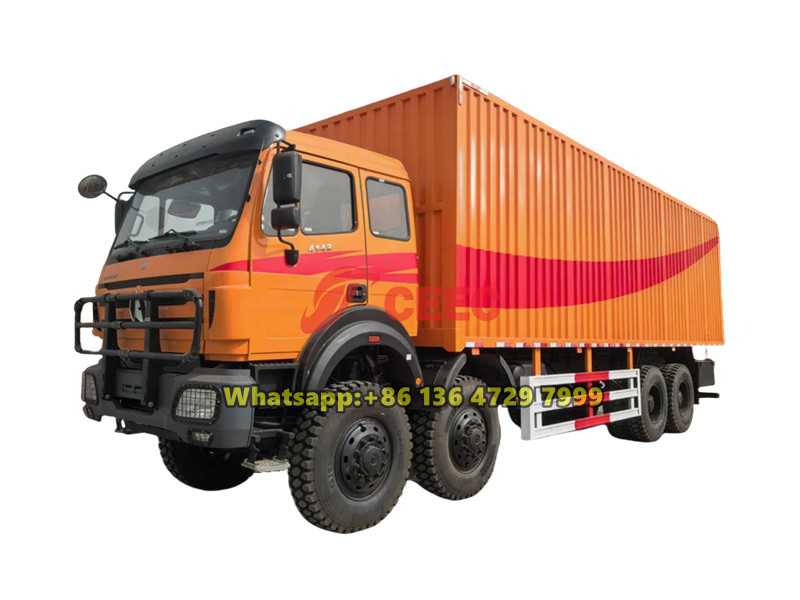

| Beiben 8x8 heavy duty cargo truck | Beiben 8x8 off-road lorry truck |
