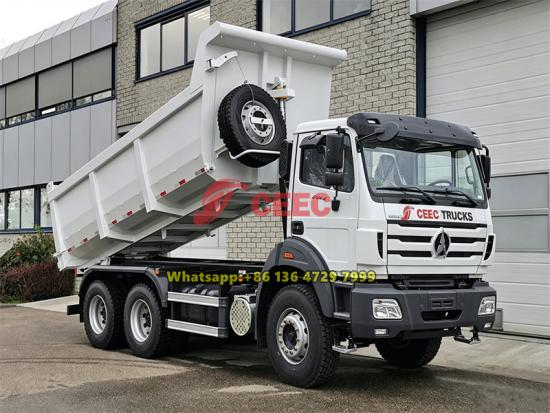

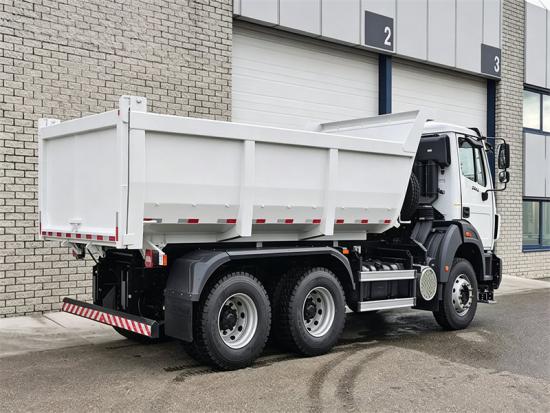

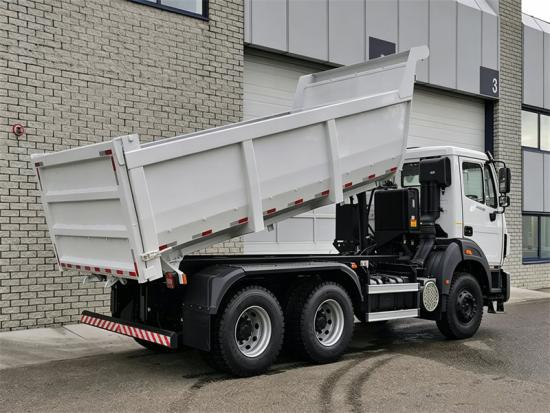

Buy Beiben 6x4 U shaped dump truck,Beiben 6x4 U shaped dump truck Suppliers

Overall Dimensions			860025503350mm
Wheel base			3800+1450mm
Curb weight			13500
Engine	Model		WP12.420E32 water cooled, four strokes, 6 cylinders straight in line, turbocharged
	Fuel type		Diesel
	Max. power		420HP(309kW)
	Emission standard		Euro III
	Displacement		11.596L
	Rated speed		2100 rpm
	Max. torque		1750N.m/1200-1500rpm
Fuel tanker capacity(L)			400L
Gear box	Model		12JS200T +QH50 PTO mechanical type, 12 forward speed gear
Brake system	Service brake		Double circulation air brake system
	Assistant brake		Engine exhaust brake
	Parking brake		Energy storage spring brake
Steering system			ZF8098 Whole circulation in ball type hydraulic boosting.
Front and rear suspension			Leaf spring, 10/13 pieces
Frame			Fish belly shape, variable width, variable sections
Front axle (Mercedes benz technology)			7.5T, Non-driving steering axle, drum brake
Middle and rear axle(Mercedes benz technology)			13T, Double-shoe pneumatic brake, double reduction driving axle, differential lock, ductile casting casing, speed ratio is 5.263；
Tire			12.00R20 Radial tire 11units
Electrical system	Batter		2*12V/135Ah
	Generator		28V-70A
	Starter		5.58KW/24V
Cabin	Short cabin, LHD, no sleeping berd Full steel skeleton structure, covered with double layer steel plate; can be tipped forwardly
	Interior trimming: Integral interior trimming, Integral instrument, digital instrument, inner A/C, radio with USB interface, Steering wheel can be adjusted.
	Exterior trimming Metal bumper, three steps, rear view mirror (manual)
Cargo box	Size	5600×2300×1500 mm
	Material	High strength steel
	Thickness	Walls: 6mm; Floor: 8mm
	Lifting system	Front lifting, telescopic hydraulic cylinder diameter 180mm
	Lifting angle	55°
	Painting	Primer, mid-coat and top coat

1. Cleaner Discharging

The U shaped dump body has no dead corners at edges, so materials rarely stick to the container during unloading for cleaner dumping results.

2. Light Tare Weight

Conventional dump bodies gain strength by using thicker steel plates, while U shaped bodies reduce self weight through structural optimization. Most mainstream U shaped dump bodies adopt high strength steel plates. While maintaining body strength, the plate thickness can be reduced by around 20%, cutting the body weight by approximately 1 ton and effectively raising the load utilization coefficient.

3. Strong Load bearing Capacity

Constructed from high strength steel plates with high yield strength, the body boasts improved impact resistance and fatigue resistance. For ore transport operators, it reduces damage to the cargo body caused by falling rocks.

4. Low Center of Gravity

The U shaped structure provides a lower center of gravity for more stable driving performance, especially during cornering, and prevents cargo spillage.

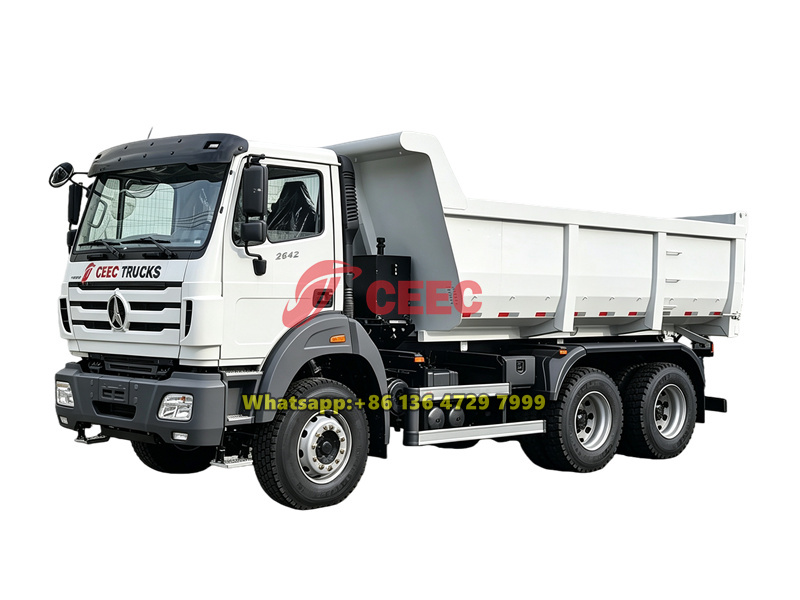

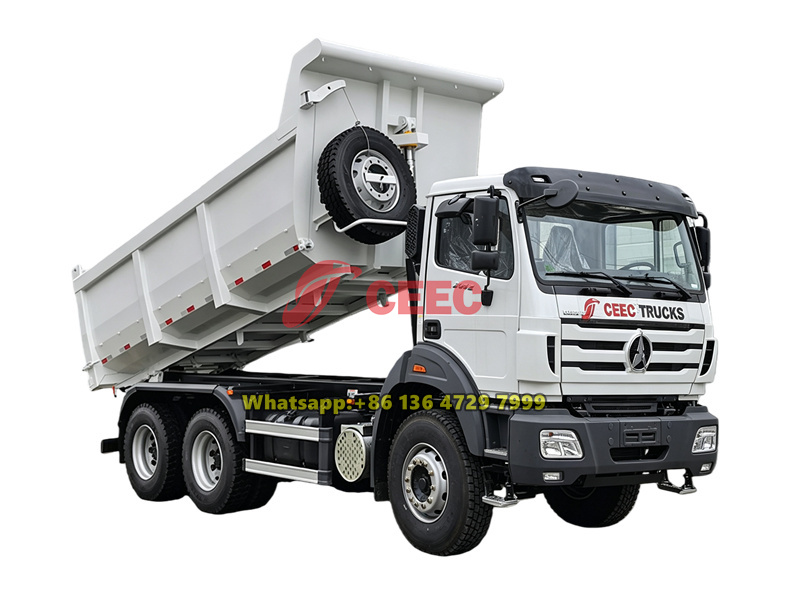

Beiben 10 wheeler mining dump truck

Applications of Beiben U-shaped box tipper truck⇓

The Beiben 6×4 U shaped dump truck is primarily designed for short haul transport scenarios that require efficient, clean bulk material transfer. Its common applications include:

• Mining and quarry operations: Specifically used for the extraction and transfer of coal, iron ore, copper ore, and other mineral resources. Its high strength and impact resistant design is capable of handling harsh working conditions.

• Infrastructure and construction projects: In road construction, bridge building, and other projects, it is responsible for large scale transfer of building materials such as sand, gravel, and earth.

• Urban muck and environmental sanitation: Thanks to the U shaped body's non sticking properties, clean dumping, and good sealing, it is highly suitable for the removal and transport of urban construction waste and muck, effectively reducing spillage and dust emissions.

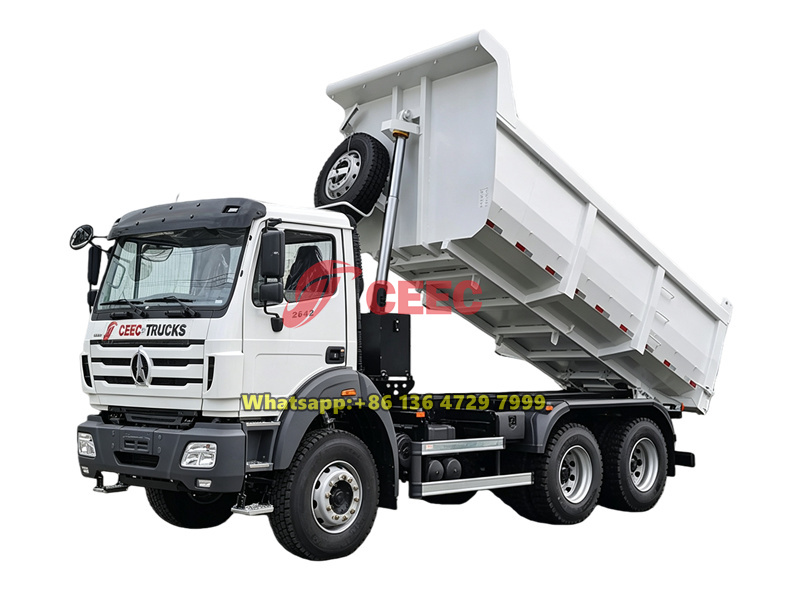

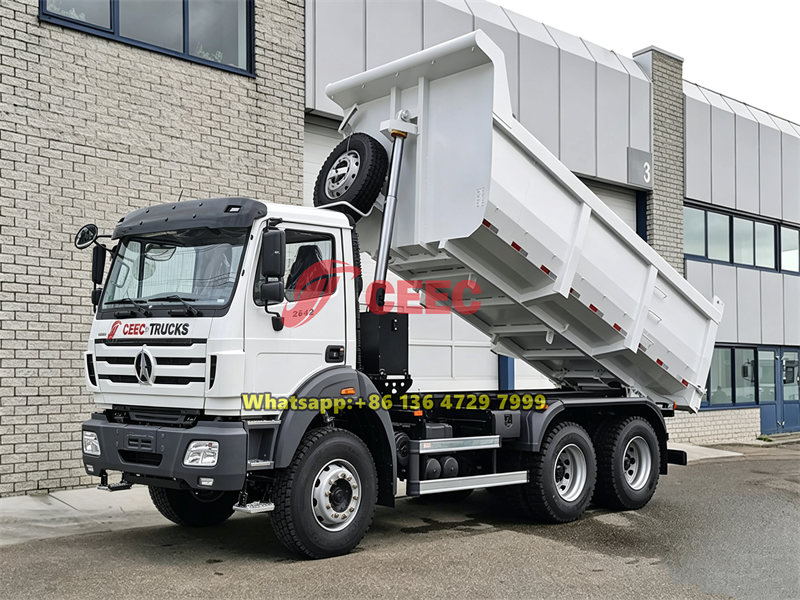

Beiben 6×4 U-shaped mining dump truck

U-shaped VS Rectangular Dump Truck Body⇓

Comparison Item	U‑Shaped Dump Body	Rectangular Grid‑Reinforced Dump Body
Body Structure	Arc‑shaped floor without right‑angle dead corners, integrally bent from high‑strength steel plate	Flat‑bottom rectangular container; reinforced "grid‑shaped" frame formed by external vertical and horizontal ribs; multiple longitudinal beams at the bottom for load‑bearing
Dead Weight & Load Utilization Factor	Lighter curb weight (normally reduced by about 1 ton); lower center of gravity, better driving stability, reduced cargo spillage	Heavier tare weight; slightly larger internal volume; strong anti‑sag performance under heavy‑load conditions
Discharging Performance	Smooth inner wall with no dead corners, thorough unloading. Hardly sticky for wet soil, coal powder and clay; fast dumping speed	Material residue easily accumulated at right‑angle corners. Wet cargo is hard to unload completely, resulting in residual loss
Impact‑resistance & Wear‑resistance	High‑strength steel plate; arc‑shaped floor cushions impact from rocks, ideal for ore haulage	Thickened floor + dense reinforcing ribs; excellent anti‑bumping and heavy‑duty capacity, suitable for large‑size heavy stones and extreme heavy‑load working conditions
Procurement Cost	Relatively high cost; complex superstructure manufacturing process	Cost‑effective, easy maintenance and readily‑available spare parts
Recommended Working Conditions	Mines, ore, coal, muck, wet clay; scenarios requiring frequent dumping and stable transportation	Large‑size rocks, construction waste, short‑distance heavy‑load shuttle transport; construction sites where maximum cargo‑box volume is required

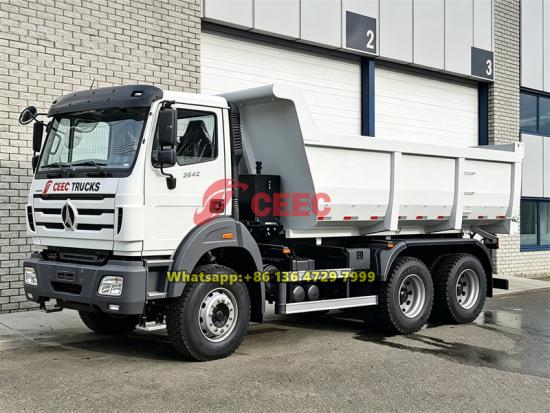

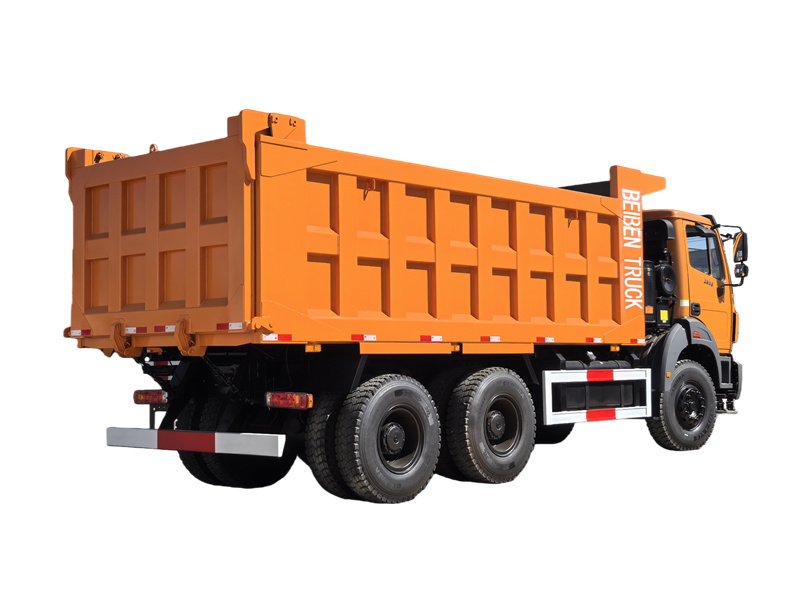

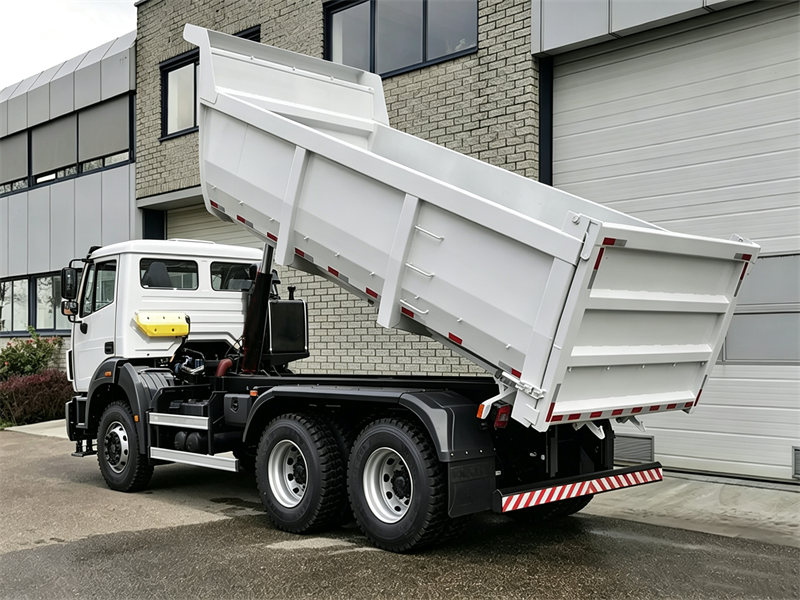

Beiben dump truck with U-shaped box	Beiben dump truck with rectangular box

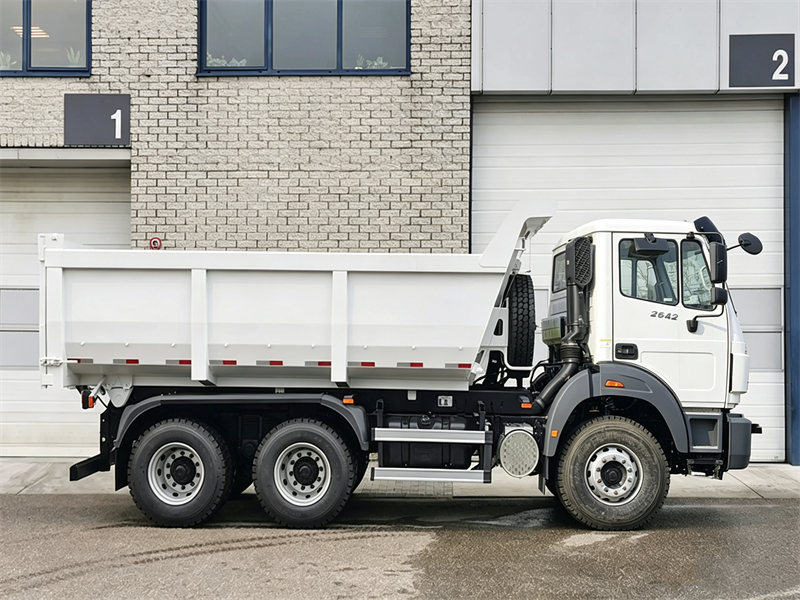

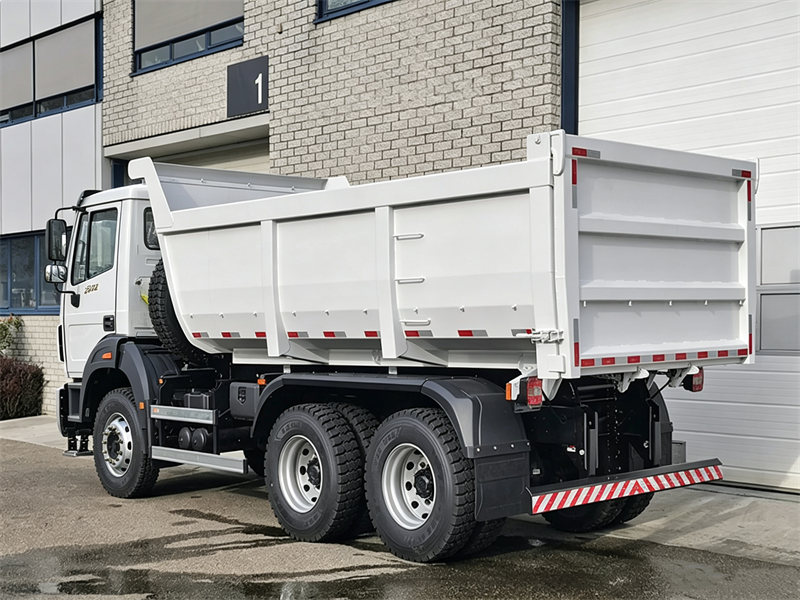

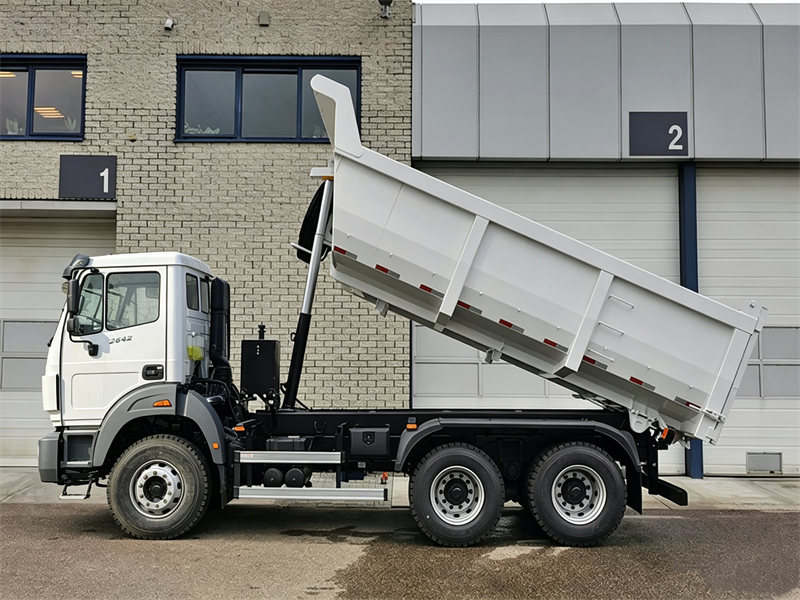

Beiben 6×4 U-shaped tipping truck pictures⇓

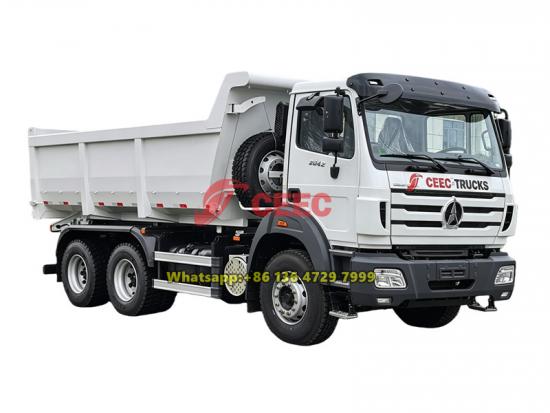

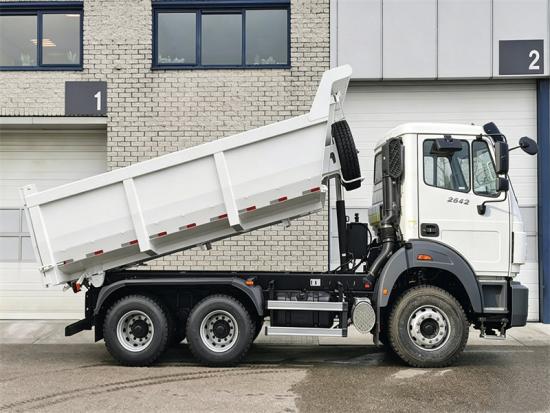

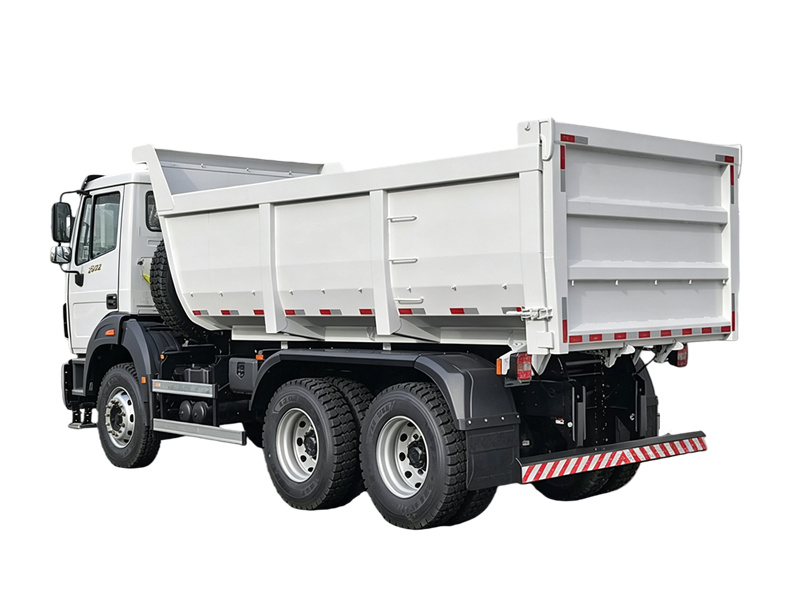

Beiben 6x4 dump truck

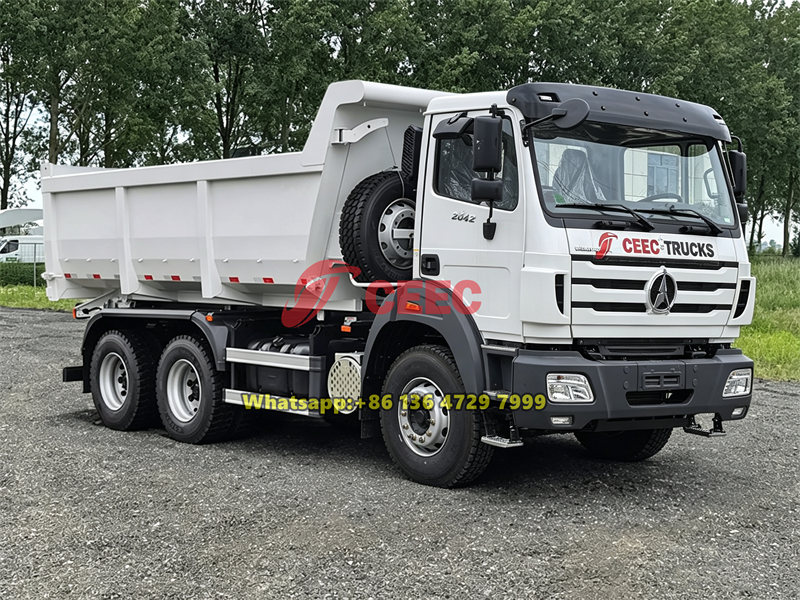

Beiben 6x4 U shaped dump truck
