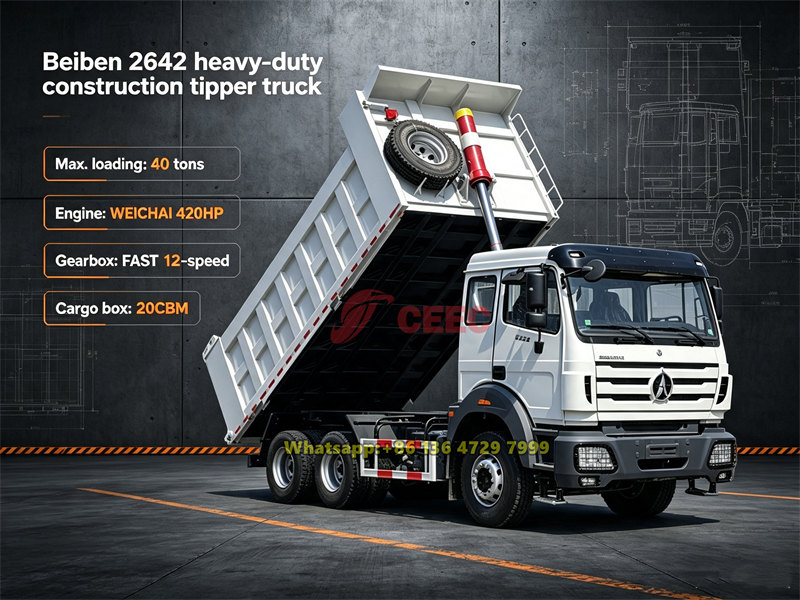

Beiben 2642 heavy-duty dump truck is designed for mining and infrastructure construction operations. It is fitted with a 420 HP Weichai engine and a Fast 12 speed transmission to deliver formidable power. Its standout strengths lie in the triple reinforced frame and Beiben hub reduction axles built upon Mercedes Benz technology for dependable and long lasting load bearing performance. Equipped with a high strength steel cargo box and hydraulic lifting system, it enables fast efficient loading and unloading, making the truck ideal for short haul heavy duty transportation of ores, sand and gravel and other bulk materials.
Working Capcity:
40 tonsCabin Type:
NG80B long cabin, 2 seats and one sleeperDimension ( mm ) :
8560×2550×3350Drive System:
6×4, LHDWheelbase (mm):
3800+1450Engine Power:
420HP/WP12.420E32Gear Box:
12JS200TTyres:
12.00R20, 12+1 pcsRemark:
6×6, RHD is optional
☛ Product Description
The Beiben 2642 heavy‑duty tipper lorry is tailored for mineral exploitation and large‑scale infrastructure projects. It adopts a 6×4 twin rear‑axle drive layout with a maximum payload capacity of 40 tonnes, meeting the stringent transportation requirements of off‑road and construction‑site working conditions. Its core powertrain consists of the Weichai WP12.420E32 engine paired with the Fast 12JS200T transmission. The low‑speed high‑torque property facilitates heavy‑load startup and hill‑climbing performance with robust and steady power output.
Outstanding load‑bearing capacity and durability constitute the Beiben 2642 dump truck’s core competitive edges. The triple‑reinforced long‑beam frame works alongside 13‑tonne‑class Beiben hub‑reduction axles adopting Mercedes‑Benz technology. Ductile‑iron axle housings and equal‑height bevel gears greatly strengthen impact resistance. The cargo box is fabricated from Q345 high‑strength steel (8‑mm‑thick floor plate and 6‑mm‑thick side plates) and fitted with a front‑mounted hydraulic lifting system for reliable and speedy dumping operations. The NG80B extended‑size cab comes with a single sleeper berth and adjustable steering wheel to balance operational comfort and safety. Suited for short‑distance haulage of bulk commodities including ore, sand‑gravel aggregates and coal, it serves as a cost‑effective transport solution for harsh working environments.
☛ Beiben 2642 heavy dump truck specifications
|
Beiben 2642 heavy construction tipper truck |
||
|
Basic Specifications |
Wheelbase |
3800+1450 mm |
|
Overall Dimension (L×W×H) |
8560×2550×3350 mm |
|
|
Max loading |
40000 kg |
|
|
Curb weight |
14500 kg |
|
|
Front overhang/Rear overhang |
1470 mm / 1825 mm |
|
|
Max driving speed |
89 km/h |
|
|
Engine |
Model |
WP12.420E32 |
|
Type |
Water-cooled, four strokes, 6 cylinders straight in line, turbocharged |
|
|
Fuel type |
Diesel |
|
|
Min. fuel consumption |
185g/kW·h |
|
|
Max. hose power |
420HP |
|
|
Rated Power/RPM |
309kW/2100rpm |
|
|
Emission standard |
EURO III |
|
|
Max Torque/RPM |
1750Nm/1200-1500rpm |
|
|
Displacement |
11.596L |
|
|
Fuel tank capacity |
400L (Iron) |
|
|
Transmission |
Clutch |
#430, Single dry frictional disc, Hydraulic boosting |
|
Gearbox |
FAST 12JS200T, mechanical type (Fuller Eaton technology), 12 forward + 2 reverse |
|
|
Chassis |
Frame |
Fish belly shape, variable width/sections (Benz Technology) |
|
Frame cross section |
317x70x8.5+7+8.5mm |
|
|
Front axle |
Double-shoe pneumatic brake, 7.5t non-driving steering axle (Mercedes Benz Tech) |
|
|
Middle/Rear axle |
Double-shoe pneumatic brake, 13t double reduction driving axle, speed ratio 5.263 |
|
|
Tires |
Size |
12.00R20 |
|
Quantity |
11 (10+1 spare) |
|
|
Electrical |
Battery |
2×12V/135Ah |
|
Generator |
28V-70A |
|
|
Starter |
5.58kW/24V |
|
|
Cab |
Type |
NG80B left-hand drive, long cab with one sleeper bed |
|
Structure |
Full steel skeleton with double-layer steel plate, tiltable |
|
|
Interior |
Integral trimming, digital instrument panel, USB/MP3 radio, adjustable seats & steering wheel |
|
|
Exterior |
Metal bumper, 3 steps, new mirror system, sun visor |
|
|
Cargo box |
Size |
5600×2500×1500 mm |
|
Material |
High strength steel Q345 |
|
|
Thickness |
Walls: 6mm; Floor: 8mm |
|
|
Lifting system |
Front lifting, telescopic hydraulic cylinder |
|
☛ Beiben 6×4 construction tipper truck performance
• Drive and load bearing: 6×4 rear dual-axle drive, with a 7.5-ton front axle and 13-ton + 13-ton rear axles, specifically engineered for heavy-duty dump truck applications.
• Axle technology: Beiben hub reduction axles with Mercedes Benz proven technology. Ductile iron axle housings and equal height spiral bevel gears bring high load capacity, excellent shock resistance and low failure rates.
• Frame structure: Heavy duty triple reinforced longitudinal beams lower the centre of gravity, improve roll over stability and deliver great adaptability for highways and mine sites.
• Powertrain Configuration: Weichai 420 HP WP12 series engine paired with a Fast 12 speed transmission. Outstanding low speed high torque output supports heavy load startup and hill climbing.
☛ Advantages of Beiben 40 ton heavy duper truck
1. Superior Loading Capacity & Durability
• Mercedes Benz tech triple reinforced fish belly frame resists bending, torsion and heavy load deformation with low gravity and anti rollover design
• 13 ton Beiben hub reduction axles, ductile iron housings and equal height bevel gears ensure high impact resistance and few faults
2. Reliable Powertrain

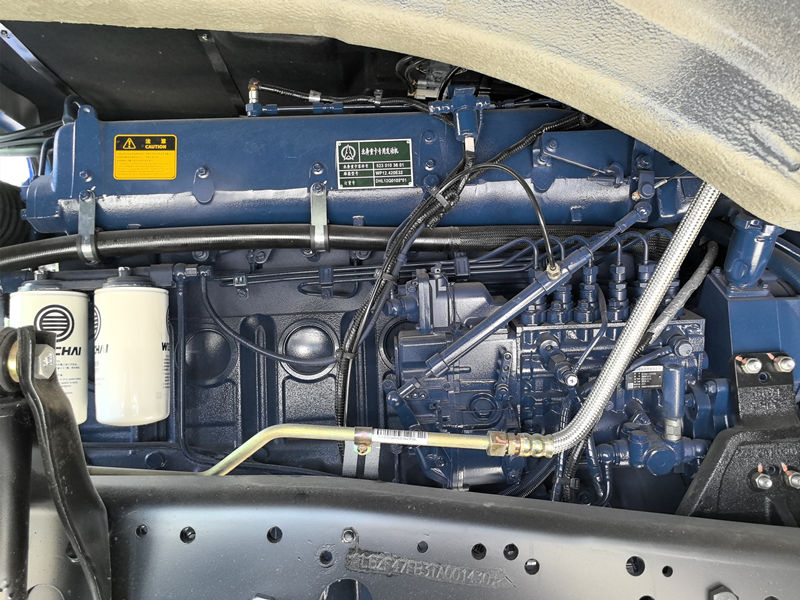

• Weichai WP12.420E32 engine supplies strong low speed torque for heavy load startup and climbing
• Fast 12JS200T 12 speed gearbox guarantees high efficiency shifting for harsh condition driving
3. Fast Speed Dumping Operation
• Q345 high strength steel cargo box, wear resistant and shock proof.

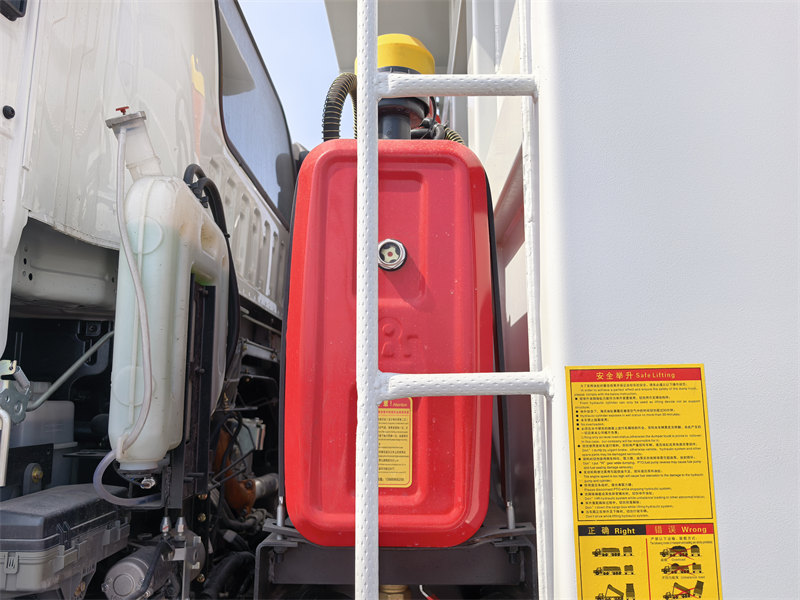

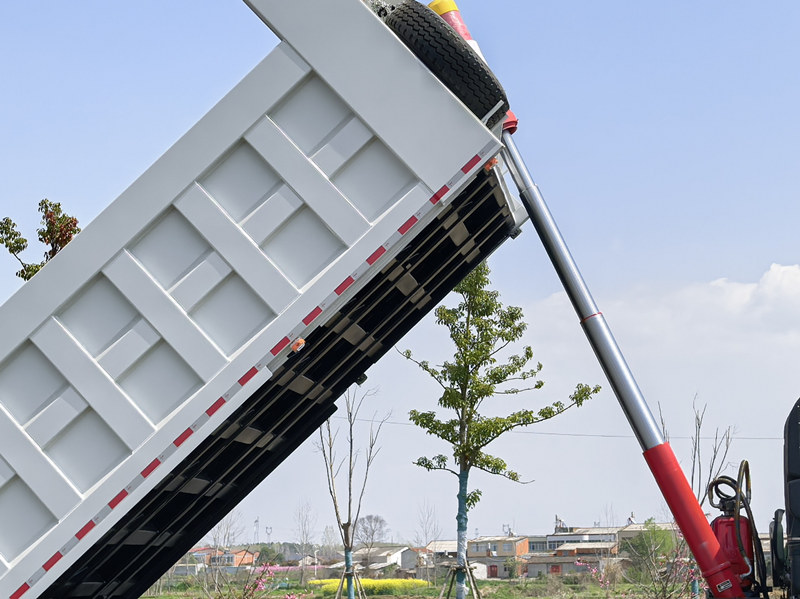

• Front installed hydraulic lifting system enables quick and stable unloading
4. Strong Compatibility With Harsh Roads
• Reinforced suspension and ample ground clearance adapt to off road mine and construction site routes
• 11 piece 12.00R20 tyres (including spare) deliver firm grip and great trafficability
5. Safe and Comfortable Driving
• Tilt type NG80B double layer steel cab equipped with bumper, premium rear view mirrors and sun visor

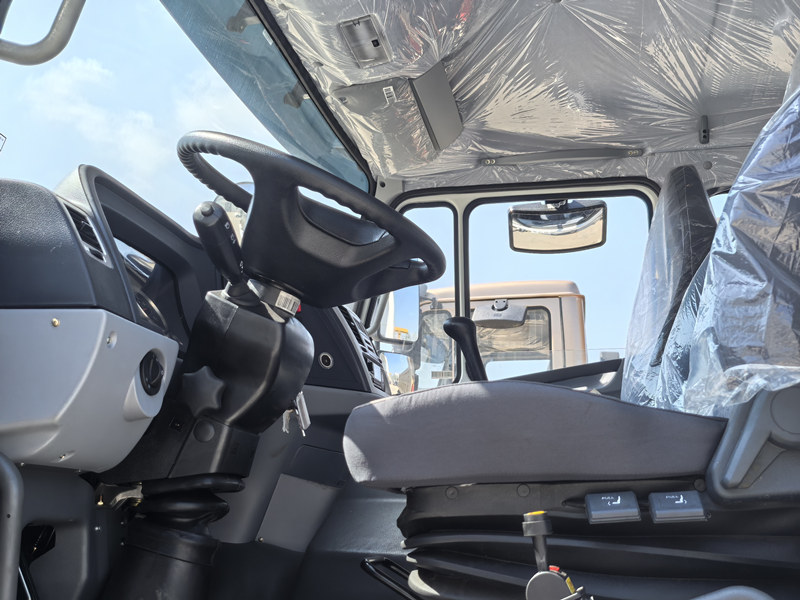

• Air suspension seat, adjustable steering wheel, digital dashboard and audio system relieve long hour driving tiredness

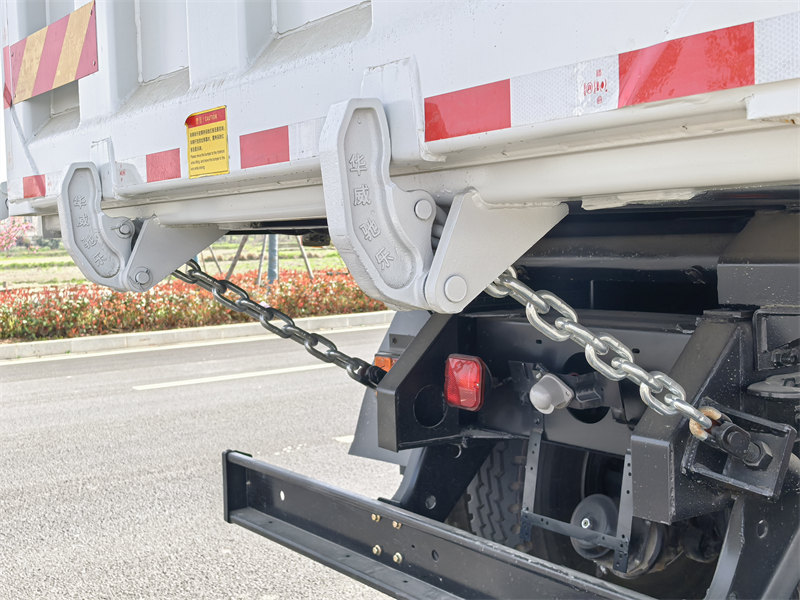

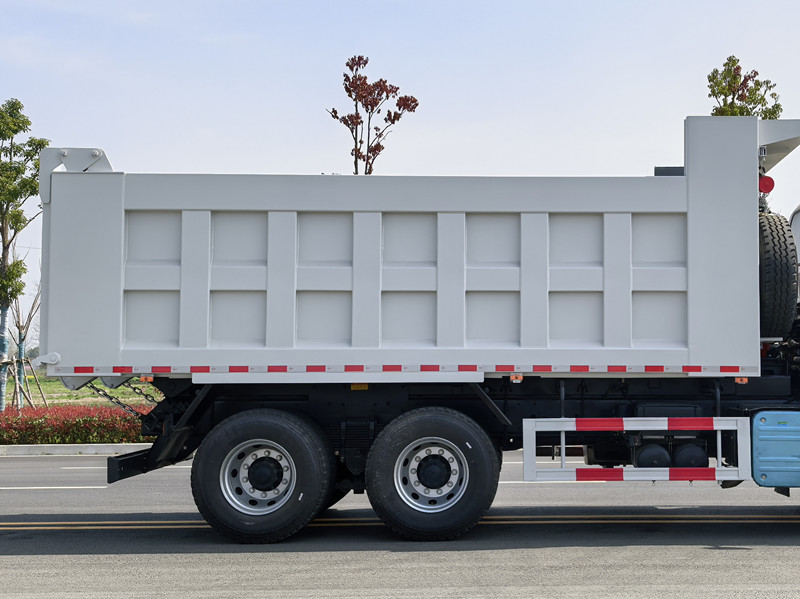

☛ Details of Beiben 6×4 heavy mining tip truck

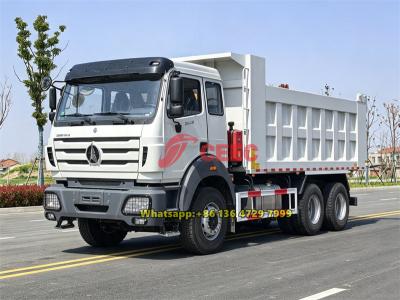

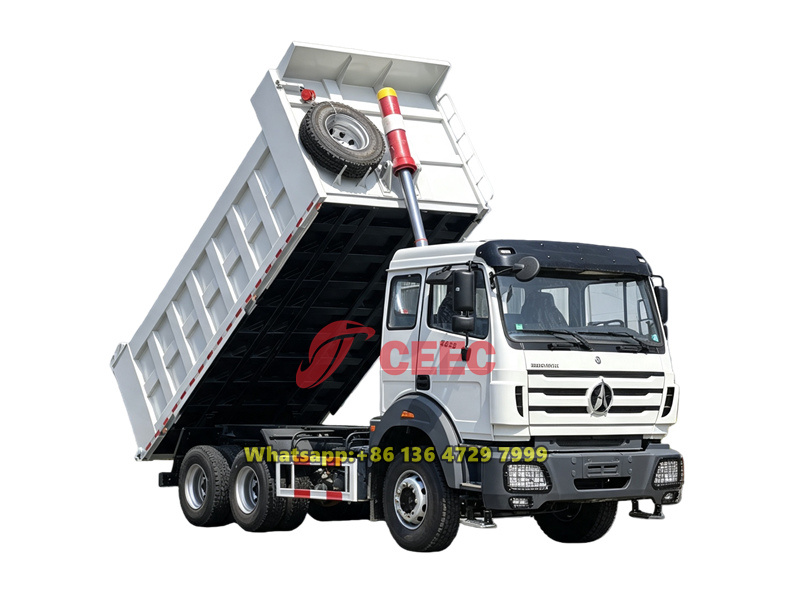

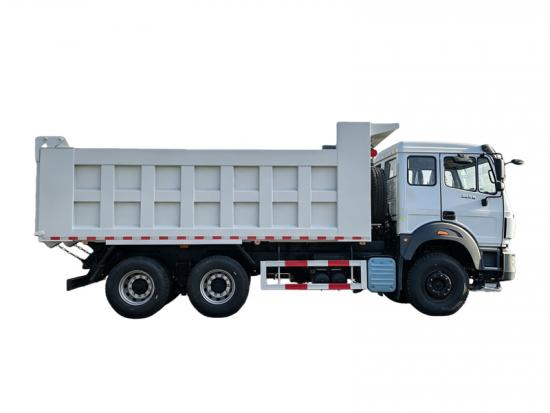

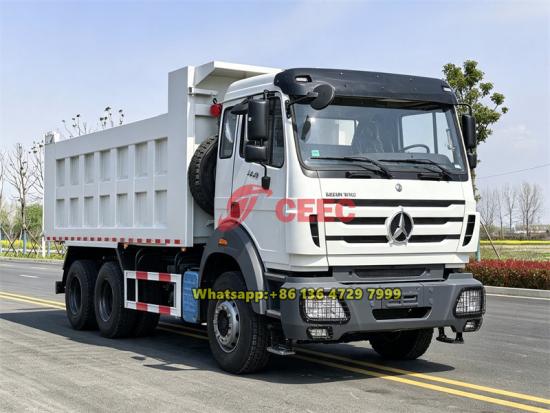

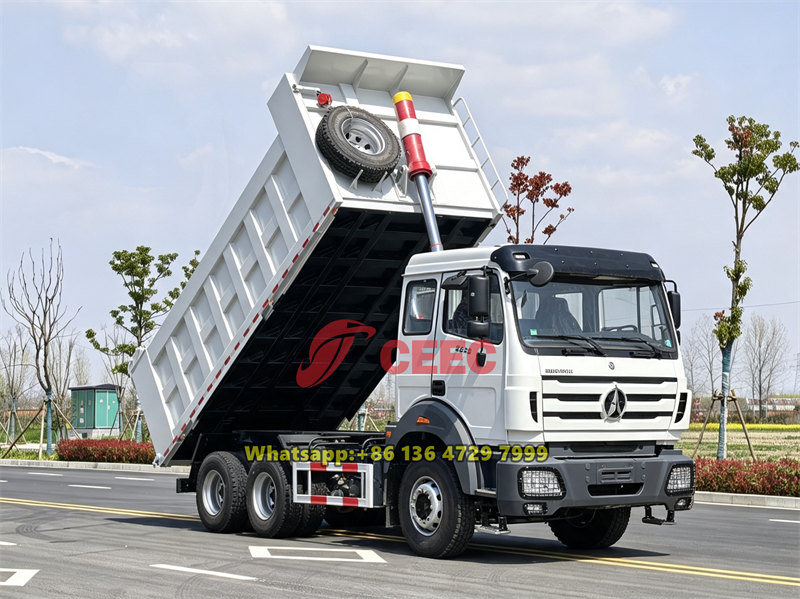

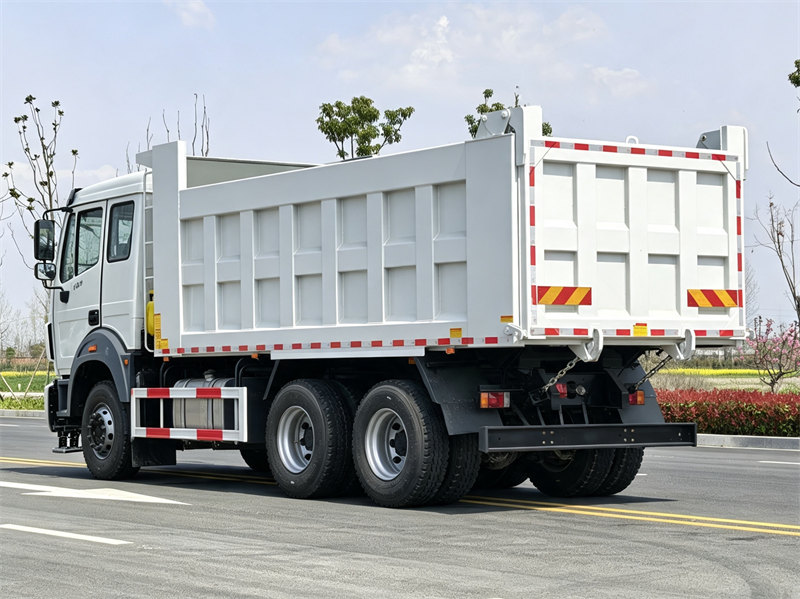

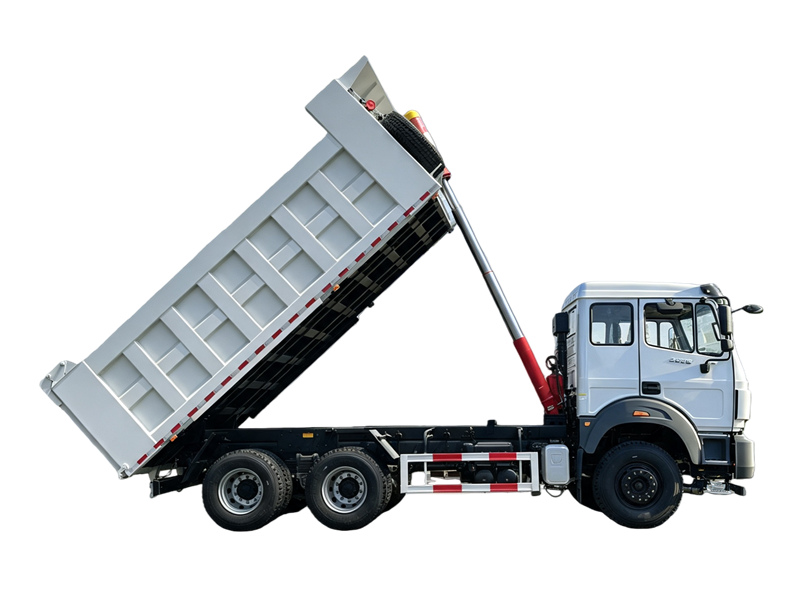

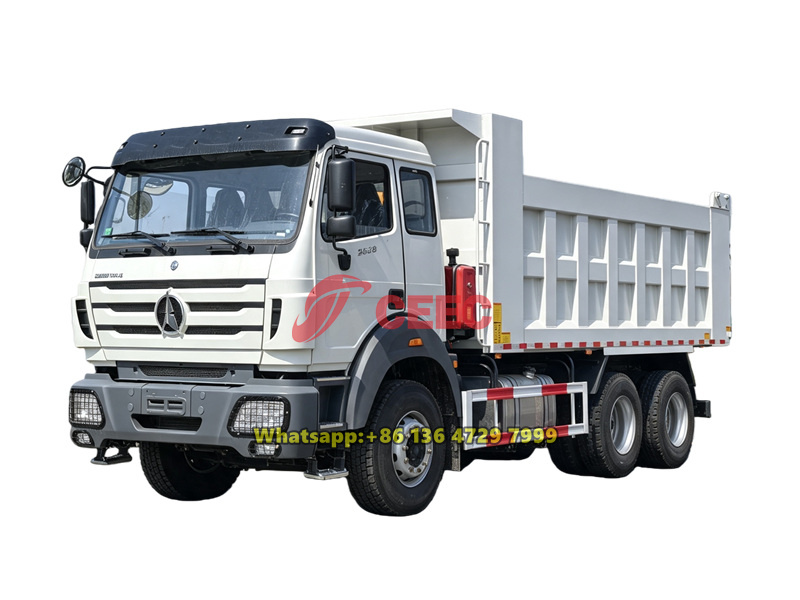

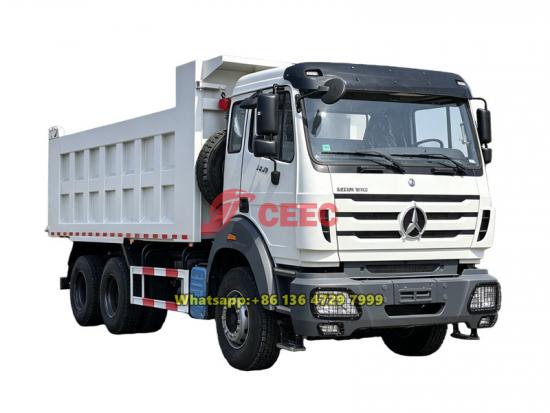

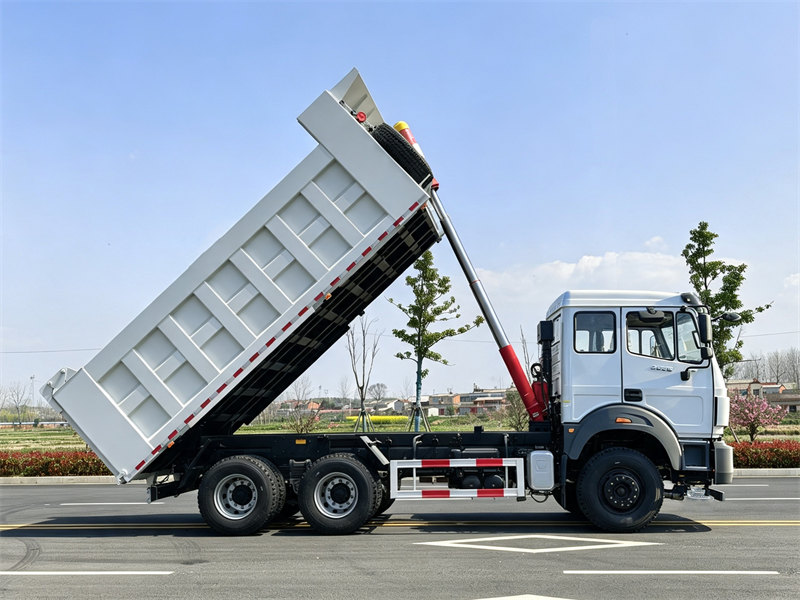

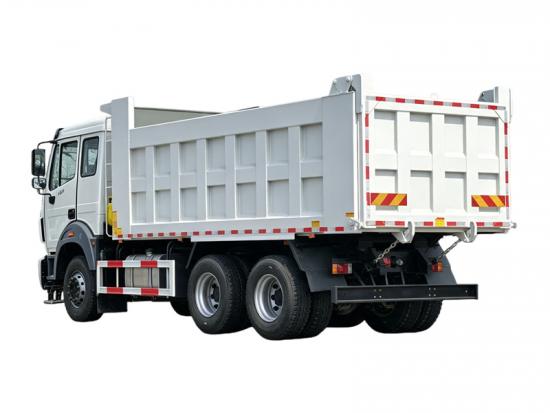

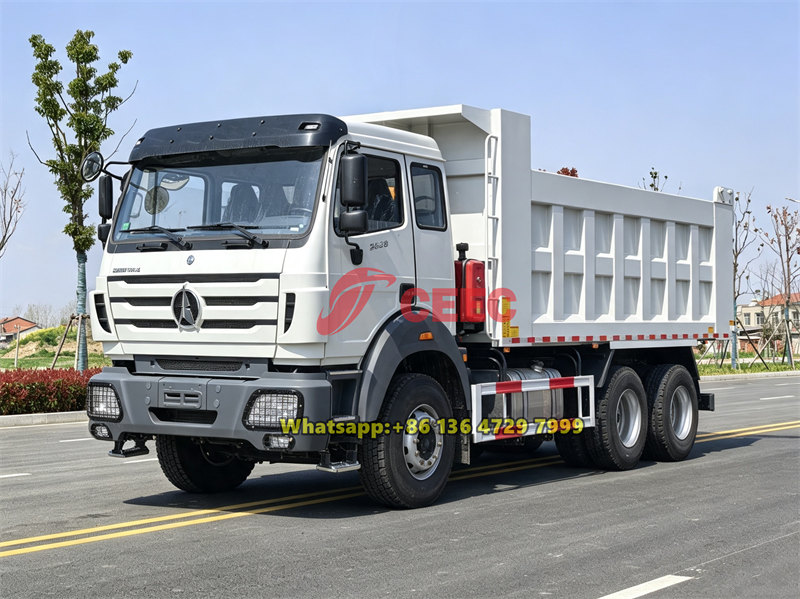

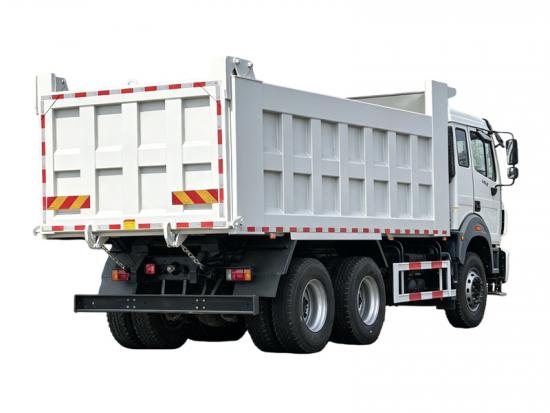

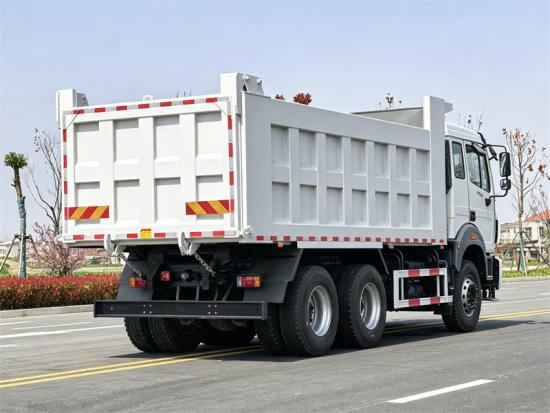

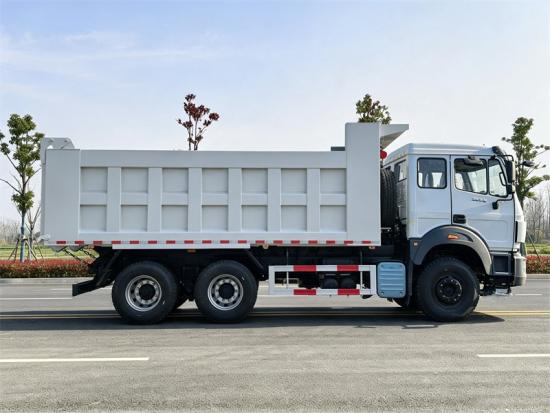

☛ Beiben 6×4 heavy dump truck display
 |
 |
 |
 |
