Beiben 6x6 drive truck is fitted on NG80B cabin with mercedes benz technology. Its 6x6 off drive system with high ground clearance and differential lock, allow Beiben 6x6 wheel drive truck can operate in muddy , sand and mountain road. Beiben 6 wheel drive truck chassis's axle design, cabin design and suspension , frame are largely based on germany mercedes benz technolgy platform. With great experience on beiben off road truck chassis, we can design and produce water truck, fuel truck, dump truck body and other specilized equippment.

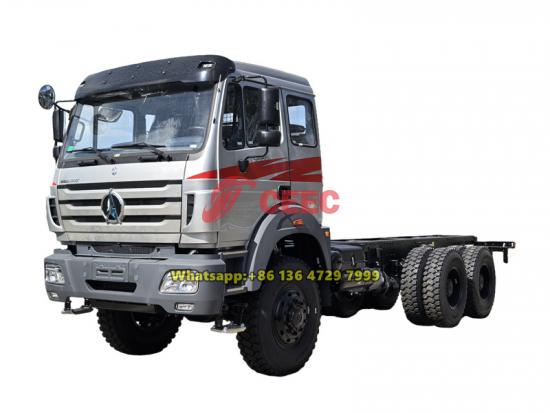

Beiben 6×6 all-wheel-drive chassis, built on military-grade technology, is powered by a WEICHAI 420HP diesel engine and features hub-reduction axles. With 6×6 permanent all-wheel drive and exceptional off-road mobility, its fish-belly variable-section frame and dual-circuit braking system make it ideal for extreme heavy-duty operations in oilfields, rescue missions, and specialized modifications. Reliable performance across temperatures ranging from -40°C to 50°C establishes it as the preferred heavy-duty platform for harsh terrain conditions.
Beiben NG80 6×6 420HP all-wheel-drive chassis is built upon the proven Mercedes-Benz NG80 military technology. It is powered by a Weichai engine and paired with a Fast gearbox, featuring Beiben hub-reduction axles with differential locks. The frame offers exceptional torsional rigidity, making it suitable for extreme road conditions, while reserving ample space for modifications. It serves as a highly reliable all-terrain carrier platform for special operations and field exploration scenarios.

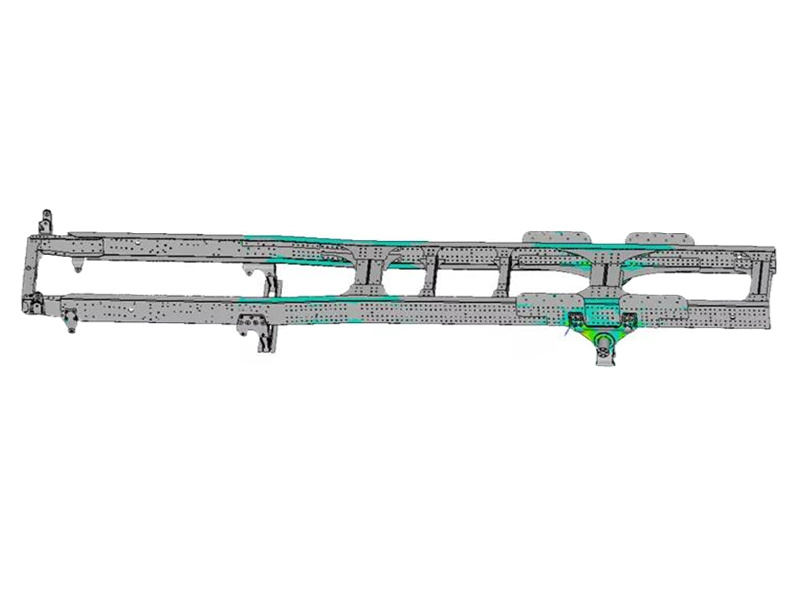

The Beiben 2642 6×6 off-road chassis is a heavy-duty all-wheel-drive vehicle featuring the classic NG80 cab. It is powered by a Weichai 420 hp engine paired with a 12-speed manual transmission, and employs a fish-belly shaped variable-section high-strength frame. It integrates multiple differential locks and off-road tires. With outstanding mobility and reliability, the cab is equipped with twin bunk beds and an air-suspended seat for long-haul comfort, making it suitable for mining, field engineering, emergency rescue, and other demanding operating conditions.

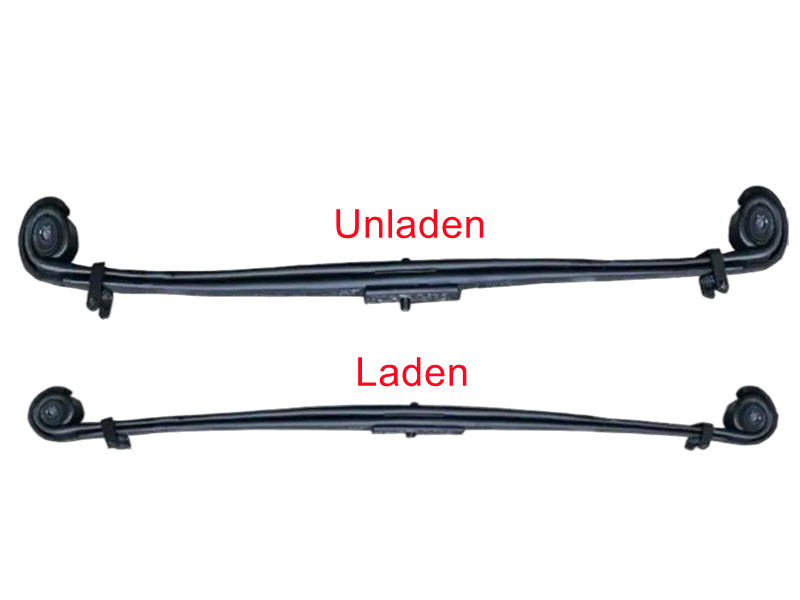

The Beiben 2638 all-wheel-drive chassis is a 6×6 heavy-duty off-road vehicle, powered by a 380 hp engine mated to a 12-speed manual transmission, and equipped with a high/low-range transfer case and differential locks, delivering exceptional off-road mobility. The frame features a double-layer reinforced design, offering excellent load-bearing capacity and torsional rigidity. Combined with large-size tires and multi-leaf spring suspension, it is fully capable of handling the most extreme road conditions.
The Beiben 6×6 All-Wheel-Drive Cargo Chassis is derived from the German Mercedes-Benz NG80 technology platform. It is powered by a Weichai 420 hp engine paired with a 12-speed manual transmission, and features Mercedes-Benz technology heavy-duty axles, delivering exceptional off-road mobility and heavy-load carrying capacity. Its fish-belly frame, reinforced suspension, and dual-circuit braking system ensure reliability and safety under harsh operating conditions. It is widely used in heavy transport, construction infrastructure, special-purpose vehicle modification, and military shelter applications.
The Beiben NG80 6×6 all-wheel-drive chassis, built on the Mercedes-Benz NG80 technology platform, is a full-time six-wheel-drive cargo chassis specifically designed for extreme terrain conditions and heavy-duty operations. Powered by a Weichai 420 hp engine and paired with a Fast 12-speed manual transmission, it features a high-strength frame, multi-leaf spring suspension, and differential locks, delivering exceptional mobility, load capacity, and reliability. It is widely used in firefighting, oilfield, and engineering emergency rescue applications.

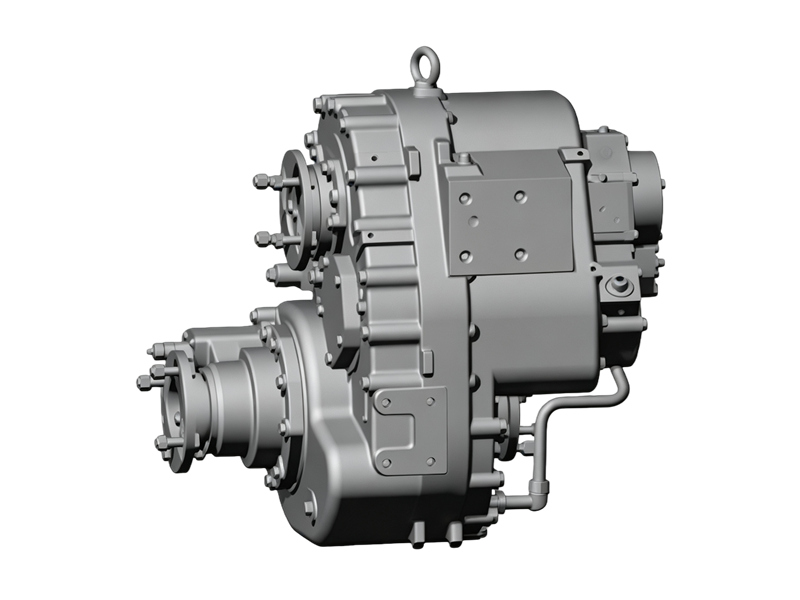

The Beiben 6×6 off-road chassis is built on the Beiben NG80 platform, inheriting the core technologies of Mercedes-Benz heavy-duty trucks. It is powered by a 420 hp engine paired with a 12-speed manual transmission, providing ample power reserves. The chassis features an all-wheel-drive configuration, equipped with differential locks, a multi-range transfer case, and high-performance suspension axles. The braking system is comprehensively designed, offering strong load-carrying capacity and excellent off-road mobility. With high reliability and wide adaptability, this chassis is commonly used to modify into tankers, construction service vehicles, military special-purpose vehicles, and various other specialized applications.
The Beiben 6x6 off-road chassis is a high-performance all-wheel-drive truck chassis designed for severe operating conditions. It features high passability, strong load-carrying capacity, and adaptability to complex terrains. It is equipped with a 420 hp diesel engine and a 12-speed transmission. Adopting a 6×6 all-wheel-drive design with a transfer case and inter-wheel differential locks, and fitted with 12.00R24 off-road tires as standard. The chassis frame is robust, making it suitable for modification into special vehicles such as firefighting trucks, tanker trucks, and crane trucks, with strong off-road capability.
The Beiben 2642 6×6 all-wheel drive chassis is based on a Mercedes-Benz technology platform, equipped with a Weichai WP12.420E32 engine, supplying a maximum power of 420 HP, matched with a Fast 12-speed transmission and an LF200 transfer case. It features a 7-ton front drive axle and a 13-ton dual-reduction rear axle with a gear ratio of 5.263, paired with large 14.00R20 off-road tires, offering excellent load-bearing capacity and off-road capability.
The Beiben 6×6 AWD off road truck is available with Weichai 340HP, 380HP and 420HP engines, paired with FAST 9 speed or 12 speed transmissions. It adopts heavy duty axles of Mercedes Benz technology fitted with differential locks. Featuring 6×6 all wheel drive, high ground clearance, abundant torque and strong chassis torsional resistance, the vehicle can easily handle harsh and complex road conditions such as muddy terrain, sand land and mountainous areas.
1. Mining and Quarrying
Beiben 6x6 Off-road Tipper Dump Truck: transport ore, rocks, or overburden out of deep open-pit mines where the gradients are steep and the ground is muddy or loose. Heavy Equipment Transport: Used as beiben 6x6 tractor unit to pull low-bed trailers carrying excavators or bulldozers into mining sites.
2. Oil, Gas, and Exploration
Beiben 6x6 drive Mobile Drilling Rigs: beiben 6x6 chassis is used as a stable, mobile platform for small-to-medium water or oil well drilling equipment. Beiben 6x6 Fuel/Water Tankers: Delivering essential fluids to remote exploration camps where a standard truck would get bogged down.

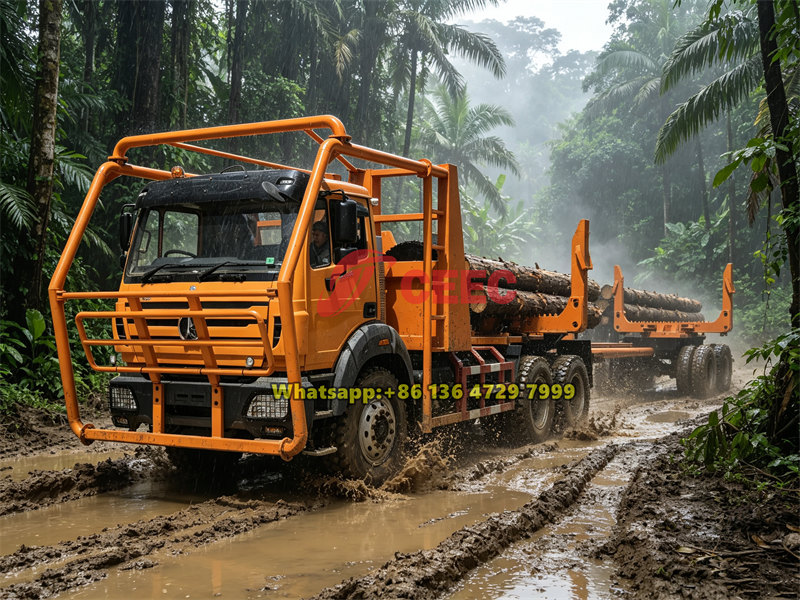

3. Forestry and Logging
Beiben 6x6 Timber Hauling: Logging involves moving massive weight over soft, unpaved forest floor "skid trails." The 6x6 configuration with differencial lock, to prevent the truck from sinking while carrying heavy logs.

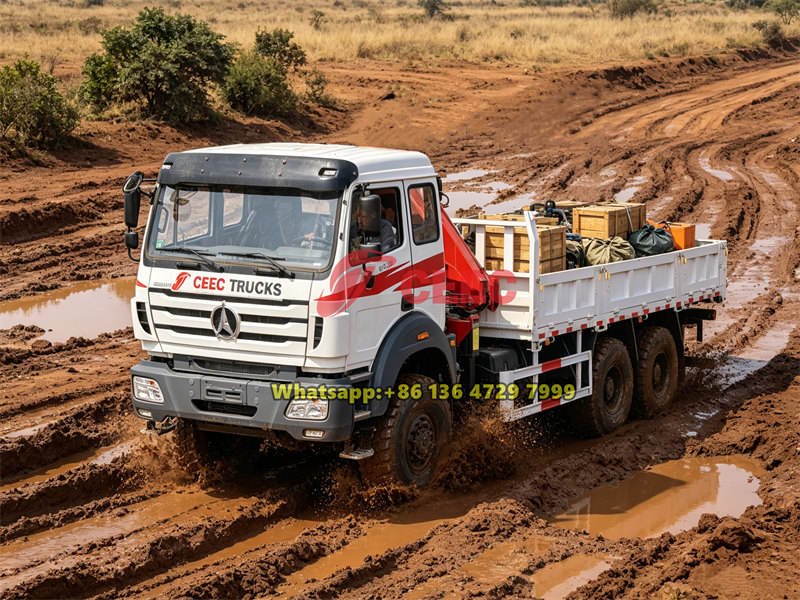

IBeiben 6x6 truck mounted crane
Lifting transport Application of beiben 2638 crane truck
▶ Drive: NG80B Standard cabin with A/C 6x6
▶ Engine: WP10.380 380HP
▶ Gearbox: FAST 12-shift
▶ Wheelbase: 4450+1450 mm
▶ Capacity: 5 Ton- 10 Ton

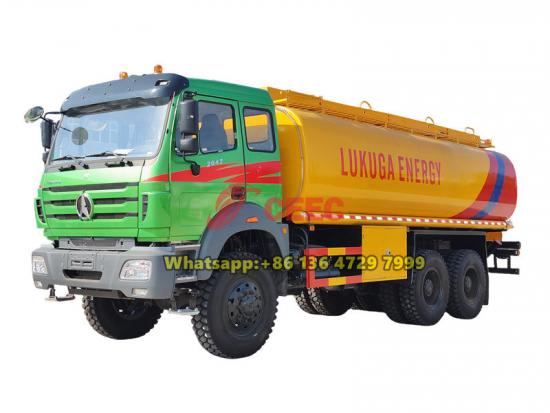

IBeiben 6x6 fuel bowser truck
Oil transportation of Beiben 2642 fuel trucks
▶ Drive: NG80B Standard cabin with sleeper 6x6
▶ Engine: WP12.420 420HP
▶ Gearbox: FAST 12-shift
▶ Wheelbase: 4450+1450 mm
▶ Capacity: 15,000 Liters - 25,000 Liters
IBeiben 6x6 drive water bowser
Potable water delivery Application of beiben 2643 water cart
▶ Drive: V3 High Roof cabin with sleeper 6x6
▶ Engine: WP13.430 430HP.
▶ Gearbox: FAST 12-shift
▶ Wheelbase: 4450+1450 mm
▶ Capacity: 20 Ton- 40 Ton

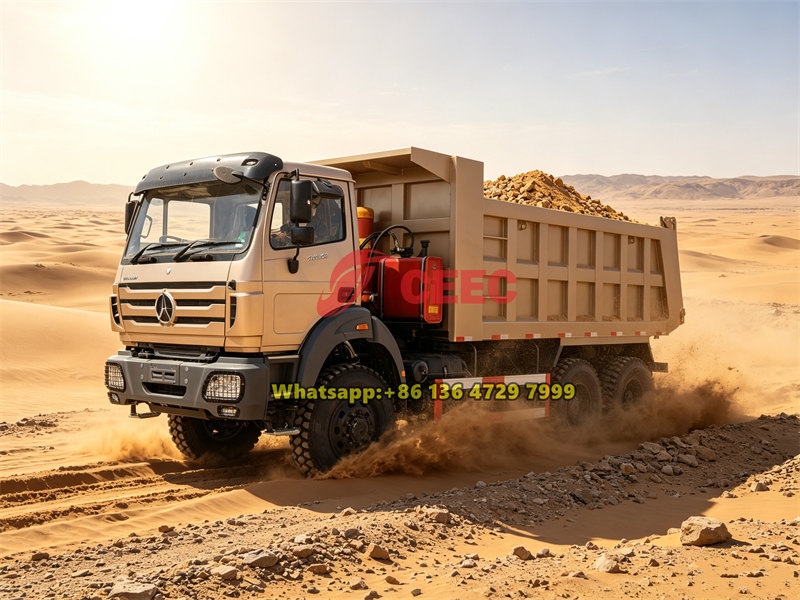

IBeiben 6x6 drive dump truck
Construction delivery Application of beiben 2642 dumper

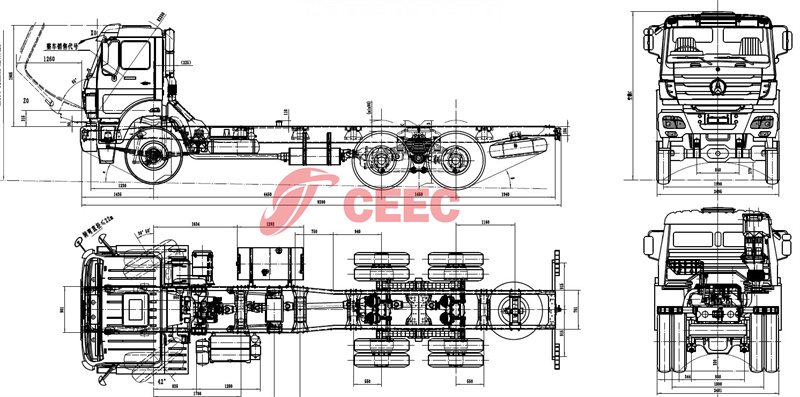

To guarantee the upper body kit more suitable for Beiben 6x6 truck, we CEEC TRUCKS Engineer Department can offer technical drawing for BEIBEN 6x6 offroad cargo truck chassis, and design the superstructure to be matched on beiben offroad truck, then can build as multiple offroad special purpose trucks, including Beiben 6x6 offroad cargo truck, Beiben 6x6 dump truck, Beiben 6x6 boom crane truck, Beiben 6x6 wrecker truck, Beiben 6x6 fuel bowser, Beiben 6x6 water tanker truck, etc.
Beiben 6×6 all‑wheel‑drive chassis comes with multiple wheelbase options for diverse special‑vehicle modification.
● 3800+1450mm: Short wheelbase with compact overall dimension and small turning radius, mainly for dump truck modification.
● 4450+1450mm: The most popular general‑purpose wheelbase. It balances off‑road capability and body‑mounting space, widely applied for fuel tankers, water tank trucks, vacuum sewage suction trucks, fire trucks and cargo trucks.
● 4750+1450mm: Extended wheelbase with longer frame mounting space, ideal for truck‑mounted crane modification.
CEEC can select the most suitable Beiben chassis according to customers’ actual requirements and provide customized design solutions.
IPractial applications of Beiben 6x6 off-road truck
Beiben 6×6 off-road trucks serve multiple industries: oil & gas exploration, open-pit mining, remote infrastructure, forestry logging, emergency disaster rescue and special field missions. It can be refitted as tankers, truck-mounted cranes, rescue vehicles and special equipment carriers, operating reliably on desert, plateau, muddy and rocky unpaved terrain.
