Beiben 2638 6×6 oil tanker is a high-performance, all-wheel-drive fuel transport vehicle equipped with a WP10.380E32 engine (380 HP), delivering robust power and adaptability to complex road conditions. With a 20,000L carbon steel tank divided into four compartments, it can store different types of fuel simultaneously, preventing cross-contamination. The vehicle is fitted with an 80YHCB-60 oil pump and European-standard manhole covers. Renowned for its outstanding off-road capabilities and high load capacity, it is ideal for harsh environments such as mines and construction sites, ensuring both efficient transportation and reliable durability.
Working capcity:
20000LCabin type:
Beiben NG80 cabin, with sleeper bedDimension ( mm ) :
9600×2550×3250Drive system:
6×6Wheelbase (mm):
4450+1450Engine power / Model:
380HP/WP10.380E32Gear Box:
12JS200TRemark:
RHD, stainless steel tank is optionalI. Product Descriptions
Beiben 2638 6×6 oil tanker is a specialized fuel transport vehicle built on a Beiben 6×6 all-wheel-drive chassis, offering exceptional off-road performance and load-bearing capacity. Its tank is constructed from carbon steel with a 20,000L capacity, featuring internal anti-corrosion treatment and four independent compartments for simultaneous storage of different fuel types, effectively preventing cross-contamination. The vehicle is equipped with an 80YHCB-60 oil pump and European-standard aluminum alloy manhole covers, ensuring efficient and safe fuel loading and unloading.
Thanks to its superior off-road capability and all-wheel-drive system, the Beiben 6×6 oil bowser truck is particularly suited for fuel transportation in challenging terrains such as mines and construction sites. Its rugged chassis design and optimized power distribution system ensure stable operation even under harsh road conditions, making it an ideal choice for heavy-duty transport and specialized operations.
II. Product Specifications
|
Chassis Specification |
|||
|
Cab |
Beiben NG80B long cab, with one sleeper bed, AC |
||
|
Driving Type |
6*6 Left hand driving |
||
|
Max Speed (km/h) |
90 |
||
|
Overall dimension (mm) |
9600×2550×3250 |
||
|
GVW (kg) |
26000 |
||
|
Curb weight (kg) |
12300 |
||
|
Wheelbase (mm) |
4450+1450 |
||
|
F/R track base (mm) |
1500/1425 |
||
|
F/R overhang (mm) |
141/2190 |
||
|
Approach/Departure Angel |
24/15 |
||
|
Tire |
12.00R20 |
||
|
Clutch |
Single-plate dry diaphragm spring clutch |
||
|
Steering |
Hydraulic steering with power assistance |
||
|
Gear box |
FAST, 12-speed |
||
|
Axles |
Front axle |
7.5T |
|
|
Rear axle |
13T*2 |
||
|
Engine |
Brand |
WEICHAI |
|
|
Model |
WP10.380E32 |
||
|
Fuel Type |
Diesel fuel |
||
|
Type |
Water-cooled four-stroke, direct injection, turbocharged |
||
|
Displacement (ml) |
9726 |
||
|
Max output power |
280KW/380HP |
||
|
Rated speed |
2200 rpm |
||
|
Max. torque |
1600N.m |
||
|
Braking system |
Service Brake |
Air brake |
|
|
Park Brake |
Spring energy |
||
|
Electric system |
24v |
||
|
Superstructure Specification |
|||
|
Fuel tank |
|||
|
Volume of tank |
20000L |
||
|
Compartment |
4 |
||
|
Tank shape |
Quadrate |
||
|
Material of tanker |
High Quality Carbon Steel |
||
|
Thickness of tank |
4mm |
||
|
Color of the tanker |
According your demands |
||
|
Transport medium |
Diesel oil, gasoline or others |
||
|
Safety accessories |
|||
|
Manhole cover |
European standard cover |
||
|
Anti-overflow probe |
|||
|
Gas recovery joint |
|||
|
Bottom Filling Device |
API discharge valve |
||
|
Pumping outlet & inlet |
|||
|
Oil and gas recovery valve |
|||
|
Anti-overflow anti-static socket |
|||
|
Percolator |
|||
|
Bottom of tank valve |
Emergency valve |
||
|
Fittings |

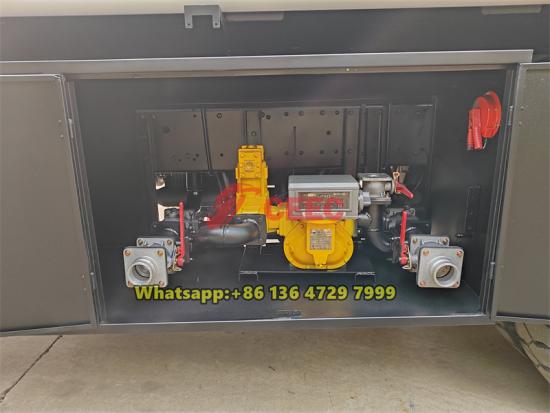

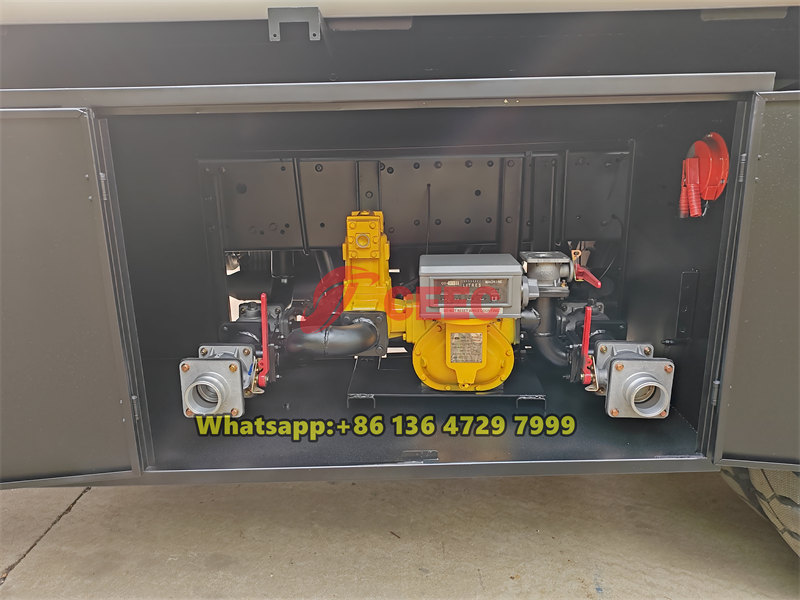

PTO oil pump |
||
|
Discharging Pipe |
|||
|

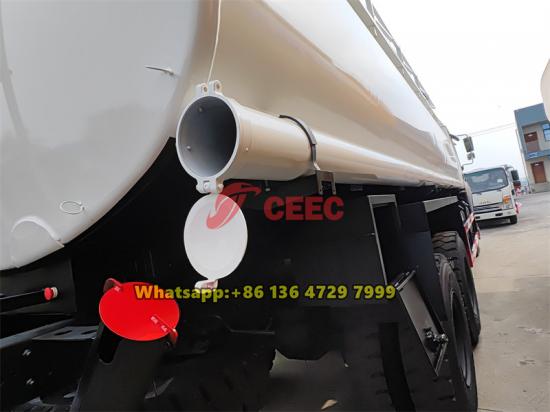

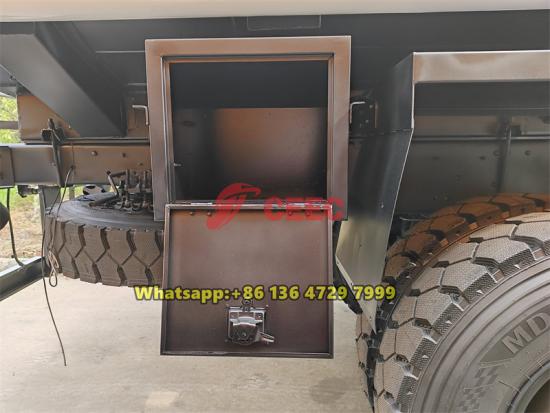

Discharging Pipe box fitted on both side of tank |
|||
|
Fire extinguisher |
|||
|
One spare tire |
|||
|
Ladder: For access to top of tank complete with cat walk on top of tank |
|||
|
Heavy-duty rear bumper |
|||

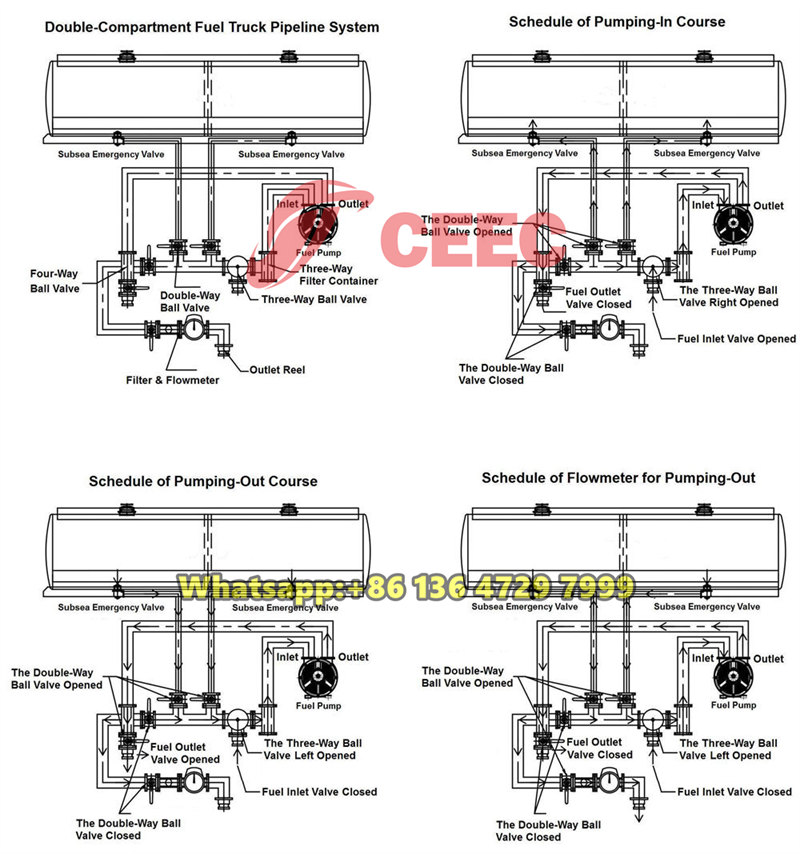

III. Beiben 6×6 fuel tanker working diagram

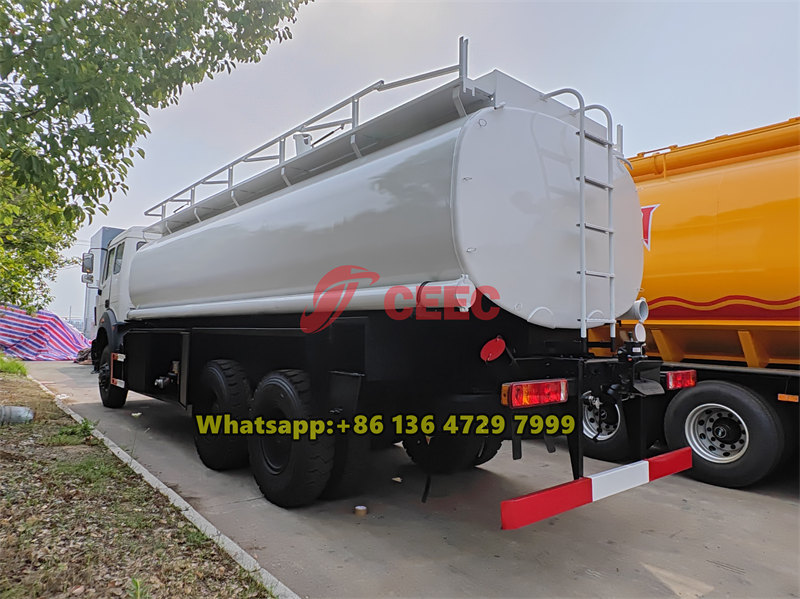

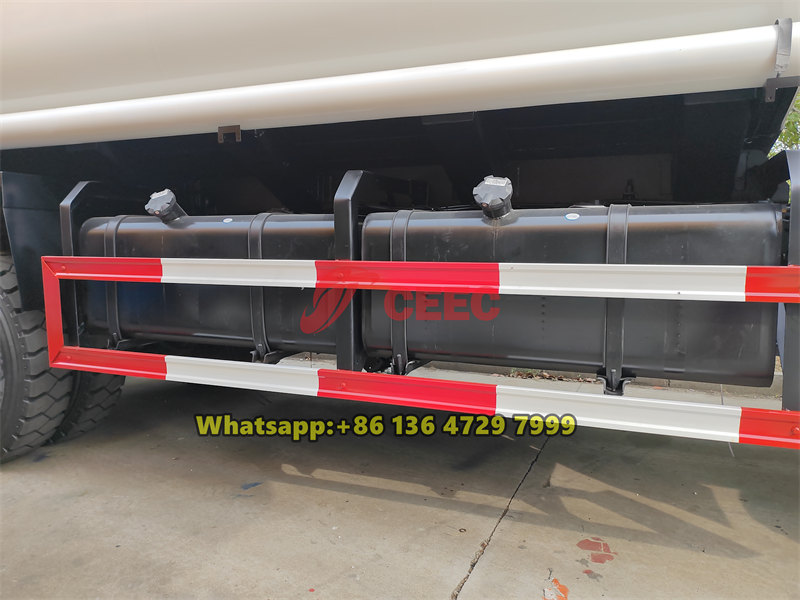

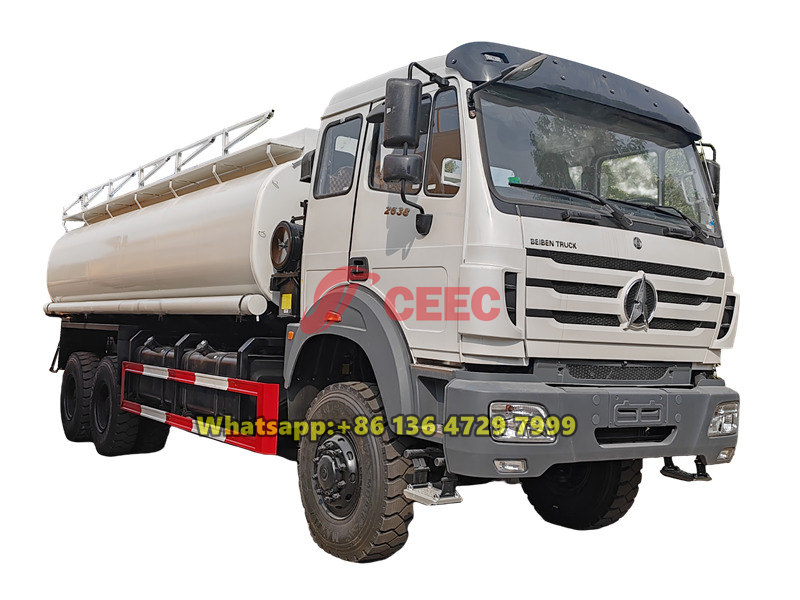

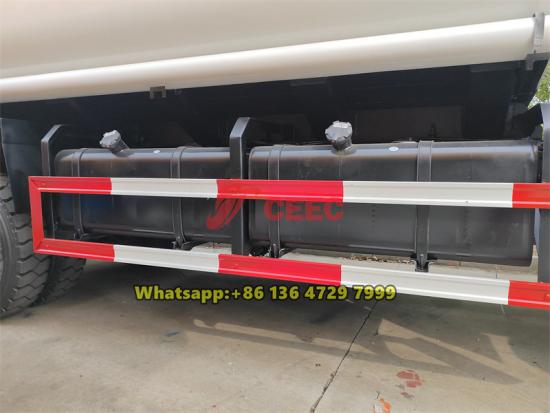

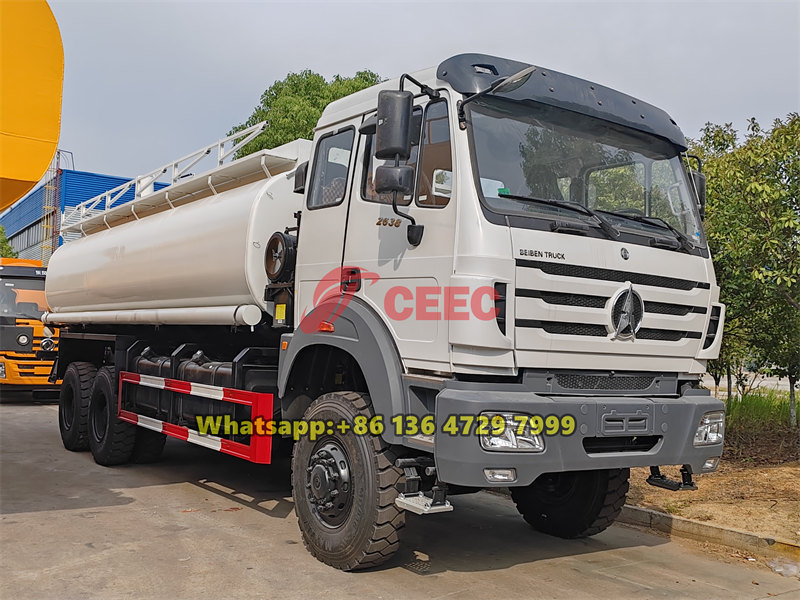

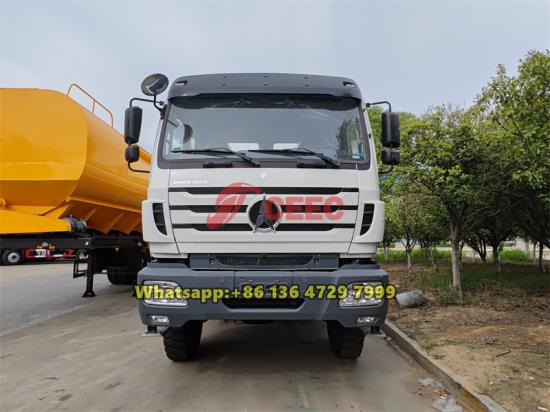

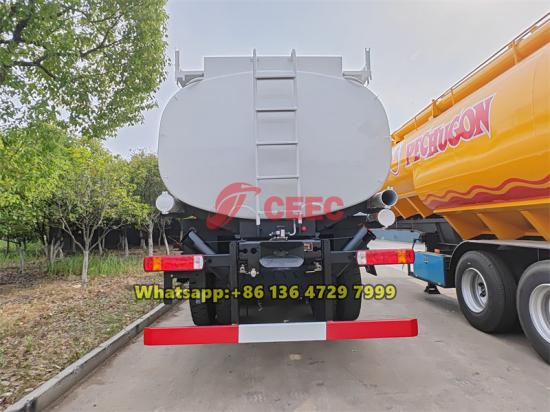

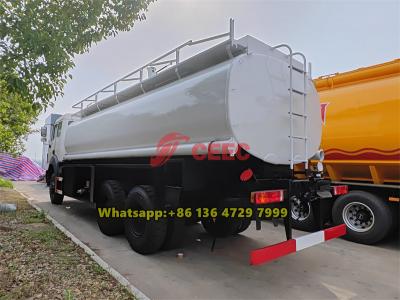

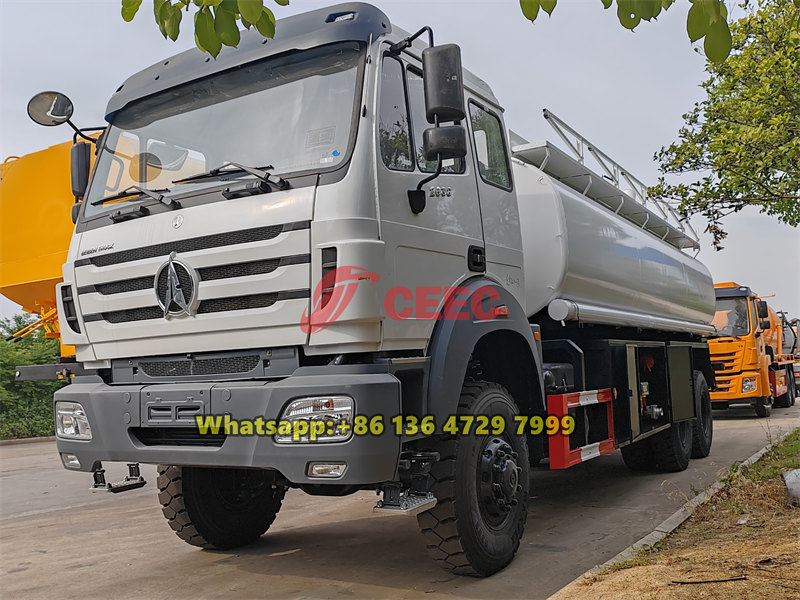

IV. Product Pictures
 |
 |
 |
 |
