Beiben 2638 Fuel Truck

Home Beiben Fuel Truck Beiben 2638 Fuel Truck

Cameroon Beiben 20000L fuel bowser truck

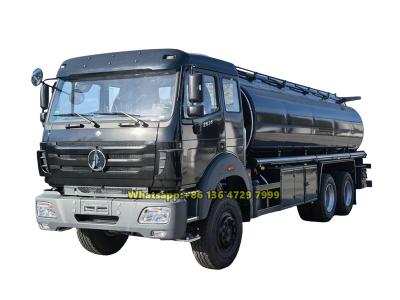

Beiben 20000 liters fuel tanker truck
Beiben 20000 liters fuel tanker truck
Beiben 20000 liters fuel tanker truck
Beiben 20000 liters fuel tanker truck
Beiben 20000 liters fuel tanker truck
Beiben 20000 liters fuel tanker truck
Beiben 20000 liters fuel tanker truck
Beiben 20000 liters fuel tanker truck
Beiben 20000 liters fuel tanker truck

Cameroon Beiben 20000L fuel bowser truck

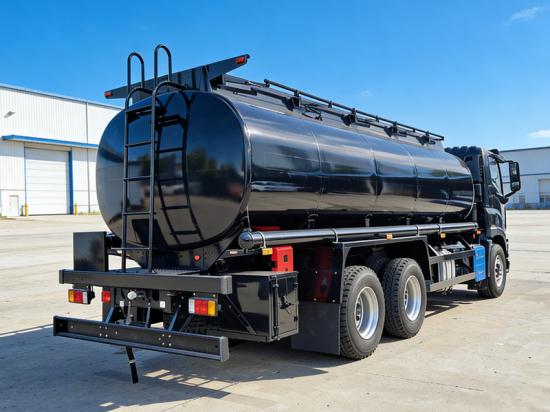

The Beiben fuel tanker is a professional vehicle designed for medium to long-distance fuel transportation. Built on the Beiben ND1260 heavy-duty chassis, it is powered by a 380-horsepower engine that complies with Euro III emission standards. The vehicle features a 20,000-liter carbon steel tank divided into five compartments, supporting the separate loading of multiple fuel types. Combined with an efficient bottom-loading system, it effectively balances large-capacity transportation with convenient operation.

  • Working Capcity:

    20000 liters
  • Cabin Type:

    NG80B long cabin, with sleeper
  • Dimension ( mm ) :

    9800×2550×3200
  • Drive System:

    6×4
  • Wheelbase (mm):

    4450+1450
  • Engine Power:

    380HP/WP10.380E32
  • Gear Box:

    9JS150A
  • Remark:

    5 compartments, stainless steel, aluminum alloy tanker is optional
New Products

A fuel tanker truck is a specialized vehicle used for transporting and storing liquid media such as fuel. It mainly consists of a chassis, tank body, power take-off, oil pump, and pipeline system, offering functions like compartmentalized storage and transportation, pumping in and out, among others. The Beiben fuel tanker is based on a Beiben 6×4 heavy-duty chassis, equipped with a 380-horsepower diesel engine that delivers robust power while meeting Euro III emission standards. Its frame structure and dual-reduction rear axle are designed to handle heavy-duty conditions, paired with a compressed air braking system to ensure safe and stable long-distance transportation.

This Beiben fuel bowser truck is fitted with a 20,000-liter carbon steel tank body, divided into five independent compartments to enable the segregated transportation of multiple fuel types. The tank integrates a bottom-loading system and aluminum alloy valves, along with anti-slip walkways and multiple discharge hoses, ensuring both operational efficiency and safety. With its solid overall design, the vehicle serves as an efficient and practical asset in the field of fuel transfer.

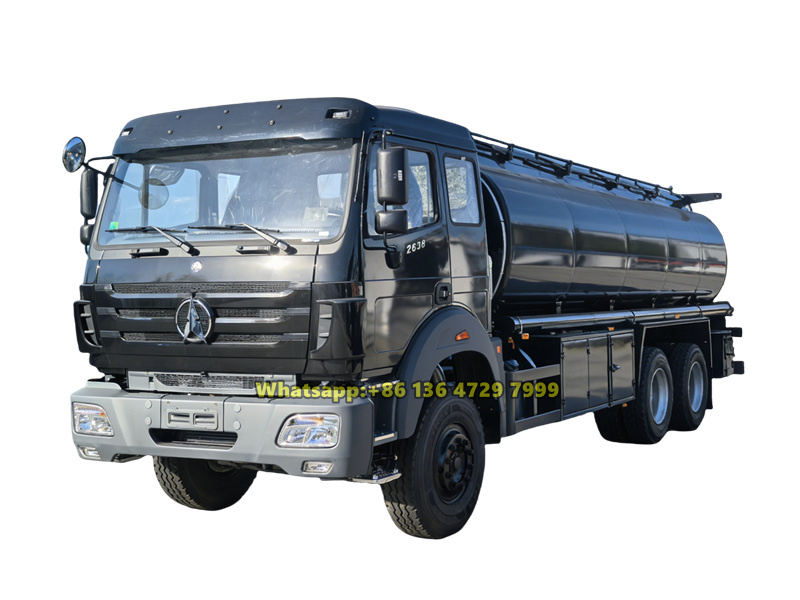

beiben 6x4 heavy-duy fuel truck

*Beiben 6×4 20000L fuel bowser truck

CEEC factory is authorized supplier on beiben tanker trucks,
guarantee all beiben fuel tanker trucks Brand-New and High-Quality.



» Ⅰ.Product Introduction:

Manufacturer: CEEC TRUCKS

Chassis: Beiben 6×4 chassis, NG80B long cabin, Weichai 380HP diesel engine, Fast 12-speed gearbox

Tank body: Carbon steel tanker body, with 20000 liters capacity

Compartment: 5 independent compartments, each compartment has 4000 liters capacity

Fuel pump: China top brand fuel pump, with flow rate 60 m3/h

Loading system: Bottom loading system

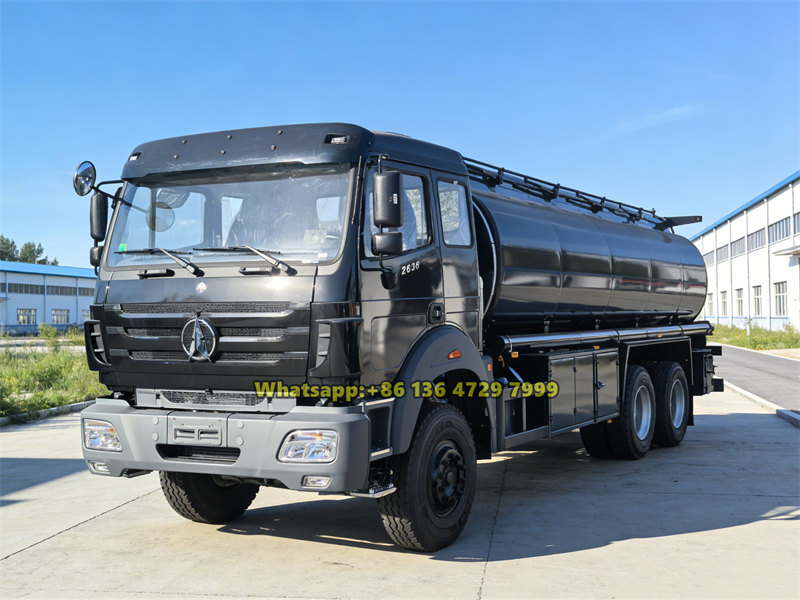

Beiben 10 wheels diesel bowser truck



» Ⅱ. Product Specifications:



Beiben 6×4 fuel bowser truck specifications

Chassis Model

ND1260

Cabin

Beiben NG80B Long Cabin, with two seats and one bed, with Air Conditioner.

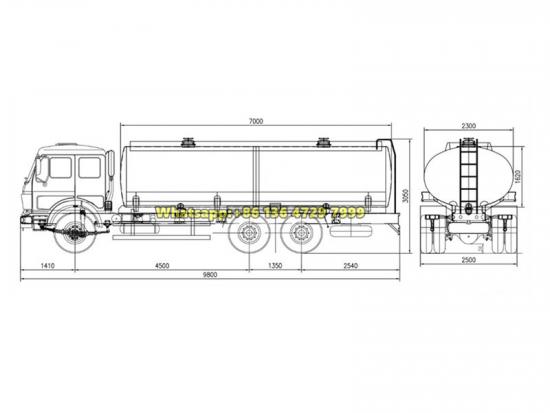

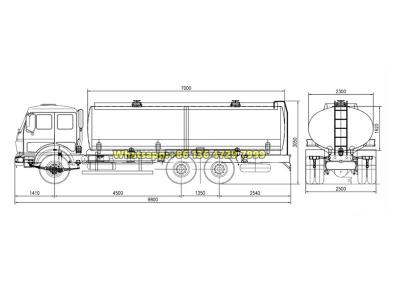

Overall dimensions

9800×2550×3250 mm

GVW

26000 kg

Curb weight

11800 kg

Wheelbase

4450+1450 mm

Engine

Model

WP10.380E32

Power

380HP (280KW)

Displacement

9726 ml

Emission standard

Euro 3

Rated speed

2200 rpm

Max. Toruqe (Nm/rpm)

1600/1500-1800

Type

6-cylinder in-line with water cooling, turbo charger and intercooling, 4-stroke direct injection diesel engine

Transmission

FAST 9JS150A, 9 speeds forward and 1 speed reverse.

Front Axle

7500kg

Driving Axle

2×13000kg, dual-reduction axles, ratio:5.263

Leaf Springs

10/13 pcs

Steering System

ZF8098, Hydraulic steering with power assistance

Brake System

Service brake: Dual circuit compressed air brake; Parking brake (emergency brake): Spring energy, compressed air operating; Auxiliary brake: Engine exhaust brake

Tire

12.00R20

Fuel Tank (L)

400L

Upper-body specifications

Tank

Tank Capacity(L)

20,000

Tank Material

Carbon Steel, 5mm thick

Nos of Compartments

5

Fuel pump

Model

80YHCB60

Flow rate

60 m3/h

Working pressure

0.6 Mpa

Speed

970 rpm

Self-suction height

7 m

Others

Manhole cover

Aluminium alloy European standard with breath valve, oil-gas recycle valve, dip hatch, anti-overflow valve, 5 pcs

Bottom valve

Aluminium alloy material, 5 pieces

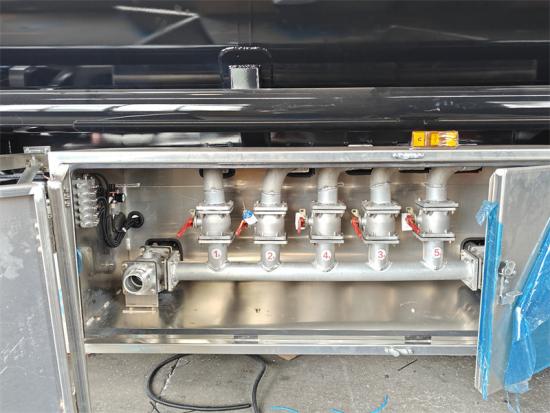

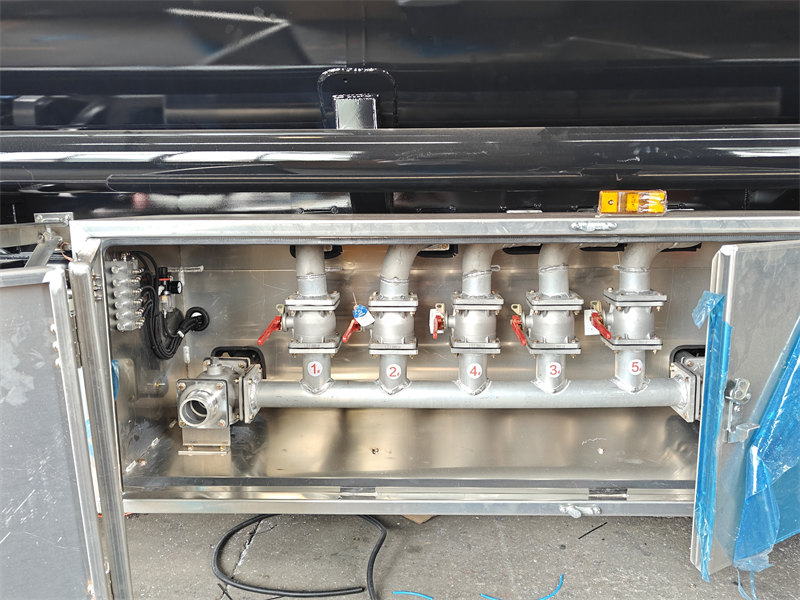

Discharge valve

5 set (every compartment has one set discharge valve)

Discharging Pipe

4" rubber hose,2 pcs,6m/each

Walkway in the top

Aluminium diamond plate walkway

Loading system

Bottom loading system

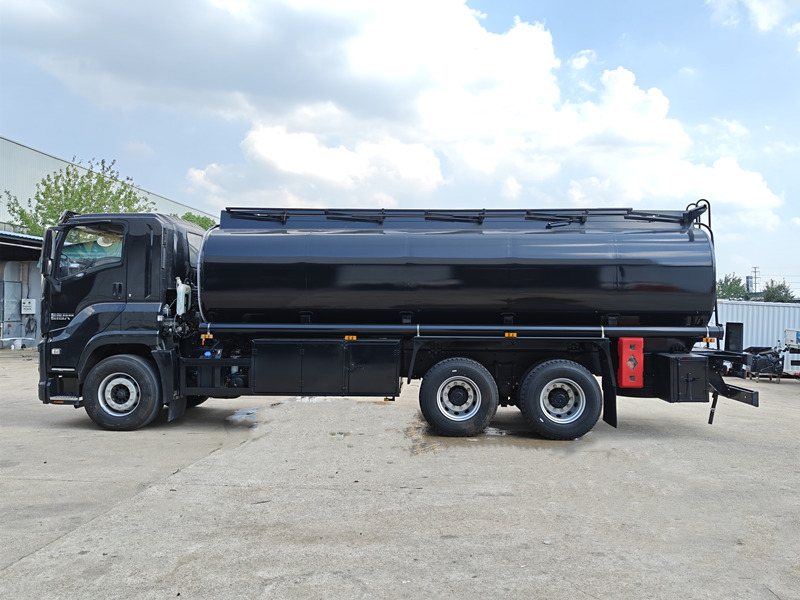

Beiben 6×4 fuel bowser truck



» Ⅲ. Chassis Advantages:



Beiben 25CBM oil tanker truck

Beiben Axles

Front axle: Beiben 7.5 T driving axle
Rear axle: Beiben 2×13T dual reduction driving axle
Rear axle ratio: 5.263



Beiben heavy fuel tanker truck

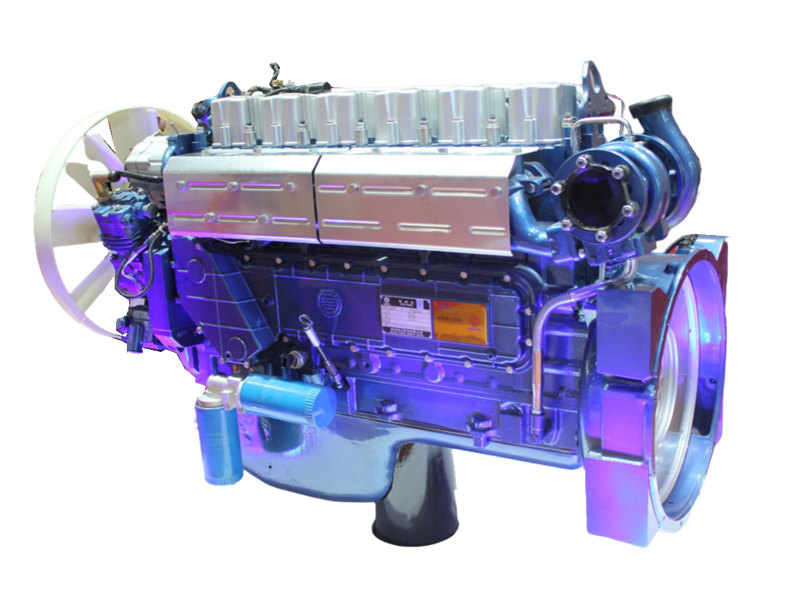

Weichai Engine

Model: WP10.380E32

Number of cylinders: 6

Power: 380HP/280KW

Displacement: 9726ml

Rated speed: 2200 rpm

Max. torque: 1600 N.m



Beiben 6×4 diesel tanker truck

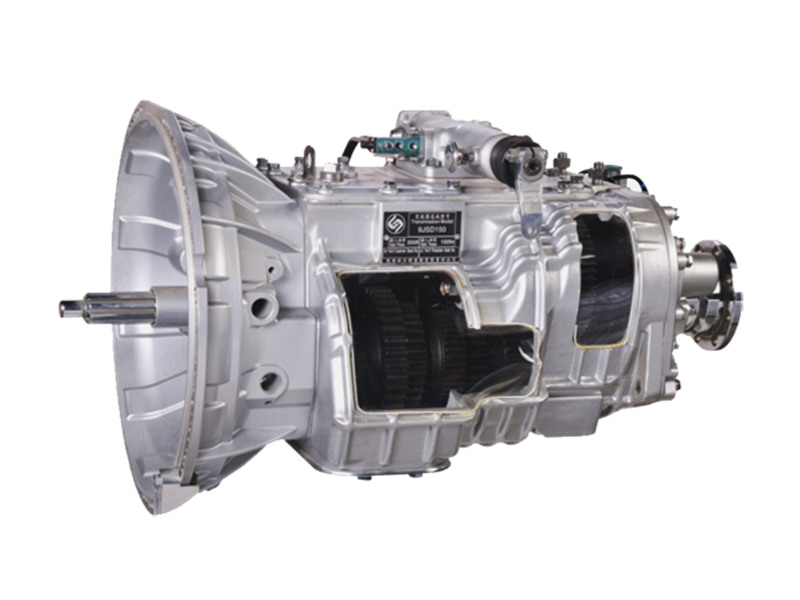

FAST Gearbox

Model: 9JS150A

Gear: 9-speed forwards and 1 reverse

Rated input power: 225 kw

Rated input torque: 1500 N.m







Beiben 12 wheels fuel bowser truck

Suspension system

Equipped with integrated balance suspension system developed based on Benz technology.

Front leaf spring: 10 pcs

Rear leaft spring: 13 pcs

U-shape bolts: 4 pcs





» Ⅳ. Feul Tanker Features:


Beiben fuel tanker truck

Fuel pump

Model: 80YHCB60
Flow Rate : 60 m³/h
Working Pressure: 0.6 MPa
Rated Power: 11 kW
Rotational Speed: 970 r/min
Inlet/Outlet Diameter: 80 mm
Allowable Suction Lift: 7 m
Efficiency: Approx. 72%



Beiben oil tanker truck for sale

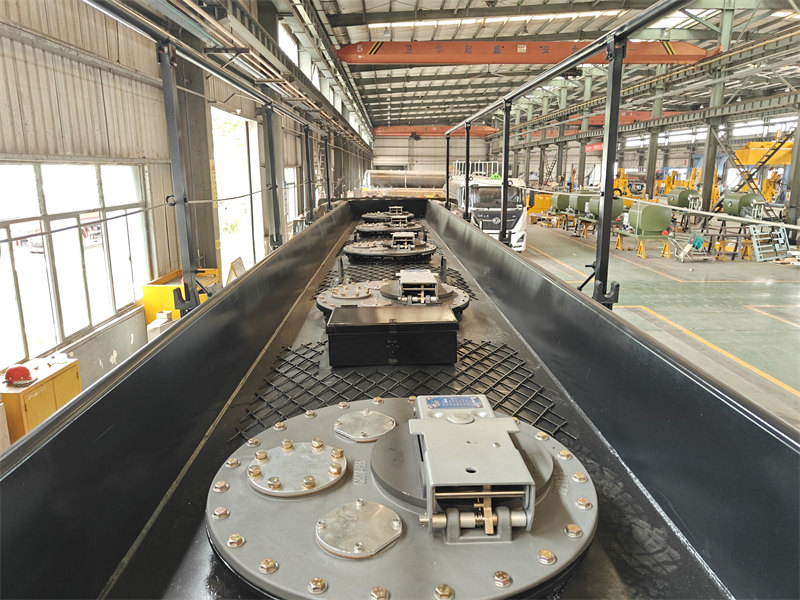

Manhole cover

Emergency Opening Pressure: 21 kPa ~ 32 kPa
Maximum Emergency Venting Flow Rate: 7000 m³/h (at 34 kPa)
Material: Aluminum Alloy
Installation Method: Clamp-type
Temperature Range: -20℃ ~ +70℃



Beiben 8×4 fuel tanker truck

API adaptor valve

Nominal Pressure: 0.6 MPa
Maximum Flow Rate: 2500 L/min
Main Body Material: Aluminum Alloy
Operation Mode: Manual
Design Temperature: -20℃ ~ +70℃



Beiben heavy duty oil tanker truck

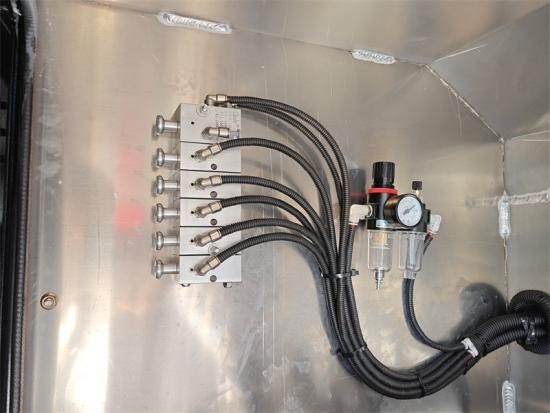

Emergency shutt-off valve

Nominal Pressure: 0.6 MPa
Material: Aluminum Alloy
Operation Mode: Pneumatic
Temperature Range: -20℃ ~ +70℃



Beiben 12 wheeler oil bowser truck

Overflow prevention probe

Operating Voltage: 12 VDC
Explosion-Proof Rating: Exia IIB T4
Response Time: < 1 s
Design Temperature: -40 ℃ ~ +60 ℃
Operating Current: < 5 mA
Operating Medium: Light fuel oil

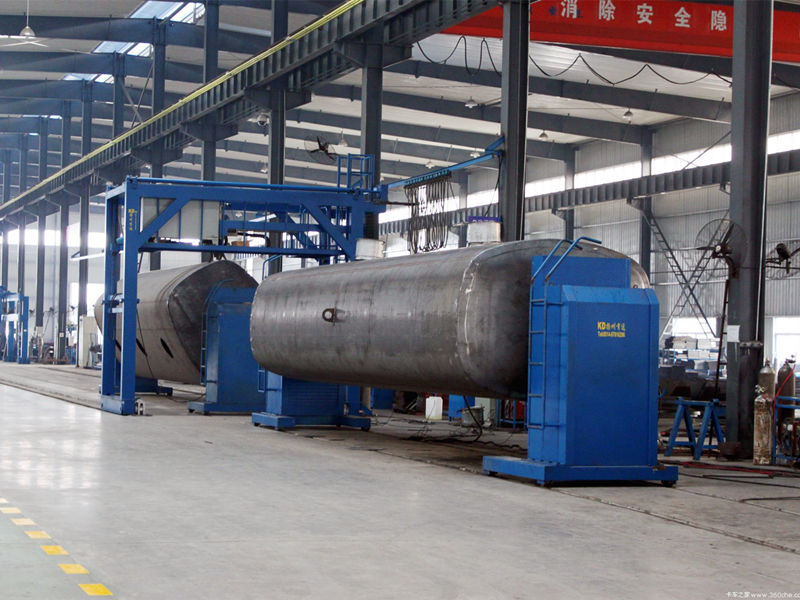

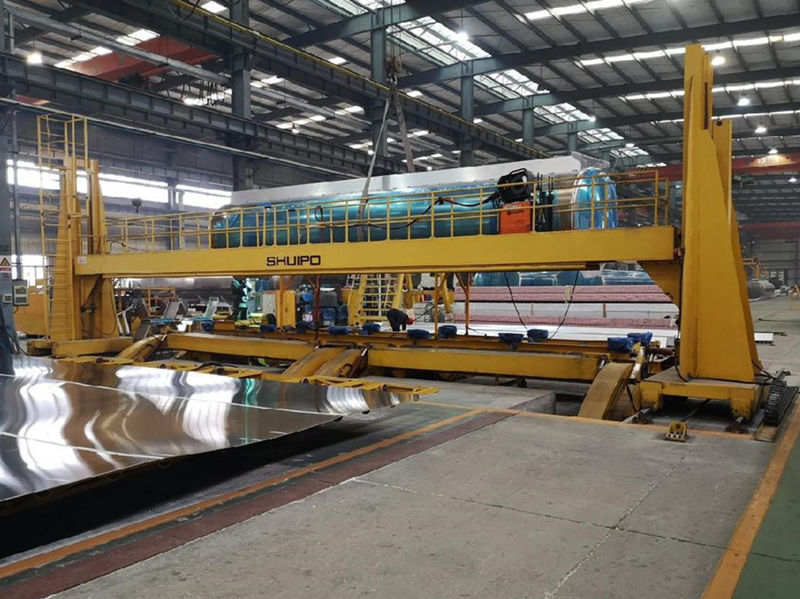

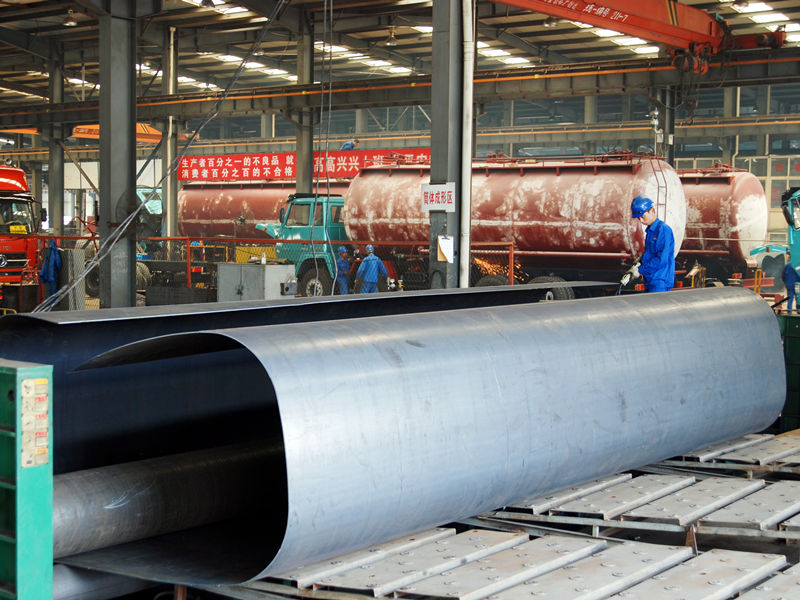

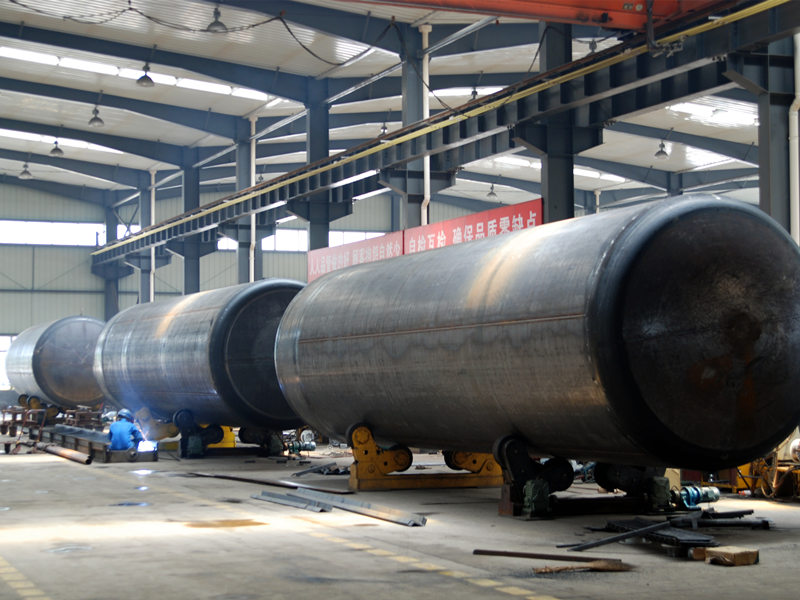

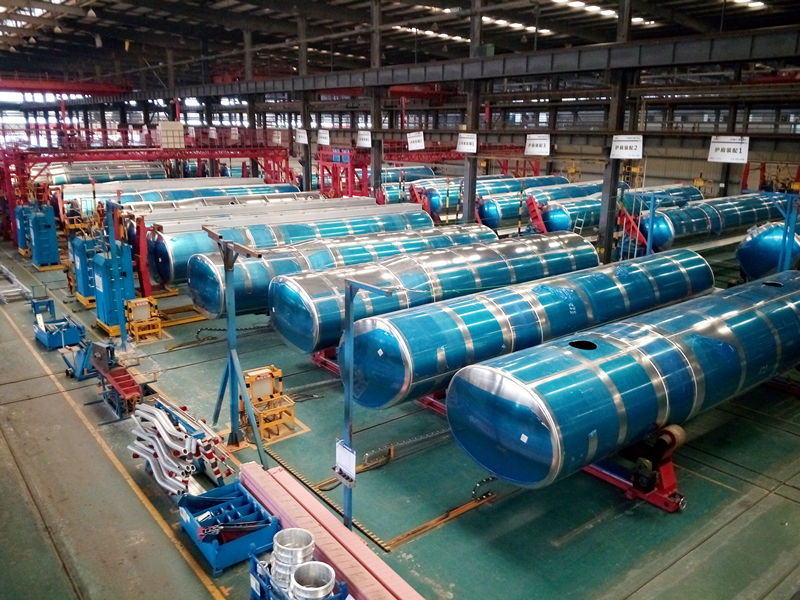

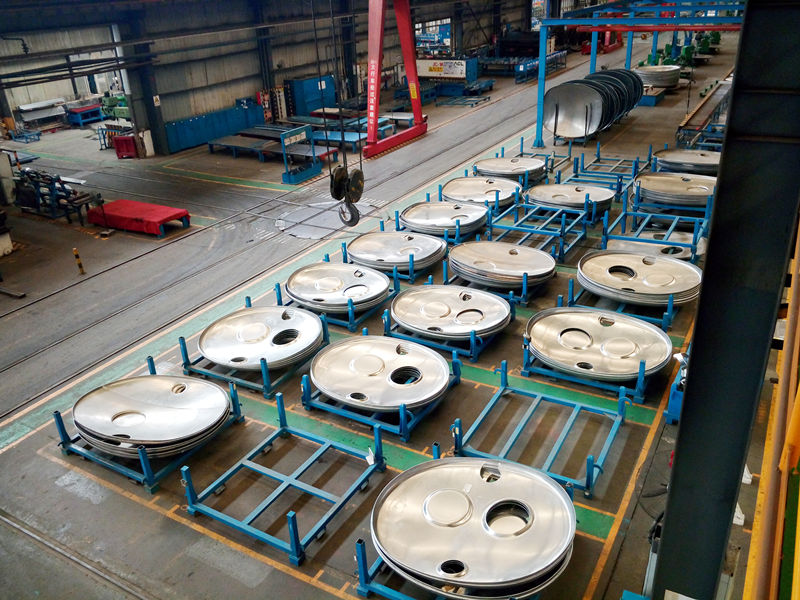

» Ⅵ. Tanker Production Line:



  • Beiben fuel tanker truck factory
  • Beiben fuel tanker truck factory
  • Beiben fuel tanker truck factory
  • Beiben fuel tanker truck for sale
  • Beiben fuel tanker truck for sale
  • Beiben fuel tanker truck for sale





» . Product Applications:



  • Beiben 25CBM fuel tanker truck
  • Beiben heavy duty fuel tanker truck
  • Beiben heavy duty fuel tanker truck





Products--100% china beiben factory trucks!

Shipping --100% fast, Convenience, Efficient!

Guarantee--7days + 24hours Safetify Service!



1.Beiben 4x2, 4x4, 6x4, 6x6, 8x4, 8x8 drive fuel tanker trucks for option



2. Factory direct sale, supply Beiben 10000 liters~30000 liters capacity oil tanker trucks



3.Tanker body can be divided into multiple compartments for transporting different media..



4. Carbon steel, stainless steel, aluminum alloy material is optional.
