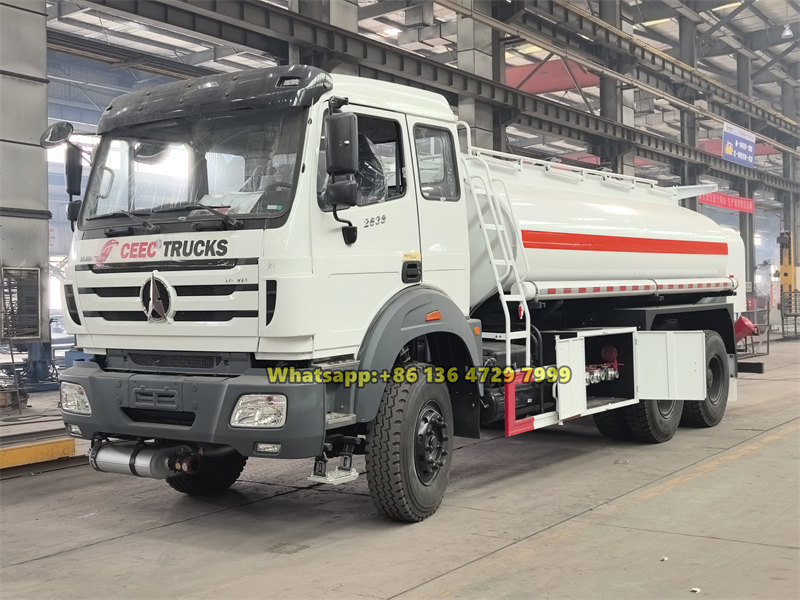

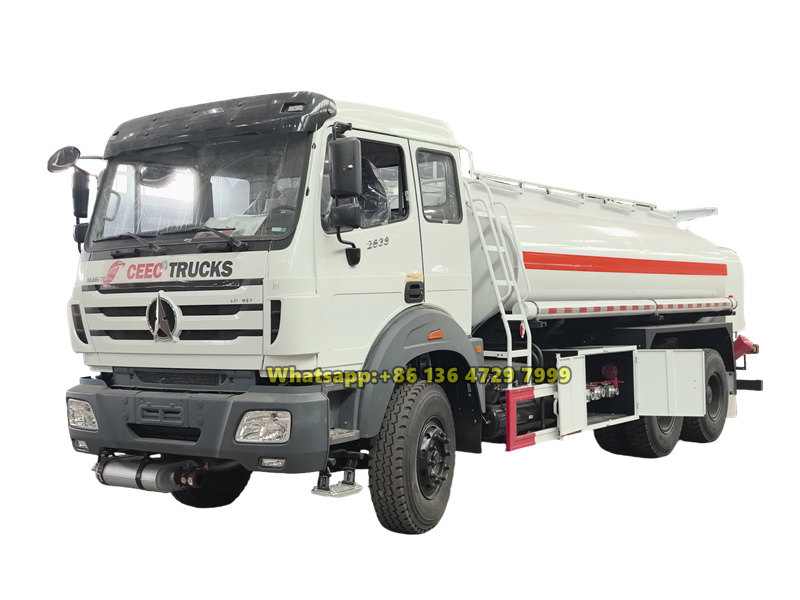

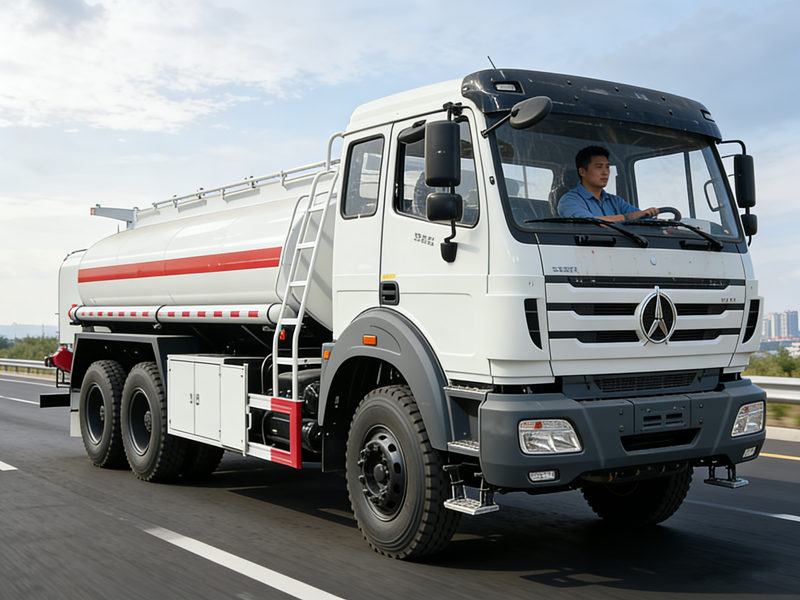

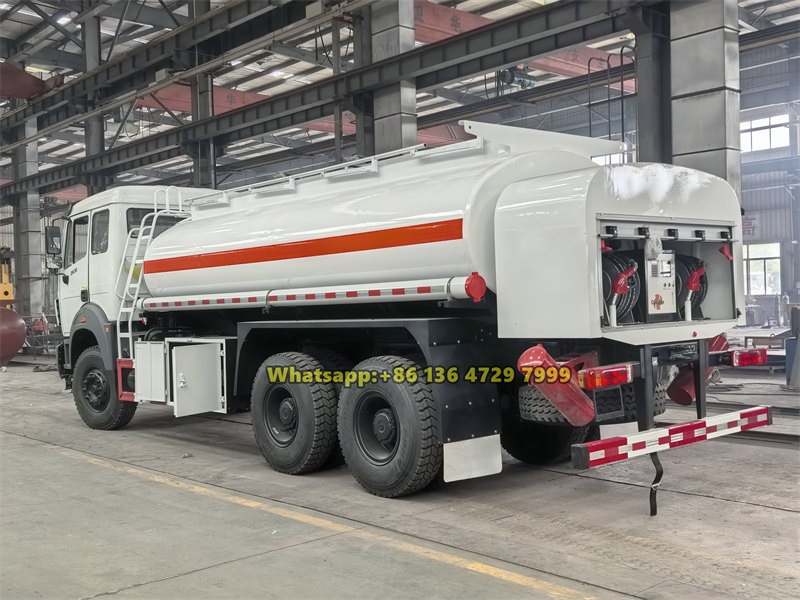

The Beiben 12,000-liter refueling truck is a heavy-duty fuel transport and dispensing vehicle built on Beiben 6×4 chassis. Its core configuration includes a 380-horsepower Weichai engine and a 12-speed manual transmission, paired with a 12-cubic-meter dual-compartment carbon steel fuel tank. A standout feature of the vehicle is the integration of two CS20D digital-controlled fuel dispensers, enabling precise and efficient refueling operations with a flow rate of up to 80 liters per minute, combining reliable transportation with on-site rapid distribution capabilities.
Working Capcity:
12000 litersCabin Type:
NG80B long cabin, with sleeperDimension ( mm ) :
8450×2550×3200Drive System:
6×4Wheelbase (mm):
4450+1450Engine Power:
380HP/WP10.380E32Gear Box:
12JS160TRemark:
2 compartments, 2 fuel dispensers, stainless steel, aluminum alloy tanker is optionalThe Beiben 12,000-liter refueling truck is a professional fuel transport and dispensing vehicle built on the Beiben heavy-duty 6×4 chassis. It is equipped with a Weichai WP10.380E32 diesel engine, delivering 380 horsepower, and paired with a Fast 12-speed transmission. The vehicle is thoughtfully designed to meet the demands of efficient transport and operational tasks. Its core tank is constructed from 5mm carbon steel, with a capacity of 12,000 liters divided into two compartments, allowing for the safe transportation of various fuels such as gasoline and diesel.

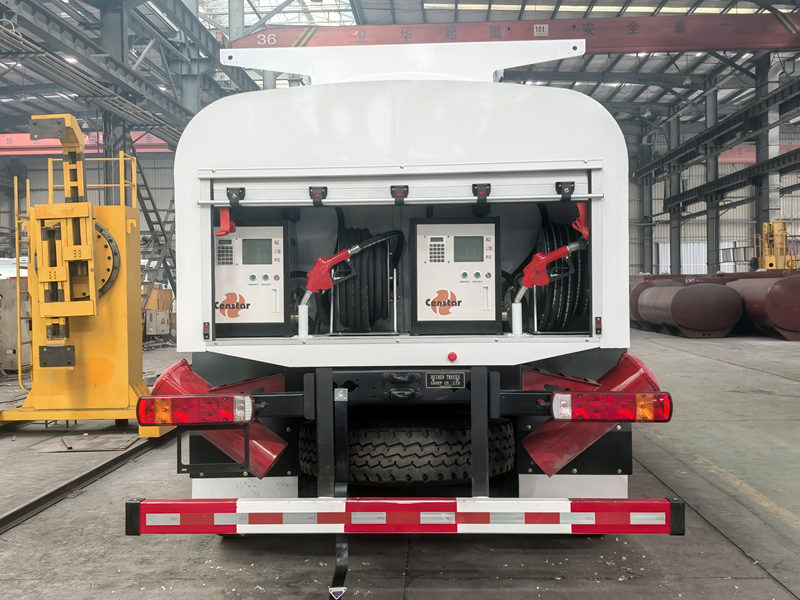

A key advantage of this Beiben fuel dispenser truck lies in its advanced dispensing system. It features two Censtar CS20D digital-controlled fuel dispensers, enabling synchronized dual-nozzle, accurately metered, and rapid refueling operations, with each dispenser achieving a flow rate of up to 80 liters per minute. Combined with a high-flow fuel pump and a 20-meter retractable refueling hose reel, this oil truck not only performs long-distance transportation but also functions as a mobile refueling station, providing efficient and convenient fuel distribution services in various remote or fixed locations.

CEEC factory is authorized supplier on beiben tanker trucks,
guarantee all beiben fuel tanker trucks Brand-New and High-Quality.
» Ⅰ.Product Introduction:
Manufacturer: CEEC TRUCKS
▶ Chassis: Beiben 6×4 chassis, NG80B long cabin, Weichai 380HP diesel engine, Fast 12-speed gearbox
▶ Tank body: 120000 liters capacity, 2 compartments, carbon steel with 5mm thickness
▶ Fuel pump: China top brand, 60m3/h flow rate, 970 rpm speed
▶ Fuel dispenser: 2 units, Censtar CS20D digital-controoled dispenser, 80L/min flow rate
▶ Hose reel: 20 meters hose with 1'' diameter

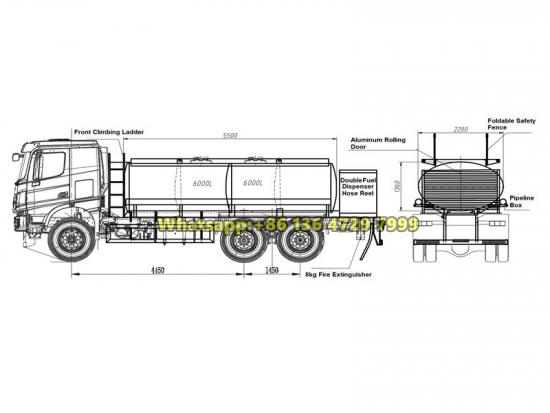

» Ⅱ. Product Specifications:
|
Product name |
Beiben fuel tanker truck |
||
|
Main details |
Chassis Brand |
Beiben |
|
|
Drive type |
6×4, left hand drive |
||
|
Wheelbase |
4450+1450 mm |
||
|
Overall dimensions |
8450x2550x3150 mm |
||
|
Gross vehicle weight |
26000 kg |
||
|
Curb weight |
10800 kg |
||
|
Max. driving speed |
80 km/h |
||
|
Clutch |
Reinforced diaphragm clutch |
||
|
Brake |
Air brakes |
||
|
Steering |
Power steering, hydraulic steering with power assistance |
||
|
Tire |
Quantity |
10 pcs with one spare tire |
|
|
Specifications |
12.00R20 tire |
||
|
Transmission |
Manual type, FAST 12JS160T, 12 Forwards and 2 reverse |
||
|
Cab |
Beiben NG80B long cabin with sleeper, with Air conditioner. |
||
|
Engine |
Brand |
WEICHAI |
|
|
Model |
WP10.380E32 |
||
|
Fuel type |
Diesel |
||
|
Power |
380 HP (280KW) |
||
|
Displacement |
9.726 L |
||
|
Type |
4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling |
||
|
Emission standard |
Euro 3 |
||
|
Rated speed |
2200 rpm |
||
|
Max. torque |
1600 N.m |
||
|
Fuel tank |
Capacity |
12000 liters |
|
|
Tank material |
Carbon steel |
||
|
Thickness |
5mm |
||
|
Compartment |
2 |
||
|
Transport medium |
Gasoline, Fuel, Diesel |
||
|
Fuel pump |
Brand |
China famous brand |
|
|
Model |
80YHCB-60 |
||
|
Flow |
60 m3/h |
||
|
Speed |
970 rpm |
||
|
Pressure |
0.6 Mpa |
||
|
Fuel dispenser |
Brand |
Censtar |
|
|
Model |
CS20D 1110F |
||
|
QTY |
2 |
||
|
Flow rate |
80L/min |
||
|
Power supply |
DC12V/24V |
||
|
Hose reel |
Length: 20 meters; diameter: 1” |
||



» Ⅲ. Product Features:

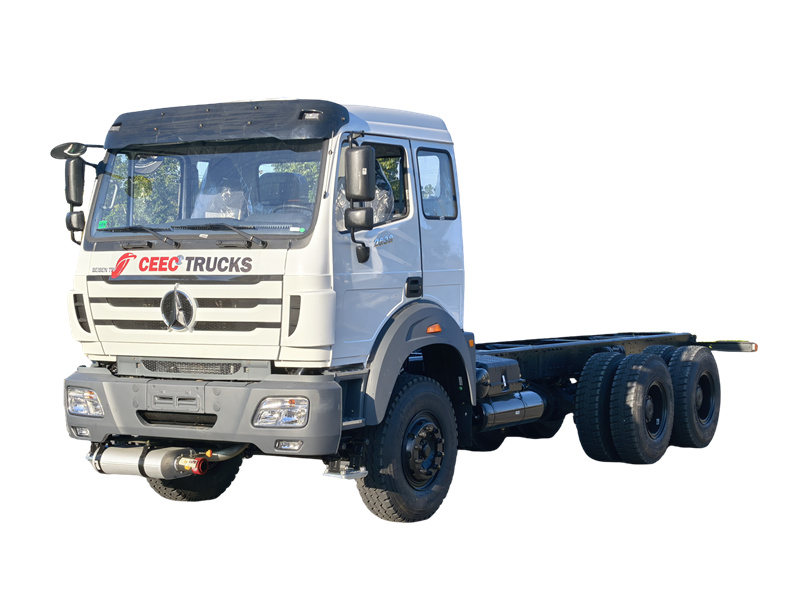

Beiben 2638 chassis
Engine: WP10.380E32, 380HP

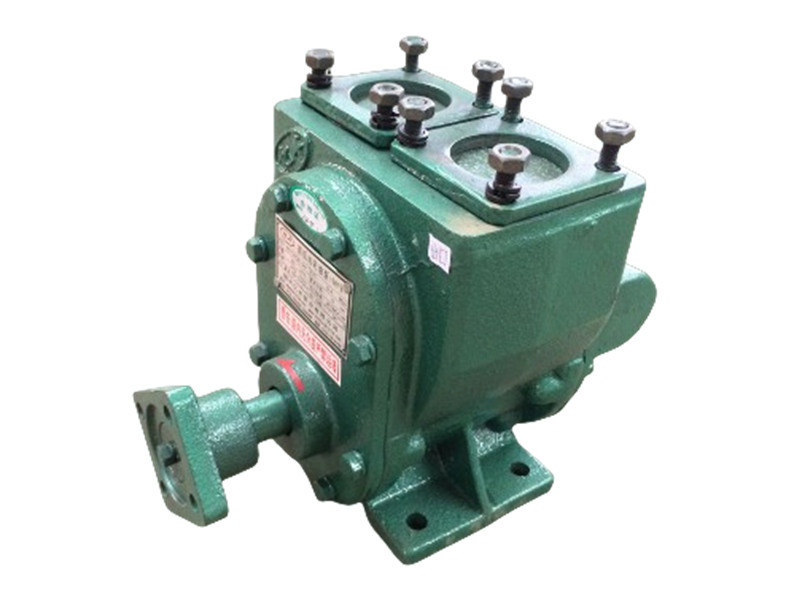

Feul Pump
Model: 80YHCB60

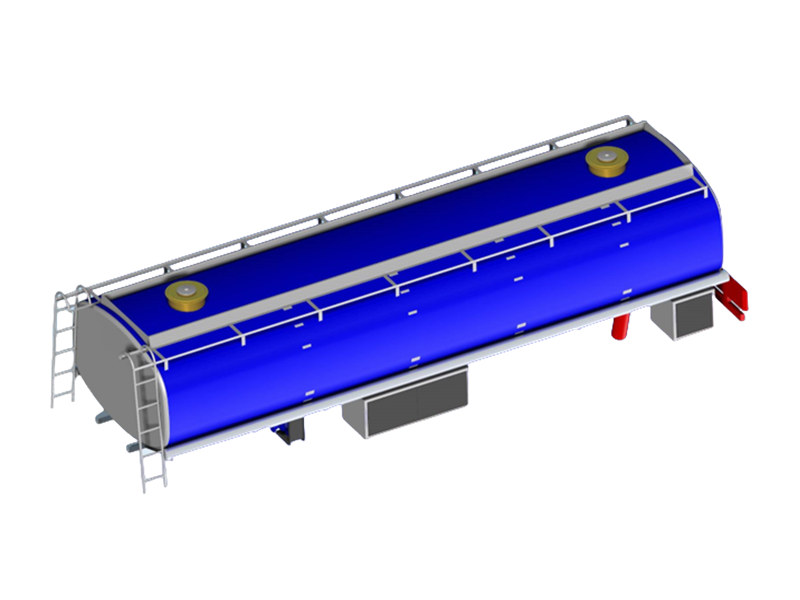

Tank body
Volume: 12000 liters
Material: Carbon steel
Thickness: 5mm
Compartment: 2

Manhole cover
Emergency Opening Pressure: 21 kPa ~ 32 kPa
Maximum Emergency Venting Flow Rate: 7000 m³/h (at 34 kPa)
Material: Aluminum Alloy
Installation Method: Clamp-type
Temperature Range: -20℃ ~ +70℃

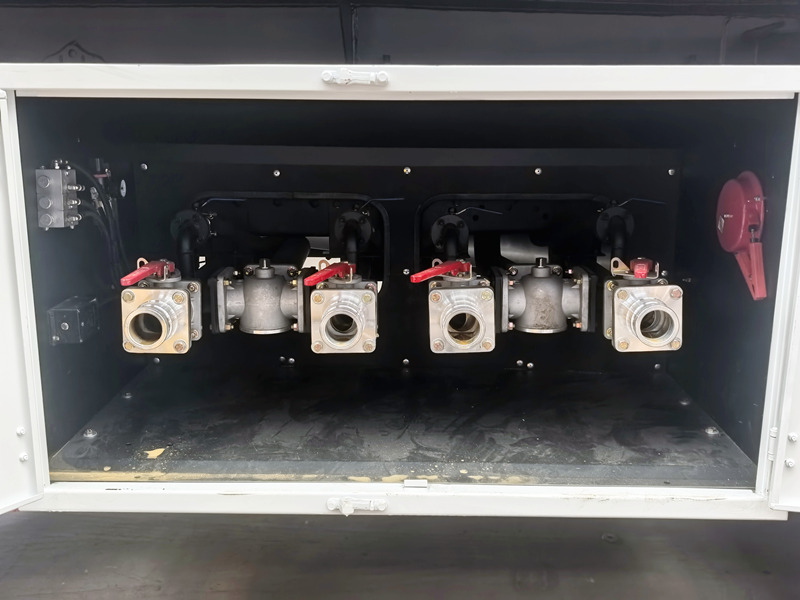

API adaptor valve
Nominal Pressure: 0.6 MPa
Maximum Flow Rate: 2500 L/min
Main Body Material: Aluminum Alloy
Operation Mode: Manual
Design Temperature: -20℃ ~ +70℃

Emergency shutt-off valve
Nominal Pressure: 0.6 MPa
Material: Aluminum Alloy
Operation Mode: Pneumatic
Temperature Range: -20℃ ~ +70℃

Overflow prevention probe
Operating Voltage: 12 VDC
Explosion-Proof Rating: Exia IIB T4
Response Time: < 1 s
Design Temperature: -40 ℃ ~ +60 ℃
Operating Current: < 5 mA
Operating Medium: Light fuel oil

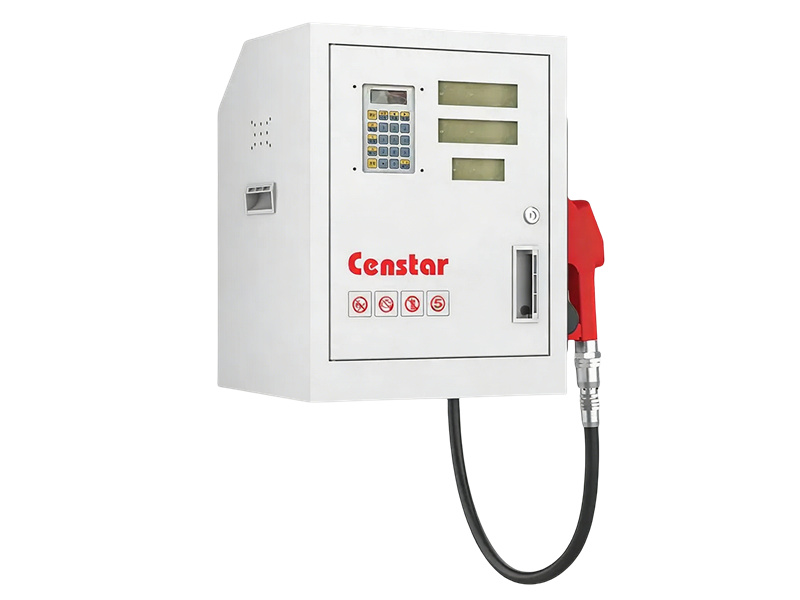

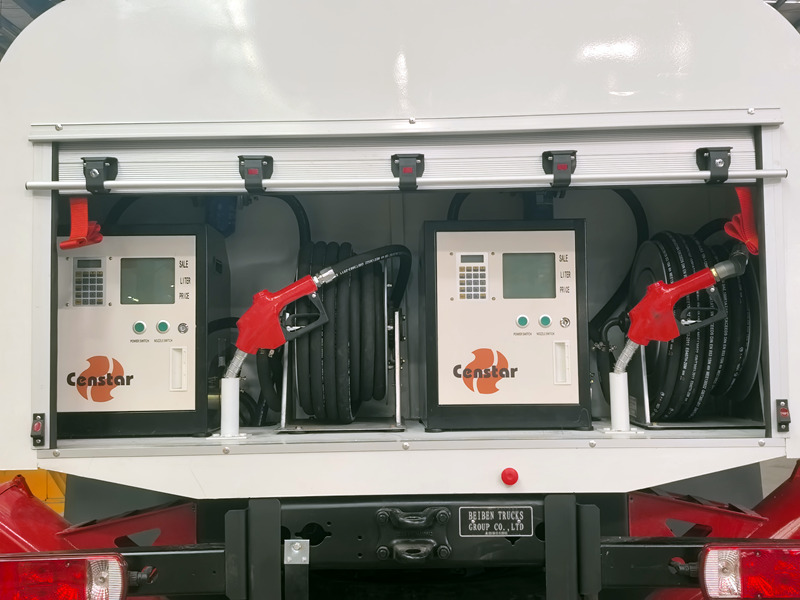

Fuel dispenser
Flow Rate: 80 litres/min
Metering System: Digital flow meter with accuracy ±0.25%
Power Supply: 150 microns
Hose Reel: 20 meters hose with auto rewind hose reel
Working Temperature: -40ºC to+55ºC
» Ⅳ. Product Details:
» Ⅴ. Tanker Production Line:

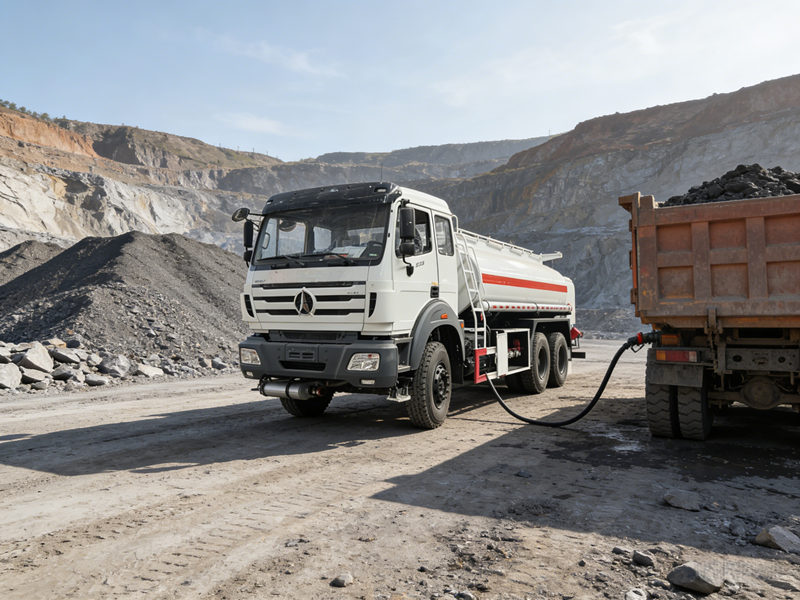

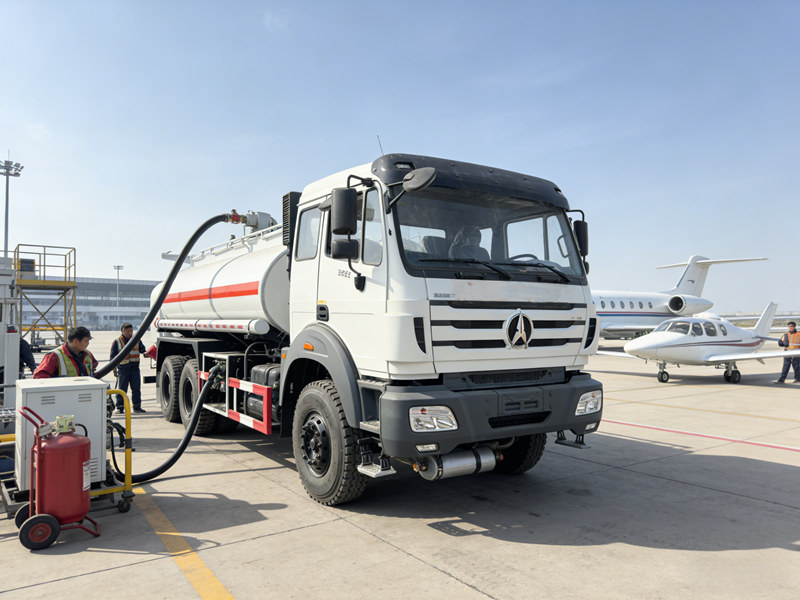

» Ⅶ. Product Applications:
Products--100% china beiben factory trucks!
Shipping --100% fast, Convenience, Efficient!
1.Beiben 4x2, 4x4, 6x4, 6x6, 8x4, 8x8 drive fuel tanker trucks for option
2. Factory direct sale, supply Beiben 10000 liters~30000 liters capacity oil tanker trucks
3.Tanker body can be divided into multiple compartments for transporting different media..
4. Carbon steel, stainless steel, aluminum alloy material is optional.
