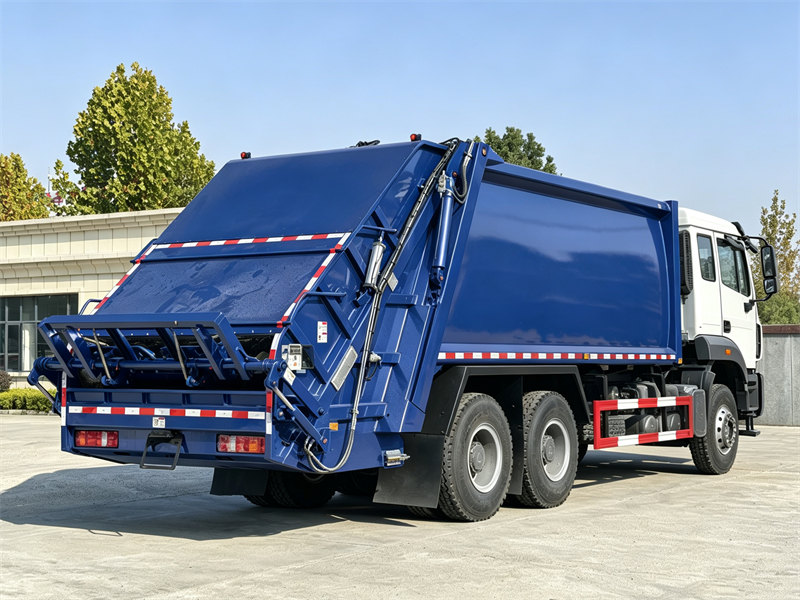

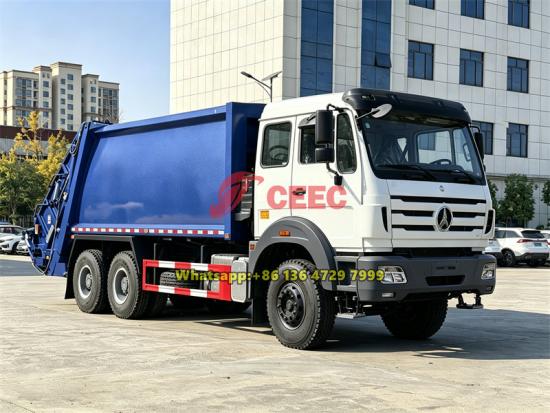

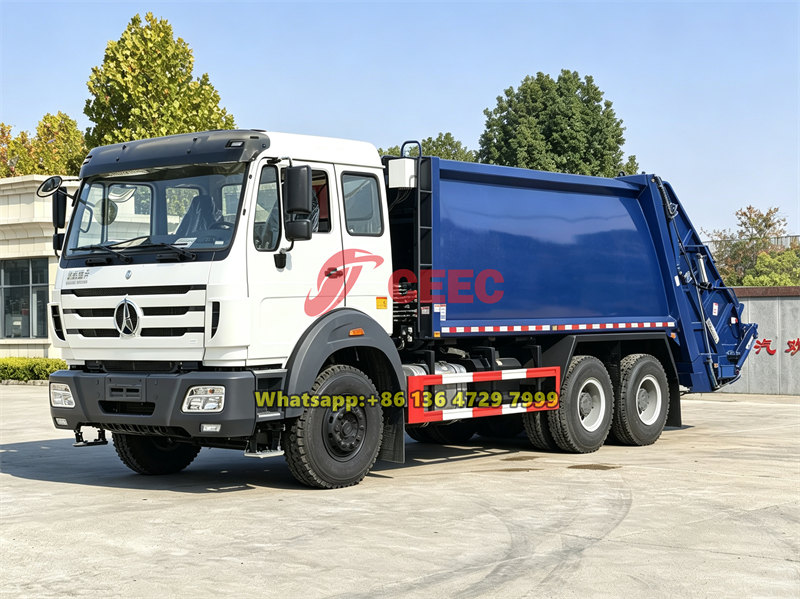

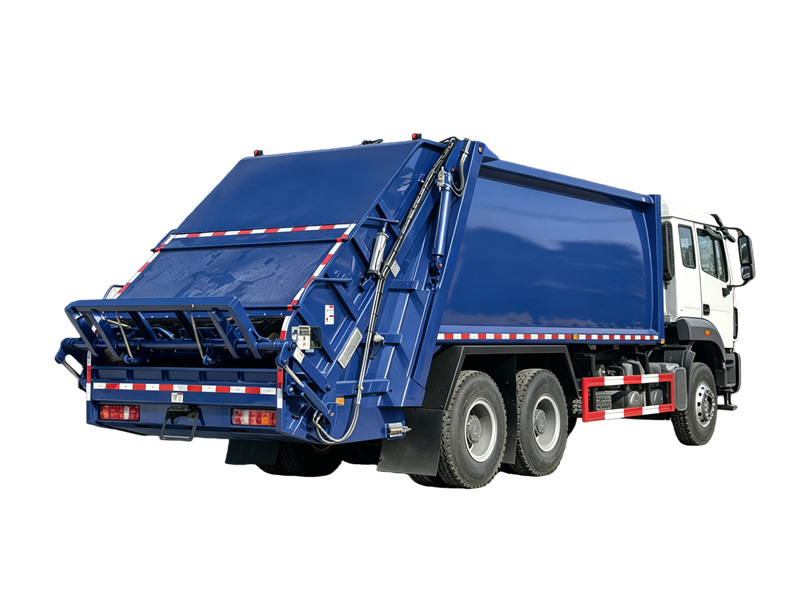

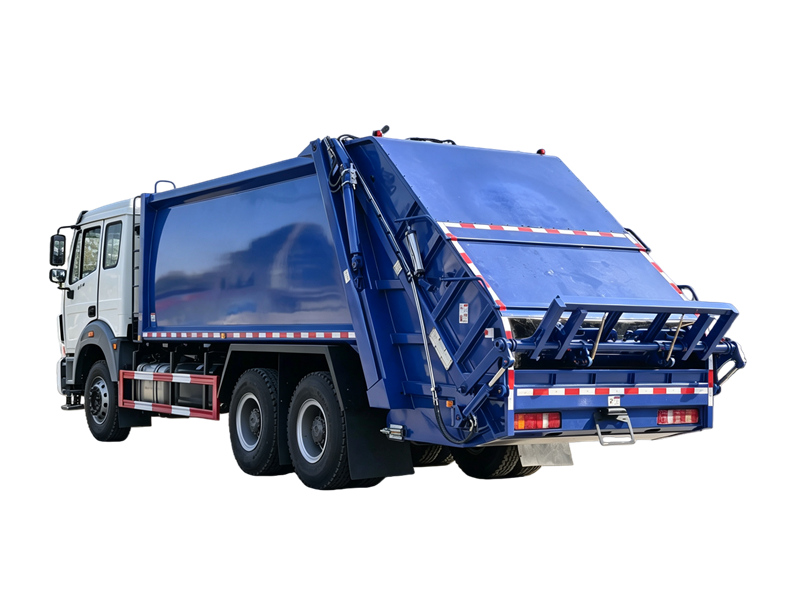

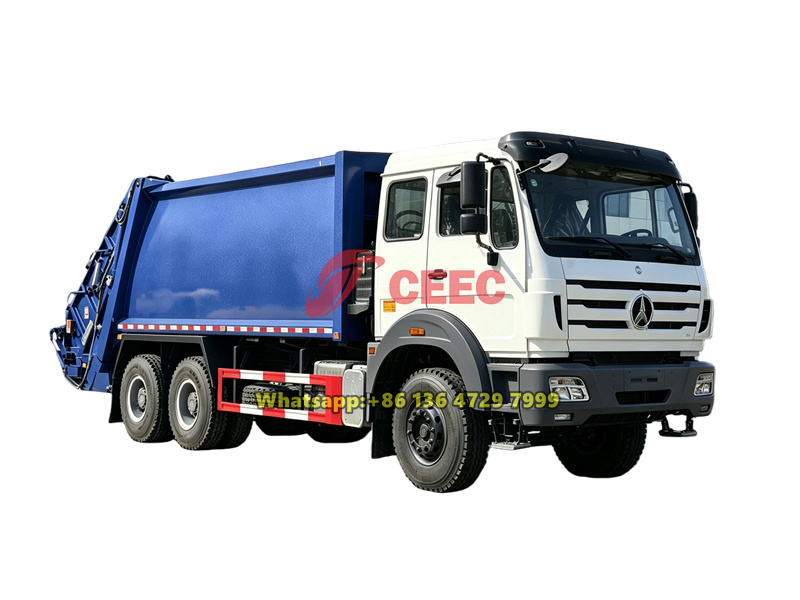

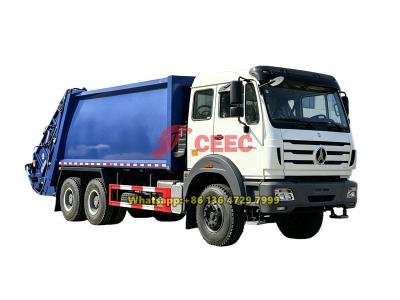

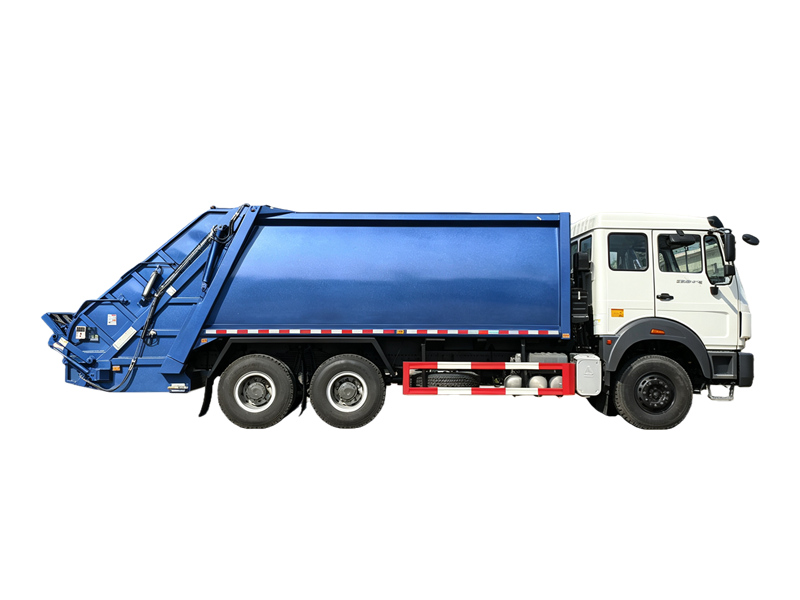

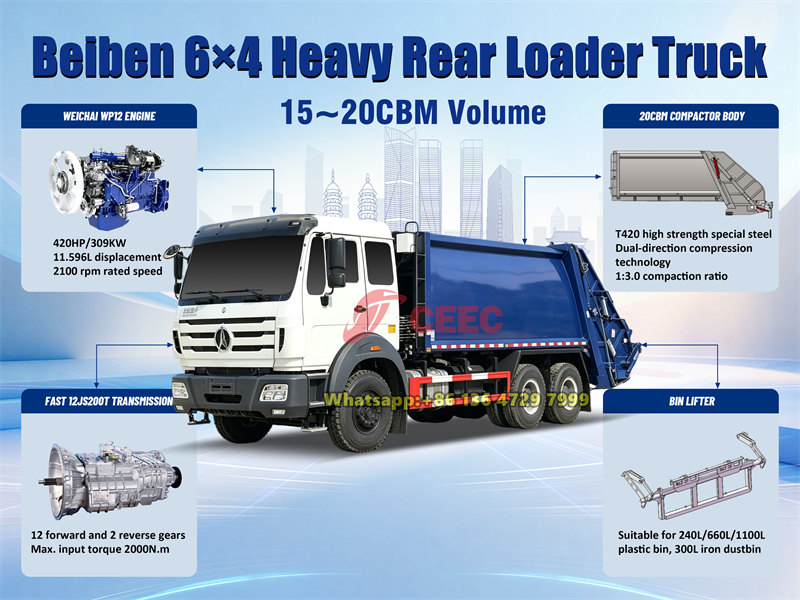

Beiben 20CBM Waste Compactor Truck is a rear-loading waste transfer equipment developed by CEEC TRUCKS on the Beiben 6×4 heavy-duty chassis. Powered by the WP12.420E32 engine paired with a FAST 12-speed transmission, the body is made of T420 high-strength steel with a body volume of 20 CBM and a compression ratio of 1:3, capable of loading up to 12 tons of municipal solid waste. compaction efficiency with low operating costs, it is widely suitable for the collection and transfer of urban and rural domestic waste.
Working Capcity:
20CBMCabin Type:
NG80B long cabin, 2 seats and one sleeperDimension ( mm ) :
10500×2550×3500Drive System:
6×4, LHDWheelbase (mm):
4450+1450Engine Power:
420HP/WP12.420E32Gear Box:
12JS200TTyres:
12.00R20, 10+1 pcsRemark:
15~20CBM volume for option⇓Product Introduction⇓
⇓Product Specification⇓
|
Beiben 2642 20CBM waste compactor truck |
||
|
Basic parameter |
Chassis type |
Beiben 2642, 6×4 |
|
Overall dimension (mm) |
10500×2550×3500 |
|
|
Wheel-base(mm) |
4450+1450 |
|
|
Curb weight(kg) |
14500 |
|
|
Engine parameter |

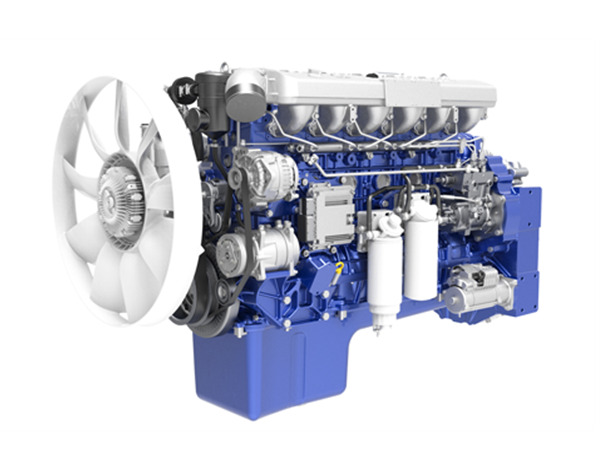

Model (six cylinder in line) |
WP12.420E32 |
|
Max. Power (HP/KW) |
420HP/309KW |
|
|
Rated Speed (rpm) |
2100 |
|
|
Max. Torque(Nm/rpm) |
1750/1200～1500 |
|
|
Displacement(lit) |
11.596 L |
|
|
Fuel tank capacity |
400L Iron fuel tank |
|
|
Transmission system |
Clutch |
430 Single disc, dry type, friction clutch； |
|

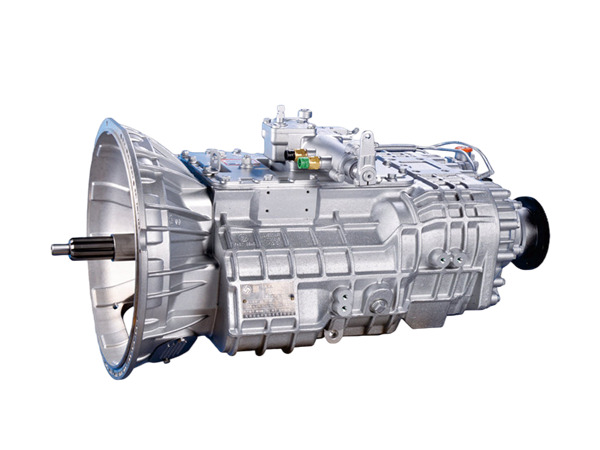

Gearbox |
FAST, Mechanical, 12JS200T |
|
|
Steering system |
Steering gear |
8098 Circulating ball steering gear, hydraulic booster |
|
Brake system |
Service brake |
Double circulation air brake system equipped； |
|
Parking brake |
Energy storage spring brake； |
|
|
Assisted brake |
Engine exhaust brake； |
|
|
Chassis parameter |
Frame |
Variable width and section 317×70×8.5+7+8.5 mm； |
|
Front axle |
7.5 T, non-driving steering axle, drum brake； |
|
|
Middle & Rear axle |
13T, Double-shoe pneumatic brake, single reduction driving axle, differential lock, speed ratio is 5.263 |
|
|
Front and rear suspension |
Front/rear: Leaf spring, 10/13 pieces； |
|
|
Tire |
12.00R20 |
|
|
Cab |
NG80 Long Cabin/ Flat roof/Left drive Exterior trimming: Metal bumper, three steps, outer sun visor, sun roof (Manual), front under-ride bumper, rear view mirror (Manual). |
|
|
Interior trimming: Air suspension seat, Single bunk with sleeper, cooling and heating air conditioner, Steering wheel can be adjusted, door lock(Manual), radio (with MP3), digital instrument |
||
|
Upper body |
Compactor body volume |
20CBM |
|
Compactor body material |
T420 high-strength steel |
|
|
Compression ratio |
1:3 |
|
|

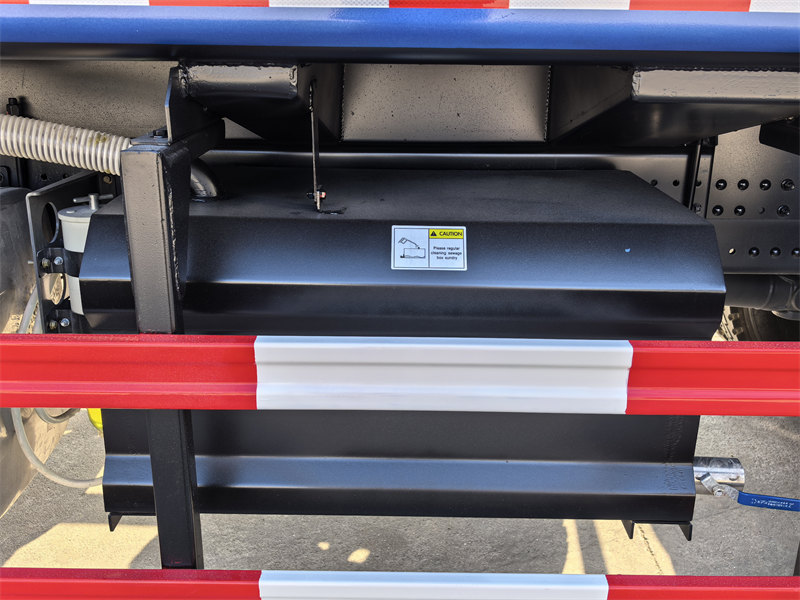

Waste water tank capacity |
≥850L |
|
|
Tailgate volume |
≥1.8 m³ |
|
|
Loading single cycle time |
≤25 S |
|
|
Tailgate lifting time |
≤15 S |
|
|
Unloading cycle time |
≤110 S |
|
|
Hydraulic system pressure |
≥18 Mpa |
|
|

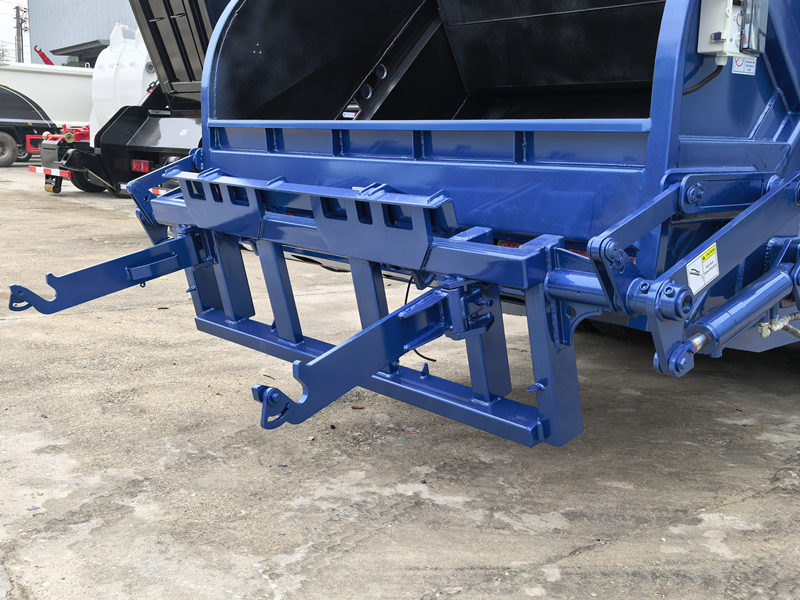

Bin lifter |
Suitable for 240L/660L/1100/L bins |
|
|
Control system |
CAN-bus, automatic and manual operation |
|
⇓Beiben 20CBM Refuse Compactor Performance⇓

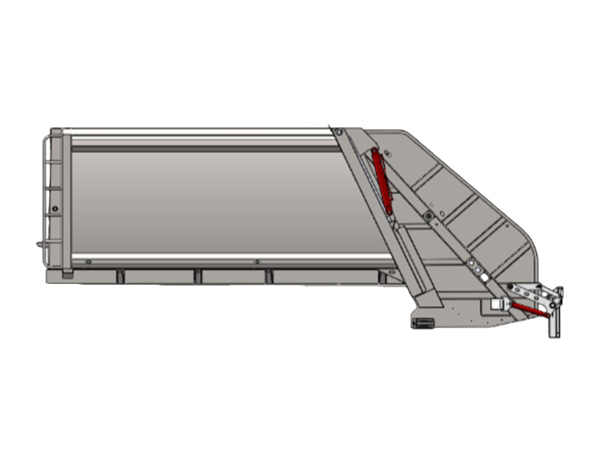

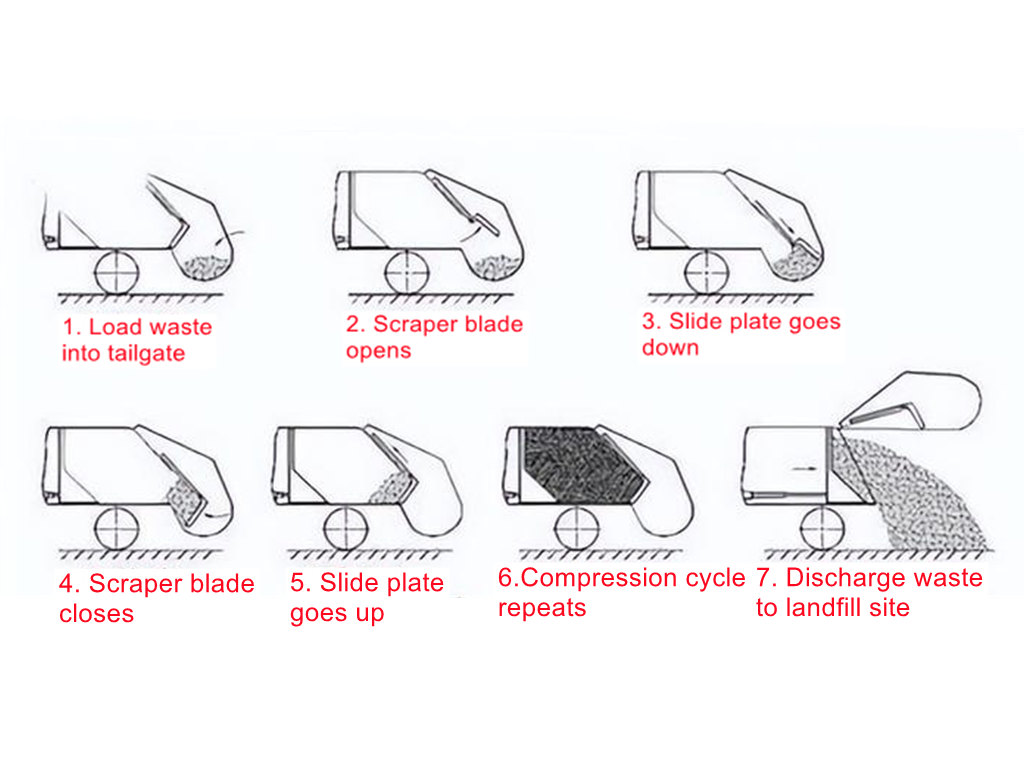

⇓Beiben Trash Compactor Truck Working Principle⇓
⇓Beiben Truck Mounted Garbage Compactor Advantages⇓
• Employs bi-directional compression technology, offering a high waste compaction ratio and strong loading capacity.
• Large tailgate hopper volume and high-efficiency loading and packing operations, with a loading cycle time of less than 10 seconds.
• Adopts the most advanced "CAN bus + dedicated controller" architecture, featuring a high degree of automation, excellent reliability, low failure rate, and long service life.
• Key components in contact with waste—such as the compactor body, push blade, and tailgate—are manufactured from high-strength wear-resistant steel, providing outstanding structural integrity, rigidity, and abrasion resistance.
• Equipped with high-quality pneumatically controlled multi-way valve; key electrical system components are imported, ensuring high operational reliability of the garbage truck.

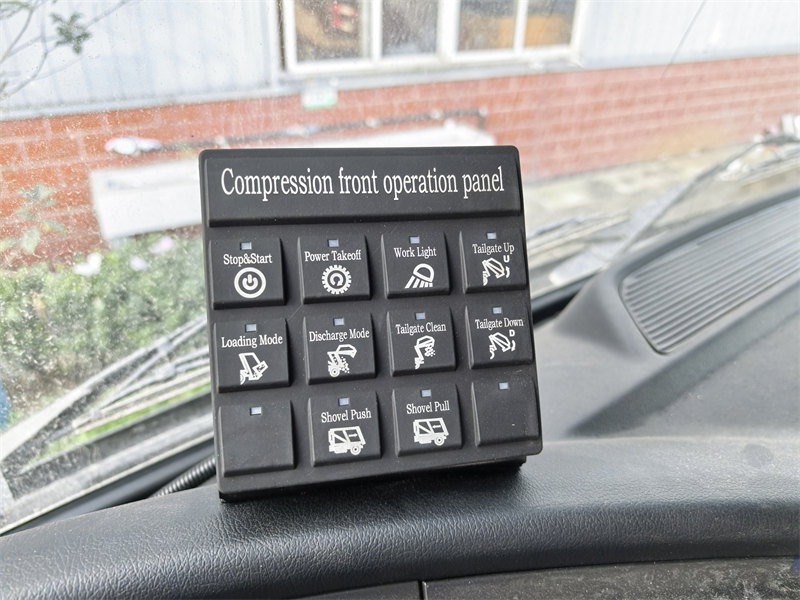

• Control panels are installed both in the cab and at the rear of the vehicle: the in-cab panel controls pushing/discharging and mode switching, while the rear panel controls packing and the bin-lifting mechanism. This design ensures convenient operation—particularly at landfill sites, where the driver can complete unloading without leaving the cab.

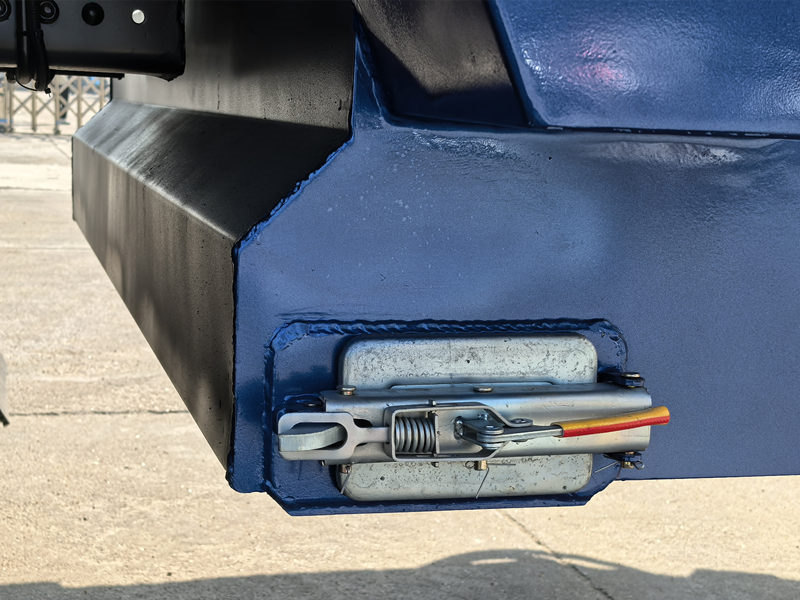

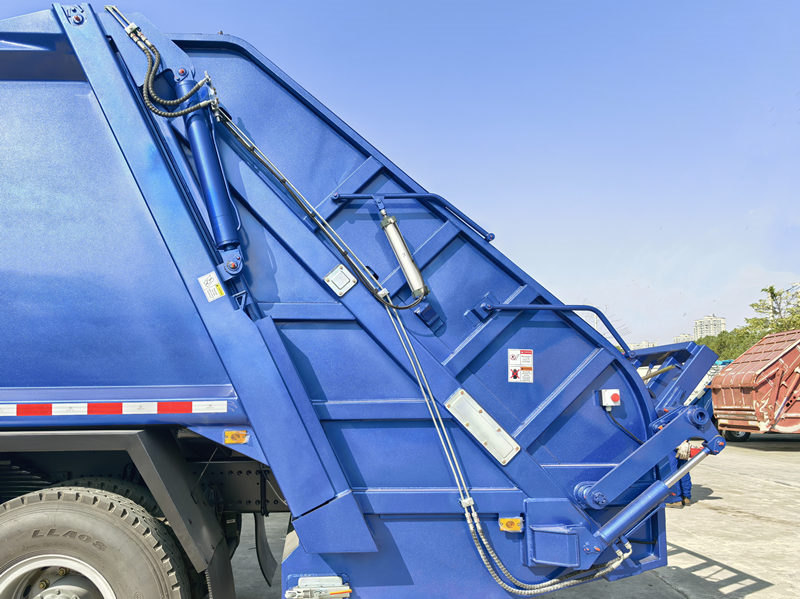

⇓Beiben 20CBM Rear Loader Truck Details⇓
⇓Beiben 20 Cubic Rubbish Compactor Truck Display⇓
 |
 |
 |
 |
