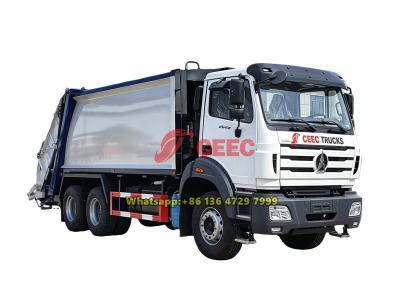

Beiben 20 cubic garbage compactor truck is a professional sanitation equipment specifically designed for efficient collection and transportation of urban and rural household waste. Built on the Beiben 6×4 heavy-duty chassis, this truck integrates garbage loading, compaction, transport, and unloading functions, and is widely used for waste collection in municipal sanitation, residential communities, industrial parks, and other locations.
Market Price:
$61700Working Capcity:
20CBMCabin Type:
Beiben NG80B cabinDimension ( mm ) :
10700×2550×3600Drive System:
6×4Wheelbase (mm):
4450+1450Engine Power:
420HP/WP12.420E32Gear Box:
12JS200TTyres:
12.00R20, 10 pcsRemark:
4×2, 8×4, RHD drive is optionalBeiben 20 cubic garbage compactor truck is a highly efficient sanitation vehicle designed for the collection and transport of urban and rural household waste, integrating garbage loading, compaction, transport, and unloading functions. Based on the Beiben 2642 heavy-duty chassis, it is equipped with a Weichai 420 hp engine and a Fast 12-speed transmission. The body is made of T420 high-strength special steel, with 5 mm thick side plates and 6 mm thick bottom plates, achieving a compaction ratio of up to 3:1 and outstanding loading capacity.
The Beiben waste compactor truck features dual-direction compaction technology and a CAN bus electro-hydraulic combined control system. The loading cycle time is less than 10 seconds, the tailgate lifting and lowering can be completed within 15 seconds, and the unloading cycle is controlled within 110 seconds. The bin lifter is compatible with 660 L, 1100 L garbage bins and two 240 L bins. The hydraulic lifting circuit is equipped with bidirectional balance valves, ensuring safe and efficient operation. It is suitable for municipal sanitation, residential community waste collection, and similar applications.
CEEC factory is authorized supplier on Beiben refuse compactor trucks,
guarantee all Beiben rear loader trucks Brand-New and High-Quality.
» Ⅰ.Product Defination and Introduction:
Manufacturer: CEEC TRUCKS
▶ Chassis: Beiben 2642 heavy-duty chassis, classic NG80 short cabin
▶ Engine: Weichai WP12.420E32 diesel engine, 420HP, 6-cylinder, Euro 3
▶ Transmission: FAST 12JS200T, 12-speed forwards and 2-speed reverse
▶ Compactor body: 20CBM capacitry, made of T420 high-strength special steel
▶ Compression ratio: 1:3
» Ⅱ. Product Specifications:
|
Vehicle Description |
||
|
Overall dimensions |
10700*2550*3600mm |
|
|
GVW |
26000kg |
|
|
Curb weight |
15800kg |
|
|
Capacity for body |
20CBM |
|
|
Chassis brand |
Beiben (North Benz) |
|
|
Traction type |
6*4, left hand drive |
|
|
Chassis Description |
||
|
Chassis model |
Beiben 2642 |
|
|
Cab |
NG80 Short Cabin, Air suspension seat, 2 seats, cooling and heating air conditioner, Steering wheel can be adjusted, door lock (Manual), radio (with MP3), digital instrument |
|
|
Wheelbase |
4450+1450 mm |
|
|
Tire specification |
12.00R20 |
|
|
Tire quantity |
10+1 units |
|
|
Engine |
Engine model |
WEICHAI, WP12.420E32 |
|
Emission level |
Euro 3, Diesel |
|
|
Displacement/output |
(11596ml/209KW /1750N.m) |
|
|
Horse power |
420HP |
|
|
Gear box |
Type |
FAST, manual |
|
Number of gears |
12 forward gears& 2 reverse |
|
|
Brake system |
Service brake |
Double circulation air brake system equipped； |
|
Parking brake |
Energy storage spring brake； |
|
|
Assisted brake |
Engine exhaust brake； |
|
|
Axle |
Front |
7.5 T, non-driving steering axle, drum brake； |
|
Middle & Rear |
13T, Double-shoe pneumatic brake, single reduction driving axle, differential lock, speed ratio is 5.263 |
|
|
Fuel tanker |
Type |
Iron tank |
|
Capacity |
400L |
|
|
Superstructure description |
||
|
Compactor capacity |
20CBM |
|
|
Compactor box material |
T420 high-strength special steel |
|
|
Thickness |
Sidewalls: 5mm; Floor: 6mm |
|
|

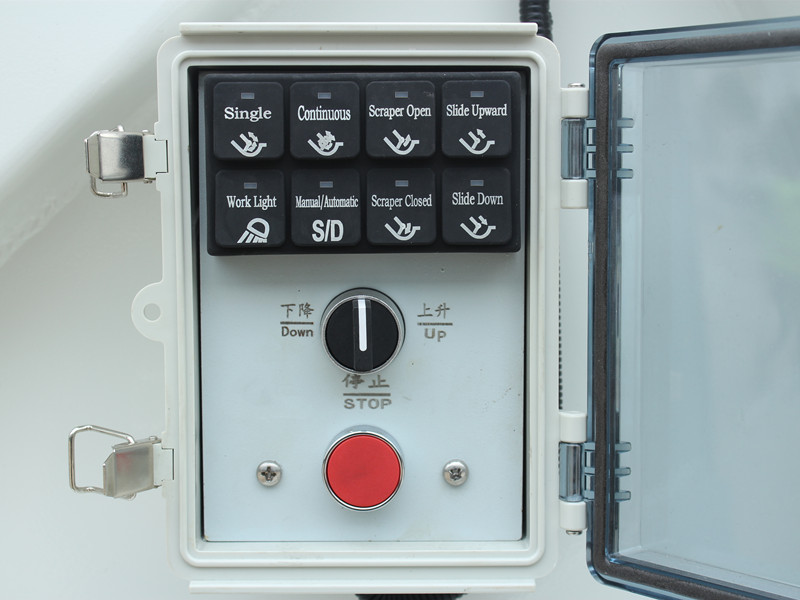

Control system |
CAN-bus control + Hydraulic control |
|
|
Compaction ratio |
3:1 |
|
|
Hopper capacity |
2 CBM |
|
|

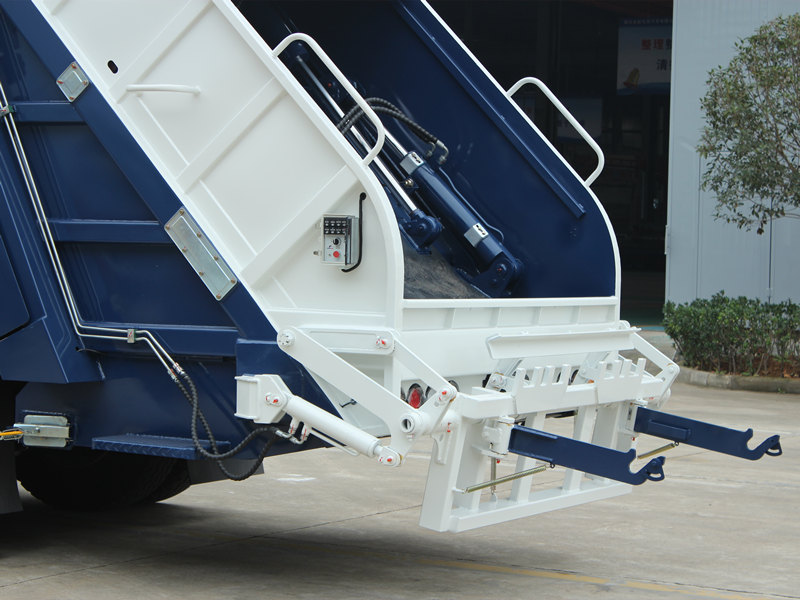

Bin lifter |
Hydraulic lifting device for 660L, 1100L bin and 2 240L bins |
|
|
Loading cycle time |
≤25 S |
|
|
Tailgate lifting time |
≤15 S |
|
|
Unloading cycle time |
≤110 S |
|
|
Bin lifter cycle time |
≤10 S |
|
» Ⅲ. Product Fuctions&Advantages:
1. Adopts dual-direction compaction technology, providing high waste compaction ratio and strong loading capacity.
2. Large tailgate volume and high loading and compacting efficiency; loading cycle time is less than 10 seconds.
3. Strong corrosion resistance and rigidity; main components such as the compactor body, push plate, and tailgate are made of T420 high-strength wear-resistant steel, offering excellent structural integrity, rigidity, and wear resistance.
4. Advanced hydraulic lifting safety circuit; lifting cylinder is equipped with bidirectional balance valves for high safety.
5. Uses advanced "CAN bus + dedicated controller" mode, featuring high automation, low failure rate, and long service life.

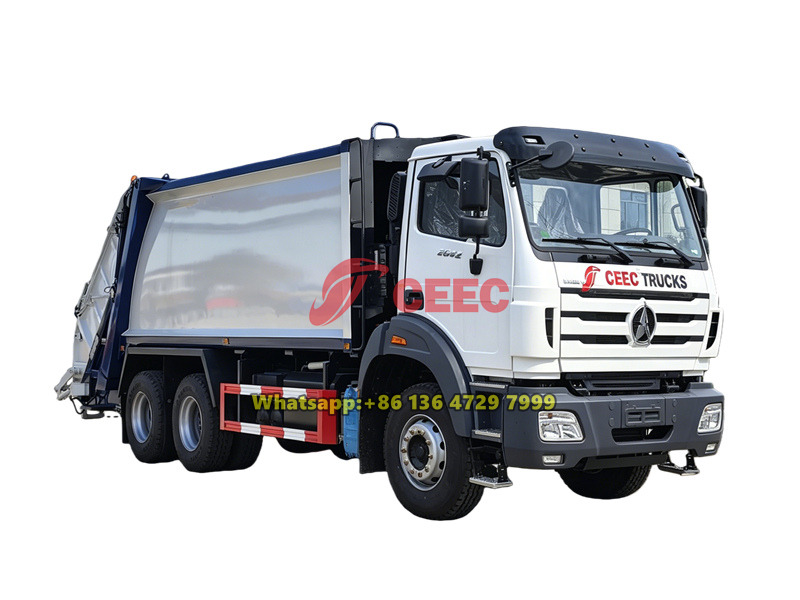

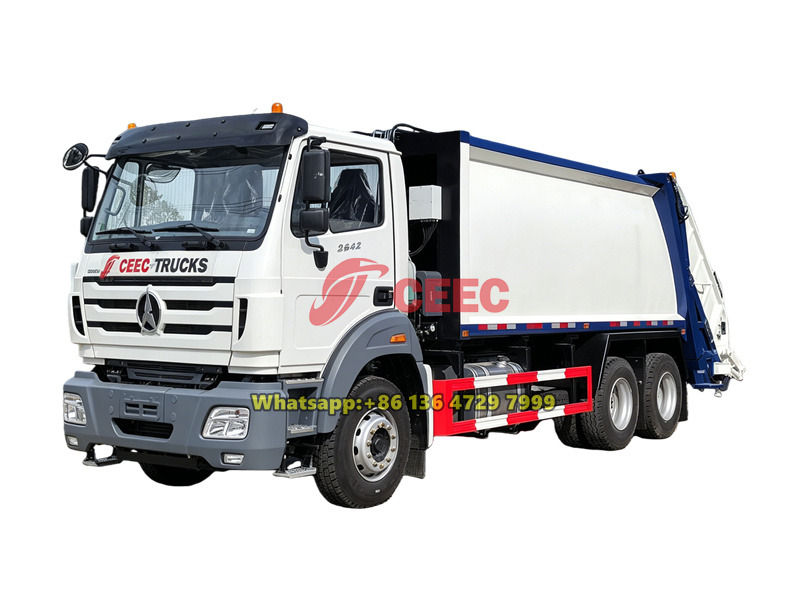

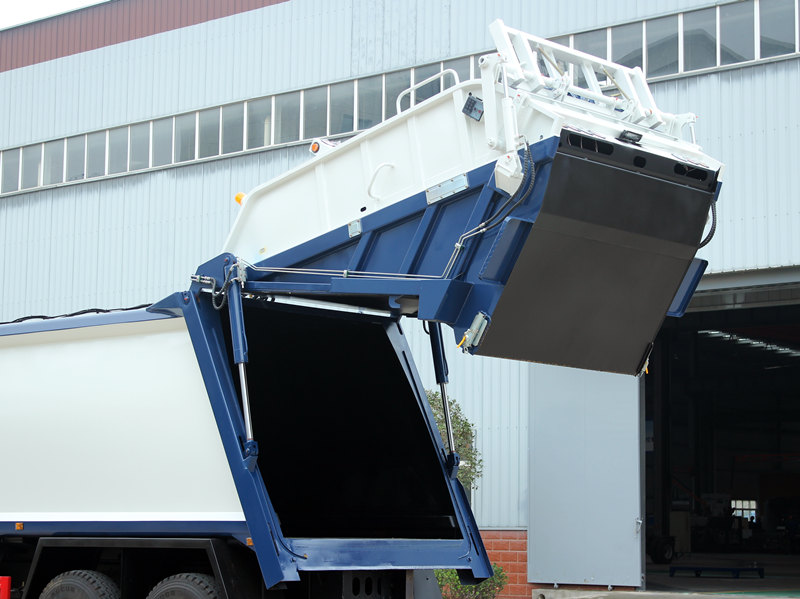

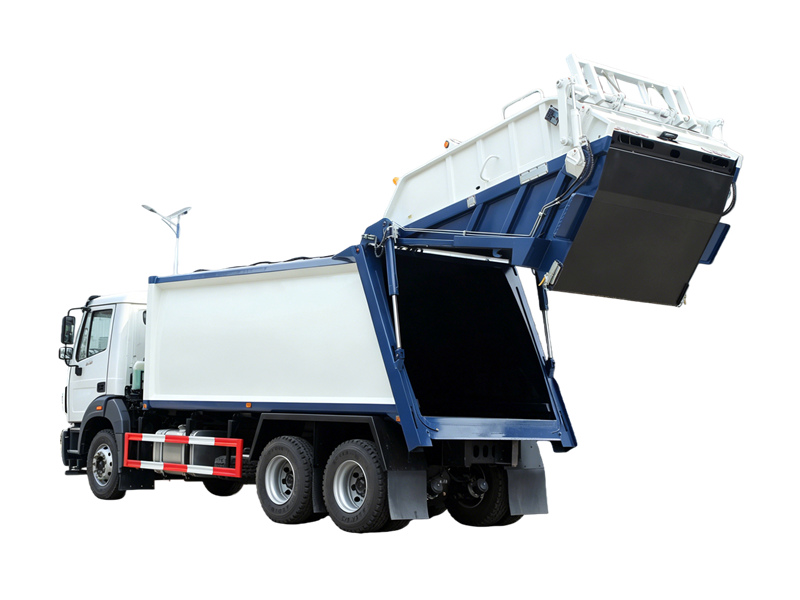

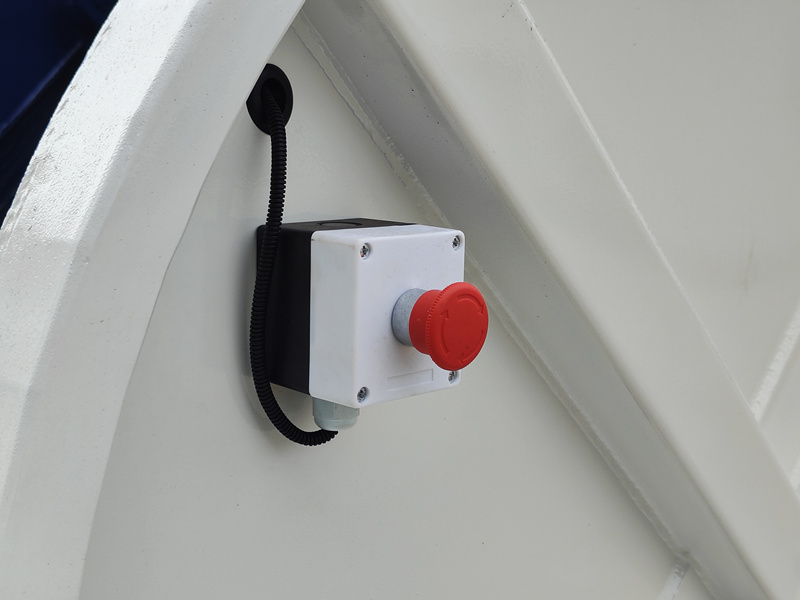

» Ⅳ. Product Details:

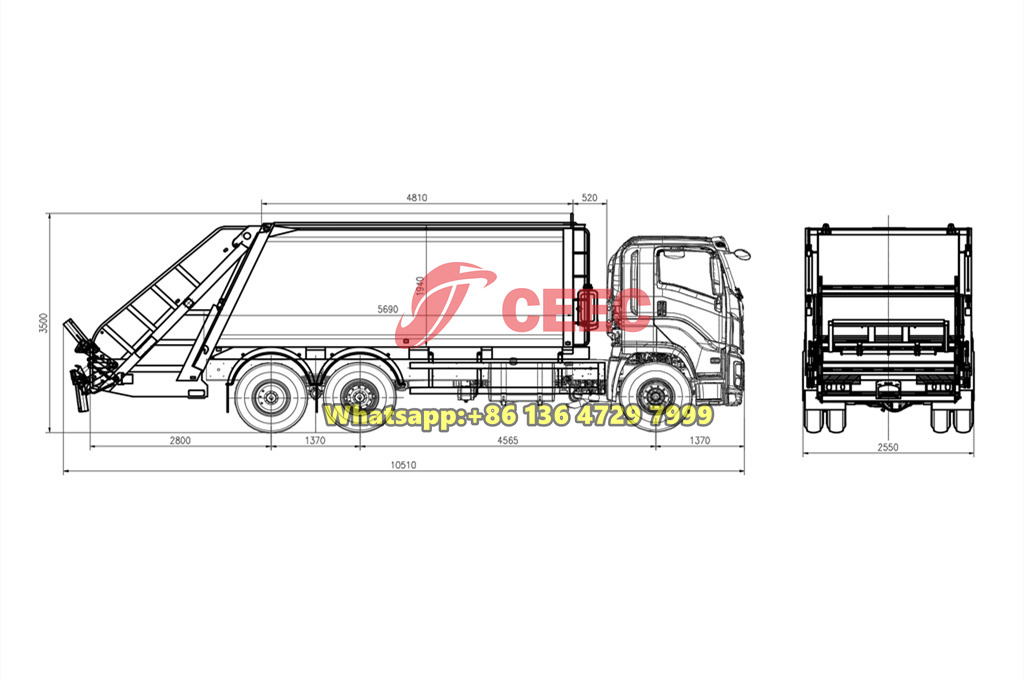

» Ⅴ. Product Drawing:

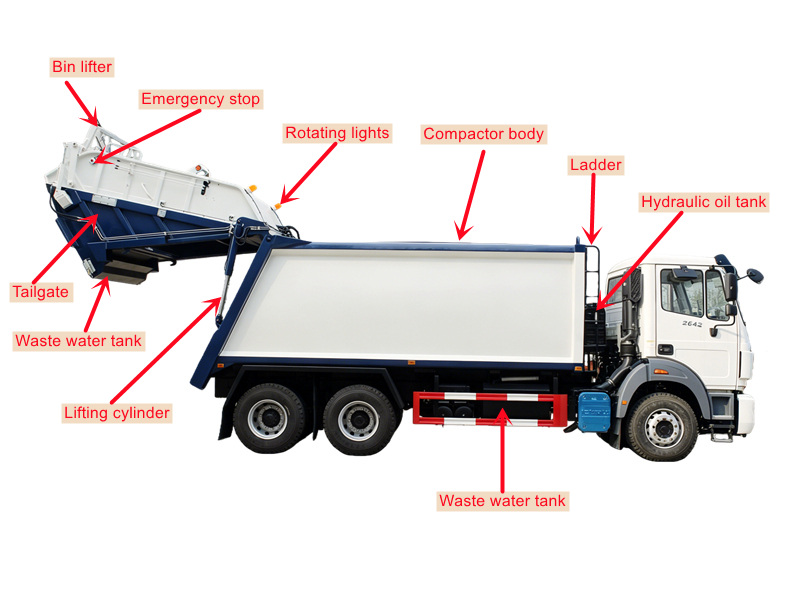

» Ⅵ. Main Components of Beiben Rear Loader:
Products--100% china beiben factory trucks!
Shipping --100% fast, Convenience, Efficient!
1.Beiben 4x2, 6x4, 8x4 drive garbage compactor truck, all upon on your need !
2. Factory bottom price, save your china vist cost
3.12 months after sale service guarantee, quality assurance.
4. Customized compactor volume, from 10~30CBM.
