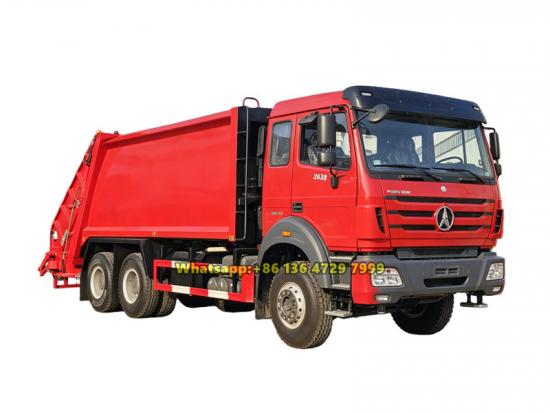

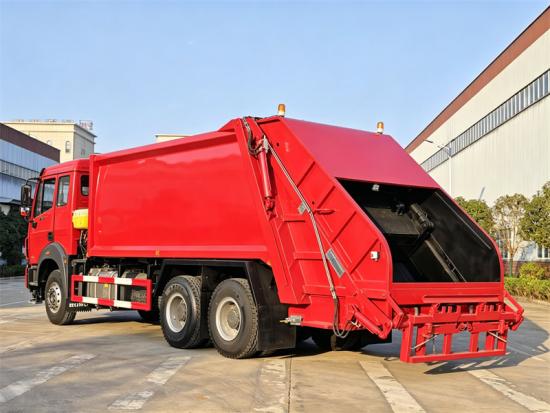

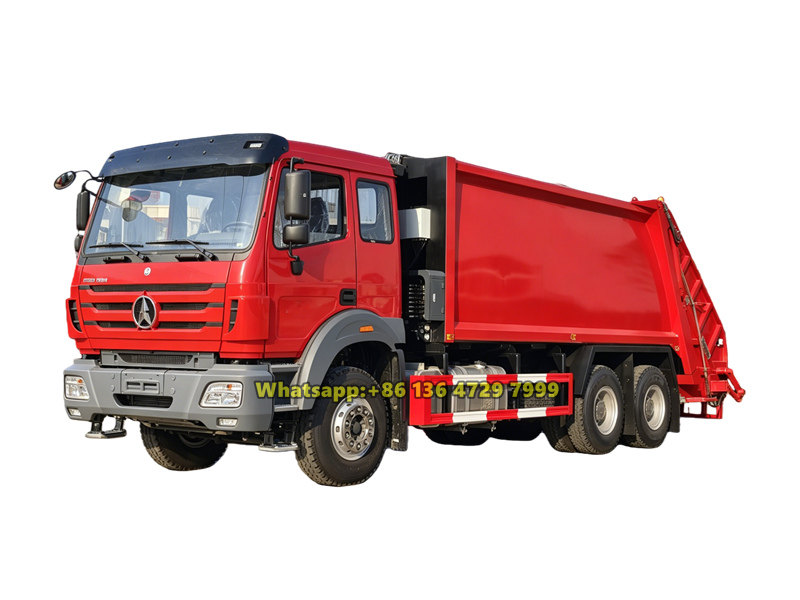

The Beiben 20CBM garbage compactor truck is built on a Beiben 6×4 chassis and powered by a Weichai 380hp engine. The compactor body has a volume of 20 m³ and a compression ratio of up to 1:3. It is equipped with a CAN bus control system and a hydraulic bin lifting mechanism, compatible with standard garbage bins ranging from 240L to 1100L. The vehicle features excellent sealing and a built-in sewage collection device to prevent secondary pollution, making it suitable for municipal sanitation and community waste collection.
Market Price:
$61700Working Capcity:
20CBMCabin Type:
Beiben NG80B cabinDimension ( mm ) :
10600×2550×3450Drive System:
6×4Wheelbase (mm):
4450+1450Engine Power:
380HP/WP10.380E32Gear Box:
12JS200TTyres:
12.00R20, 10 pcsRemark:
4×2, 8×4, RHD drive is optionalThe Beiben 20CBM rear load garbage truck is a large-scale municipal sanitation vehicle designed for efficient collection, compaction, and transfer of urban solid waste. It has a compactor body volume of 20 m³ and a compression ratio of up to 1:3. Its core function is to crush and compact waste using mechatronic and hydraulic integration technology, significantly improving single-trip transport efficiency while preventing secondary pollution. The Beiben garbage compactor truck consists of modules such as the Beiben chassis, compactor body, hydraulic system, control system, and unloading device. The rear is equipped with a hydraulic bin lifting mechanism, suitable for automatic loading of standard plastic bins (240L, 660L, 1100L). It is widely used in municipal sanitation, large residential communities, industrial parks, and similar scenarios for waste collection and transfer.
CEEC factory is authorized supplier on beiben refuse compactor trucks,
guarantee all beiben rear loader trucks Brand-New and High-Quality.
» Ⅰ.Product Defination and Introduction:
Manufacturer: CEEC TRUCKS
▶ Chassis: Beiben heavy-duty chassis, 6×4 left hand drive
▶ Engine: Weichai WP10.380E32 diesel engine, 380HP, 6-cylinder, Euro 3
▶ Transmission: FAST 12JS200T, 12-speed forwards and 2-speed reverse
▶ Tires: 12.00R20
▶ Compactor body: 20CBM volume, made of T420 high-strength special steel
» Ⅱ. Product Specifications:
|
Basic Specifications |
||
|
Product name |
Beiben 20CBM Garbage Compactor Truck |
|
|
Overall dimension (L x W x H) |
10600×2550×3450 mm |
|
|
GVW(Kg) |
26000 (Kg) |
|
|
Curb weight |
15400 (Kg) |
|
|
Axle load (F/R) |
7500kg/13000kg×2 |
|
|
Max driving speed |
89 km/h |
|
|
Chassis Specifications |
||
|
Cabin |
Beiben NG80B long cabin, 2 seats, one sleeper, air conditioner, steering wheel can be adjusted, door lock(Manual), radio (with MP3), digital instrument. |
|
|
Drive type |
6×4, left hand drive |
|
|
Wheelbase |
4450+1450 mm |
|
|
Front axle |
7.5 T, non-driving steering axle, drum brake； |
|
|
Middle & Rear axle |
13T, Double-shoe pneumatic brake, single reduction driving axle, differential lock, speed ratio is 5.263 |
|
|
Front and rear suspension |
Front/rear: Leaf spring, 10/13 pieces； |
|
|
Engine |
Model |
WEICHAI WP10.380E32 |
|
Maximum horsepower |
380 HP |
|
|
Maximum output power |
280 KW |
|
|
Displacement |
9726 ml |
|
|
Type |
Diesel, 6 cylinders in-line, inter-cooled turbocharged |
|
|
Emission standard |
Euro 3 |
|
|
Rated speed |
2200 rpm |
|
|
Maximum torque |
1600 N.m |
|
|
Fuel tank |
400 liters |
|
|
Gear box |
FAST, manual, 12 forwards and 2 reverse |
|
|
Tyres |
12.00R20, 10+1 pieces |
|
|
Upper body specification |
||
|
Compactor body |
Capacity |
20 cubic meters |
|
Materials |
6mm T420 special steel |
|
|
Compression ratio |
1:3 |
|
|
Bin lifter |
Hydraulic controlled, suitable for 240L, 660L, 1100L plastic bins |
|
|
Tailgate volume |
≥2 m³ |
|
|
Loading single cycle time |
≤25 S |
|
|
Tailgate lifting time |
≤15 S |
|
|
Unloading cycle time |
≤110 S |
|
|
Hydraulic system pressure |
20 Mpa |
|
|
Control system |

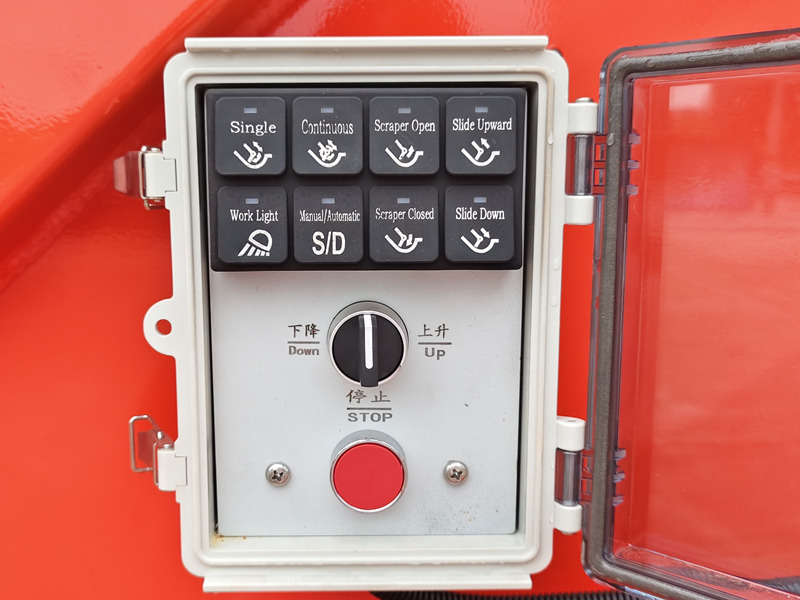

CAN-bus, automatic and manual operation |
|
» Ⅲ. Product Fuctions&Advantages:
• High-Efficiency Compaction & Loading: Through repeated compaction via the hydraulic system, the density of municipal solid waste can be increased from approximately 0.36 to over 0.9, greatly enhancing single-trip transport capacity.
• Eco-Friendly Sealed Design: The fully sealed welded body structure, together with two independent sewage collection tanks, fully captures leachate generated during compaction, effectively preventing leaks and odor emissions.

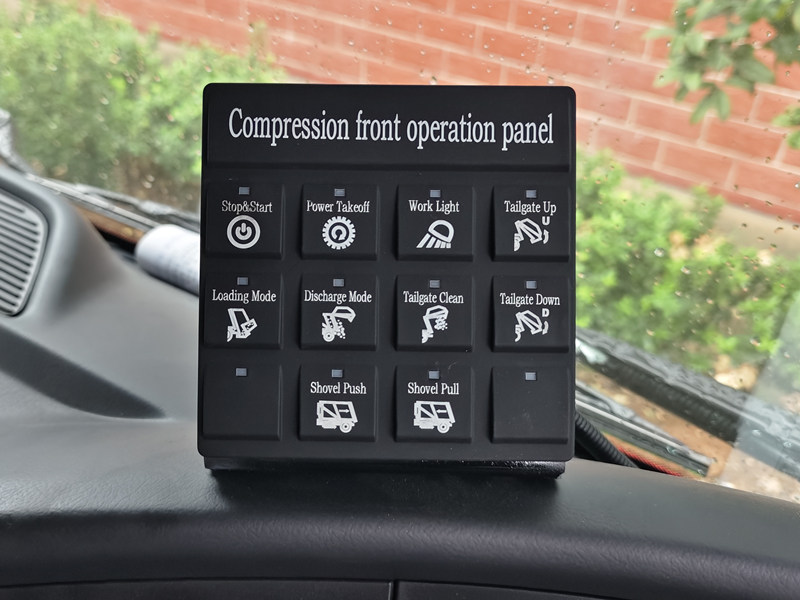

• Automated Operation: Equipped with a CAN-bus control system, the truck enables dual-position control (in-cab and at the rear), offering high automation, convenient operation, and enhanced safety.

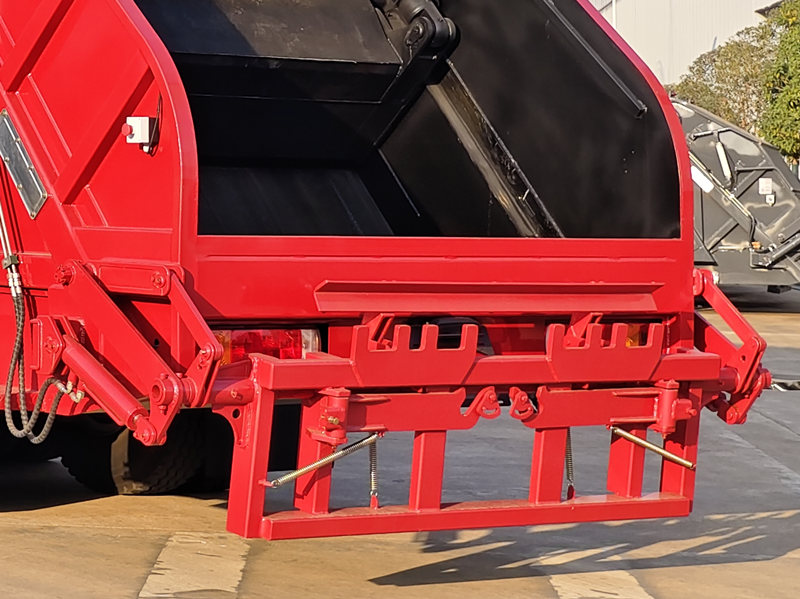

• Flexible Collection Method: The rear-mounted bin lifting mechanism accommodates standard bins of 240L, 660L, or 1100L, enabling quick loading of the garbage.

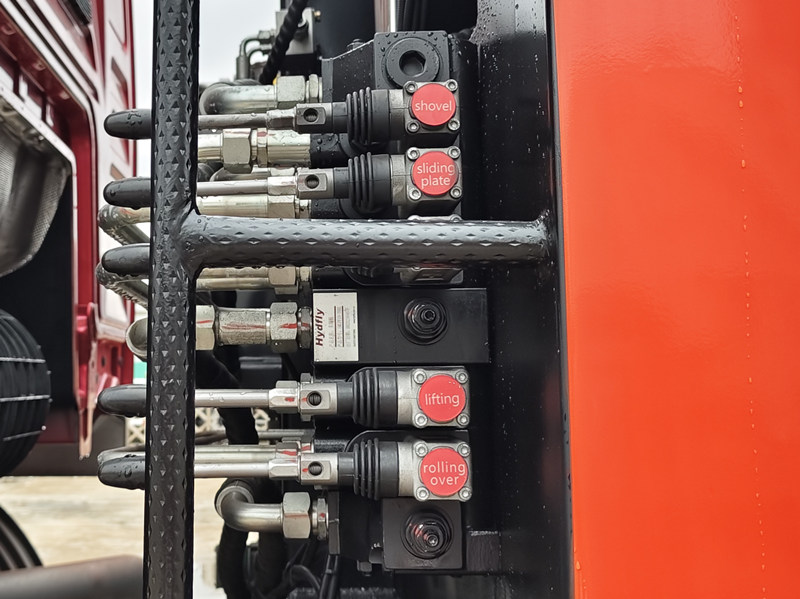

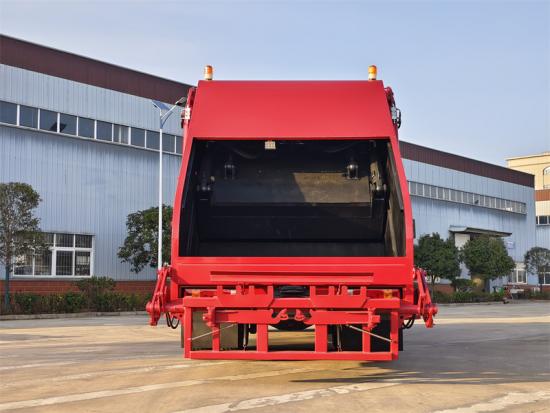

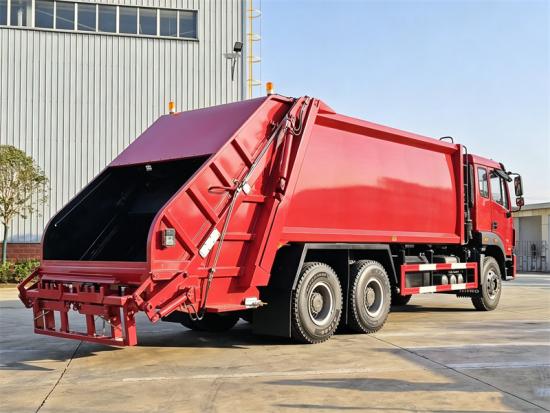

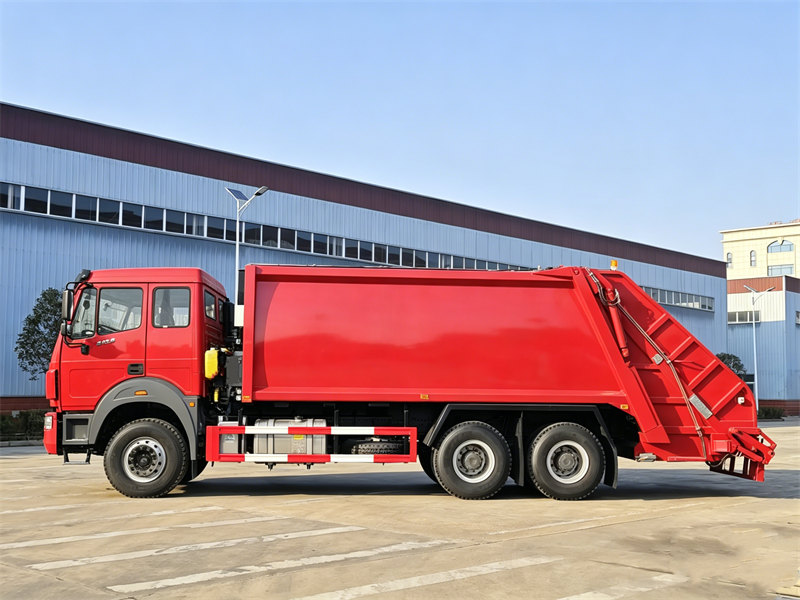

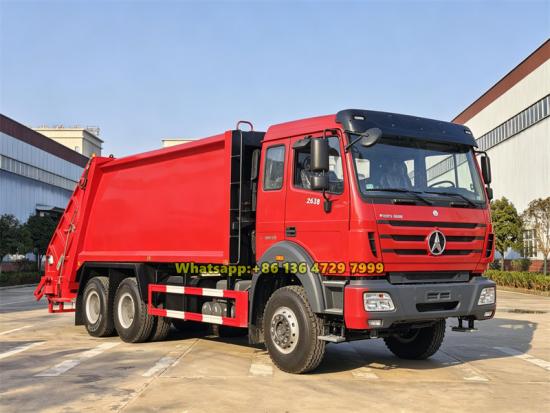

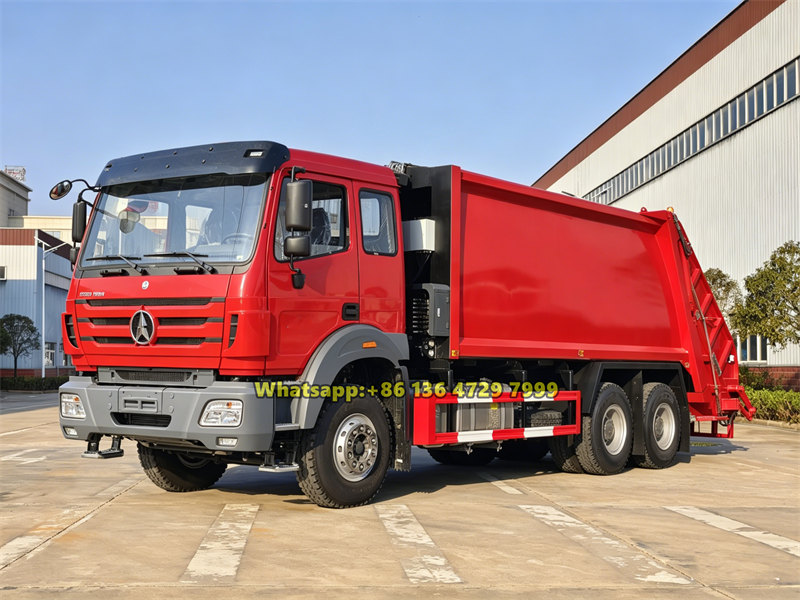

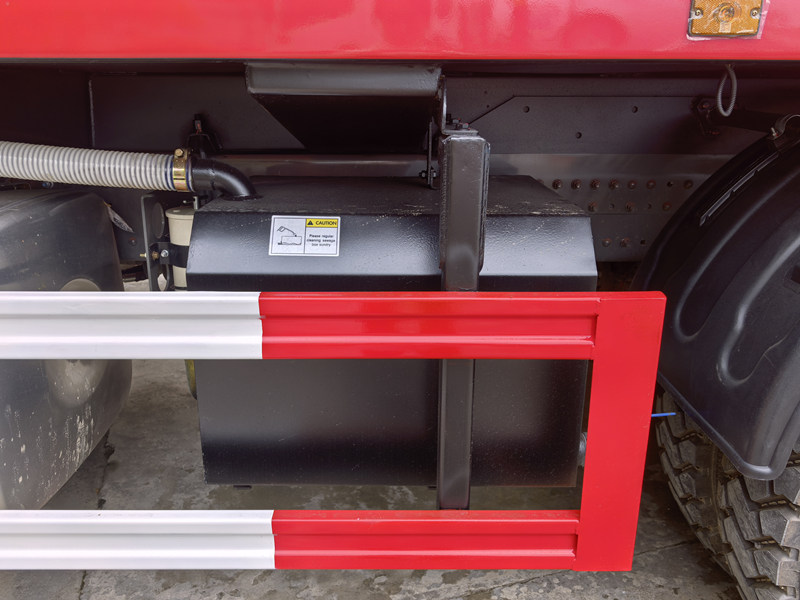

» Ⅳ. Product Details:

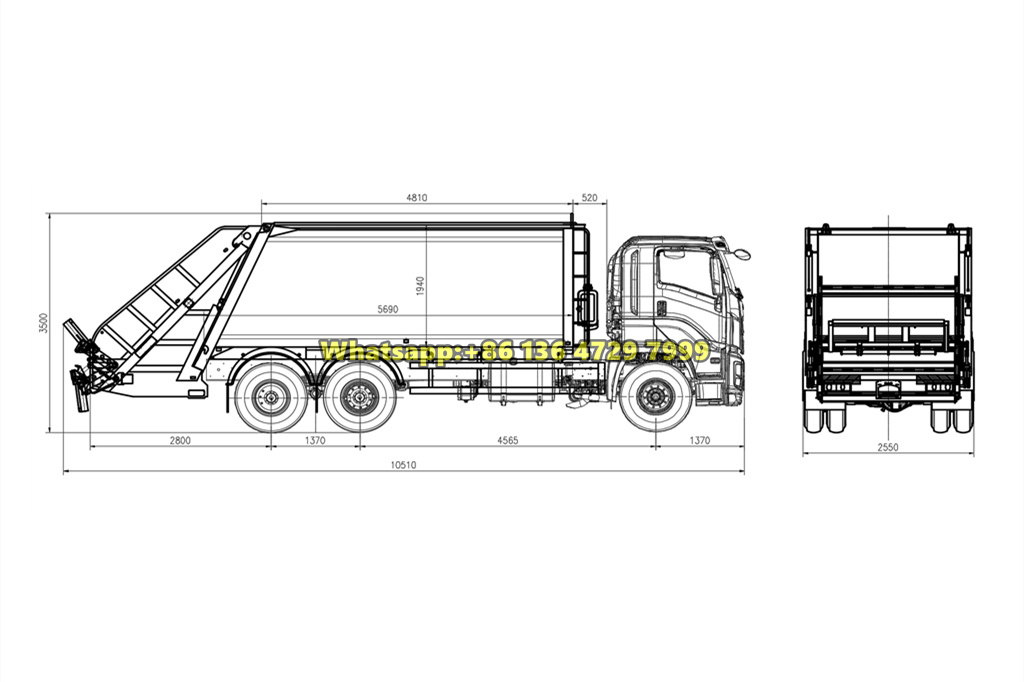

» Ⅴ. Product Drawing:

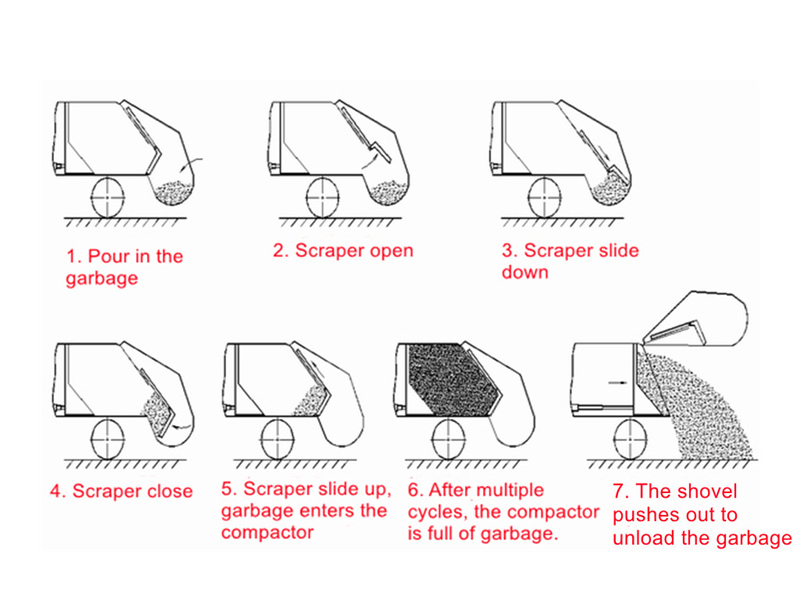

» Ⅵ. Product Workflow:
The compression system of the Beiben waste compactor truck uses hydraulic cylinders to drive a push shovel, enabling multi-stage compaction of waste. Its working process can be divided into three steps:
1. Loading: The vehicle uses the bin lifter to dump waste from garbage bins into the loading hopper.
2. Compaction: The hydraulic system drives the push shovel forward, gradually compressing the waste inside the body.

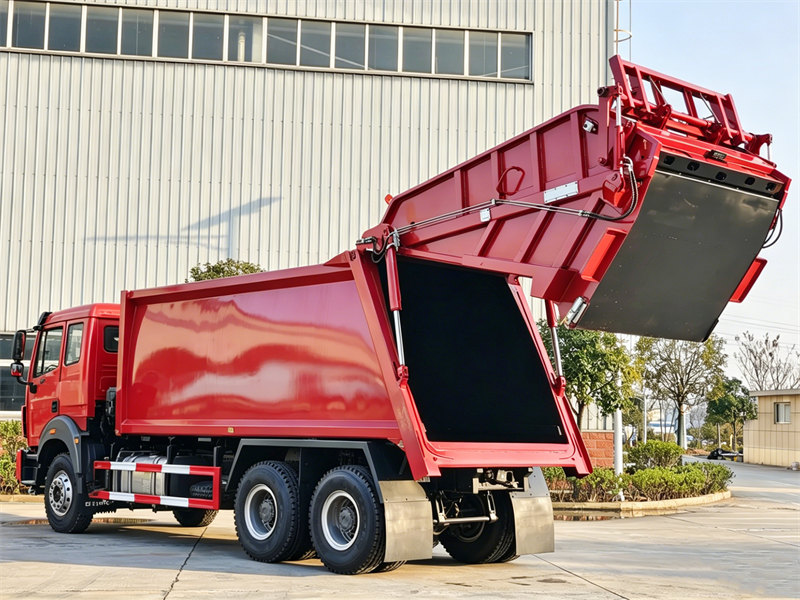

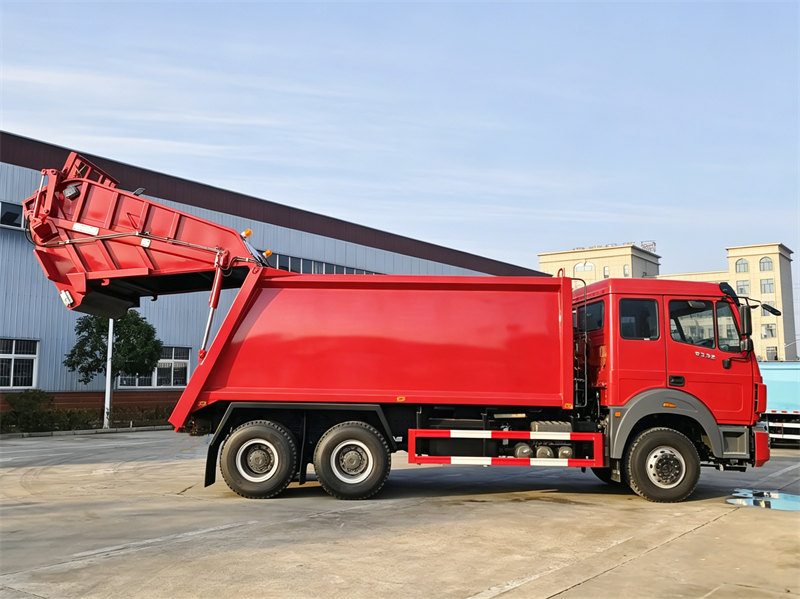

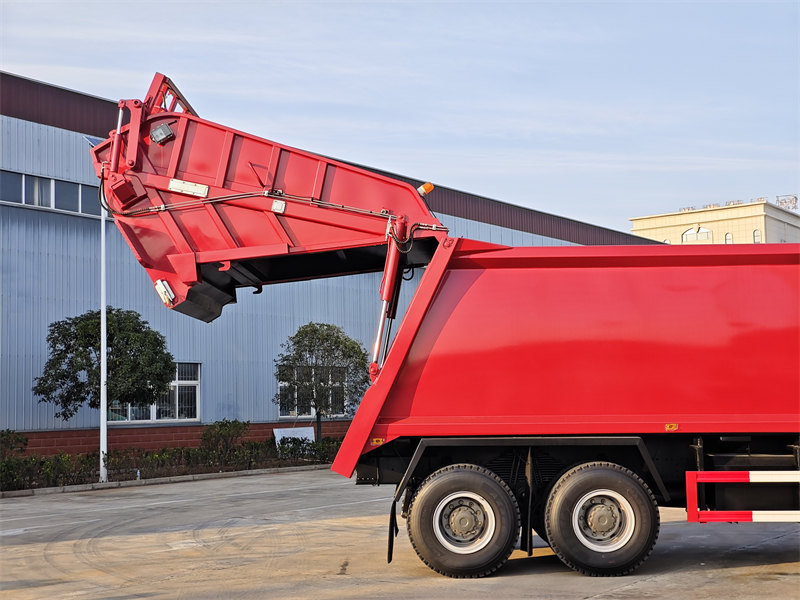

3. Unloading: The hydraulic cylinders raise the loading hopper, and together with the push plate, discharges the compacted waste from the compactor body.
 |
 |
