The Beiben 12CBM rear loader garbage truck is based on Beiben 1929 special chassis, equipped with a 290HP Weichai engine and FAST 9-speed transmission. It has a body volume of 12 cubic meters and a compression ratio of 3:1, which significantly reduces waste volume. The hydraulic system is durable with low failure rates, and together with CAN-bus control, it allows one operator to complete loading, compressing, and unloading. It is suitable for urban household waste collection and transportation, effectively reducing transport frequency and operating costs.
Market Price:
$42700Working Capcity:
12CBMCabin Type:
Beiben NG80B cabinDimension ( mm ) :
8800×2550×3300Drive System:
4×2Wheelbase (mm):
4800Engine Power:
290HP/WP10.290E32Gear Box:
9JS150ATyres:
12.00R20, 6+1 pcsRemark:
4×4, 6×4, RHD drive is optionalThe Beiben 12CBM garbage compactor truck is specially designed for urban sanitation. Its core function is to reduce waste volume through two-way compression technology, improving single-trip transport efficiency. The truck uses a Beiben 4×2 special chassis with a 4800mm wheelbase, equipped with a 290-horsepower Weichai engine and a 9-speed manual transmission, offering strong load capacity. The upper body features a T420 high-strength steel compactor with a capacity of 12 cubic meters and a compression ratio of 3:1, able to compress loose waste to about 1/3 of its original volume. The hydraulic system has a long service life and low failure rate. Combined with CAN-bus control, one driver can complete loading, compressing, and unloading. This Beiben waste compactor truck is suitable for household waste collection and transportation, significantly reducing round trips and operating costs.
CEEC factory is authorized supplier on beiben refuse compactor trucks,
guarantee all beiben rear loader trucks Brand-New and High-Quality.
» Ⅰ.Product Defination and Introduction:
Manufacturer: CEEC TRUCKS
» Ⅱ. Product Specifications:
|
Beiben 4×2 12CBM garbage compactor truck |
||
|
Basic parameter |
Model |
1929KZ/4×2 |
|
Length×width×height(mm) |
8800×2500×3300 |
|
|
Wheel-base(mm) |
4800 |
|
|
Curb weight(kg) |
10200 |
|
| Engine parameter |
Model (six cylinder in line) |
WP10.290E32 |
|
Max. Power (HP/rpm) |
290 |
|
|
Max. Torque(Nm/rpm) |
1160/1200～1600 |
|
|
Displacement(lit) |
9.726 L |
|
|
Fuel tank capacity |
400L Iron fuel tank |
|
|
Transmission system |
Clutch |
430 Single disc, dry type, friction clutch； |
|
Gearbox |
Mechanical, 9JS150A |
|
|
Steering system |
Steering gear |
8098 Circulating ball steering gear, hydraulic booster |
|
Brake system |
Service brake |
Double circulation air brake system equipped； |
|
Parking brake |
Energy storage spring brake； |
|
|
Assisted brake |
Engine exhaust brake； |
|
|
Chassis parameter |
Frame |
Variable width and section 317×70×8.5+7+8.5 mm； |
|
Front axle |
7.5 T, non-driving steering axle, drum brake； |
|
|
Middle & Rear axle |
13T, Double-shoe pneumatic brake, single reduction driving axle, differential lock, speed ratio is 5.263 |
|
|
Front and rear suspension |
Front/rear: Leaf spring, 13/9+8 pieces； |
|
|
Tire |
12.00R20 |
|
|
Cab |
NG80 Long Cabin/ Flat roof/Left drive Exterior trimming: Metal bumper, three steps, outer sun visor, sun roof (Manual), front under-ride bumper, rear view mirror (Manual). |
|
|
Interior trimming: Air suspension seat, Single bunk with sleeper, cooling and heating air conditioner, Steering wheel can be adjusted, door lock(Manual), radio (with MP3), digital instrument |
||
|
Upper body |
Compactor body volume |
12CBM |
|
Compactor body material |
T420 high-strength steel |
|
|
Compression ratio |
1:3 |
|
|
Tailgate volume |
≥1.8 m³ |
|
|
Loading single cycle time |
≤25 S |
|
|
Tailgate lifting time |
≤15 S |
|
|
Unloading cycle time |
≤110 S |
|
|
Hydraulic system pressure |
≥18 Mpa |
|
|

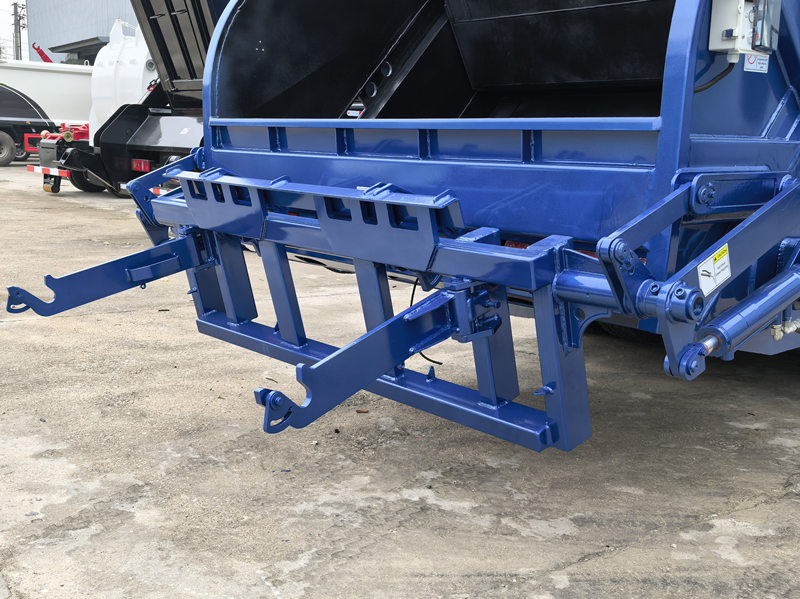

Bin lifter |
Suitable for 240L/330L/660L/1100/L bins |
|
|

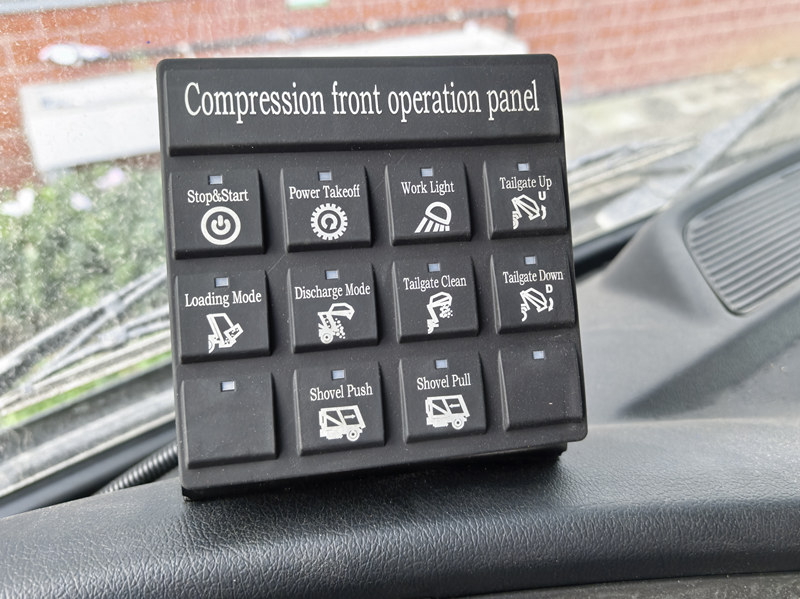

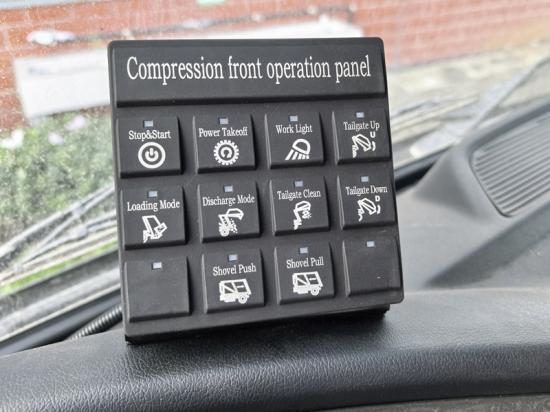

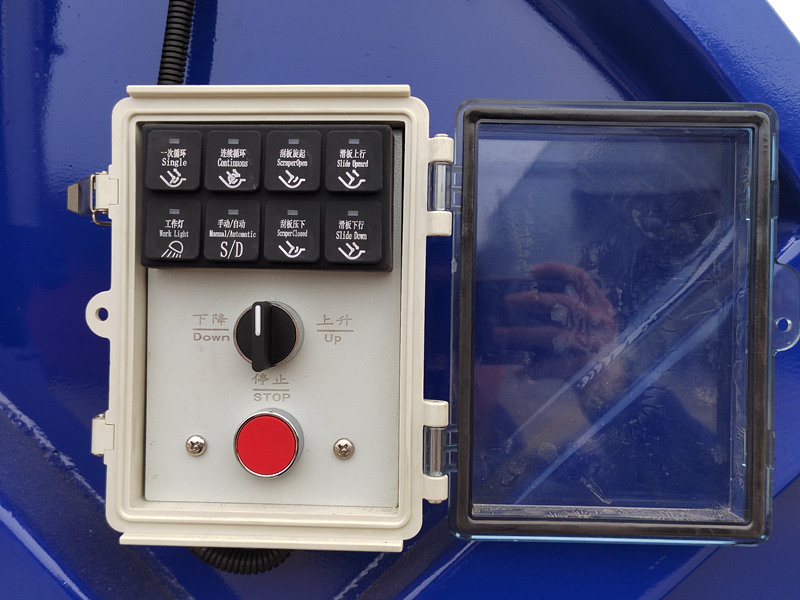

Control system |
CAN-bus, automatic and manual operation |
|

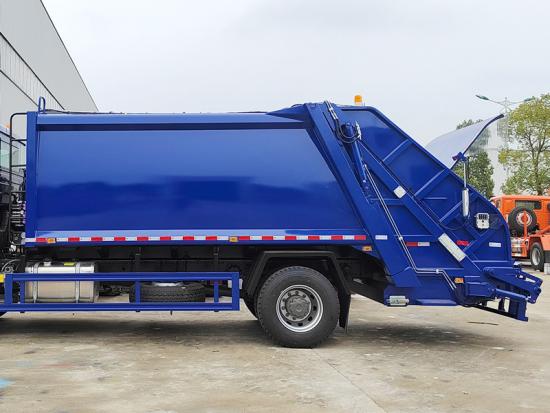

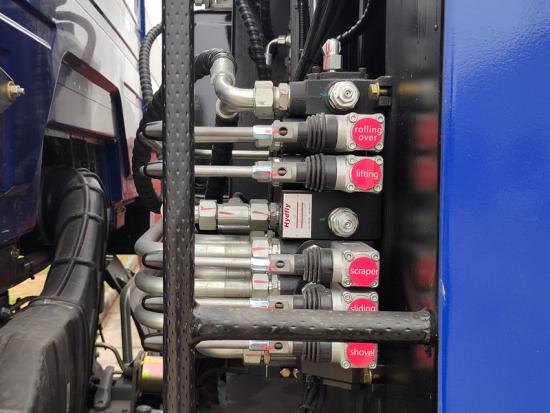

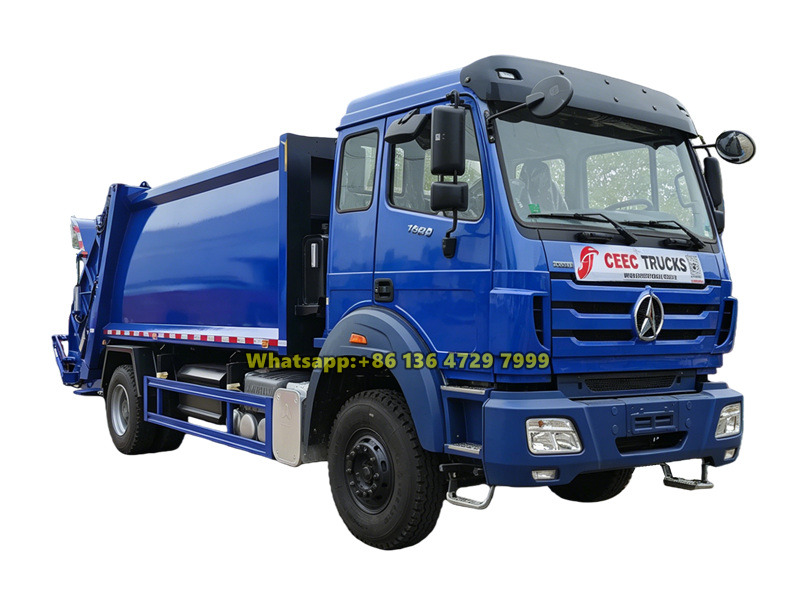

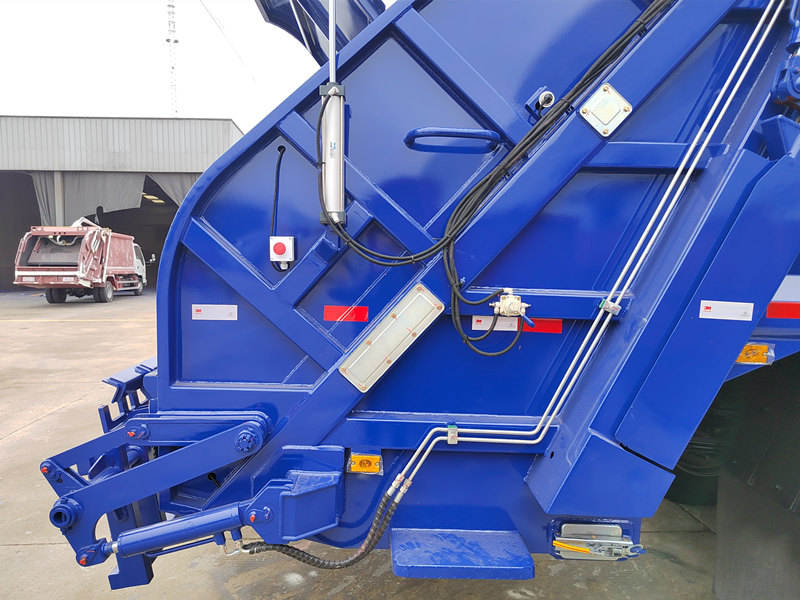

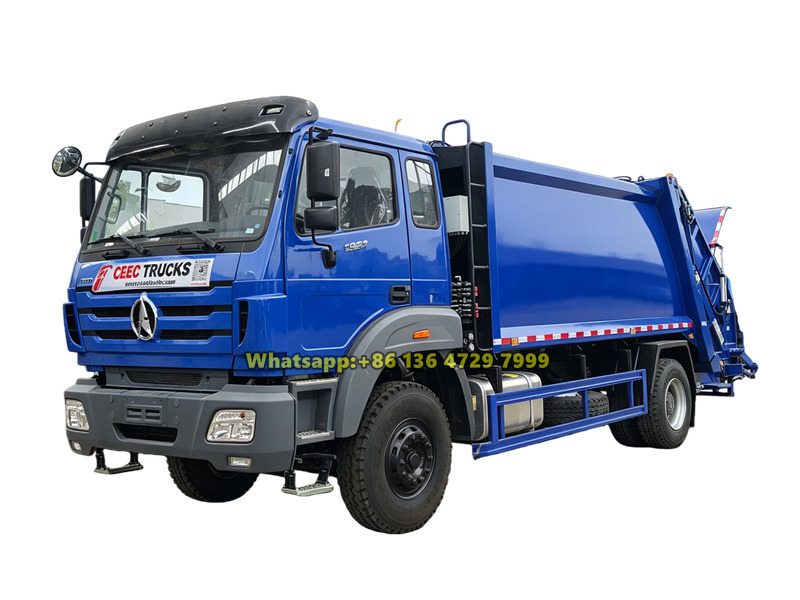

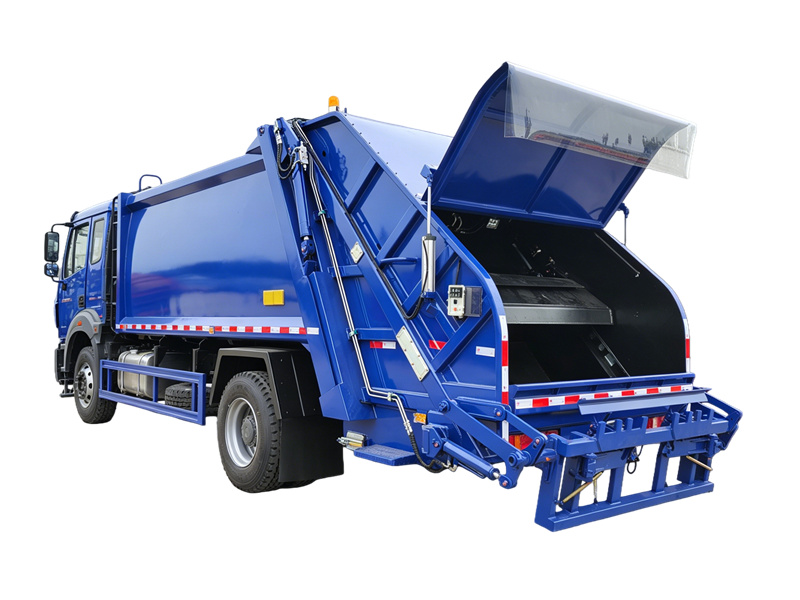

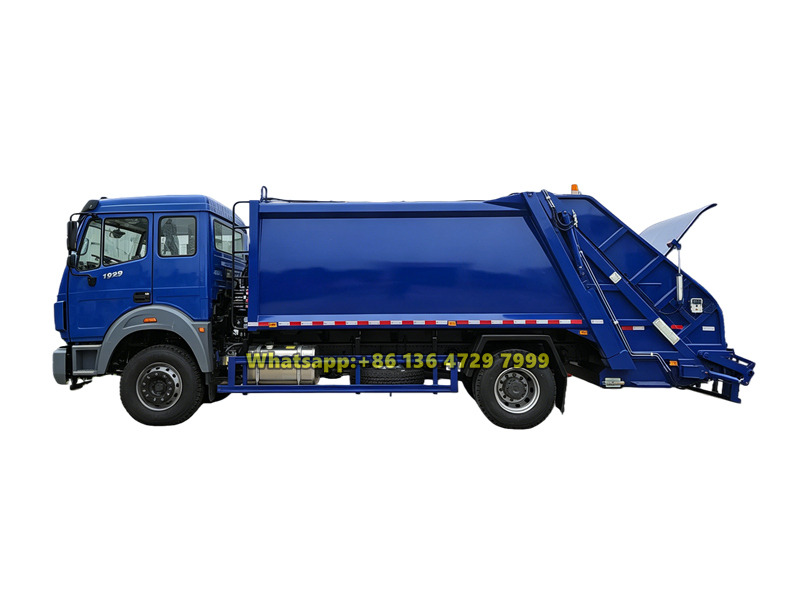

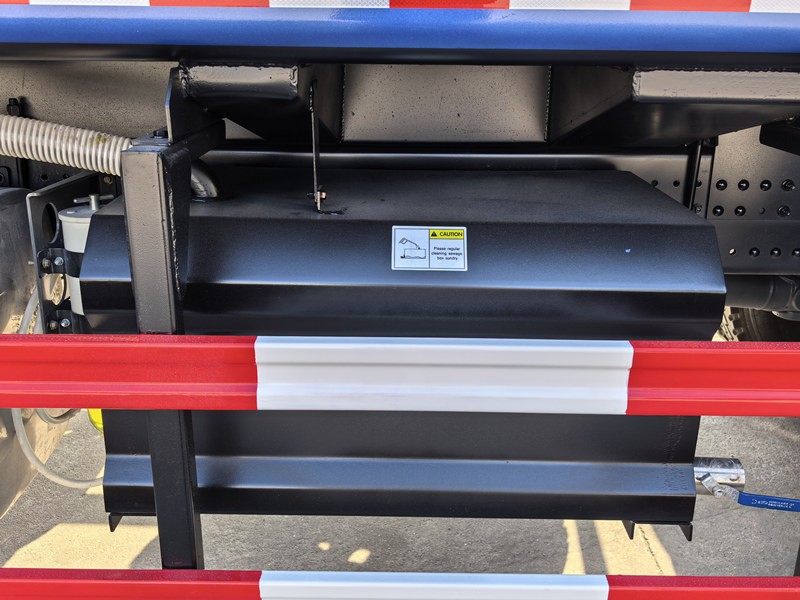

» Ⅲ. Product Details:

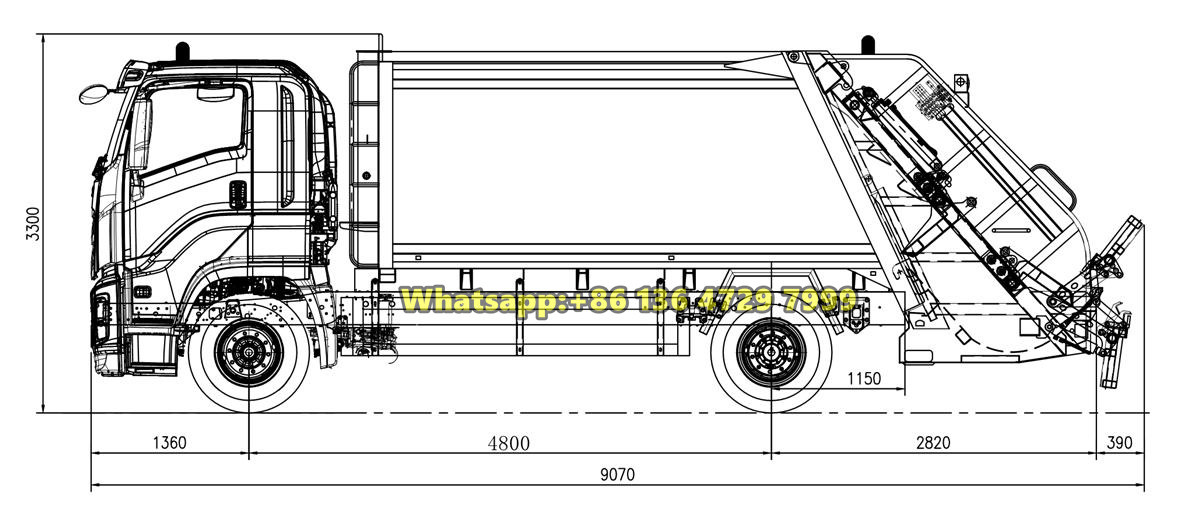

» Ⅳ. Product Drawing:

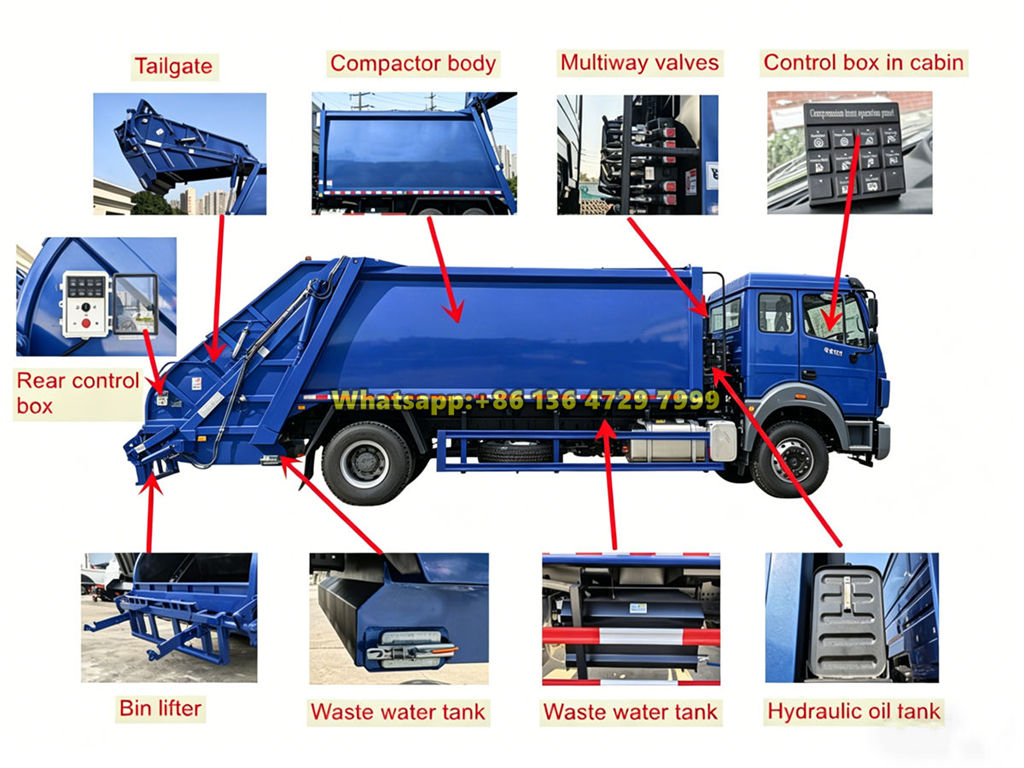

»Ⅴ. Product Structure Diagram:
Products--100% china beiben factory trucks!
Shipping --100% fast, Convenience, Efficient!
1.Beiben 4x2, 6x4, 8x4 drive garbage compactor truck, all upon on your need !
2. Factory bottom price, save your china vist cost
3.12 months after sale service guarantee, quality assurance.
4. Customized compactor volume, from 10~30CBM.
North benz 4*2 truck chassis, weichai diesel engine 270 hp, ZF 9 shift transmission, benz technology front axle and rear axle, 4800 wheelbase, 11.00-20 tyre. 15 years experience on beiben garbage compactor trucks producting and designing.
