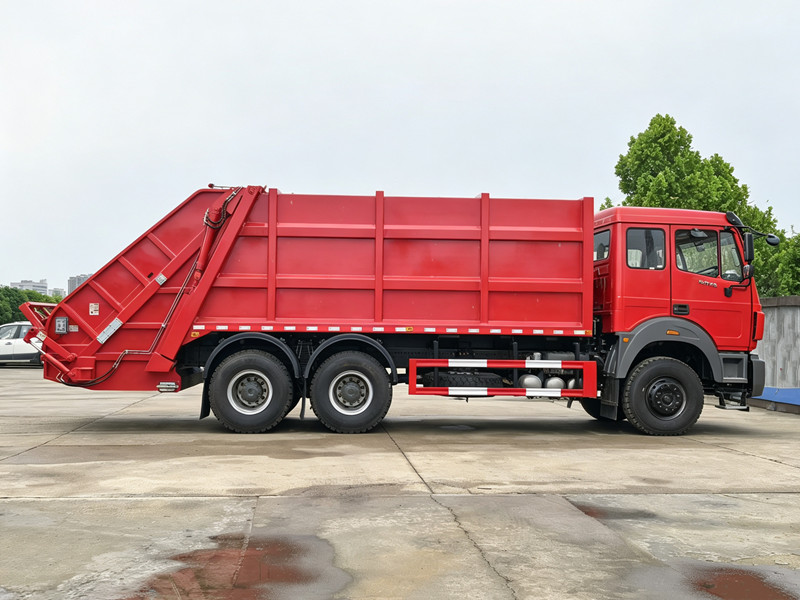

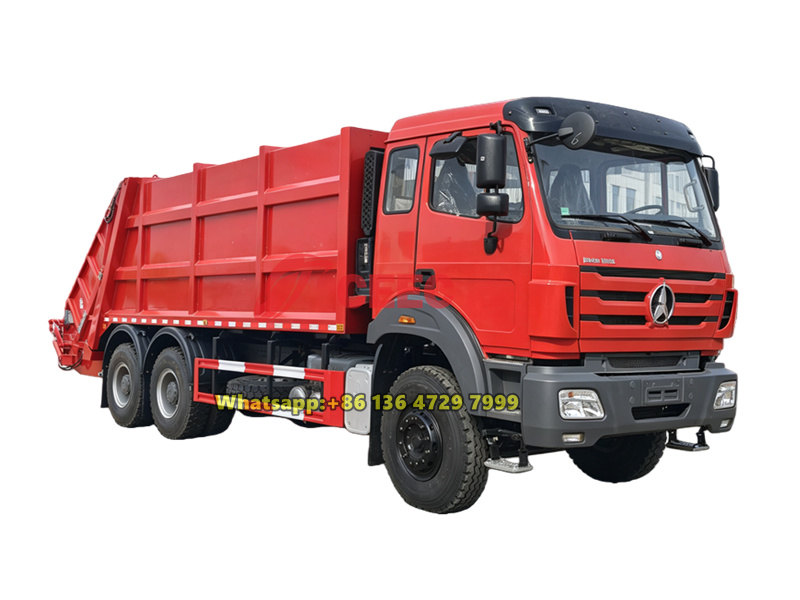

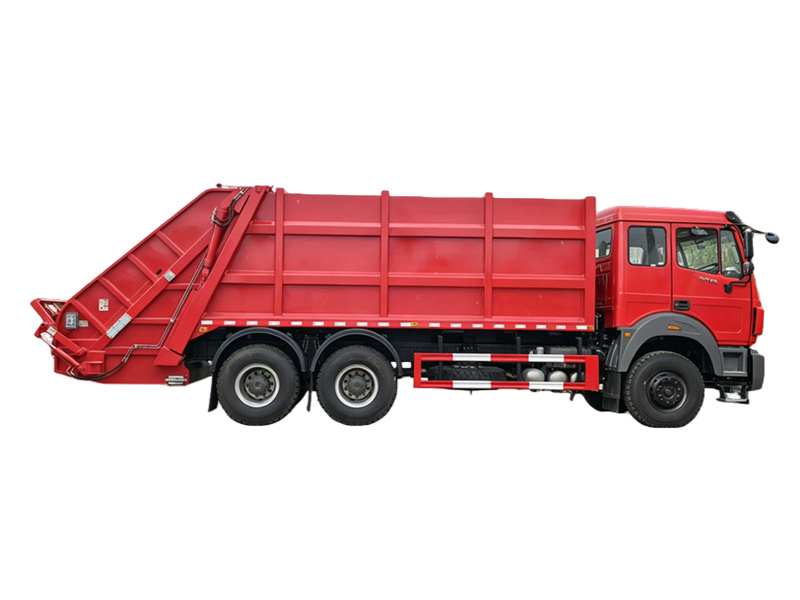

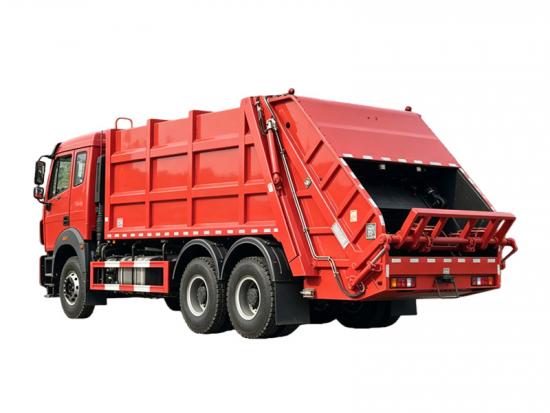

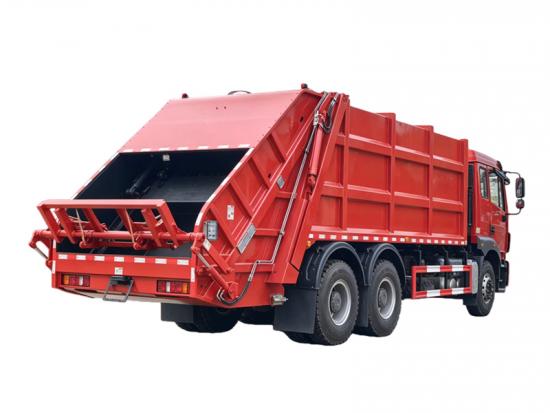

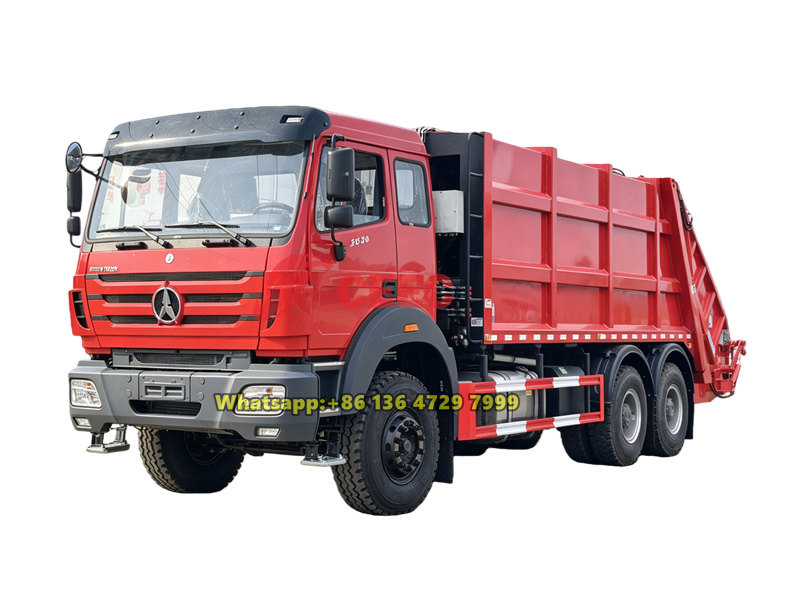

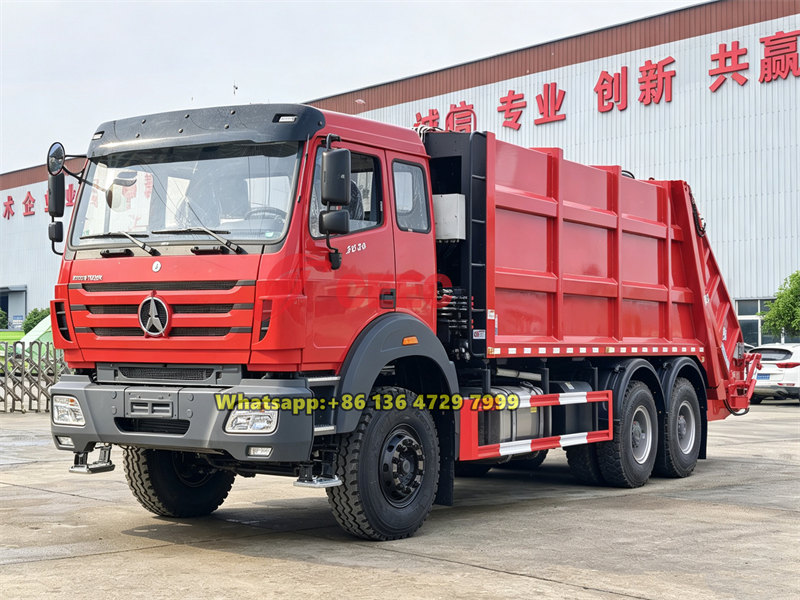

Beiben 20m³ Rear Load Garbage Truck is a large-capacity environmental sanitation vehicle built on the Beiben 2638 heavy-duty 6×4 chassis. It is powered by a 380-horsepower Weichai engine and paired with a Fast 12-speed transmission. Equipped with a 20m³ compactor body and a Siemens PLC intelligent control system, it achieves a compaction ratio of 1:3.0. Featuring dual-direction compression and CAN-bus electro-hydraulic integrated technology, combined with a double-seal anti-drip design, this truck offers high loading efficiency, low noise, environmental friendliness, and intelligent operability. It is ideal for municipal solid waste collection and transfer operations.
Working Capcity:
20CBMCabin Type:
Beiben NG80B long cabinDimension ( mm ) :
9600×2550×3400Drive System:
6×4Wheelbase (mm):
4450+1450Engine Power:
380HP/WP10.380E32Gear Box:
12JS200TTyres:
12.00R20, 10+1 pcsRemark:
4×4, 6×4, 6×6, RHD drive is optionalThe Beiben 20m³ Garbage Compactor Truck is a large-capacity sanitation vehicle built on the Beiben 2638 heavy-duty 6×4 chassis. It is equipped with a Weichai WP10.380E32 engine (380 hp, torque 1600 N·m) and a Fast 12-speed transmission, delivering strong power and high transmission efficiency. The upper body features a 20m³ high-strength special-steel compactor body with a compaction ratio of 1:3.0. Combined with dual-direction compression technology and a Siemens PLC intelligent control system, it automatically performs waste loading, crushing, compacting, and discharging, with a single loading cycle of less than 10 seconds, significantly improving per-load efficiency.
This truck excels in environmental protection and intelligence: the joint surface of the tailgate uses double-layer rubber seals and a wastewater diversion device, effectively preventing secondary pollution; the CAN-bus electro-hydraulic integrated control automatically adjusts engine power output, reducing fuel consumption and system heating while maintaining low-noise operation. The Beiben heavy-duty rear end loader is suitable for centralized municipal waste collection, transfer station transport, and large-community cleaning operations. Its automatic + manual dual-mode operation and lifting mechanisms compatible with standard 240L/660L/1100L garbage bins allow flexible adaptation to various working scenarios.
CEEC factory is authorized supplier on Beiben garbage compactor trucks,
guarantee all Beiben rear loader garbage trucks Brand-New and High-Quality.
▲ Ⅰ.Product Defination and Introduction:
Manufacturer: CEEC TRUCKS
▲ Ⅱ. Product Specifications:
|
Beiben 20CBM garbage compactor truck specifications |
|
|
Product Name |
Compactor Garbage Truck |
|
Model |
CEEC5260ZYS |
|
Chassis brand |
Beiben (North Benz) |
|
Driving Type |
6*4 |
|
Gross Weight |
26000kg |
|
Curb Weight |
15500kg |
|
Dimension |
9600×2550×3400mm |
|
Wheelbase |
4450+1350mm |
|
Front Axle |
7.5 T, non-driving steering axle, drum brake |
|
Middle & Rear axle |
13T, Double-shoe pneumatic brake, single reduction driving axle, differential lock, speed ratio is 5.269 |
|
Steering gear |
8098 Circulating ball steering gear, hydraulic booster |
|
Front and rear suspension |
Leaf spring, 10/13 pieces |
|
Brake |
Service brake: Double circulation air brake system equipped |
|
Parking brake: Energy storage spring brake |
|
|
Assisted brake: Engine exhaust brake |
|
|
Tire |
12.00R20, 10+1 pcs |
|
Max Speed |
89(Km/h) |
|
Engine parameters: |
|
|
Model |
WP10.380E32 |
|
Horse Power |
380HP (280kW) |
|
Displacement |
9.726L |
|
Emission Standard |
Euro 3 |
|
Type |
4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling |
|
Rated speed |
2200 rpm |
|
Max torque |
1600 N.m |
|
Max. torque speed |
1500-1800rpm |
|
Fuel tank |
400L |
|
Gear Box |
|
|
Model |
FAST 12JS200T |
|
Gears |
12-speed forward and 2 reverse |
|
Superstructure Parameter |
|
|
Compactor Volume |
20m3 |
|
Material |
T420 (Special Steel) |
|
Compression Ratio |
1:3.0 |
|
Volume of the tailgate |
2 m³ |
|
Loading cycle time |
≤25 s |
|
Tailgate lifting time |
≤15 s |
|
Unloading cycle time |
≤110 s |
|
Bin lifter cycle time |
≤10 s |
|
Control method |

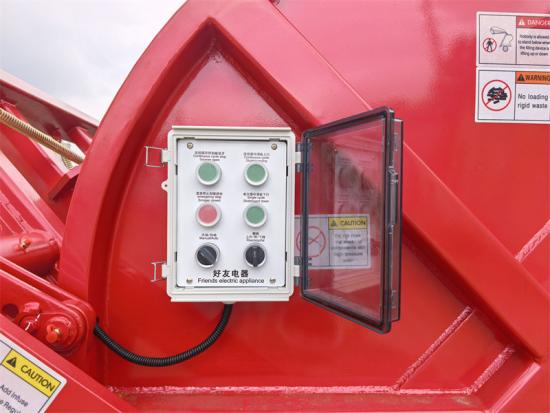

Automatic+Manual |
|

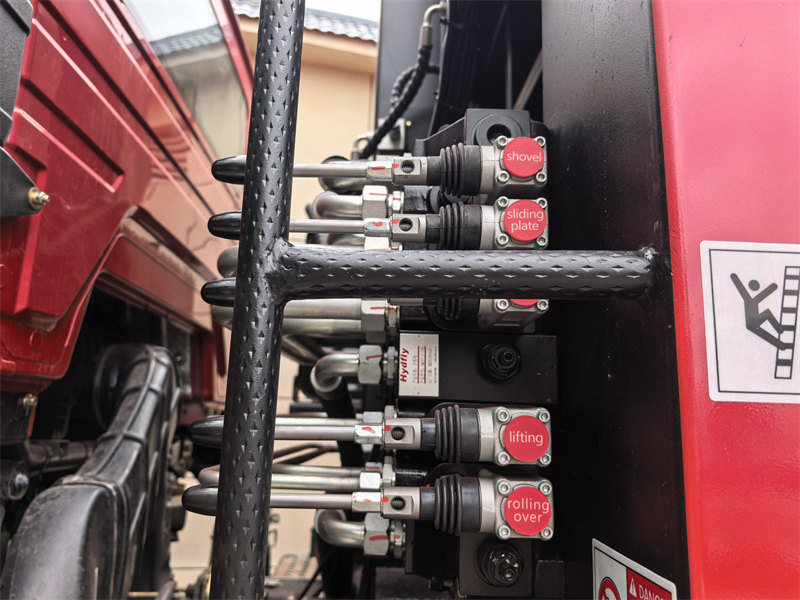

Maximum pressure of hydraulic system |
20 MPa |
|
Control System |
Siemens PLC |
|

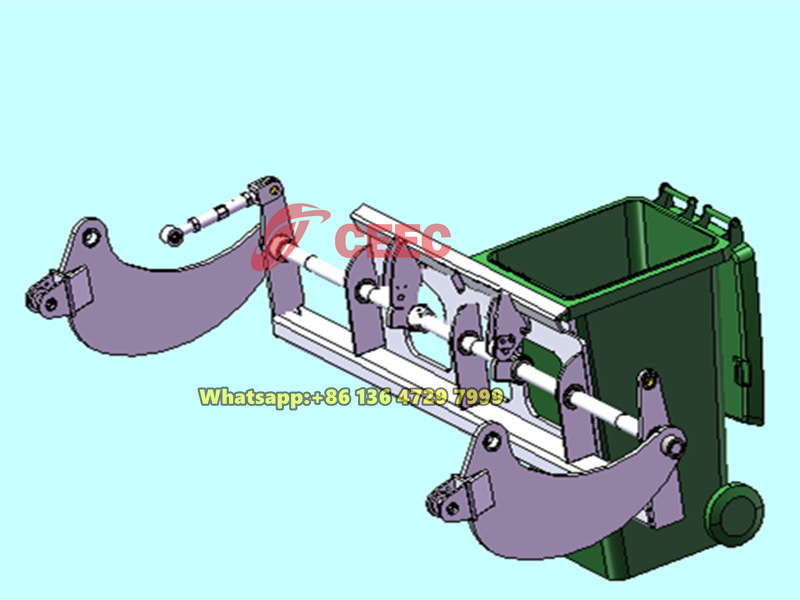

Bin lifter type |
Suitable for 2 units 240L garbage bin |

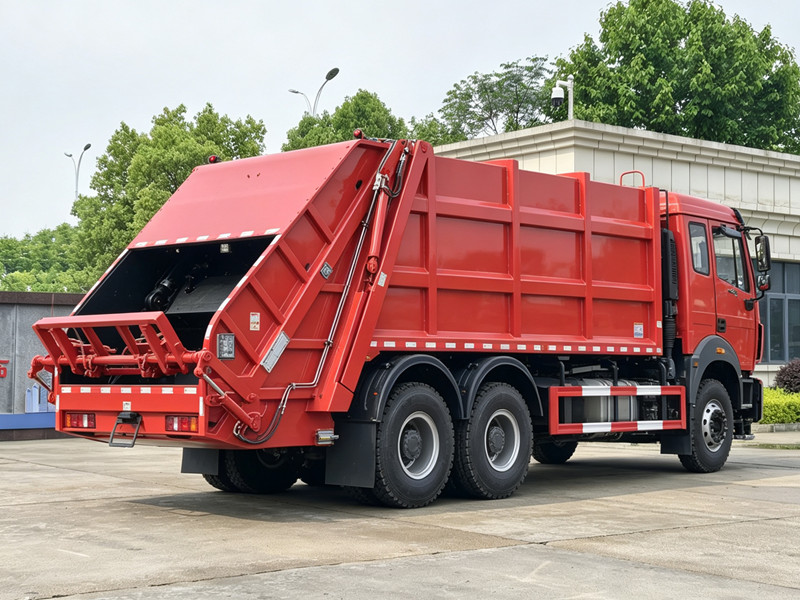

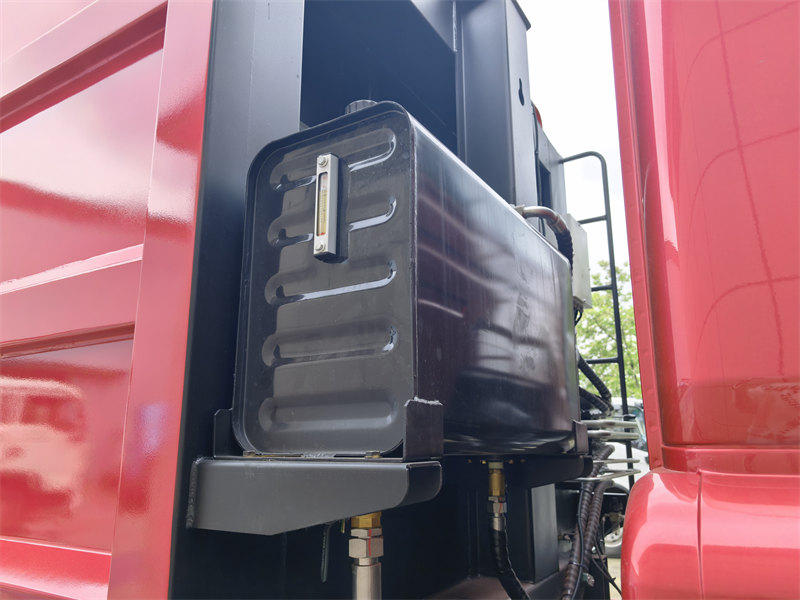

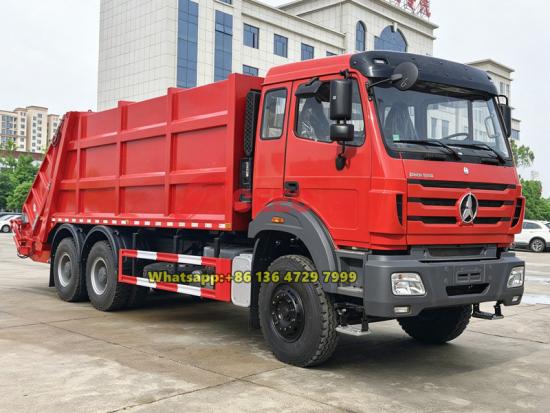

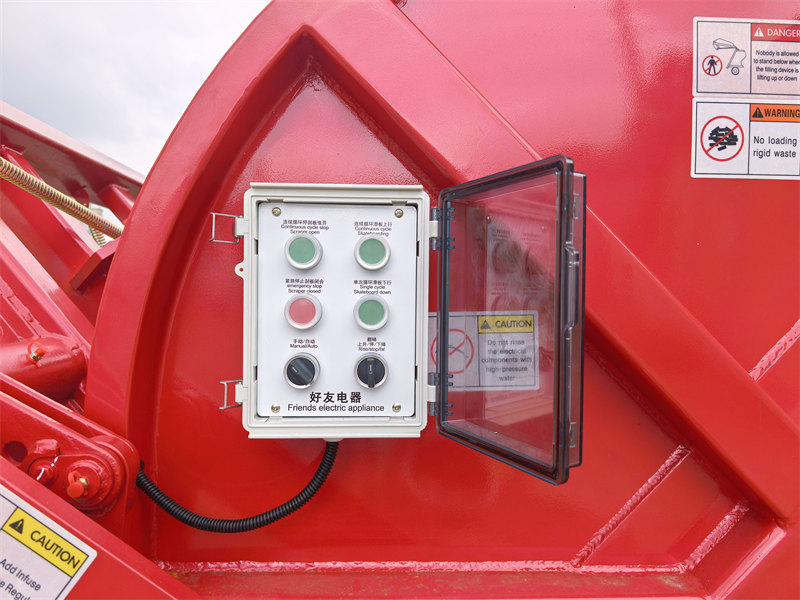

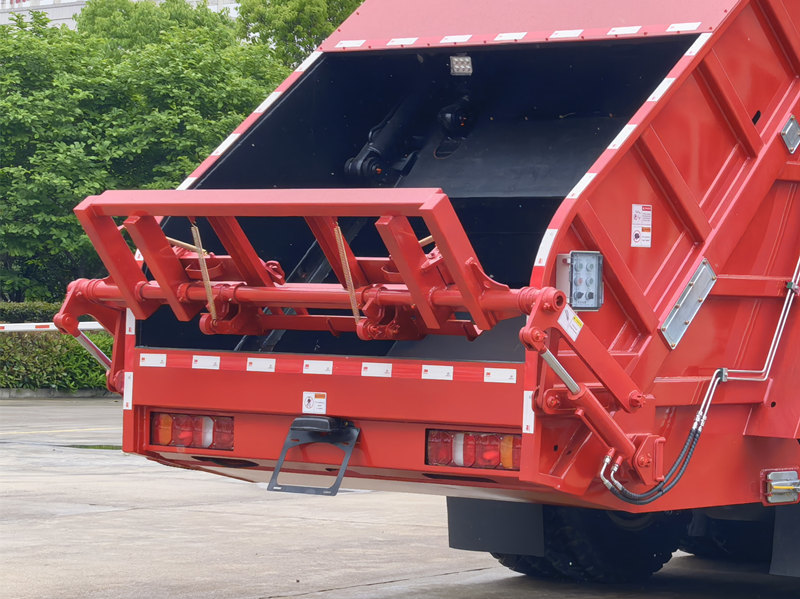

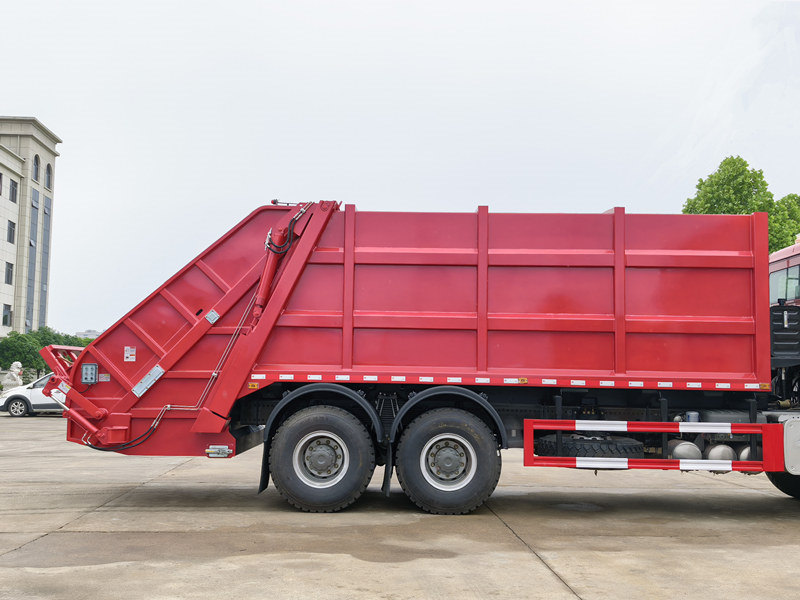

▲ Ⅲ. Product Details

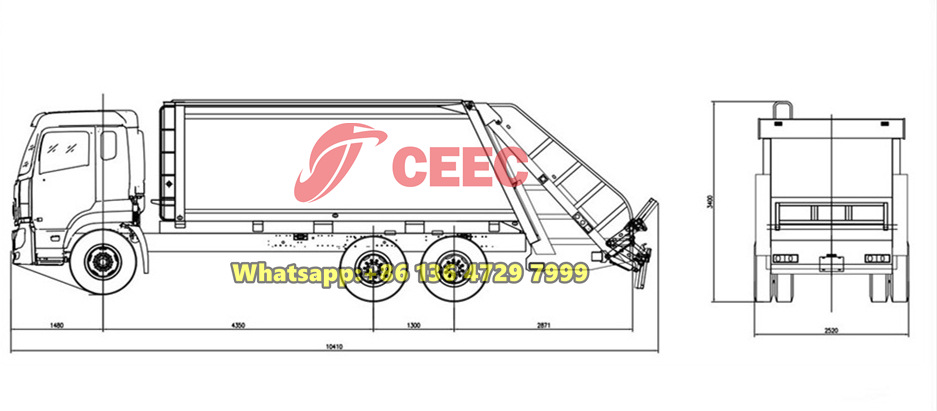

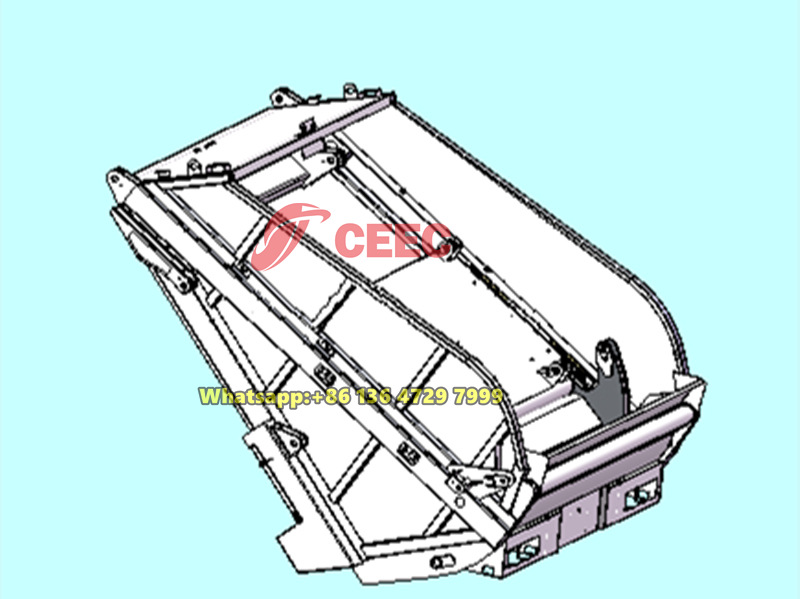

▲ Ⅳ. Product Drawing:
▲Ⅴ. Beiben Garbage Compactor Performance Advantages:
Environmental Friendliness:
1. Optimized operating speeds and high-quality components control overall working noise, reducing noise pollution.

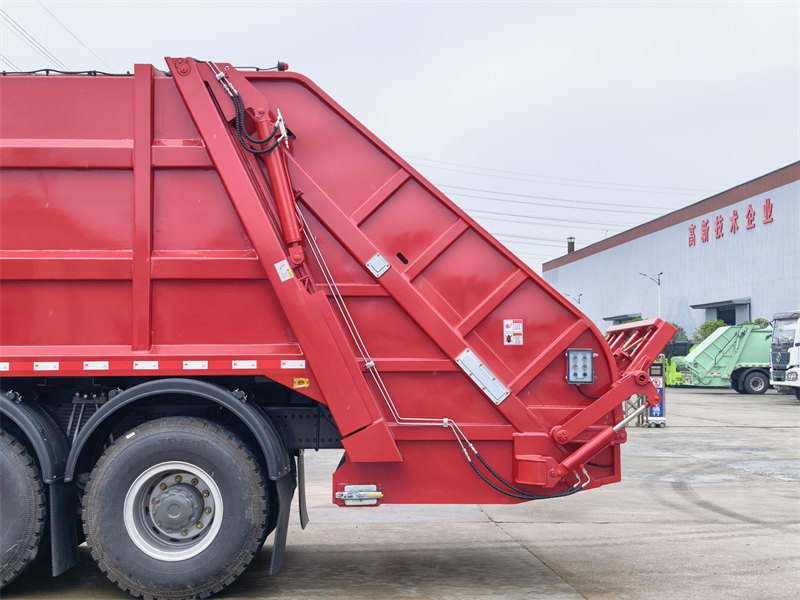

2. Double-layer rubber seals at the joint between the packing mechanism and the waste container, along with a wastewater diversion device, channel liquids into the packing mechanism's wastewater tank, effectively eliminating dripping and reducing environmental contamination.
High Efficiency:
1. Dual-direction compression technology delivers a high compaction ratio and strong loading capacity.
2. Large hopper volume of the packing mechanism ensures high loading and compaction efficiency, with a loading cycle of less than 10 seconds.
Intelligent Control:
1. The control system adopts advanced foreign technology, utilizing the most sophisticated "CAN-bus + dedicated controller" mode, offering high automation, excellent reliability, low failure rate, and long service life.
2. Engine power output is fully automatically controlled via the electrical system, ensuring the engine automatically adjusts its speed during all operating states, avoiding power loss and system overheating, resulting in low fuel consumption and good economic performance.

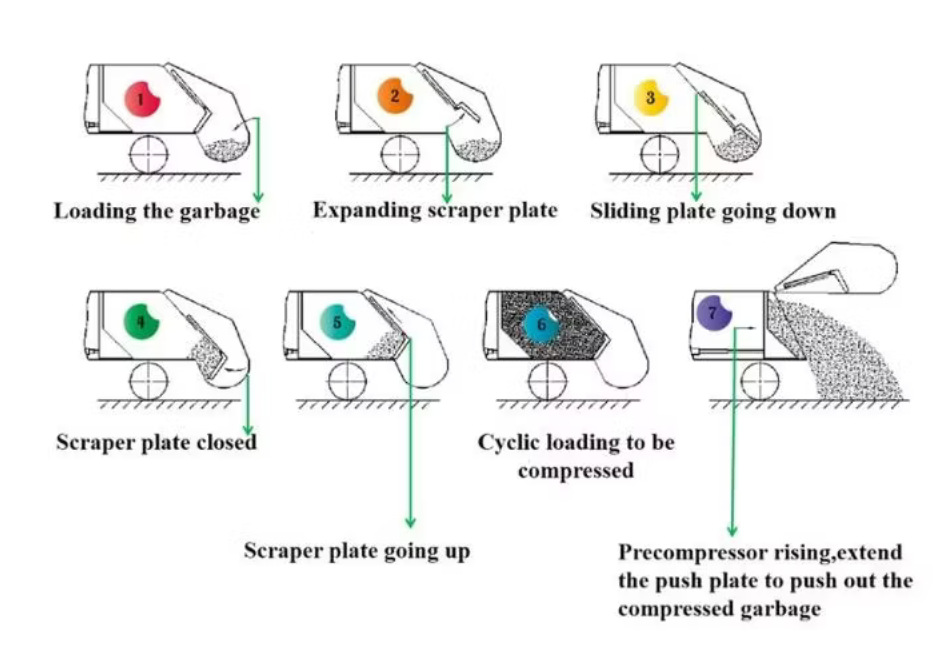

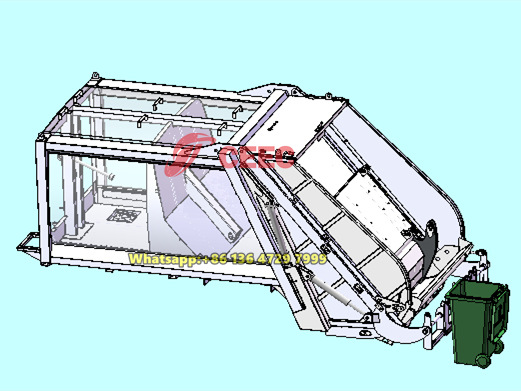

▲Ⅵ. Beiben Waste Compactor Working Process
