Order(MOQ):
1

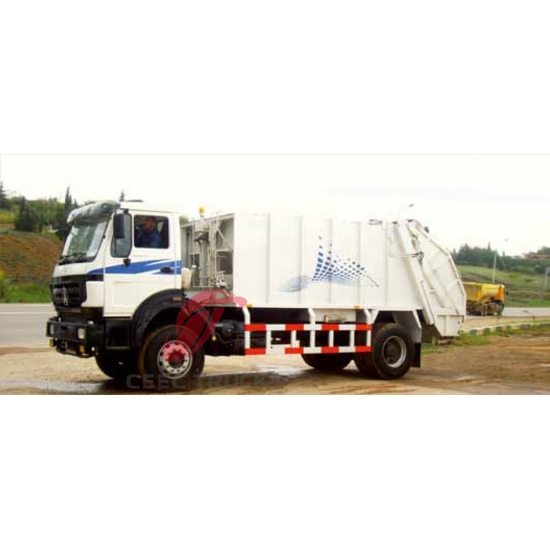

15 years great experience in beiben rear loading garbage trucks manufacturing. . As the most professinal north benz 8 CBM wast compactor truck supplier in baotou china , we can produce the north benz 5 CBM garbage compactor truck, north benz 8 CBM garbage compactor truck, north benz 10 CBM garbage compactor truck , andnorth benz 16 CBM garbage compactor truck.
No 1 factory in china for producing north benz 4*2 drive waste compactor truck, north benz 6*4 waste compactor truck and north benz 8*4 waste trucks.
|
Technical Parameters |
||
|
Brand |
BEIBEN Garbage compactor TRUCK |
|
|
Vehicle model |
1929GA |
|
|
Cabin |
Full steel skeleton structure, covered with double layer steel plate |
|
|
Anticorrosion treatment processes complex, anti-corrosion, durability of sustainable vehicles |
||
|
Long/Day cab, made by full steel material, anti-crash performance can be ensured by double hollow chamber structure |
||
|
Persons in cab: 3 |
||
|
Driving |
4×2 |
|
|
Wheel base (mm) |
4800 |
|
|
Weight data |
Curb Weight(kg) ：7760 |
|
|
Engine |
Model |
Brand WeiChai WP10.290 / Diesel, Straight in line，water-cooled，turbocharged, intercooled, 6 cylinders, |
|
Power |
290HP |
|
|
Emission |
EURO III |
|
|
Rated power(kw/rpm) |
213Kw/2200rpm |
|
|
Transmission |
5S-112P, 9-forward &1-reverse gears |
|
|
Option: ZF9T-160 |
||
|
Clutch |
single disc, dry type, diaphragm spring, φ430 |
|
|
Frame |
BeiBen Unique frame, Mercedes-Benz technology, Strengthened frame |
|
|
Fish belly, various width, various sections, side beam structure |
||
|
Axle |
Front: |
Mercedes Benz Technology, 7.5 ton, non-driving steering axle |
|
Rear: |
Mercedes Benz Technology, 13 Ton, ductile casting casing, with hub redactor, double reduction driving axle |
|
|
Suspension |
Non-free standing stabilization spring, hydraulic shock absorber， stabilization suspension， |
|
|
Steering |
ZF8098 (Original ZF technology) |
|
|
Wheels and tyre size |
6+1/12.00-R22.5 |
|
|
Fuel tank (L) |
400L |
|
|
Colour |
Metal white, multi-colored options |
|

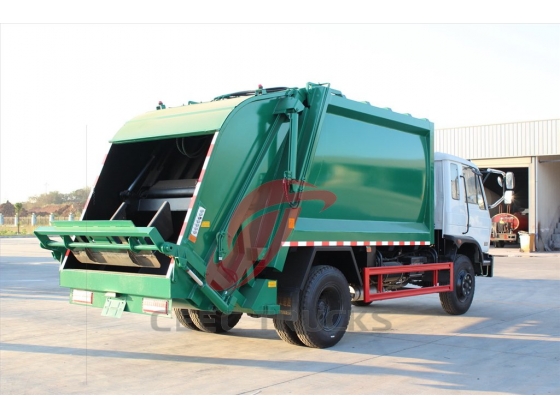

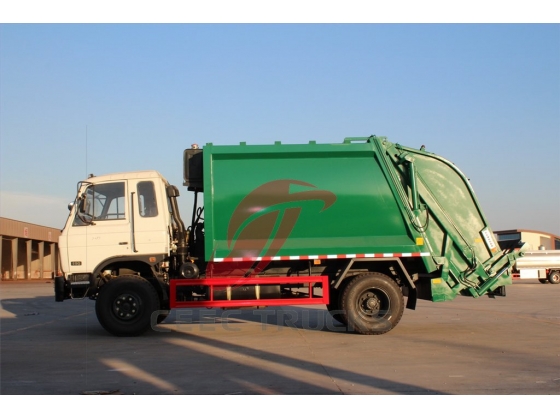

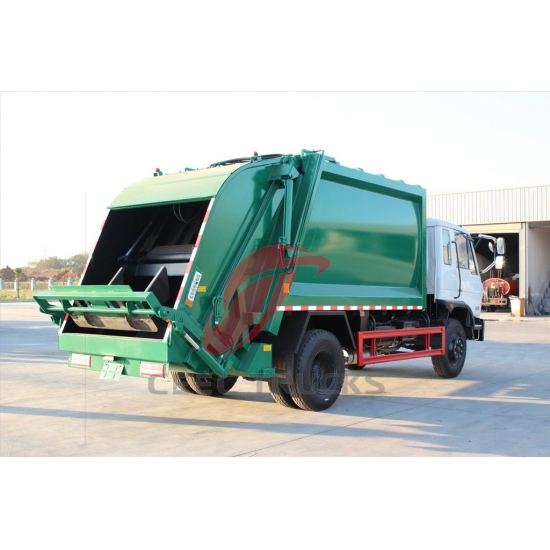

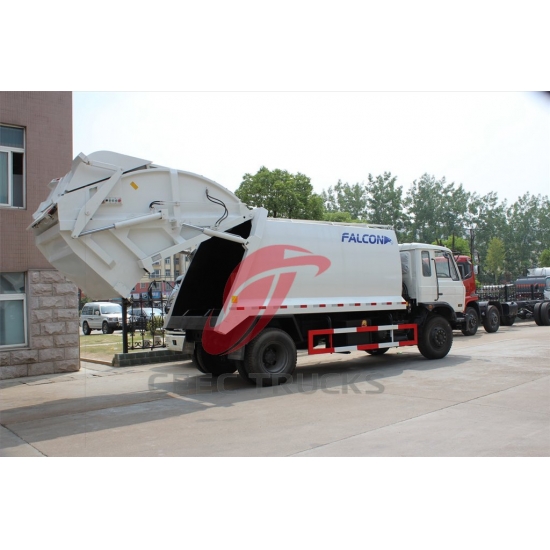

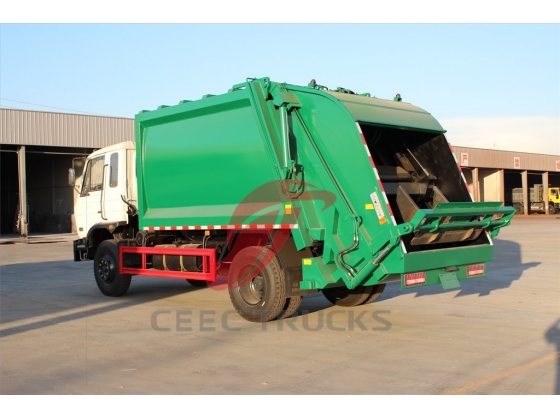

The new generation Refuse Garbge Compactor is mainly used in collecting and transporting the scattering refuse of the urban area,
community, factory, schoolyard.
The refined appearance, the fully sealed truck body, the sealed door of the truck body is able to prevent the sewage from leaking during transporting so that secondary pollution is avoided. The imported hydraulic units are of the best quality with convenience and reliability. Automatic reverse unloading, clean and quickly.
Key Features:
◆ Easy operation and easy maintenance!
◆ With imported PLC (programmable logic controller) for integrated control
◆ Collecting refuse in sealed condition, equipping with waste water tank, preventing re-pollution.
◆ Substantial truss structure, payload distributed appropriately in hopper lip, no deformation.
◆ Automatic controlled throttle and hydraulic safety valves, avoiding power wastage, lower oil consumption.
◆ Automatic and manual operating control, improving operation reliability
◆ The engine power output control, namely the throttle control, can realize fully automatic control through the electronic throttle controller, so the engine will automatically change to a higher speed or idle speed under different operating modes, thus avoiding power loss and system heat to reduce fuel consumption and realize good economical efficiency.
◆ Both automatic and manual control modes are available. Two operation boxes mounted in the cab and at the rear side of the vehicle respectively can facilitate the operation.
◆ Different bin (hopper) tipping mechanisms are provided for different users to select in accordance with different garbage collecting ways
|
Name |
Standard configuration |
|
♦ Container Body capacity: |
8 CBM |
|
♦ Tailgate Hopper capacity |
0.5 m3 |
|
♦ Loading type: |
Rear loading |
|
♦ Compression ratio: |
1: 3.2 |
|
♦ Operation control system: |
Electrically hydraulic control + Manual hydraulic control |
|
♦ Discharging system: |
Horizontal ejection |
|
♦ Loading time: (one cycle) |
13~15 sec |
|
♦ Discharge tiem: (sec) |
20 |

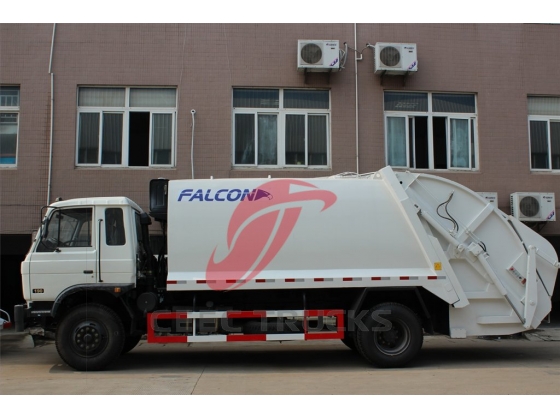

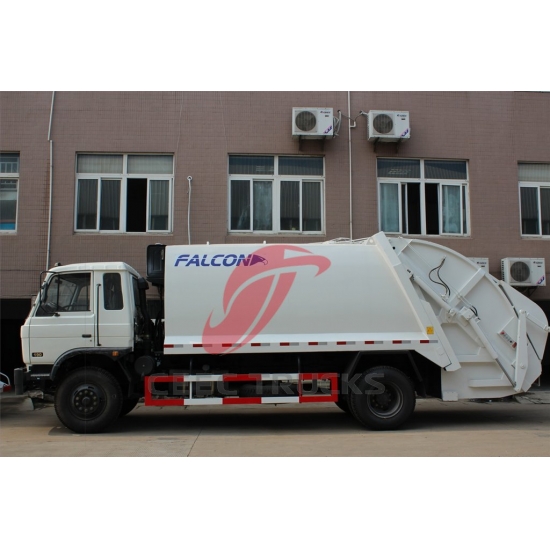

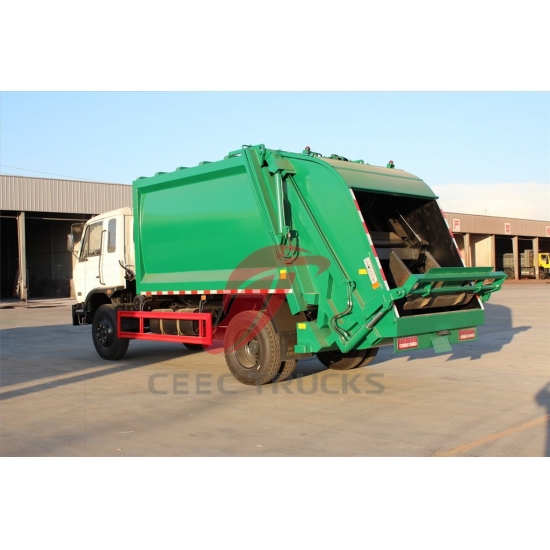

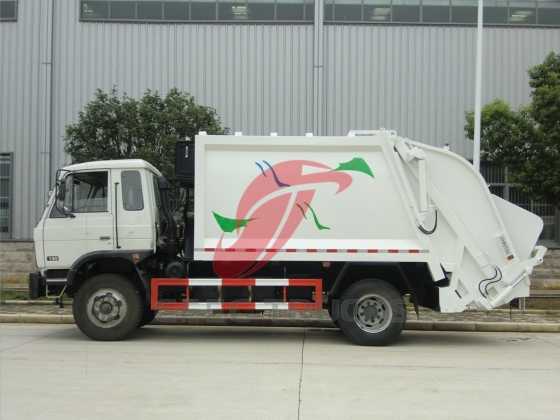

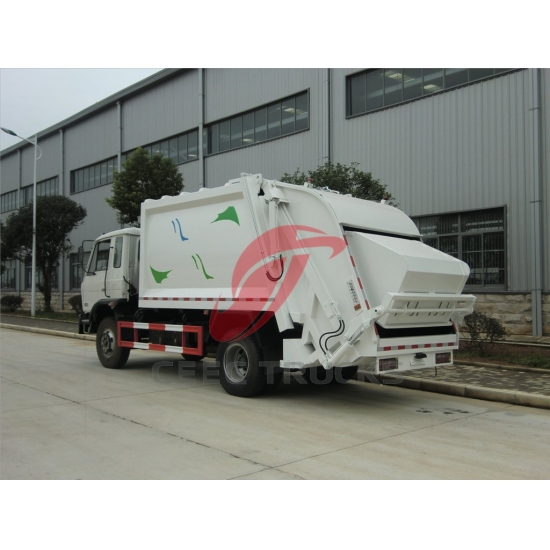

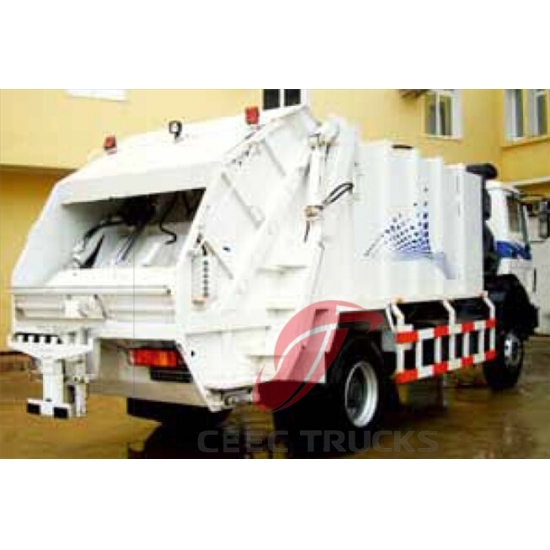

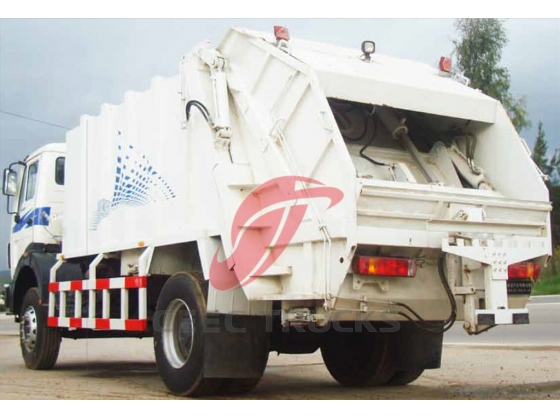

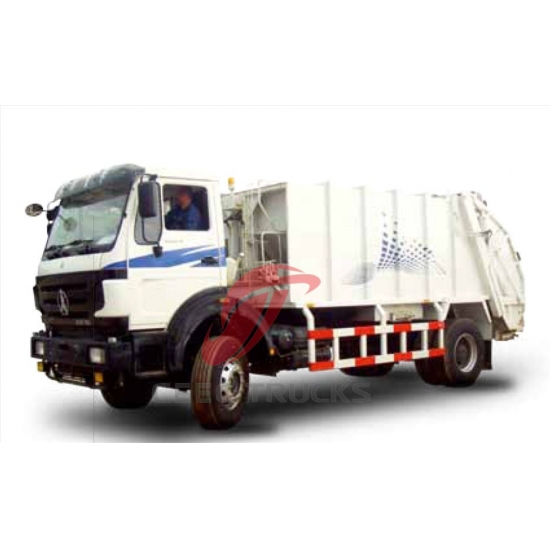

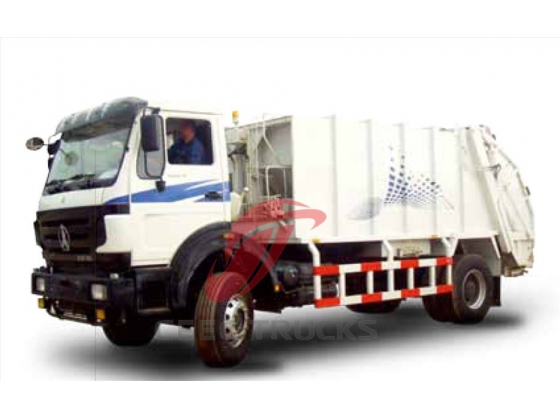

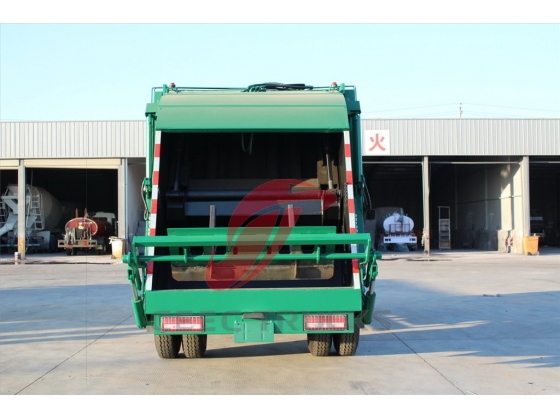

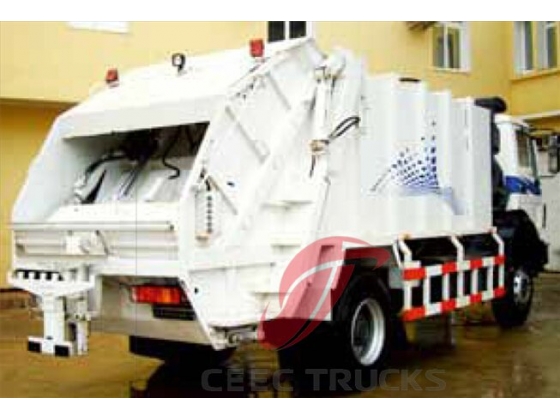

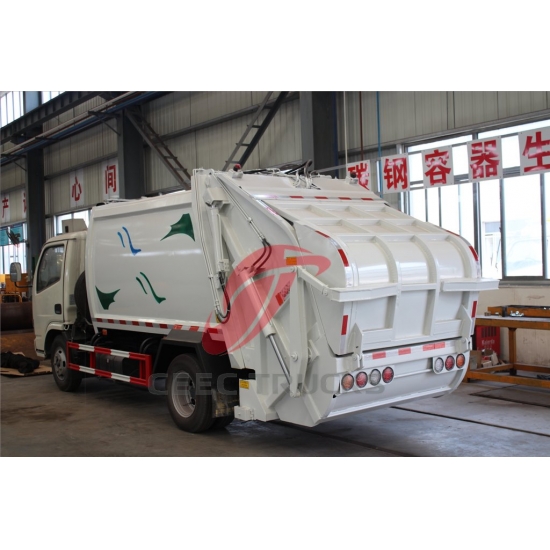

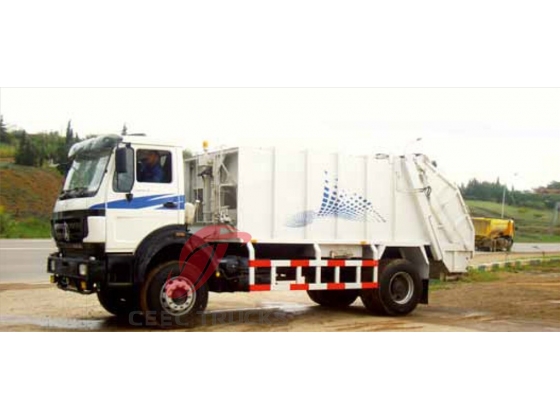

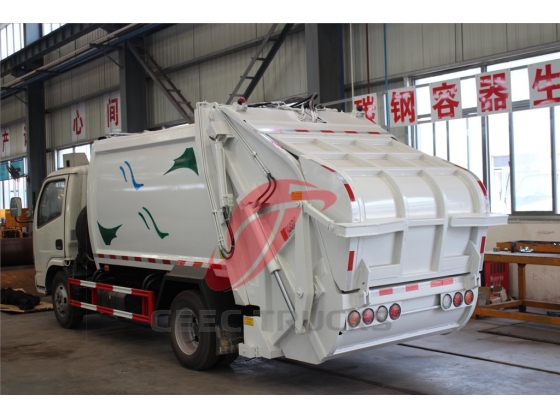

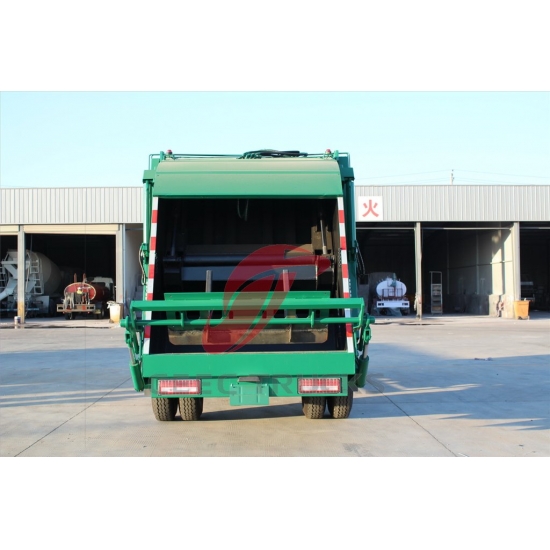

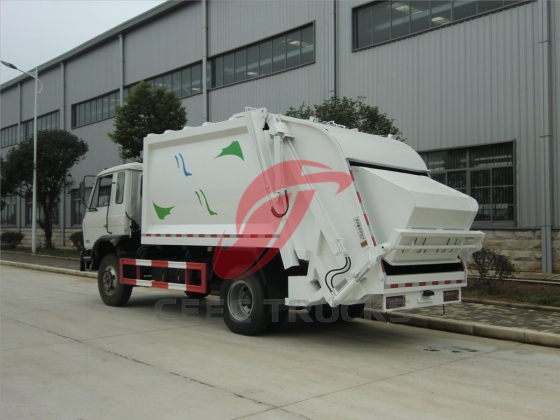

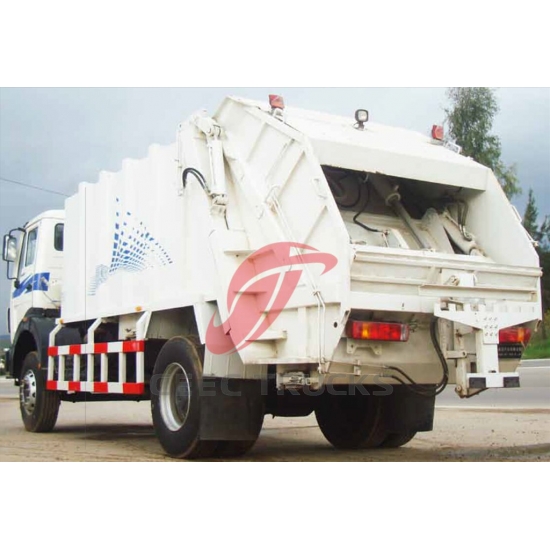

China beiben 8 CBM garbage trucks with compactor system for exporting

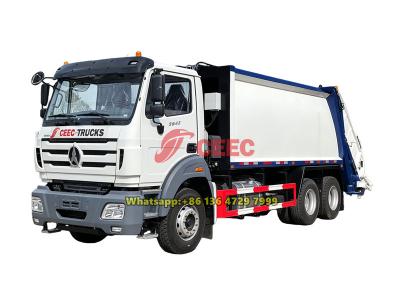

The Beiben 20CBM garbage compactor truck is built on a Beiben 6×4 chassis and powered by a Weichai 380hp engine. The compactor body has a volume of 20 m³ and a compression ratio of up to 1:3. It is equipped with a CAN bus control system and a hydraulic bin lifting mechanism, compatible with standard garbage bins ranging from 240L to 1100L. The vehicle features excellent sealing and a built-in sewage collection device to prevent secondary pollution, making it suitable for municipal sanitation and community waste collection.
The Beiben 12CBM rear loader garbage truck is based on Beiben 1929 special chassis, equipped with a 290HP Weichai engine and FAST 9-speed transmission. It has a body volume of 12 cubic meters and a compression ratio of 3:1, which significantly reduces waste volume. The hydraulic system is durable with low failure rates, and together with CAN-bus control, it allows one operator to complete loading, compressing, and unloading. It is suitable for urban household waste collection and transportation, effectively reducing transport frequency and operating costs.
Beiben 20 cubic garbage compactor truck is a professional sanitation equipment specifically designed for efficient collection and transportation of urban and rural household waste. Built on the Beiben 6×4 heavy-duty chassis, this truck integrates garbage loading, compaction, transport, and unloading functions, and is widely used for waste collection in municipal sanitation, residential communities, industrial parks, and other locations.

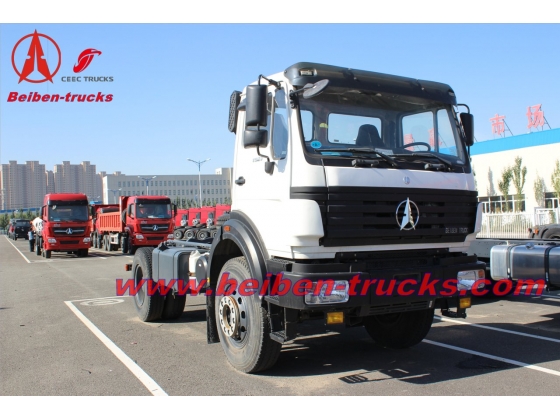

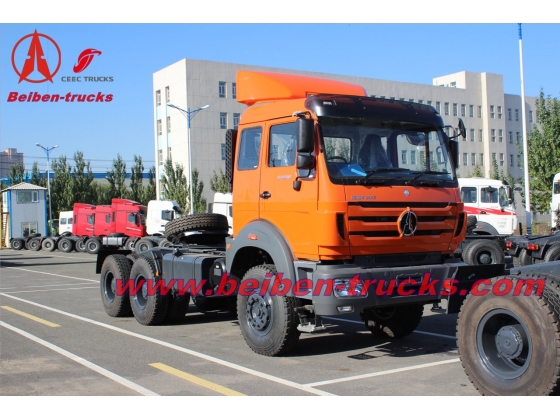

BEIBEN North Benz NG80 2534 6x4 340hp heavy trailer truck ,weichai 380 hp engine, beiben NG80 cabin, fast 9 shift transmission.

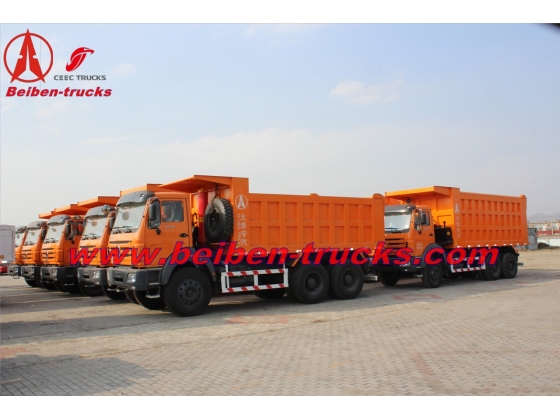

china north benz 2538 dump truck, 30 T payloading capacity, famous carbon steel Q345B material, HYVA 149 lifting system, china famous beiben 2529 dump truck chassis, benz technology axle, fast 9 shift transmission, super quality assurance and genuine beiben dump truck spare parts support
north benz 4*4 drive military truck chassis, based on china benz technology ND1921 military truck , original from baotou beiben heavy duty trucks co.,limited.

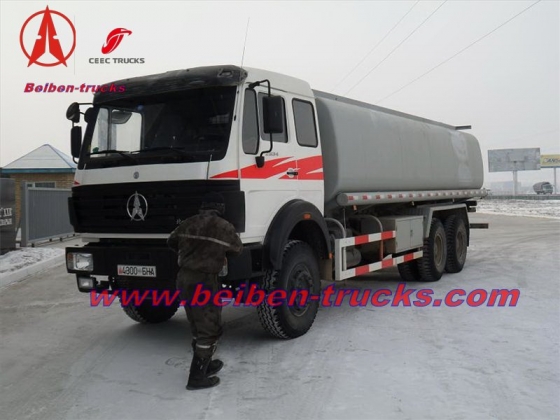

1. beiben NG80B 2638 6X6 water tank truck 2. Flat roof cabin,single sleeper, auto-air conditioner 3. High quality and competitive price 4. Quick delivery time 5. Best after-sales
