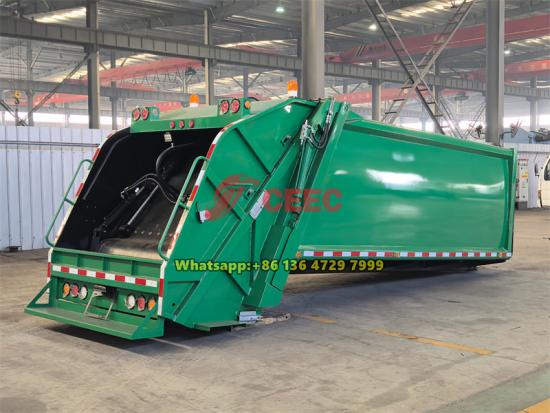

The 12m3 rear loader body kits adopts bi-directional compression technology. The compactor body has an effective volume of 12 m³, a compression ratio of ≥3.0, and both loading and unloading cycles are completed within 35 seconds. The body features an arc-shaped design made of high-strength wear-resistant steel, with 4mm side plates and 5mm floor plates. The hydraulic system operates at 18 MPa, with core components from well-known brands. The CAN-bus electronic control system supports both automatic and manual operation. Equipped with imported balance valve spools and steel castings for key parts, plus a custom foot pedal at the rear, this truck is ideal for collecting and transporting bottled, bagged, and bulk household waste in residential areas, factories, campuses, and narrow urban streets, delivering efficient, stable, and reliable performance.
Working Capcity:
12CBMDimension ( mm ) :

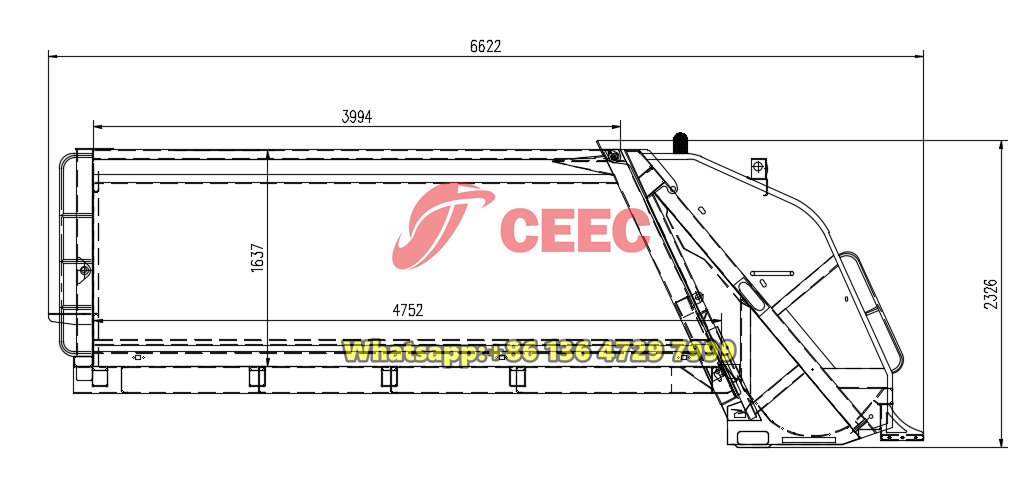

6622×2500×2326Remark:
Different loading device for optionI. What is the garbage compactor truck upper body?
The Garbage Compactor Upper Body refers to the complete set of specialized working devices installed above the chassis frame, enabling garbage loading, compaction, storage, and unloading. It serves as the "working core" of the waste compactor truck, comprising core components such as the garbage compactor body, loading hopper, push shovel, hydraulic system, and electronic control system. This garbage compactor upper body has an effective volume of 12 cubic meters, features an arc-shaped design made of high-strength wear-resistant special steel, with 4mm thickness for side plates and 5mm for the floor plate. The compression ratio is no less than 3.0, and the effective volume of the loading hopper is ≥0.8 cubic meters. The time for a single loading cycle and garbage pushing-out cycle each does not exceed 35 seconds. The hydraulic system has a maximum pressure of 18 MPa, with core hydraulic components and multi-way directional valves sourced from well-known brands. The control system adopts CAN bus technology, supports both automatic and manual operation modes, and is equipped with imported balance valve spools as standard, with a custom foot pedal at the rear.
 |
 |
II. Specifications of the 12CBM waste compactor body kits
| No. | Item Name | Unit | Parameter |
| 1 | Effective volume of the compactor body | m³ | 12 |
| 2 | Shape of the compactor body | - | Arc-shaped |
| 3 | Material of the compactor body | - | High-strength wear-resistant special steel |
| 4 | Thickness of the compactor body material | mm | 4mm for sides, 5mm for floor |
| 5 | Compression ratio | - | ≥3.0 |
| 6 | Effective volume of the loading hopper | m³ | ≥0.8 |
| 7 | Time for one loading cycle | s | ≤35 |
| 8 | Garbage pushing-out time | s | ≤35 |
| 9 | Control mode | - | Two operation modes: automatic and manual |
| 10 | Maximum pressure of hydraulic system | MPa | 18 |
| 11 | Multi-way directional valve | - | Well-known brand |
| 12 | Hydraulic oil pump | - | Well-known brand |
| 13 | Hydraulic cylinder | - | Well-known brand |
| 14 | High-pressure oil pipe (hose) | - | Well-known brand |
| 15 | High-pressure oil pipe (hard pipe) | - | Well-known brand |
| 16 | Control system | - | Changsha Fuli CAN bus control |

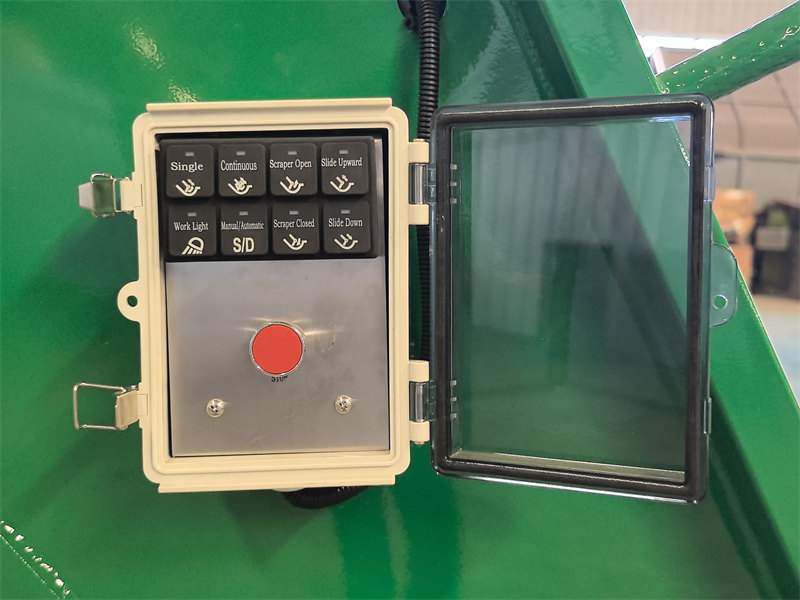

| 17 | Silicone operation panel | pcs | Total 2: 1 in the cab, 1 on the right side of the loading hopper |
| 18 | Spool of balance valve | - | Imported parts (one on each of the two lifting cylinders) |
| 19 | Engine power control | - | Full automatic control |
| 20 | Steel castings | - | Key parts such as turning mechanism connectors, cylinder supports, and locking mechanisms are steel castings |

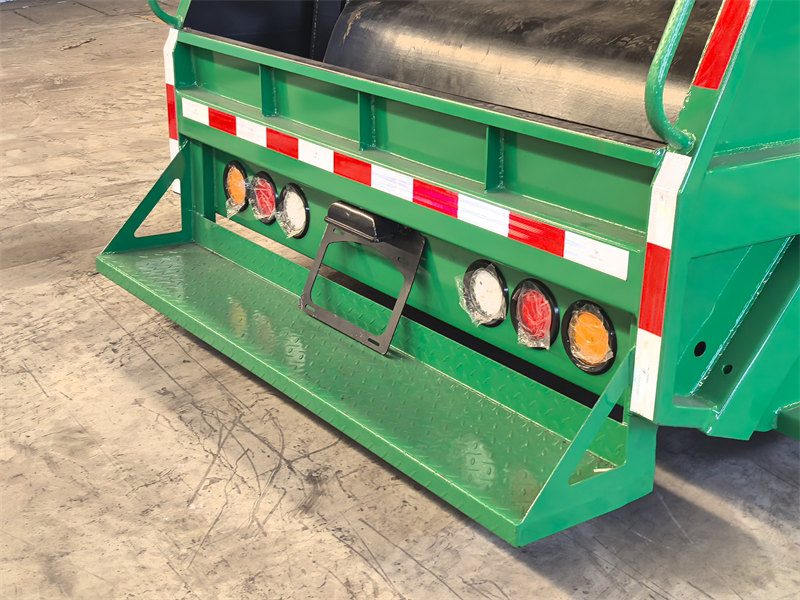

| 21 | Bin lifter | L | None, custom foot pedal at the reaer |

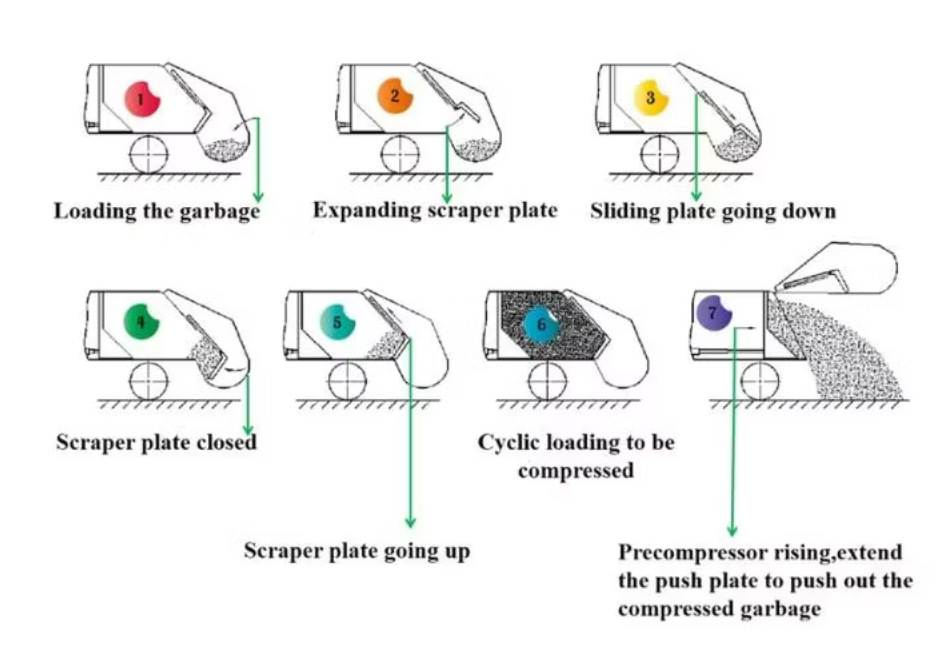

III. Functions of the 12CBM waste compactor body kits
It features multiple functions including garbage collection, automatic garbage loading and compaction, garbage transfer, and dumping.

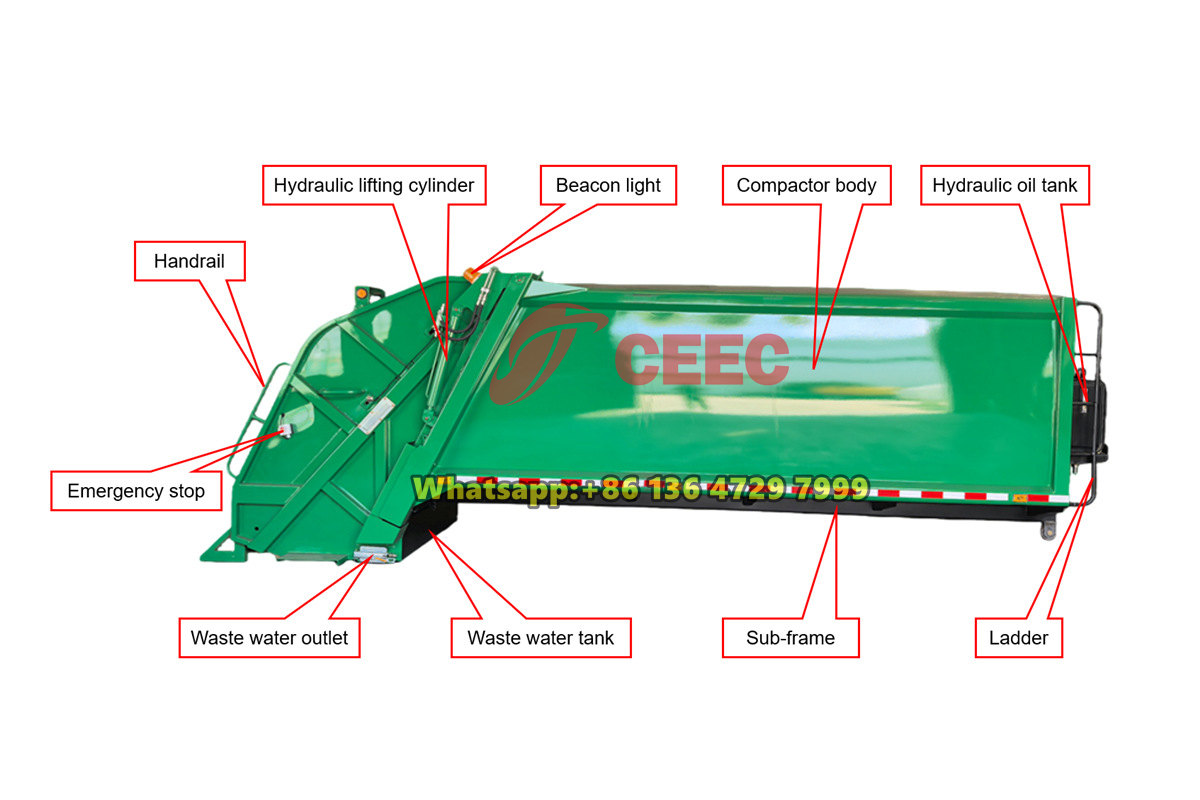

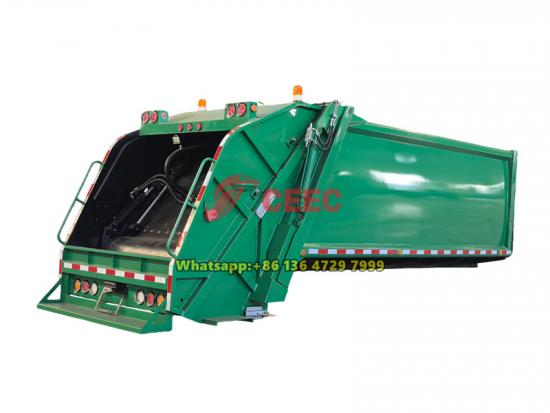

IV. Main structure of the 12CBM garbage compactor superstructure

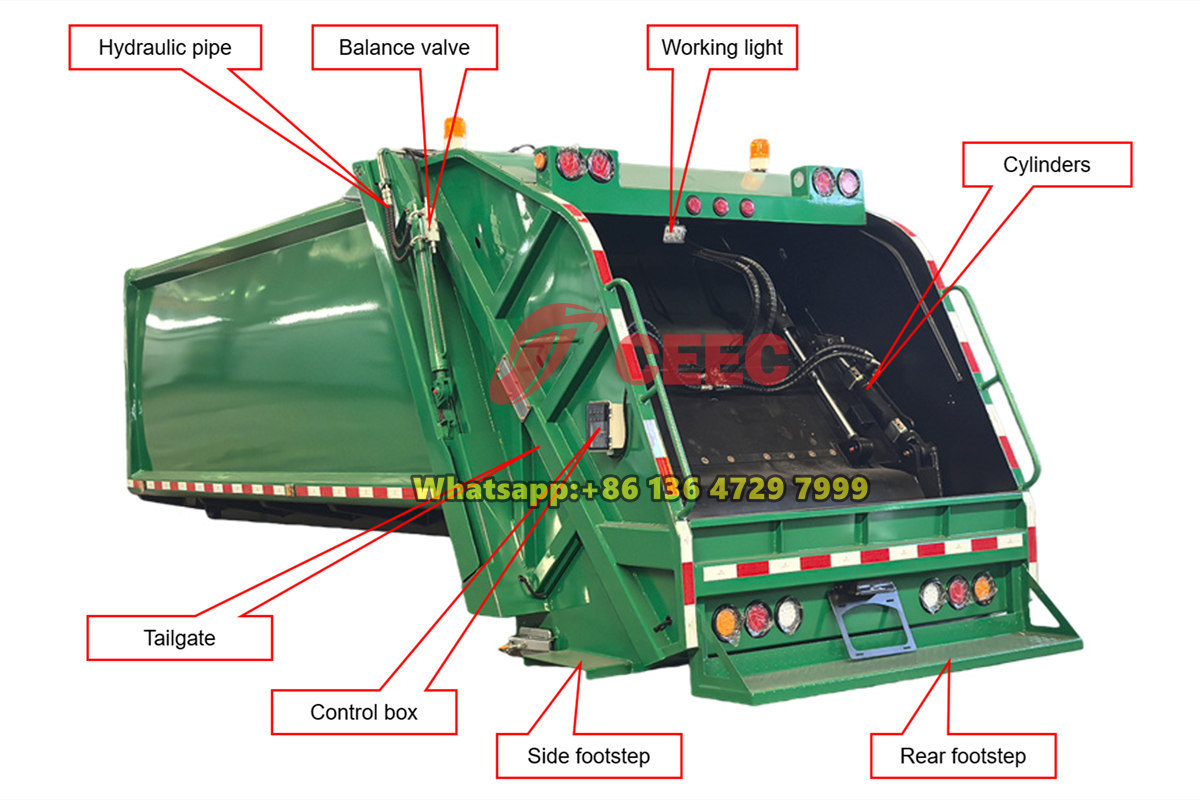

The 12CBM rear loader superstructure is mainly composed of the garbage compactor body, tailgate, push shovel, loading mechanism, hydraulic system, electronic control system, and other components. Detailed descriptions are as follows:

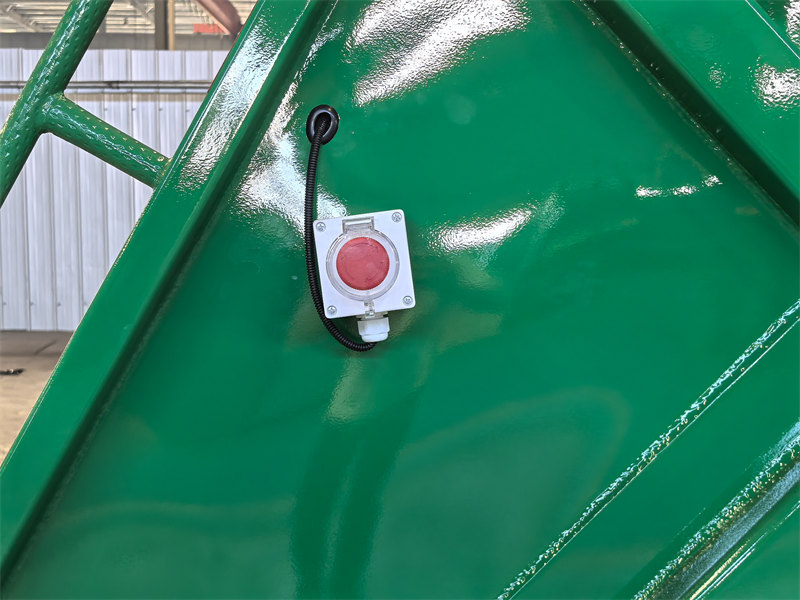

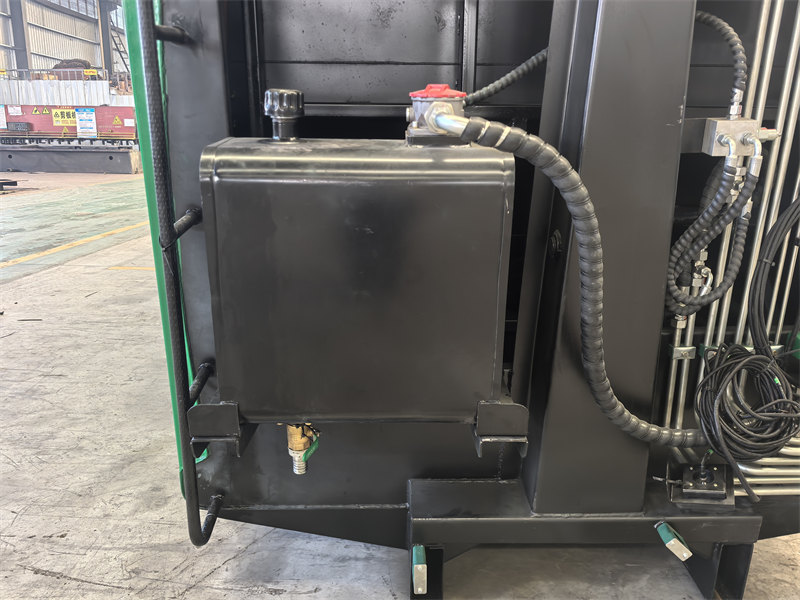

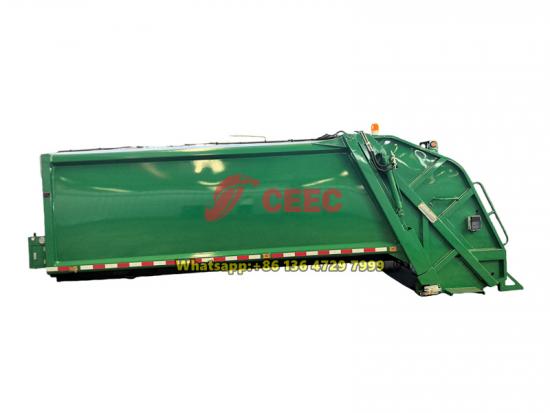

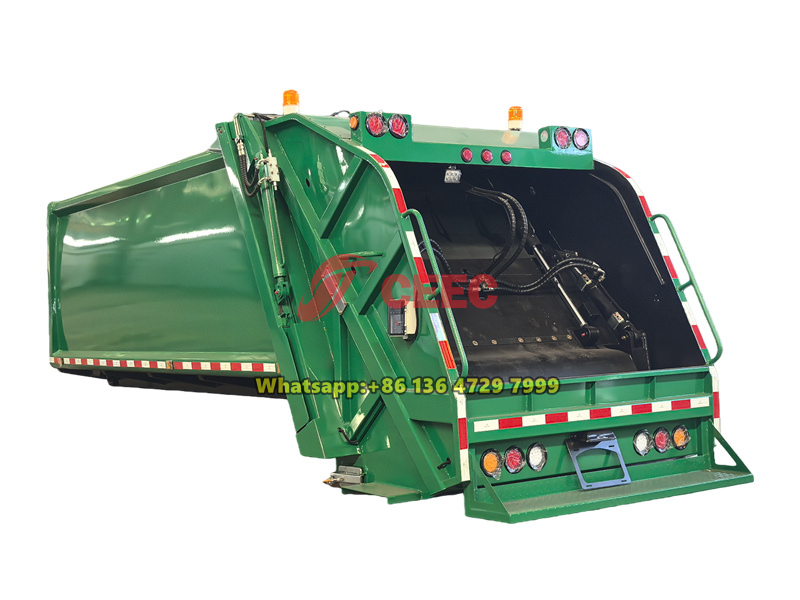

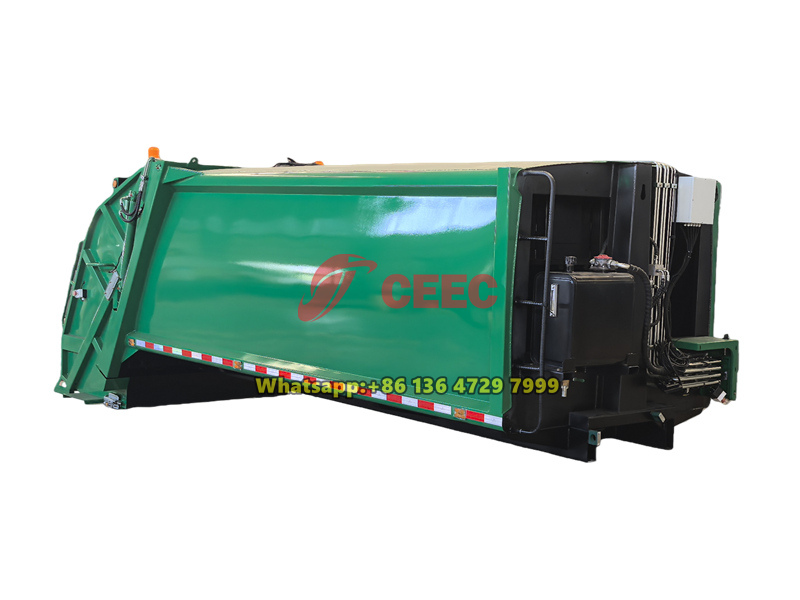

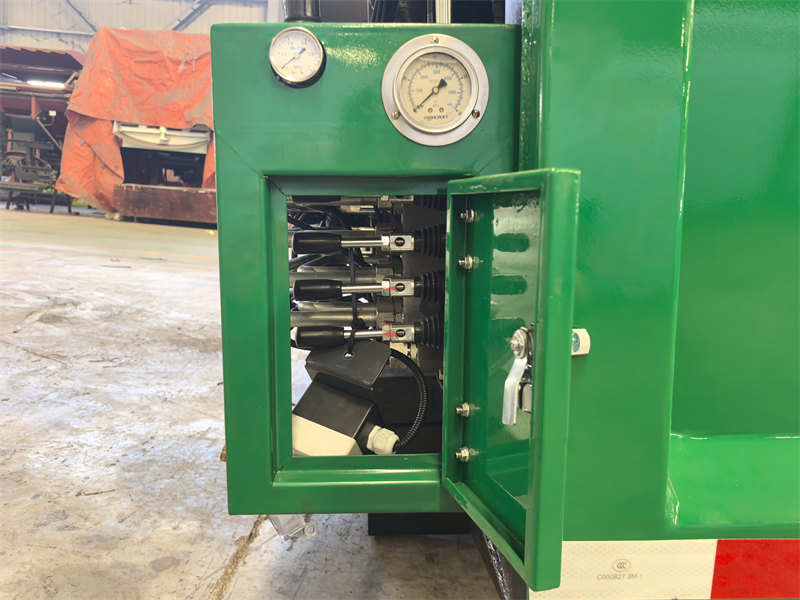

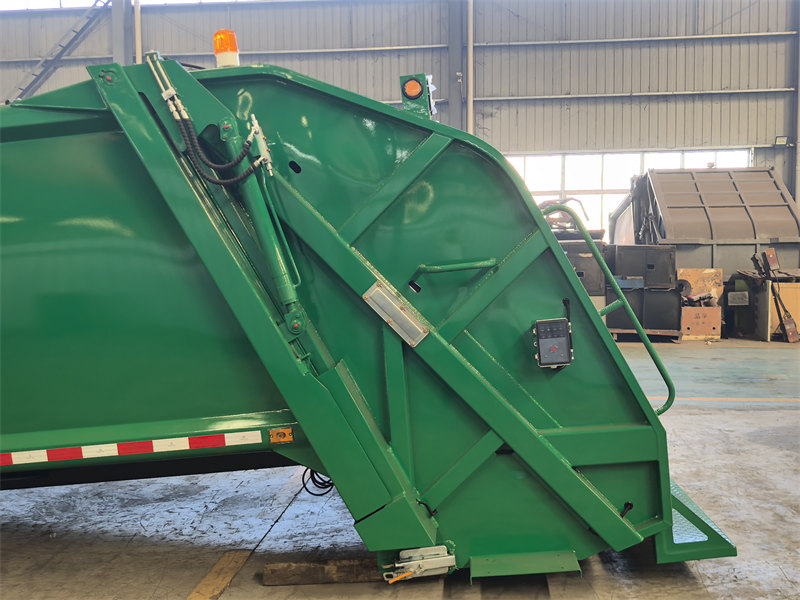

V. Details of the 12m3 refuse compactor upper body

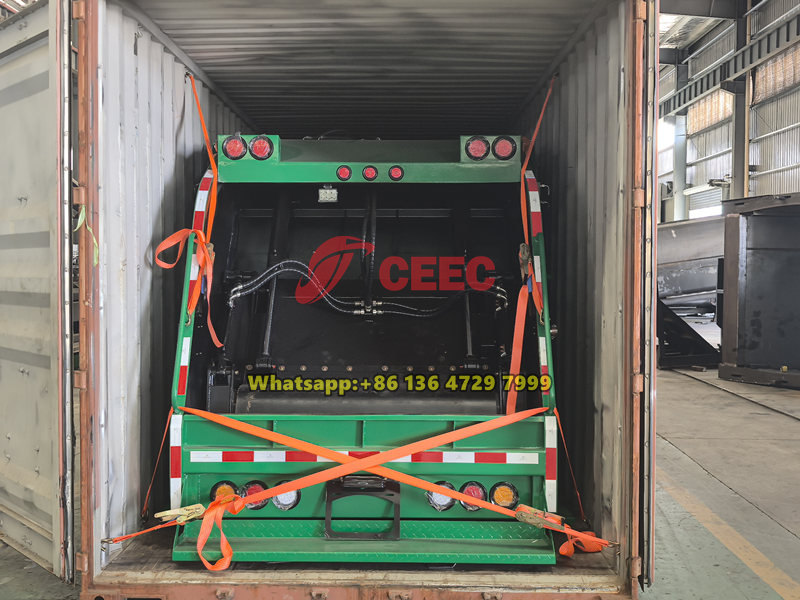

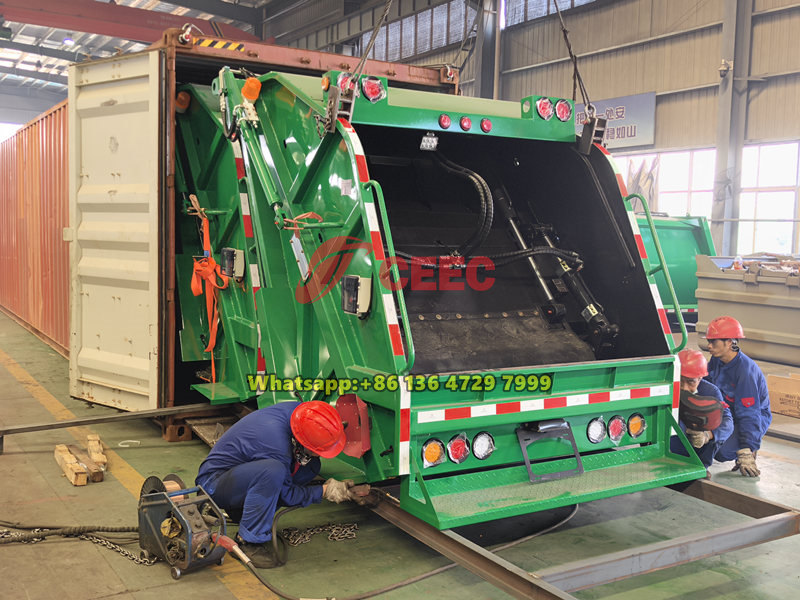

VI. How to ship the rear loader upper body?
The 12-cubic-meter rear loader compactor upper body kits can be shipped in a 40HC container. This is the most cost-effective and widely used shipping method for overseas delivery.
Our engineering team will precisely design the dimensions of the compactor upper body to fit perfectly within the internal dimensions of a standard 40HC container. By doing so, we can significantly reduce your shipping costs by avoiding the need for bulk carrier or flat rack shipping, which are much more expensive.
 |
 |
