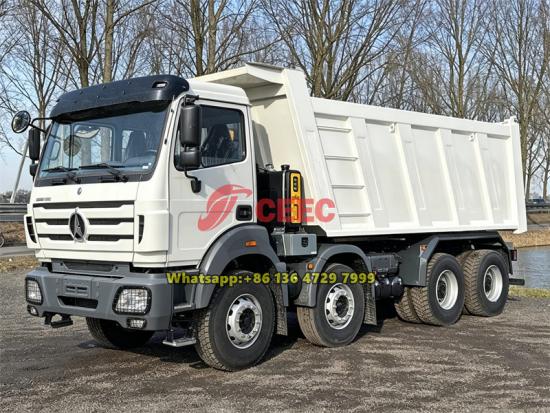

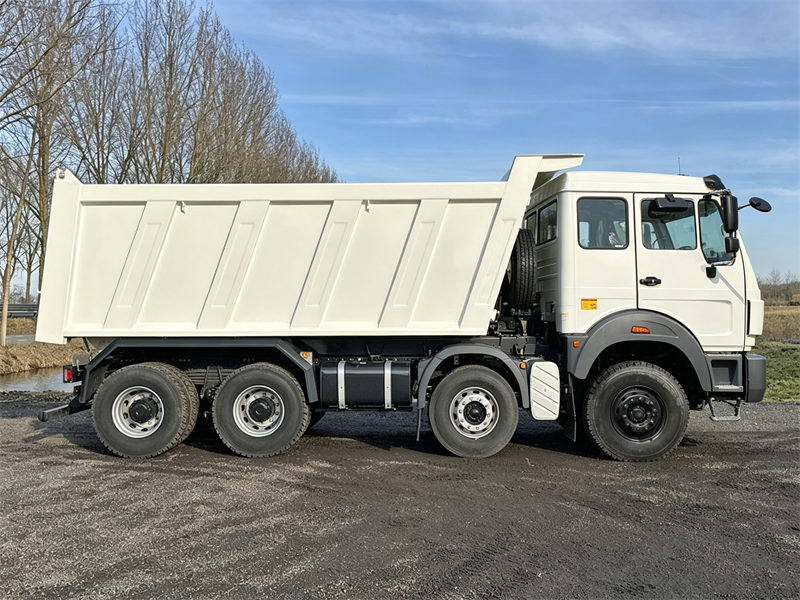

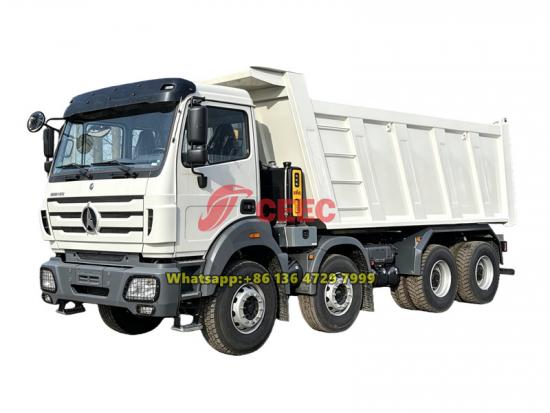

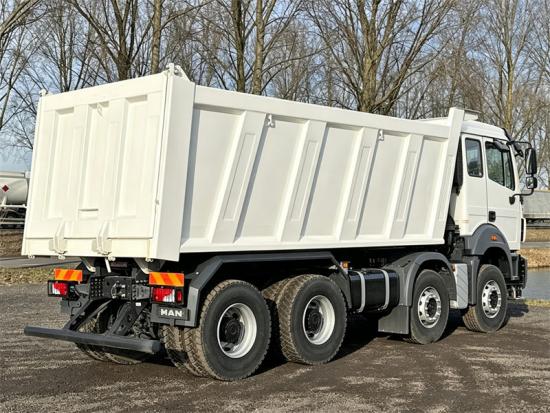

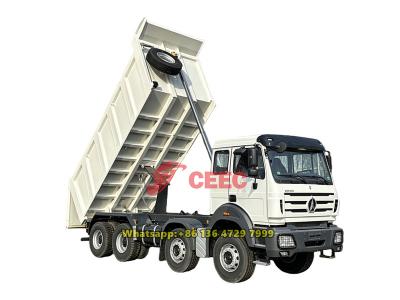

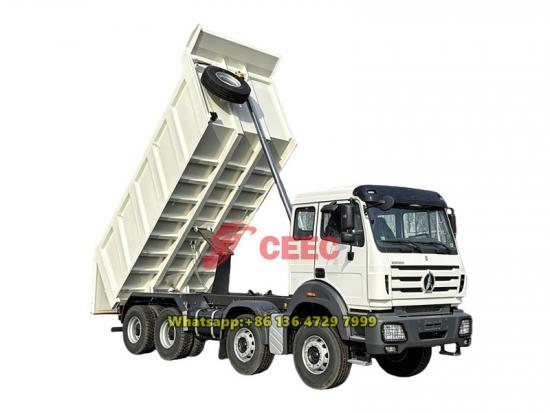

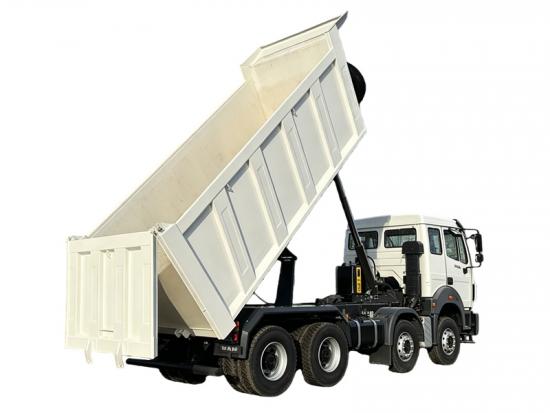

The Beiben 8×4 Heavy Duty Dump Truck is an engineering purpose vehicle built on a Mercedes Benz technology chassis and military grade manufacturing standards. Equipped with a 420 horsepower engine and a 12 speed manual transmission, it delivers powerful performance. Its reinforced frame and 13 ton rear axles provide exceptional load bearing capacity. Combined with the NG80B comfortable cab complying with safety regulations and the HYVA front mounted hydraulic lifting system, it ensures efficient and reliable unloading. Designed for harsh working conditions such as mine stripping, road bridge construction and water conservancy projects, this truck boasts excellent attendance rate and serves as an efficient solution in heavy haul transportation.
Working Capcity:
40~50 tonsCabin Type:
NG80B long cabin, 2 seats and one sleeperDimension ( mm ) :
10200×2550×3480Drive System:
8×4, LHDWheelbase (mm):
1950+3700+1450Engine Power:
420HP/WP12.420E32Gear Box:
12JS200TTyres:
12.00R20, 12+1 pcsRemark:
6×6, RHD is optional
Product Description⇓

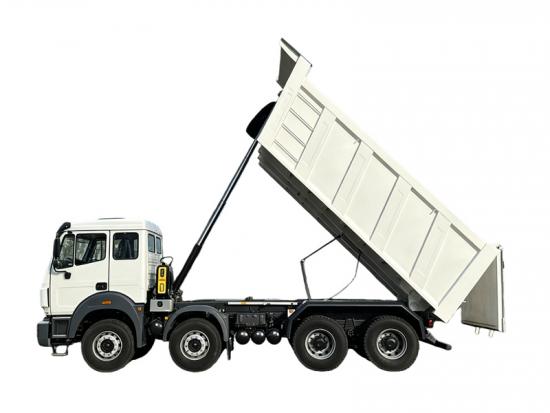

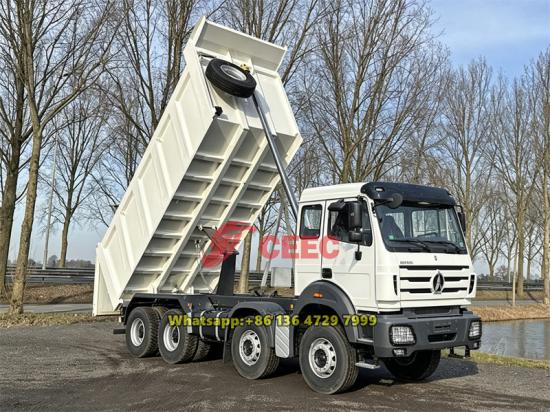

The Beiben 8×4 Heavy Duty Construction Dump Truck is a heavy duty transport vehicle developed with Mercedes Benz chassis technology and military grade manufacturing standards, specially engineered for extreme working conditions including mine stripping, road bridge construction and large scale water conservancy projects. It is fitted with a Weichai 420HP engine, matched with a 12 speed manual transmission and double reduction drive axles of Mercedes Benz technology to form a high performance powertrain. The NG80B long cab complies with ECE R29 safety regulations and comes with an air suspension seat, electric windows and heating cooling air conditioner to guarantee operator comfort under harsh environments. The cargo box is made of high strength wear resistant Q345 steel plate and equipped with a HYVA front mounted hydraulic lifting system delivering a 55 degree maximum lifting angle for thorough and efficient unloading. Featuring high reliability, high attendance rate and outstanding heavy load climbing capability, the whole vehicle unit is a preferred efficient transport solution for infrastructure and mining sectors.
Beiben 8×4 heavy dump truck specifications⇓
|
Beiben 8×4 Construction Dump Truck Technical Specification |
||
|
Basic parameter |
Model |
3142K/8×4 |
|
Overall dimensions (mm) |
10200×2550×3480 |
|
|
Wheel-base(mm) |
1950+3700+1450 |
|
|
GVW(kg) |
31000 |
|
|
Curb weight(kg) |
14800 |
|
|
Cab |
NG80B Long Cabin Flat roof with single sleeper, LHD Exterior trimming: Metal bumper, three steps, outer sun visor, sun roof (Manual), front under-ride bumper, rear view mirror (Manual). |
|
|
Interior trimming: Air suspension seat, cooling and heating air conditioner, Steering wheel can be adjusted, door lock(Manual), radio (with MP3), digital instrument, electric window lifter |
||
|
Engine parameter |
Model (six cylinder in line) |
WP12.420E32 |
|
Max. Power (HP/KW) |
420HP/309KW |
|
|
Max. Torque(Nm/rpm) |
1750/1200～1500 |
|
|
Displacement(lit) |
11.596 L |
|
|
Fuel tank capacity |
400L （Iron） |
|
|
Transmission system |
Clutch |
430 Single disc, dry type, friction clutch； |
|
Gearbox |
12JS200T Mechanical, 12 forward gear, manual； |
|
|
Steering system |
Steering gear |
8098 Circulating ball steering gear, hydraulic booster； |
|
Brake system |
Service brake |
Double circulation air brake system equipped； |
|
Parking brake |
Energy storage spring brake； |
|
|
Assisted brake |
Engine exhaust brake； |
|
|
Chassis parameter |
Frame |
Variable width and section 317×70×8.5+7 mm； |
|
Front axle |
7.5T, Non-driving steering axle, drum brake； |
|
|
Middle & Rear axle |
13T, Double-shoe pneumatic brake, double reduction driving axle, differential lock, ductile casting casing, speed ratio is 5.263； |
|
|
Front and rear suspension |
Front/rear: Leaf spring, 12/12/13 pieces； |
|
|
Tire |
12.00R20, 12+1 pcs |
|
|
Cargo box |
Size (mm) |
7400×2300×1500 |
|
Material |
High strength steel Q345 |
|
|
Thickness (mm) |
Walls: 6mm; Floor 8mm |
|
|
Lifting system |
HYVA front lifting, telescopic hydraulic cylinder |
|
|
Lifting angle |
55° |
|
|
Painting |
Primer, mid-coat and top coat |
|
Applications of Beiben 8×4 construction tipper lorry⇓
1. Infrastructure, Road and Bridge Projects: Earth rock backfilling for roadbeds, transportation of sand, gravel and construction materials, and construction site muck haulage.
FAQ⇓
Q1: What engine does it adopt and how is its power performance?
A: It is equipped with the inline 6 Weichai WP12.420E32 engine with a maximum power of 420 HP and a peak torque of 1750 N·m. It generates sufficient low speed torque and excellent climbing capacity. The mature and durable powertrain achieves favourable fuel consumption and high attendance rate on construction sites.
Q2: What braking configurations are available? Is it safe when travelling downhill under heavy load?
A: It is fitted with a triple braking system consisting of dual circuit air service brake, spring energy storage parking brake and engine exhaust auxiliary brake. It offers high safety factors for downhill heavy load operation and adapts to long downhill conditions at construction sites.
Q3: What are the cab specifications and how about driving comfort?
A: It adopts the NG80B long flat roof cab with a single sleeper, meeting ECE R29 safety standards. Standard configurations include an air suspension seat, heating cooling air conditioner and electric windows to improve comfort during long hour construction site operations.
Q4: What are the functions of the axles and differential lock?
A: The middle and rear axles are 13 ton double reduction drive axles with built in differential locks. On muddy and bumpy construction site roads, the rear axles can be locked to prevent wheel slip and improve the vehicle’s passability over complicated terrain.
Customer case⇓

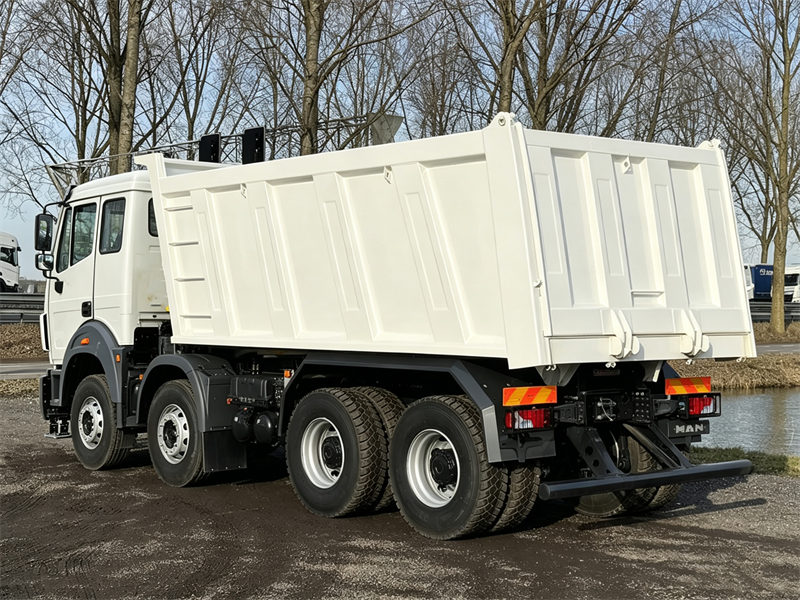

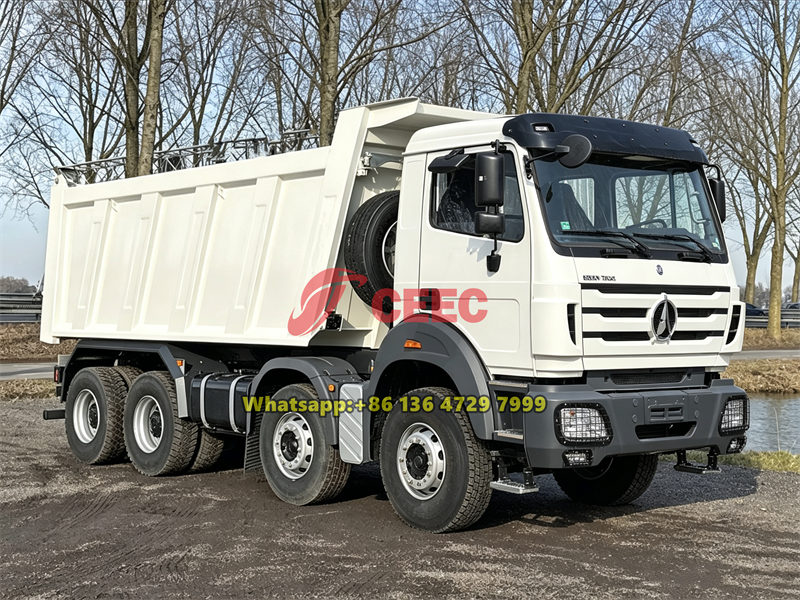

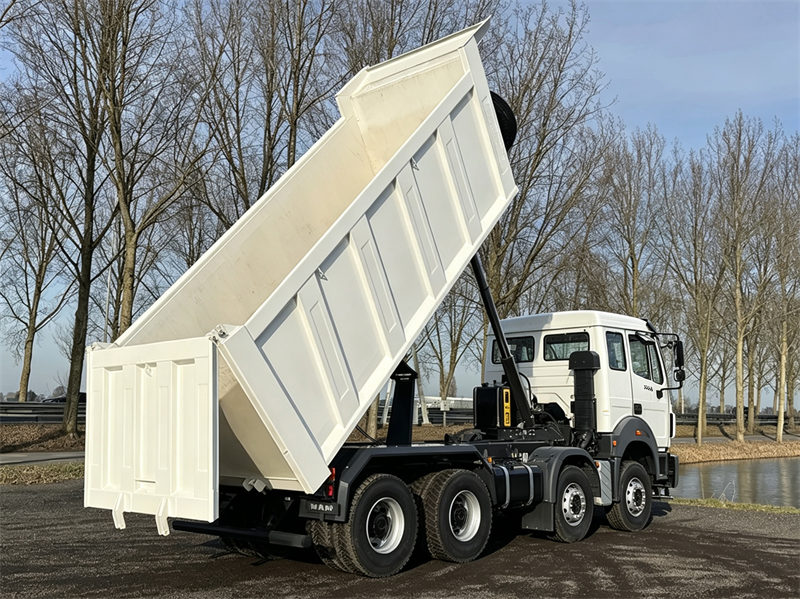

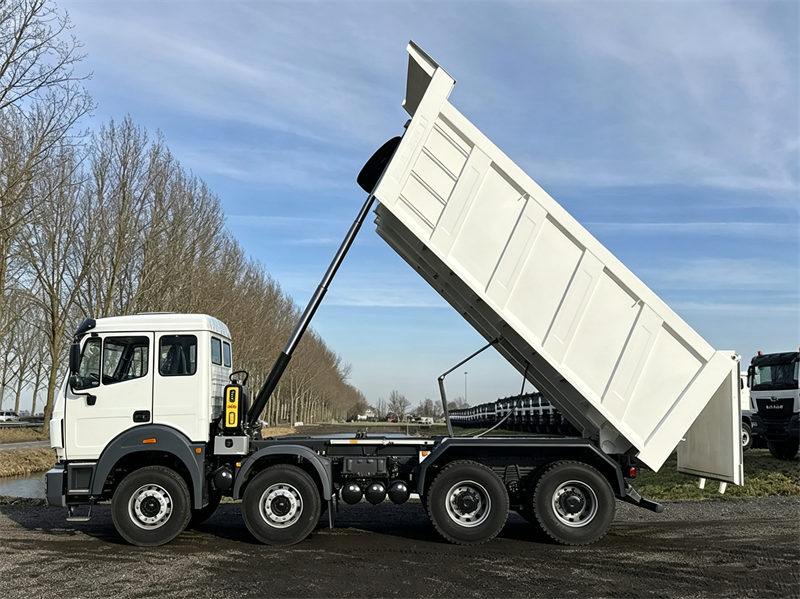

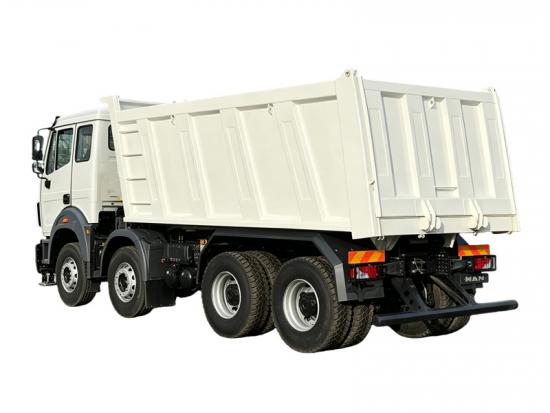

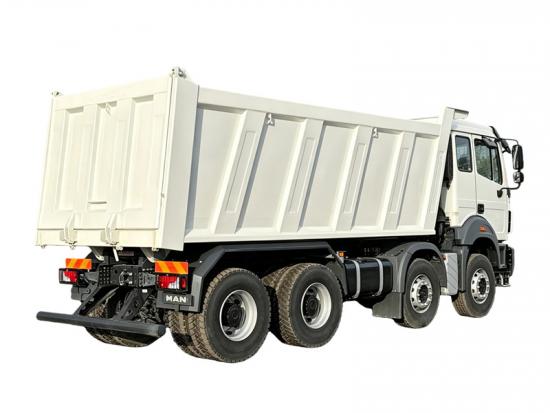

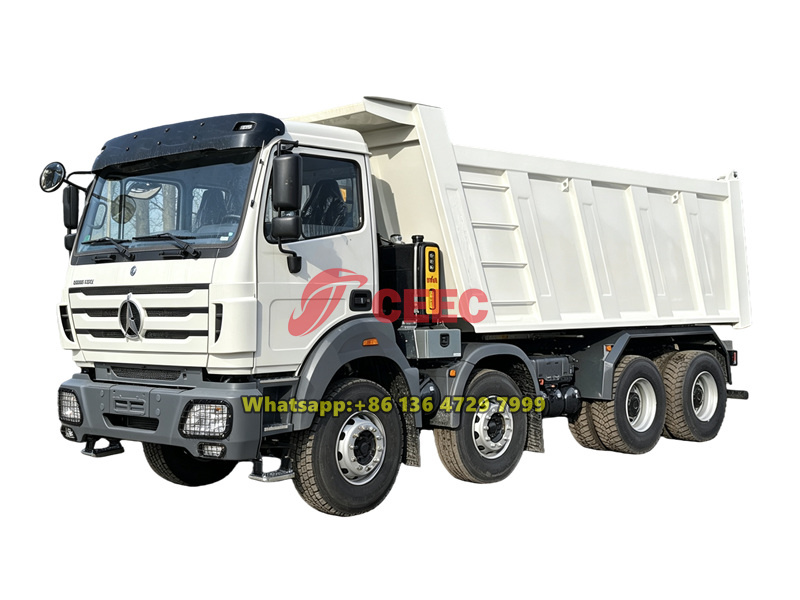

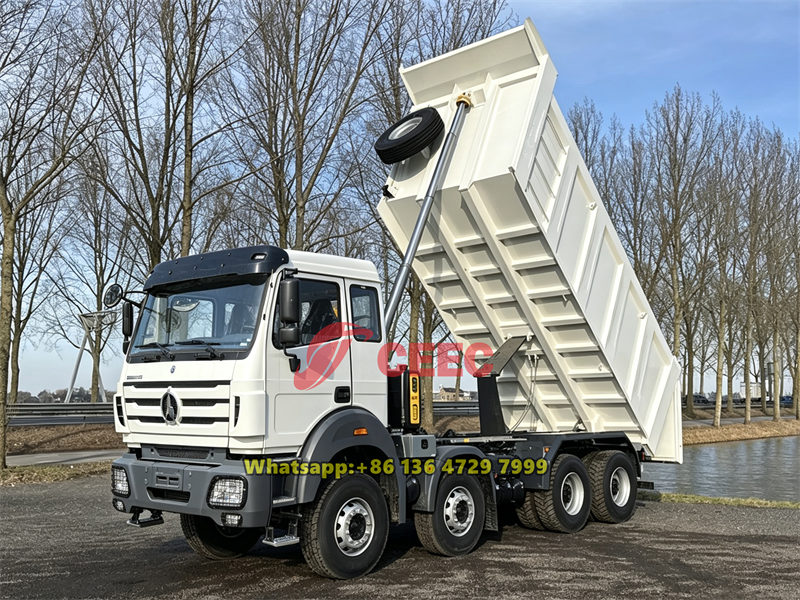

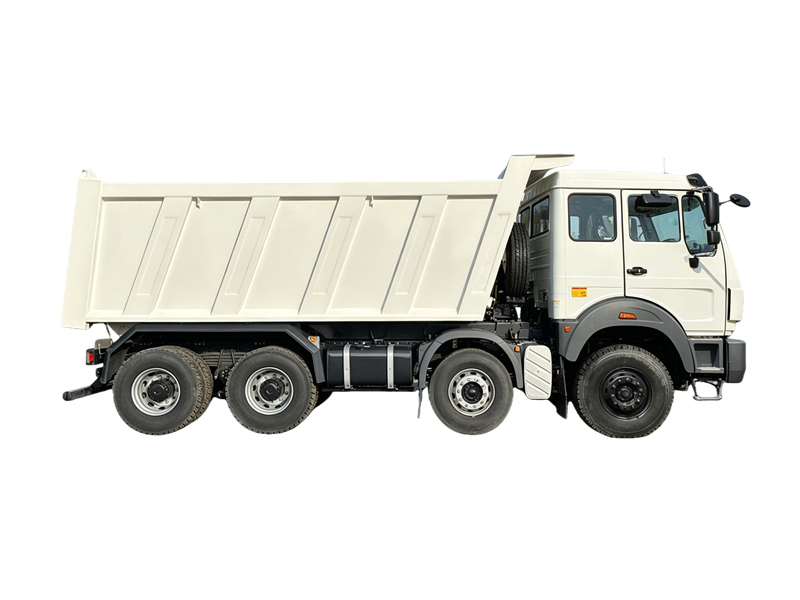

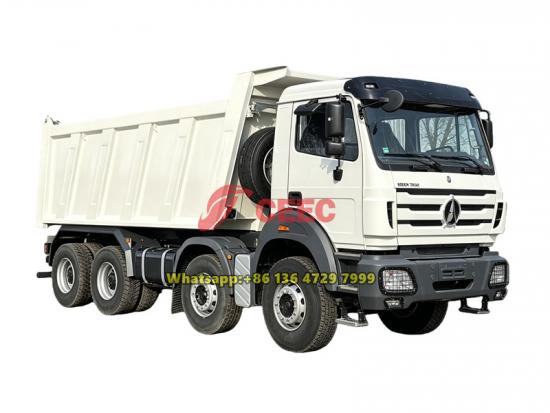

☛ Beiben 8×4 heavy tipping truck pictures
 |
 |
 |
 |
 |
 |
As the best baotou beiben 12 wheeler dump trucks manufacturer, we can produce Beiben 12 wheeler dump truck 8*4 driving sytem, with beiben special 340 horse power diesel engine, fast gear 12 shift transmission. The north benz 340 hp dump trucks are widely used for transporting sand, construction material and low density material .

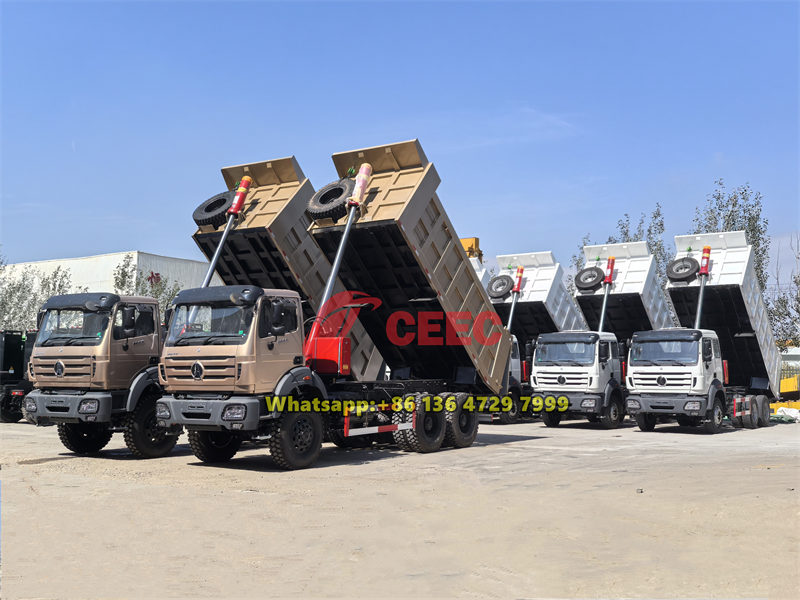

Beiben 3138 dump trucks is also called as beiben 3138 dumper, with beiben 380 hp diesel engine and full germany benz technology. Our north benz 380 hp 12 wheeler dump truck are very polulare in africa countries, such as CONGO, TANZANIA, GHANA, NIGERIA.
North benz 12 wheeler 420 Hp dumpers , with beiben 420 hp diesel engine, fast 12 shift transmission, fully applyied Benz truck technology, with latest beiben dumper trucks technology.
As the best dealer of baotou beiben heavy duty trucks plant, we can produce the best type for beiben 420 hp dump trucks. It is beiben 6*4 dumper with 420 hp engine. All the beiben 420 hp dumper from our plant will have long guarantee more than 12 months.

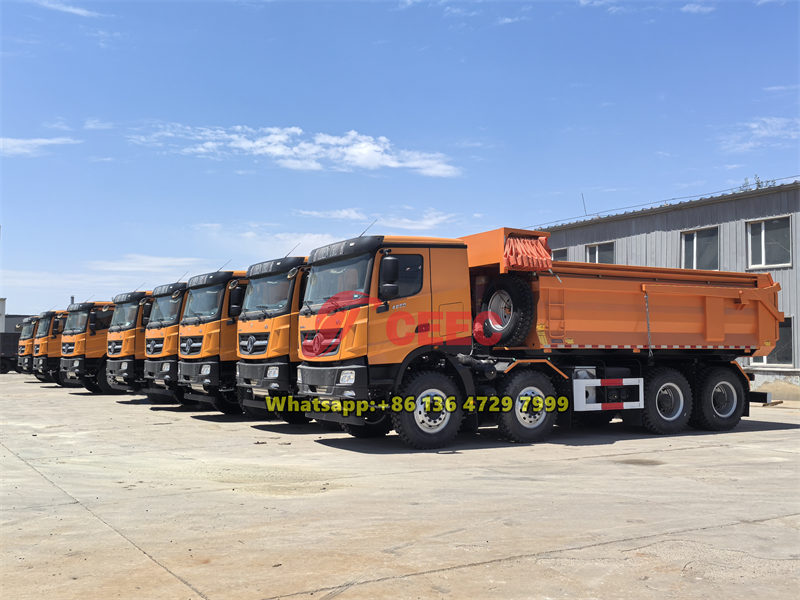

Made in China Powerful Beiben V3 8X4 tipper for sale With Low Price, we are best china made beiben V3 12 wheeler dump trucks manufacturer, more than 10 years in beiben V3 dump trucks producing.
