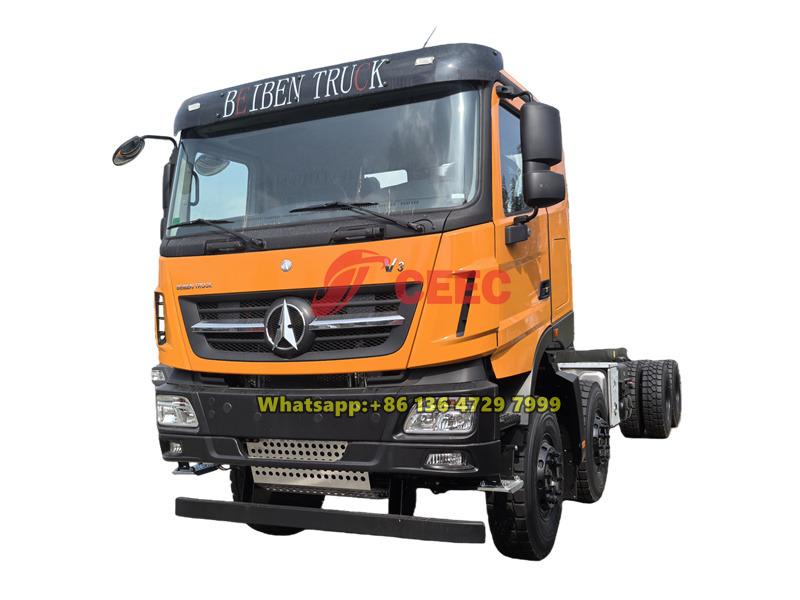

The Beiben V3 8×4 4850 heavy-duty chassis is a reinforced engineering transport platform with a 50-tonne load capacity. It features a wheelbase of 1950+4000+1450 mm and can accommodate a rugged 7-meter dump body. Incorporating Mercedes-Benz technology and military-grade quality standards, it is powered by a Weichai 500 hp engine and a Fast 16-speed AMT transmission, delivering strong power performance and a 30% gradeability. The chassis is built with high-strength steel and thickened multi-leaf spring suspension, ensuring structural robustness and durability. It is widely used for medium- to long-distance heavy bulk material transport in harsh conditions such as mining and construction sites.
Working Capcity:
50 tonsCabin Type:
V3 cabinDimension ( mm ) :
9890×2550×3350Drive System:
8×4Wheelbase (mm):
1950+4000+1450Engine Power:
500HP/WP13.500E501Gear Box:
F16JZ24ARemark:
12.00R24, RHD drive optionalProduct Introduction
Beiben V3 4850 heavy-duty dump truck chassis is a high-capacity engineering transport platform engineered specifically for extreme and severe operating conditions. It has a gross vehicle weight of 48 tonnes and a chassis curb weight of approximately 10.5 tonnes, with a wheelbase of 1950+4000+1450 mm, and can be fitted with a reinforced dump body measuring 7 m in length, 2.3 m in width, and 1.5 m in height. Built on Mercedes-Benz technology and integrated with a military-grade quality management system, the chassis adopts an 8×4 heavy-duty drive configuration. The frame is made of high-strength steel, and both the front and rear suspensions utilize thickened multi-leaf spring assemblies. Combined with Mercedes-Benz-technology 7.5-tonne front axles and 13-tonne rear axles, it achieves an optimal balance between structural rigidity and load-bearing resilience, ensuring exceptional stability and durability under heavy loads and on rough terrain.

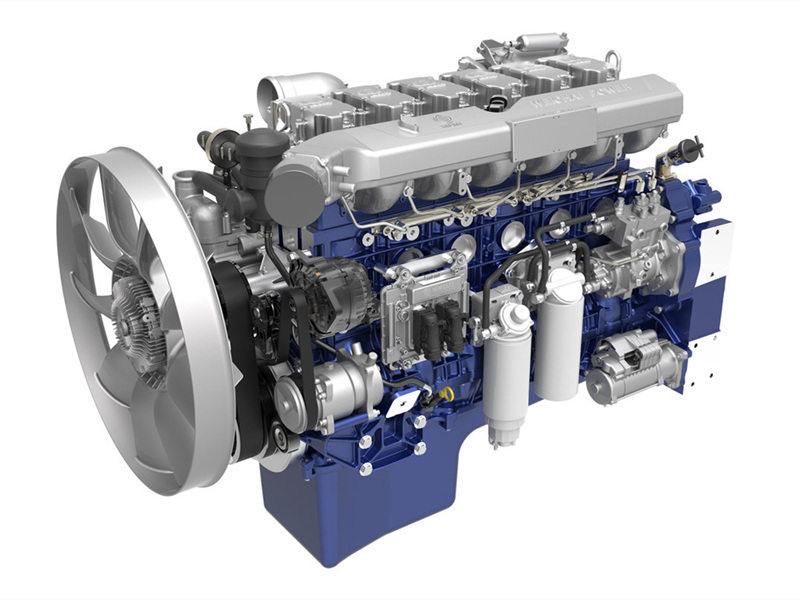

The Beiben V3 dump truck chassis is powered by the Weichai WP13.500E501 engine, delivering a maximum output of 500 hp and a peak torque of 2400 N·m. It is mated to a Fast F16JZ24A 16-speed AMT automatic transmission with a maximum input torque of 2400 N·m. The vehicle is also equipped with a WEVB auxiliary braking system and a dual-circuit pneumatic braking system, granting it a maximum gradeability of 30% as well as approach/departure angles of 17°/52°. These features enable it to confidently handle demanding conditions such as mining sites, construction worksites, and complex mountain roads.
CEEC factory is authorized supplier on Beiben heavy duty dumper trucks,
guarantee all Beiben tipper trucks Brand-New and High-Quality.
Product Fetrures
Product Specifications
|
Drive Type |
8x4 LHD/RHD |
|
Cab |
|
|
Type |
V3 |
|
Equipment |
With Air Condition, 2 seats, one bed |
|
Weight |
|
|
Kerb mass(kg) |
10500 |
|
GVW(kg) |
48000 |
|
Dimensions |
|
|
Length(mm) |
9890 |
|
Width(mm) |
2550 |
|
Height(mm) |
3350 |
|
Front/Rear overhang |
1515/1200 |
|
Wheel base (mm) |
1950+4000+1450 |
|
Front wheel track (mm) |
2004/2004 |
|
Rear wheel track (mm) |
1874/1874 |
|
Body size optional |
|
|
Length (mm) |
7000 |
|
Width (mm) |
2300 |
|
Height (mm) |
1500 |
|
Thickness of Steel |
Floor 8mm, side 6mm |
|
Tipping type |
Front tipping |
|
Performance |
|
|
Max. speed (km/h) |
80 |
|
Max. gradeability(%) |
30 |
|
Approach/Departure angel(°) |
17/52 |
|
Engine |
|
|
Brand |
WEICHAI |
|
Model |
WP13.500E501 |
|
Power (HP/KW) |
500HP / 368KW |
|
Max torque (N.M)/rpm |
2400/950-1400 |
|
Displacement (L) |
12.54 |
|
Emission Standards |
Euro 5 |
|

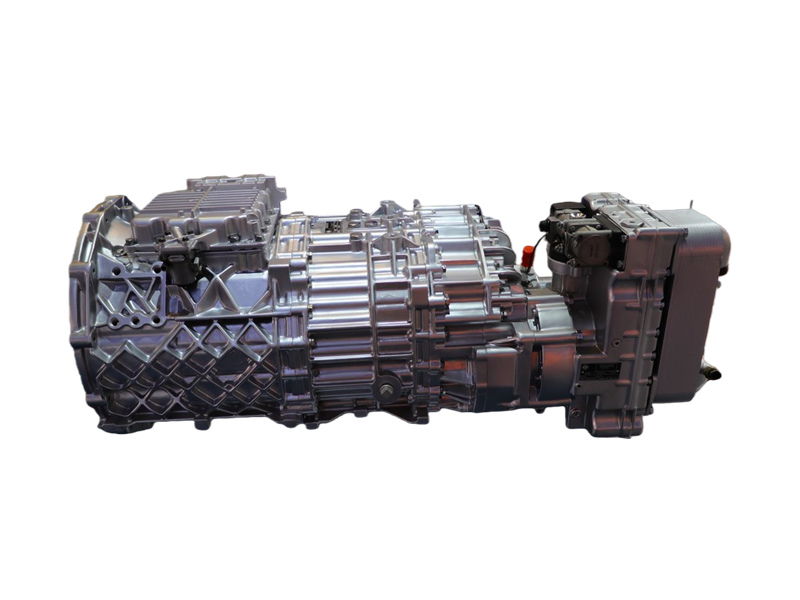

Transmission |
|
|
Brand |
FAST |
|
Model |
F16JZ24A |
|
Type |
AMT |
|
Model |
F16JZ24A |
|
Max. input torque |
2400N·m |
|
Gear shift |
16-forward & 2-reverse speeds |
|
Clutch |
|
|
Type |
Single plate, diaphragm spring |
|
Diameter (mm) |
Φ430 |
|
Action |
Hydraulically operating with air assistance |
|
Brakes |
|
|
Type |
Drum |
|
Service Brake |
With dual-circuit compressed air brake |
|
Park Brake |
Energy storage spring brake |
|
Auxiliary Brake |
WEVB |
|
Steering |
8098 Circulating ball steering gear, hydraulic booster |
|
Frame |
Variable width and section |
|
Dimensions (mm) |
317×70×8.5+7+8.5 mm |
|
Suspension |
|
|
Front |
Longitudinal leaf spring |
|
Rear |
Inverted leaf spring stabilizator suspension |
|

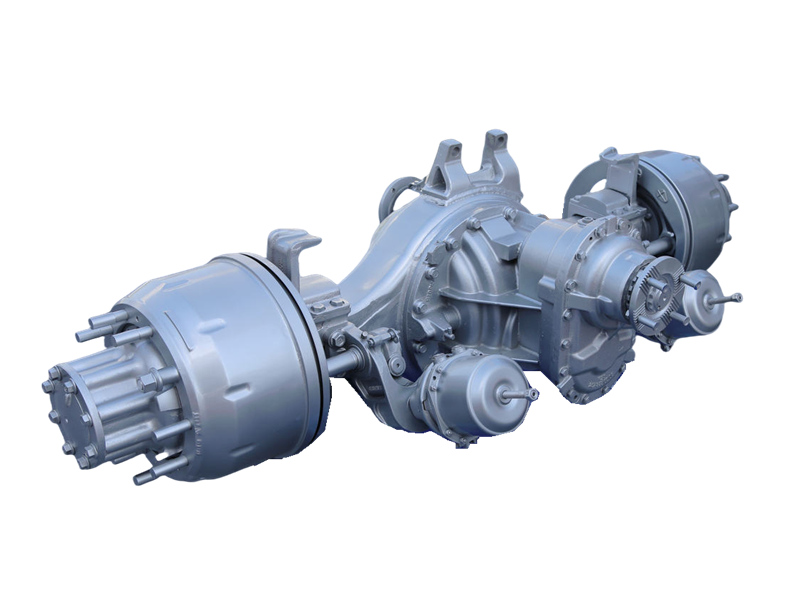

Axles |
BENZ TECHNOLOGY |
|
Front |
7.5T+7.5T, non-driving steering axle, drum brake |
|
Rear |
13T+13T, Double-shoe pneumatic brake, single reduction driving axle, differential lock |
|
Ratio |
5.263 |
|
Tyre |
12.00R20 radial tire, 12+1 pcs |
|
Fuel tank |
|
|
Tank capacity(L) |
400 |
|
Material |
Aluminum alloy |
|
Electrics |
|
|
Type |
24V |
|
Starter |
5.58kw(24) |
|
Generator |
2.0kw(28V 70A) |
|
Battery |
2x135Ah |
Product Details
 |
 |

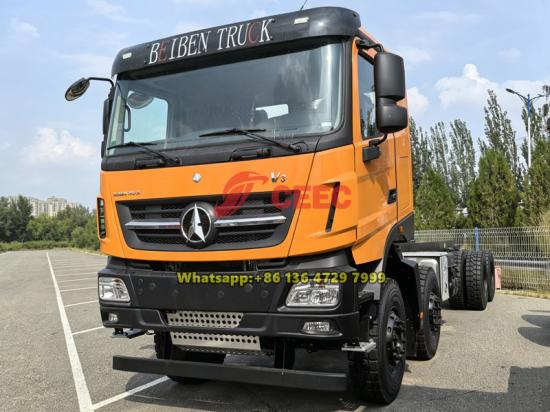

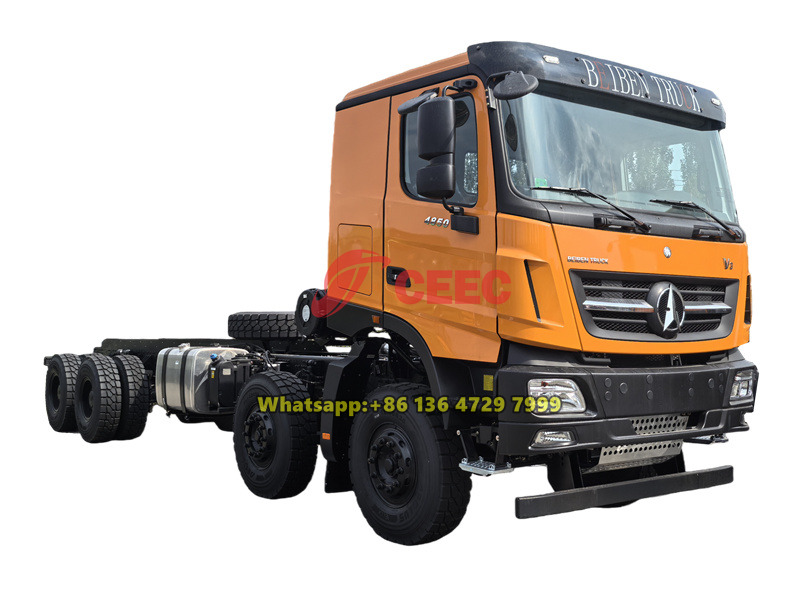

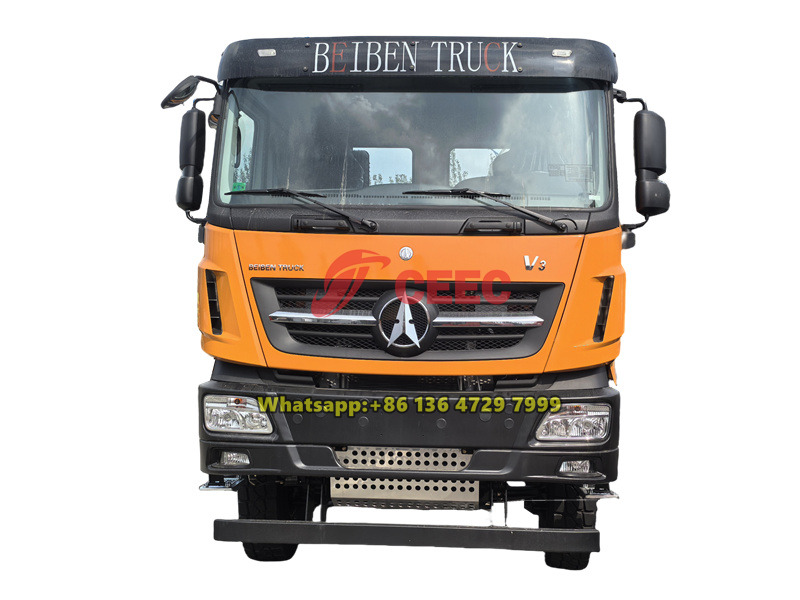

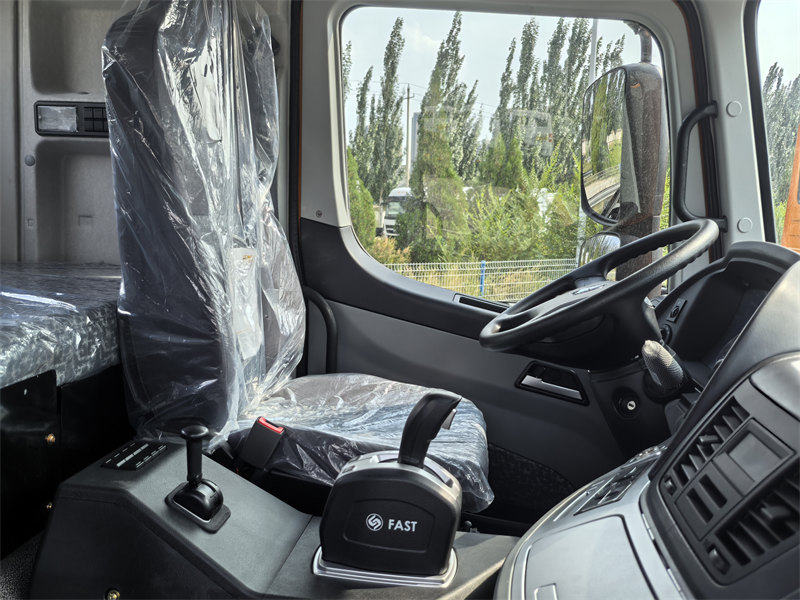

| Beiben V3 Luxury Cabin | Heavy chassis for dump truck |
 |
 |

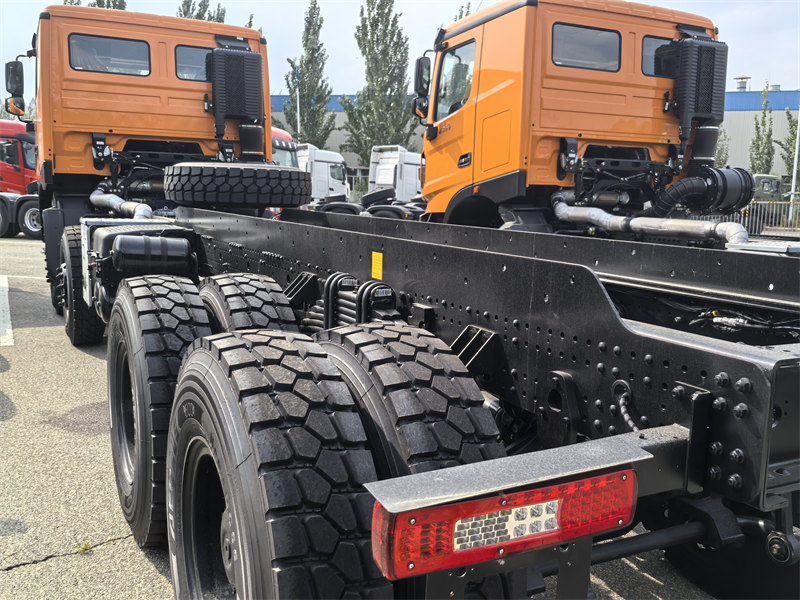

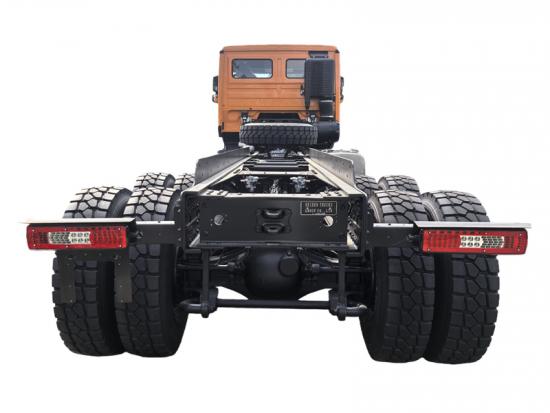

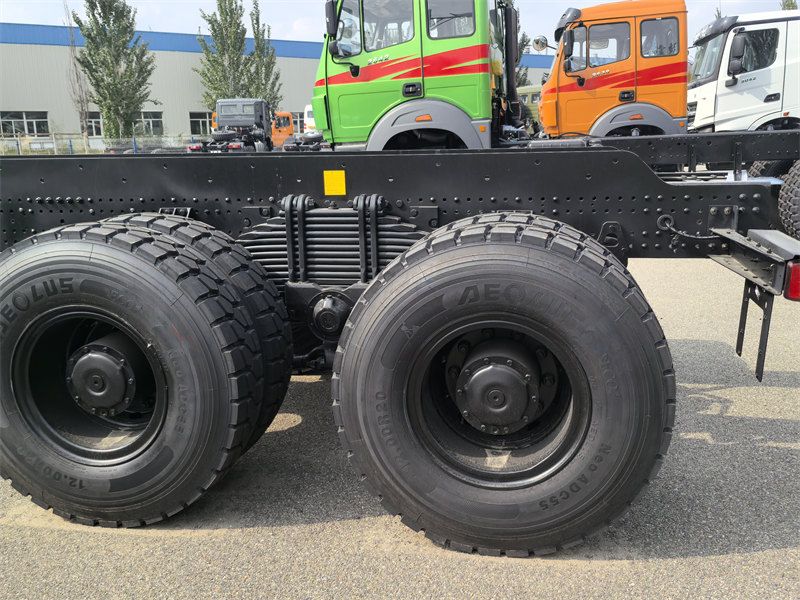

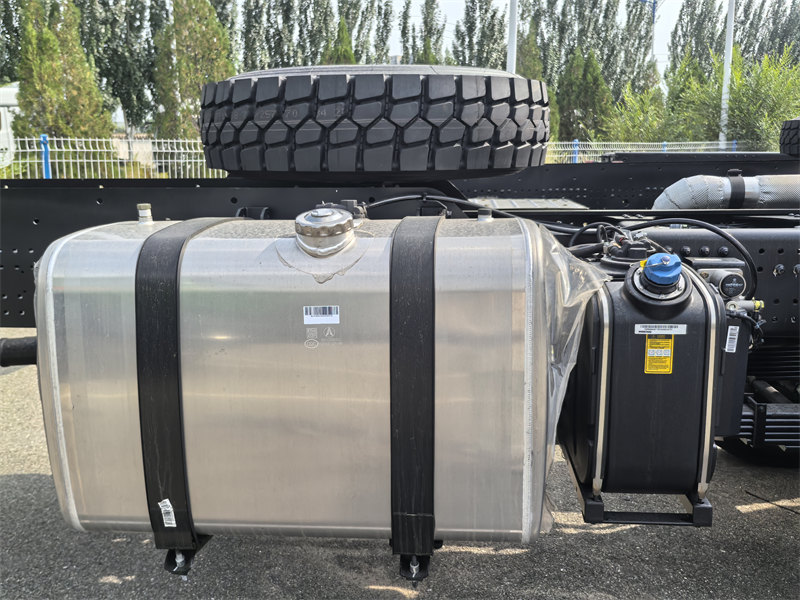

| Reinforced suspension with heavy payload | Aluminum alloy fuel tank |

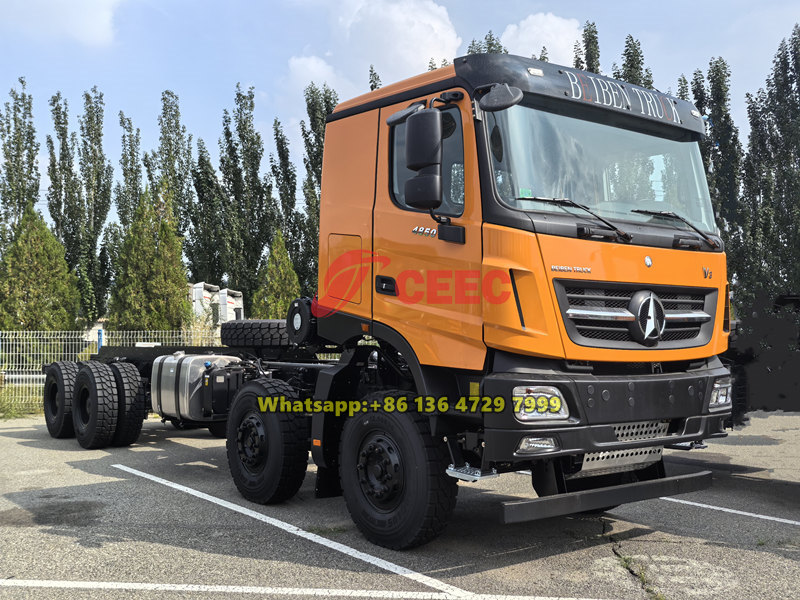

Beiben V3 4850 heavy chassis advantages
1. Superior Load Capacity: The 8×4 reinforced chassis combined with Mercedes-Benz-technology axles and a high-strength frame makes it ideal for heavy-duty operations in harsh working conditions.
2. Powerful Performance: Powered by a Weichai 500 hp engine delivering 2400 N·m of torque, with a 30% gradeability, it easily handles complex road conditions.

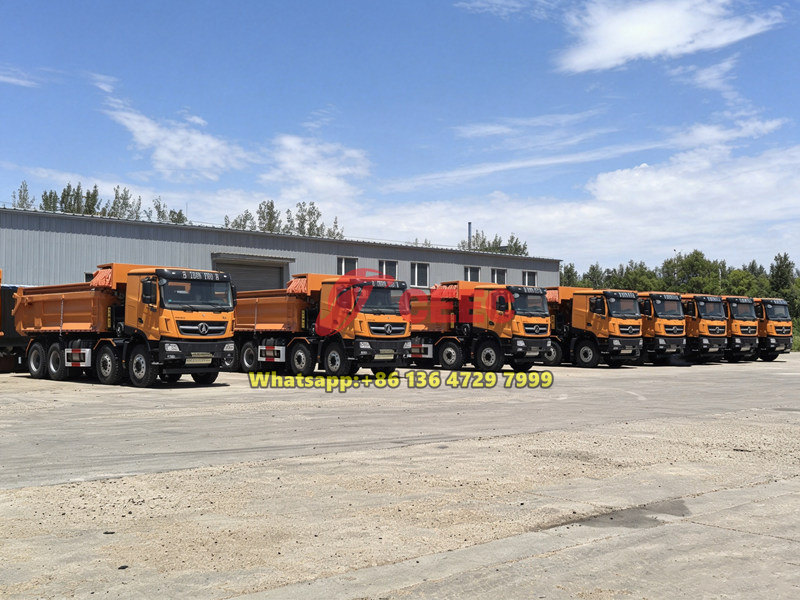

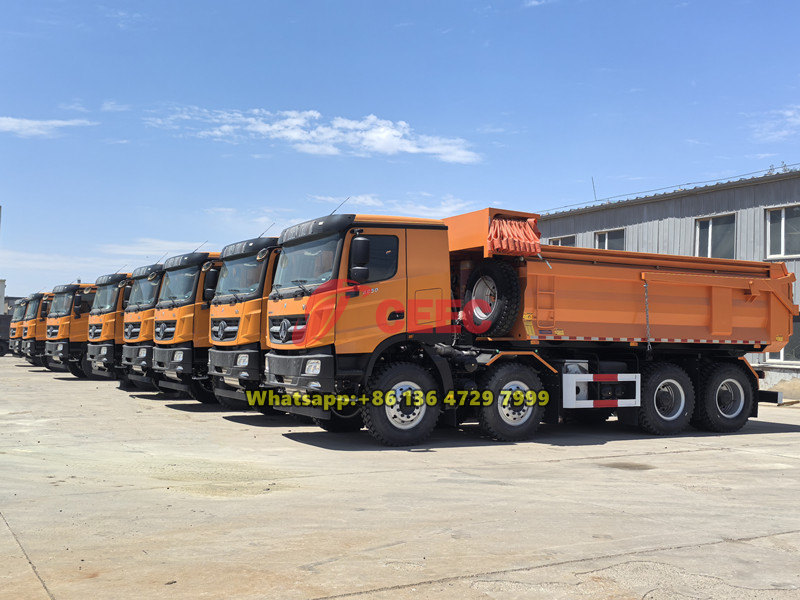

Beiben V3 4850 dump trucks batch delivery
Products--100% china beiben factory trucks!
Shipping --100% fast, Convenience, Efficient!
1.Beiben 4x4, 6x4, 6x6, 8x4 drive tipper truck, all upon on your need !
2. Factory bottom price, save your china vist cost
3.12 months after sale service guarantee, quality assurance.
4. 12.00R24 tyres, 14.00R20 , 315/80R22.5, 13.00R22.5, all are avaiable.
As the best baotou beiben 12 wheeler dump trucks manufacturer, we can produce Beiben 12 wheeler dump truck 8*4 driving sytem, with beiben special 340 horse power diesel engine, fast gear 12 shift transmission. The north benz 340 hp dump trucks are widely used for transporting sand, construction material and low density material .
Beiben 3138 dump trucks is also called as beiben 3138 dumper, with beiben 380 hp diesel engine and full germany benz technology. Our north benz 380 hp 12 wheeler dump truck are very polulare in africa countries, such as CONGO, TANZANIA, GHANA, NIGERIA.
North benz 12 wheeler 420 Hp dumpers , with beiben 420 hp diesel engine, fast 12 shift transmission, fully applyied Benz truck technology, with latest beiben dumper trucks technology.
As the best dealer of baotou beiben heavy duty trucks plant, we can produce the best type for beiben 420 hp dump trucks. It is beiben 6*4 dumper with 420 hp engine. All the beiben 420 hp dumper from our plant will have long guarantee more than 12 months.
Made in China Powerful Beiben V3 8X4 tipper for sale With Low Price, we are best china made beiben V3 12 wheeler dump trucks manufacturer, more than 10 years in beiben V3 dump trucks producing.
Durable Beiben V3 8X4 dumper truck With Low Price , we can make sure the best price for beiben V3 dump trucks. Our price for beiben 12 wheeler dump trucks is the factory price .
Drive Wheel: 8x4 Capacity (Load): 41 - 50t Horsepower: 351 - 450hp Condition: New Transmission Type: Manual Emission Standard: Euro 3 Fuel Type: Diesel Engine Capacity: > 8L Gross Vehicle Weight: 31000 Place of Origin: Shandong, China (Mainland) Brand Name: BEIBEN Model Number: 3138K Dimensions (L x W x H) (mm): 7500x2500x1500 Color: white orange
beiben truck north benz NG80 3138 heavy dump tipper trucks dumper 8x4 380hp Africa hot sale low price,New design European vehicles security level Stemping vehicle frame Benz unique axle technique High reliability fuel economy
north benz NG80 3138 heavy dump tipper trucks manufacturer , best quality north benz 3138 dump truck for sale
