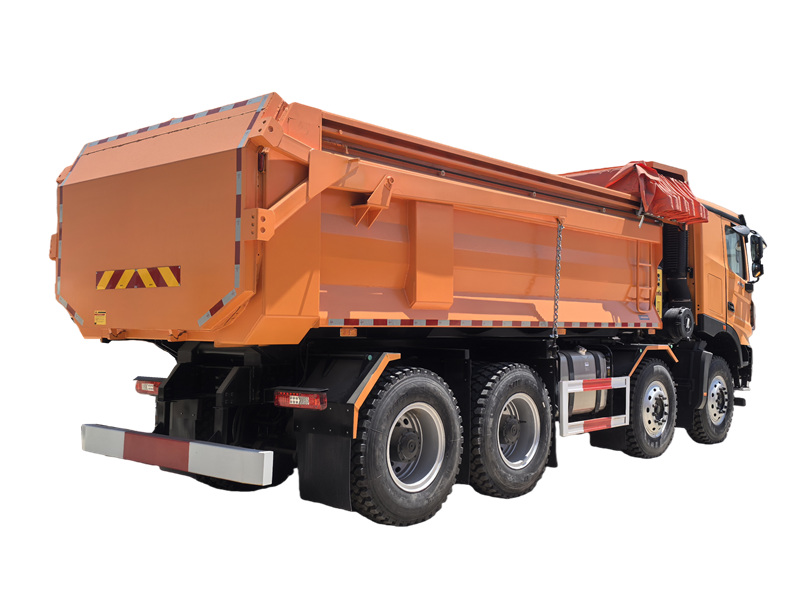

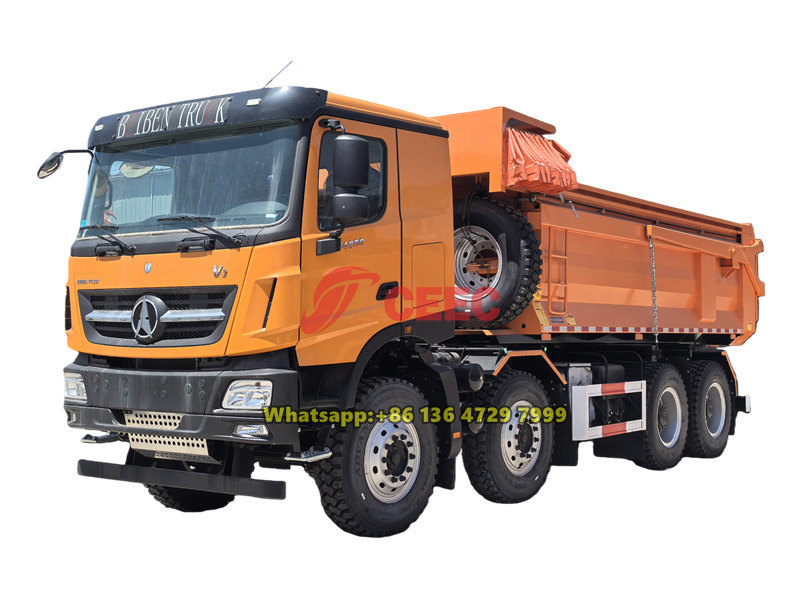

Beiben V3 8x4 dump truck is equipped with a Weichai 500HP engine, paired with a 12-speed transmission and a double-reduction drive axle, delivering a mature and reliable powertrain. The cargo body features a high-strength steel U-shaped structure, with an 8mm-thick floor, and is fitted with an HYVA front-mounted lifting system that achieves a maximum tilt angle of 55° for clean dumping. The cab meets European ECE R29 safety standards, while the chassis incorporates a variable-section frame and Beiben's proprietary axle technology for superior load-carrying capacity. Standard-fit canopy cover and tailgate seals effectively prevent spillage during transport, making it suitable for bulk haulage in mining, infrastructure, and other harsh working conditions.
Working Capcity:
50 tonsCabin Type:
V3 cabinDimension ( mm ) :
9800×2550×3630Drive System:
8×4Wheelbase (mm):
1950+3400+1450Engine Power:
500HP/WP13.500E501Gear Box:
12JS200TRemark:
12.00R24, RHD drive optionalThe Beiben V3 8x4 dump truck is a heavy-duty transport vehicle purpose-built for severe operating environments. It is powered by the WEICHAI WP13 series engine, delivering up to 500HP and a torque of 2400 N·m, coupled with a 12-speed manual transmission and a double-reduction drive axle, ensuring strong climbing ability and stable starts. Thee vehicle utilizes a high-strength steel U-shaped cargo body with an 8mm-thick floor, paired with an HYVA front-mounted lifting system that achieves a maximum tilt angle of 55° for efficient and thorough dumping. The chassis features a variable-section frame and Beiben's proprietary axle technology, offering high load capacity and reliable operational availability.
This Beiben construction tipper truck adopts the V3 cab, which meets European ECE R29 safety standards. The metal skeleton and skin structure are robust and durable, while the interior is equipped with an air-suspension seat, air conditioning, and a single bunk, balancing comfort and practicality. The cargo body comes standard with a canopy cover and tailgate seals, effectively preventing spillage and dust emissions during transport to meet environmental protection requirements. This model combines heavy-load strength with everyday operational convenience, demonstrating strong adaptability in bulk haulage scenarios such as earthmoving, ore, and coal transport, and is capable of meeting operational demands under various working conditions.
CEEC factory is authorized supplier on Beiben heavy duty dumper trucks,
guarantee all Beiben tipper trucks Brand-New and High-Quality.
» Ⅰ.Product Defination and Introduction:
Manufacturer: CEEC TRUCKS
▶ Chassis: Beiben 8×4 heavy chassis, V3 cabin, Weichai 500HP diesel engine, Fast 12-speed gearbox
▶ Axles: Front axle 7.5T, non-driving steering axle, drum brake；rear axles 16T, double reduction driving axle
▶ Steering: 8098, circulating ball steering gear, hydraulic booster
▶ Cargo body: U-type box with tarp cover , Q345 high-strength steel, walls 6mm, floor 8mm
▶ Lifting system: Front-mounted telescopic hydraulic cylinder, HYVA brand
» Ⅱ. Product Specifications:
|
Beiben V3 Construction Tipper Truck Technical Specification |
||
|
Basic parameter |
Model |
4850K/8×4 |
|
Length×width×height(mm) |
9800×2550×3630 |
|
|
Wheel-base(mm) |
1950+3400+1450 |
|
|
Curb weight(kg) |
15600 |
|
|
Cargo box |
Size (mm) |
6800×2350×1500 |
|
Material |
High strength steel Q345 |
|
|
Thickness (mm) |
Walls: 6mm; Floor 8mm |
|
|
Lifting system |
Front lifting, HYVA brand telescopic hydraulic cylinder |
|
|
Lifting angle |
55° |
|
|
Painting |
Primer, mid-coat and top coat |
|
|
Engine parameter |
Model (six cylinder in line) |
WP13.500E501 |
|
Max. Power (HP/rpm) |
500HP/1900RPM |
|
|
Max. Torque(Nm/rpm) |
2400/950～1400 |
|
|
Displacement(lit) |
12.54 L |
|
|
Fuel tank capacity |
400L |
|
|
Transmission system |
Clutch |
430 Single disc, dry type, friction clutch； |
|
Gearbox |
12JS200T Mechanical, 12 forward gear, manual； |
|
|
Steering system |
Steering gear |
8098 Circulating ball steering gear, hydraulic booster； |
|
Brake system |
Service brake |
Double circulation air brake system equipped； |
|
Parking brake |
Energy storage spring brake； |
|
|
Assisted brake |
Engine exhaust brake； |
|
|
Chassis parameter |
Frame |
Variable width and section 317×70×8.5+7 mm； |
|
Front axle |
7.5T, Non-driving steering axle, drum brake； |
|
|
Middle & Rear axle |
16T, Double-shoe pneumatic brake, double reduction driving axle, differential lock, ductile casting casing, speed ratio is 5.263； |
|
|
Front and rear suspension |
Front/rear: Leaf spring, 12/12/13 pieces； |
|
|
Tire |
12.00R24, 12+1 pcs |
|
|
Cab |
V3 Cabin Flat roof. Exterior trimming: Metal bumper, three steps, outer sun visor, sun roof (Manual), front under-ride bumper, rear view mirror (Manual). |
|
|
Interior trimming: Air suspension seat, Single bunk with sleeper, cooling and heating air conditioner, Steering wheel can be adjusted, door lock(Manual), radio (with MP3), digital instrument, electric window lifter |
||
» Ⅲ. Product Details:
 |
 |

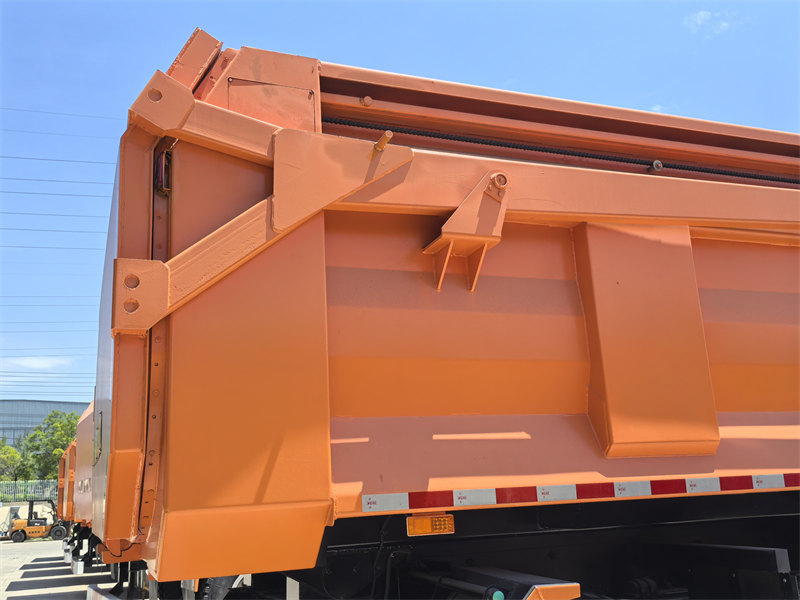

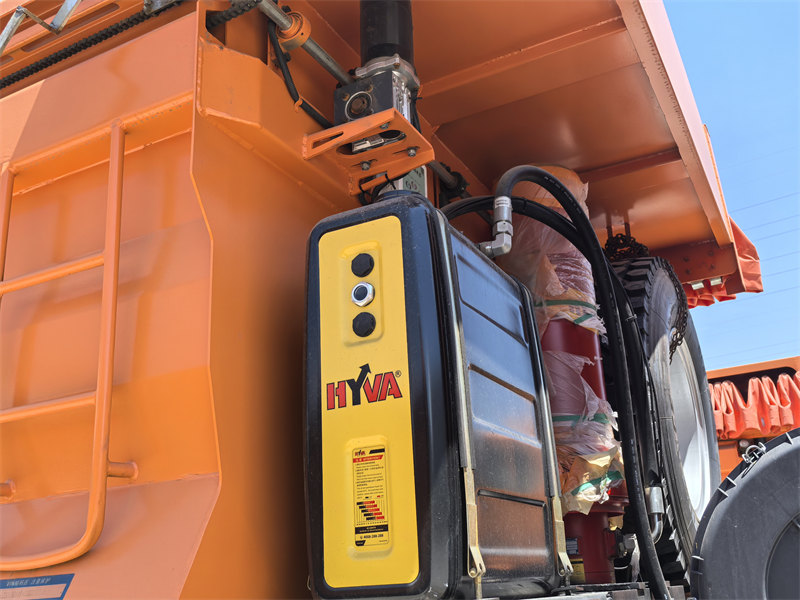

| HYVA hydraulic lifting system | Customized rear cover |
 |
 |

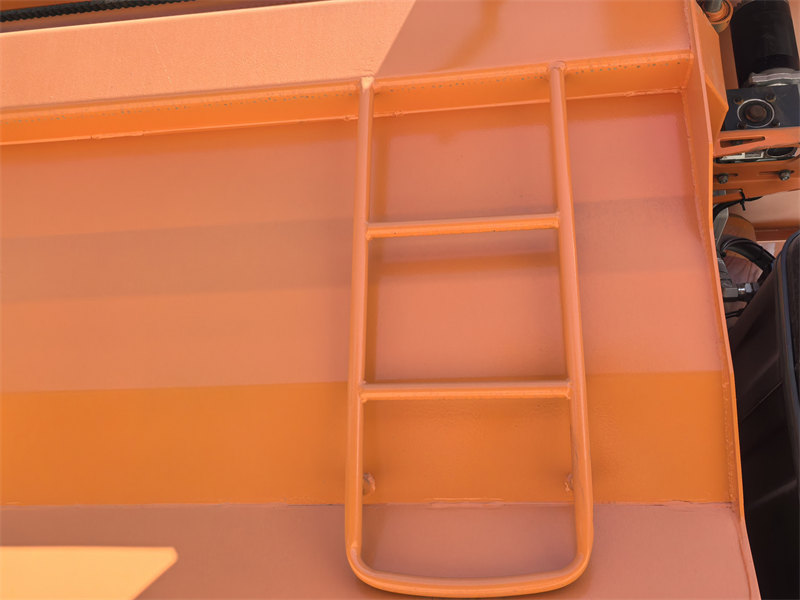

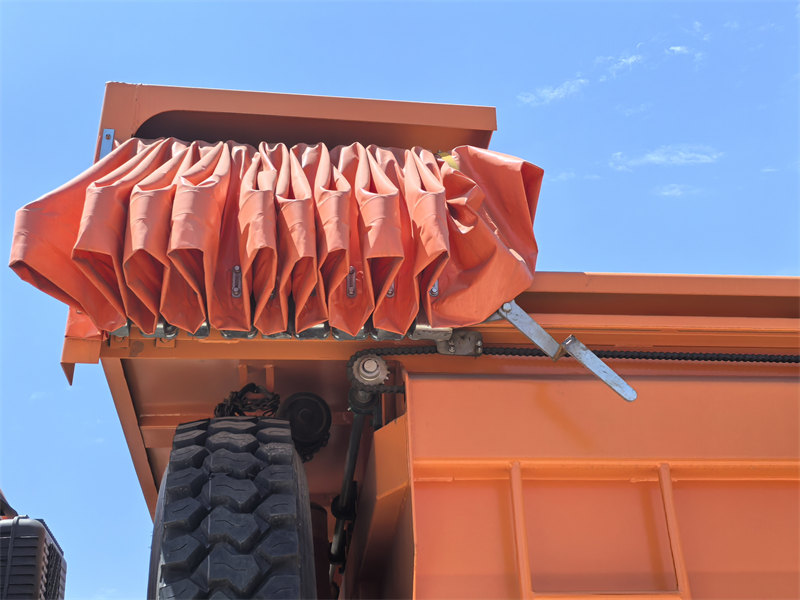

| Tarpaulin cover | Ladder |

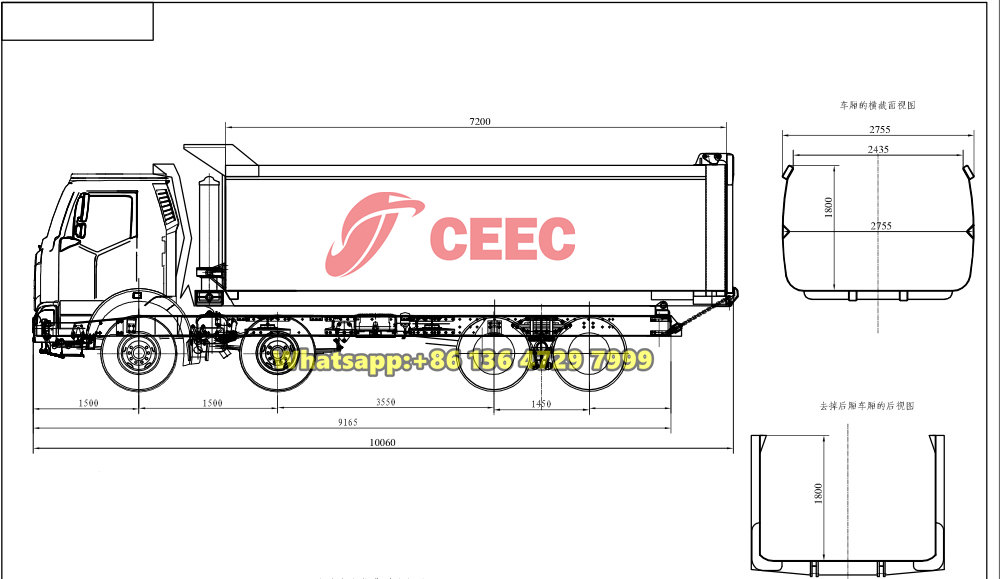

» Ⅳ. Product Drawing
» Ⅳ. Beiben V3 Heavy Tipper Truck Features
▶ Powerful Engine – Weichai WP13 series 500HP engine, displacement 12.54L, maximum torque 2400 N·m, delivering high torque at low RPM for ample starting power at high altitudes and under heavy loads.
▶ Sturdy Chassis – Variable-section frame combined with Beiben-specialized double-reduction drive axles, with leaf springs in a 12/12/13 configuration, providing generous load margin, withstanding repeated heavy-load impacts without frame distortion.
▶ Efficient Dumping – U-shaped body with HYVA front-mounted lifting system, 55° large tilt angle, ensuring clean discharge of mud, soil, and ore without the need for manual cleaning – saving time and increasing efficiency.
▶ Sealed and Eco-Friendly – Tarp cover plus tailgate rubber seals ensure fully enclosed transport, preventing mud splashes and dust emissions, giving confidence when passing environmental inspections.
▶ Safe and Rugged – Cab meets ECE R29 crash safety standards, with a skeleton-and-skin structure offering strong impact resistance; dual-circuit braking plus exhaust auxiliary brake ensures stable control when descending slopes under heavy loads.
▶ Easy Maintenance – Core components such as the engine and transmission have large market availability, with ample spare parts supply, so repairs do not require long waiting times for parts.

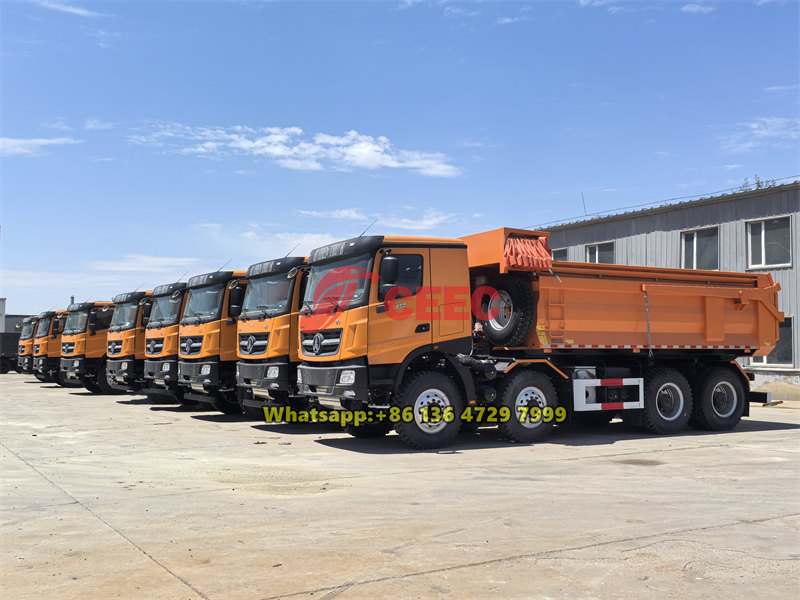

»Ⅴ. Beiben V3 500HP Heavy Tipper Truck Batch Delivery
