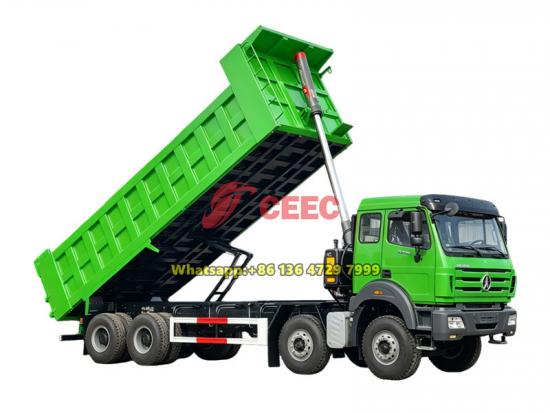

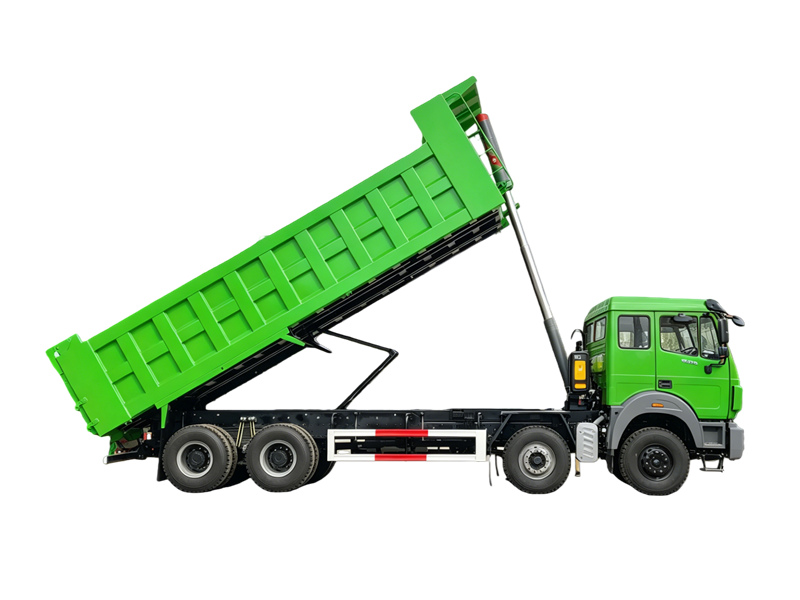

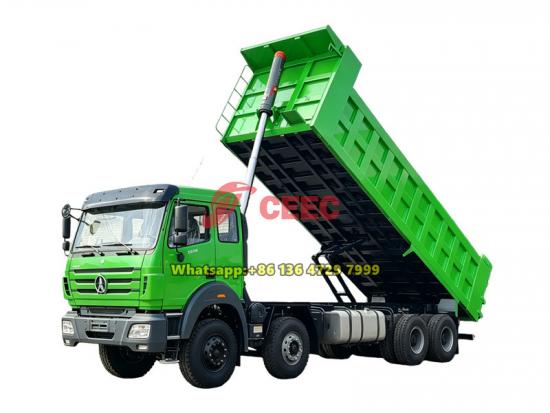

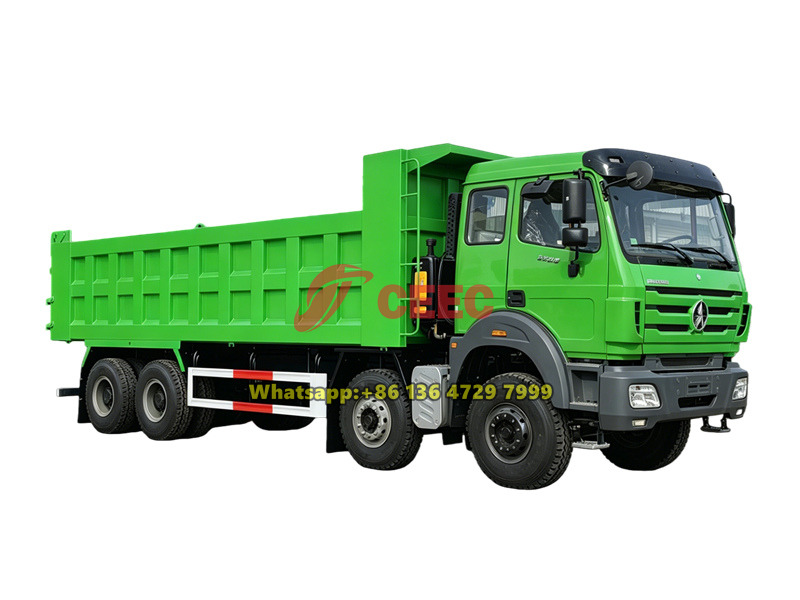

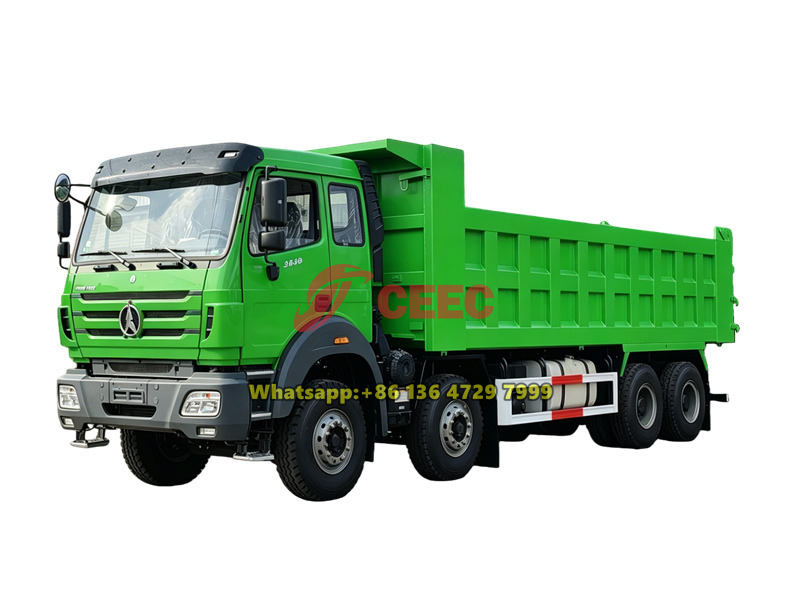

The Beiben 8×4 construction dump truck is a heavy-duty engineering vehicle built on the Beiben 3142 chassis, designed for demanding working conditions such as mining and infrastructure projects. It is equipped with a 420-horsepower Weichai engine, a FAST 12-speed manual transmission, and a high-strength cargo body with a floor thickness of 10 mm, featuring a reliable front lifting system. The entire vehicle utilizes a high-strength steel frame and reinforced suspension, offering strong durability, making it especially suitable for short-distance transportation of bulk materials such as sand, gravel, and coal.
Working Capcity:
50 tonsCabin Type:
NG80B long cabin, with sleeperDimension ( mm ) :
9900×2550×3400Drive System:
8×4Wheelbase (mm):
1500+3500+1450Engine Power:
420HPGear Box:
12JS200TRemark:
12.00R24, 14.00R20 tyre, 6×6, RHD drive optionalThe Beiben 8×4 dump truck is a heavy-duty construction vehicle manufactured on the Beiben 3142 chassis. It is powered by a Weichai 420HP six-cylinder engine paired with a FAST 12-speed manual transmission, delivering ample power output and high torque. The chassis features a reinforced frame, combined with double-reduction drive axles with differential lock, and a comprehensive braking system, providing strong load capacity and excellent adaptability to various road conditions.
The cargo body is made of Q345 high-strength steel, with thickened and wear-resistant panels. The front-mounted hydraulic lifting system ensures efficient unloading. The cab is a long-wheelbase, flat-roof sleeper cabin equipped with comprehensive driving features, offering comfort for long-haul operations. This Beiben heavy-duty tipper truck is mainly used for construction waste transport, sand and gravel hauling, and ore transportation, adapting to complex and heavy-duty working conditions on construction sites and in mining areas, with outstanding durability and operational reliability.
CEEC factory is authorized supplier on Beiben heavy duty dumper trucks,
guarantee all Beiben tipper trucks Brand-New and High-Quality.
» Ⅰ.Product Defination and Introduction:
Manufacturer: CEEC TRUCKS
» Ⅱ. Product Specifications:
| Beiben 8×4 50-ton Tipper Truck Technical Specifications | ||
| Basic parameter | Chassis model | 3138K/8×4 |
| Length×width×height(mm) | 9900×2550×3400 | |
| Wheel-base(mm) | 1500+3500+1450 | |
| Curb weight(kg) | 15200 | |

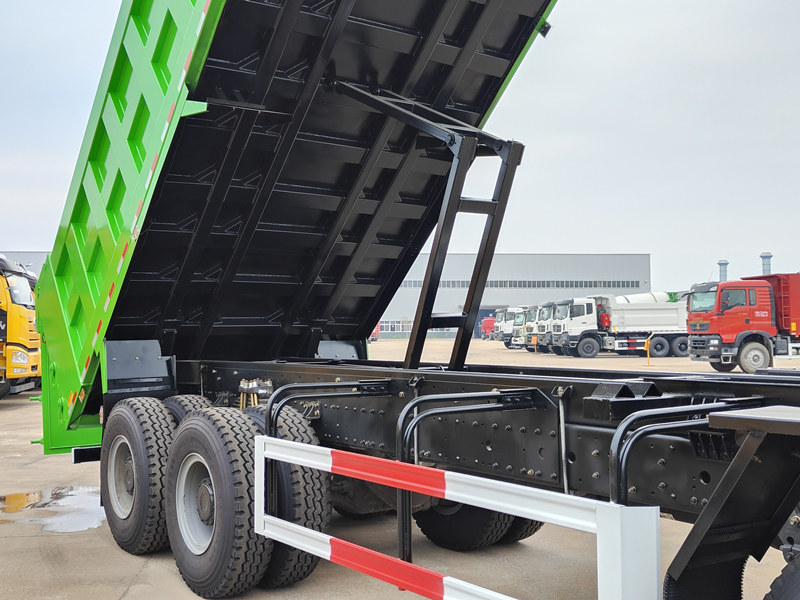

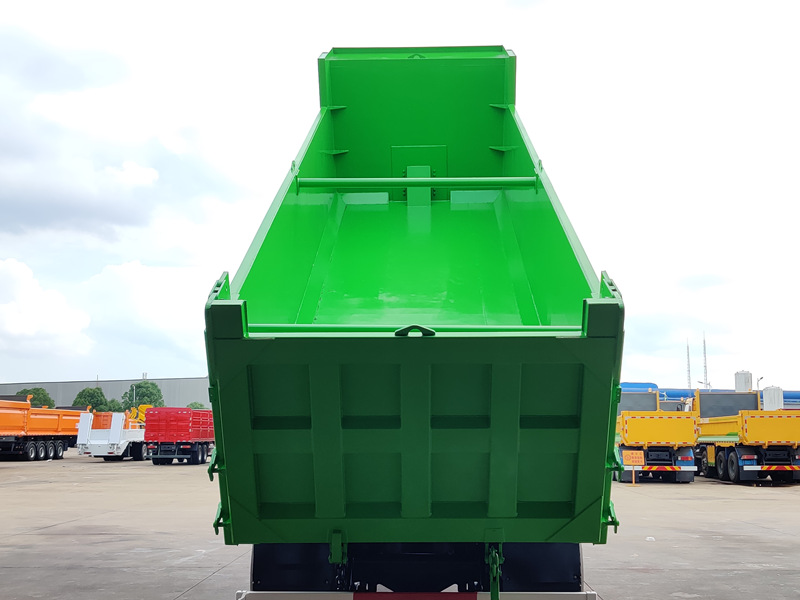

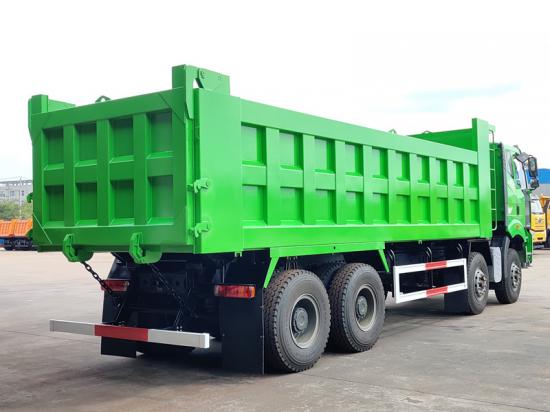

| Cargo box | Size (mm) | 6500×2300×1500 |
| Material | High strength steel Q345 | |
| Thickness (mm) | Walls: 8mm; Floor 10mm | |

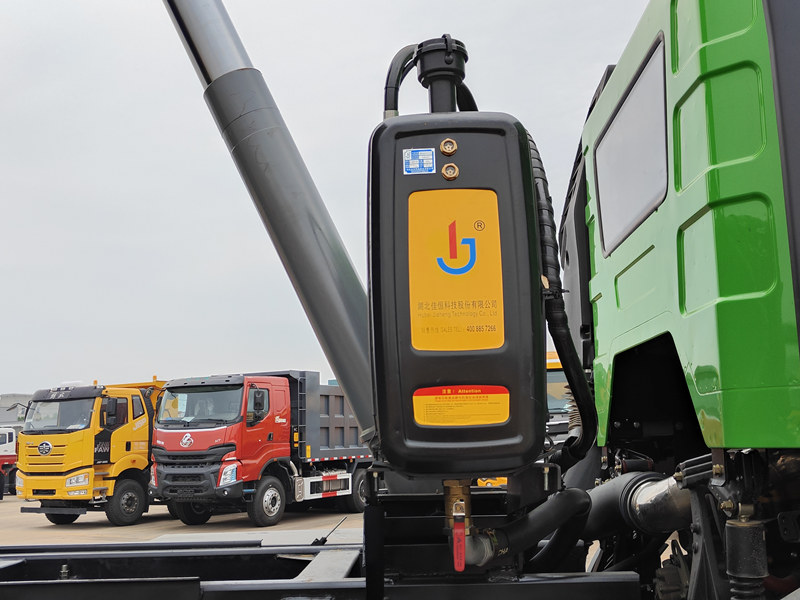

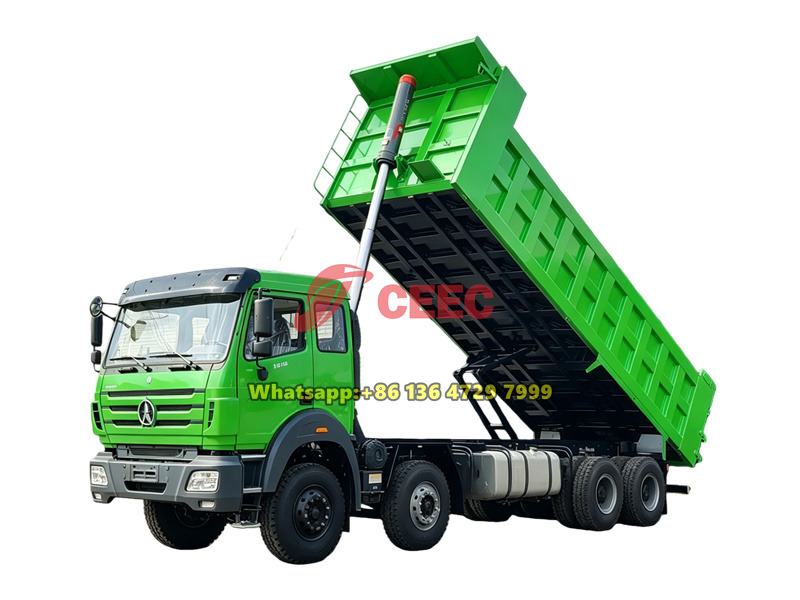

| Lifting system | Front lifting, telescopic hydraulic cylinder diameter 180mm | |
| Lifting angle | 55° | |
| Painting | Primer, mid-coat and top coat | |

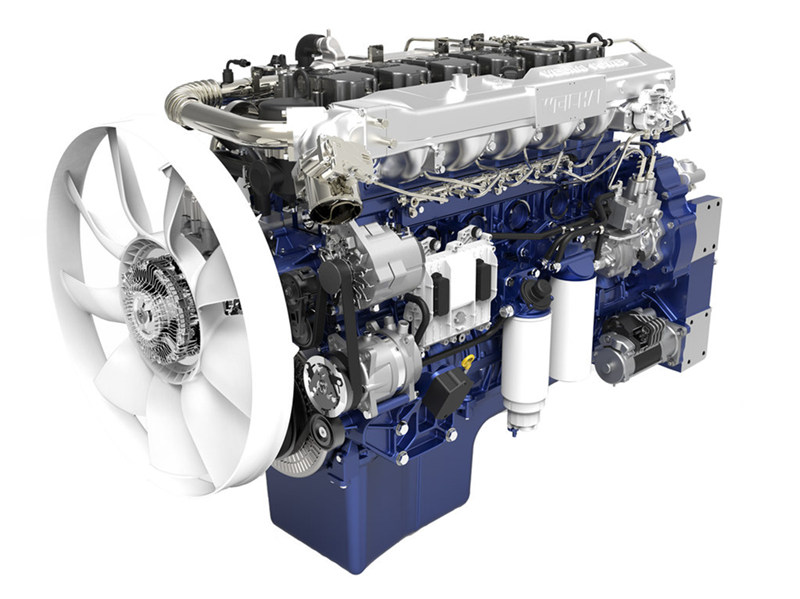

| Engine parameter | Model (six cylinder in line) | WP10.380E32 |
| Max. Power (HP/rpm) | 380 | |
| Max. Torque(Nm/rpm) | 1500/1400～1600 | |
| Displacement(lit) | 9.726 L | |
| Fuel tank capacity | 400L （Iron） | |
| Transmission system | Clutch | 430 Single disc, dry type, friction clutch； |

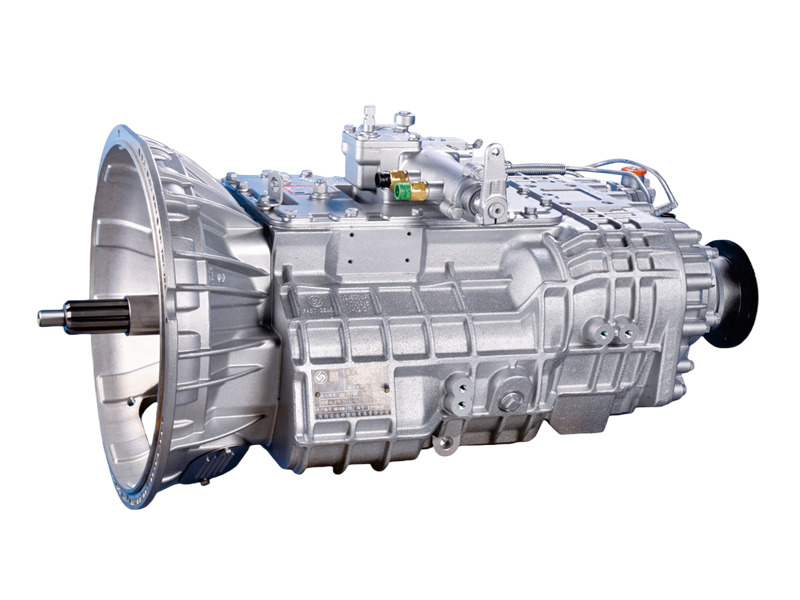

| Gearbox | 12JS200T | |
| Mechanical, 12 forward gear, manual； | ||
| Steering system | Steering gear | 8098 |
| Circulating ball steering gear, hydraulic booster； | ||
| Brake system | Service brake | Double circulation air brake system equipped； |
| Parking brake | Energy storage spring brake | |
| Assisted brake | Engine exhaust brake | |
| Chassis parameter | Frame | Variable width and section 317×75×8.5+8.5 mm； |
| Front axle | 7.5T, Non-driving steering axle, drum brake； | |

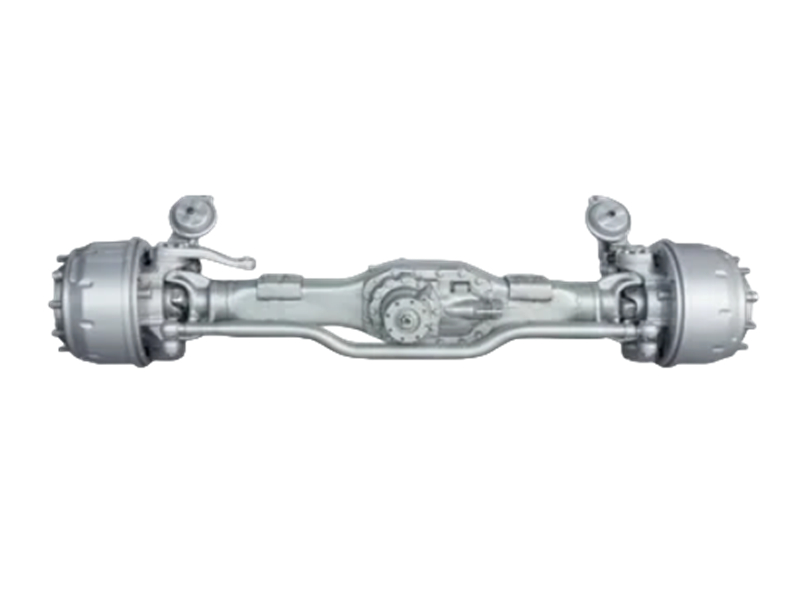

| Middle & Rear axle | 13T, Double-shoe pneumatic brake, double reduction driving axle, differential lock, ductile casting casing, speed ratio is 5.263； | |
| Front and rear suspension | Front/rear: Leaf spring, 12/12/13 pieces； | |
| Tire | 12.00R20 | |
| Cab | NG80B Long Cabin Flat roof with single sleeper | |
| Exterior trimming: | ||
| Metal bumper, three steps, outer sun visor, sun roof (Manual), front under-ride bumper, rear view mirror (Manual). | ||
| Interior trimming: | ||
| Air suspension seat, cooling and heating air conditioner, Steering wheel can be adjusted, door lock(Manual), radio (with MP3), digital instrument, electric window lifter | ||
» Ⅲ. Product Details:

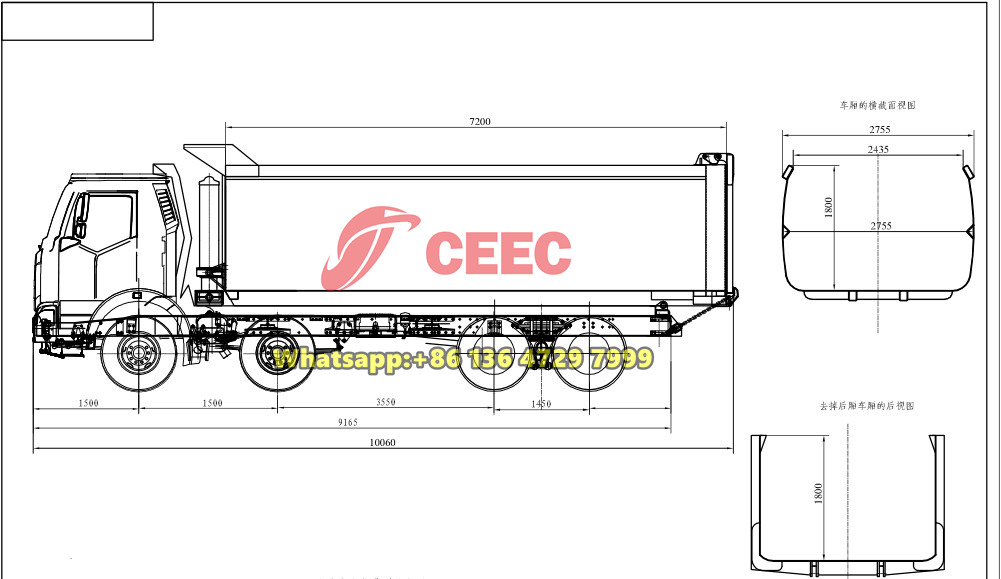

» Ⅳ. Product Drawing
» Ⅳ. Product Advantages
1. High Load Capacity: Beiben 8×4 tipper lorry features a 317×75×8.5+8.5 mm double-layer frame, combined with Mercedes-Benz technology 7.5-ton front axle and 13-ton dual rear axles, and leaf spring counts of 12/12/13, ensuring a robust and reliable chassis.
2. Mature Powertrain: Equipped with the Weichai WP12.420E32 engine and FAST 12JS200T transmission. This proven combination offers easy maintenance and high low-end torque, making it ideal for engineering dump truck applications.
3. Comfortable Cab: The NG80B long flat-roof cab is equipped with an air-suspended driver's seat, air conditioning, power windows, and a single sleeper bunk, meeting the needs for short rest breaks.
